Cabinet & Fascia Details

icon picker
Single Sided Sign Cabinets

Last edited 357 days ago by Adam Doll

Components of single sided fascia sign - Flex face

⁠
⁠
⁠

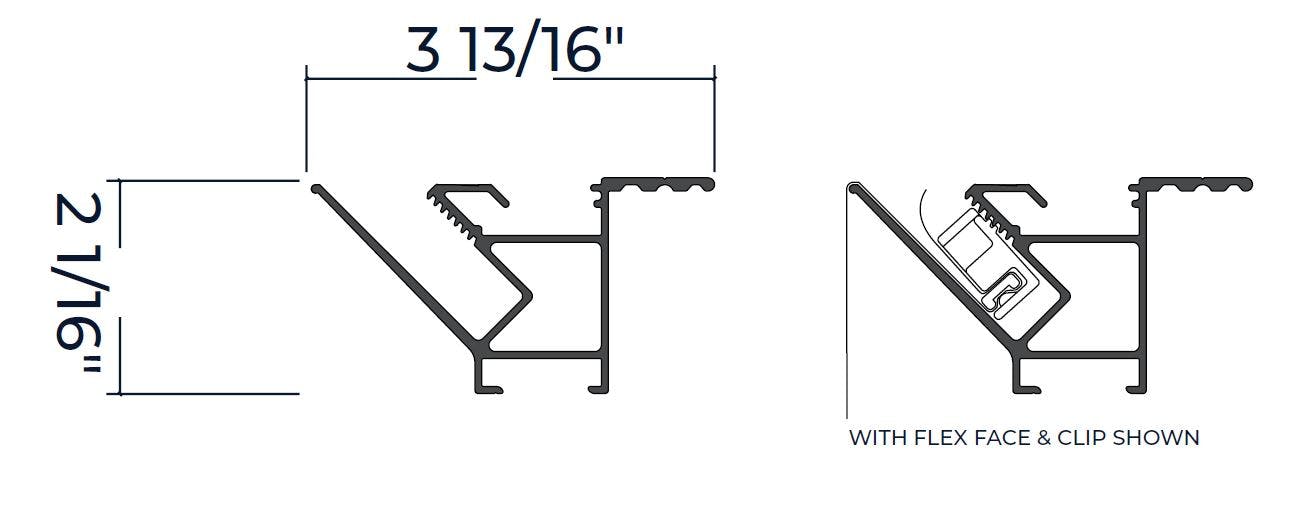

Signcomp #2027 standard flex frame extrusion
⁠
⁠
⁠

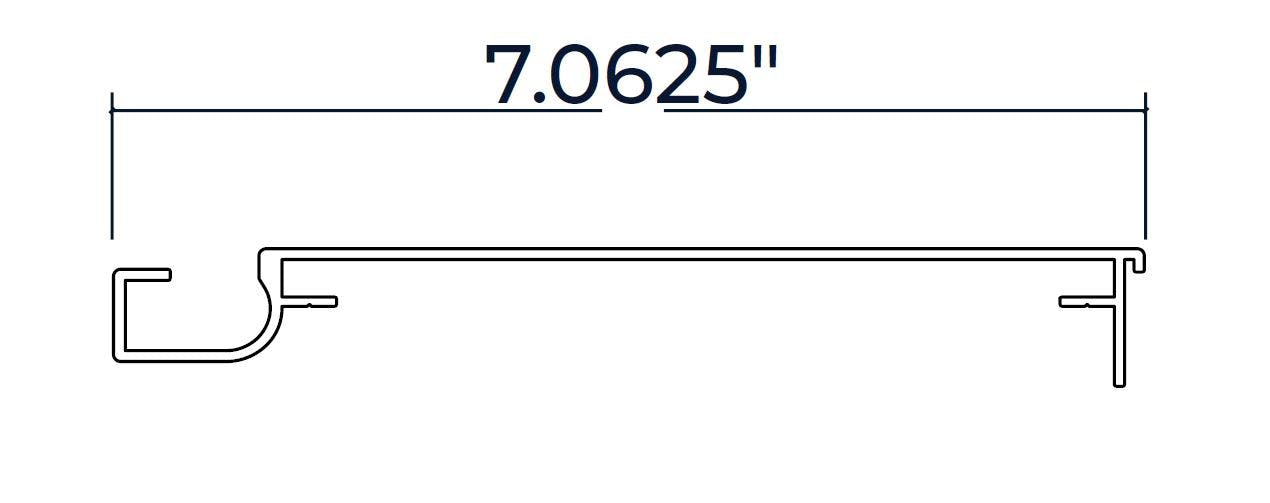

Signcomp #2027 standard filler cabinet body
⁠
⁠
⁠

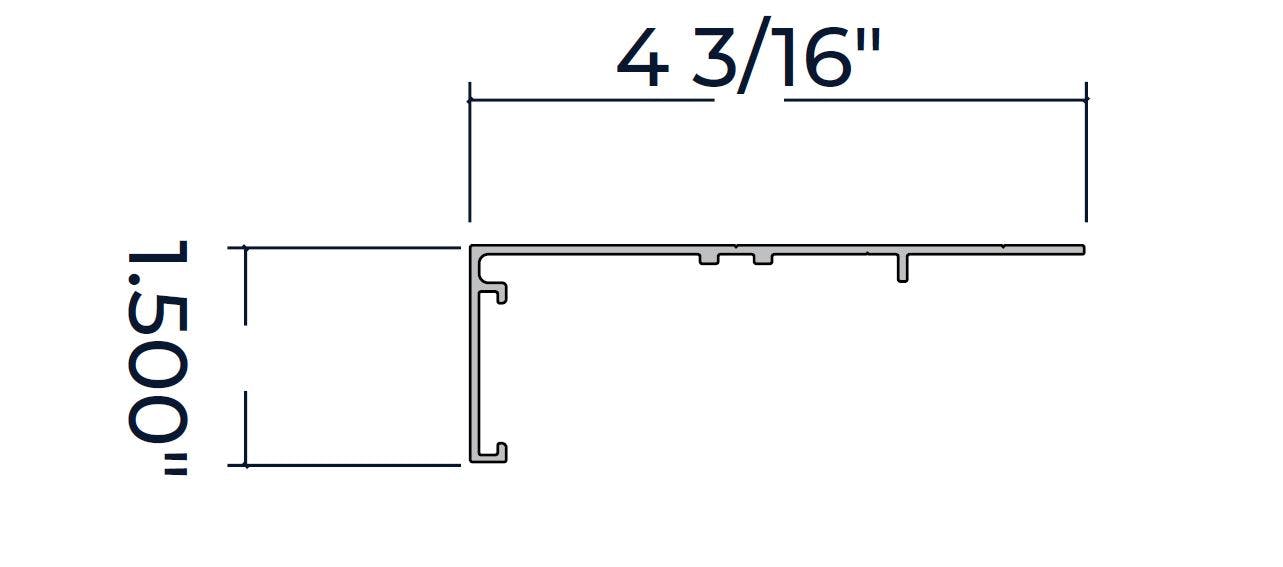

Signcomp #2125 frame cover
⁠
⁠
⁠

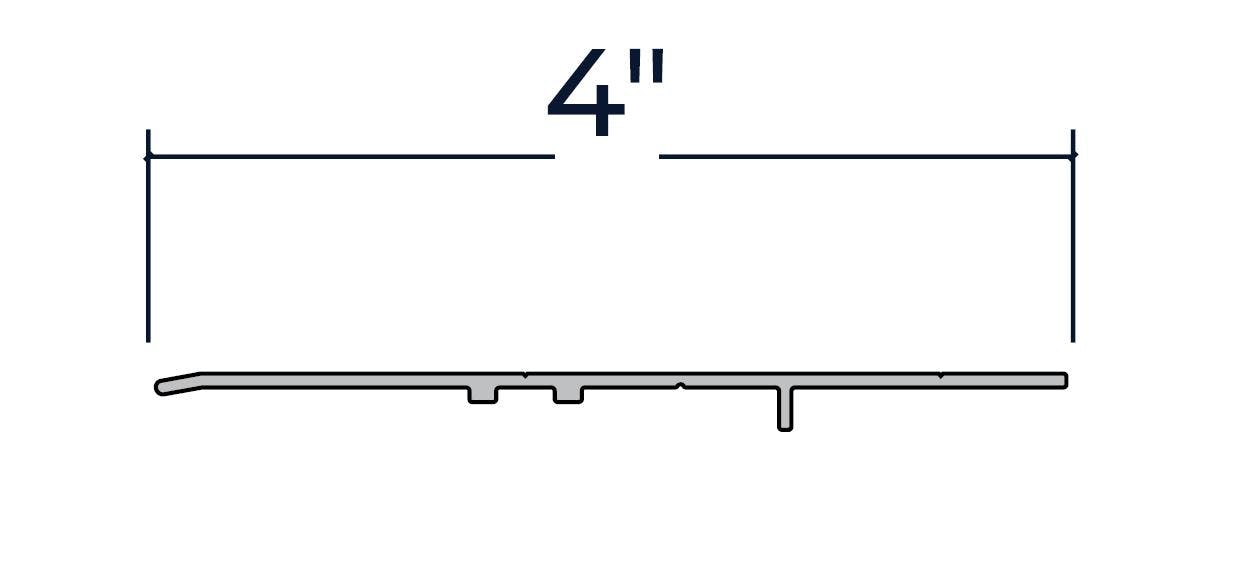

Signcomp #2123 frameless cover
⁠
⁠
⁠

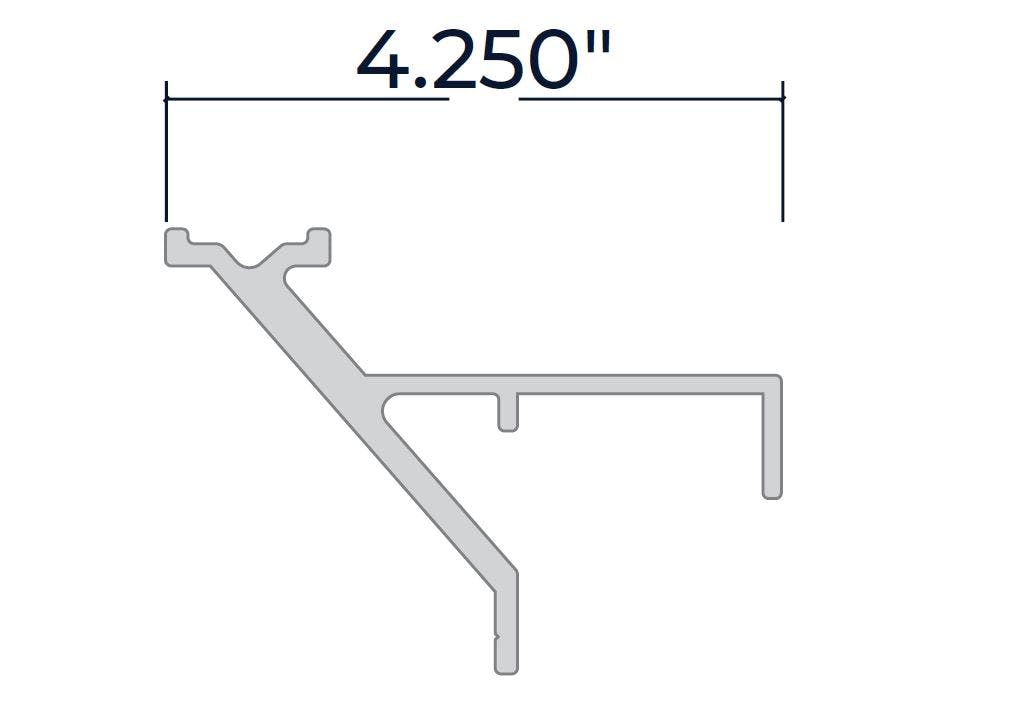

Signcomp #5350 framless brace

⁠

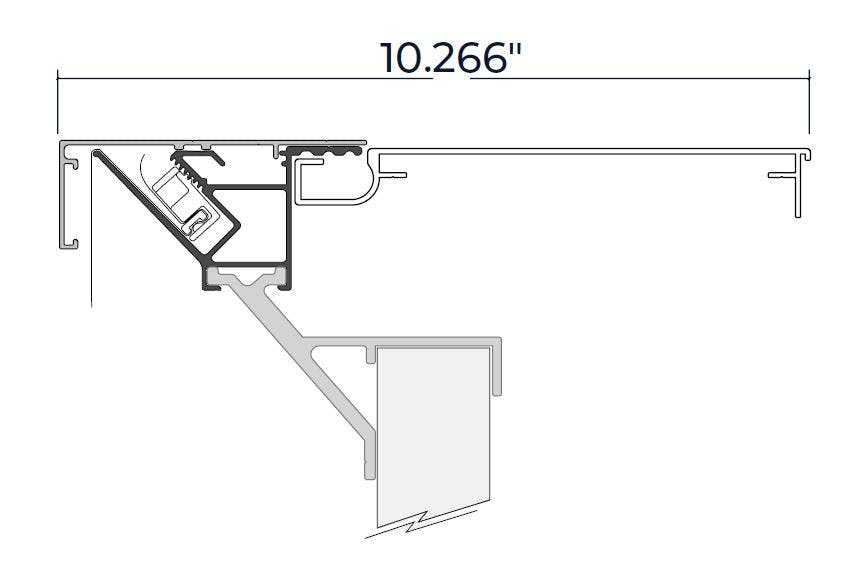

Single sided flex face - with frame

⁠
⁠
⁠

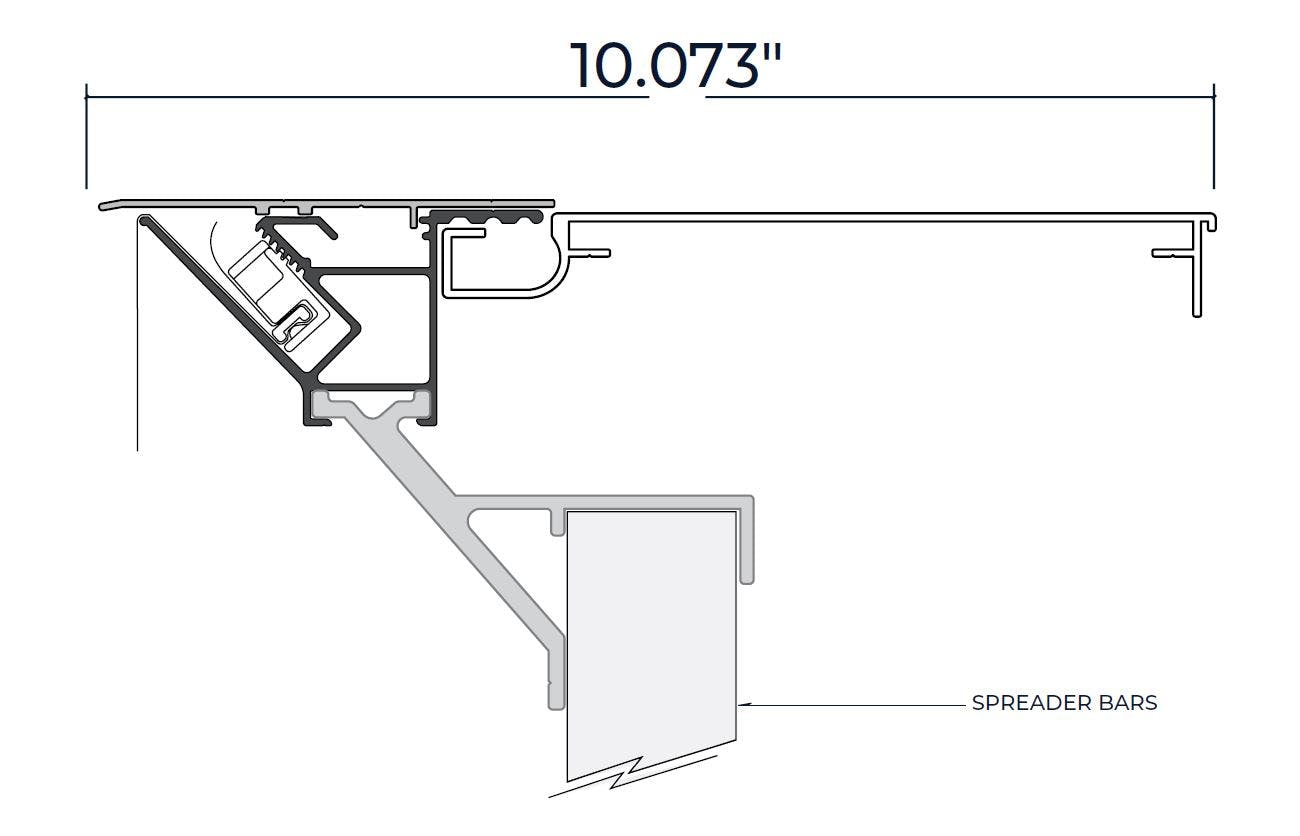

Single sided flex face - frameless

⁠
⁠
⁠
⁠

Components of single sided fascia sign - 4.5mm polycarbonate


⁠
EX-7 standard retainer.JPG
⁠
⁠
EX-7 standard retainer
⁠
⁠
⁠
Signcomp #2027 standard filler cabinet body
⁠

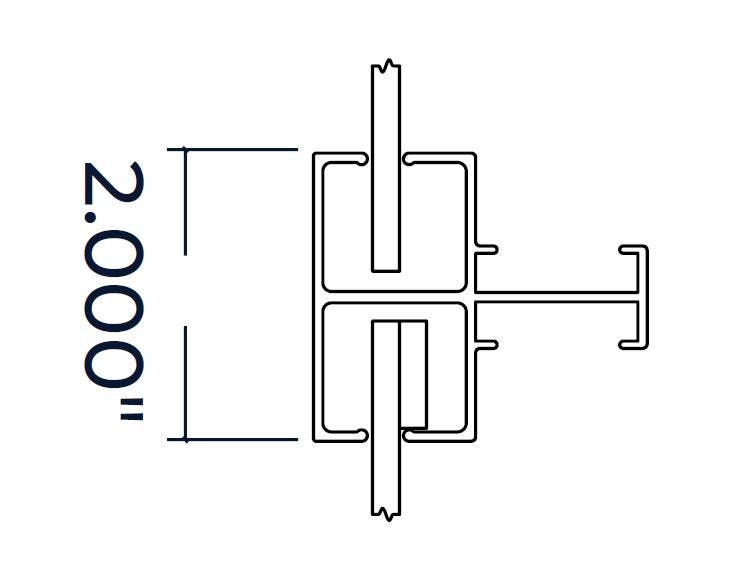

2138 standard divider.JPG
⁠
⁠
2138 standard h-bar divider tenant panel divider
⁠
Tenant panel divider.JPG
⁠
⁠

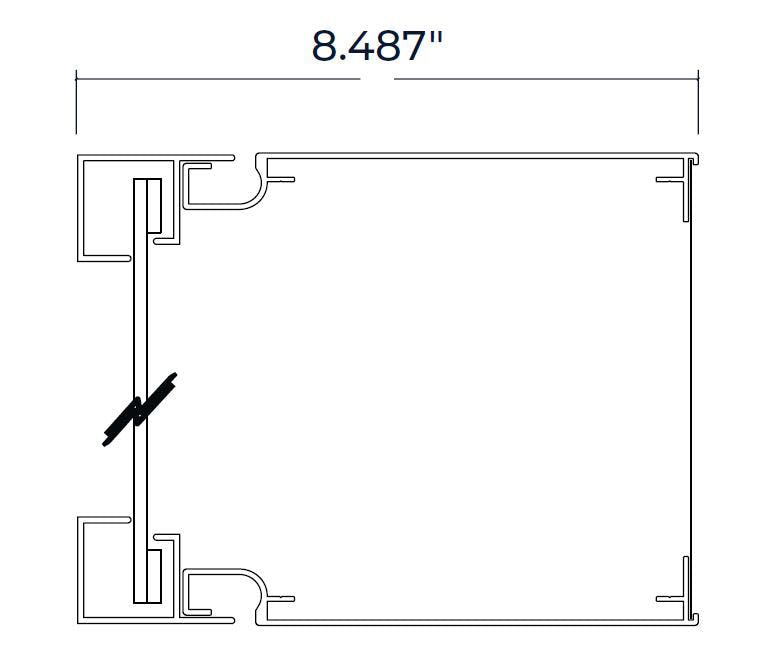

H-bar divider shown for optional tenant panels
⁠
Retainer - top and bottom.JPG
⁠
⁠
Top and bottom retainer shown
