Aluminum
Last edited 575 days ago by Adam Doll

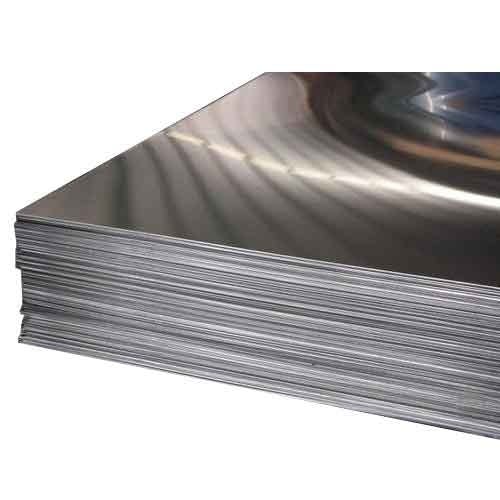

Used for sign blanks, cabinet construction, and sign faces.
.125” is used for routed and pushed through, and routed and backed sign faces.
ALUMINUM
.040
.050
.063
.080
.100
.125
STANDARD SHEET
48×120”
60×120”
60×120”
60×120”
60×120”
60×120”
MAX SHEET SIZE
48×120”
60×120”
60×120”
60×120”
60×120”
72×144”
