New Cabinet for Existing Single Column Pylon

Last edited 533 days ago by Adam Doll
To install a new cabinet on an existing single column, we need the following information.

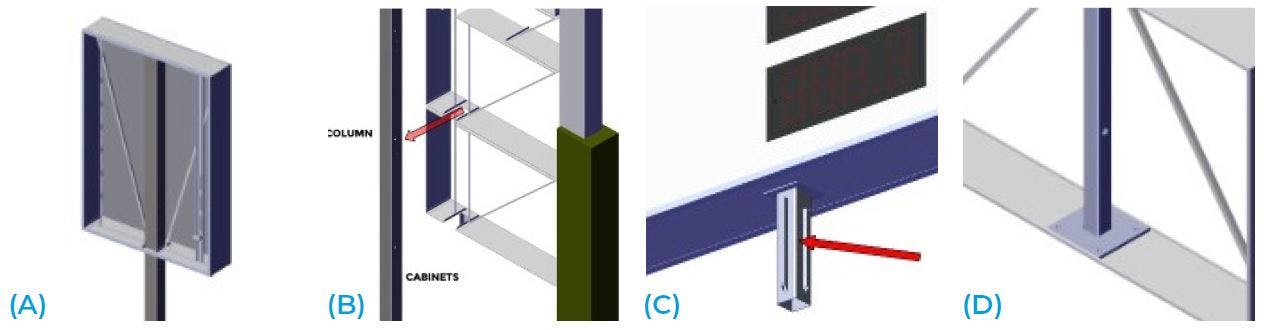

(A) Sleeve down installation - existing size of stub column.
(B) Sleeve on installation - exact size of existing sleeve column.
(C) Sleeve in installation - exact size of existing stub or support column.
(D) Mate plate installation - detailed mate plate dimensions.

⁠
⁠
⁠
