Double Sided Sign Cabinets

Last edited 1027 days ago by Adam Doll.

Components of a double-sided flex face

⁠
⁠
⁠

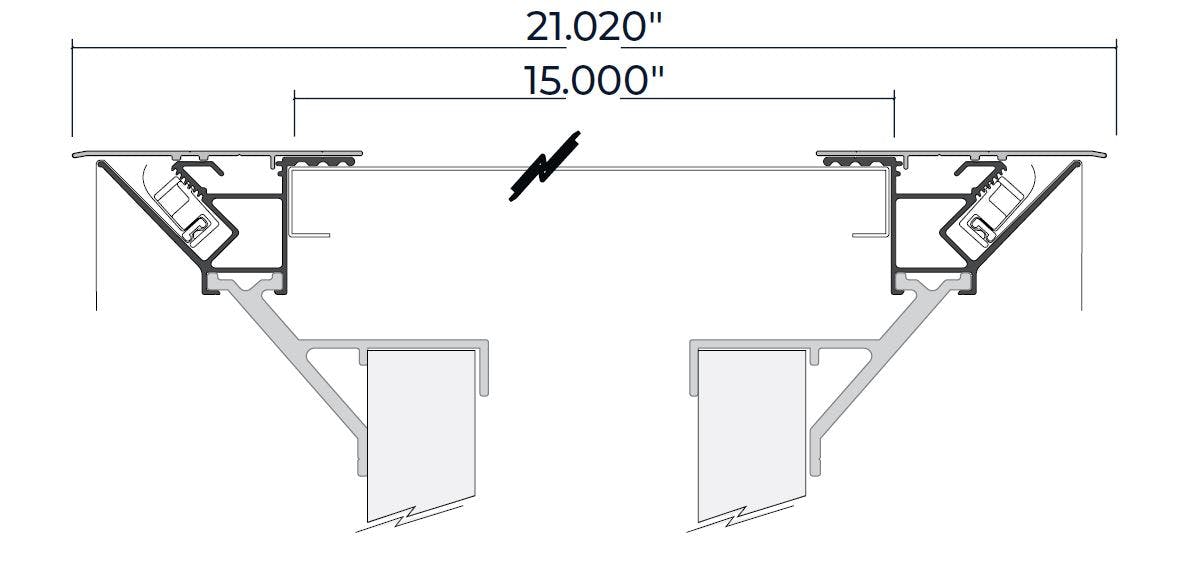

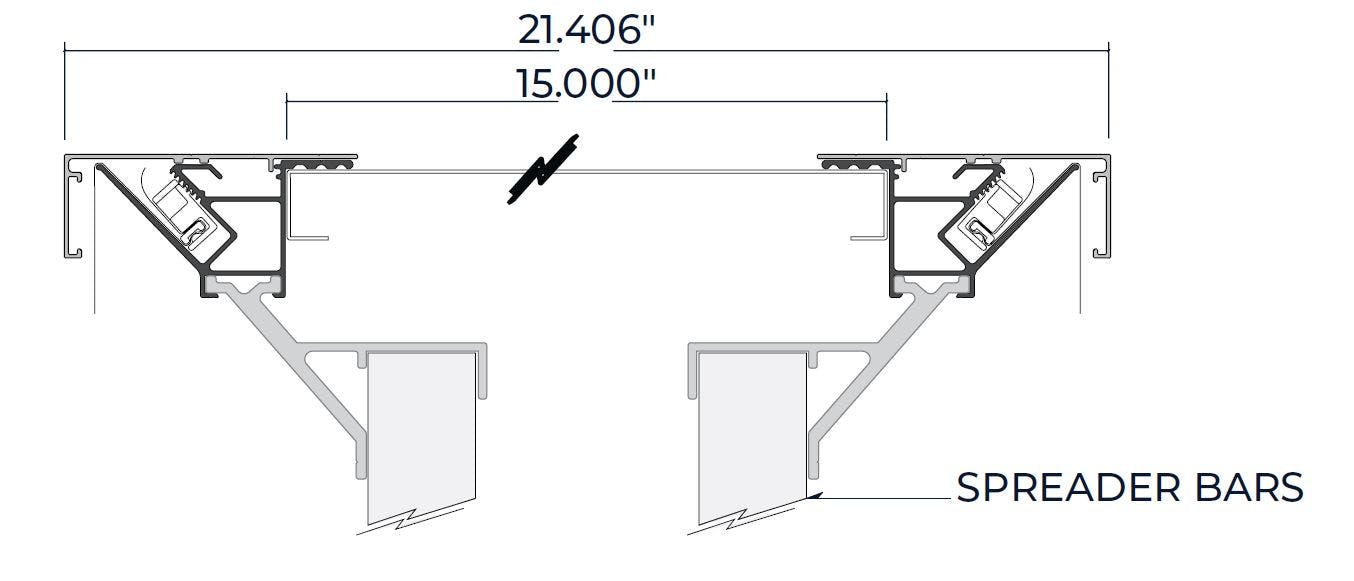

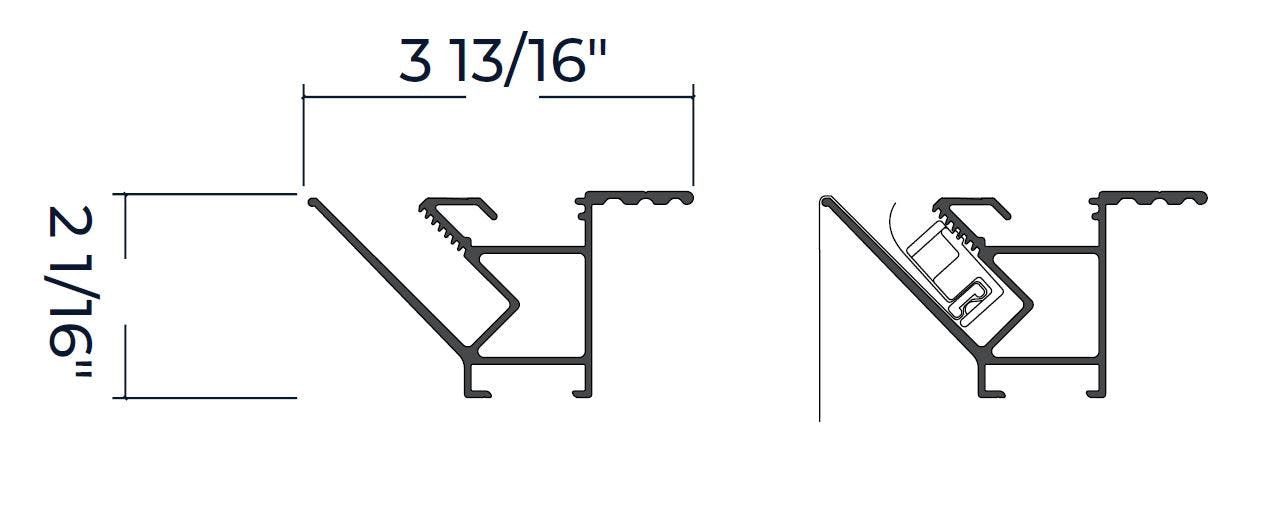

Signcomp #2104 standard flex frame
⁠
bent pan filler.JPG
⁠
⁠

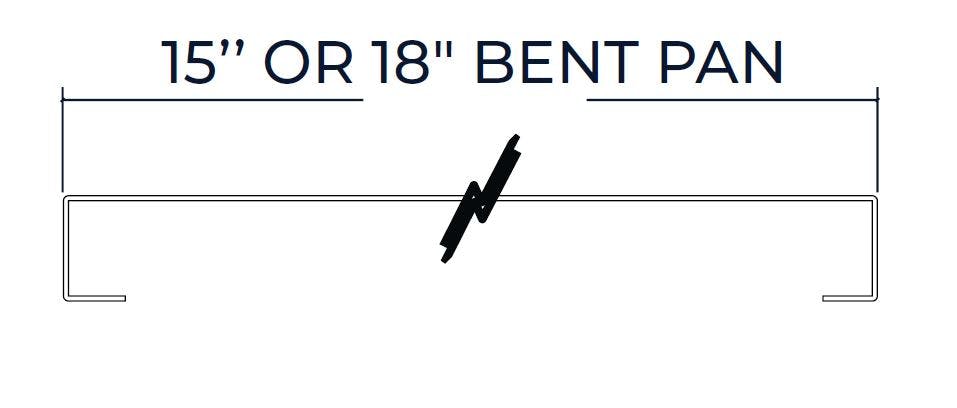

15 or 18” bent pan filler - cabinet body
⁠
⁠
⁠

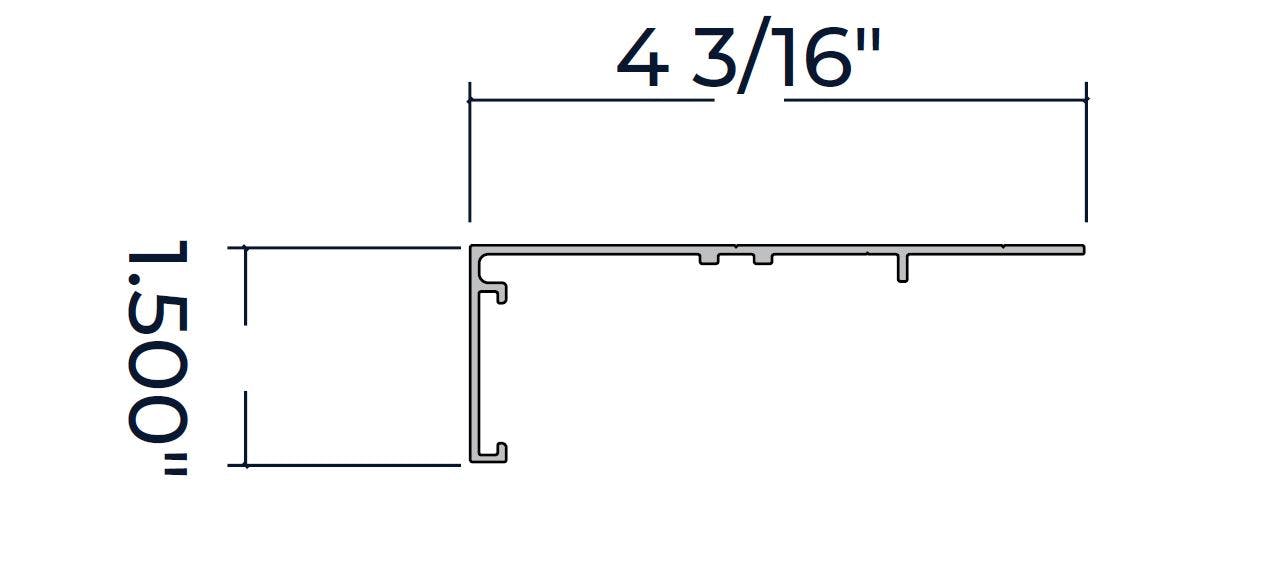

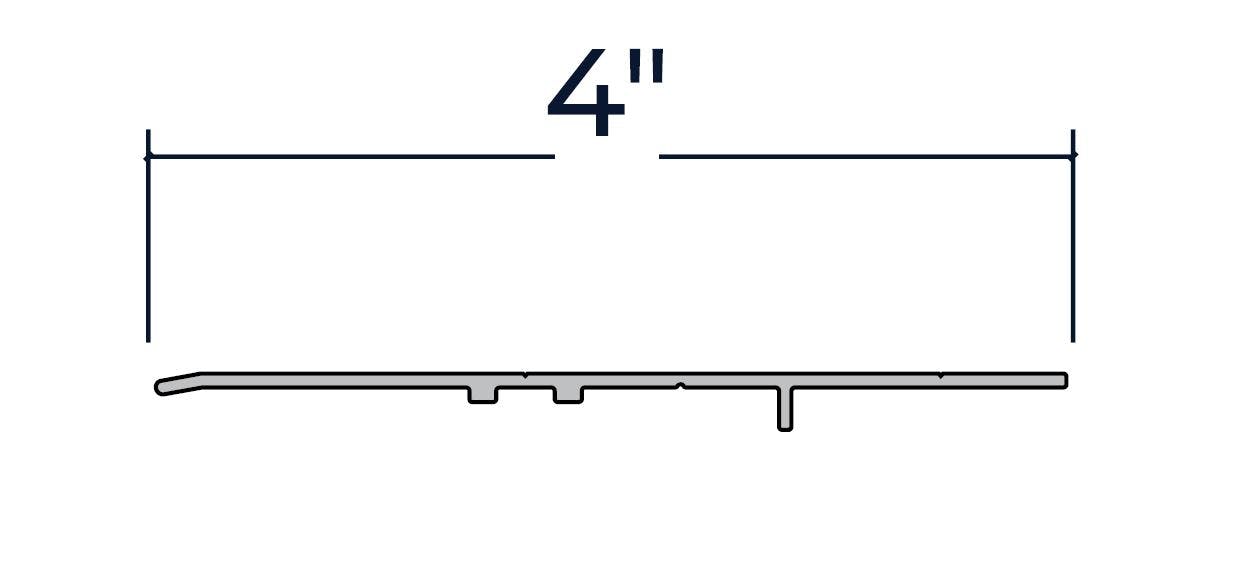

Signcomp #2125 frame cover
⁠
⁠
⁠
Signcomp #2123 frameless cover
⁠
⁠
⁠
Signcomp #5350 frameless brace
⁠

15” bent pan with frame

⁠
15in bent pan with frame.JPG
⁠
⁠

15” bent pan - frameless

⁠
15in bent pan frameless.JPG
⁠
⁠
⁠

18” bent pan with frame

⁠
18in bent pan with frame.JPG
⁠
⁠

18” bent pan - frameless

⁠
18in bent pan frameless.JPG
⁠
⁠
⁠

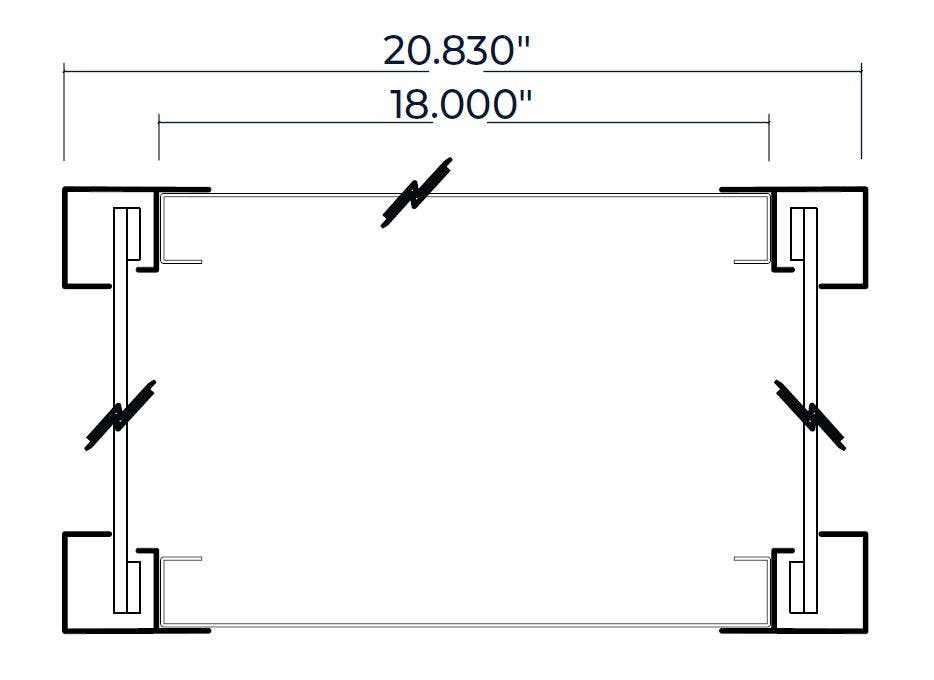

Components of 15 and 18” bent pan sign - double sided 4.5mm polycarbonate faces

⁠
EX-7 standard retainer.JPG
⁠
⁠

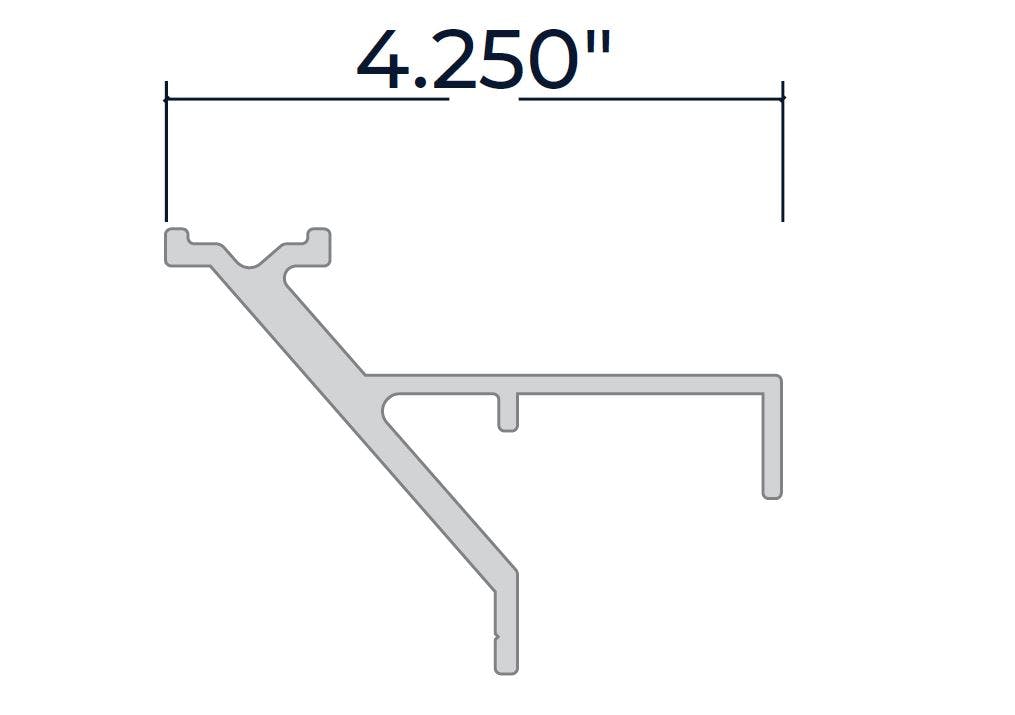

EX-7 standard retainer frame extrusion
⁠
bent pan filler.JPG
⁠
⁠
15 or 18” bent pan filler cabinet body
⁠
2138 standard divider.JPG
⁠
⁠

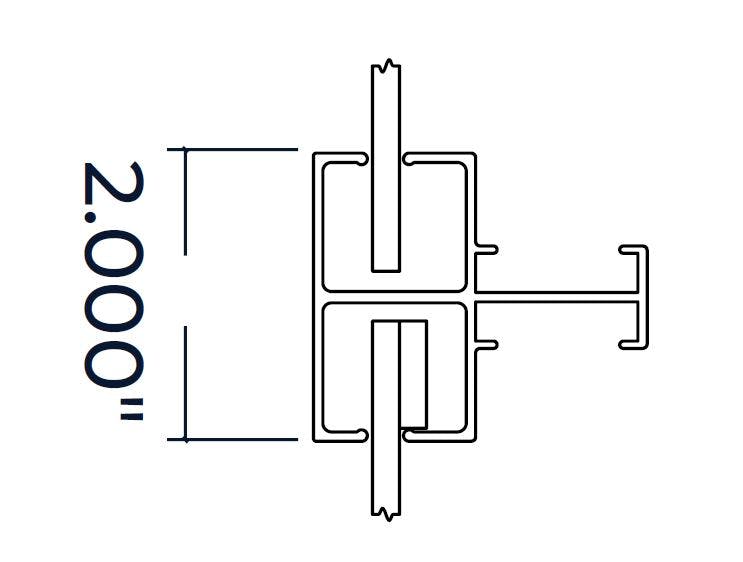

2138 standard h-bar divider
⁠

15” bent pan

⁠
15in bent pan.JPG
⁠
⁠

18” bent pan

⁠
18in bent pan.JPG
⁠
⁠
