EX and SS Sign Extrusions

Last edited 977 days ago by Adam Doll.

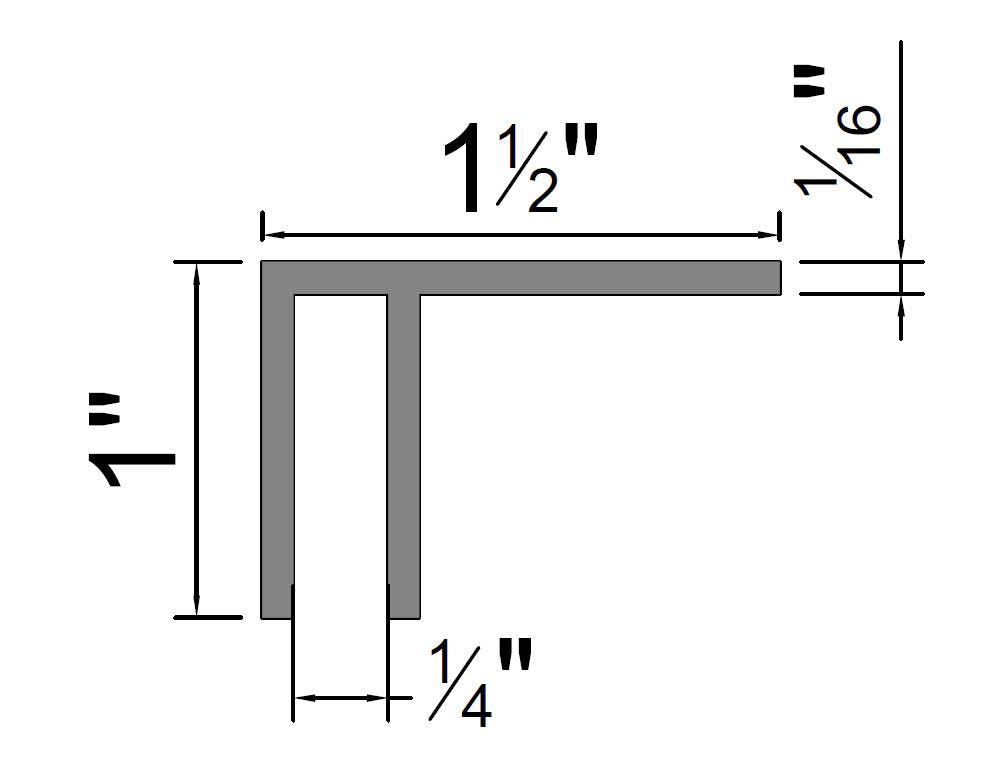

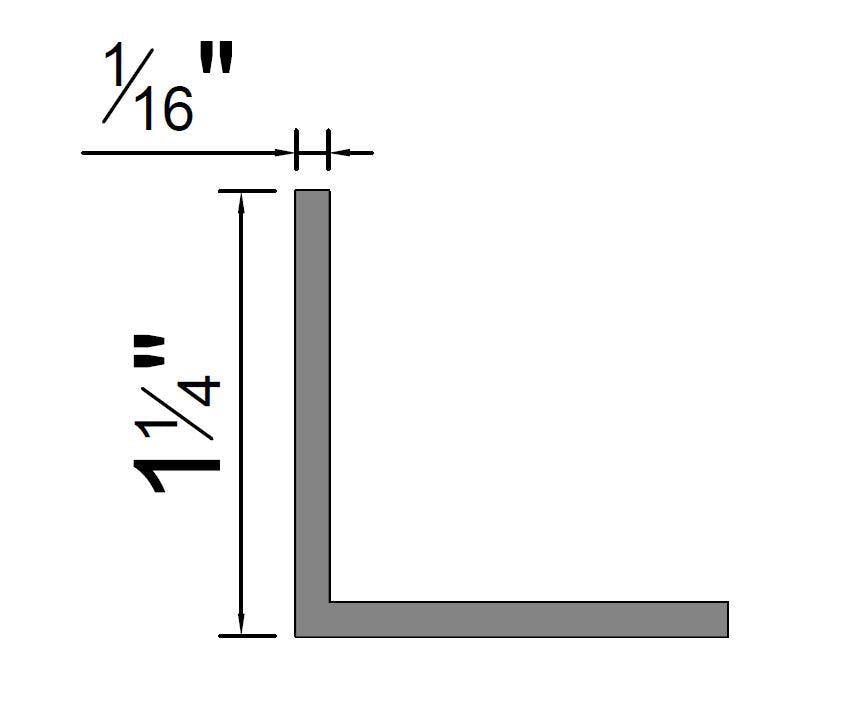

EX-3 angle
⁠
⁠
⁠

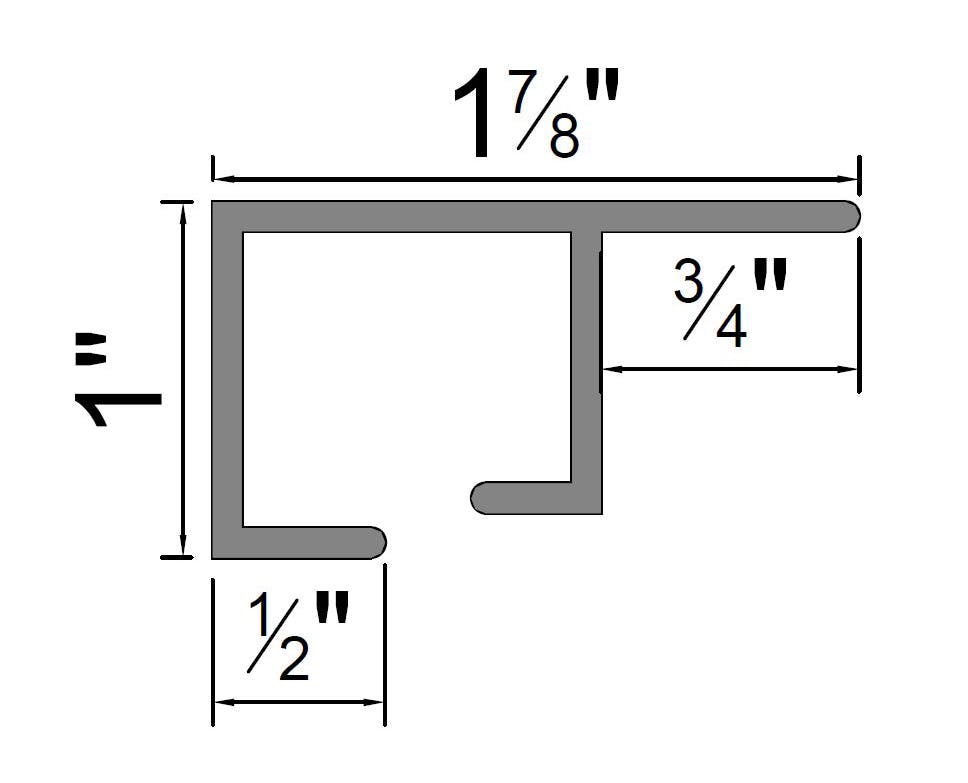

EX-6 angle
⁠
⁠
⁠

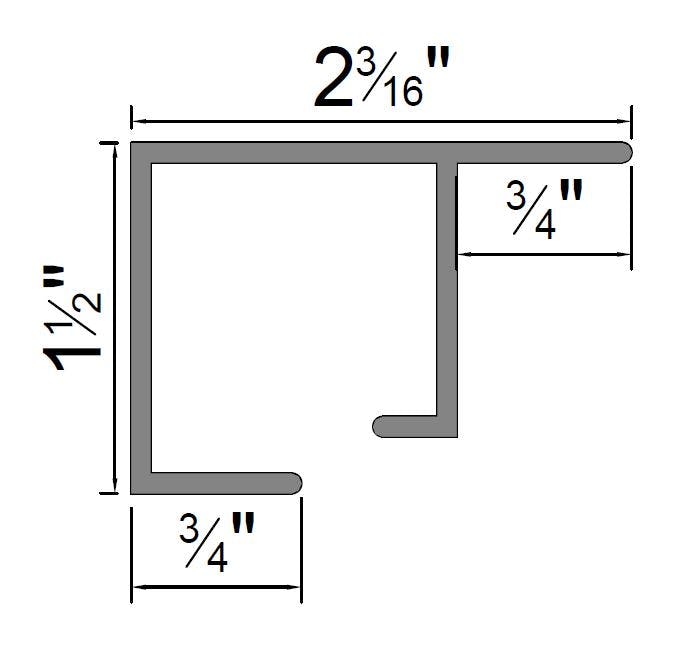

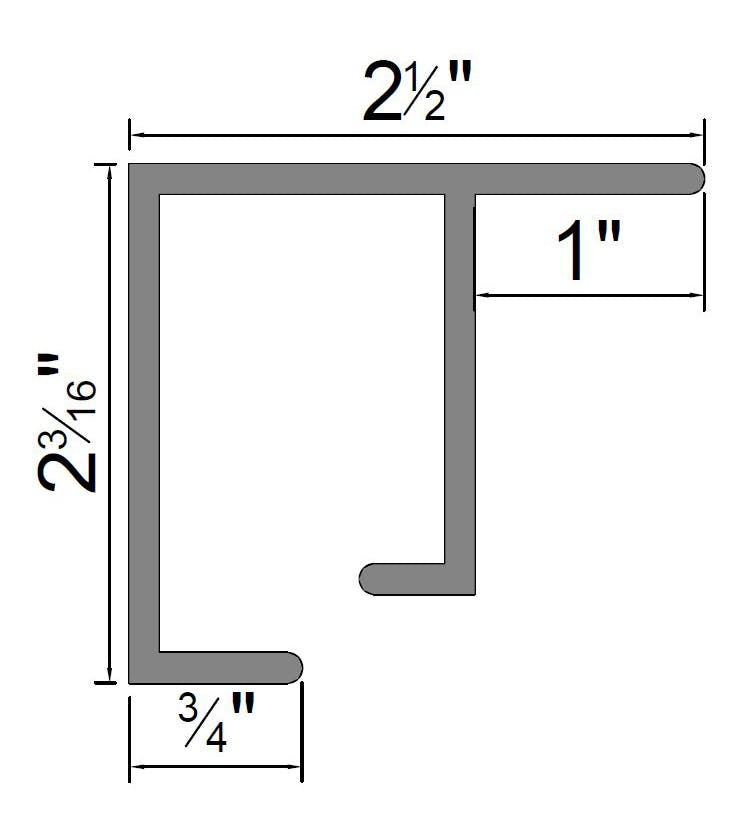

EX-5 frame
⁠
⁠
⁠
EX-7 frame
⁠
⁠
⁠
EX-12 frame
⁠
⁠
⁠

EX-13 frame
⁠
⁠
⁠

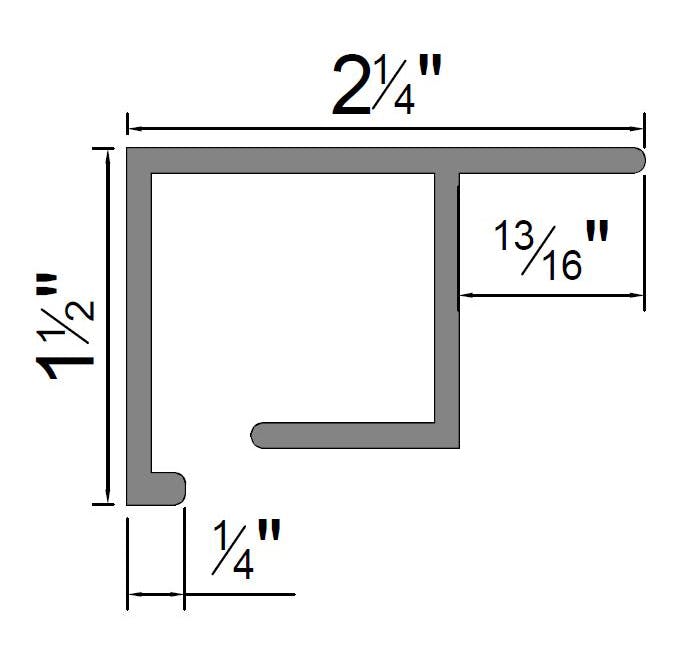

SS-1 ½” frame
⁠
⁠
⁠

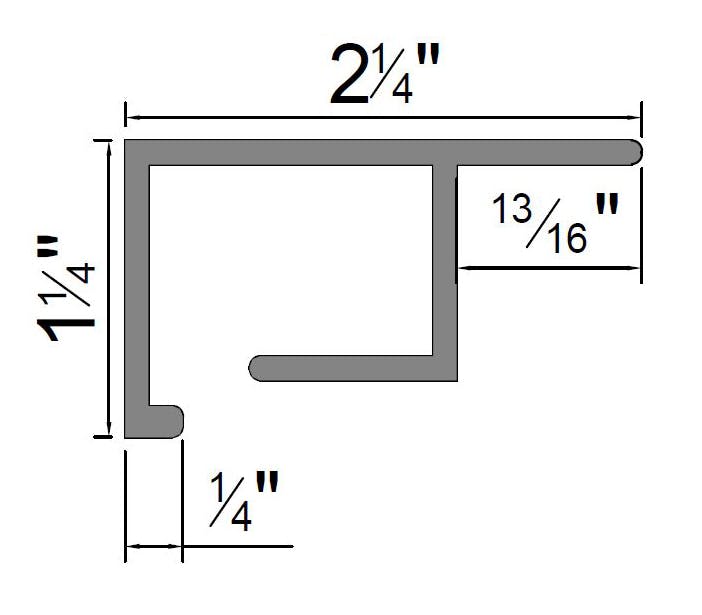

SS-1 ¼” frame
⁠
⁠
⁠

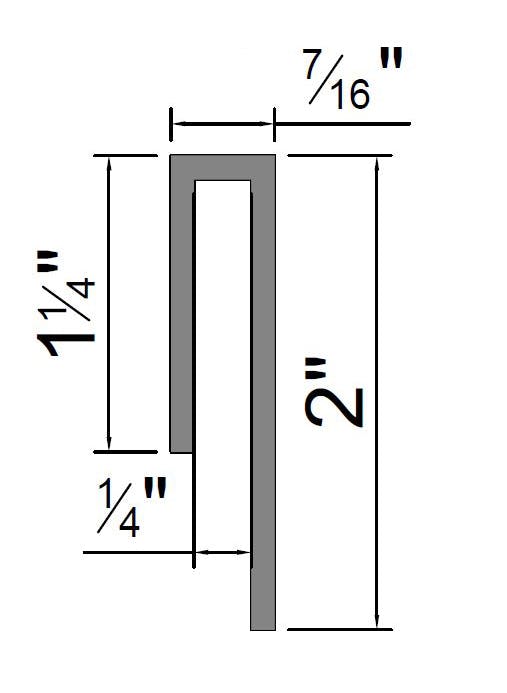

SS-½” channel
⁠
⁠
⁠
Signcomp #2138 standard divider
⁠
2138 hanging strips.JPG
⁠
⁠

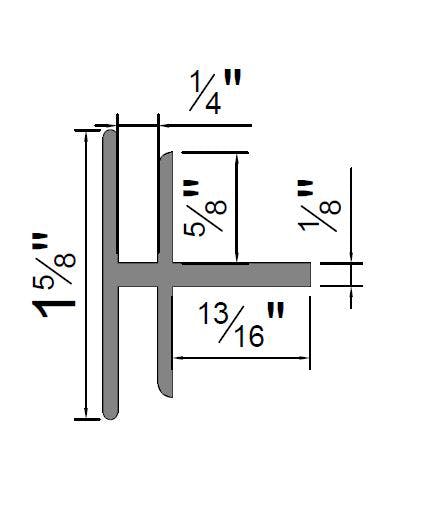

EX-11 divider
⁠
EX-11 divider.JPG
⁠
⁠

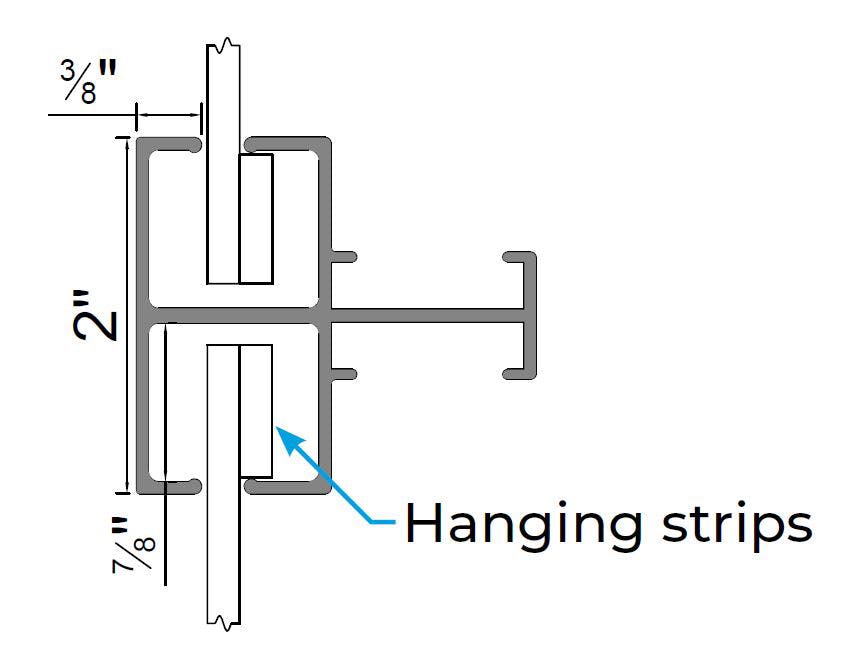

Hanging strips

Sign faces with no hanging strips have a risk of blowing out during high winds.
Hanging strips can be on the front or backside of the face depending on the sign extrusion used.
If the sign extrusion or hanging strip information is not provided the strips are shipped loose and applied on site.
If the survey indicates EX-7 for example, just include that detail on the drawing retainer information.
