Standard Size Guidelines

Channel Letters

Last edited 575 days ago by Adam Doll

Minimum Height

8” preferred minimum

7” absolute minimum (subject to font)

Minimum Stroke

5” returns

3” returns

1 ½” preferred

1 ½” preferred

1 ¼” (subject to font)

1 ¼” (subject to font)

1” (Approval required)

1” (Approval required)

Finished Depth

5” returns

3” returns

5 ⅜” finished depth with trim cap & face installed.

3 ⅜” finished depth with trim cap & face installed.

Installation Guide

Direct mount

Raceway mount

Full-size backer panel

Must be free of obstructions for through wall install.

Used when through wall install is not possible.

Used when a raceway is not suitable. Standard depth is 3 ⅝”.

⁠

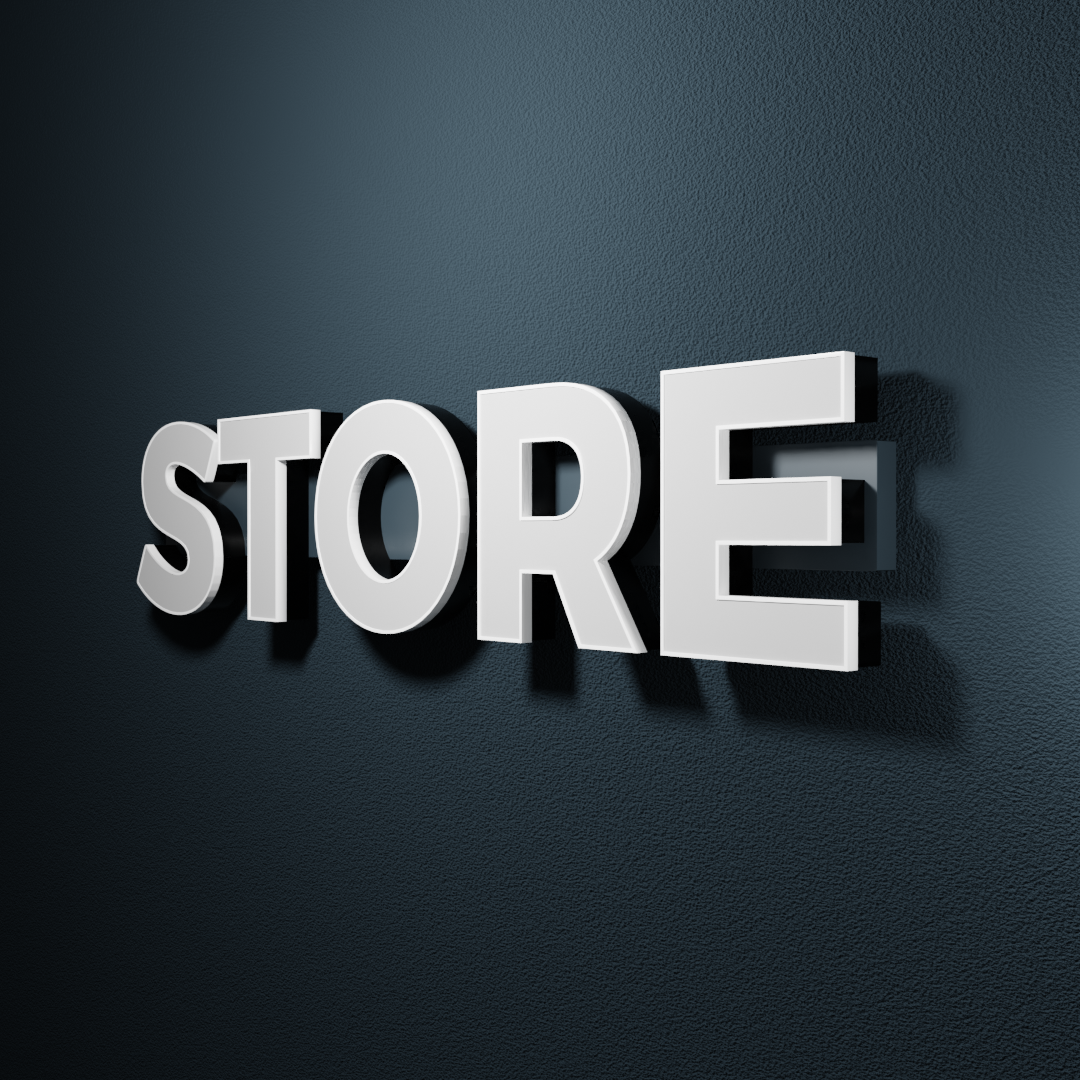

Channel Letters EDU Direct Mount.png

⁠

⁠

Direct Mount

⁠

Channel Letters EDU Raceway.png

⁠

⁠

Raceway Mount

⁠

Channel Letters EDU Backer.png

⁠

⁠

Full Size Backer Panel

Halo Letter Guide

Minimum Height

Stroke Minimum

3” returns

2” returns

8”

Preferred Minimum

2”

2”

Possible, but not preferred

1 ¼” (takes twice as long as 2” to weld)

1 ¼” (takes twice as long as 2” to weld)

Halo Letter Installation Guide

Direct Mount

Raceway Mount

Full-size backer panel

The wall must be free of obstructions for through wall. The surface must be flat.

Halo lit letters are not suitable for raceway installation.

Used when through wall install is not possible. Standard depth is 3 ⅝”. Allow 3” clear space around the letters to allow enough background for halo glow.
