Selkirk Drawing Template

A guide to our drawing template
Last edited 1021 days ago by Adam Doll.

Drawing Sign Type Abbreviations

CL01
CPY01
P01
MP01
GL01
F01
BS01
HDR01
SP01
BL01
PMP01
SER01
CW01
SITE
FORECOURT
SYNERGY
D01
Channel letters or shapes
Canopy
Pylon
Monument pylon
Gemini letters
Fascia signs
Blade signs
Header, fascia between poles on gas island. Referred to as Header for CO-OP
Spanner, fascia between poles on gas island. Referred to as Spanner for Parkland
Bollard sign
Pump dispenser graphics
Service signs. Generally used for store service offerings at 7-11 sites
Car wash signage. 7-11 specific
Site overview
Forecourt items
Synergy aperatures
Drawing. Used for any sign type not listed above

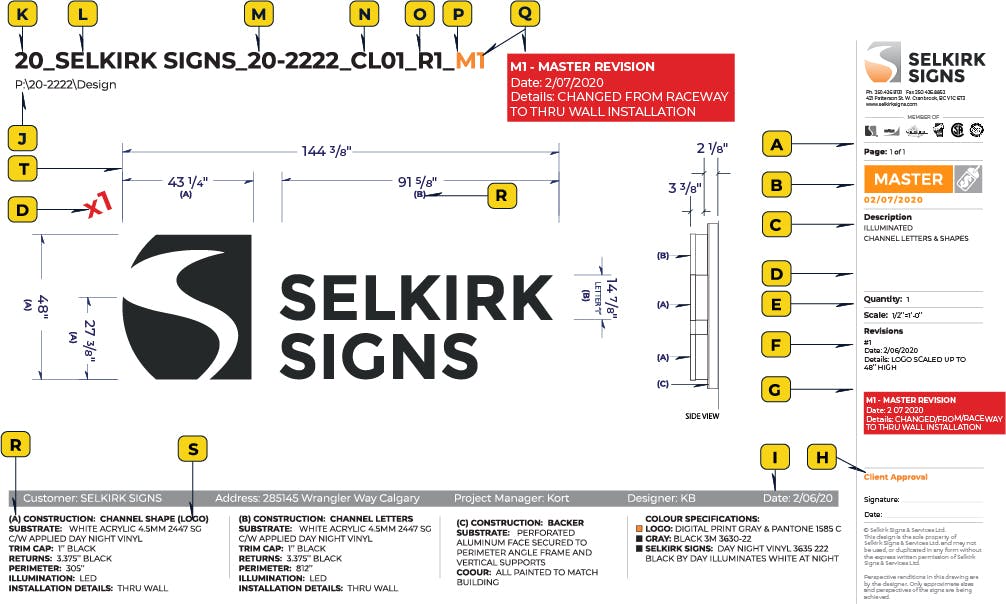

Reading a Design Drawing


⁠
drawing template.jpg
⁠
⁠
A
PAGE NUMBER
B
DRAWING STAGE (1,2,3,4 OR MASTER)
C
SIGN DESCRIPTION
D
QUANTITY OF SIGNS REQUIRED
E
DRAWING SCALE
F
DATE AND DESCRIPTION OF REVISION
G
MASTER REVISION DESCRIPTION
H
CLIENT APPROVAL
I
DATE OF ORIGINAL DRAWING
J
FILE PATH
K
YEAR THE DRAWING WAS STARTED
L
CUSTOMER NAME
M
PROJECT NUMBER
N
DRAWING SIGN TYPE ABBREVIATION
O
REVISION LEVEL
P
INDICATES THIS IS A MASTER DRAWING
Q
MASTER REVISION LEVEL AND DESCRIPTION
R
SPECIFICATION LABELS/COMPONENTS
S
SIGN SPECIFICATIONS
T
DIMENSIONS IN FRACTIONAL INCHES
There are no rows in this table
⁠
