As a customer, I want to view list of available onward and return in Round Trip flights as per my preferences selected in the flight search page so that I can select the available flights as per onward and return dates to continue with the booking.

As a customer, I want to update my preferences of search by clicking modify search so that the available onward and returns flights are based on the updated search query.

As a customer, I want to apply filters separately on onward and return flights based on predefined parameters like Time, Stop, Airlines along with Staring Price and Refundable, so that the specific list of either onward flights or return flights is filtered out in the Flight Availability Page.

As a customer, I want to sort the list of available flights, so that based on the sorting preferences of Time, Duration, Best Value or Price, the flight list is rearranged.

As a customer, I want to click on View Flight Details, so that flight details for selected onward and return flights is shown as a popover.

As a customer, I want to continue the booking with selected flights for both onward and return journey so that, I may navigate to either Fare Type Page or Flight Review Page as per the conditions laid down by the airline for booking.

Navigation:

This page will be launched when user will tap on flight search page after selecting Round trip as a trip type. search flight

Layout:

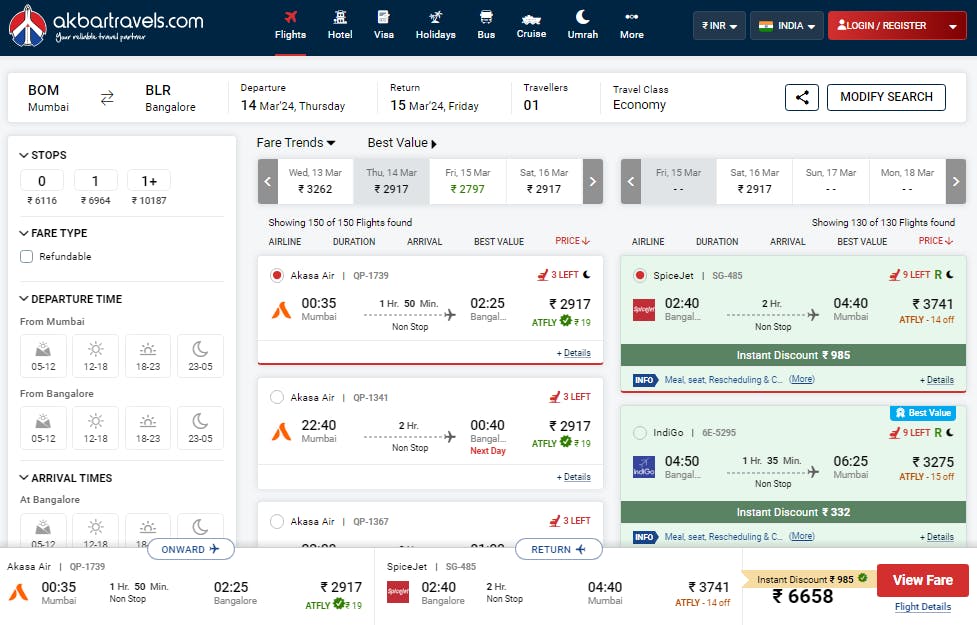

Flight Availability Page

⁠

⁠

Data Elements(Flight Availability Page - Round Trip)

Data Elements(Flight Availability Page - Round Trip)

Field

Field Type

Mandatory/Optional

Description

Combo Field

Label

This is the header of the page. It will showcase previously entered search criteria as follows:

source city

destination city

no. of Travelers

Date of departure

Date of Arrival

Booking Class

Onward/Return Header

Header

User will be able to view Header above left and right columns to differentiate between onward and return flight listing.

Modify Search

Edit Icon

Value in this field will be fetched from the search information provided on the Search Flights page

Filter Menu

Filter Icon

By clicking this, user will be able to apply filters separately for both onward and return flight by Time, Stops, Airlines along with Staring Price, Refundable.

Apply button will save and apply the filters on flight results.

once user has applied filter on trip-1 and moved to trip-2, then the filters applied on trip-1 will be autosaved and vice-versa.

Rules and Validations:

A user should be able to reset the filter in case, if he has applied too many filters.

User can select more than one filtering criteria to filter results as a combination of different filters.

User should be able to filter onward and return flight separately in case of Roundtrip search

Refundable/non-refundable tag is not shown on domestic-round trips but filter will be applied as the response contain information at the backend

Sorting Bar

Text with Link

O(by default sort is based on ‘Price’)

User will be able to sort the flight by:

Price( Low to High & High to Low)

Duration(Minimum & Maximum)

Time( First & Last Flight of the day)

Best value (sorting based on min. stoppage(1st)+duration(2nd) + cheapest price(3rd))

Rules:

By default, the list of flights shall be sorted based on “Price”(low to high).

User should be able to Sort onward and return flight separately in case of Roundtrip search

Flight List Title

Tile View

User can click on preferred tile for selecting the flight. each tile will have features as below

Flight Number, Airline name and Airline logo

Departure and Arrival time

Duration | Span

Stops

Seat count left

Fare Type - Refundable or Non Refundable

Gross fare - Strike Cross Fare, if Net fare is lower than Gross Fare

Net Fare - Show Net fare only, if Gross and Net are same

Discount

Instant discount - User will get instant discount on the next page without applying promocode.

Promocode displayed and applied on the availability page

Promocode displayed but applied on the next page

Fare Details

Validations:

To show the urgency to user, Add the no. of seats count left if less than or equal to 4.

Fare Bar

Bar

This Bar contains fare breakup and Book/View Fare (CTA) Fare information of onward and Return journey along with the time, logo, price of each trip and total amount. Rule: Either Book button will be CTA or the View fare depending on the Fare type availability. On clicking Book button, user will be redirected to the flight review page in case of normal fare of that flight

There are no rows in this table

⁠

Screen Messages and Conditions

Screen Messages and Conditions

Scenario

Type

Display

Trigger

User has selected departing flight before Arriving flight time. Rule: This condition is applicable for Availability page - Roundtrip scenario.

Error

Departing flight should be 3 hours after arriving flight. Please select different combinations

Calendar date link

There are no rows in this table

⁠

Acceptance Criteria:

Given I am a customer, When the trip type is Round Trip and as per the preferences provided in the flight search page, then the system must ensure that:

Preferences provided in the Flight Search Page are visible in the Flight Availability Page.

List of Round Trip flights are available mentioning Departure Time, Arrival Time, Duration, Stops, Airline, Price and Applicable Offer

Sorting based on Time, Duration and Price is available for the Onward and Return flights

In case the flight does not offer seat upgrades. On clicking the tiles for Onward and Return flights each, I will navigate to Flight Review Page where booking details are visible with a provision to continue the booking journey.

In case the flight does offer seat upgrades, On clicking the tiles for Onward and Return flights each, I will navigate to Fare Type page where seat upgrade options shall be visible. On selecting the specific seat upgrade, I can navigate to the Flight Review Page where booking details are visible with a provision to continue the booking journey.

Given I am a customer, When I click on Modify Search to update the preferences provided earlier in the flight search page, then the system must ensure that:

All fields in the modify search are prepopulated with previous search preferences.

All fields in the modify search are editable to accommodate new search query.

Customer is able to select the applicable filters and reset the same, in case of multiple filters applied.

On clicking Search Flights button, the list of Round Trip flights is updated as per the updated preferences.

Given I am an AKT user, when I view the Fare bar, system must ensue that I am able to view Logo time and price along with Total amount that will be coming from APIs.

Given I am an AKT user when I click on:

Book button, System should ensure that I will be redirected to the flight review page.

View fare button, System should ensure that I will redirect to Branded Fare Page. d.
