Step 1. Open a 3D model

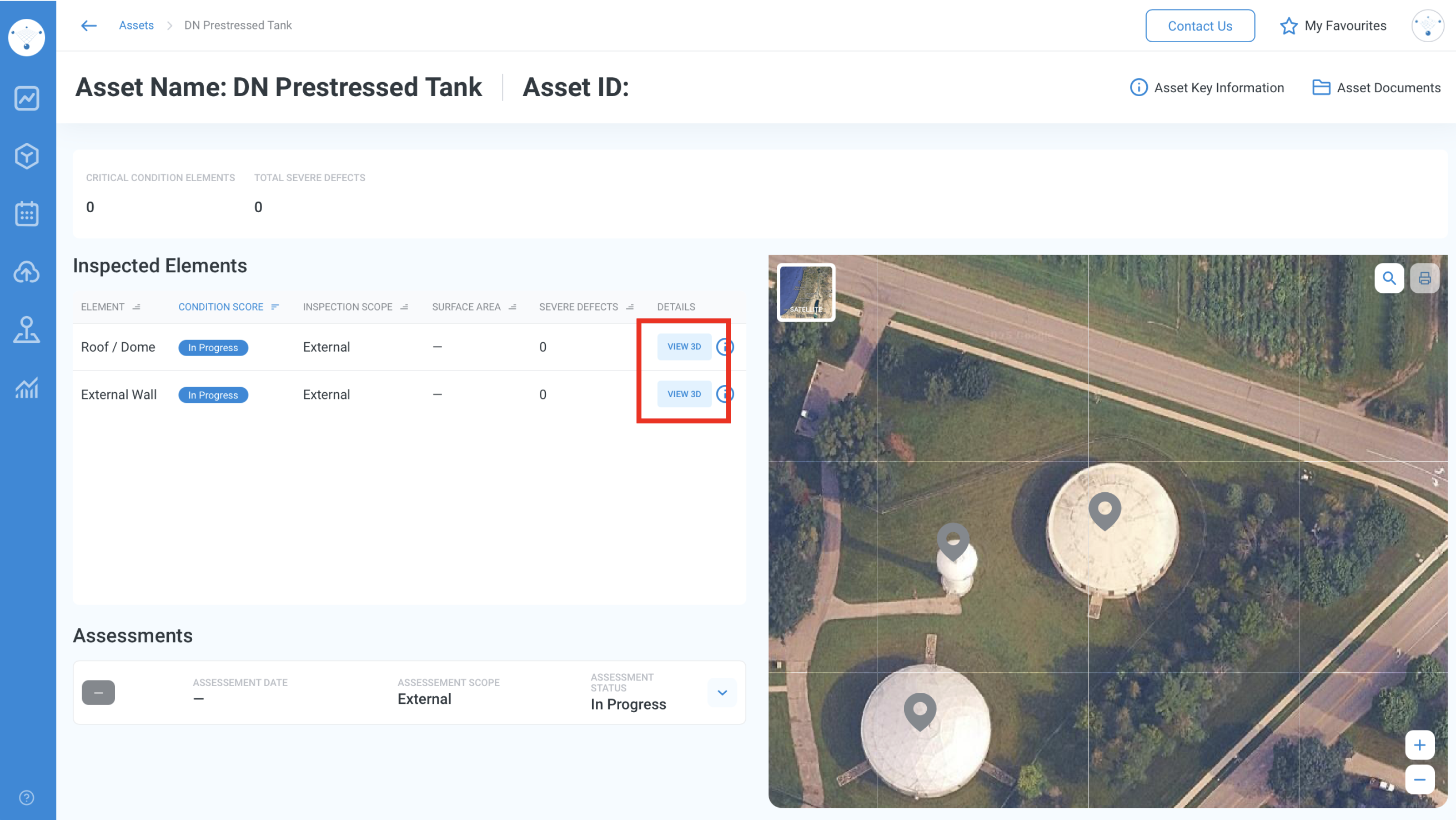

After you , you’ll see a list of assets. Use if needed, then open the asset you’re working on. On the Asset page click any View 3D button to open the model. If the asset has both Internal and External inspections, each View 3D button opens the matching model.
Step 2. Explore the 3D model

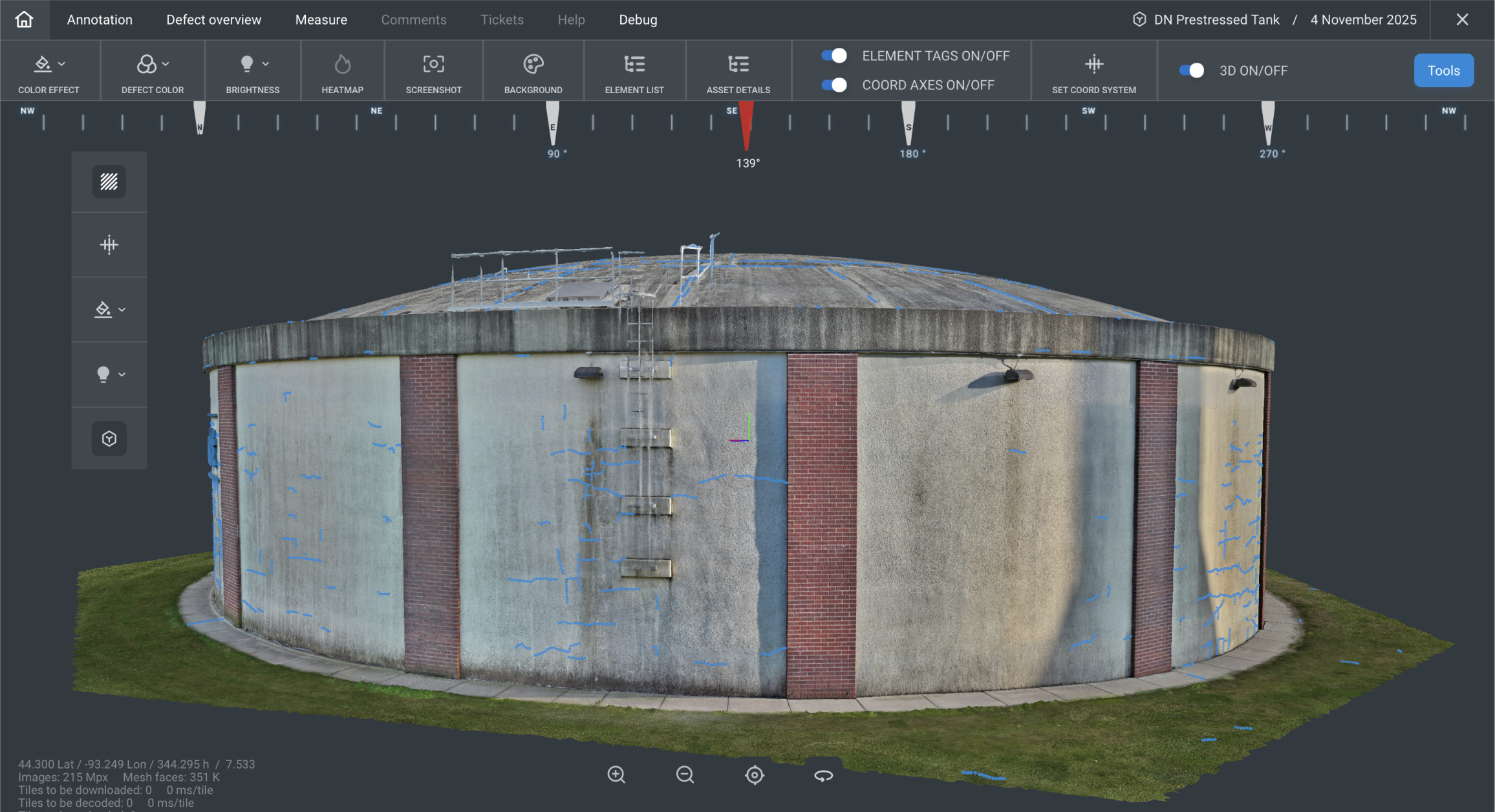

Take a moment to look around the model and get familiar with the scene. You can rotate, zoom, and move the camera using your mouse or keyboard.
Keyboard
W / A / S / D – forward, left, back, and right Step 3. Tag the elements
Place tags on key elements so you can easily find them later.

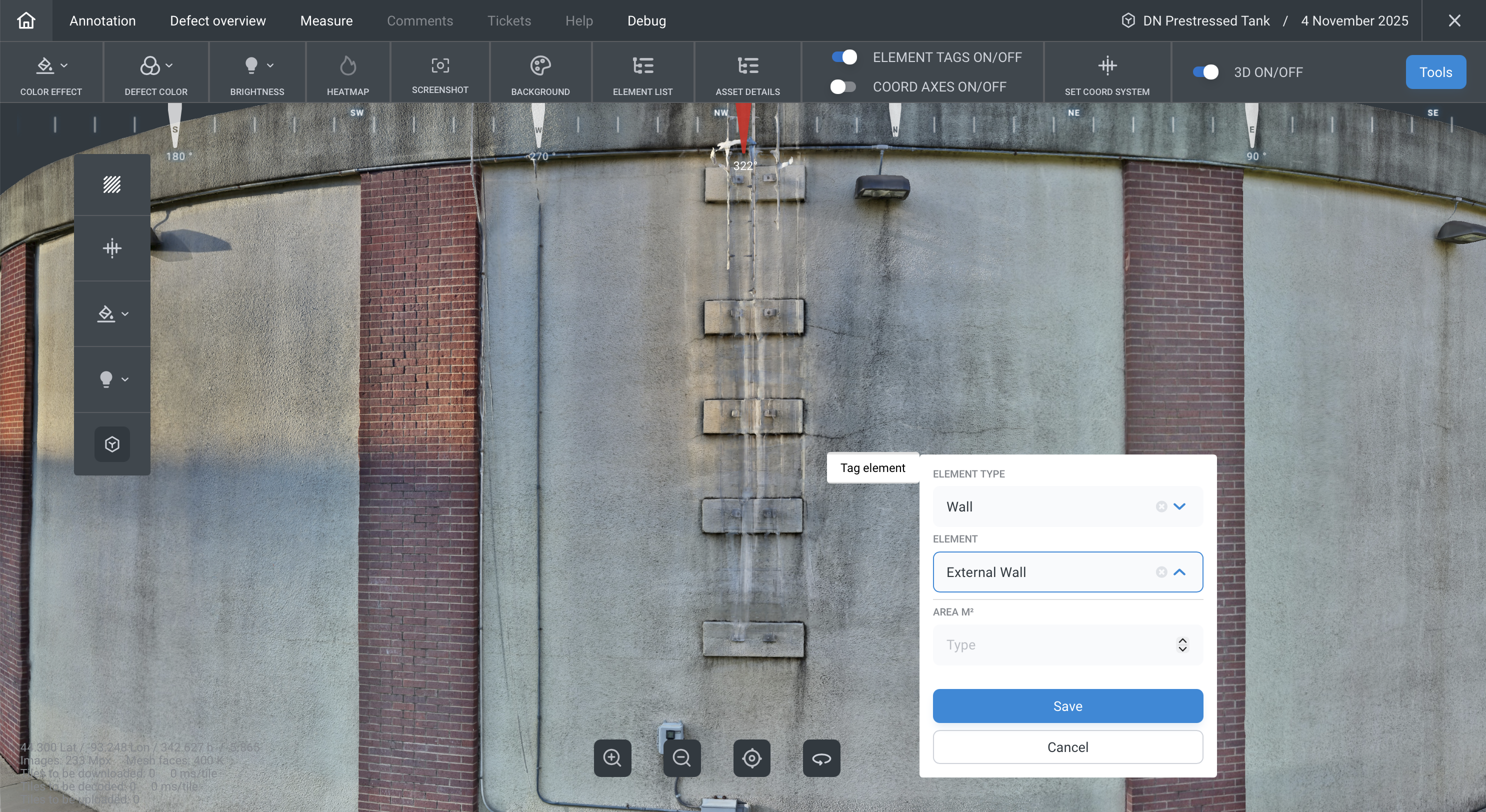

Right-click → Tag Element Choose the element type → select the element → Save Place tags where they are easy to see.
External
Walls: near the ladder (left or right), halfway up. Foundation (if any): at the bottom of the ladder, under the wall tag. Wall–roof connection (if any): near the ladder, on the same vertical line as the other tags. Internal
Walls: near the ladder or openings, halfway up. Columns: on one side, so the tag is clearly visible from a single viewpoint. Step 4. Measure the elements
You need to calculate the surface area of each element (walls, roof, columns, etc.) to ensure accurate severity calculations.
Open the Measure tab and use Line to take the measurements. All measurements appear in the right panel. Wall–Roof Connection Height (if applicable) Roof–Floor Radius Difference (if applicable) Wall–Roof Overhang (if applicable) Floor-Wall Connection Height (if applicable)
Calculate the surface areas. You can use our (built-in tools will be added to the platform in future updates). Enter the calculated area into the element’s properties in the platform. Step 5. Create linear defects
We recommend creating all linear defects across the entire model first, and only then moving on to area defects

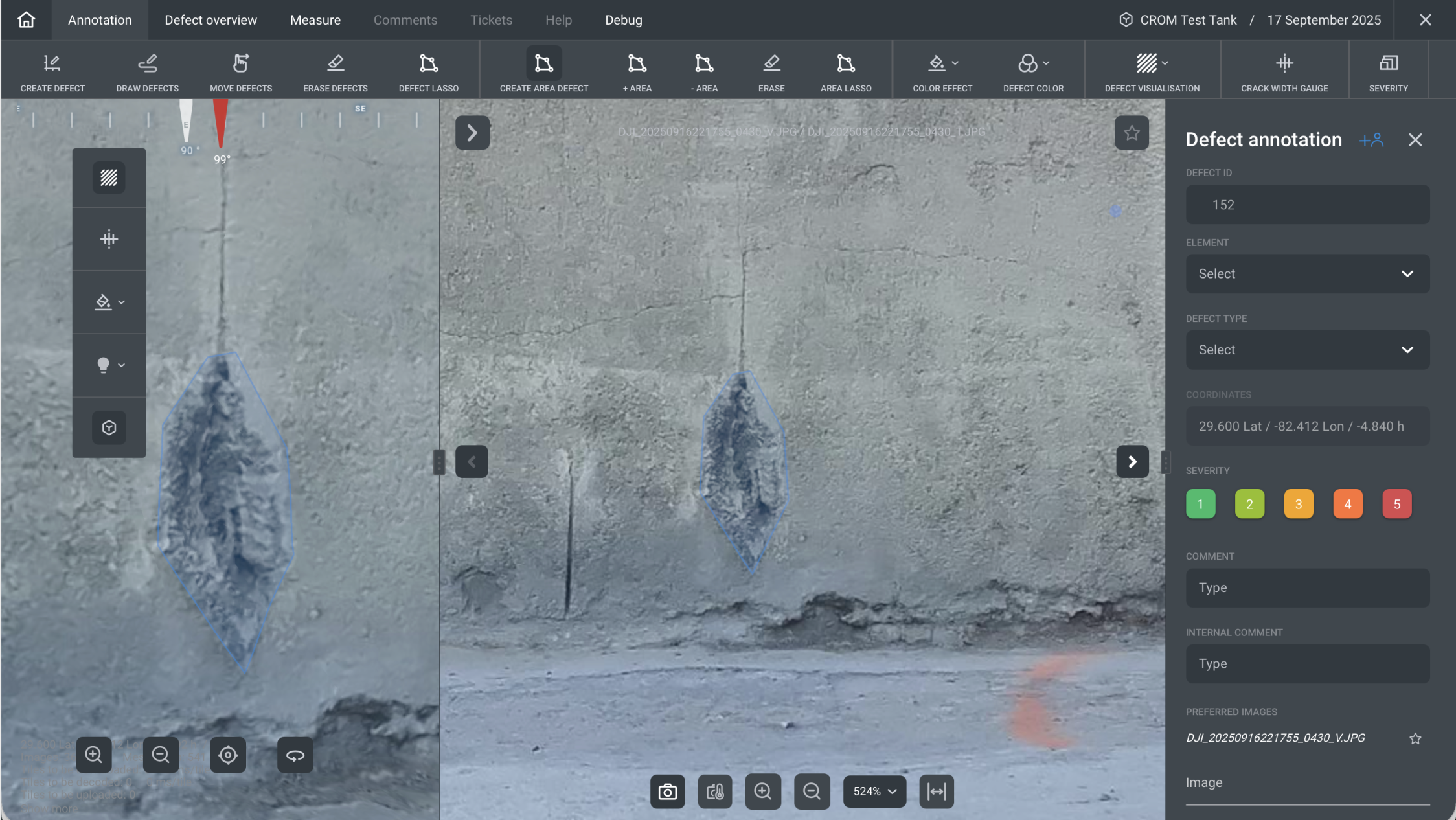

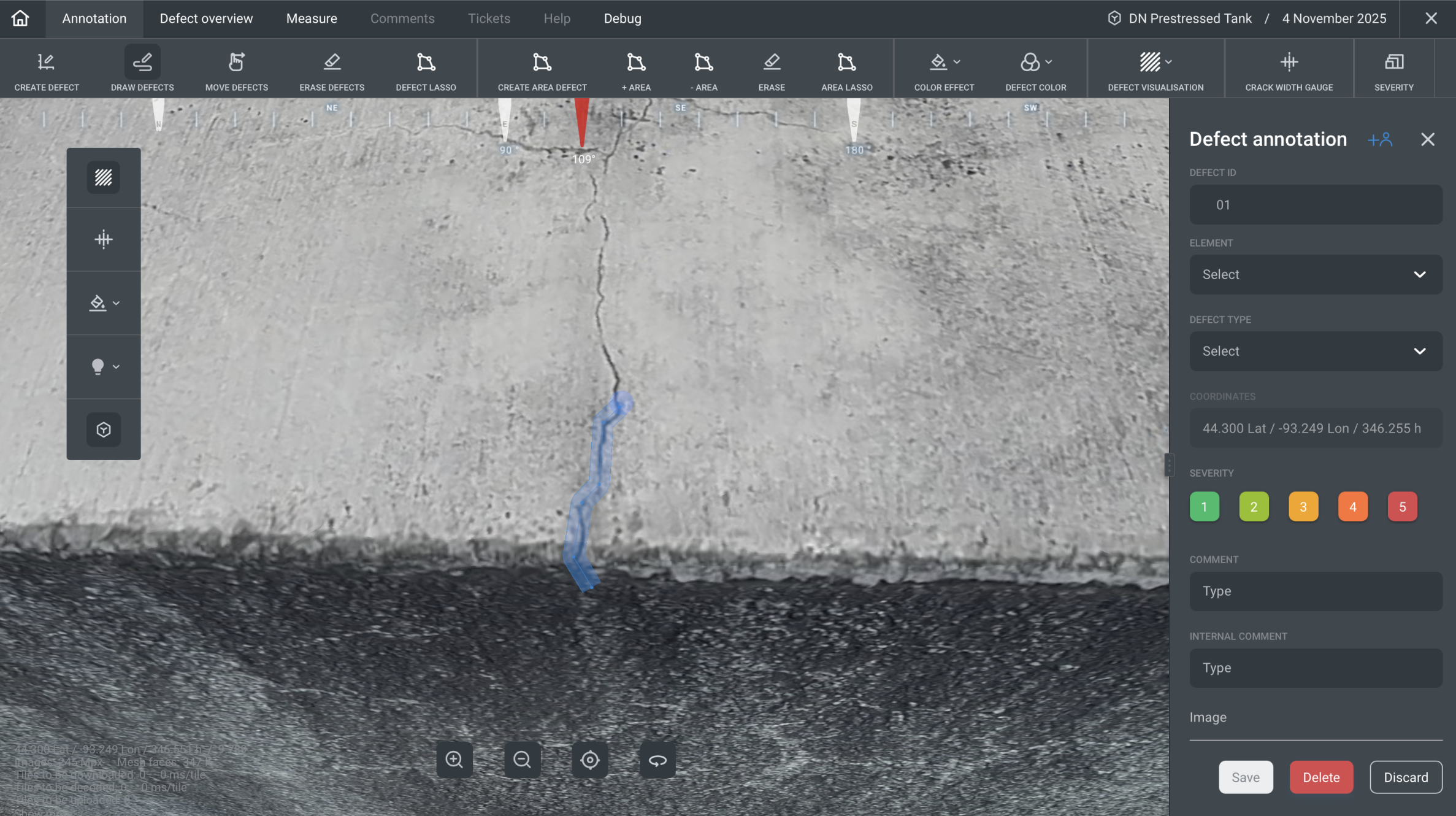

Work element by element, always moving in the same direction — for example, from the ladder to the right, bottom to top. Work with the AI draft labels and create new linear defects at the same time. From an AI draft: Right-click the draft and choose Create defect from draft. By drawing a new defect: Use Annotation → Create Defect. You can draw directly on the model or on a photo (whichever gives better visibility). After defect creation
Take crack-width measurements Add a reference photo (can be done later) Leave an internal comment (optional) Step 6. Create area defects
Area defects are created the same way as linear defects — by drawing them on the model or on a photo.
Their surface area is calculated automatically.
Step 7 (optional). Confirm defects
This step is optional and available in the Defect Overview mode.
Use it when the inspector needs to verify the annotator’s work.

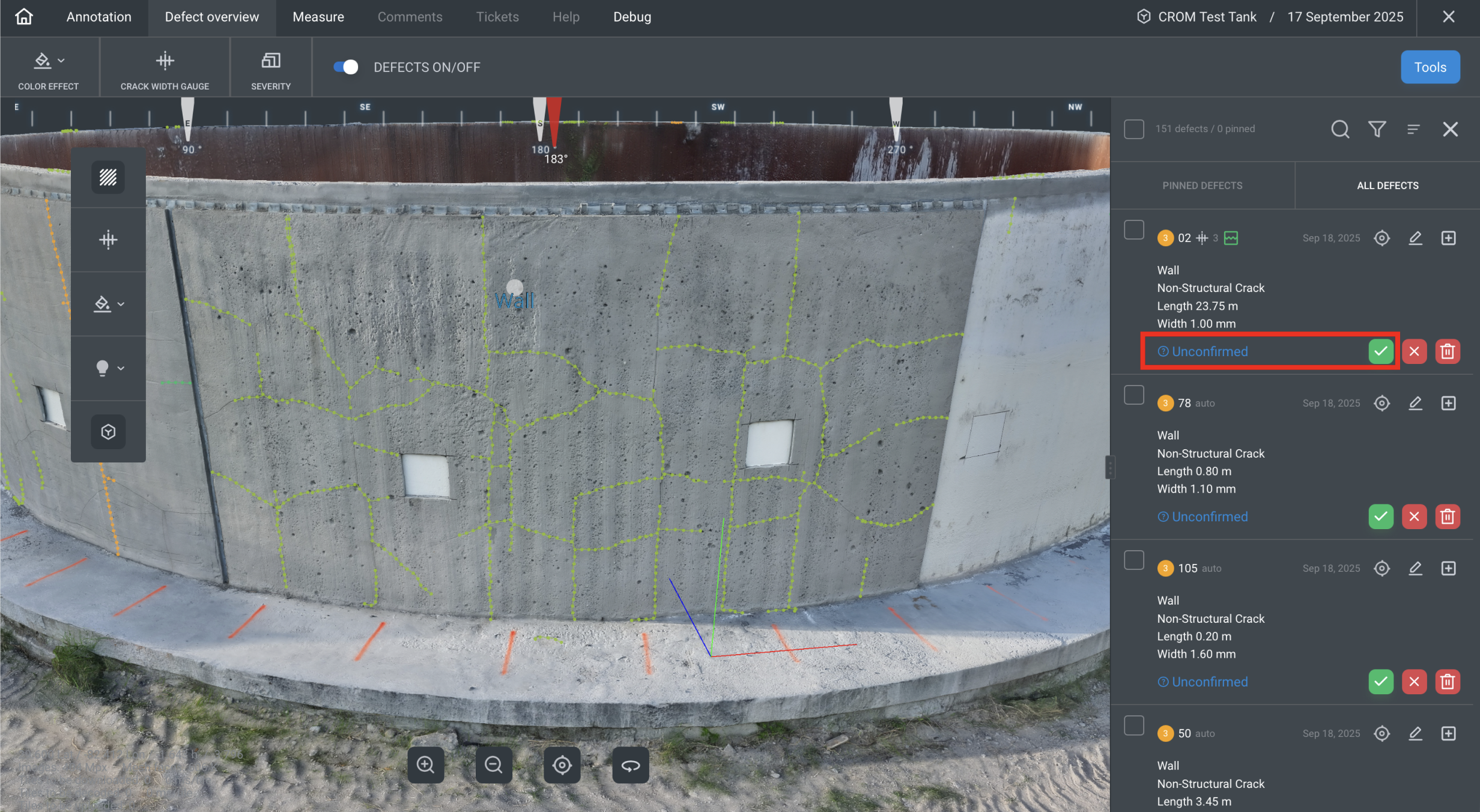

You can confirm defects individually or confirm all filtered defects at once.
Step 8. Release the inspection

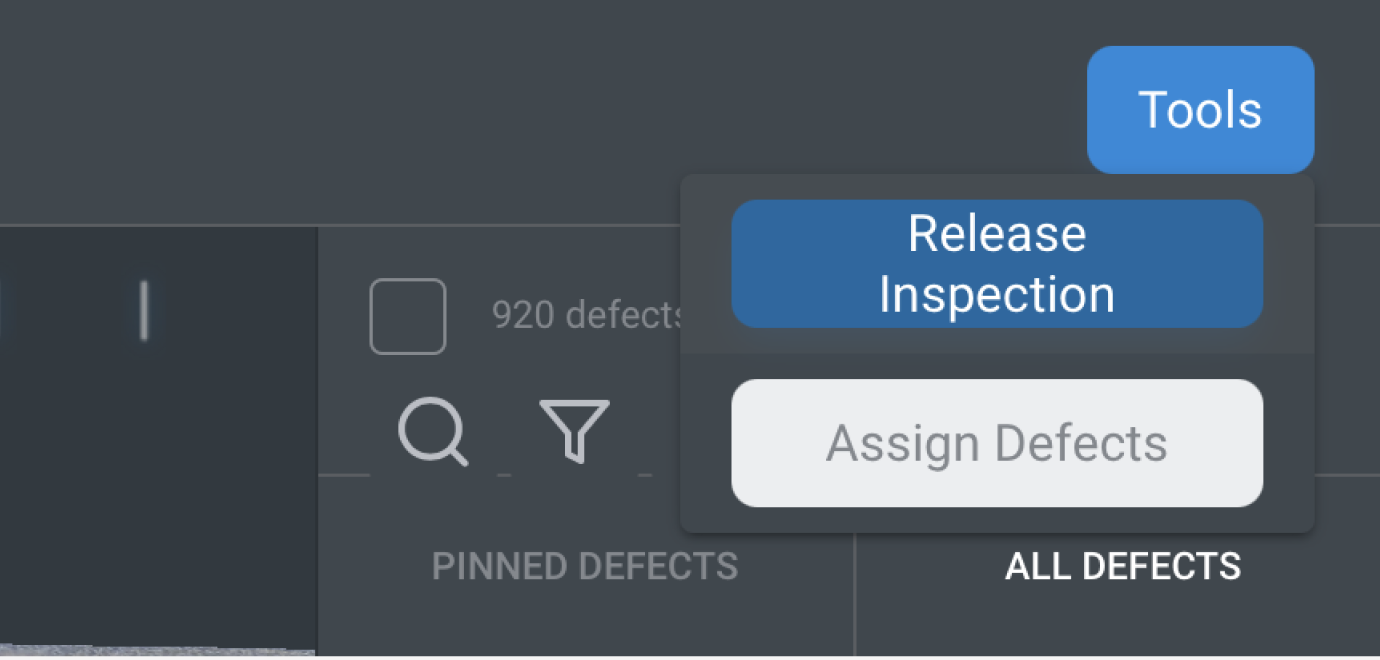

To do this, go to Tools → Release Inspection.
If the button is disabled, hover over it to see the reason.
Step 9. Request the report
Reports are generated from the Inspection Summary page.
Before requesting a report, make sure the inspection is released.
Add Inspector’s Comments (optional)
Go to Inspection Summary → Inspector’s Comments and add any notes you want to include at the beginning of the report.
These comments appear in both the Inspection Report and the Assessment Report.
Generate the report

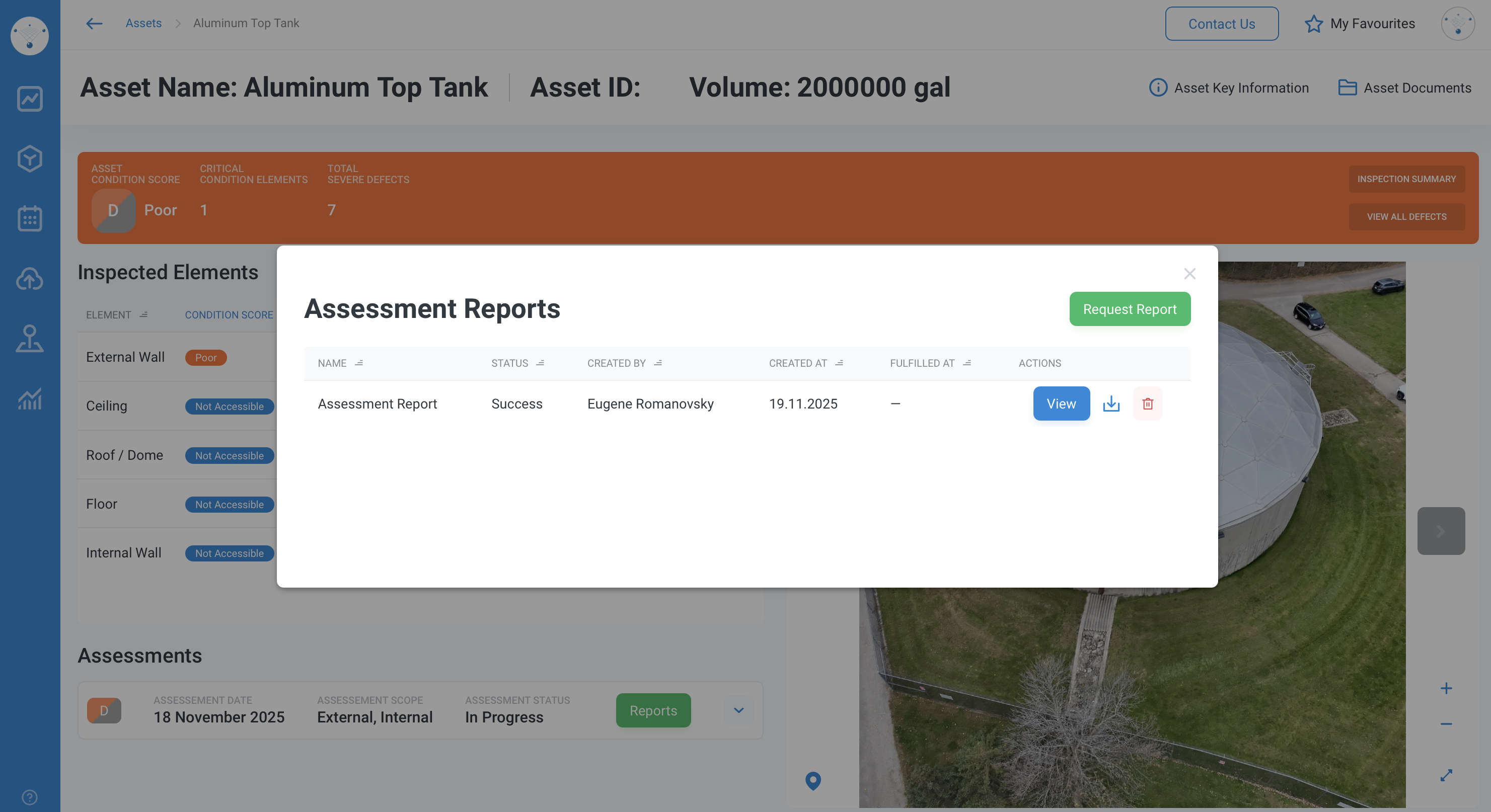

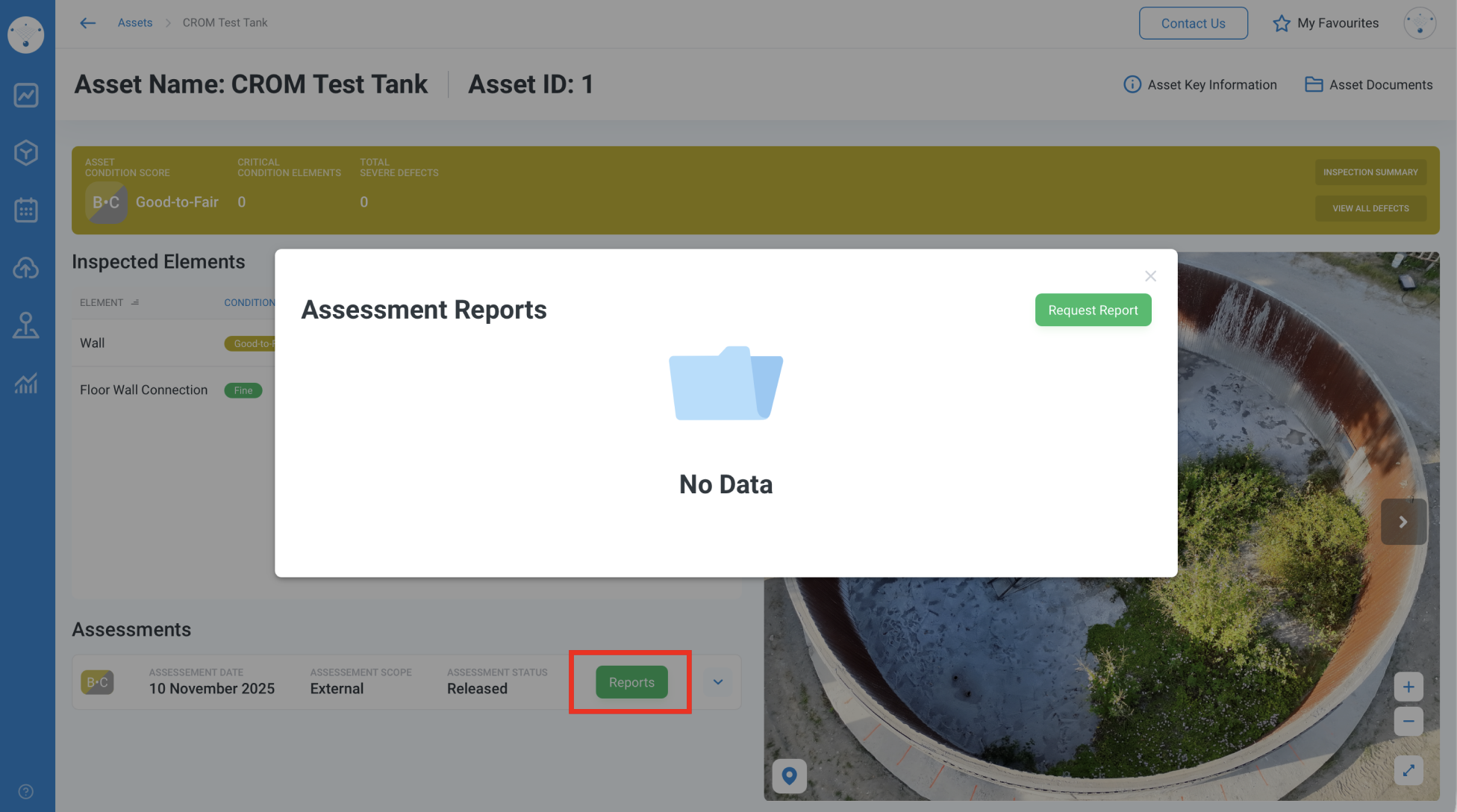

Click Report on the Inspection Summary page. Assessment Report — combined report (internal + external). Inspection Report — for a single inspection. Click Submit to start report generation. Report generation may take 10 minutes to several hours, depending on the number of defects.
Step 10. Download the report
When the report is ready, open Reports and save the file.
