Line – Measures distance between two pointsPolyline – Measures the length of a broken line (e.g. perimeter)Angle – Measures an angle using three pointsArea – Calculates surface areaSelect “Measure”Select a toolClick on the model with the left mouse button.All measurements appear in the right panel. You can change units or delete previous measurements.Measurements are not saved in the system. If needed, you must calculate area of the element manually and enter them into the element’s properties.
Roof RadiusWall HeightWall–Roof Connection Height (if applicable)Roof–Floor Radius Difference (if applicable)Wall–Roof Overhang (if applicable)Floor–Wall Connection Height (if applicable)

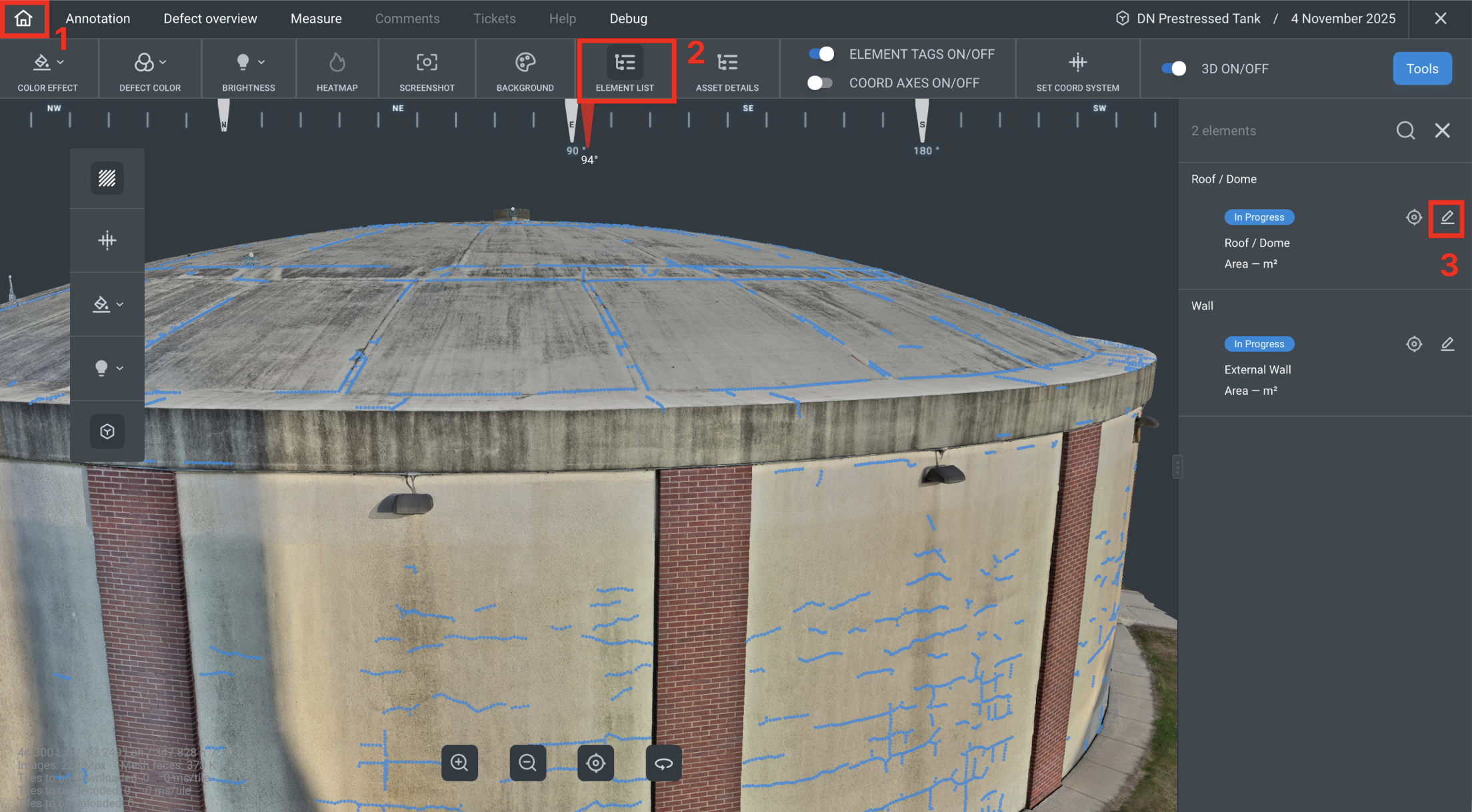

Go to the Home Tab in the bottom menuOpen the Element listFind the element and click the pencil iconEnter the data Click Save
3. Element Measurements
If you don’t need to measure elements, you can skip this section.
Measurement Tools
There are four tools available under the Measure tab in the top menu:
Notes:

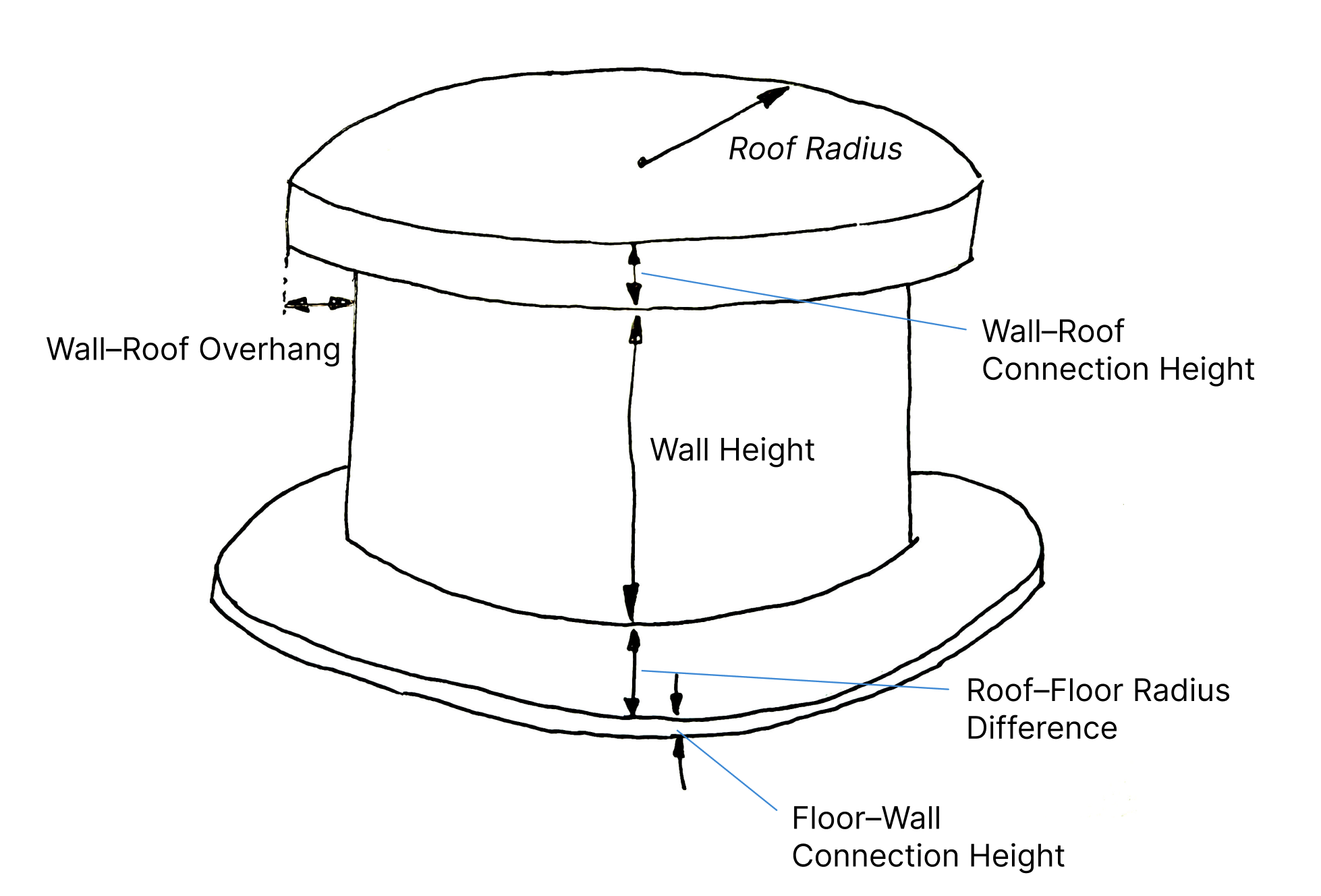

Elements to Measure (Water Tanks)
For water tanks, you need to measure the elements listed below. Note that not all elements may exist in every tank. If an element is missing, simply skip it.
Use Line tool to take the measurements

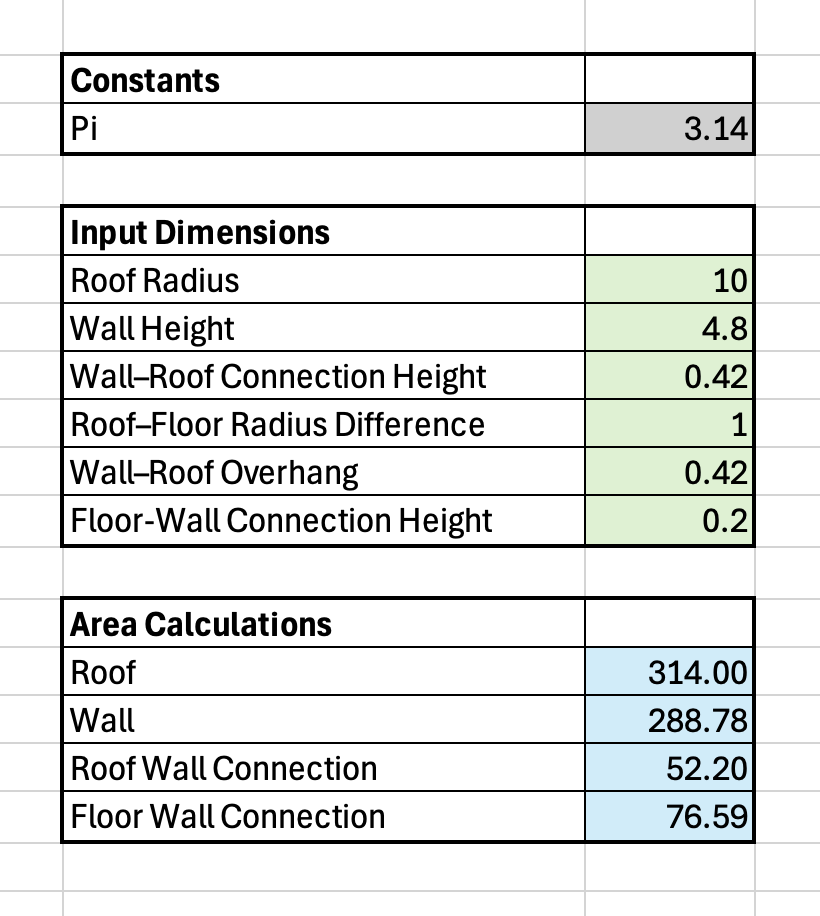

Calculating Surface Areas
After taking the measurements use our to compute the surface area of each element.
(Built-in area calculation tools will be available in the platform in a future update.)

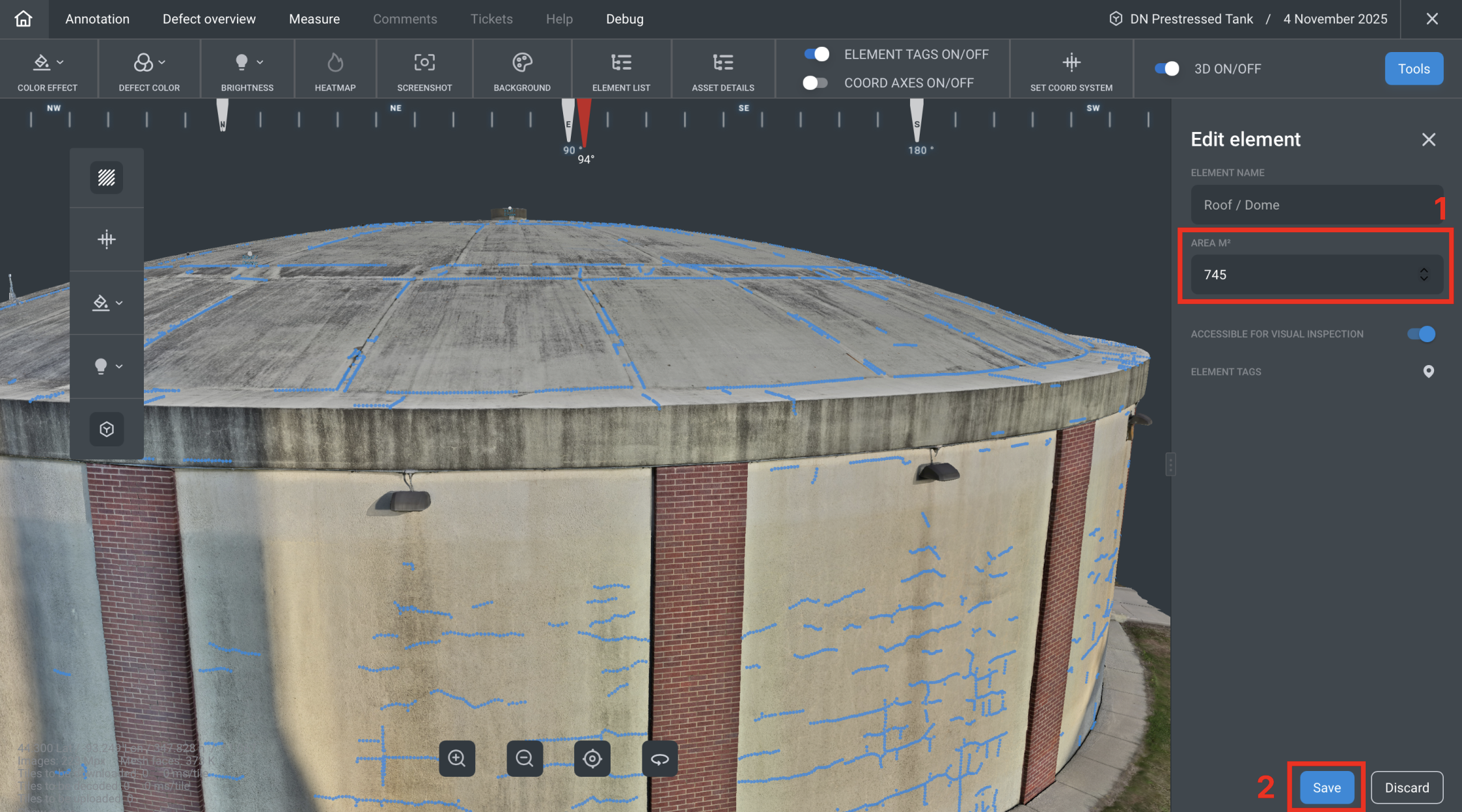

Adding Measurements to Element Properties
You will see properties of the element.
