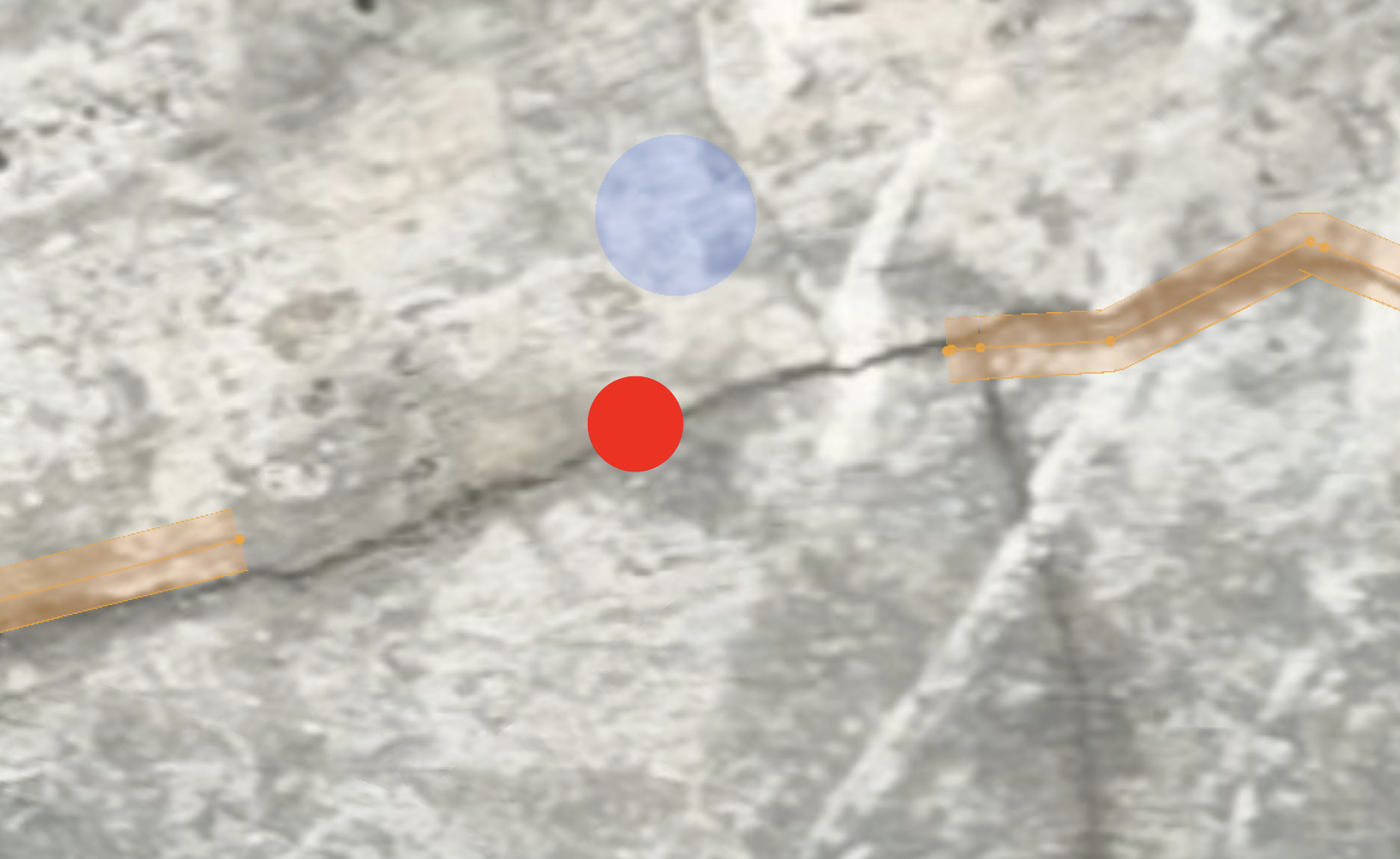

Click on any point of an existing defectContinue drawing from there

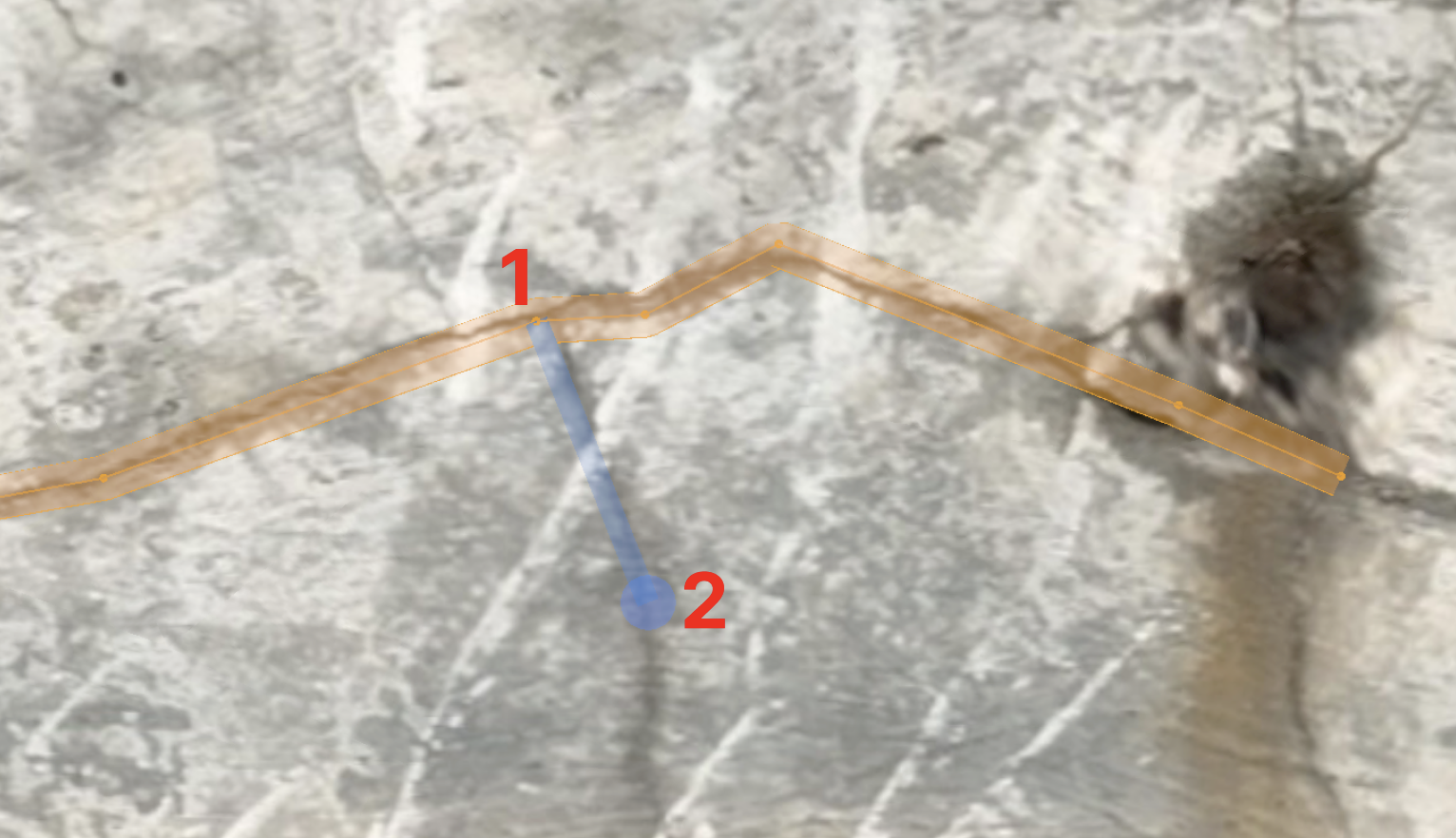

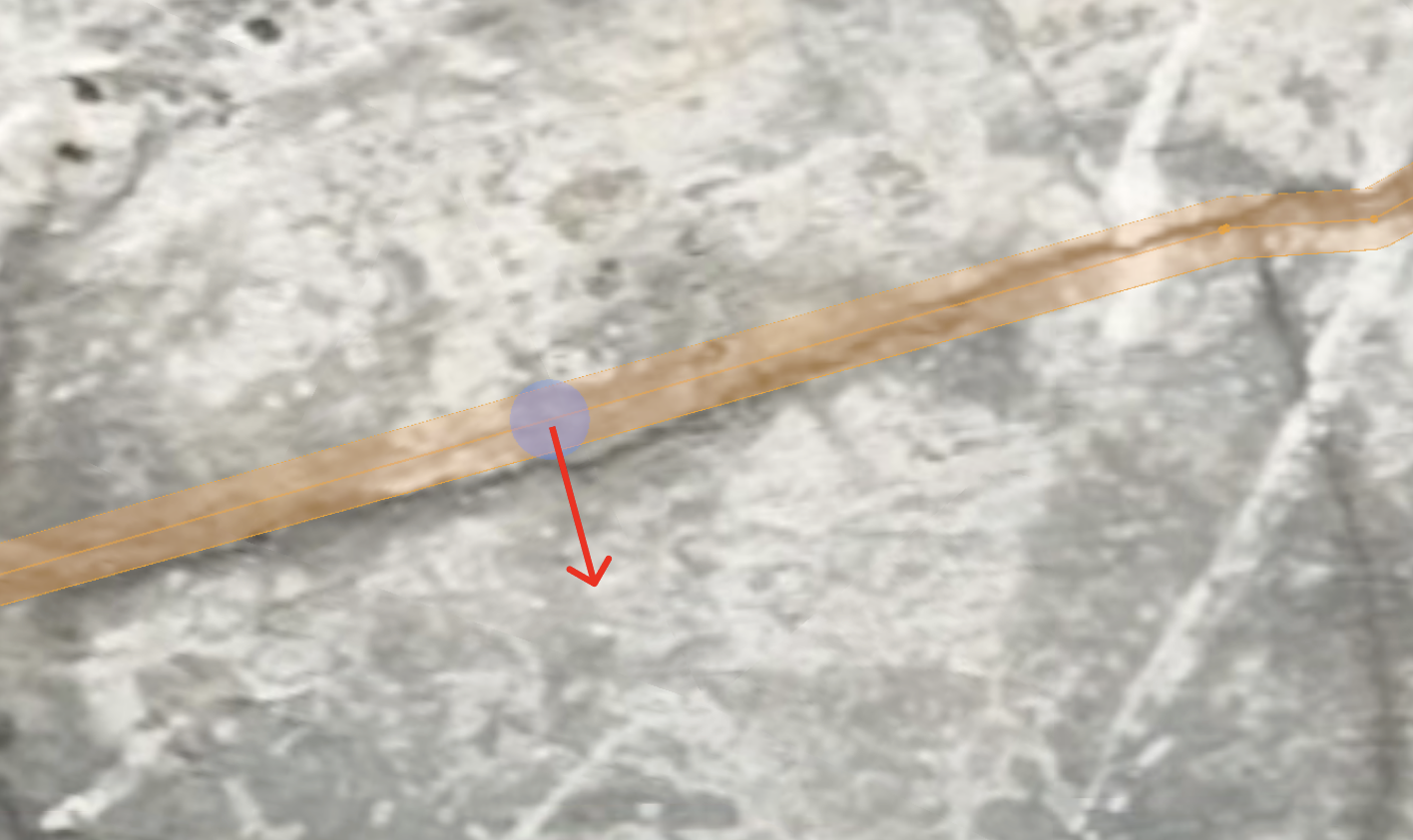

Click on the defect between two points and release the mouse — a new point will be added to the curveMove the point to the desired position and click again to place it
Click around the defects to draw a shapeFinish the shape with a Shift+click
6. Annotation. Linear Defect. Additional Tools

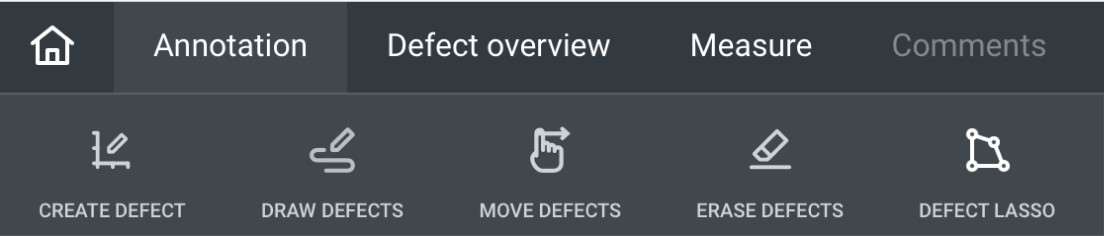

Draw Defects
Lets you edit the shape of an existing defect.
Move Defects
Experimental Feature. Adds an extra point to a broken (zigzag) line.
Erase Defects
Click on a segment of the curve to delete it.
Delete defect

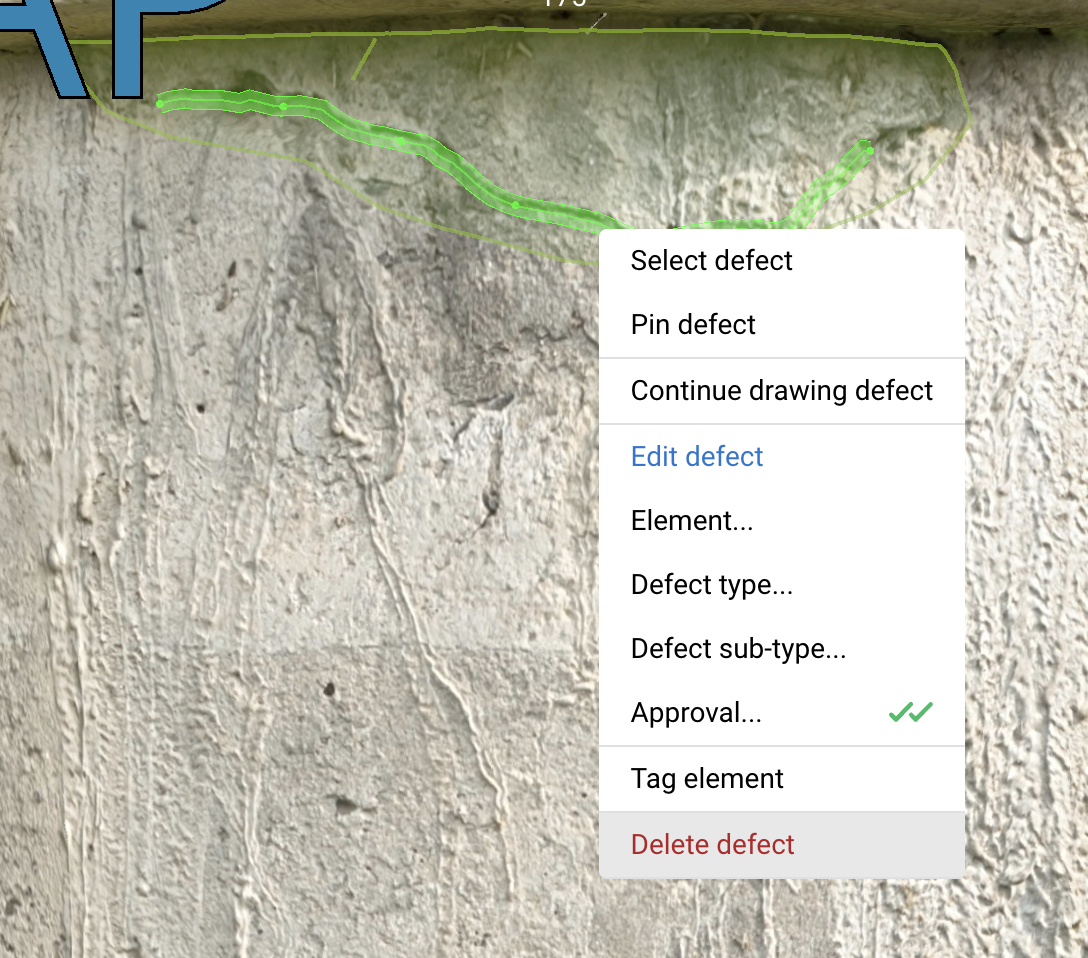

To delete the entire defect, right-click on it and choose Delete Defect from the context menu.

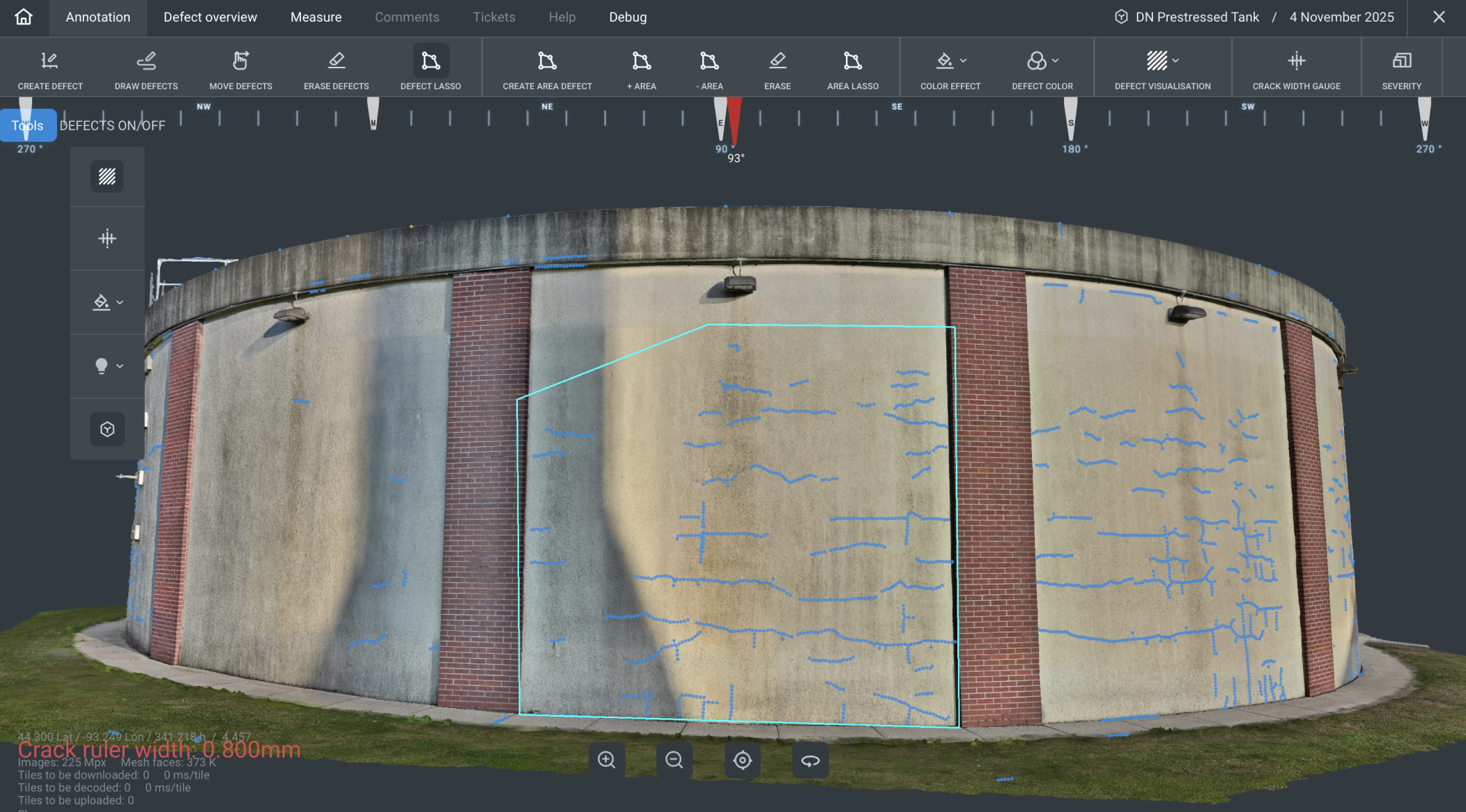

Defect Lasso
Experimental Feature. Use the Defect Lasso tool to select multiple defects and drafts at once.

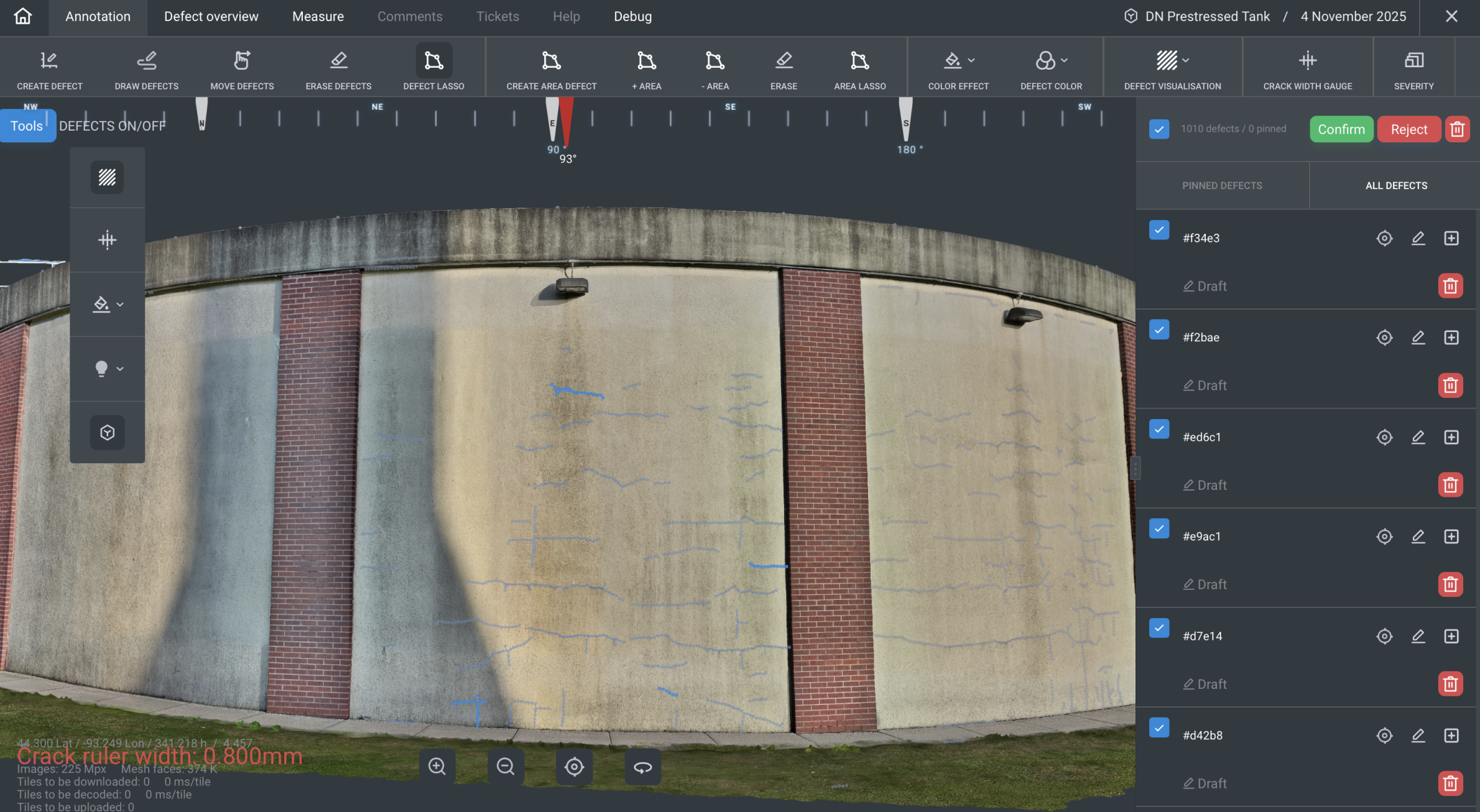

The right panel will open, and you’ll be able to perform bulk actions such as confirming defects or reassigning them to another element.
