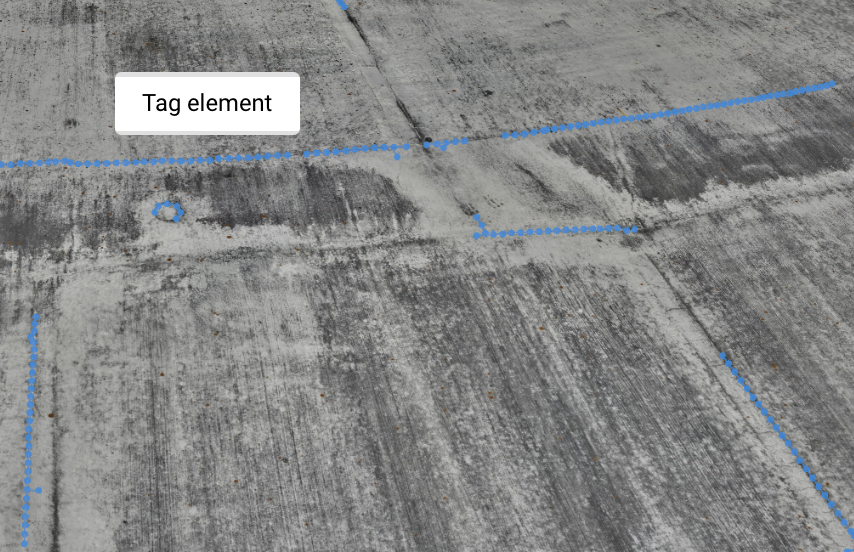

Right-click and choose Tag Element from the menu.

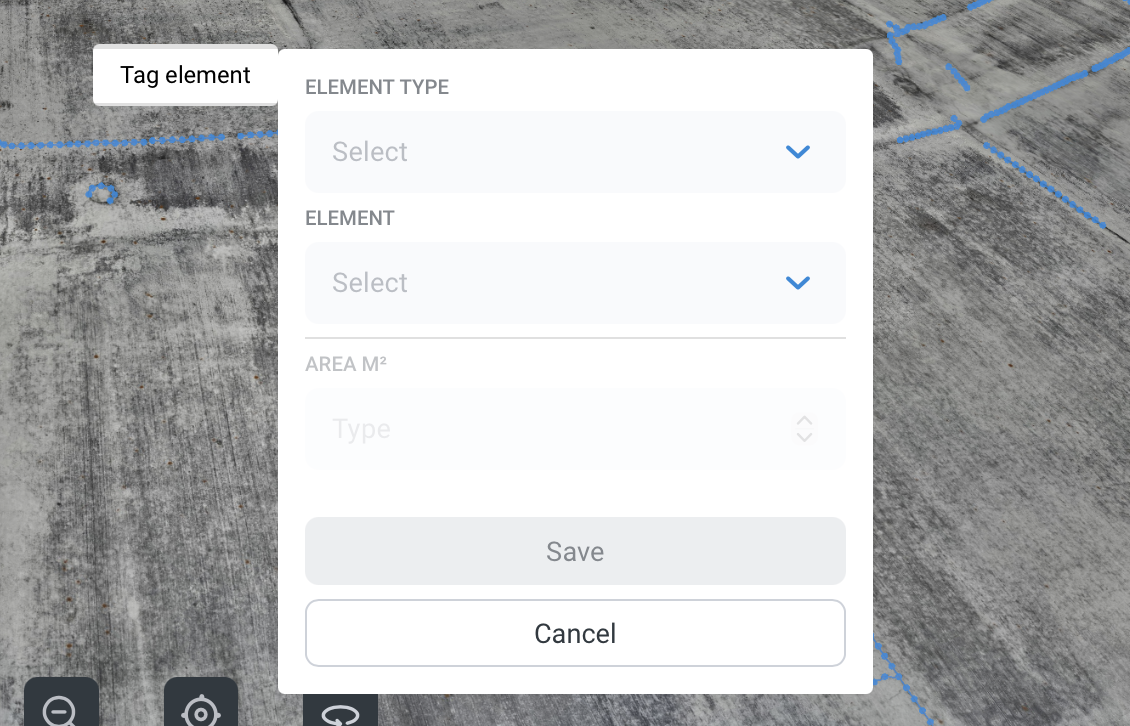

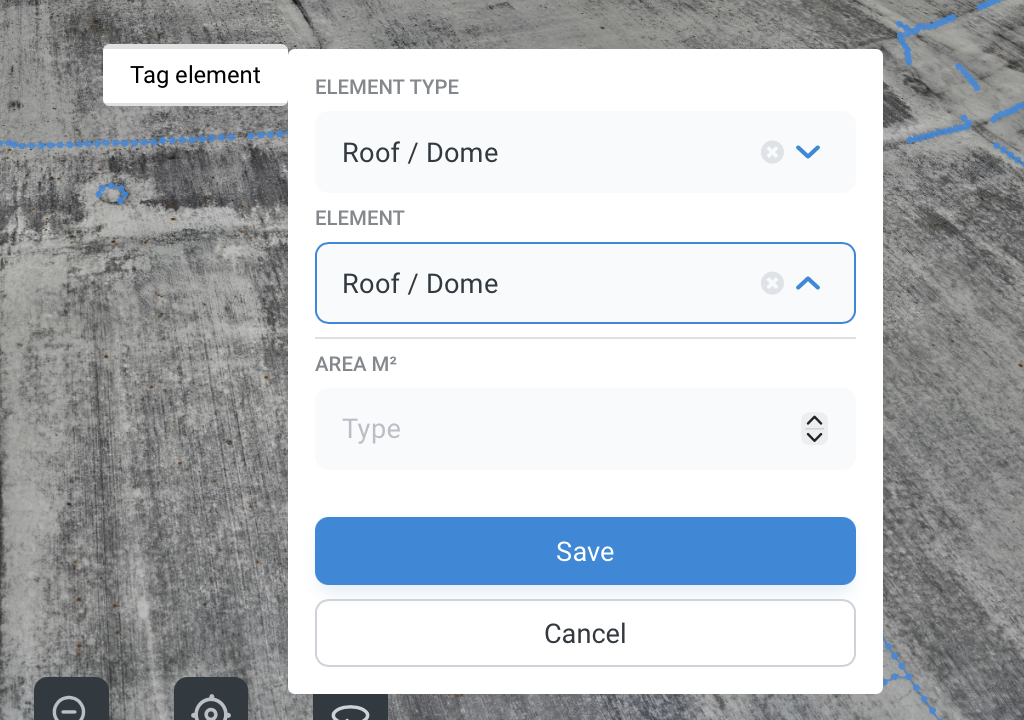

Select the element type and the element.
Click Save.

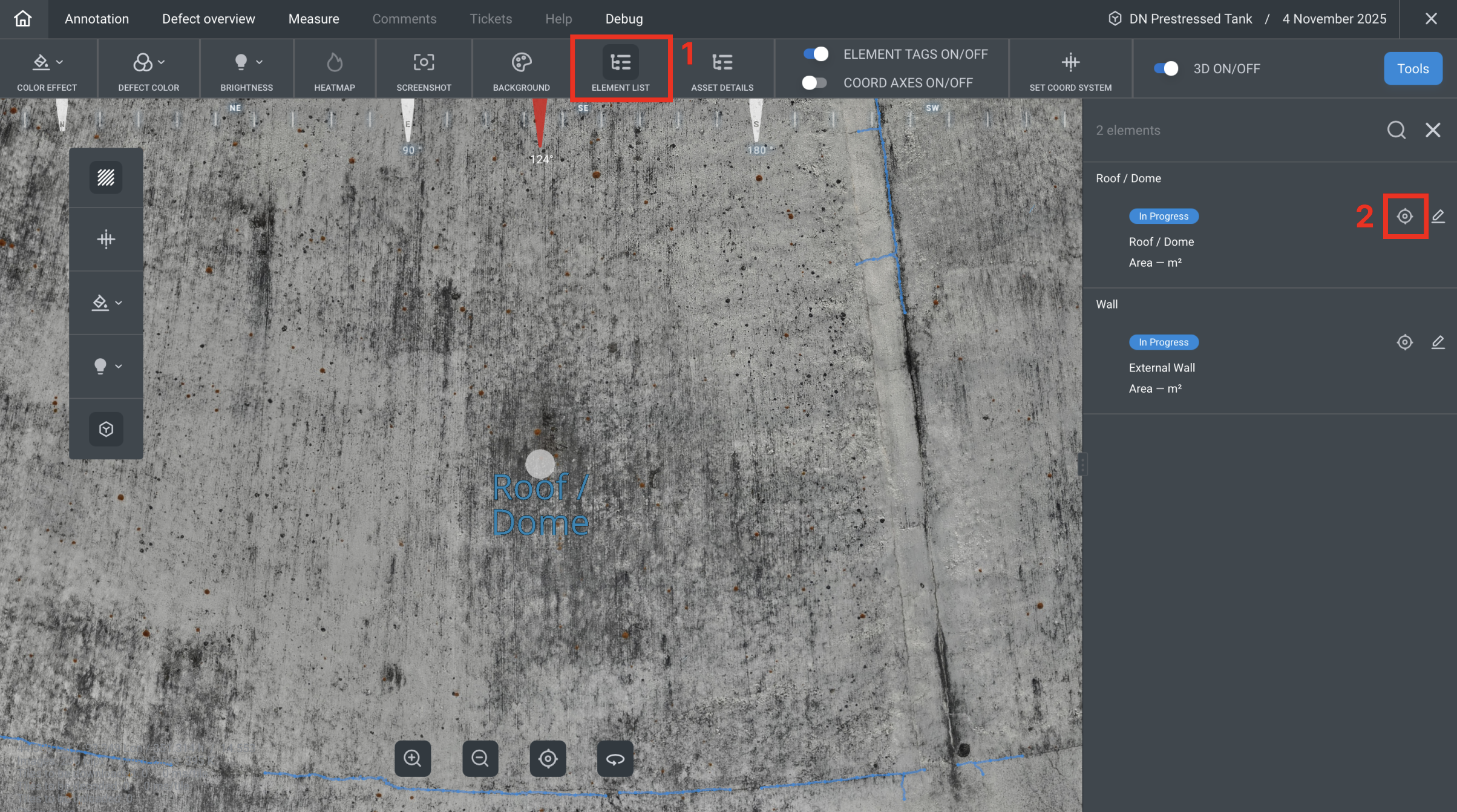

Open the panel with the list of elementsClick the target icon to jump to the selected element in the model
2. Tag Elements
Why do we need to tag elements?

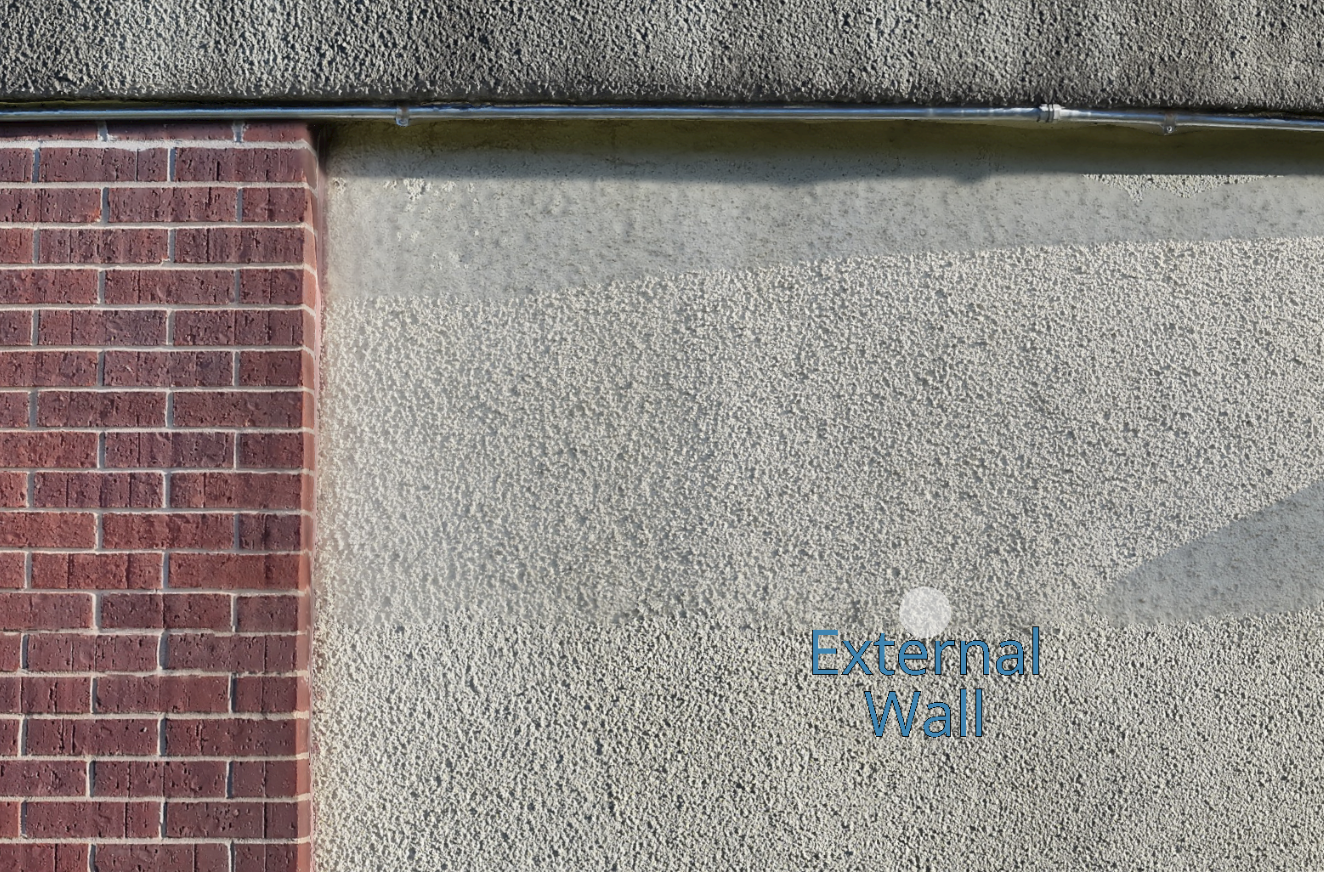

Tags act as visual markers for inspectors and help you navigate the model.
You can place multiple tags on the same element — for example, on both sides.
How to tag element?
How to move/delete tag?

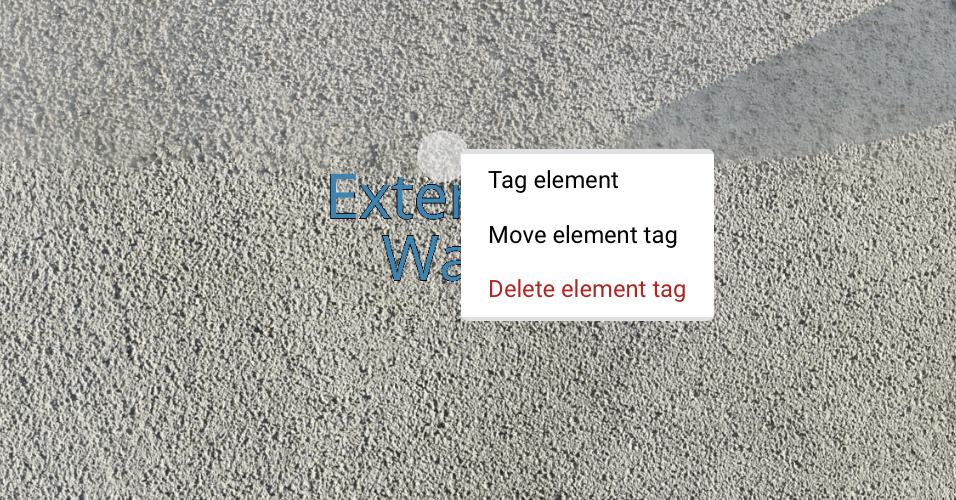

To move or delete a tag, right-click on it:
How to navigate using Element Tags
Useful when there are many similar elements, e.g., an internal tank inspection with multiple columns.
