Rio Tinto Track Navigation - Meeting Notes

Rio Tinto Track Navigation - Meeting Notes

Nov 25 - Asset Icons from Map Package and Destination LoA

Active / Inactive LoA Signal options

Instead of LoA Destination, we could use either: - “Navigating to LoA” at the top orange box - or just spell it out Limit of Authority instead of using LoA Destination

⁠

⁠

Instead of Destination LoA / Active LoA we could use

Tracking LoA

Greenlit LoA

Authorised LoA

Of the three options, Authorised LoA is the most self explanatory but can sound awkward if read as Authorised Limit of Authority. Greenlit LoA is also easily distinguishable.

LoA updates

LoAs have been updated to make the Active Destination LoA more distinct from the Inactive LoAs that appear along a selected route.

A pulsing effect has been added to Active Destination LoAs to make it stand out more to the user (alternate colors like yellow and orange have been tested, but proved either inaccessible or too strong)

Inactive LoAs that appear along the selected route have been slightly desaturated to reduce visual interest, and make them look less active than the Destination LoA.

⁠

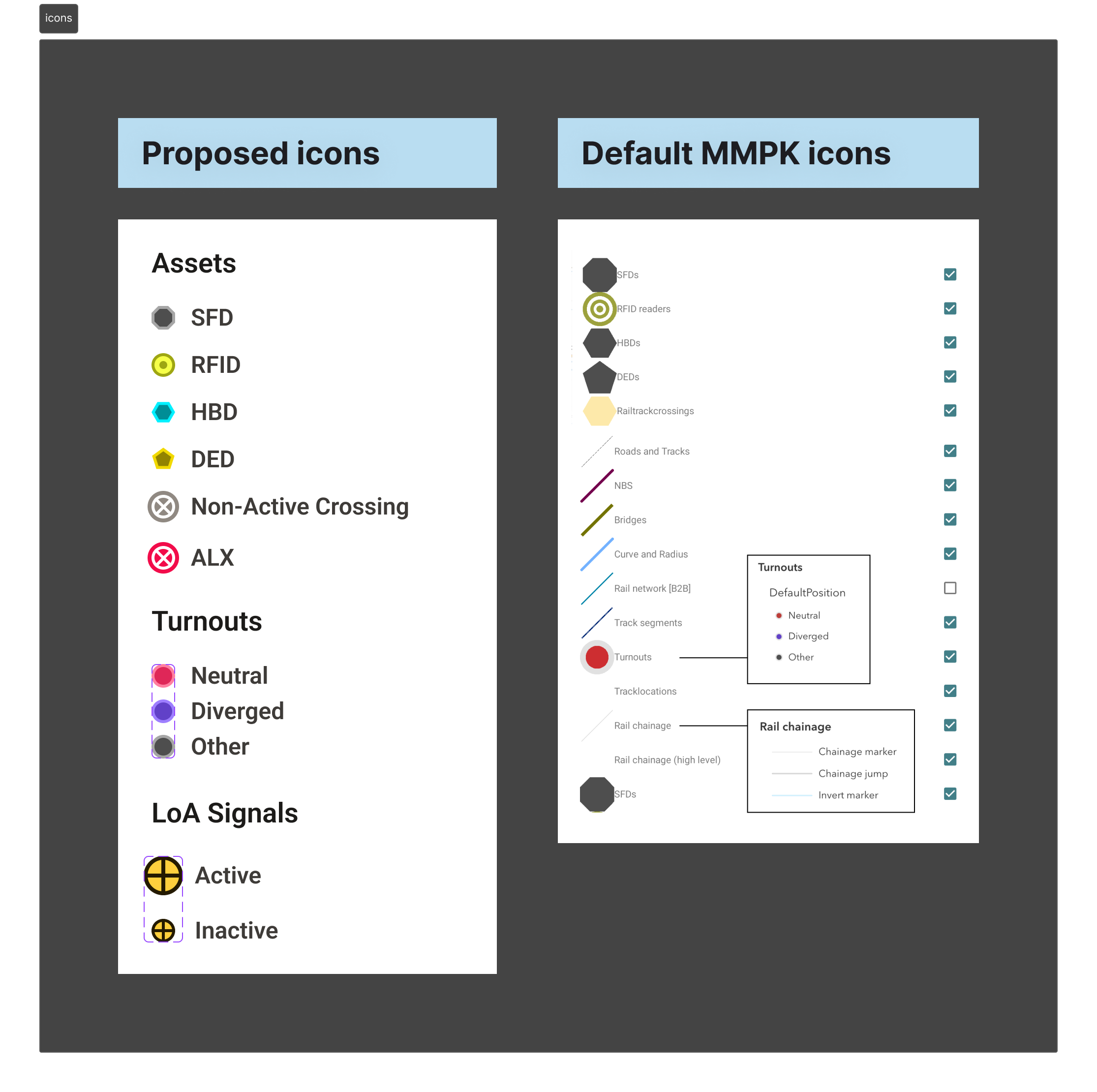

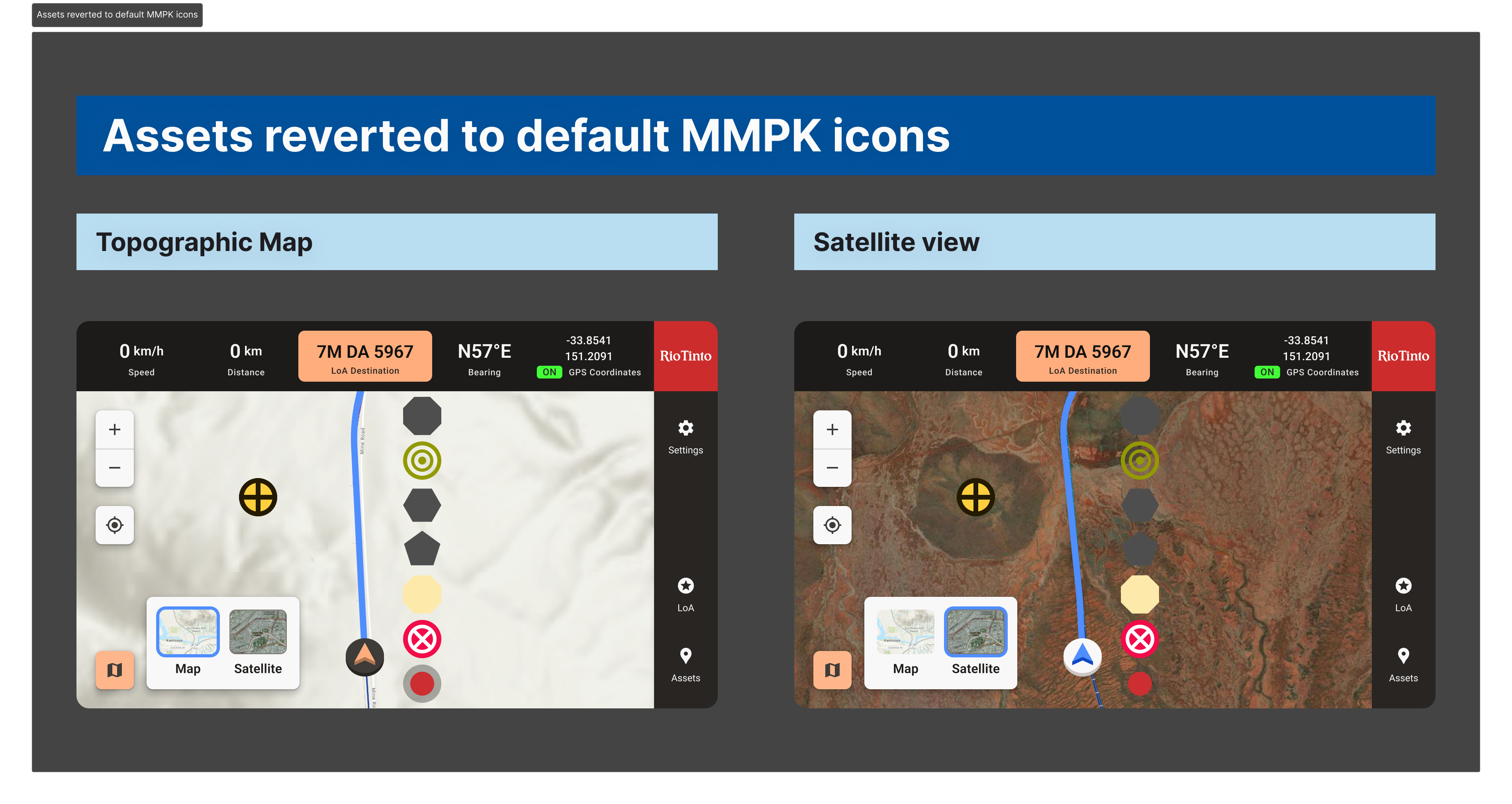

Asset Icon reverted to use default MMPK icons

Icons have been reverted to use the default MMPK icons instead of the proposed icons, with the exception of ALXs. The feedback to have Turnouts use a general icon has been applied as well.

⁠

Decisions from Nov 28 meeting

Revert to first set of colours

Turnouts will be the red dot throughout

Confirming pulsating LoA idea

(Please note that the icon sizes, and their positions on their respective maps shown in the screens below are for illustrative purposes only, and will not be applied to the final product)

⁠
