Writing a Manual

icon picker
How to Write Your Manual

Remember:

One slide per step.

Write one sentence per step.

Explain to the manufacturing plant how to assemble the switch, from start to finish, step-by-step.

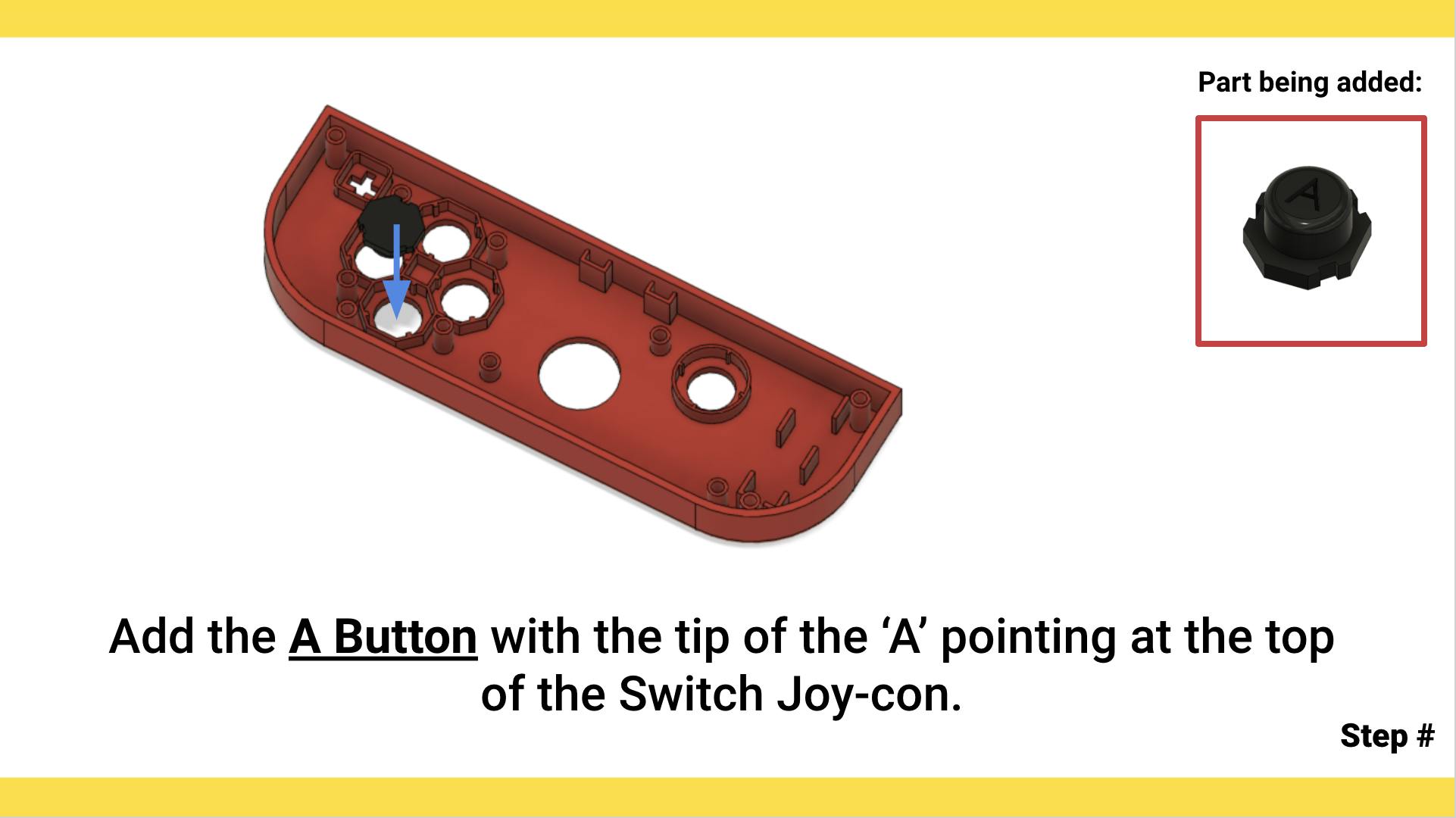

Here’s an example of what you might create. Use the given template!

Screen Shot 2022-06-08 at 15.29.34.png

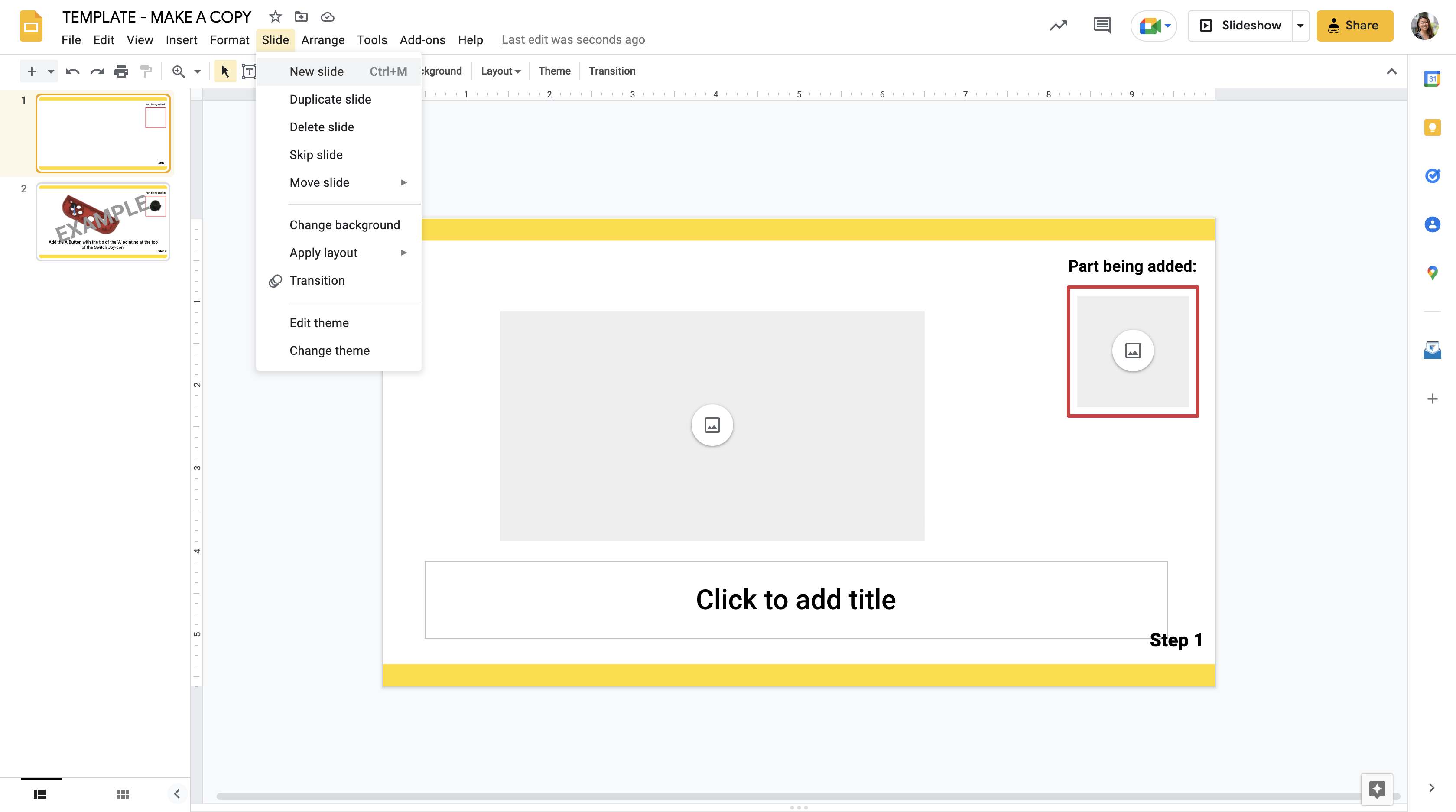

To create a New Slide, go to the toolbar in the top left and head to Slide > New Slide. It should reproduce the template each time, and automatically change the Step #s. You can also drag to reorder your slides as needed.

Screen Shot 2022-06-08 at 15.30.17.png

Use the “Rollback Timeline” feature (see video below) to take screenshots at certain points of the build.

Once you have the assembly the way you want to take a picture, take a screenshot of the current state of assembly as shown in the Example.


Here’s how you take a screenshot (use “Windows + Shift + S”)



Next:
