Measure System Performance

Link to page

1 | Baseline Performance Measurement

NVIDIA AGX Orin Kit

CPU and Memory Usage:

htop

Disk I/O:

sudo iotop

Network I/O:

iftop -i <network_interface> { eth0 | wln }

Toggle DNS Resolution (n): Resolving hostnames can help you identify devices more easily.

Toggle Source and Destination Ports (S, D): This helps you see which ports are being used for communication, which can be useful for understanding the types of traffic.

Sort by Bandwidth Usage (1, 2, 3): Sort by the columns to focus on the most significant traffic. For instance, pressing 1 will sort by the first column, typically showing the highest bandwidth users.

Toggle Cumulative Line Totals (T): This gives you a running total of the data transferred, which can be useful for longer-term monitoring.

Set Screen Filter (l): If you're only interested in traffic involving a specific host or network, you can set a filter to display only relevant data.

Use Bar Graph Display (b and B): The bar graph can give a visual representation of traffic, making it easier to spot peaks and trends.

Exit iftop: Press q to quit when you're done.

GPU Usage:

sudo tegrastats

System Statistics:

sar -u 1 10

PC

CPU and Memory Usage:

htop

Disk I/O:

iotop

Network I/O:

iftop -i <network_interface>

GPU Usage:

nvidia-smi

System Statistics:

sar -u 1 10

OpenGL Performance:

glxgears

2 | Performance Measurement During Operation

NVIDIA AGX Orin Kit

Monitor CPU, Memory, and GPU:

htop &

sudo tegrastats &

Monitor Disk and Network I/O:

iotop &

iftop -i <network_interface> &

Run a Stress Test:

stress-ng --cpu 4 --timeout 60s

Capture Performance Data:

sar -u 1 600 > performance_orin.log

PC

Monitor CPU, Memory, and GPU:

htop &

sudo tegrastats &

Monitor Disk and Network I/O:

iotop &

iftop -i <network_interface> &

Run OpenGL and Xbox Controller Package:

glxgears &

Capture Performance Data:

sar -u 1 600 > performance_pc.log

3 | Performance Measurement During Operation

NVIDIA AGX Orin Kit

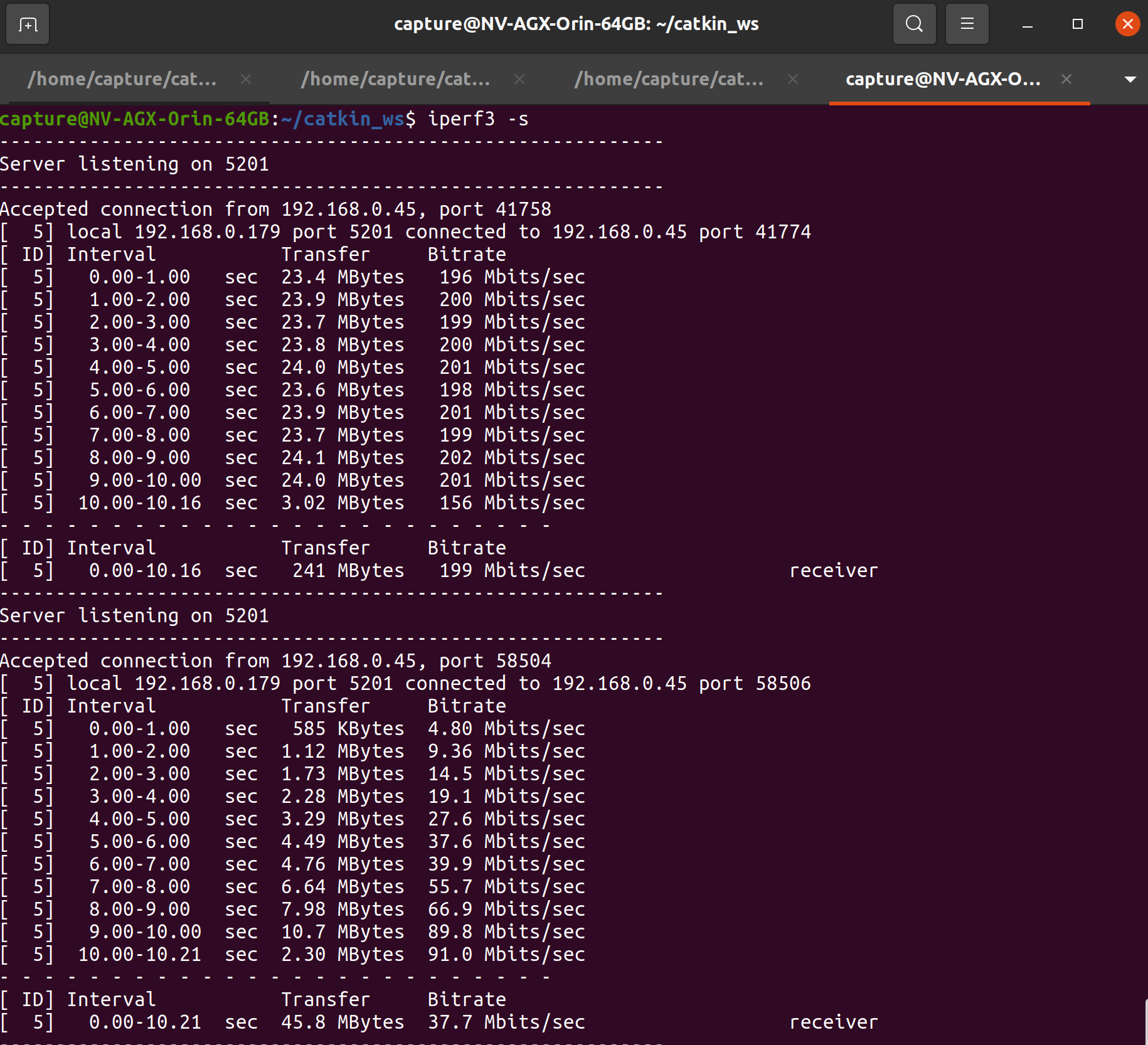

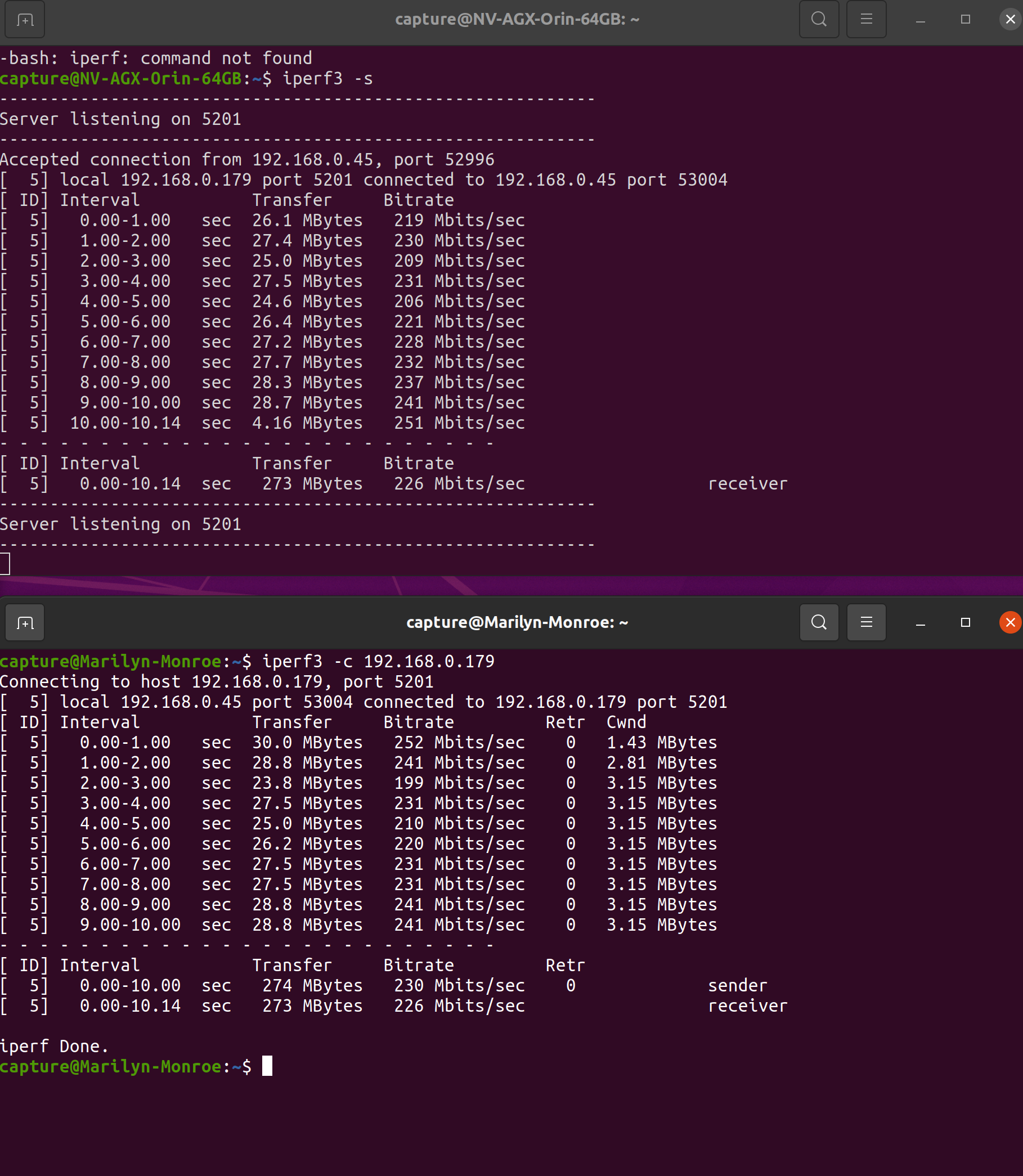

Use iperf for Network Bandwidth:

iperf3 -s

Run iperf Client on PC:

iperf3 -c <orin_ip> -t 60 -i 10

PC

Measure USB Transfer Rates for Sensors:

dd if=/dev/zero of=/dev/null bs=1M count=1024

Use iperf for Network Bandwidth:

iperf3 -s

Run iperf Client on Orin Kit:

iperf3 -c <pc_ip> -t 60 -i 10

1 | Performance Measurement Before Recording Bag Files:

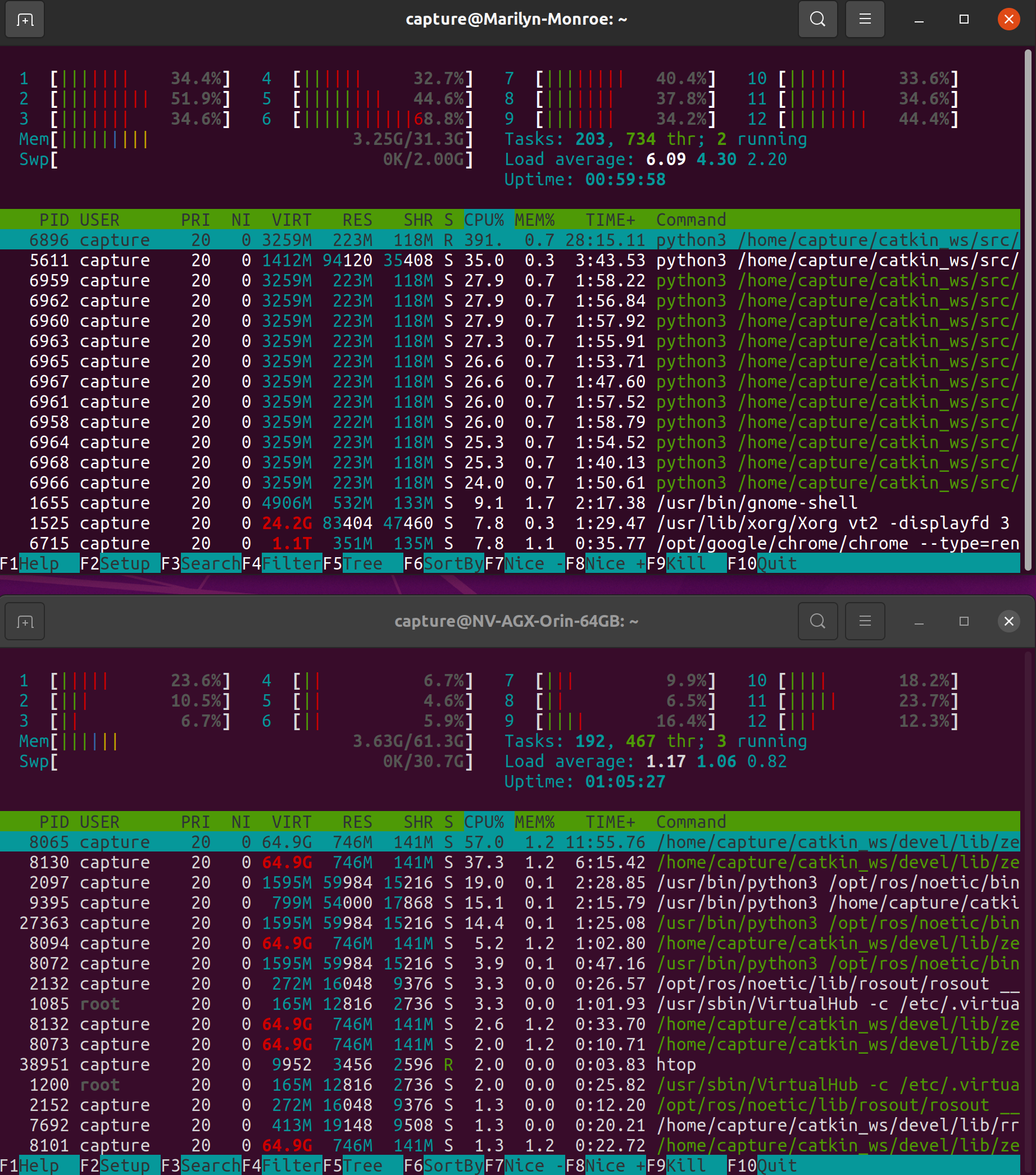

CPU and Memory Usage:

⁠

⁠

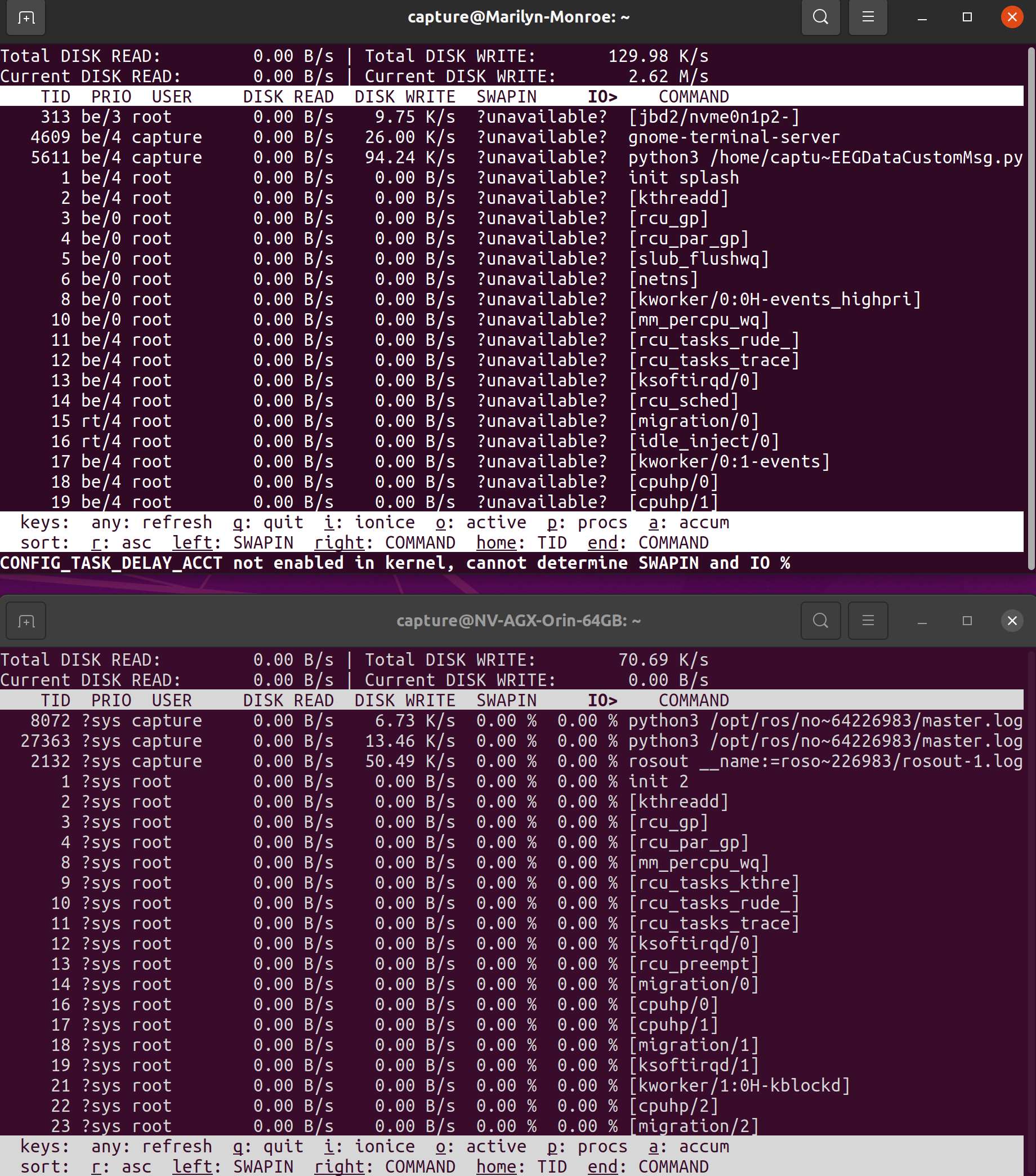

Disk I/O:

⁠

⁠

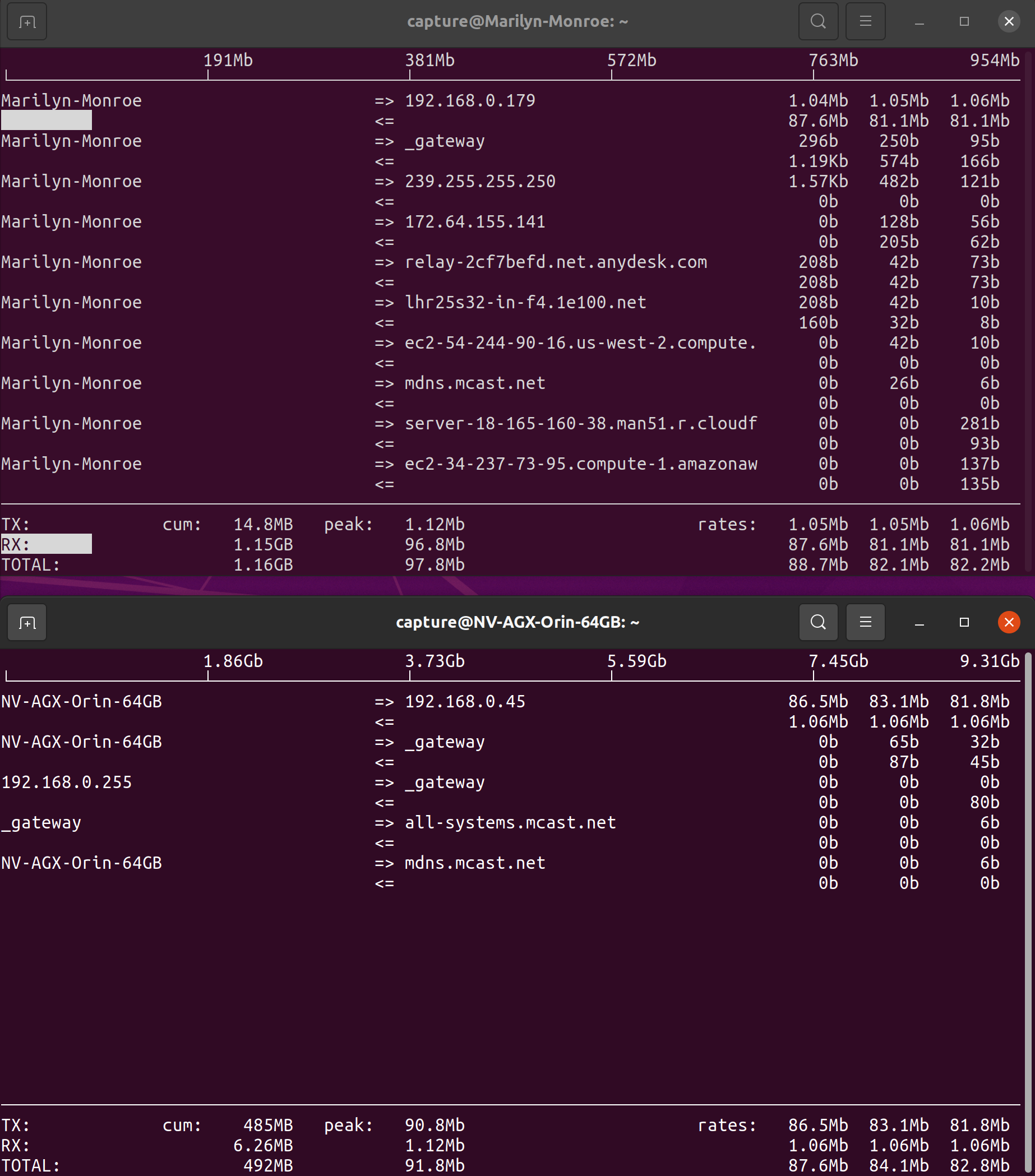

Network I/O:

⁠

⁠

GPU Usage:

General System Information:

RAM Usage: 3844/62800 MB

Swap Usage: 0/31400 MB (cached 0 MB)

Processor Usage:

CPU Usage: Various cores operating at different frequencies and percentages (e.g., 19% at 729 MHz, 5% at 729 MHz, etc.)

Clock Frequencies:

EMC Frequency: 8% at 2133 MHz

GPU Frequency (GR3D Freq): 0% at 407 MHz

Video Interface Controller (VIC) Frequency: 115

Temperatures:

APE: 174

CPU Temperature: 49.5°C

Tboard Temperature: 39°C

SOC Temperature Ranges: 46.125°C - 46.937°C

Tdiode Temperature: 40.25°C

GPU Temperature: 45.593°C

Thermal Junction Temperature (tj): 49.5°C

Power Usage:

VDD_GPU_SOC: 4233 mW

VDD_CPU_CV: 1209 mW

VIN_SYS_5V0: 4132 mW

VDDQ_VDD2_1V8AO: 1209 mW

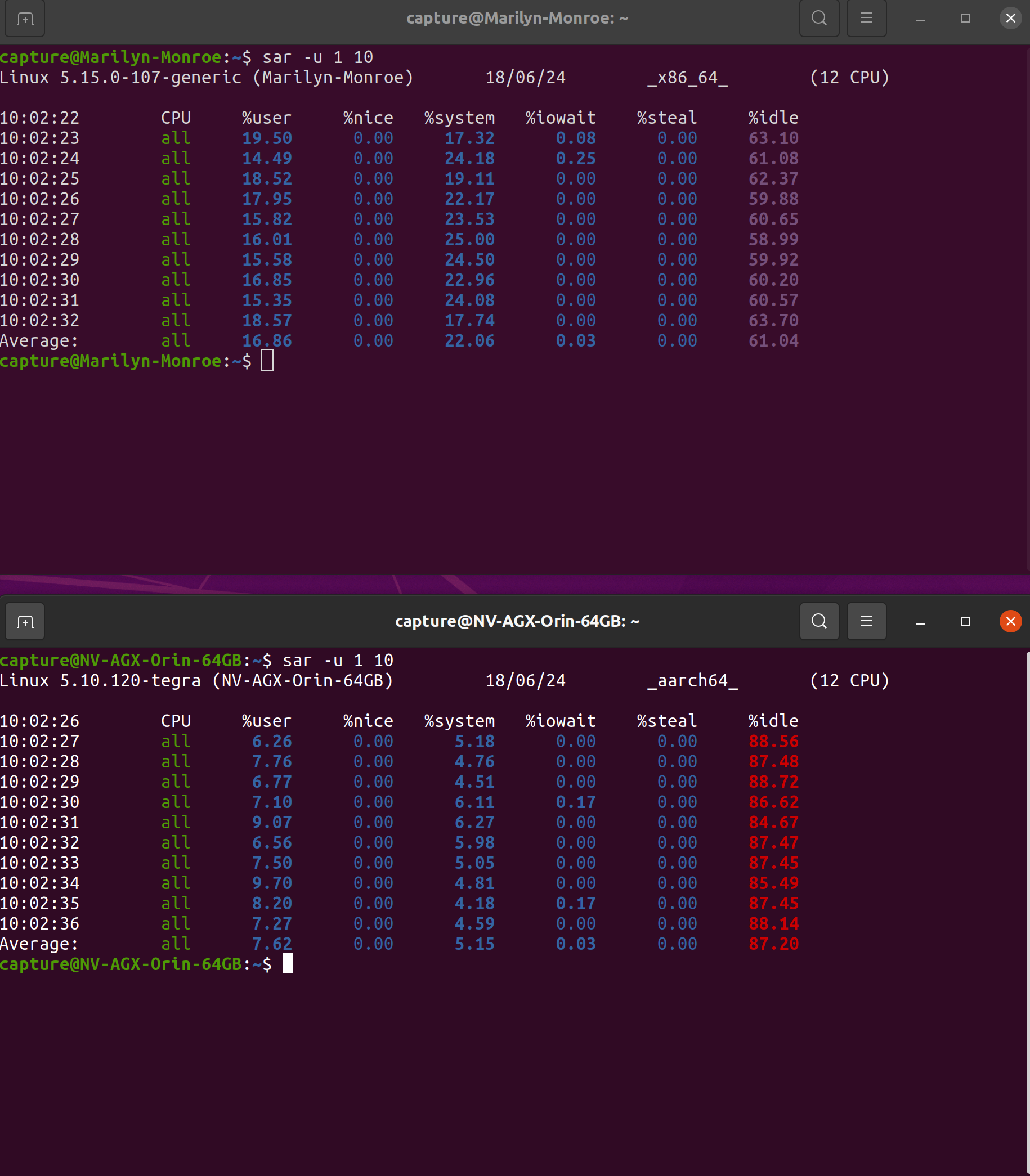

System Statistics:

⁠

⁠

2 | Performance Measurement Before Recording Bag Files:

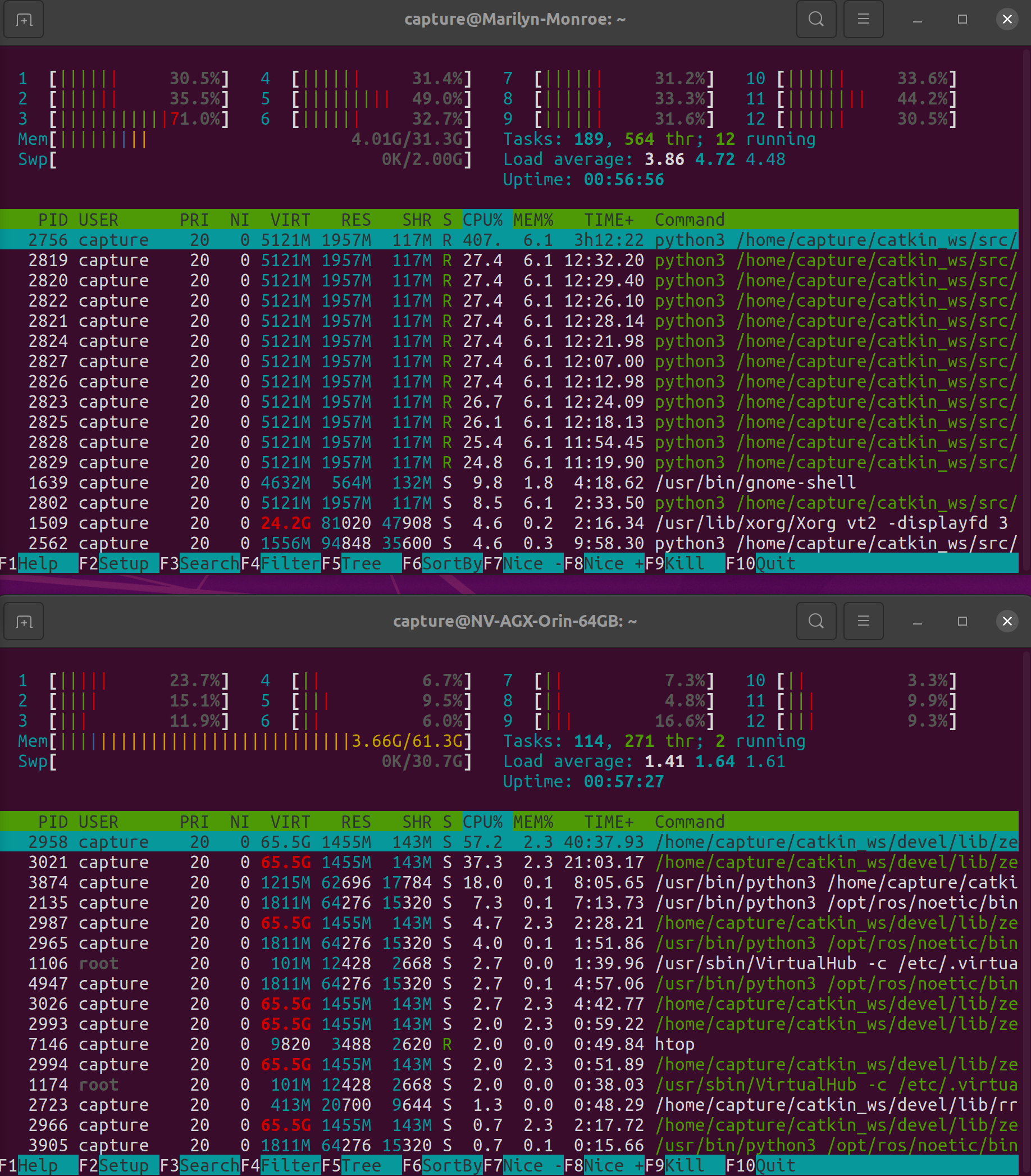

CPU and Memory Usage:

⁠

⁠

Disk I/O:

Network I/O:

⁠

⁠

⁠

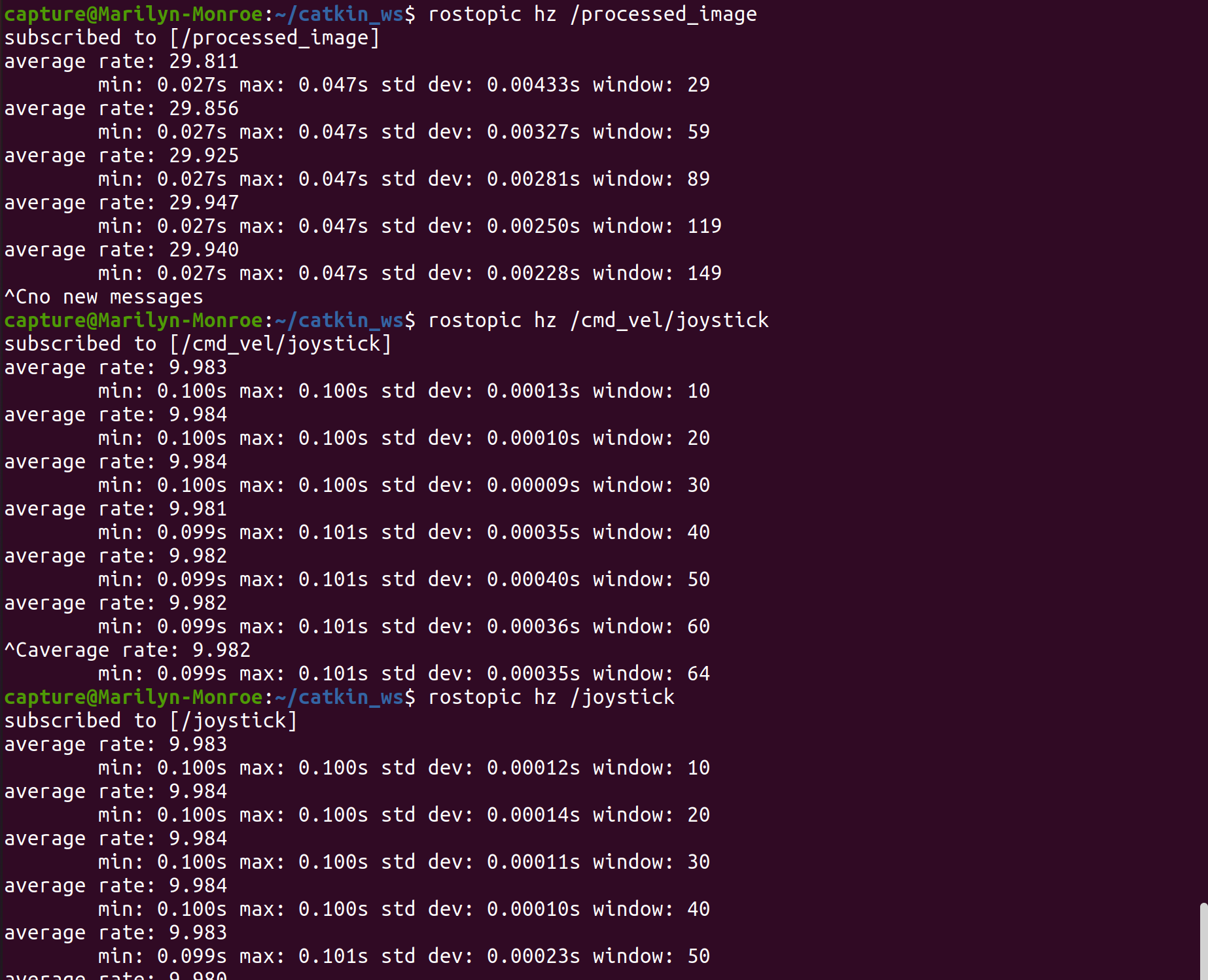

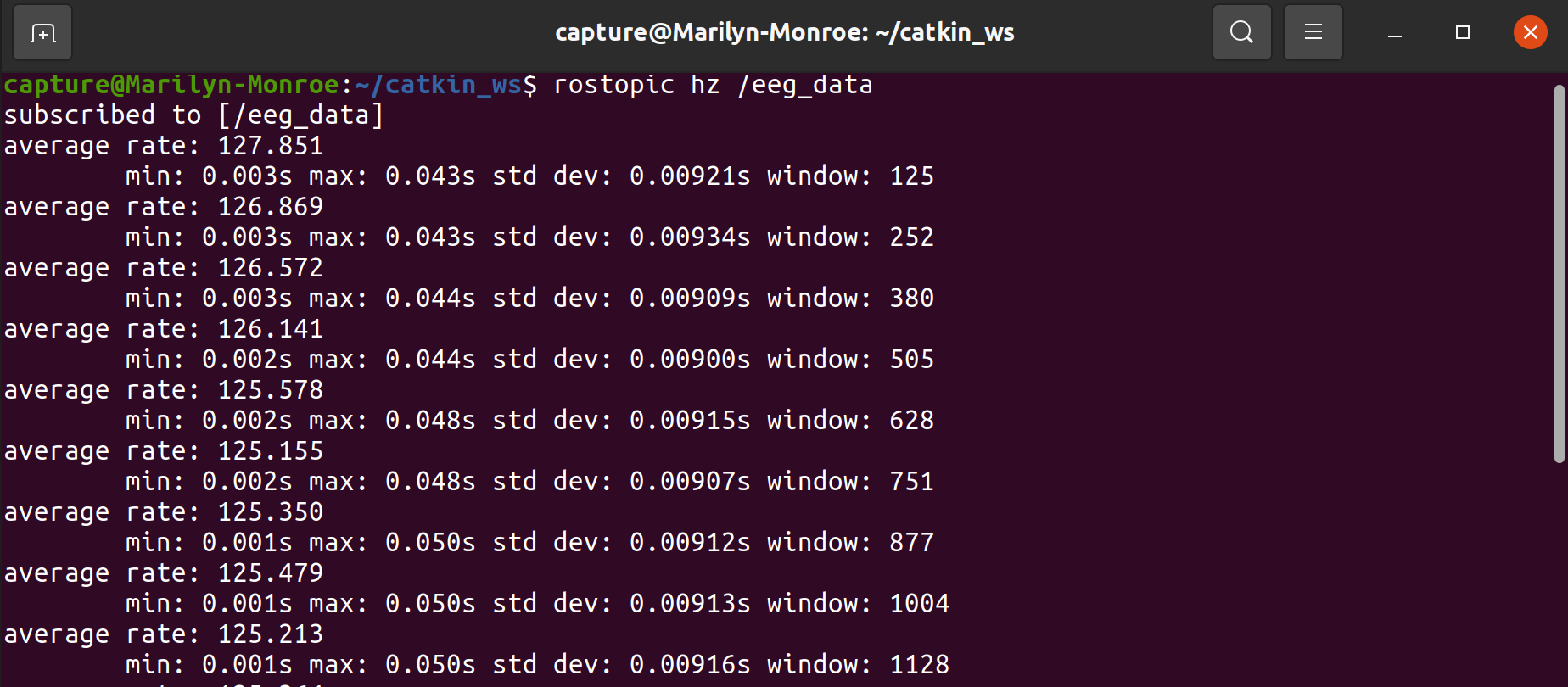

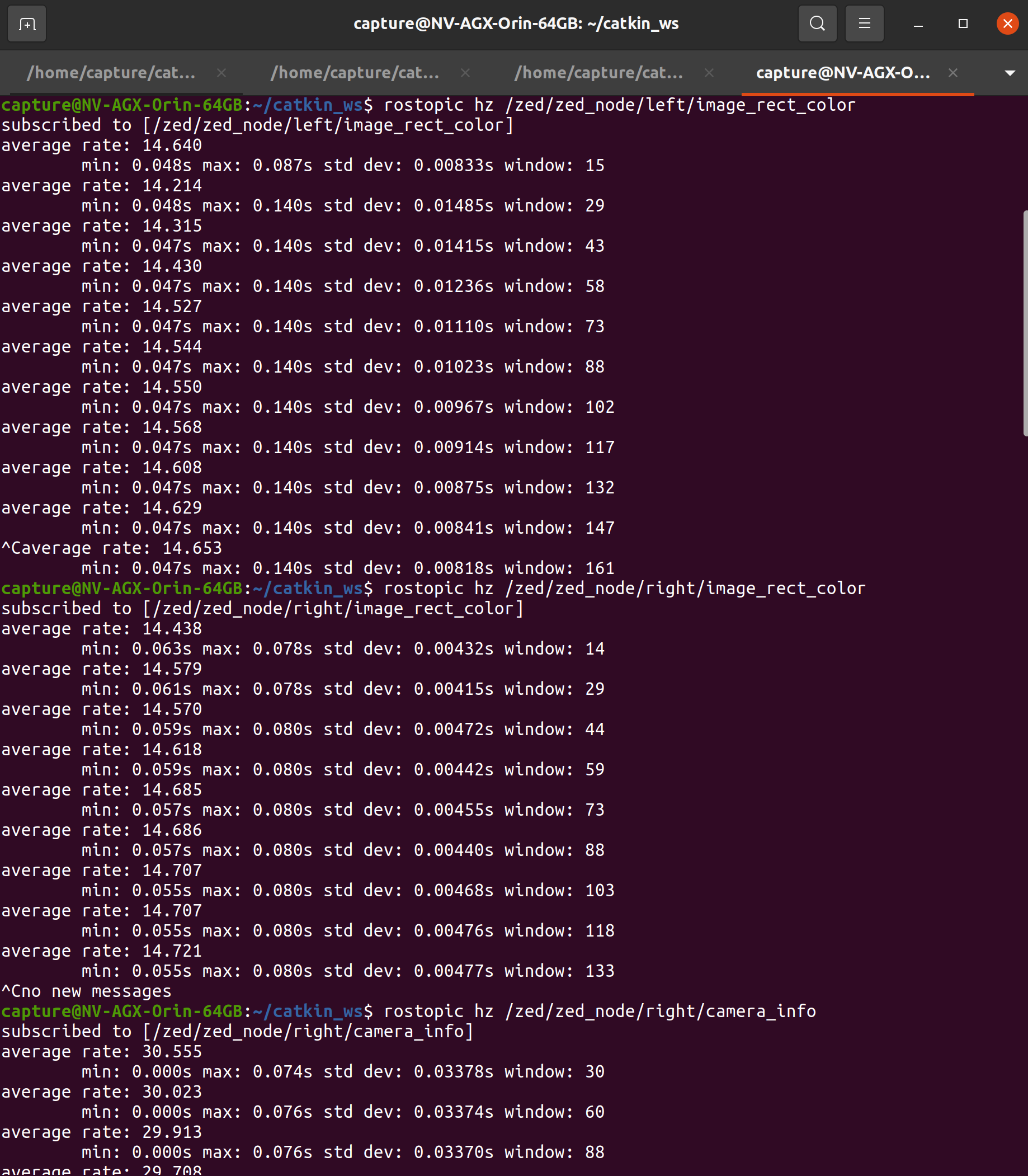

3| Frequencies During Recording:

⁠

⁠

⁠

⁠

⁠

⁠

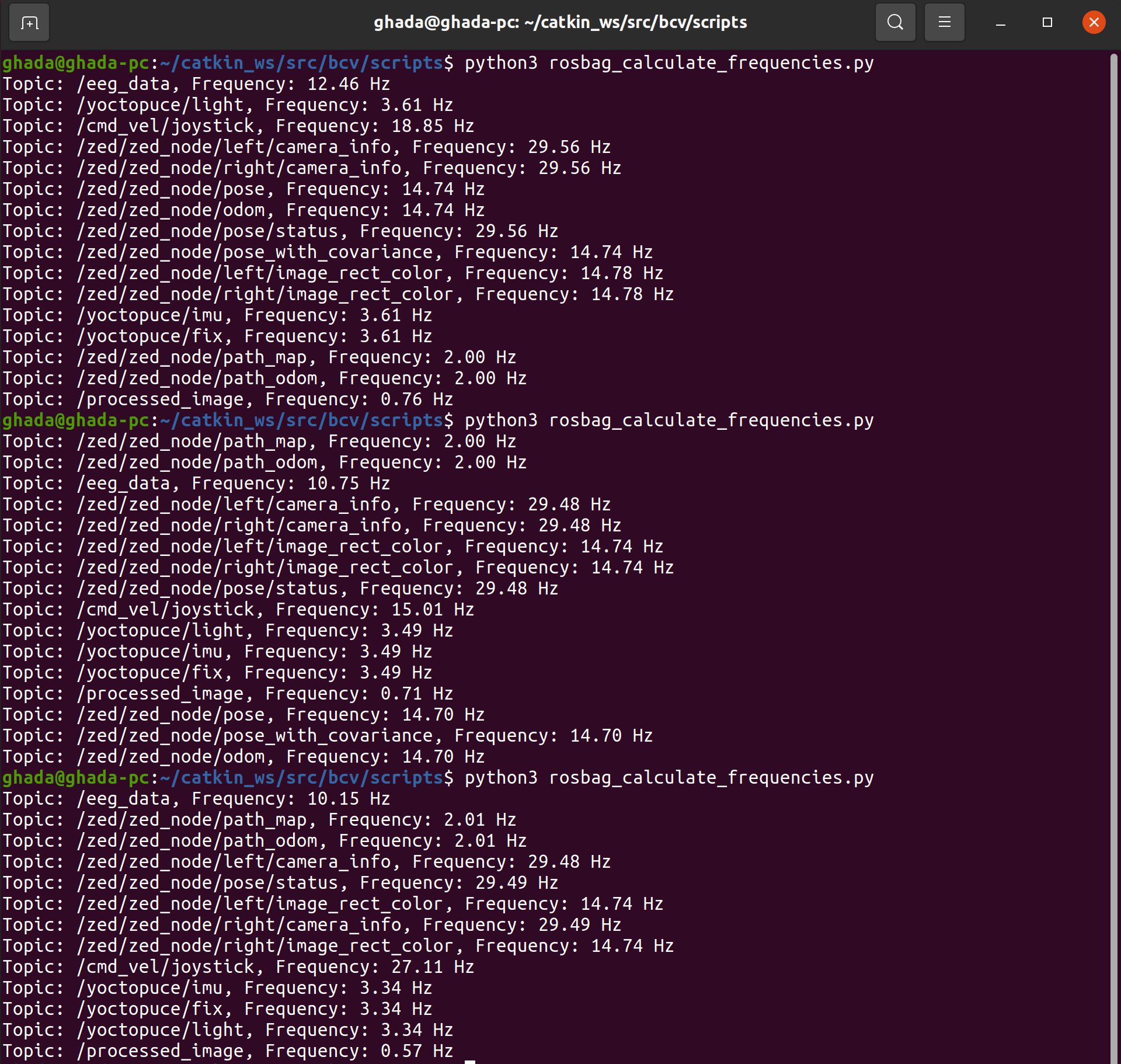

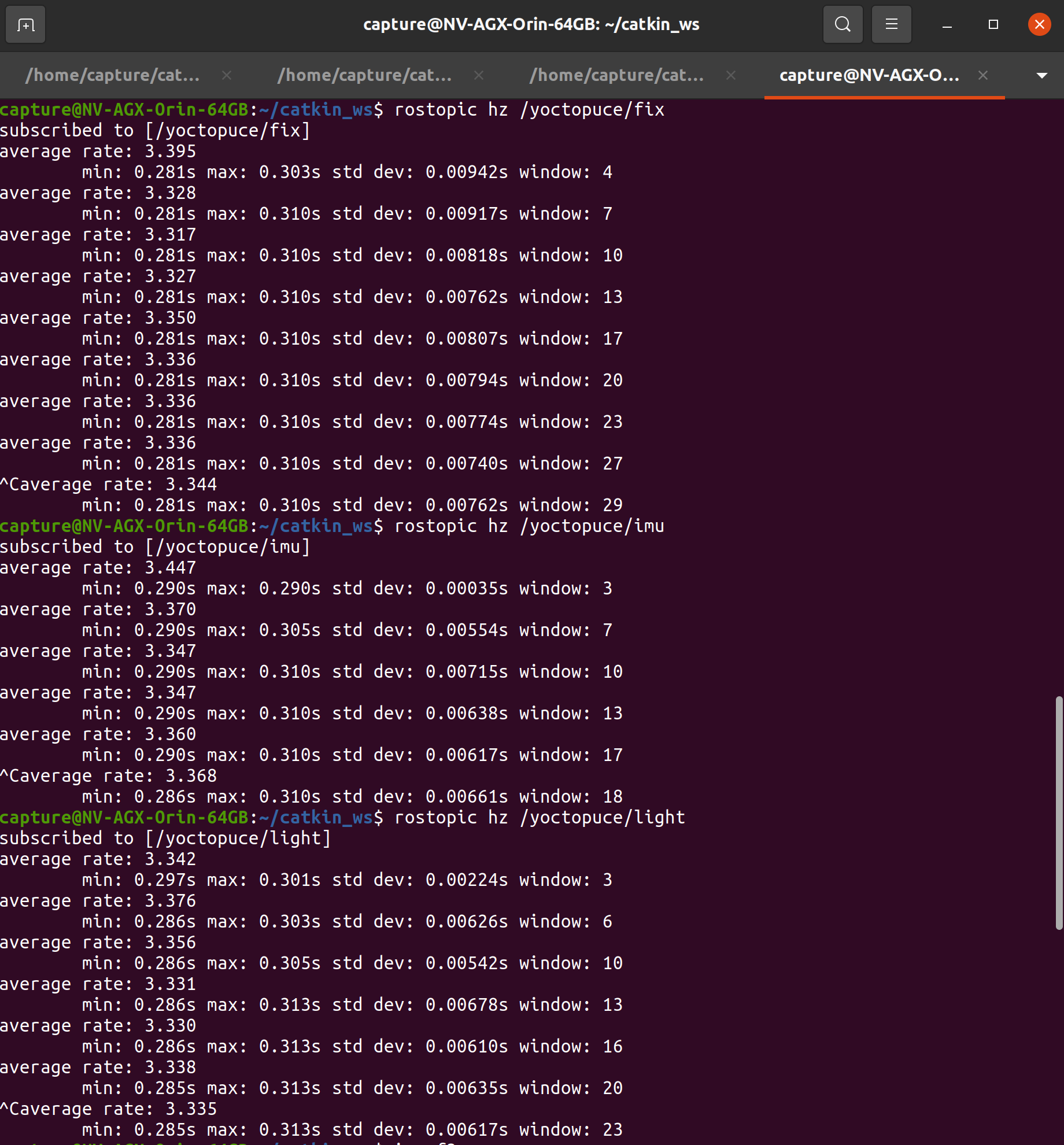

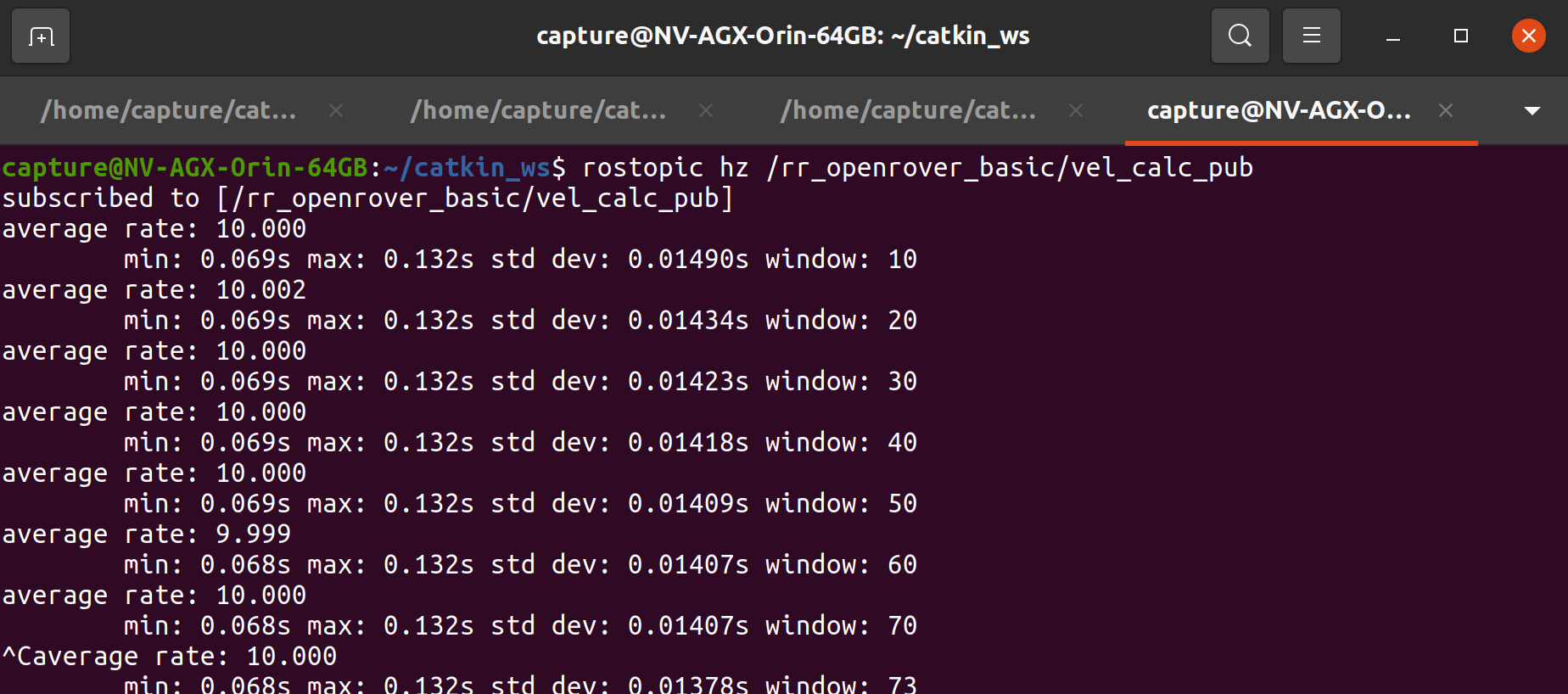

4 Frequencies from Recording:

⁠

⁠

https://askubuntu.com/questions/257263/how-to-display-network-traffic-in-the-terminal⁠

⁠
