Cap electrodes


⁠
⁠
⁠

Connecting the Electrode Cap to the CytonDaisy
y-splitter cable connect together the bottom SRB pins on the Cyton and the Daisy module, then connect to the REF location of the cap.

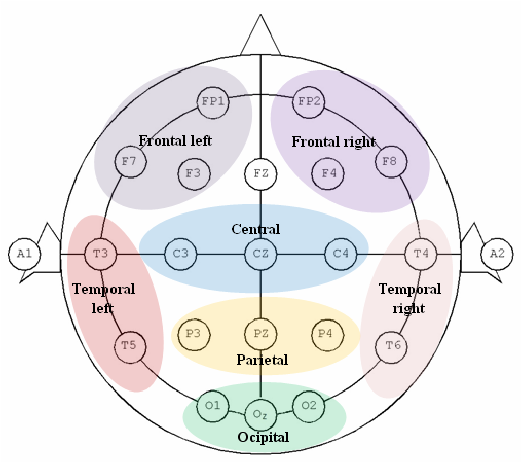

Connect bottom pins N1P through N8P on the Cyton, these pins will be channels 1-8 according to table below:

Cyton Board
Number
Electrode
Cyton Board Pin
Wire Color
​
y-splitter
Bottom SRB pin (SRB2)
White
1
FP1
Bottom N1P pin
Grey
2
FP2
Bottom N2P pin
Purple
3
C3
Bottom N3P pin
Blue
4
C4
Bottom N4P pin
Green
5
T3
Bottom N5P pin
Yellow
6
T4
Bottom N6P pin
Orange
7
O1
Bottom N7P pin
Red
8
O2
Bottom N8P pin
Brown
There are no rows in this table
⁠
Connect top pins N1P through N8P on the Daisy module to another set of HPTA cables, shown below, these pins will be channels 9-16:
Connect bottom BIAS pin of the Cyton to the GND location on the cap
Daisy
Number
Electrode
Daisy Pin
Wire Color
9
F7
Bottom N1P pin
Grey
10
F8
Bottom N2P pin
Purple
11
F3
Bottom N3P pin
Blue
12
F4
Bottom N4P pin
Green
13
T5
Bottom N5P pin
Yellow
14
T6
Bottom N6P pin
Orange
15
P3
Bottom N7P pin
Red
16
P4
Bottom N8P pin
Brown
There are no rows in this table
⁠
