Kitchen Main Line Repair

Our team descaled and hydro-jetted kitchen branch lines as well as kitchen main line on 8/23.

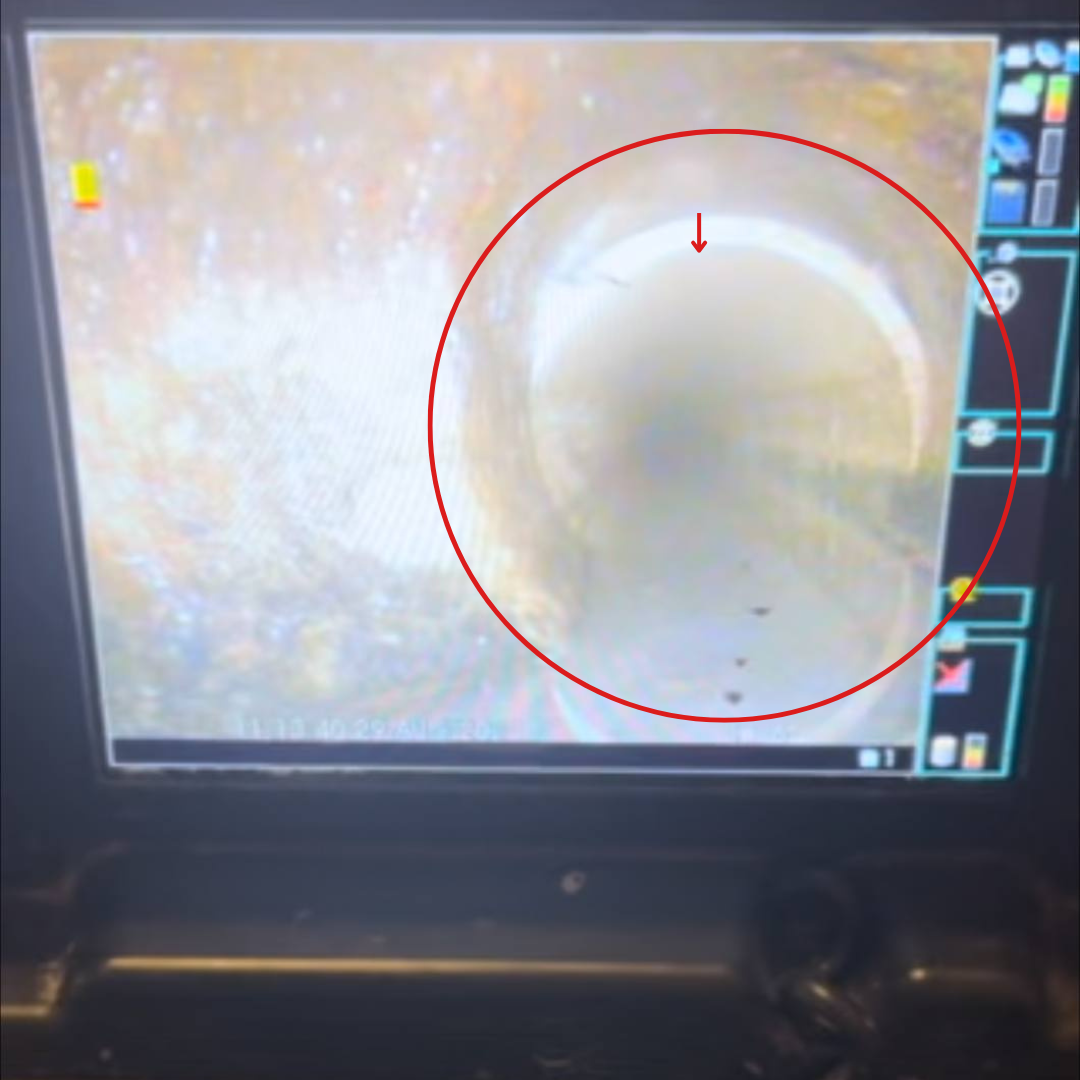

We have initially identified holes in the kitchen line televised from the clean out access in the storage room and concluded that we would be able to provide trenchless repair - pipelining by installing full-size 4” clean out in the storage room and then installing pipelining through a full-size access.

However, upon televising the pipe during additional diagnostic visit by our Pipelining Technician Lead, we concluded the following

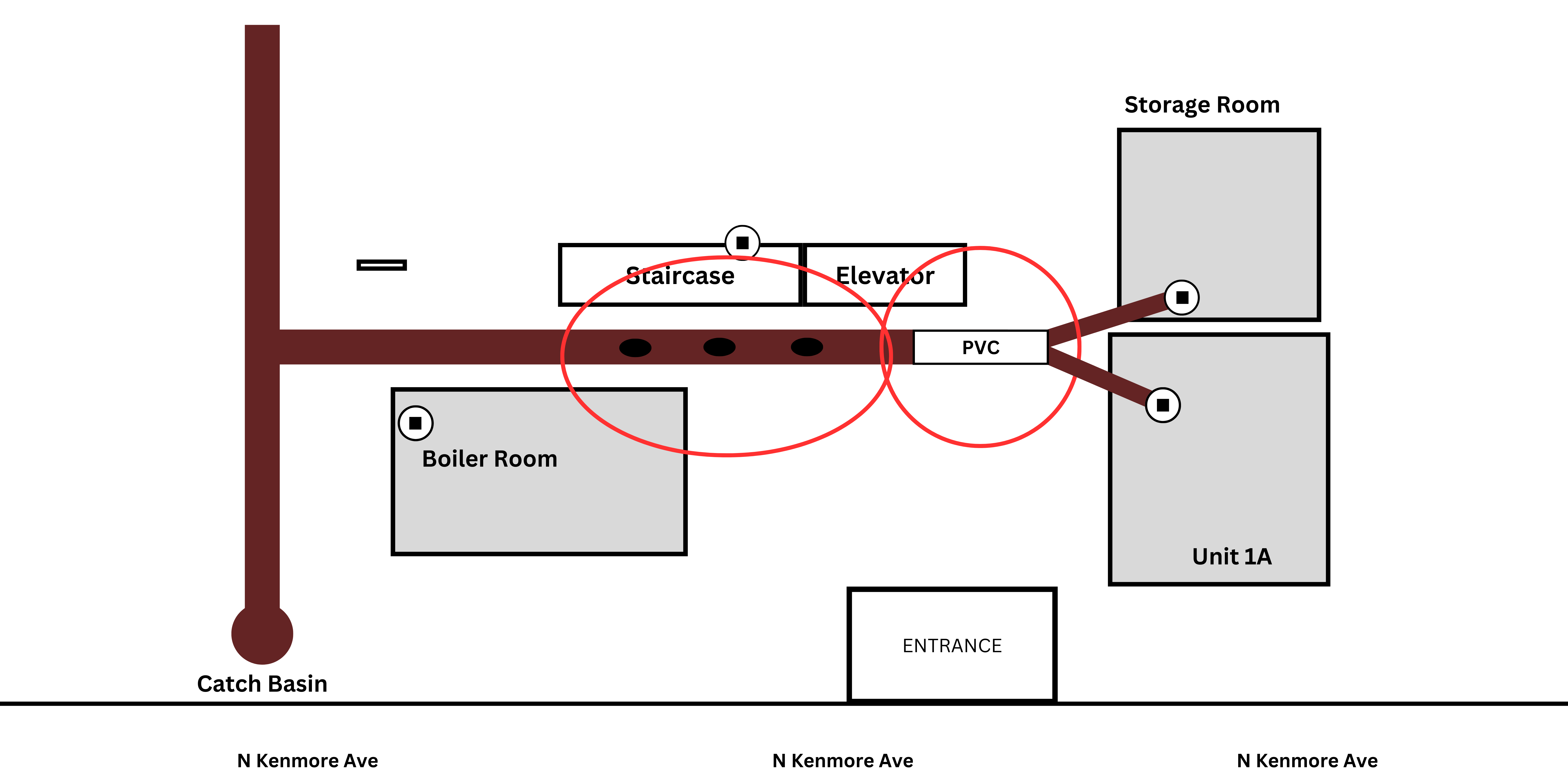

Compromised PVS Pipe: After the branch line from the storage room turns into the main line, there is a PVC pipe that was installed most likely less than 10 years ago that has not been attached with the proper fittings as well as backfilled incorrectly which resulted in a drop shift ~ 1” and accumulates grease and water which is highly likely resulting in backups.

⁠

⁠

Revised Repair Plan: PVC Repair & Pipelining Installation

⁠

⁠

Step 1: We will perform spot repair to replace the PVC and install it back with proper hubs link.

Step 2: During the replacement of the PVC pipe, we will take out the old PVC and install pipelining over the holes in the rest of the pipe (approx.. 15 feet).,

Step 3: Once the pipelining is installed, we will place and property reconnect the PVC pipe to a newly install pipeline.

Estimate:

⁠

PVC Repair & Pipeliner Installation.pdf

45.5 kB

⁠

Completed Repair (9/11/24)

He have successfully completed pipeline installation in the hallway. Please see the attached visuals below

⁠

ce6ffaaa-1f1e-47e1-8841-d8e24f32297a_cdv_photo_001 (1).jpg

⁠

Payment Terms:

50% down-payment and 50% upon completion. E-payment portal, check, Zelle is acceptable,

Danyil Vayser

J Blanton Plumbing

⁠

danyil@jblantonplumbing.com⁠

⁠

+1 (244) 409 3758

⁠

www.jblantonplumbing.com⁠

⁠

⁠
