AWS Nitro System and Enclaves

AWS Nitro System

The Nitro System is a collection of hardware and software components built by AWS that enable high performance, high availability, and high security. For more information, see

AWS Nitro System⁠

The Nitro System provides bare metal capabilities that eliminate virtualization overhead and support workloads that require full access to host hardware. Bare metal instances are well suited for the following:

Workloads that require access to low-level hardware features (for example, Intel VT) that are not available or fully supported in virtualized environments

Applications that require a non-virtualized environment for licensing or support

⁠

Nitro is the underlying platform for the next generation of EC2 instances

Breaks functions into specialized hardware with a Nitro Hypervisor

Specialized hardware includes:

Nitro cards for VPC

Nitro cards for EBS

Nitro for Instance Storage

Nitro card controller

Nitro security chip

Nitro hypervisor

Nitro Enclaves

Improves performance, security and innovation:

Performance close to bare metal for virtualized instances

Elastic Network Adapter and Elastic Fabric Adapter

More bare metal instance types

Higher network performance (e.g. 100 Gbps)

High Performance Computing (HPC) optimizations

Dense storage instances (e.g. 60 TB)

⁠

Loading docs.aws.amazon.com⁠

⁠

AWS Nitro Enclaves

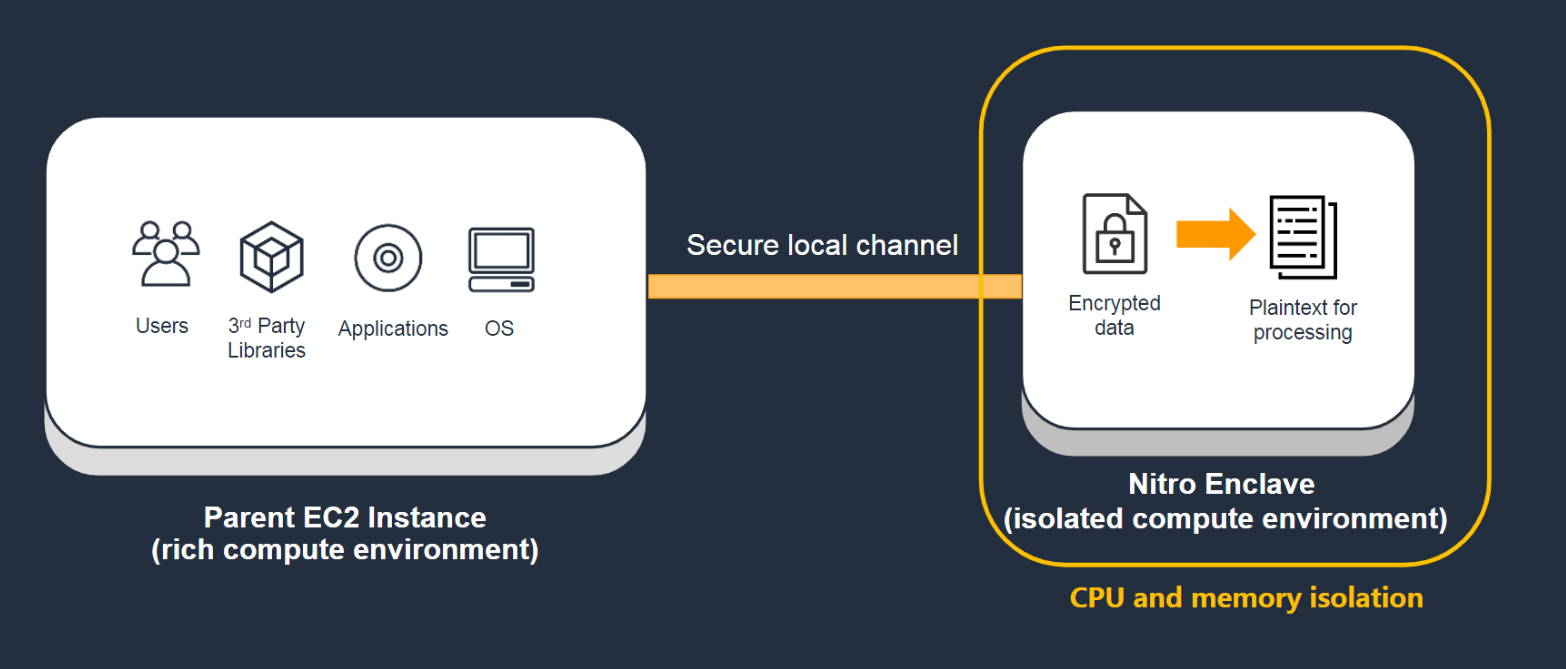

AWS Nitro Enclaves is an Amazon EC2 feature that allows you to create isolated execution environments, called enclaves, from Amazon EC2 instances. Enclaves are separate, hardened, and highly-constrained virtual machines. They provide only secure local socket connectivity with their parent instance. They have no persistent storage, interactive access, or external networking. Users cannot SSH into an enclave, and the data and applications inside the enclave cannot be accessed by the processes, applications, or users (root or admin) of the parent instance. Using Nitro Enclaves, you can secure your most sensitive data, such as personally identifiable information (PII), and your data processing applications.

⁠

Uses cryptographic attestation to ensure only authorized code is running

Integrates with AWS Key Management Service (KMS)

Protect and securely process highly sensitive data:

Personally identifiable information (PII)

Healthcare data

Financial data

Intellectual Property data

⁠

Loading docs.aws.amazon.com⁠

⁠

AWS Nitro System

AWS Nitro Enclaves
