SeligSIM Assignment 3
15 points
Nathan Tyler Rose
Last edited 19 days ago by Kenzie Michelle Florkiewicz.
Overview
In this simulator assignment, you will learn the basics of energy management to maintain a safe speed and altitude in a standard left traffic pattern. Target speeds will follow the Believer's to mimic the flight characteristics. Students are encouraged to complete this assignment on their own PCs, but the PCs in COMP 101 have two main advantages: higher computer specs. and access to use the Believer DATX transmitter for flight training. DATX may not be checked out, but may be used in COMP 101.
Tasks
Simulator Setup Overview

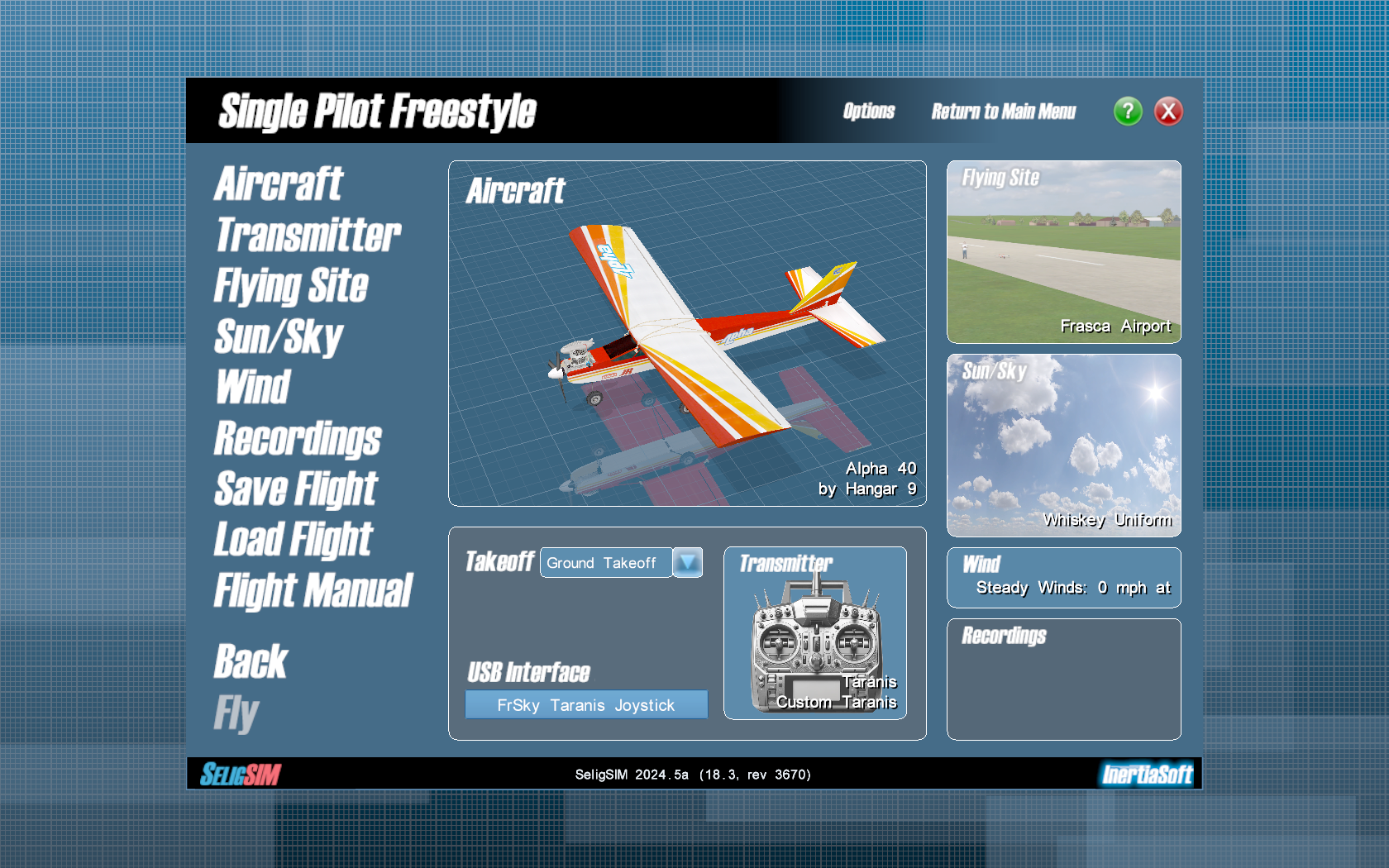

Use the following images and settings to set up your simulator. Be sure to reference and for help with setup.
Broken link
Broken link
Aircraft and environmental defaults

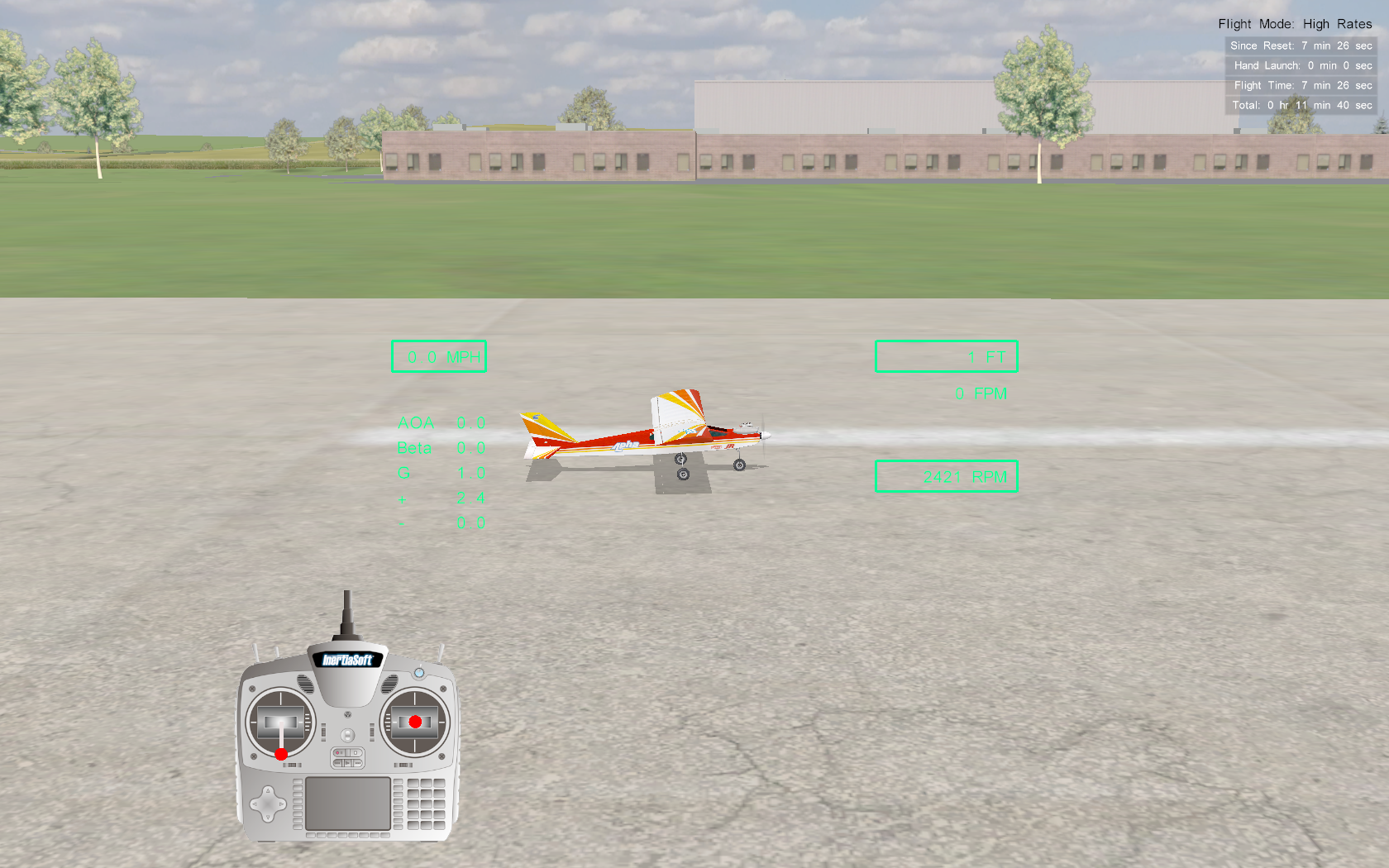

Flight screen must show transmitter and HUD.
Aircraft Setup
The aircraft in its current configuration is overpowered relative to the Believer. Please follow the guidance in by to set the aircraft output to 75% of current.
Screenshot

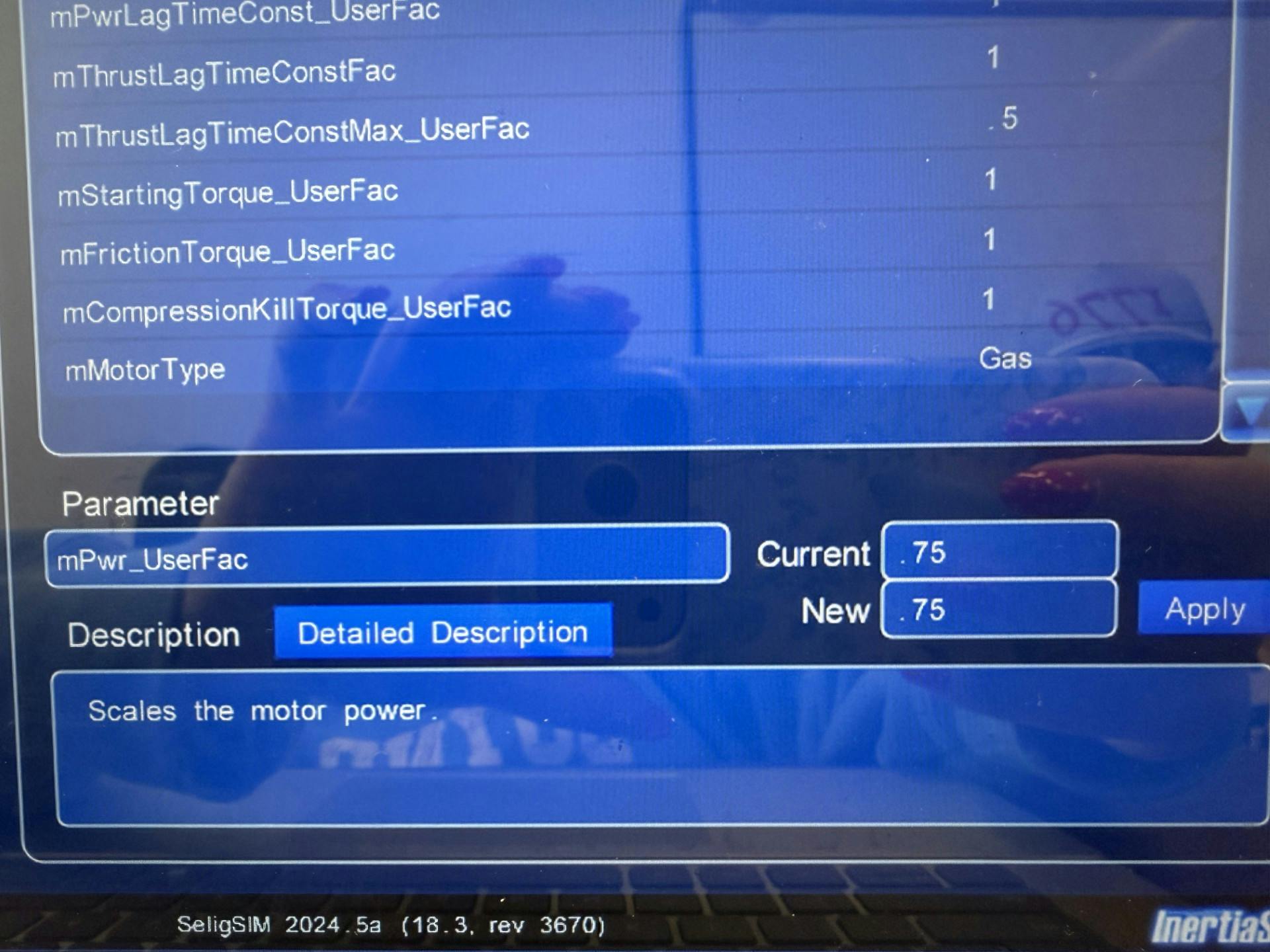

Take a screenshot of the updated motor/engine output.
Convert and Define Speeds
The SeligSIM (at the time of writing) does not allow changing the airspeed units from miles per hour (mph). In this and all future SeligSIM assignments, we will follow and reference the Believer's airspeed settings.
Create a table (6-7 columns; 9 rows) below that shows the unit corrected speeds from the . The table must include columns for:
Conversion Table
Build and complete the required conversion table as a deliverable.
Formula:
Speed m/s formula: thisRow.[Speed kts]*0.514444
Speed mph formula: thisRow.[Speed kts]*1.15078
Scaled Speed Formula: thisRow.[Speed kts]*0.7
Table 10
parameter name
description
speed m/s
speed kts
speed mph
scale speed
v-speed indicators
Notes
maximum in flight wind speed
WP_WIND_MAX
20.58
40
46.03
28
40kts
Open
maximum surface wind speed
WPNAV_SPEED_MAX
15.43
30
34.52
21
30kts
Open
maximum crosswind component
CROSSWIND_MAX
2.57
5
5.75
3.5
5kts
Open
never exceed speed
ASPD_CMND
25.72
50
57.54
35
50 VNE
Open
normal cruise speed
TRIM_VOLT_MAX
20.06
39
44.88
27.3
39kts VC
Open
stall speed
VSTALL
12.35
24
27.62
16.8
24kts
Open
maximum battery voltage
BATT_VOLT_MAX
0
0
0
25.2 V
Open
minimum battery voltage
BATT_LOW_VOLT
0
0
0
22.2 V
Open
maximum flight time
none
0
0
0
100 min
Open
0
0
0
Open
There are no rows in this table
Scaled Platform Checklist
Speed Questions
Traffic Pattern Diagram
Throughout the Believer flight training, you will be expected to navigate and communicate using standardized aviation language. Positional information about the aircraft will be communicated in accordance with a standard traffic pattern. That is, if your instructor commands a left turn for base, you must know what that means and execute the maneuver expeditiously and confidently. Additionally, each leg of the traffic pattern may have a different speed requirement that must be followed for successful launch, cruise, and landing.

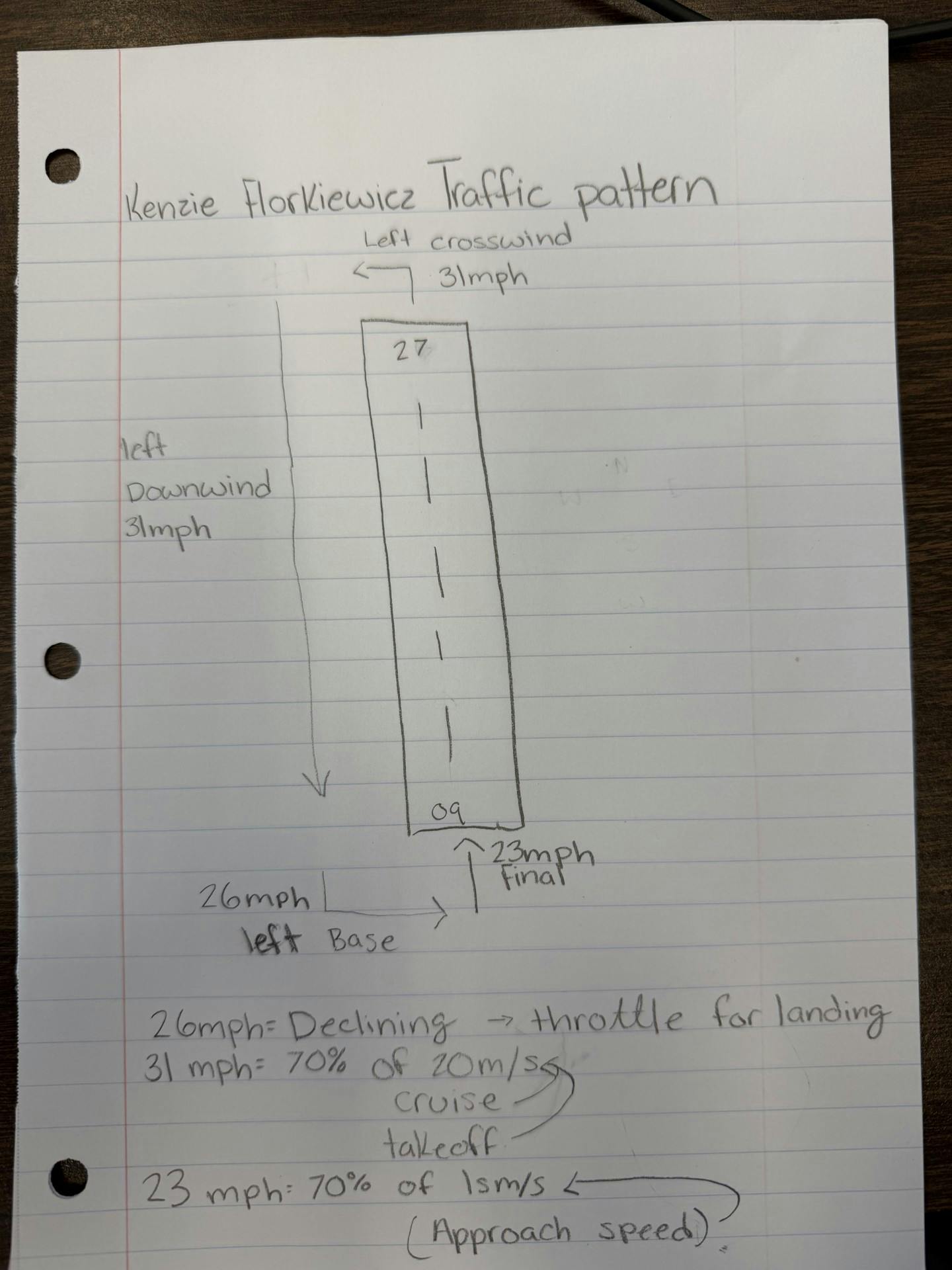

For this task, draw and label a standard left-hand traffic pattern for the simulated Frasca Airport. Assume that the aircraft is oriented to take off on runway 09. You must label the leg name in the traffic pattern AND the desired speed for each leg. If needed, you may justify your response in the footer of your drawing.
Drawing
Traffic pattern drawing required as a deliverable.
image.jpeg failed to upload
Controls Check
Perform a controls check according to and answer the following questions. Remember that a control check is required before each flight.
Broken link
Takeoff and Energy Management
Next, you will perform an aircraft takeoff while maintaining the proper takeoff speed through the system's energy management. The Believer (and any system with a stabilized mode) has a total energy control system (TECS) algorithm built in to continually monitor and adjust the aircraft to balance its kinetic and potential energy, maintaining sufficient lift at all times. When this system is well-tuned, entering a stall condition on the Believer is very difficult (though still possible). [Optional] You may read for more information on the algorithm architecture.
Before your first recorded takeoff, answer the following. Many of these questions can be answered from the .
Loading video: Kenzie_3rdsim1stvid.mp4...
Screen Recording
Record the takeoff maneuver described below.
Now, perform a takeoff maneuver and achieve the following (you do not need to turn or land - you can press the ESC key to respawn at launch):
Turns and Energy Management
After a successful takeoff, depending on the aircraft's performance before or after reaching cruise altitude, you will need to turn crosswind. There are several special considerations when turning in a fixed-wing aircraft. Answer the following questions to guide your understanding before entering a turn in the simulator. Again, many of these questions can be answered from the .
Loading video: patternsim_vid2.mp4...
Screen Recording
Record the turning maneuver described below.
Now, combine the procedure in and add in turns to achieve the following (you do not need to turn or land - you can press the ESC key to respawn at launch as needed):
Landing Approach and Go Arounds
Now that you have mastered the takeoff, turns, and the traffic pattern, it’s time to start the landing approach. As you might have guessed, this part is also about energy management. In this case, we are looking to shed energy. In this task, you will not land, but instead complete low pass approaches to the runway while maintaining centerline AND altitude discipline before performing a go-around and reentering the pattern. Answer the following questions regarding the landing approach. Refer to the as needed.
Loading video: patternsim_vid5.mp4...
Screen Recording
Record the landing approach maneuver described below.
Now, combine the procedures in , , and add in the landing approach to achieve the following (you do not need to turn or land - you can press the ESC key to respawn at launch as needed):
Deliverables
