Info Box

MyCondy

Last edited 28 days ago by MyCondy

The info box shows you a summary of your input data, like title and value of current and last year.

How to design it in Power Apps

Preview

⁠

⁠

What does it consist of?

1x Group

4x Label

1x HTML TEXT

Procedure

Step 1 - create HTML menu box

Add a new HTML TEXT object, call it "logged_box" with this "HTML text" property:

"<div style='margin:9px;width:"&Self.Width-15&"px;height:152px;background-color:#fff; border-radius:10px; box-shadow:3px 3px 6px 1px #ccc;'></div>"

Step 2 - create input values

Add a new Label object, call it "logged_title" with this "text" property:

"LOGGED[h]"

Add a new Label object, call it "logged_value" with this "text" property:

If(IsBlank(Sum(Filter(<TABLE>,Year = Year(Now())),<TABLE COLUMN>)),0,Sum(Filter(<TABLE>,Year = Year(Now())),<TABLE COLUMN>))

You should replace text in "<>" by your input.

Add a new Label object, call it "logged_last_year" with this "text" property:

Concatenate(Year(DateAdd(Today(),-1,TimeUnit.Years)),":")

Add a new Label object, call it "logged_last_year_value" with this "text" property:

Value(Sum(Filter(<TABLE>,Year = Year(DateAdd( Now(),-1,TimeUnit.Years))),<TABLE COLUMN>))

You should replace text in "<>" by your input.

Step 3 - group all objects

Now, we select all objects and group them via shortcut - COMMAND + G (MAC) , CONTROL + G (WIN).

This is an output:

⁠

⁠

How to design it in Figma

Preview

⁠

⁠

What does it consist of?

3x Frame

4x Text

Procedure

Step 1 - create a vertical frame with auto layout

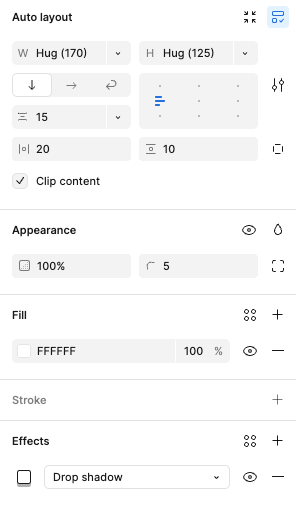

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_info_box" with these properties:

⁠

⁠

⁠

Step 2 - create a content for the parent frame

Add a new Text (T command) object under a "vercont_info_box" frame, call it "lbl_logged_info" with these properties:

⁠

⁠

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_content_info" with these properties:

⁠

⁠

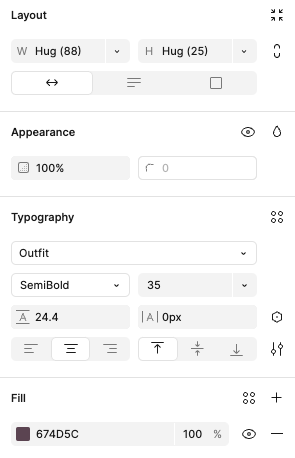

Add a new Text (T command) object under a "horcont_content_info" frame, call it "lbl_content_value" with these properties:

⁠

⁠

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_Bottom_info" with these properties:

⁠

⁠

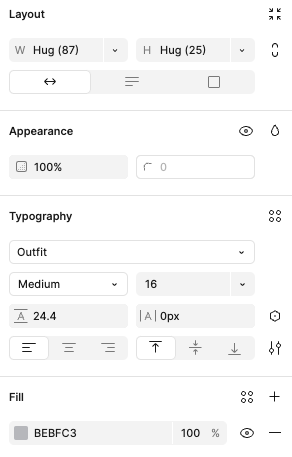

Add a new Text (T command) object under a "horcont_Bottom_info" frame, call it "lbl_year_info" with these properties:

⁠

⁠

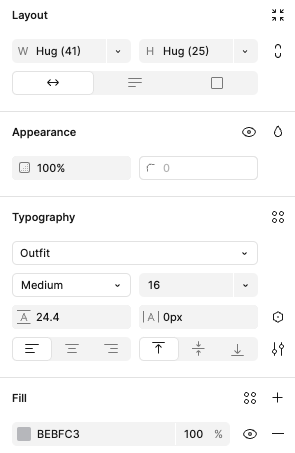

Add a new Text (T command) object under a "horcont_Bottom_info" frame, call it "lbl_year_value_info" with these properties:

⁠

⁠

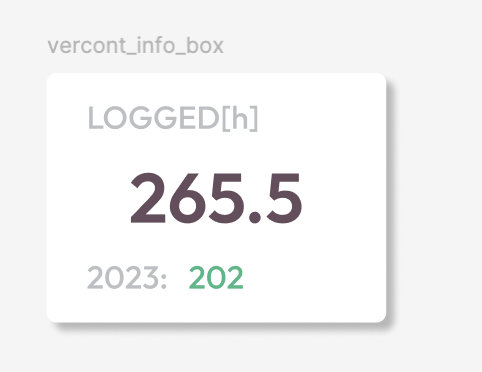

This is an output:

⁠

⁠

How to use it via DesignKit

Prerequisites

the designed component according to the instructions from the previous section

Used Prefixes

vercont_info_box = Vertical Container

lbl_logged_info, lbl_content_value, lbl_year_info, lbl_value_info = Label

horcont_content_info, horcont_Bottom_info = Horizontal Container

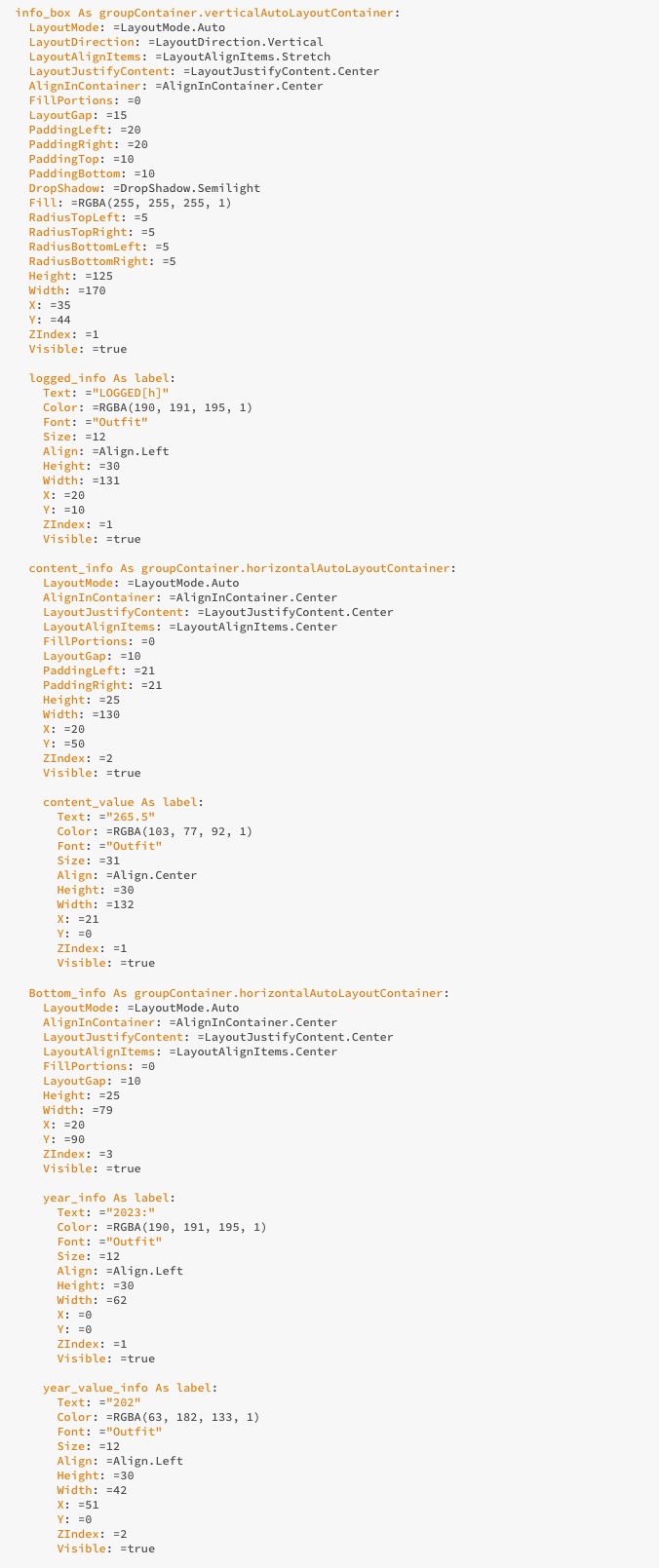

YAML Output

⁠

Used Colours

Logged Box - #FFFFFF

Logged Title - #abacb1

Logged Value - #735667

Logged Last Year Value - #3ac08f

⁠
