Gradient Button

MyCondy

Last edited 104 days ago by MyCondy

Thanks to HTML TEXT object you can make a beautiful button.

How to design it in Power Apps

Preview

⁠

⁠

What does it consist of?

1x Group

1x Button PCF

1x HTML TEXT

Procedure

Step 1 - create HTML button box

Add a new HTML TEXT object, call it "gradient_html" with this "HTML text" property:

"<div class='borderDemo' style='color:white; border-radius: 20px;display:flex;justify-content: center;align-items: center;font-size: 22px;height: 80px;width: 240px; text-align: center; background: linear-gradient(#F6D3DE, #728EDB);'>GRADIENT</div>"

Step 2 - add transparent button

Add a new Button PCF object, call it "ButtonAction" with this "Appearance" property:

'ButtonCanvas.Appearance'.Transparent

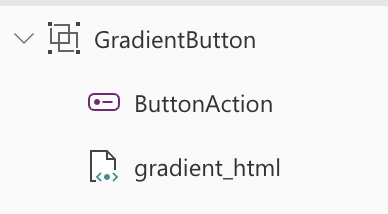

Step 3 - group all objects

Now, we select all objects and group them via shortcut - COMMAND + G (MAC) , CONTROL + G (WIN).

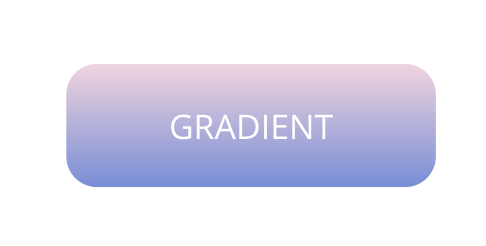

This is an output:

⁠

⁠

How to design it in Figma

Preview

⁠

⁠

What does it consist of?

1x Group

1x Text

1x Rectangle

Procedure

Step 1 - create a gradient rectangle

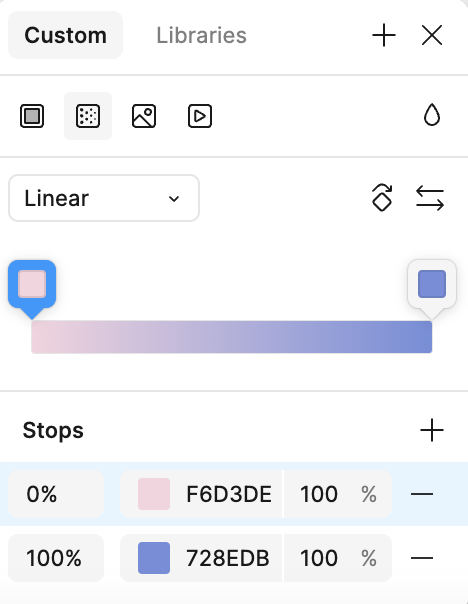

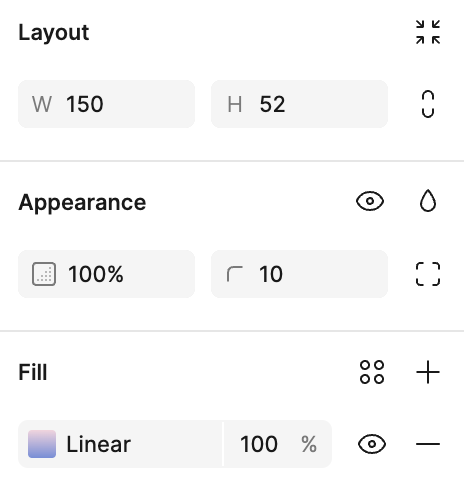

Add a new Rectangle (R command) object, call it "html_gradient_button" with these properties:

⁠

⁠

⁠

Step 2 - create a title of button

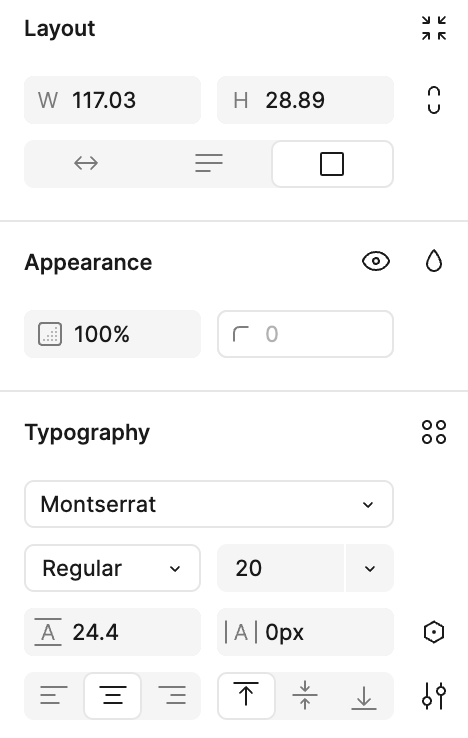

Add a new Text (T command), call it "lbl_button_name" with these properties:

⁠

⁠

Step 3 - group all objects

Select all objects and press COMMAND + G (MAC) or CTRL + G (WIN) and call the group "gr_gradient_group".

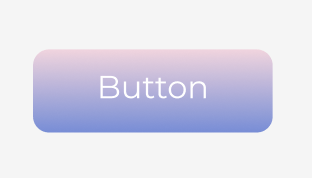

This is an output:

⁠

⁠

How to use it via DesignKit

Prerequisites

the designed component according to the instructions from the previous section

Used Prefixes

gr_gradient_group = Group

lbl_button_name = Label

html_gradient_button = HTML TEXT

YAML Output

⁠

⁠

Used Colours

HTML Box Colour1 - #F6D3DE

HTML Box Colour2 - #728EDB

⁠
