How to design it in Power Apps

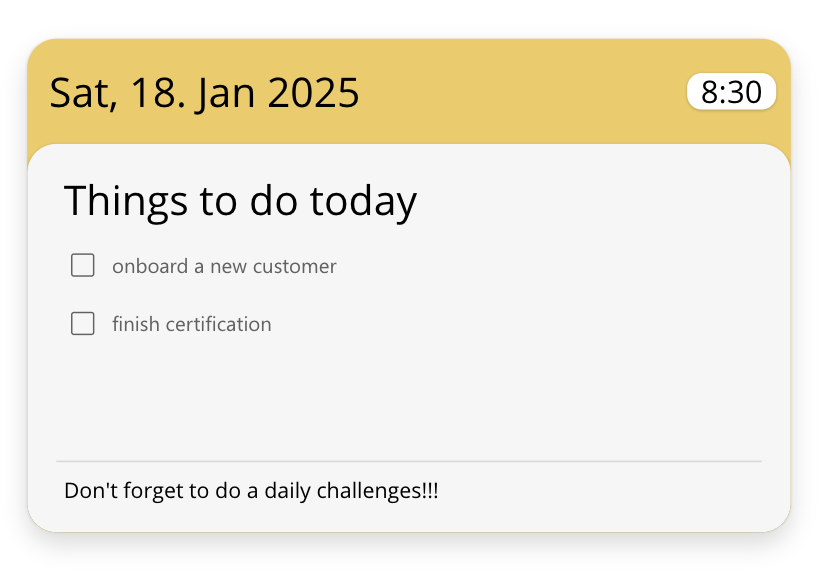

Preview

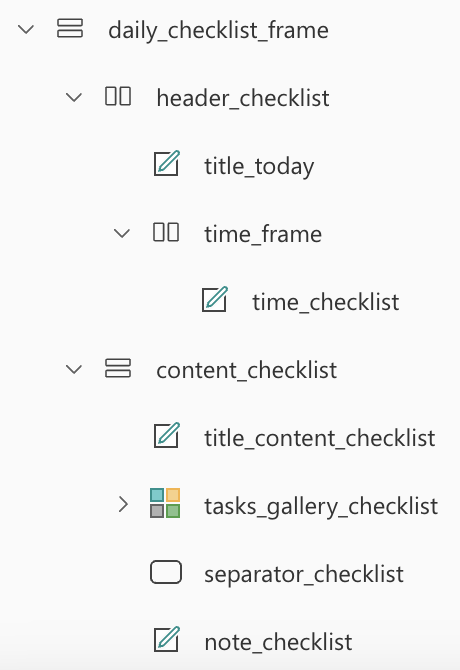

What does it consist of?
Procedure
Step 1 - create checklist box
Add a new Vertical Container PCF object, call it "daily_checklist_frame" with this "DropShadow" property:
DropShadow.Semibold
with START horizontal and START vertical alignment.
Step 2 - create top container
Add a new Horizontal Container PCF object, call it "header_checklist" with this "AlignInContainer" property:
AlignInContainer.Stretch
Add a new Label object, call it "title_today" with Text property:
Text(Today(),"ddd, dd mmm yyyy")
Add a new Horizontal Container PCF object, call it "time_frame" with this "Fill" property:
RGBA(255, 255, 255, 1)
Add a new Label object under "time_frame", call it "time_checklist" with Text property:
Text(Now(),"hh:mm")
Step 3 - create content container
Add a new Vertical Container PCF object, call it "content_checklist" with this "DropShadow" property:
DropShadow.Light
and Gap property:
5
with STRETCH horizontal and START vertical alignment.
Add a new Label object, call it "title_content_checklist" with Text property:
"Things to do today"
Add a new Vertical Gallery object, call it "tasks_gallery_checklist" with this "Items" property:
<Table_name>
You can use SharePoint list or DataVerse table.
Add a new Rectangle object, call it "separator_checklist" with this "Fill" property:
RGBA(214, 214, 214, 1)
Add a new Label object, call it "note_checklist" with Text property:
"Don't forget to do a daily challenges!!!"
This is an output:
How to design it in Figma
Preview

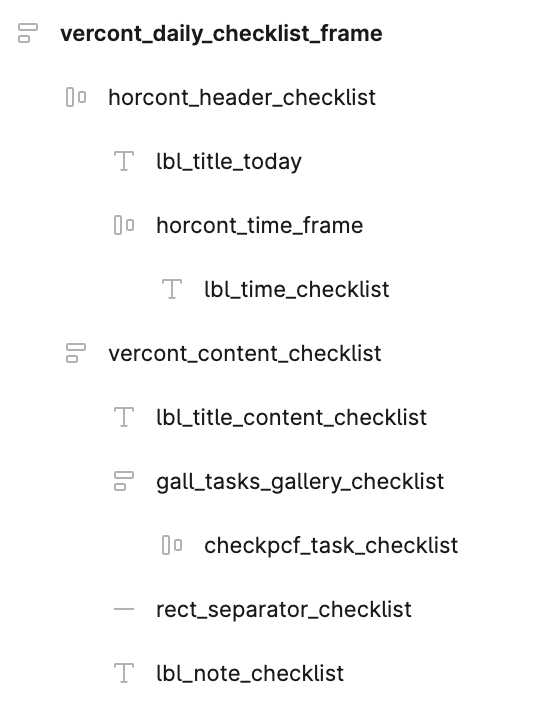

What does it consist of?
Procedure
Step 1 - create a checklist frame with auto layout

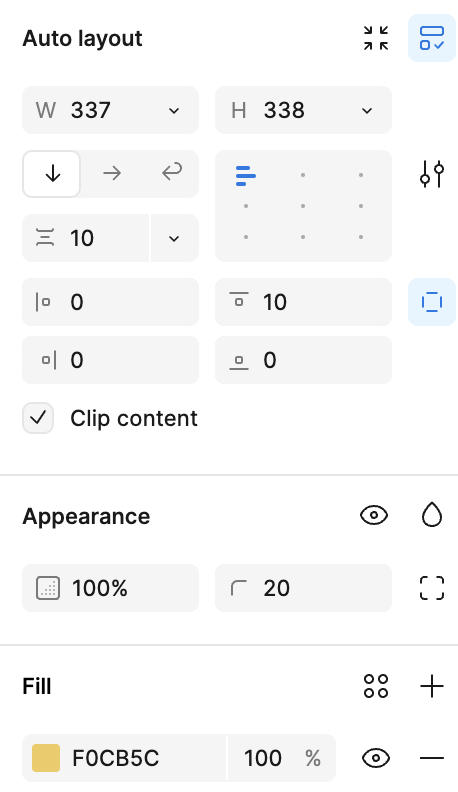

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_daily_checklist_frame" with these properties:
Step 2 - create a top frame

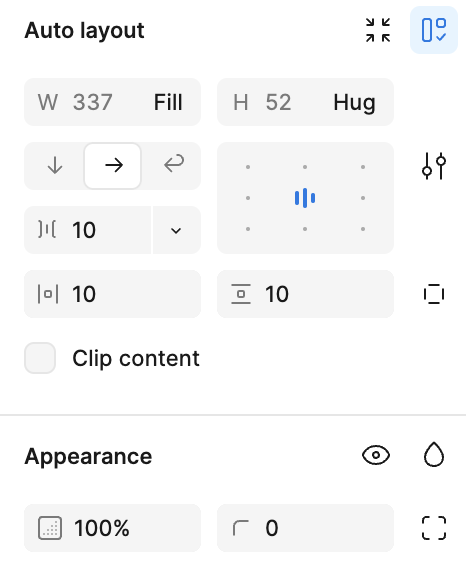

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_header_checklist" with these properties:

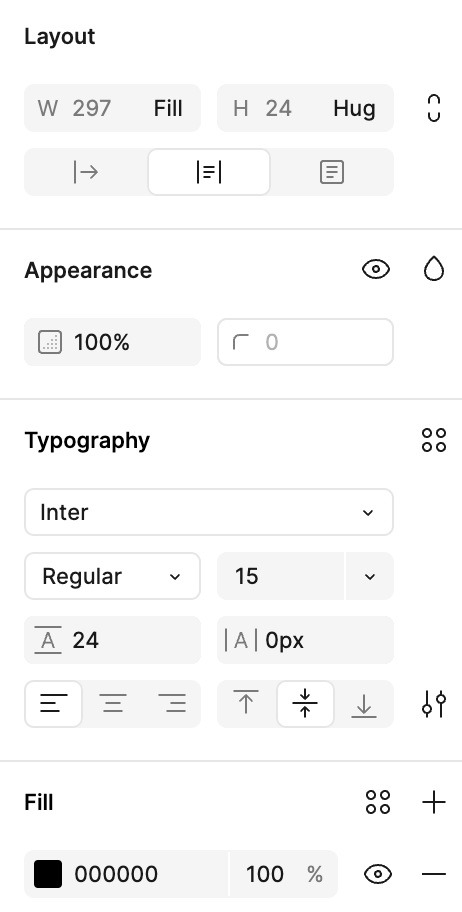

Add a new Text (T command) object, call it "lbl_title_today" with these properties:

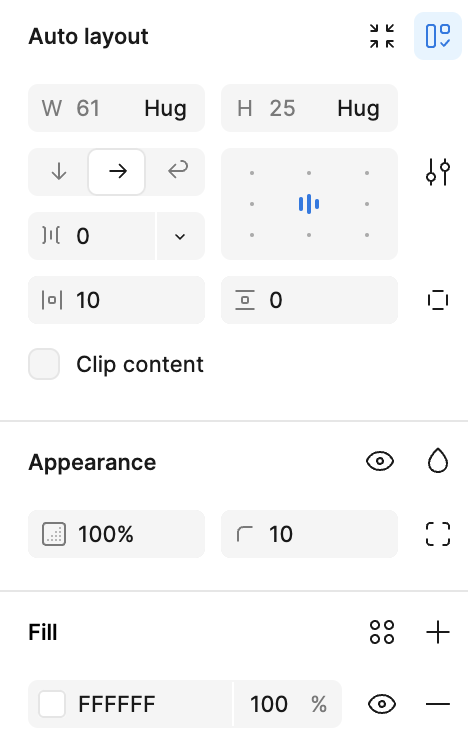

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_time_frame" with these properties:
Add a new Text (T command) object under "horcont_time_frame", call it "lbl_time_checklist" with these properties:
Step 3 - create a content frame

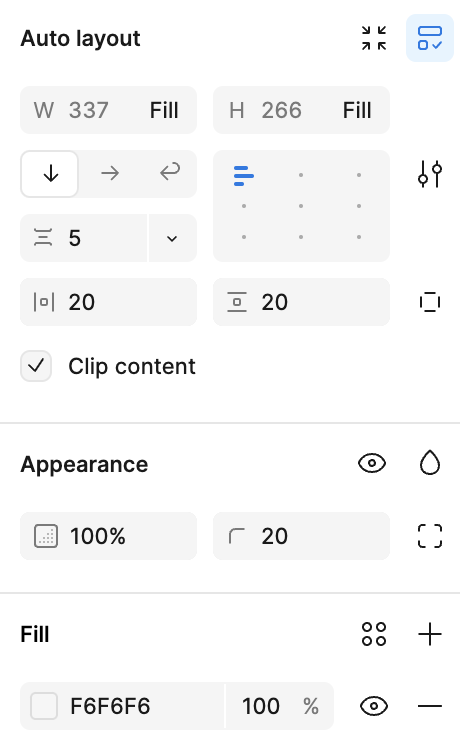

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_content_checklist" with these properties:

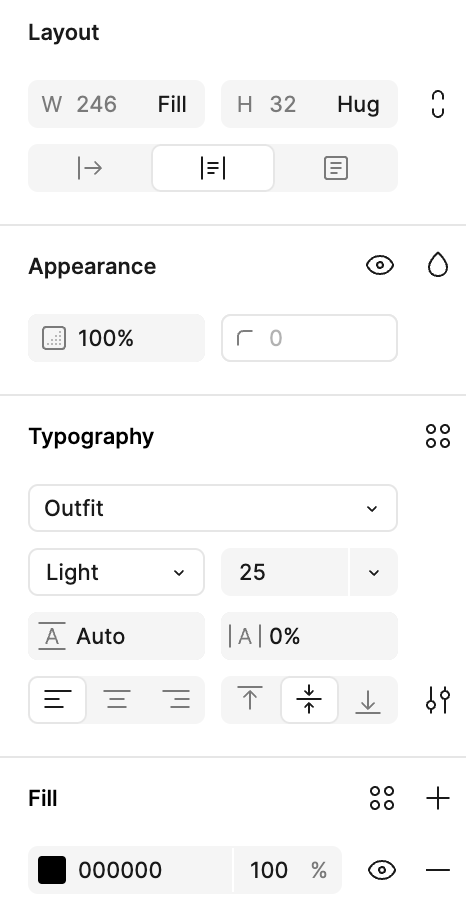

Add a new Text (T command) object, call it "lbl_title_content_checklist" with these properties:
Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "gall_tasks_gallery_checklist" with these properties:

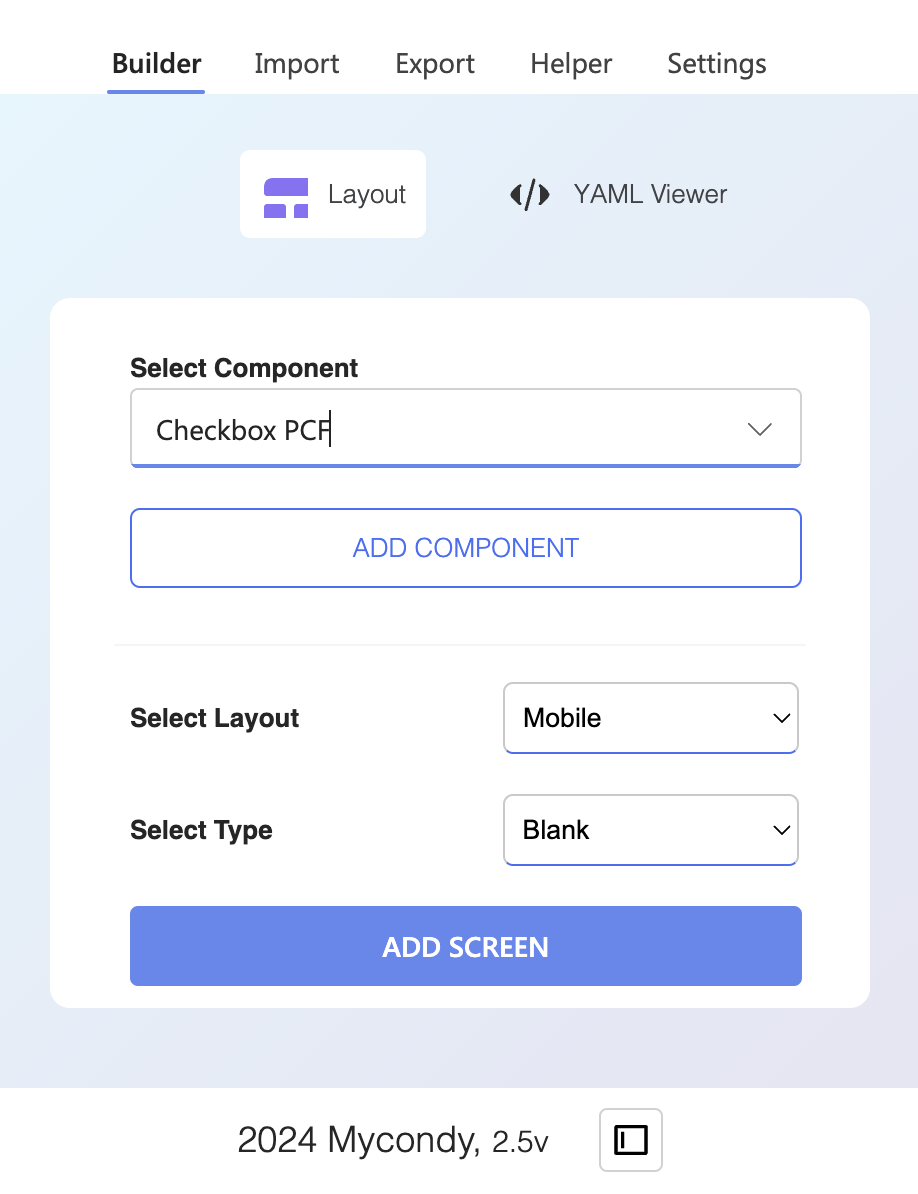

Open DesignKit PRO 2.5 version and import CheckBox PCF component under gall_tasks_gallery_checklist frame:

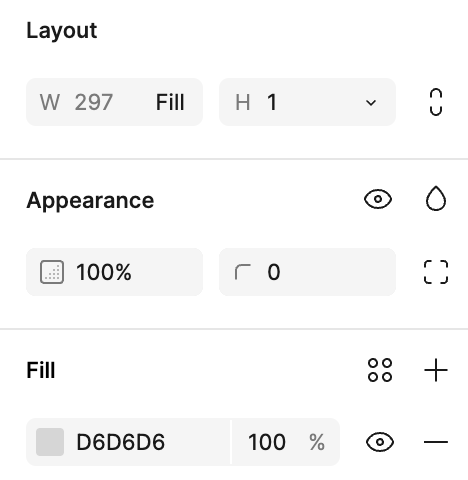

Add a new Rectangle (R command) object, call it "rect_separator_checklist" with these properties:
Add a new Text (T command) object, call it "lbl_note_checklist" with these properties:

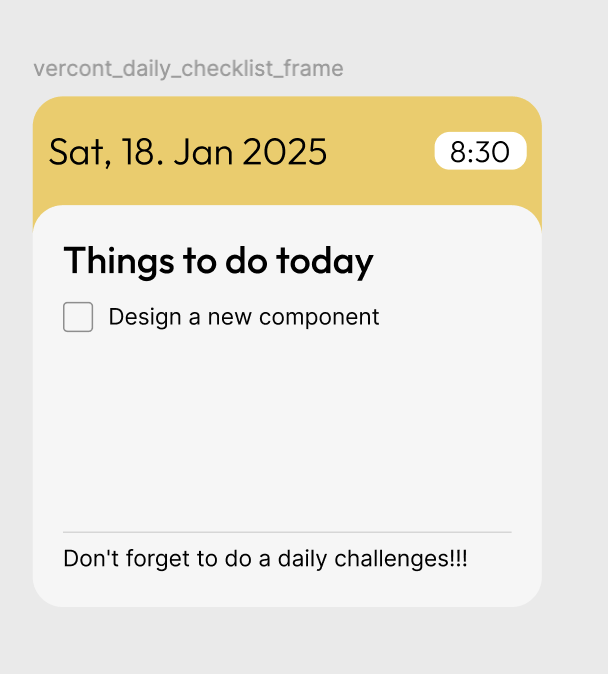

This is an output:
How to use it via DesignKit
Prerequisites
Used Prefixes
YAML Output
Used Colours
