Bar Chart with Legend

MyCondy

Last edited 71 days ago by MyCondy

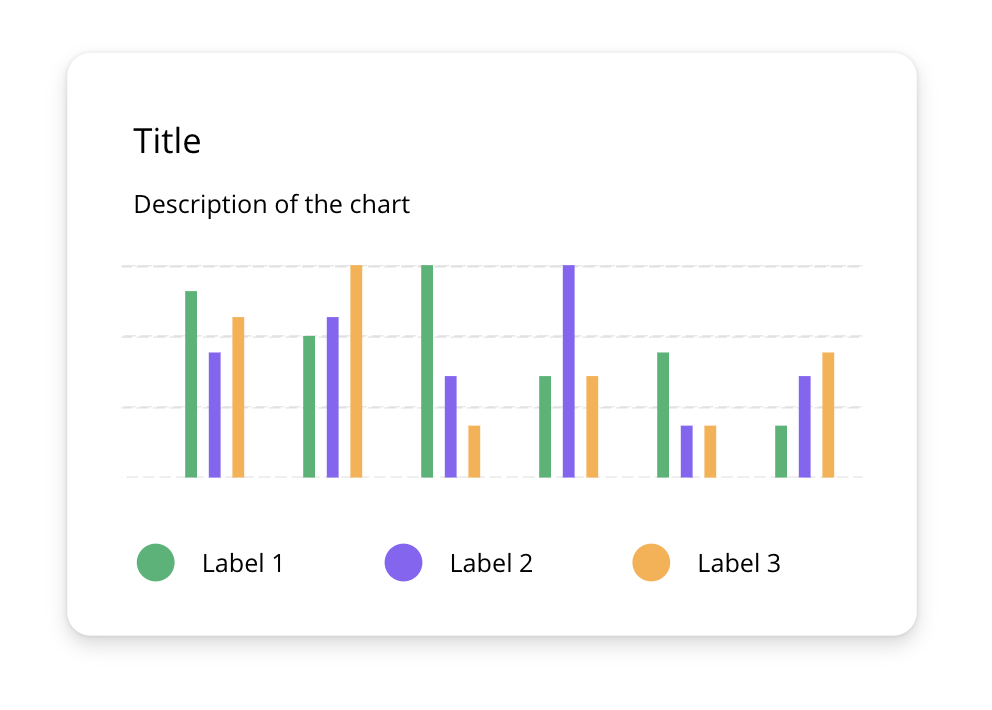

The chart shows 3 different values with named legend.

How to design it in Power Apps

Preview

⁠

⁠

What does it consist of?

15x Container

22x Rectangle

3x Circle

5x Label

Procedure

Step 1 - create main container

Add a new Manual Container PCF, call it "barchart_legend" with this "Border radius" property:

and "DropShadow" property:

DropShadow.Regular

Step 2 - create header container

Add a new Vertical Container PCF, call it "header_frame" with this "Gap" property:

with CENTER horizontal and STRETCH vertical alignment.

And Label object under "header_frame", call it "title_value" with Text property:

"Title"

And Label object under "header_frame", call it "dscr_value" with Text property:

"Description of the chart"

Step 3 - create content container

Add a new Horizontal Container PCF, call it "content_frame" with this "Gap" property:

And add 6 Horizontal Container PCF, call it "first/second/third/fourth/fifth_values" with this "Gap" property:

with CENTER horizontal and BOTTOM vertical alignment.

And add 3 Rectangles for every horizontal container, call it "first_value_first/second/third_bar" with "Color" property:

First Bar - RGBA(51, 181, 114, 1)

Second Bar - RGBA(137, 100, 246, 1)

Third Bar - RGBA(255, 175, 64, 1)

Step 4 - create legend container

Add a new Horizontal Container PCF, call it "legend_frame" with this "Gap" property:

with START horizontal and CENTER vertical alignment.

And add 3 Horizontal Container PCF, call it "first/second/third/_legend" with this "Gap" property:

with START horizontal and CENTER vertical alignment.

Add new 3 Circle and Labels under every Horizontal Container, call them "first/second/third_legend_color", "first/second/third_legend_value" with these properties:

"Text" property:

"Label 1" , "Label 2", "Label 3"

"Color" property:

First Circle - RGBA(51, 181, 114, 1)

Second Circle - RGBA(137, 100, 246, 1)

Third Circle - RGBA(255, 175, 64, 1)

Step 5 - create line container

Add a new Manual Container PCF, call it "lines_frame" with default properties.

Add new 4 Rectangle objects, call them "top_line", "under_top_line", "upper_bottom_line", and "bottom_line" with "Color" property:

RGBA(225,225,225,1)

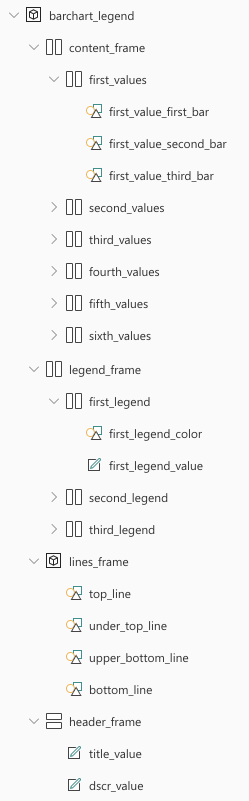

This is an output:

⁠

⁠

How to design it in Figma

Preview

⁠

⁠

What does it consist of?

14x Frame

22x Rectangle

3x Oval

5x Text

Procedure

Step 1 - create a master frame

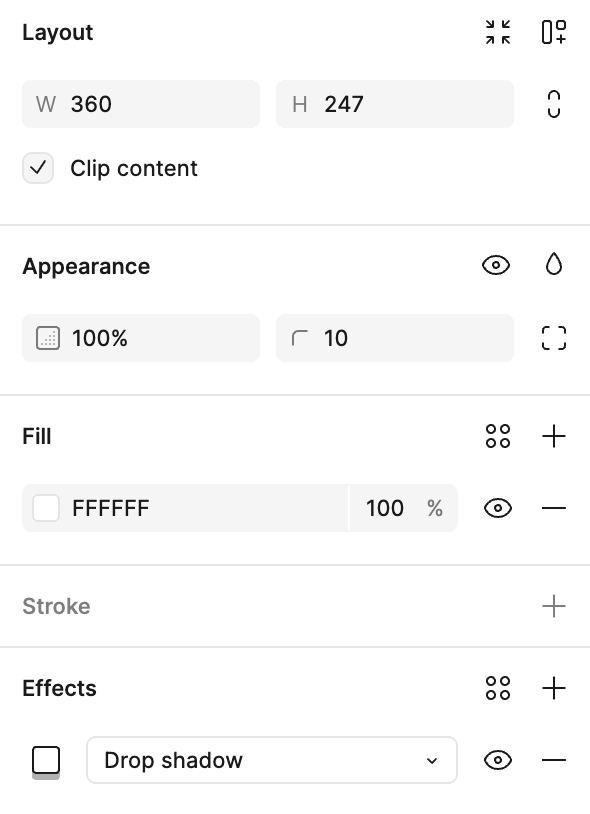

Add a new Frame (F command) object, call it "cont_barchart_legend" with these properties:

⁠

⁠

⁠

Step 2 - create a header frame

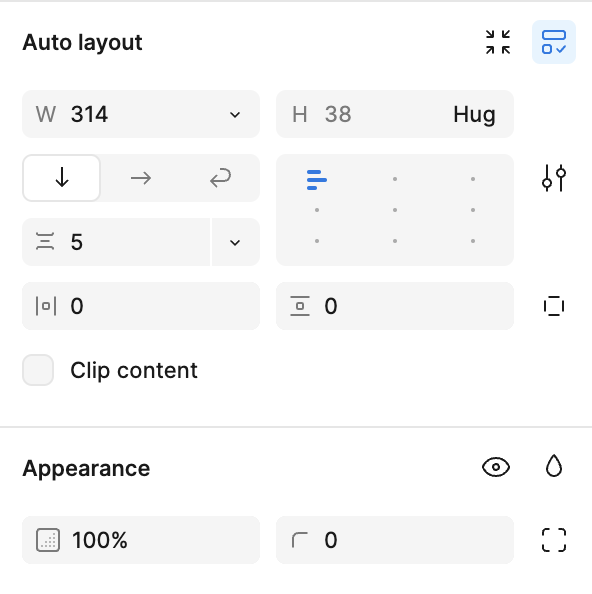

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_header_frame" with these properties:

⁠

⁠

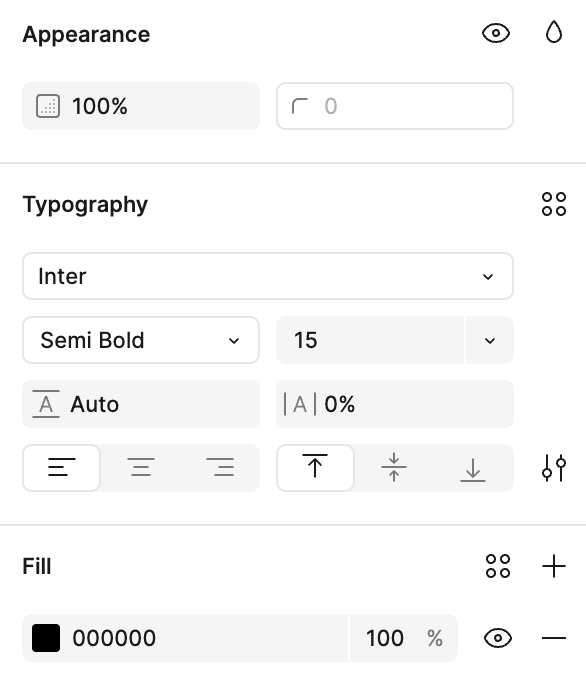

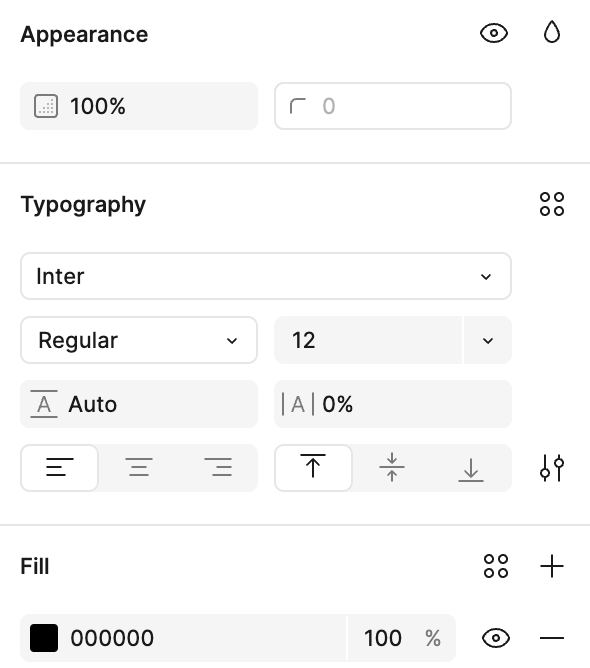

Add a new Text (T command) object under a "vercont_header_frame" frame, call it "lbl_title_value" with these properties:

⁠

⁠

Add a new Text (T command) object under a "vercont_header_frame" frame, call it "lbl_dscr_value" with these properties:

⁠

⁠

Step 3- create a content frame

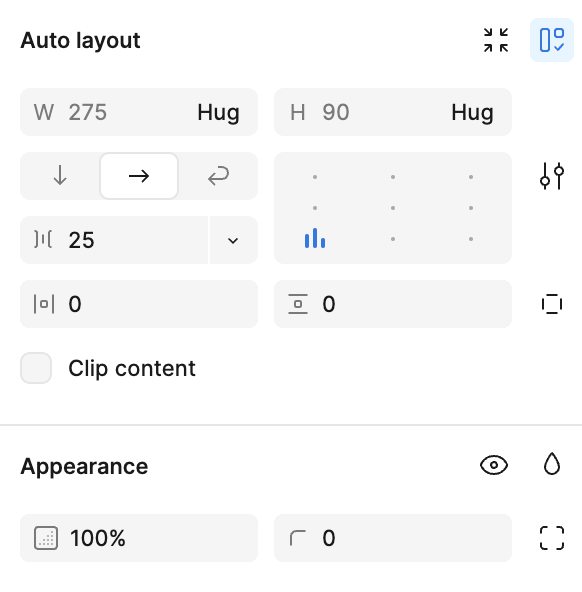

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_content_frame" with these properties:

⁠

⁠

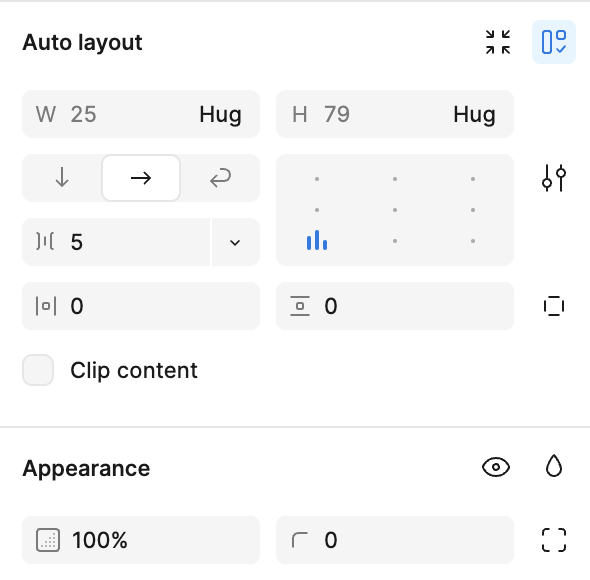

Add new 6 Frames (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_first/second/third/fourth/fifth_values" with these properties:

⁠

⁠

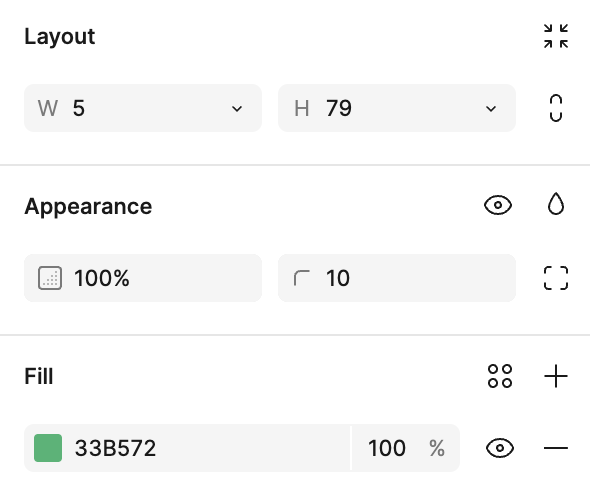

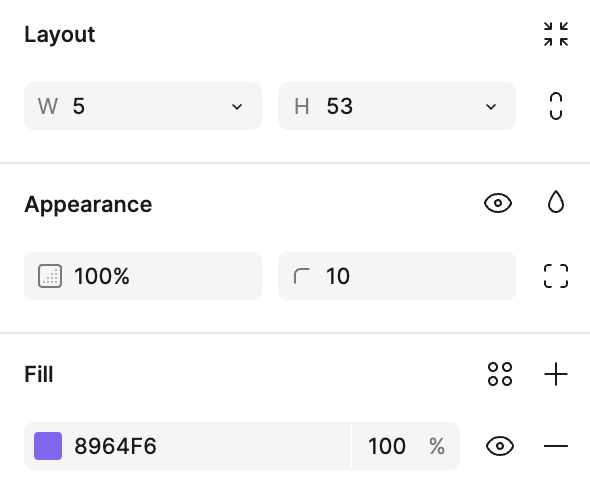

Add 3 Rectangle (R command) objects for every horizontal frame, call it "rect_first_value_first/second/third_bar" with these properties:

⁠

⁠

⁠

⁠

Step 4 - create a legend frame

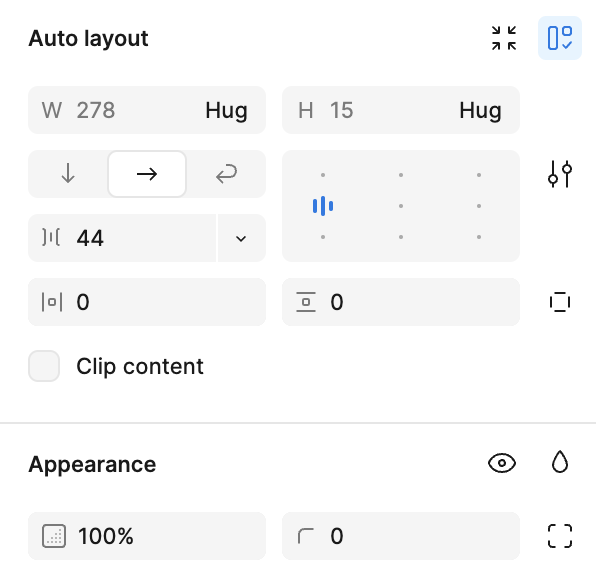

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_legend_frame" with these properties:

⁠

⁠

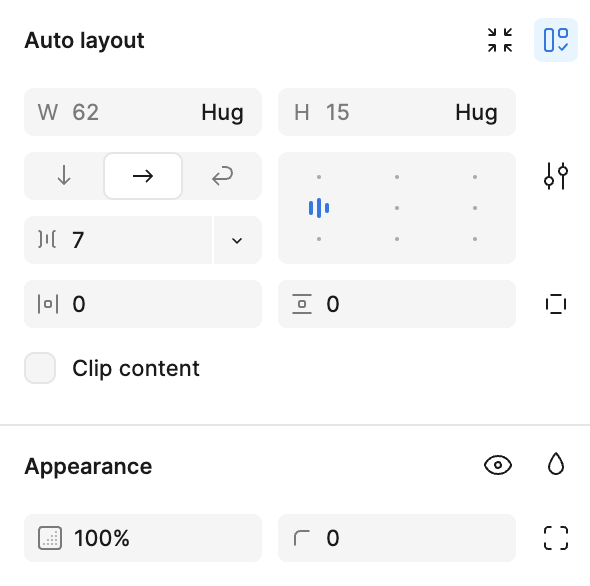

Add new 3 Frames (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_first/second/third_legend" with these properties:

⁠

⁠

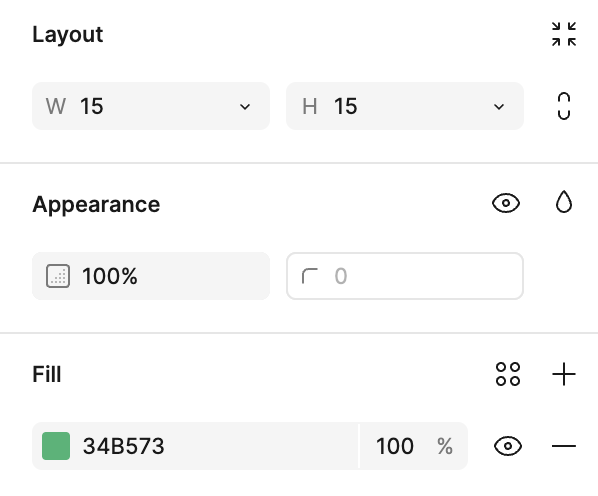

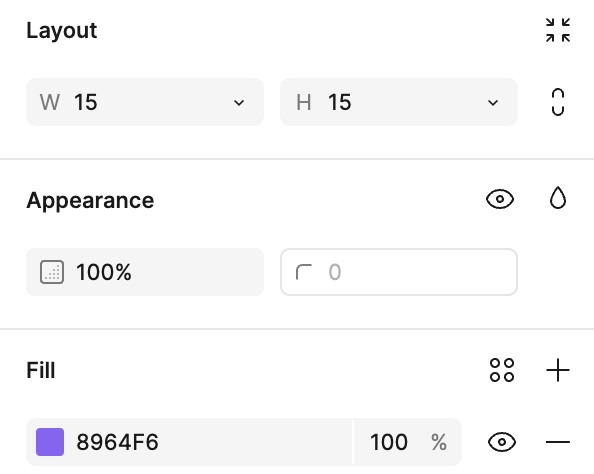

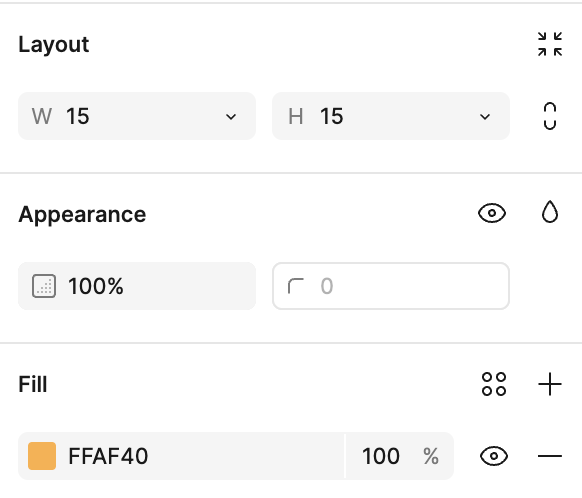

Add 3 Oval (O command) objects for every horizontal frame, call it "ci_first/second/third_legend_color" with these properties:

⁠

⁠

⁠

⁠

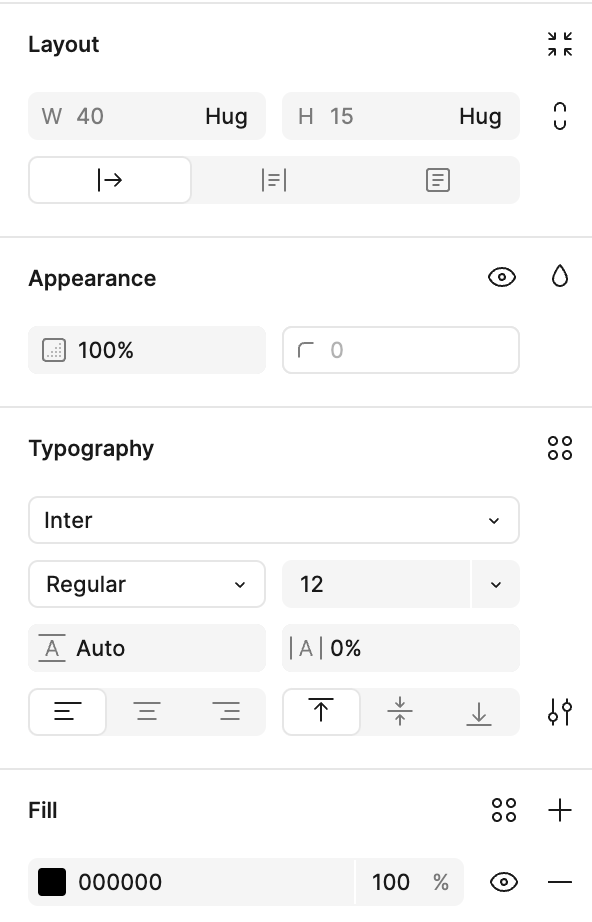

Add 3 Text (T command) objects for every horizontal frame, call it "lbl_first/second/third_legend_value" with these properties:

⁠

⁠

Step 5 - create a lines frame

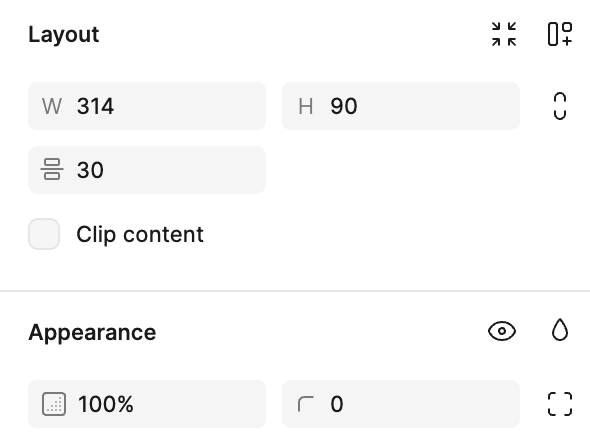

Add a new Frame (F command) object, call it "cont_lines_frame" with these properties:

⁠

⁠

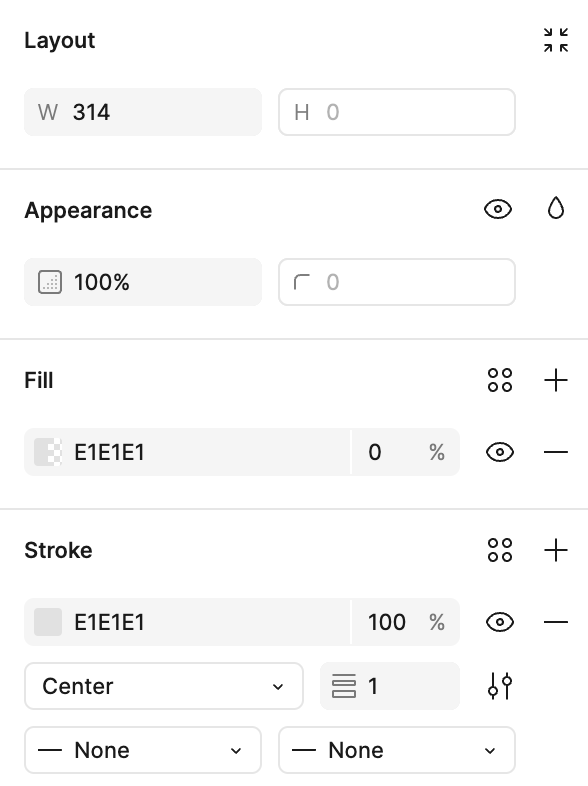

Add 4 Lines (L command) object, call it "rect_top_line", "rect_under_top_line", "rect_upper_bottom_line", and "rect_bottom_line" with these properties:

⁠

⁠

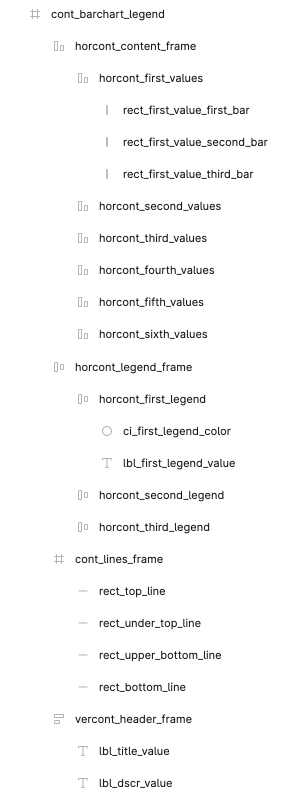

This is an output:

⁠

How to use it via DesignKit

Prerequisites

the designed component according to the instructions from the previous section

Used Prefixes

cont_barchart_legend,cont_lines_frame = Manual Container

horcont_content_frame, horcont_first_values, horcont_first_legend = Horizontal Container

vercont_header_frame = Vertical Container

rect_first_value_first_bar , rect_top_line = Rectangle

lbl_litle_value, lbl_dscr_value = Label

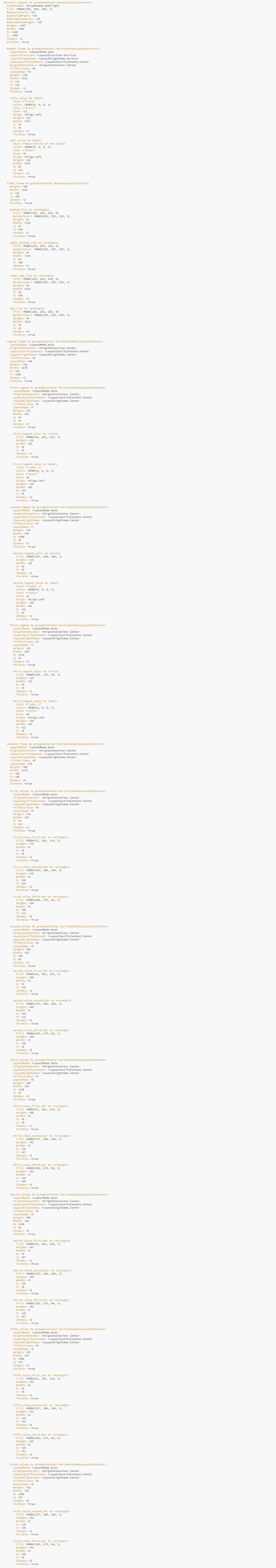

YAML Output

⁠

Used Colours

Container Background - #FFFFFF

First Bar Colour - #33B572

Second Bar Colour - #8964F6

Third Bar Colour - #FFAF40

Lines Colour - #E1E1E1

Text Colour - #000000

⁠
