Bubble Chart

MyCondy
Last edited 71 days ago by MyCondy
The chart shows percentage of your monthly values with a legend.

How to design it in Power Apps

Preview

⁠
Screenshot 2024-10-01 at 10.52.51.png
⁠
⁠

What does it consist of?

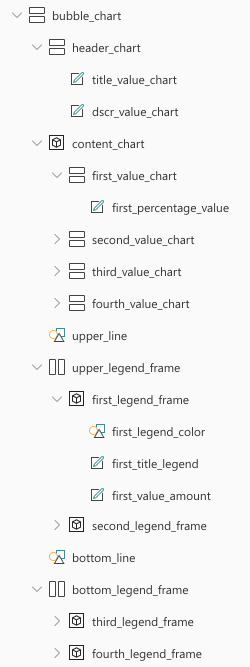

12x Container
14x Label
2x Rectangle
4x Circle

Procedure

Step 1 - create main container
Add a new Vertical Container PCF, call it "bubble_chart" with this "DropShadow" property:
DropShadow.Regular
and "BorderRadius" property:
15
and "Gap" property:
17
Step 2 - create header container
Add a new Vertical Container PCF, call it "header_chart" with this "Gap" property:
8
and Label object, call it "title_value_chart" with Text property:
"Monthly Expense"
and Label object, call it "dscr_value_chart" with Text property:
"From 1- 30.09 2024"
Step 3 - create content container
Add a new Manual Container PCF, call it "content_chart" with default properties.

Add 4 Vertical Containers under "content_chart", call it "first/second/third/fourth_value_chart" with "BorderRadius" property:
50

and add 4 Label objects under every vertical container, call it "first/second/third/fourth_percentage_value" with Text property:
"48%","32%","13%","7%"
Step 4 - create upper line
Add a new Rectangle object, call it "upper_line" with "BorderColor" property:
RGBA(220, 220, 220, 1)
Step 5 - create upper legend
Add a new Horizontal Container object, call it "upper_legend_frame" with "Gap" property:
30
Add 2 Manual Container objects, call it "first/second_legend_frame" with "Width" property:
96
Add 2 Circle objects under manual containers, call it "first/second_legend_color" with "Width" and "Height" property:
15,15
Add 2 Label objects under manual containers, call it "first/second_title_legend" with "Text" property:
"Trainings", "Softwares"
Add 2 Label objects under manual containers, call it "first/second_value_amount" with "Text" property:
"$200", "$80"
Step 6 - create bottom line
Add a new Rectangle object, call it "bottom_line" with "BorderColor" property:
RGBA(220, 220, 220, 1)
Step 7- create bottom legend
Add a new Horizontal Container object, call it "bottom_legend_frame" with "Gap" property:
30
Add 2 Manual Container objects, call it "third/fourth_legend_frame" with "Width" property:
96
Add 2 Circle objects under manual containers, call it "third/fourth_legend_color" with "Width" and "Height" property:
15,15
Add 2 Label objects under manual containers, call it "third/fourth_title_legend" with "Text" property:
"Supports", "Other"
Add 2 Label objects under manual containers, call it "third/fourth" with "Text" property:
"$30", "$10"

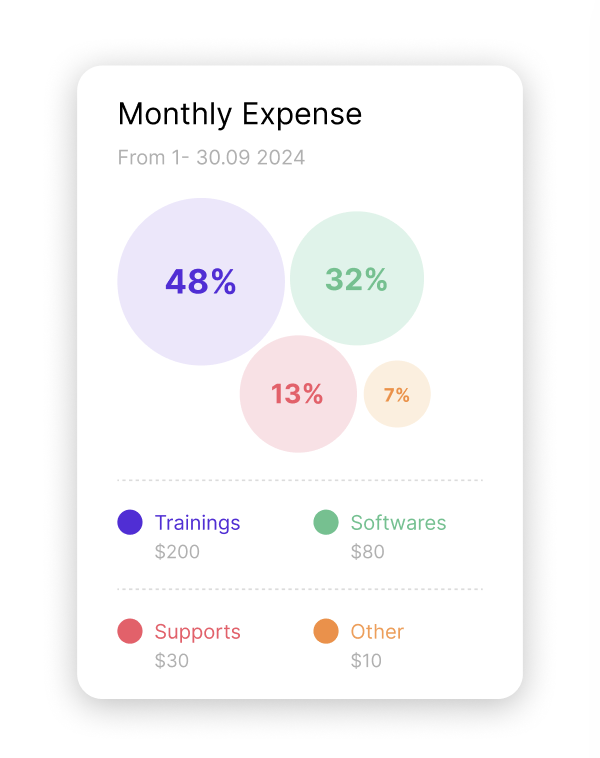

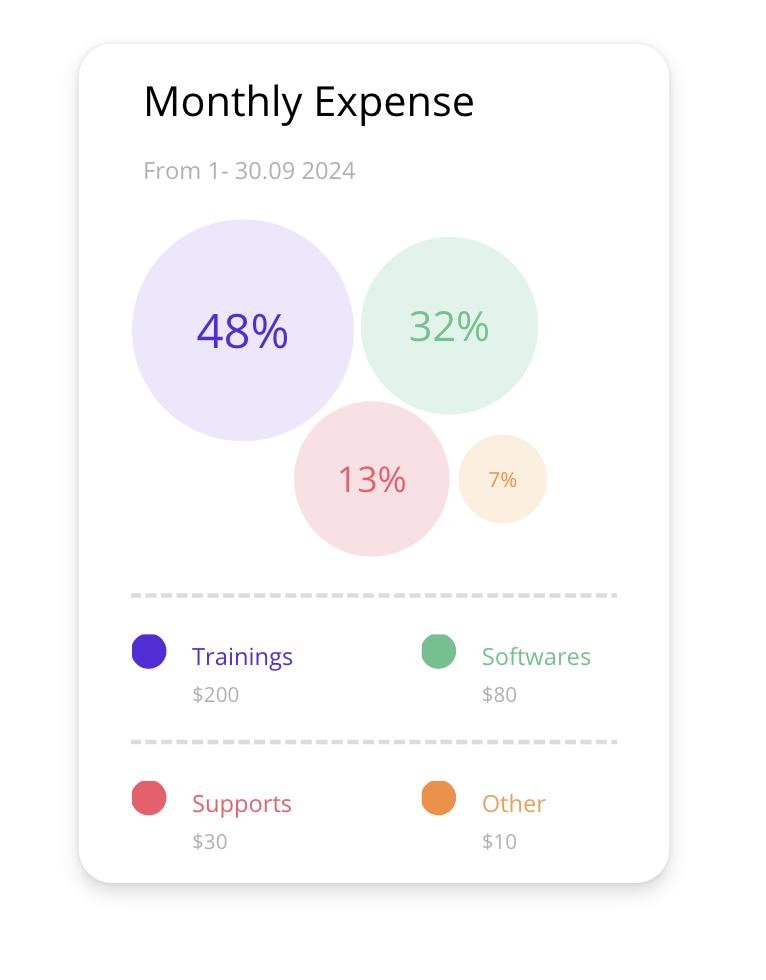

This is an output:
⁠
⁠
⁠

How to design it in Figma

Preview

⁠
Screenshot 2024-10-01 at 10.54.47.png
⁠
⁠

What does it consist of?

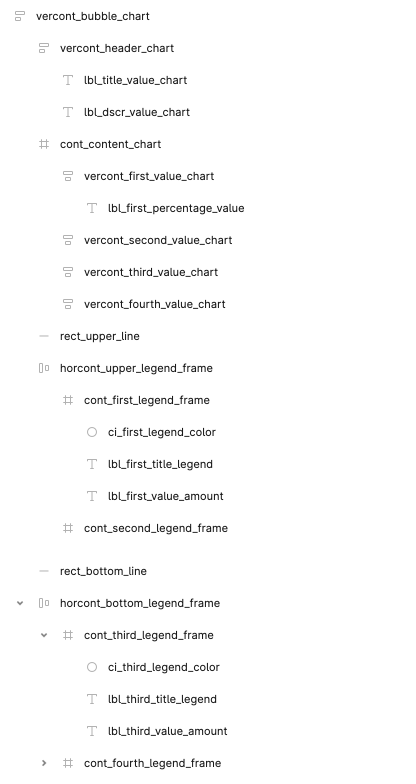

13x Frame
2x Rectangle
14x Text
4x Oval

Procedure

Step 1 - create a parent frame with auto layout

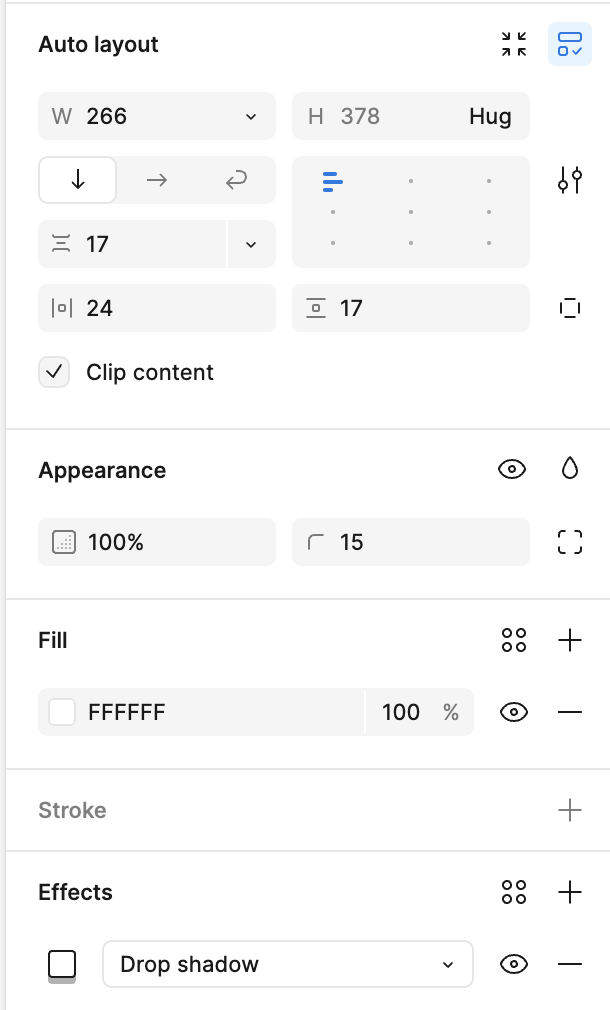

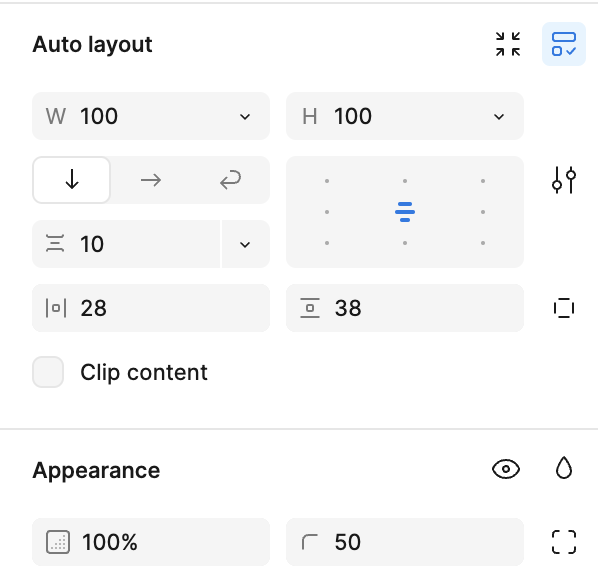

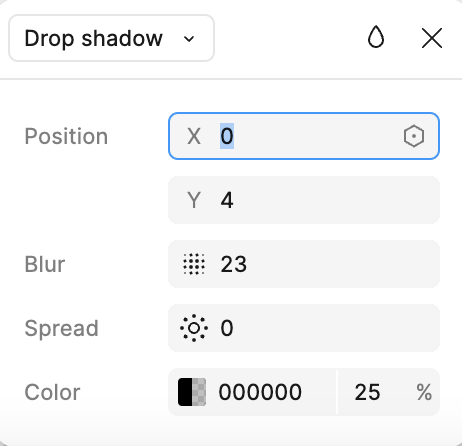

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_bubble_chart" with these properties:
⁠
Screenshot 2024-10-01 at 17.58.51.png
⁠
⁠
⁠
Screenshot 2024-10-01 at 17.59.09.png
⁠
⁠
Step 2 - create a header frame with auto layout

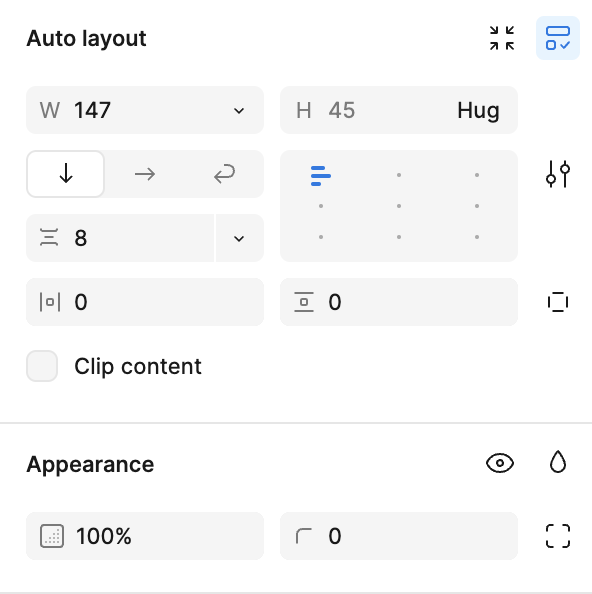

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_header_chart" with these properties:
⁠
Screenshot 2024-10-01 at 18.00.22.png
⁠
⁠

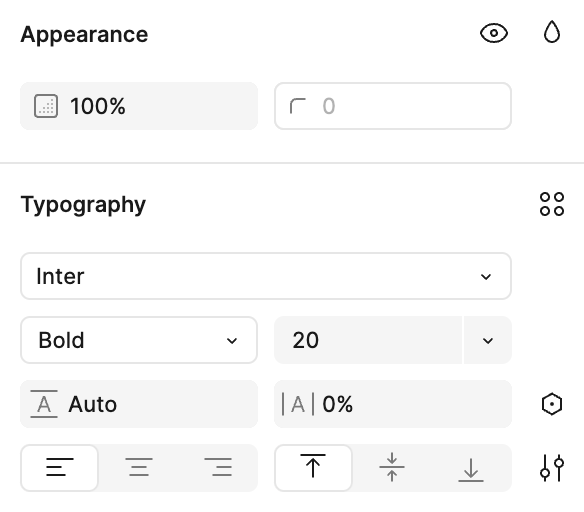

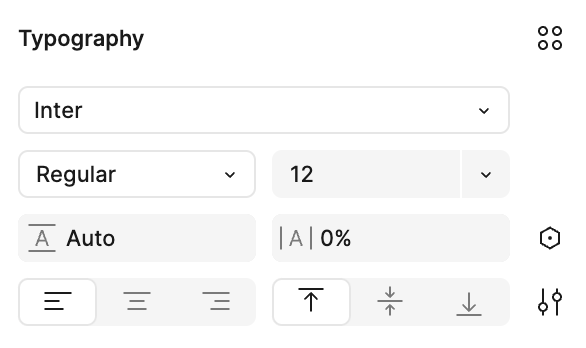

Add a new Text (T command) object under a "vercont_header_chart" frame, call it "lbl_title_value_chart" with these properties:
⁠
Screenshot 2024-10-01 at 18.01.49.png
⁠
⁠

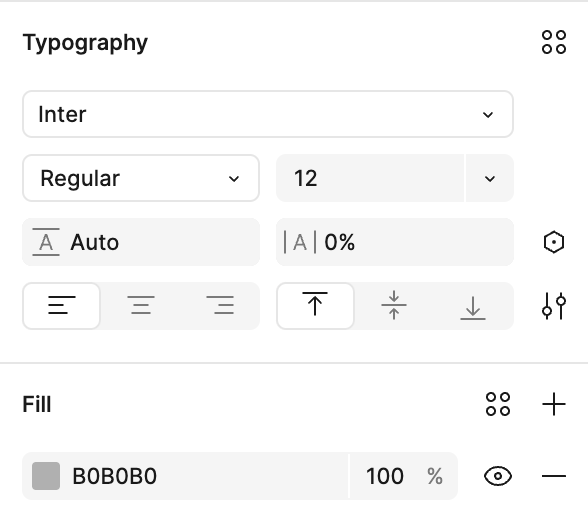

Add a new Text (T command) object under a "vercont_header_chart" frame, call it "lbl_dscr_value_chart" with these properties:
⁠
Screenshot 2024-10-01 at 18.02.07.png
⁠
⁠
Step 3 - create a content frame

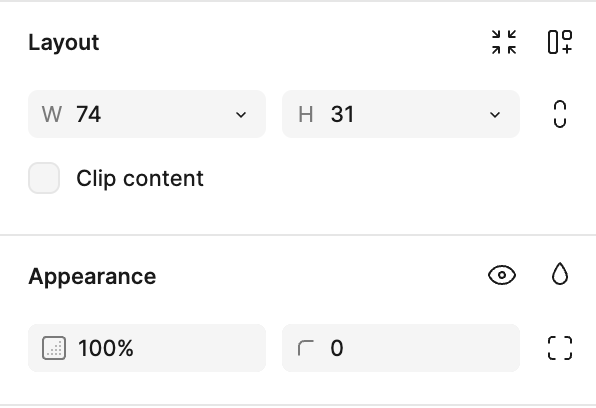

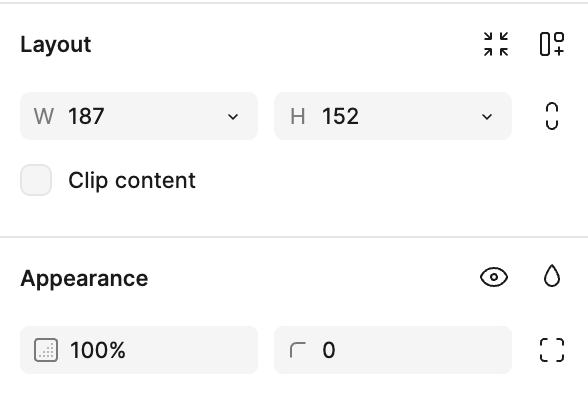

Add a new Frame (F command) object, call it "cont_content_chart" with these properties:
⁠
Screenshot 2024-10-01 at 18.03.11.png
⁠
⁠
Add a new 4 Frames (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_first/second/third/fourth_value_chart" with these properties:
⁠
Screenshot 2024-10-01 at 18.04.26.png
⁠
⁠

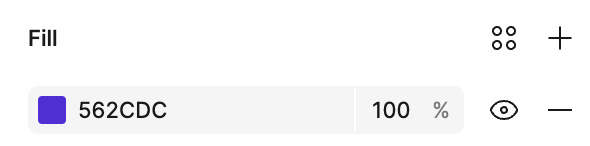

First
⁠
Screenshot 2024-10-01 at 18.04.41.png
⁠
⁠
Second
⁠
Screenshot 2024-10-01 at 18.05.04.png
⁠
⁠

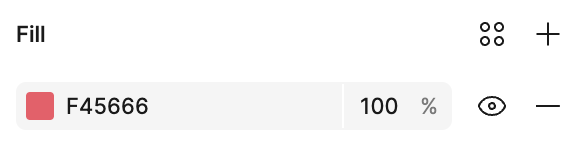

Third
⁠
Screenshot 2024-10-01 at 18.05.19.png
⁠
⁠

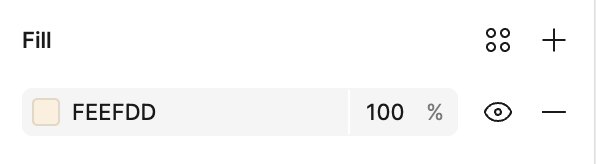

Fourth
⁠
Screenshot 2024-10-01 at 18.05.34.png
⁠
⁠

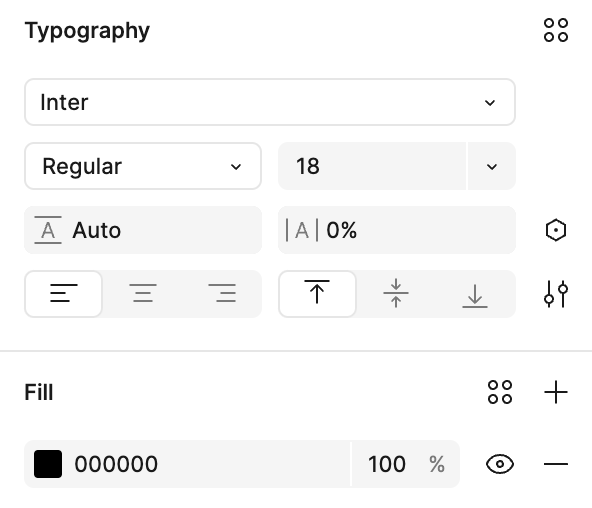

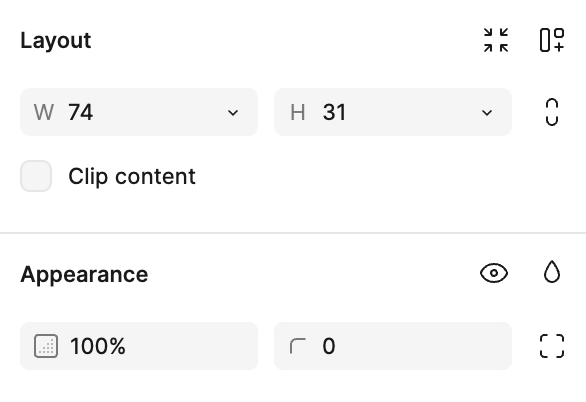

Add new 4 Text (T command) objects under every vertical frame, call it "lbl_first/second/third/fourth_percentage_value" with these properties:
⁠
Screenshot 2024-10-01 at 18.07.00.png
⁠
⁠
First
⁠
Screenshot 2024-10-01 at 18.07.24.png
⁠
⁠
Second
⁠
Screenshot 2024-10-01 at 18.07.40.png
⁠
⁠
Third
⁠
Screenshot 2024-10-01 at 18.07.57.png
⁠
⁠
Fourth
⁠
Screenshot 2024-10-01 at 18.08.19.png
⁠
⁠
Step 4 - create upper line

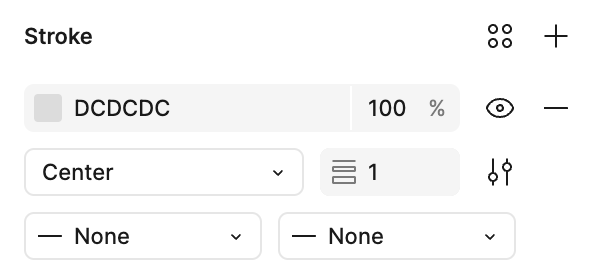

Add a new Line (L command) object, call it "rect_upper_line" with these properties:
⁠
Screenshot 2024-10-01 at 18.10.42.png
⁠
⁠
Step 5 - create an upper legend frame

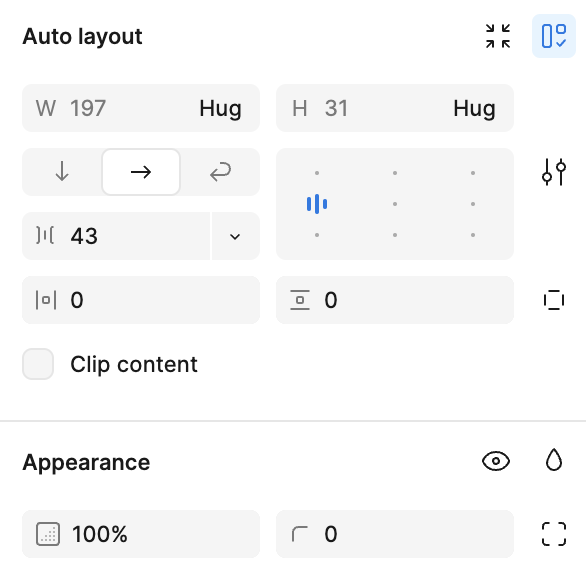

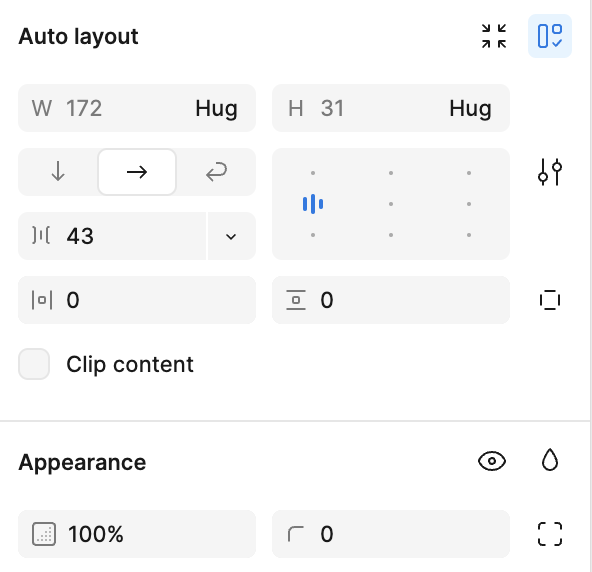

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_upper_legend_frame" with these properties:
⁠
Screenshot 2024-10-01 at 18.12.45.png
⁠
⁠
Add a new 2 Frame (F command) objects, call it "cont_first/second_legend_frame" with these properties:
⁠
Screenshot 2024-10-01 at 18.14.38.png
⁠
⁠
Add new 2 Oval (O command) objects under every frame, call it "ci_first/second_legend_color" with these properties:
⁠
Screenshot 2024-10-01 at 18.19.05.png
⁠
⁠

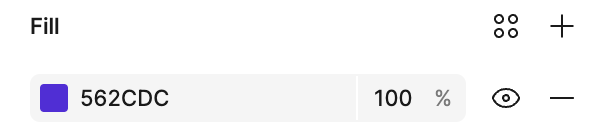

First
⁠
Screenshot 2024-10-01 at 18.19.23.png
⁠
⁠

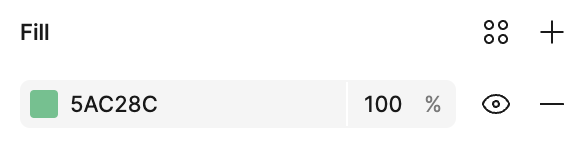

Second
⁠
Screenshot 2024-10-01 at 18.19.40.png
⁠
⁠
Add new 2 Text (T command) objects under every frame, call it "lbl_first/second_title_legend" with these properties:
⁠
Screenshot 2024-10-01 at 18.22.40.png
⁠
⁠
Add new 2 Text (T command) objects under every frame, call it "lbl_first/second_value_amount" with these properties:
⁠
Screenshot 2024-10-01 at 18.23.59.png
⁠
⁠
Step 6 - create bottom line
Add a new Line (L command) object, call it "rect_bottom_line" with these properties:
⁠
Screenshot 2024-10-01 at 18.10.42.png
⁠
⁠
Step 7 - create a bottom legend frame
Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_bottom_legend_frame" with these properties:
⁠
Screenshot 2024-10-01 at 18.13.04.png
⁠
⁠
Add a new 2 Frame (F command) objects, call it "cont_third/fourth_legend_frame" with these properties:
⁠
Screenshot 2024-10-01 at 18.15.08.png
⁠
⁠
Add new 2 Oval (O command) objects under every frame, call it "ci_third/fourth_legend_color" with these properties:
⁠
Screenshot 2024-10-01 at 18.19.05.png
⁠
⁠

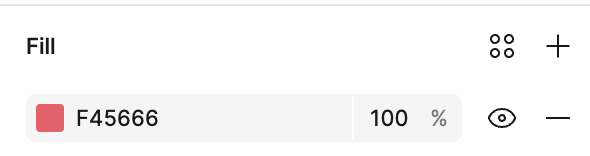

Third
⁠
Screenshot 2024-10-01 at 18.20.17.png
⁠
⁠

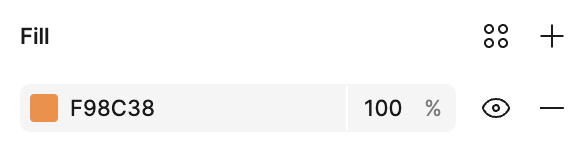

Fourth
⁠
Screenshot 2024-10-01 at 18.20.33.png
⁠
⁠
Add new 2 Text (T command) objects under every frame, call it "lbl_third/fourth_title_legend" with these properties:
⁠
Screenshot 2024-10-01 at 18.22.40.png
⁠
⁠
Add new 2 Text (T command) objects under every frame, call it "lbl_third/fourth_value_amount" with these properties:
⁠
Screenshot 2024-10-01 at 18.23.59.png
⁠
⁠
This is an output:
⁠
⁠
⁠

How to use it via DesignKit

Prerequisites

the designed component according to the instructions from the previous section

Used Prefixes

vercont_bubble_chart, vercont_header_chart, vercont_first_value_chart = Vertical Container
cont_content_chart, cont_first_legend_frame = Manual Container
rect_upper_line, rect_bottom_line = Rectangle
lbl_title_value_chart, lbl_dscr_value_chart = Label
cl_first_legend_color = Circle

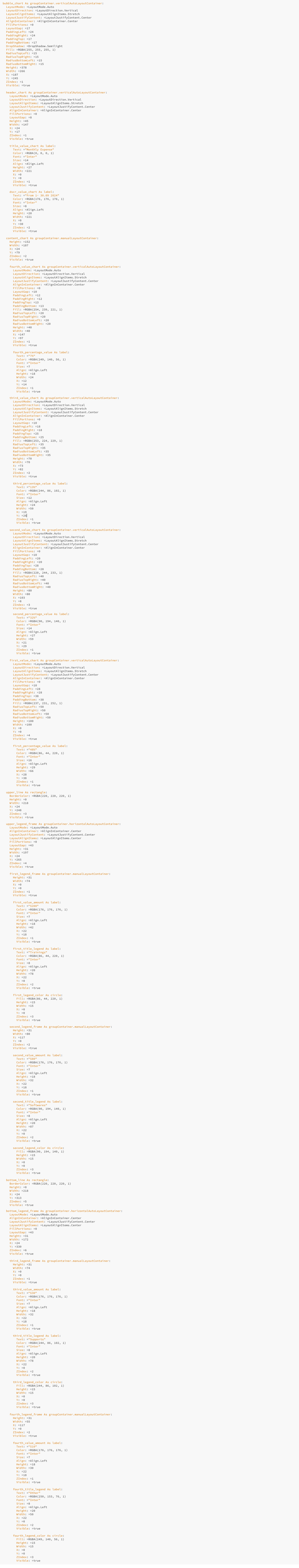

YAML Output

⁠
⁠
⁠

Used Colours

Parent Chart Background - #FFFFFF
Title Font Colour - #000000
Dscr Font Colour - #B0B0B0

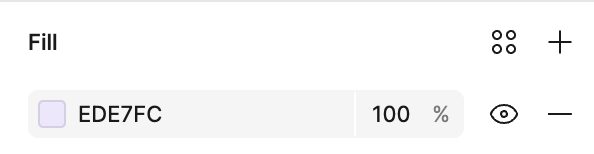

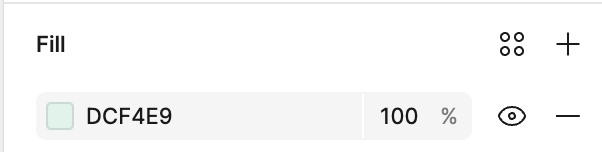

First Bubble Colour - #EDE7FC
First Bubble Font Colour - #562CDC

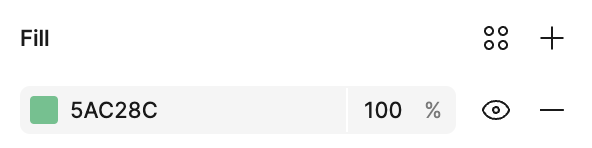

Second Bubble Colour - #DCF4E9
Second Bubble Font Colour - #5AC28C
Third Bubble Colour - #FDE0E5
Third Bubble Font Colour - #F45666

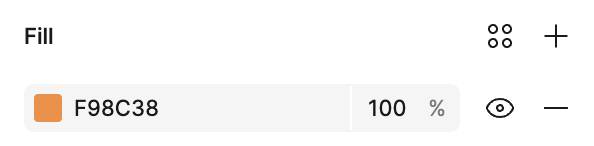

Fourth Bubble Colour - #FEEFDD
Fourth Bubble Font Colour - #F98C38

⁠
