Bar Chart

MyCondy

Last edited 73 days ago by MyCondy

The bar chart shows you the last 5 records from your table.

How to design it in Power Apps

Preview

⁠

⁠

What does it consist of?

1x Horizontal Gallery

2x Label

2x HTML TEXT

Procedure

Step 1 - create gallery with title and subtitle layout

Add a new Vertical Gallery object, call it "BarChartGallery" with this "Data source" property:

LastN(ForAll(

SortByColumns(Distinct(AddColumns(Filter(<Table>,Year = Year(Today())),_months,Month(<Table Column>)-1),_months),"Value",SortOrder.Ascending),

{_months: Value,

totalProfit: Sum(Filter(<Table>, Year = Year(Today()),Month(<Table Column>) = Value),<Table Column> * <Table Column>)

}

),5)

Step 2 - create item in a Gallery

Add a new Label object, call it "profit_value" with this "Text" property:

Text(ThisItem.totalProfit,"0 000","en")

Add a new Label object, call it "month_value" with this "Text" property:

Text(Date(Today(),ThisItem._months,1),"mmm","en")

Add a new HTML TEXT object, call it "bar_box" with this "HTML text" property:

"<div style='margin:0px;width:"&bar_box.Width&"px;height:200px; border-radius:5px; background-color:#F1F1E7;'></div>"

Add a new HTML TEXT object, call it "profit_box" with this "HTML text" property:

"<div style='margin:0px;width:"&profit_box.Width&"px;height:"&profit_box.Height-10&"px; border-radius:5px; background-color:"&If(RoundUp(Value(ThisItem.totalProfit),0) < 30000,"#00C6C2","#718AF4")&";'></div>"

and "Y" property:

bar_box.Y + bar_box.Height - profit_box.Height + 10

If your profit values are in thousands, please use also "Height" property:

RoundUp(Value(ThisItem.totalProfit) / 1000,0)

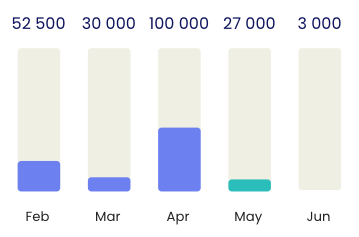

This is an output:

⁠

⁠

How to design it in Figma

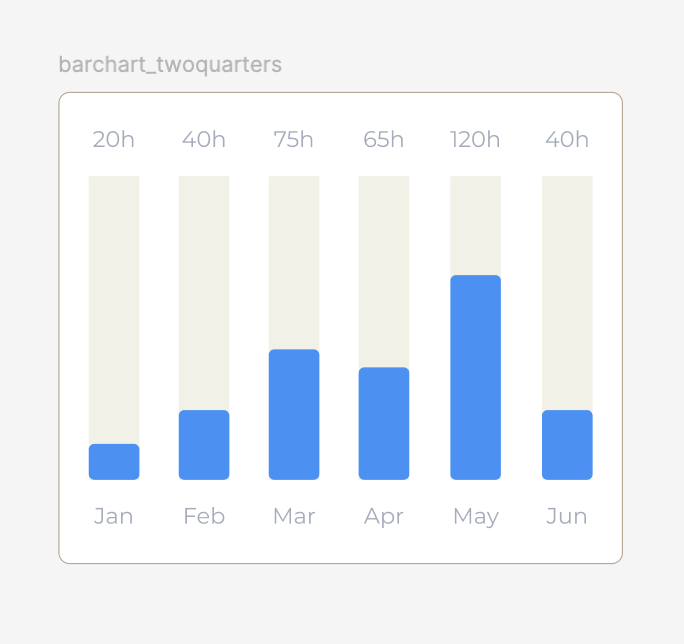

Preview

⁠

⁠

What does it consist of?

13x Frame

12x Text

Procedure

Step 1 - create a bar

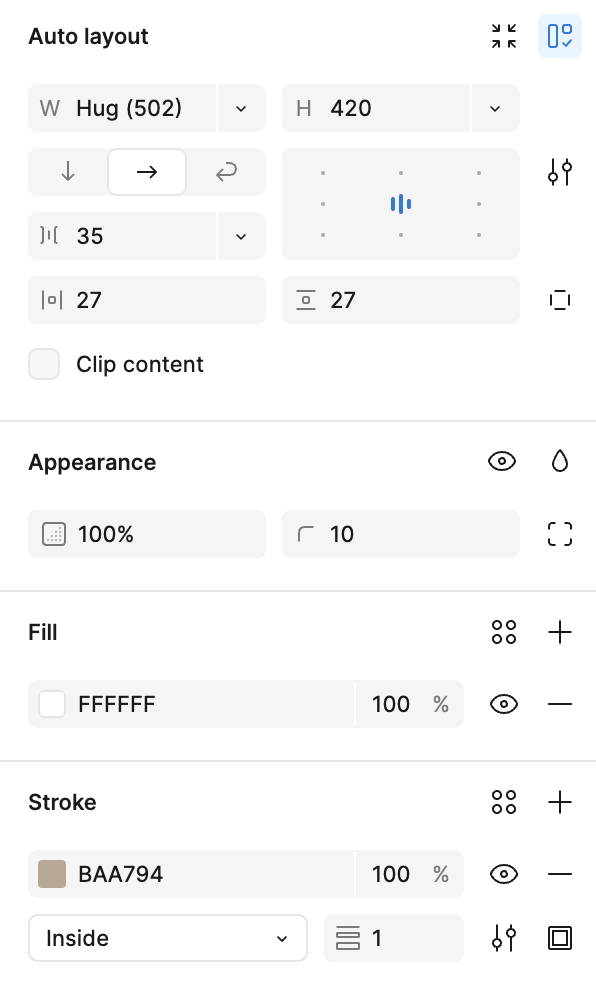

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "Bar" with these properties:

⁠

⁠

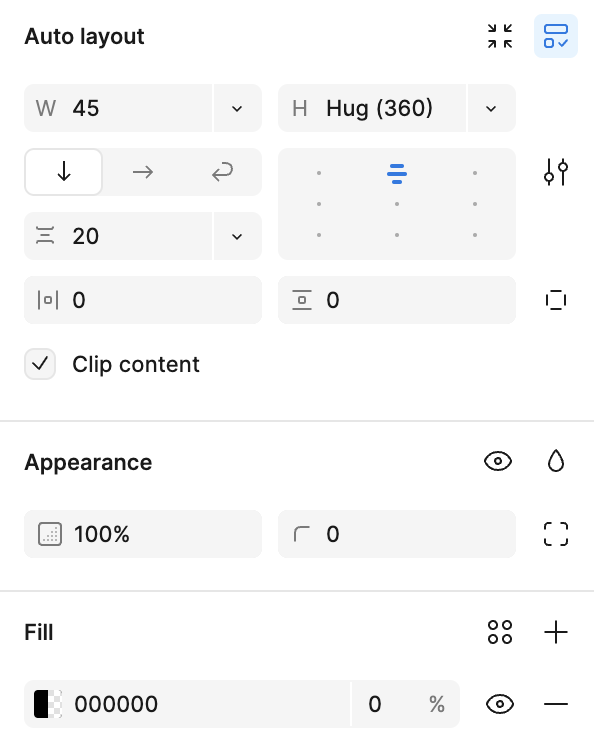

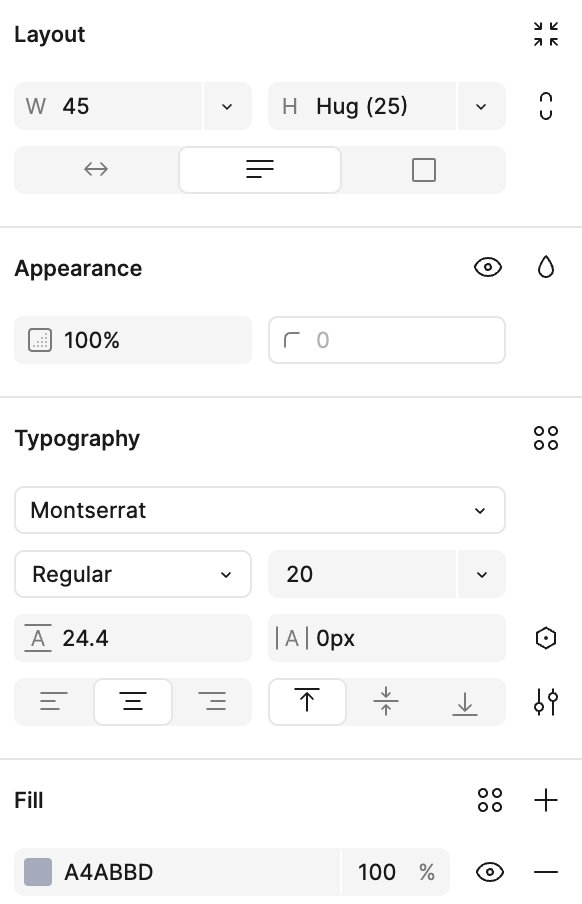

Add a new Text (T command) object under a "Bar" frame, call it "total_hours" with these properties:

⁠

⁠

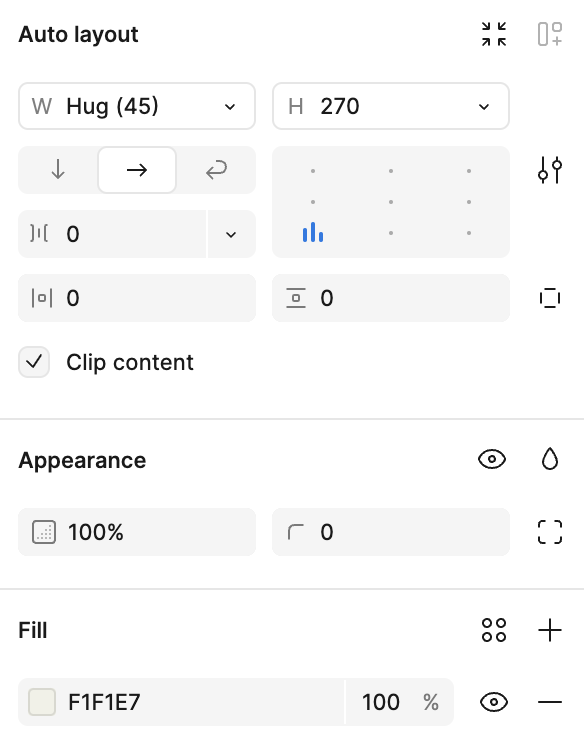

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "Value" with these properties:

⁠

⁠

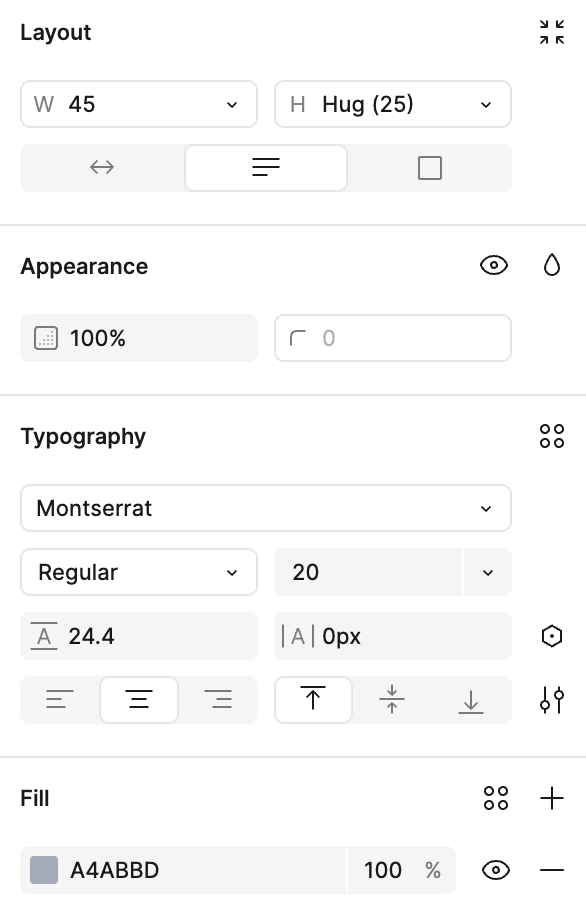

Add a new Text (T command) object under a "Bar" frame, call it "month_title" with these properties:

⁠

⁠

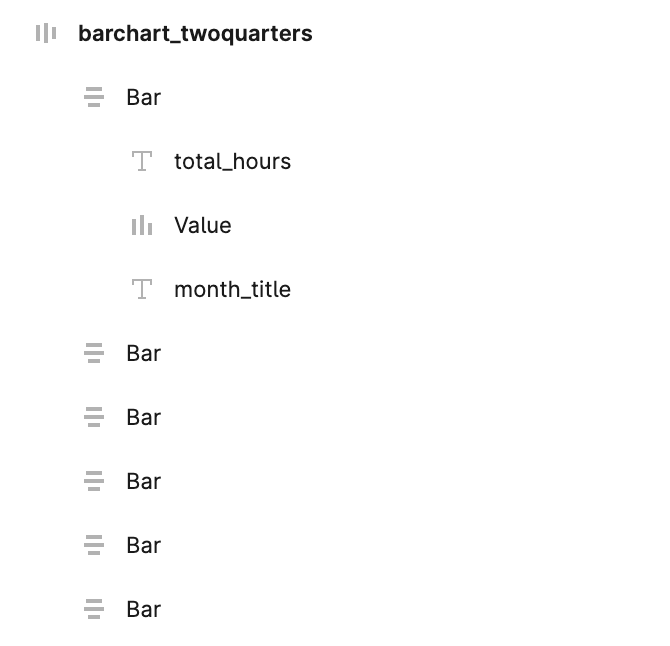

Step 2 - duplicate bars

Select the "Bar" frame and press 5x COMMAND + D (MAC) or CTRL + D (WIN)

Step 3 - cover it into horizontal frame

Select all created bars and press OPTION + COMMAND + G (MAC) or CTRL + ALT + G (WIN) to cover it in a frame. Then press SHIFT + A command to create an auto layout with these properties:

⁠

⁠

This is an output:

⁠

⁠

How to use it via DesignKit

Prerequisites

the designed component according to the instructions from the previous section

Used Prefixes

barchart_twoquarters = Custom Component represents Horizontal Gallery in Power Apps

YAML Output

⁠

⁠

Used Colours

Bar Box - #F1F1E7

Profit Box (value less 3000) - #00C6C2

Profit Box (value higher 3000) - #718AF4

Profit Value - #00126b

⁠
