Explore

Server Administration

Data Connections

Data Connection Manager

APIs

Scheduling

Performance & Diagnostics

Systems Setting Console

Default system components displayed, green means enabled

Environment: select the components of the server architecture to enable on the machine

Setup type: designer only, designer and scheduler only, complete alteryx server (includes gallery)

Workspace: root directory for temporary files, log files, database files

Controller: lists controller token used for the components to talk to each other, has the filepaths for workspace and logging

Persistence: database type (sqlite or mongodb); persistence of queue, results, completed schedules, and uploaded files

Mapping: enable map tile controller, memory cache, disk cache, reference layer lifespan

Worker: workspace configuration for temp files (cleared upon completion of workflow), allow machine to run scheduled Alteryx workflows, how many can be run simultaneously (ideally 1/2 of the physical cores), cancel scheduled jobs longer than X (ideally 1.5X the time of longest scheduled workflow), quality of service=0, run unassigned jobs

Run as: windows authentication for reading/writing files

Mapping: map rendering

Insights: if worker can enable Insights

Gallery: workspace configuration for temp files, logging directory pathway, base address URL to access gallery, enable SSL, default run mode (default unrestricted)

Authentication: built-in, integrated windows, SAML redirection

SMTP: controls email notifications being sent to users

Persistence: inherited by controller

Engine: temporary directory for writing temp files, logging directory, staging directory, browse everywhere settings, engine, sort/join memory, default thread count, engine priority, user/system alias

Server Administration

backups of mongoDB are best practice so in the event of failure, server upgrade, or maintenance protocol it can be restored if needed

command prompt entry, run as admin

change location to bin folder in alteryx install location

alteryx service executable functions → stop service, run mongoDB backup command in empty folder, make another empty folder for the restoration, run restoration prompt, open alteryx systems settings and go to controller > persistence, update data folder

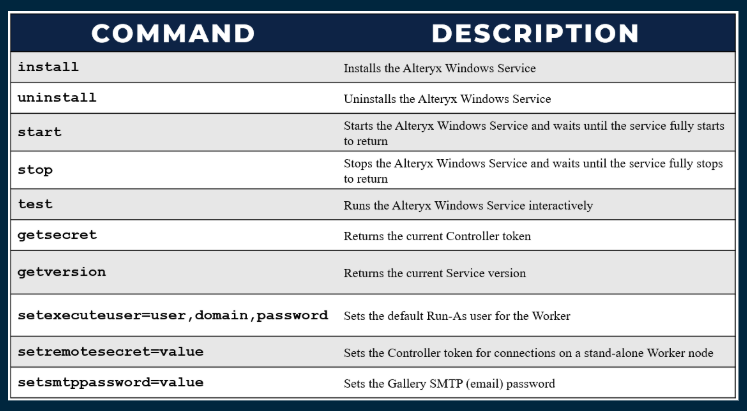

common command lines

⁠

Data at Rest & In Transit

data at rest is stored in mongoDB and on the server

temp files (.yxdb) are deleted as soon as they are no longer needed — location for storage set in system settings > engine setting > temporary directory

data files packaged with workflows will be embedded in mongoDB

workflows/apps that allow users to upload files will persist in mongoDB

do not use upload file options like file browse tools for sensitive data

reference files by UNC path rather than embedding in packaged workflow

update settings for persistence to delete uploaded files after X days

log files do not contain actual data or the output from Alteryx
