HOW TO SETUP DNS IN WINDOWS SERVER

INSTALLING WINDOWS SERVER

More

Share

Explore

SETUP DNS

April 5, 2023

by the

RIVAN TECHNOLOGICAL INSTITUTE⁠

⁠

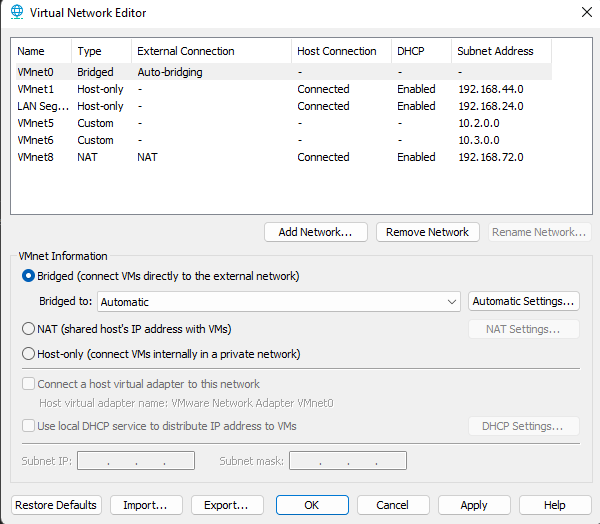

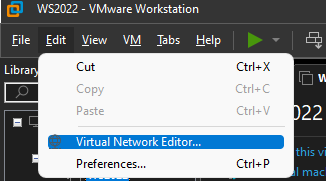

Go to Virtual Network Editor.

⁠

⁠

⁠

Click VMnet0 (Bridged), and set the the following configurations (refer to the image below).

⁠

⁠

⁠

If machine is turned off:

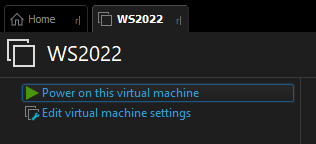

Click Edit virtual machine settings

⁠

⁠

⁠

If machine is turned on:

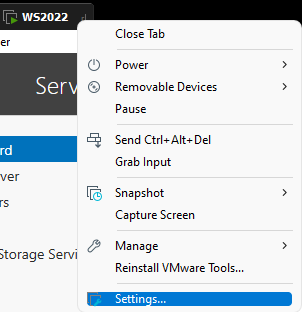

Right click the Windows Server VM Tab above, and select Settings.

⁠

⁠

⁠

Set your Network Adapter to Bridged (Automatic), and click Close.

⁠

⁠

⁠

Power on your virtual machine if it is turned off.

⁠

⁠

⁠

Restart your Windows Server if it is turned on to save changes:

⁠

⁠

⁠

Type the password to login.

⁠

⁠

⁠

Open cmd and type this command to check if there is an IP:

ipconfig

⁠

⁠

⁠

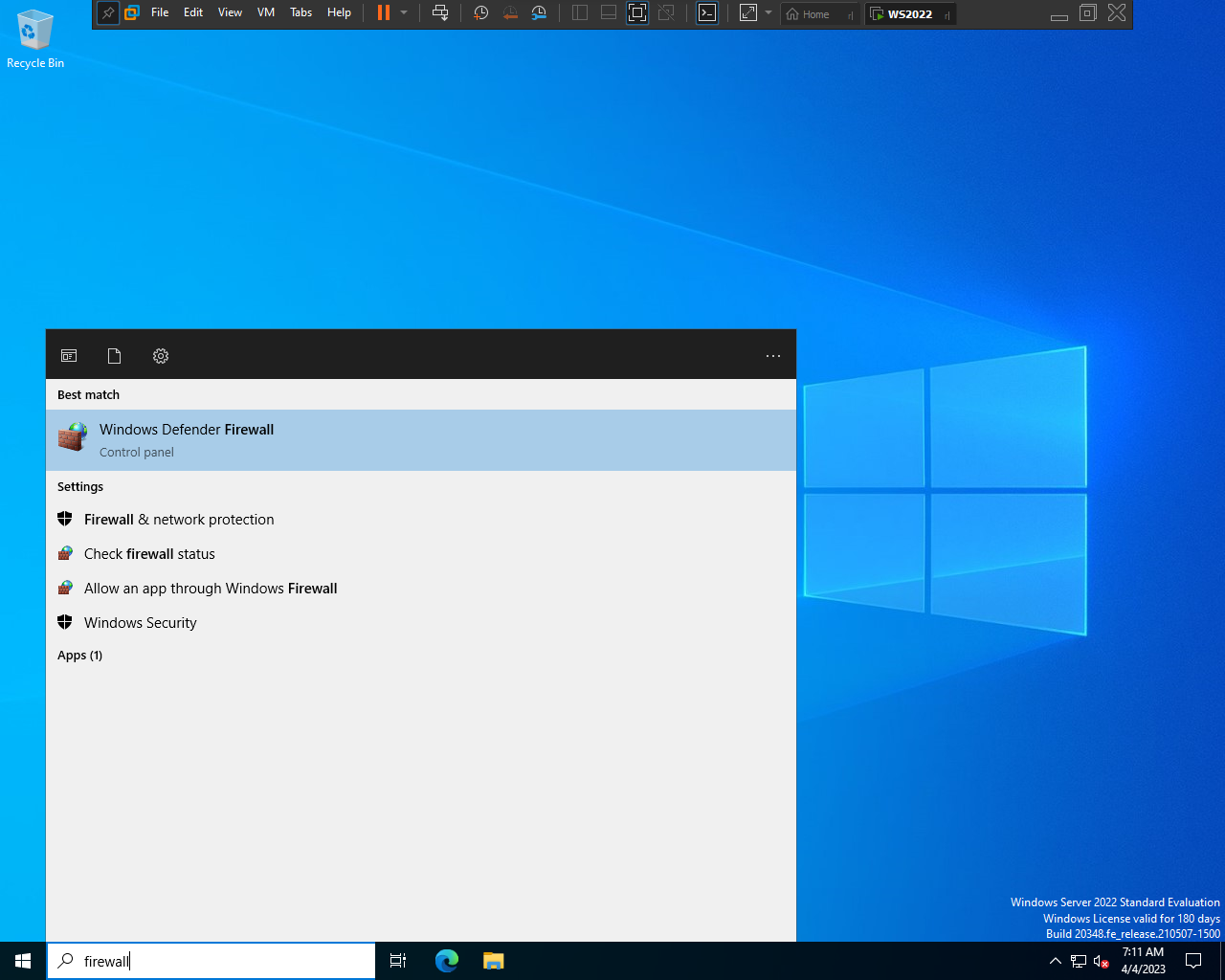

Search Windows Defender Firewall.

⁠

pasted image 0.png

⁠

⁠

Find this option (refer to the image below)

⁠

pasted image 0.png

⁠

⁠

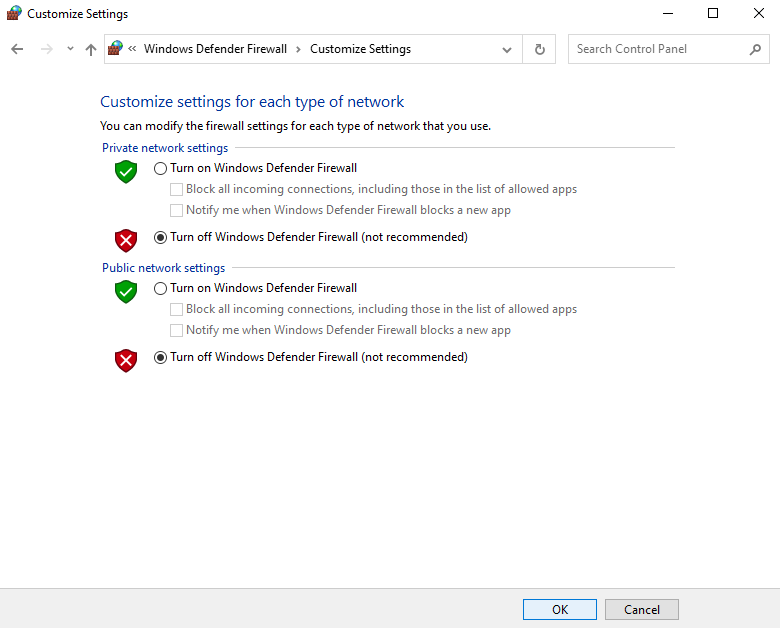

Turn off all Firewalls from Public and Private Networks. Click OK.

⁠

pasted image 0.png

⁠

⁠

Search Windows Powershell and select any of the results.

⁠

pasted image 0.png

⁠

⁠

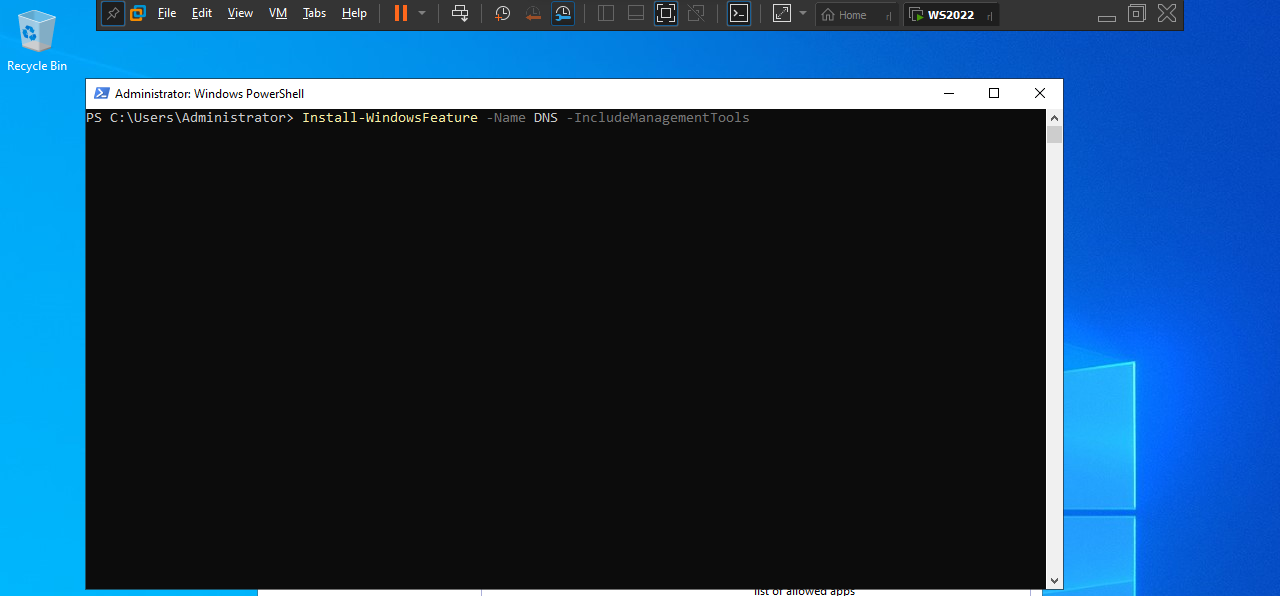

Type this command:

Install-WindowsFeature -Name DNS -IncludeManagementTools

⁠

pasted image 0.png

⁠

⁠

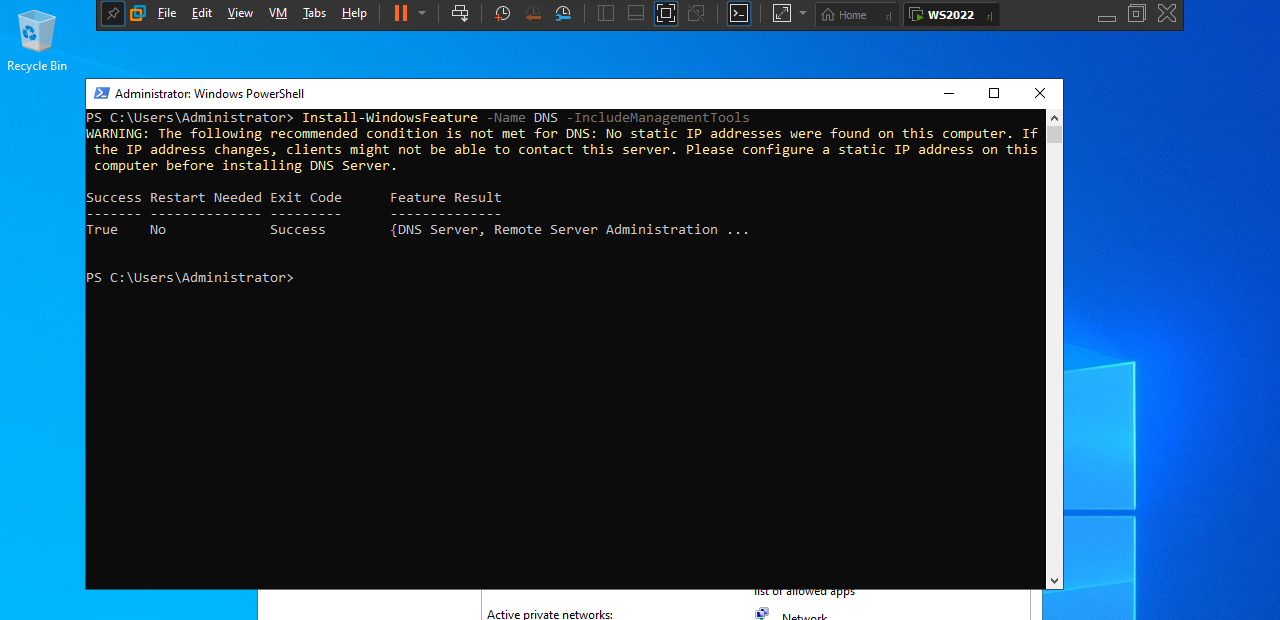

**OOPS, IT NEEDS STATIC IP**

⁠

pasted image 0.png

⁠

⁠

It says True, but somewhat we need to configure to Static Mode for the other requirements.

⁠

pasted image 0.png

⁠

⁠

Go ahead and proceed to your Personal Windows OS (non-VM).

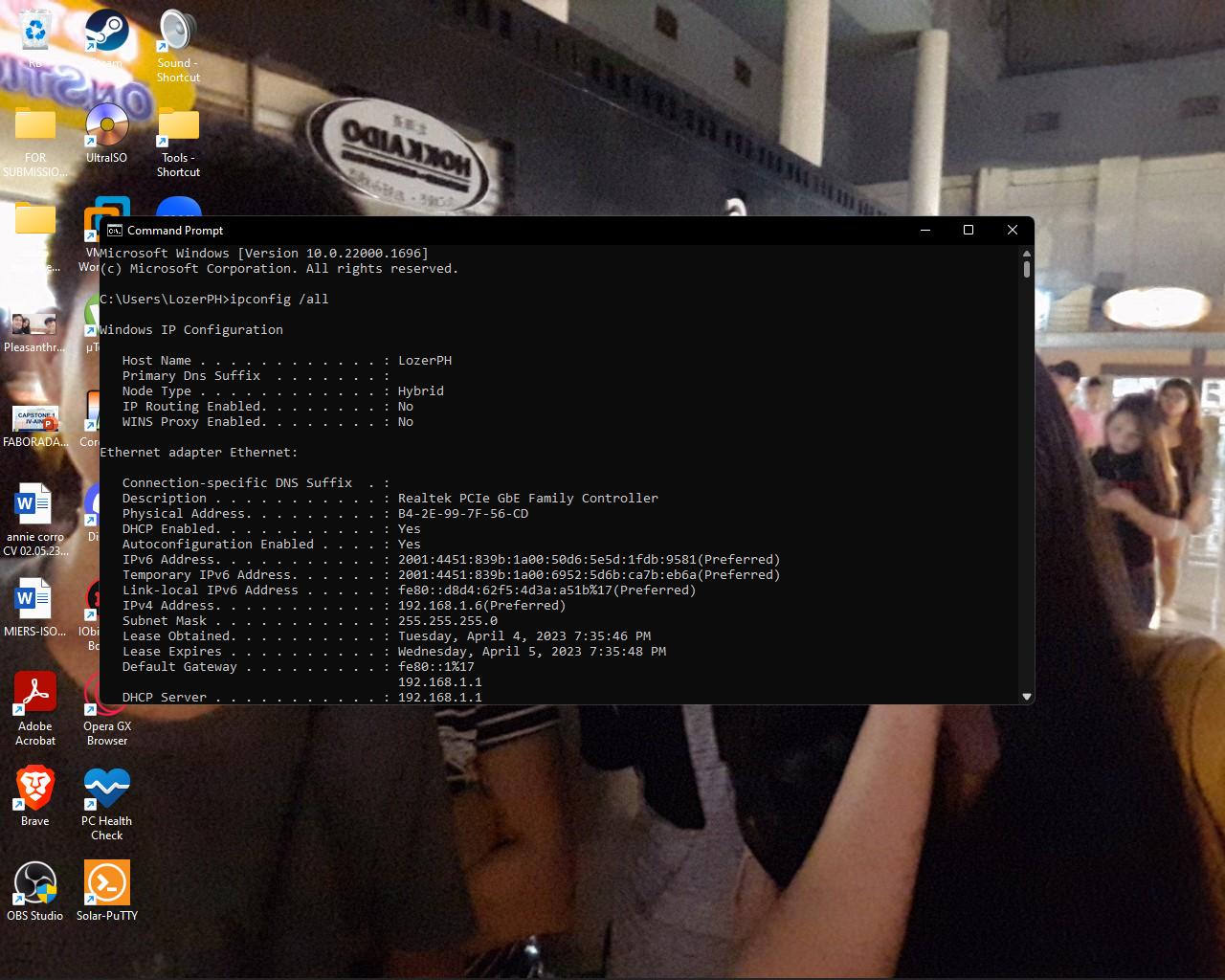

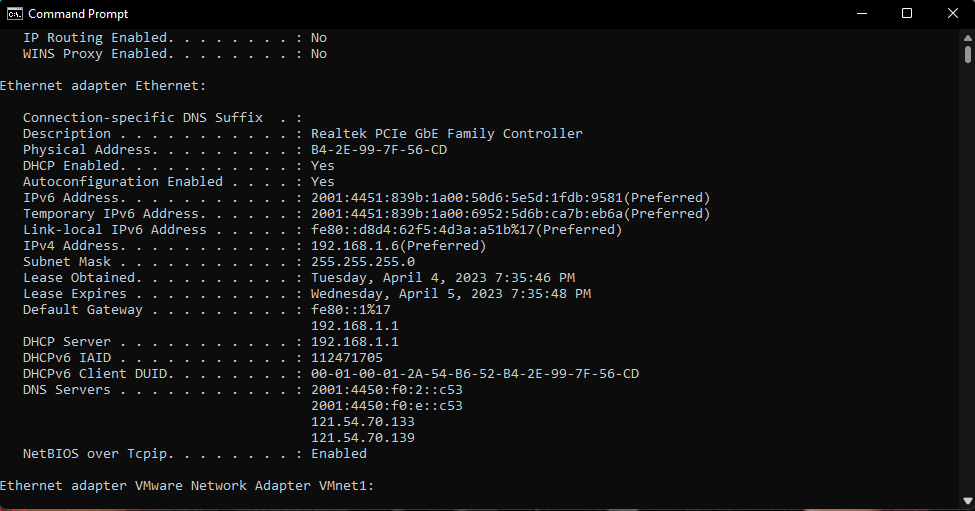

Open cmd, and type this command.

ipconfig /all

⁠

pasted image 0.png

⁠

⁠

Take note of the following:

The Default Gateway

DNS Server: 127.0.0.1

Go to your Windows Server VM, then open cmd, and re-type the command:

ipconfig /all

⁠

pasted image 0.png

⁠

⁠

Look for your IPv4 Address, and mostly remember your third octet.

In my case it’s 192.168.1.6

⁠

pasted image 0.png

⁠

⁠

Press Windows+R key and type:

ncpa.cpl

⁠

pasted image 0.png

⁠

⁠

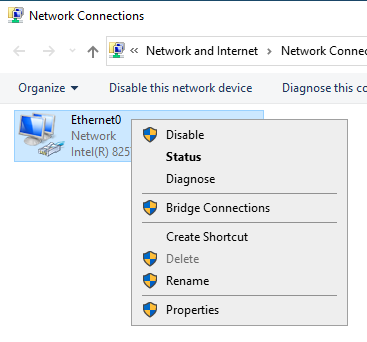

Right click your Ethernet/Wi-Fi, and select Properties.

⁠

pasted image 0.png

⁠

⁠

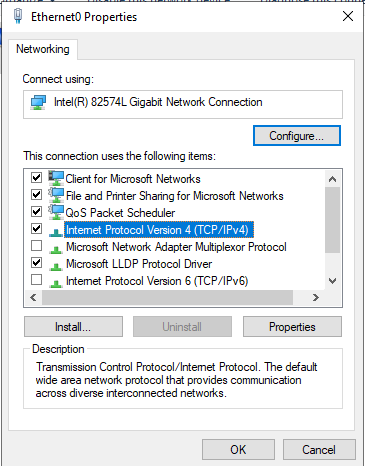

Disable Internet Protocol Version 6 (TCP/IPv6).

Click Internet Protocol Version 4(TCP/IPv4), and click Properties.

⁠

pasted image 0.png

⁠

⁠

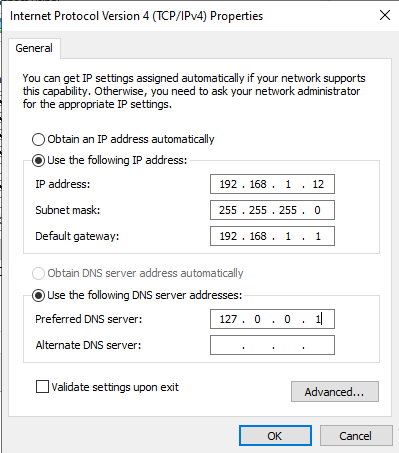

Set the following configurations:

IP Address: 192.168._.12

Subnet Mask: 255.255.255.0

Default gateway: 192.168._.1

\\this somewhat depends to your network\\

Preferred DNS: 127.0.0.1

⁠

pasted image 0.png

⁠

⁠

Go back to your Powershell, and re-type:

Install-WindowsFeature -Name DNS -IncludeManagementTools

⁠

pasted image 0.png

⁠

⁠

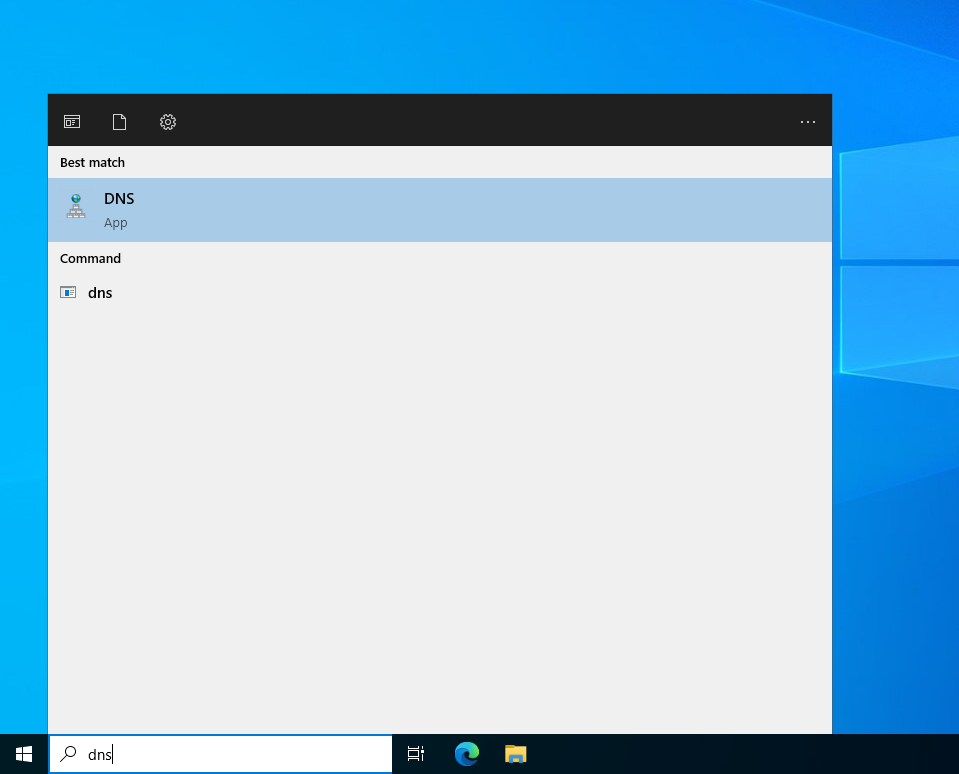

Search DNS from your Windows Server.

⁠

pasted image 0.png

⁠

⁠

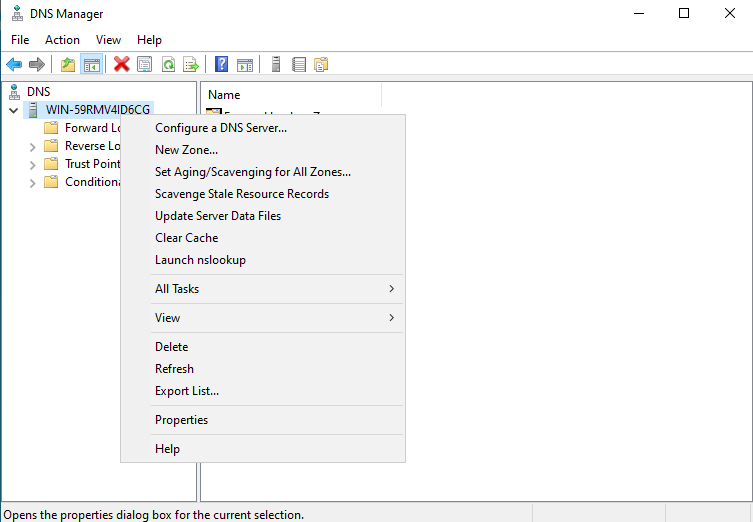

Right click Server, then select Properties.

⁠

pasted image 0.png

⁠

⁠

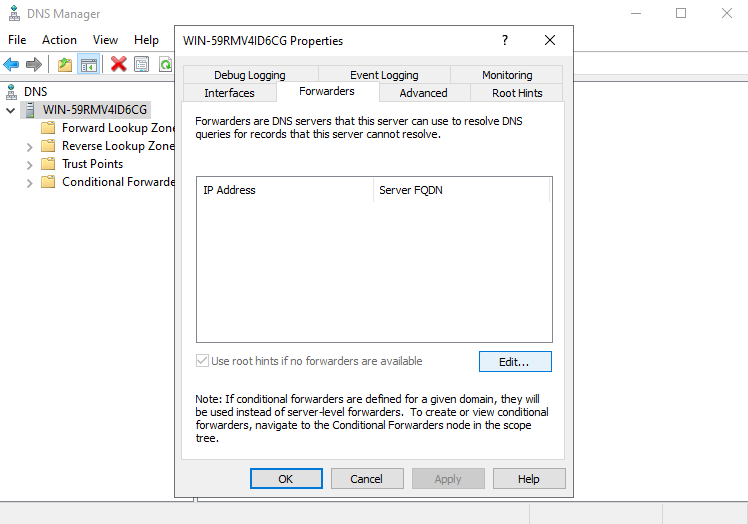

Select Forwarders, and click “Edit...”

⁠

pasted image 0.png

⁠

⁠

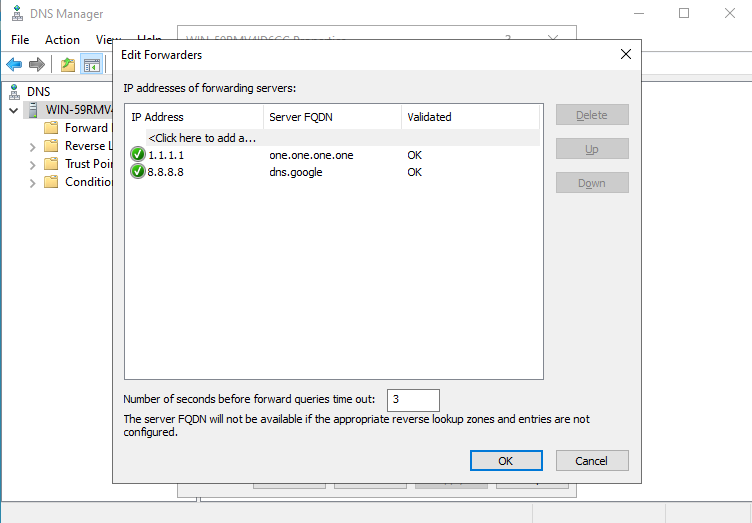

Click “<Click here to add a...”

And enter the following before clicking OK:

1.1.1.1

8.8.8.8

⁠

pasted image 0.png

⁠

⁠

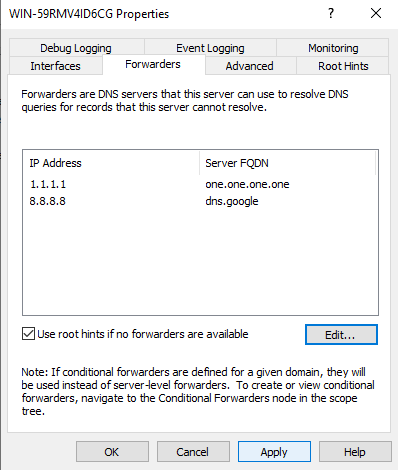

Click Apply.

⁠

pasted image 0.png

⁠

⁠

**FOR YOUR NOTES**:

⁠

⁠

TEST PING THE FOLLOWING:

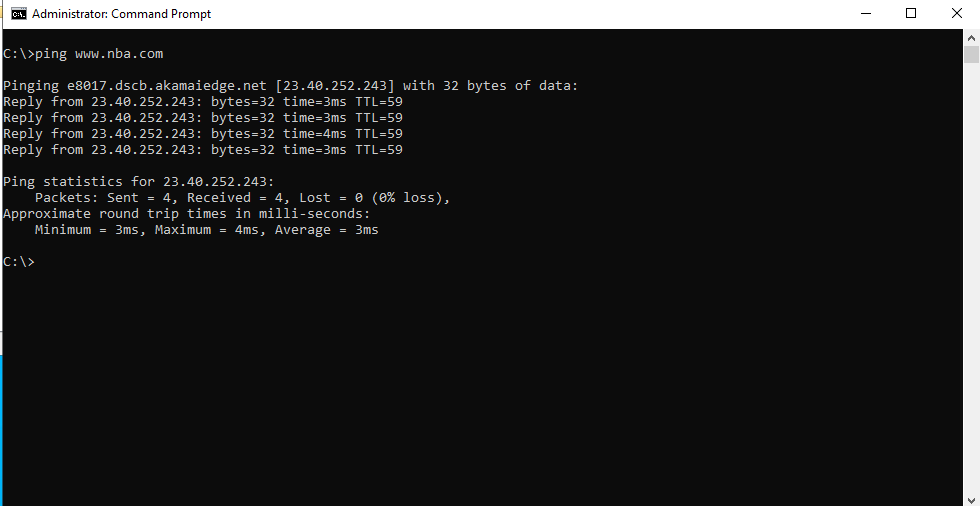

ping www.nba.com

⁠

pasted image 0.png

⁠

⁠

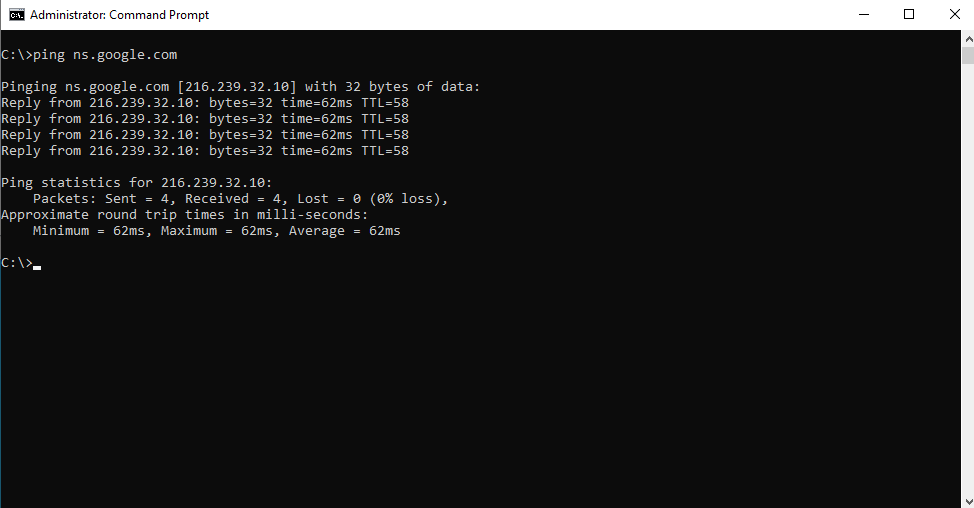

ping ns.google.com

⁠

pasted image 0.png

⁠

⁠

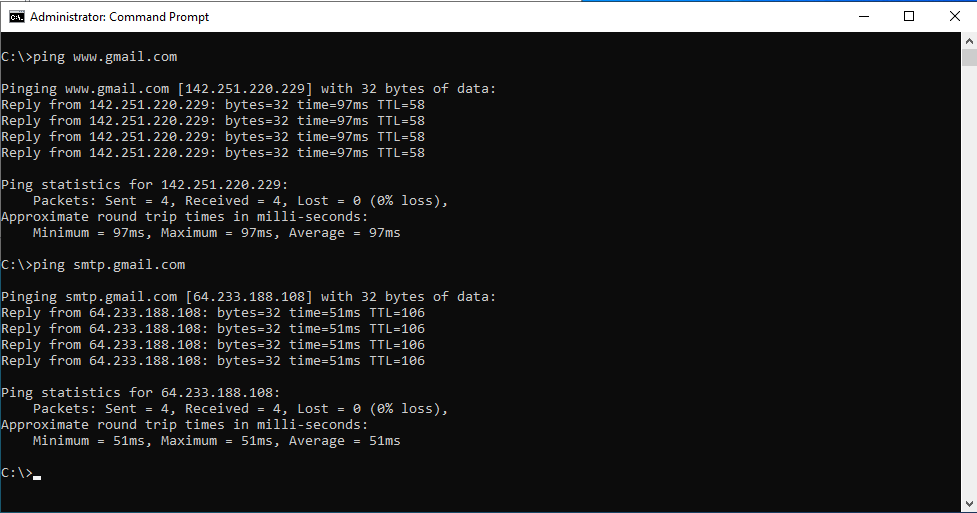

ping www.gmail.com

ping smtp.gmail.com

⁠

pasted image 0.png

⁠

⁠

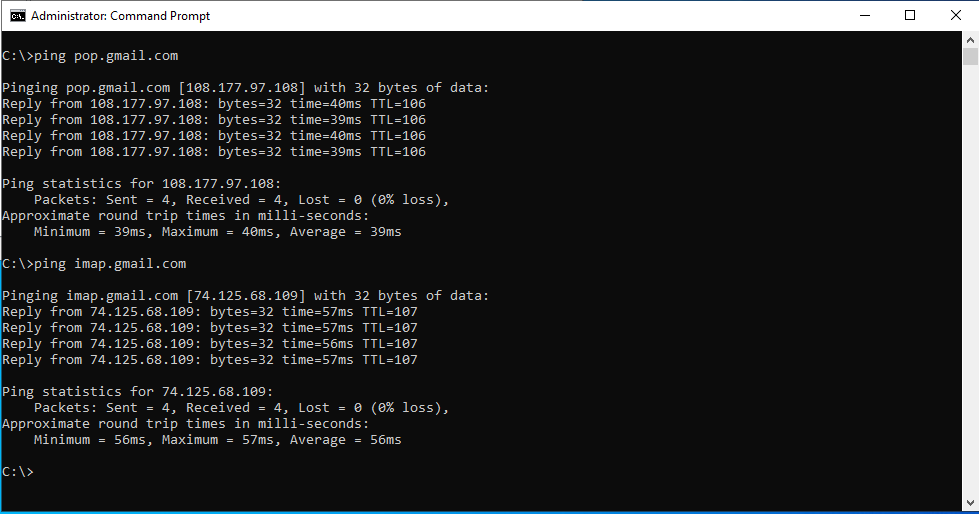

ping pop.gmail.com

ping imap.gmail.com

⁠

pasted image 0.png

⁠

⁠

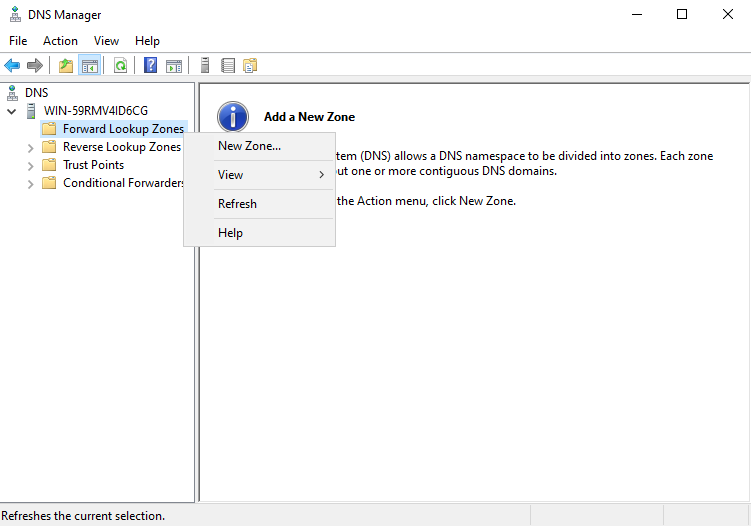

Back to your DNS, go ahead and right click Forward Lookup Zones.

Select New Zone.

⁠

pasted image 0.png

⁠

⁠

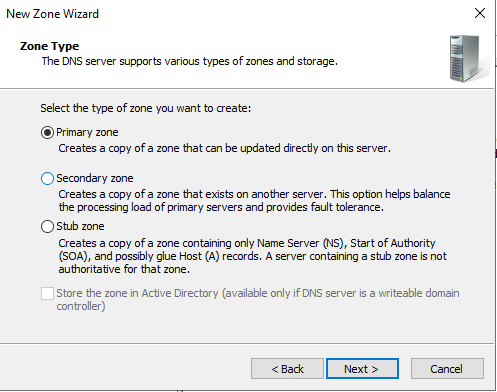

Select Primary Zone, and click Next.

⁠

pasted image 0.png

⁠

⁠

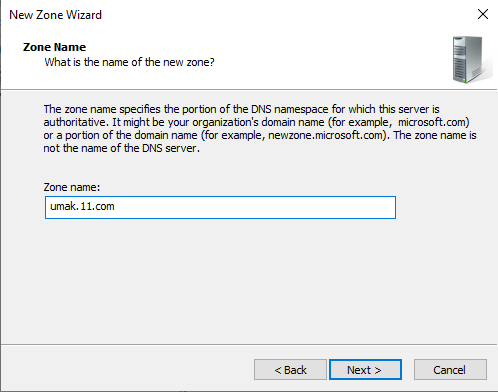

Use the following format:

[name].[pc-number].com

In my case it's umak.11.com. Then click Next.

⁠

pasted image 0.png

⁠

⁠

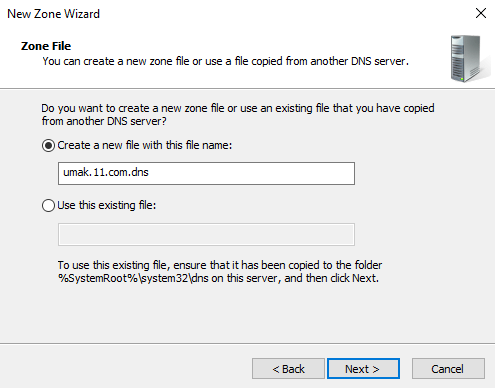

Click Next.

⁠

pasted image 0.png

⁠

⁠

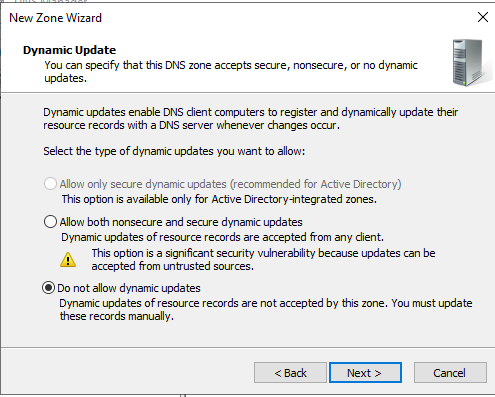

Click Next.

⁠

pasted image 0.png

⁠

⁠

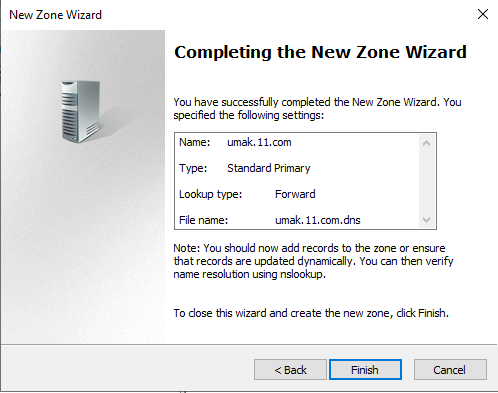

Click Finish.

⁠

pasted image 0.png

⁠

⁠

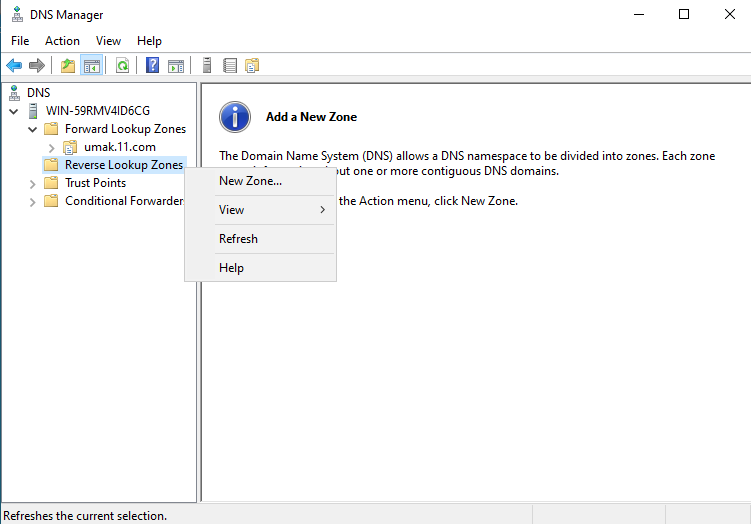

Right click Reverse Lookup Zones, and select New Zone.

⁠

pasted image 0.png

⁠

⁠

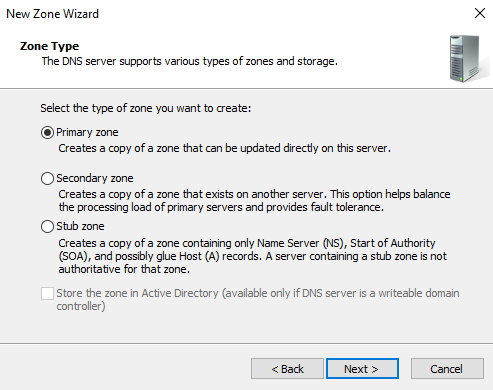

Select Primary Zone, and click Next.

⁠

pasted image 0.png

⁠

⁠

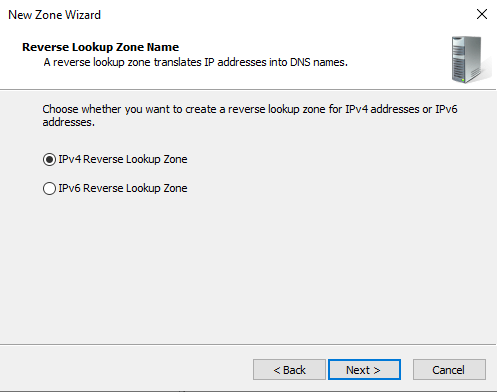

Select IPv4 Reverse Lookup Zone, and click Next.

⁠

pasted image 0.png

⁠

⁠

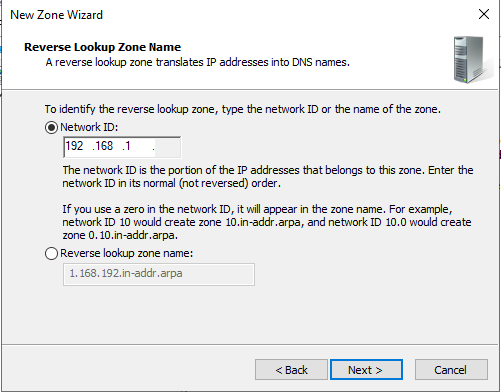

Type:

192.168._

Click Next.

⁠

pasted image 0.png

⁠

⁠

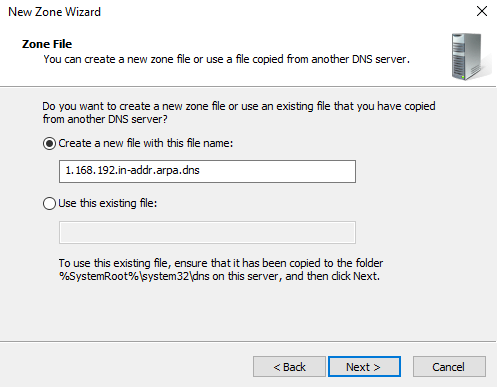

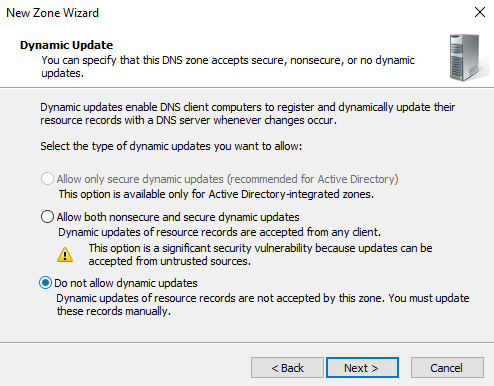

Click Next.

⁠

pasted image 0.png

⁠

⁠

Click Next.

⁠

pasted image 0.png

⁠

⁠

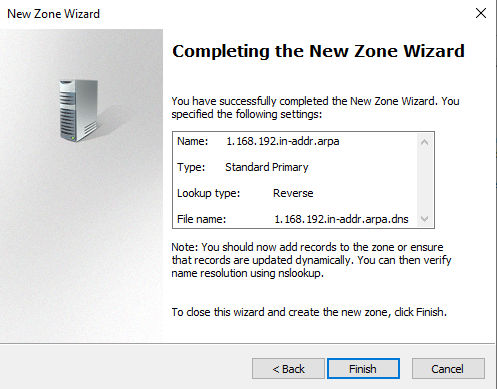

Click Finish.

⁠

pasted image 0.png

⁠

⁠

We need to create the following:

2 x Hosts

4 x Aliases

1 x MX Record

STEP 1: Creating Hosts

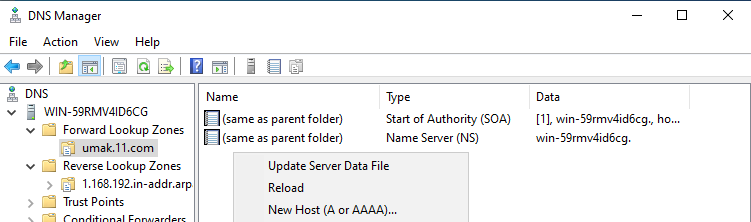

Right click the created Zone under Forward Lookup Zones, and select “New Host (A or AAAA)...”

⁠

pasted image 0.png

⁠

⁠

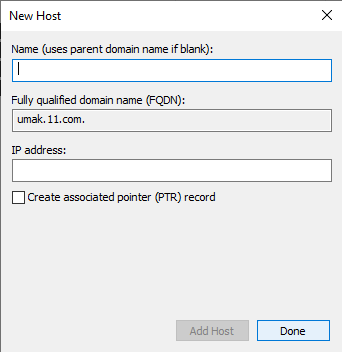

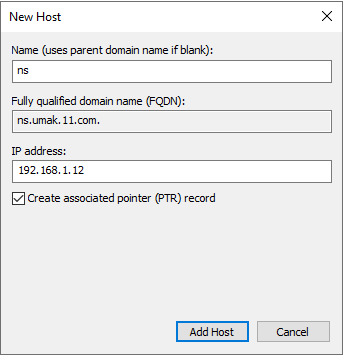

Type the following:

Name: ns

IP Address: 192.168._.12

☑️ Create associated pointer (PTR) record.

⁠

⁠

⁠

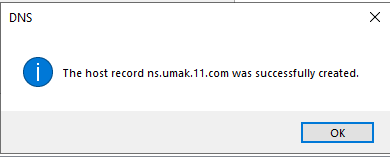

NS was successfully created.

⁠

pasted image 0.png

⁠

⁠

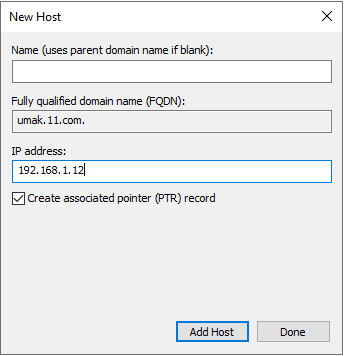

Create another host:

Name: <no name>

IP Address: 192.168._.12

☑️ Create associated pointer (PTR) record.

⁠

⁠

⁠

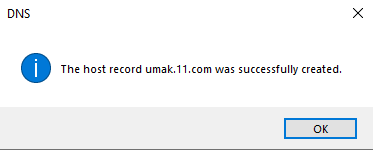

Success Prompt.

⁠

pasted image 0.png

⁠

⁠

Click Done.

⁠

pasted image 0.png

⁠

⁠

STEP 2: Creating Aliases

Right click the created Zone under Forward Lookup Zones, and select “New Alias (CNAME)...”

⁠

pasted image 0.png

⁠

⁠

Type:

Alias Name: www

Fully qualified domain...: ns.[name].[pc-number].com.

Click OK.
