INSTALLING WINDOWS SERVER

April 5, 2023
by the
RIVAN TECHNOLOGICAL INSTITUTE
⁠
⁠

If you already had a Windows Server on your VM, you should skip this process
Press
this
⁠
to skip.

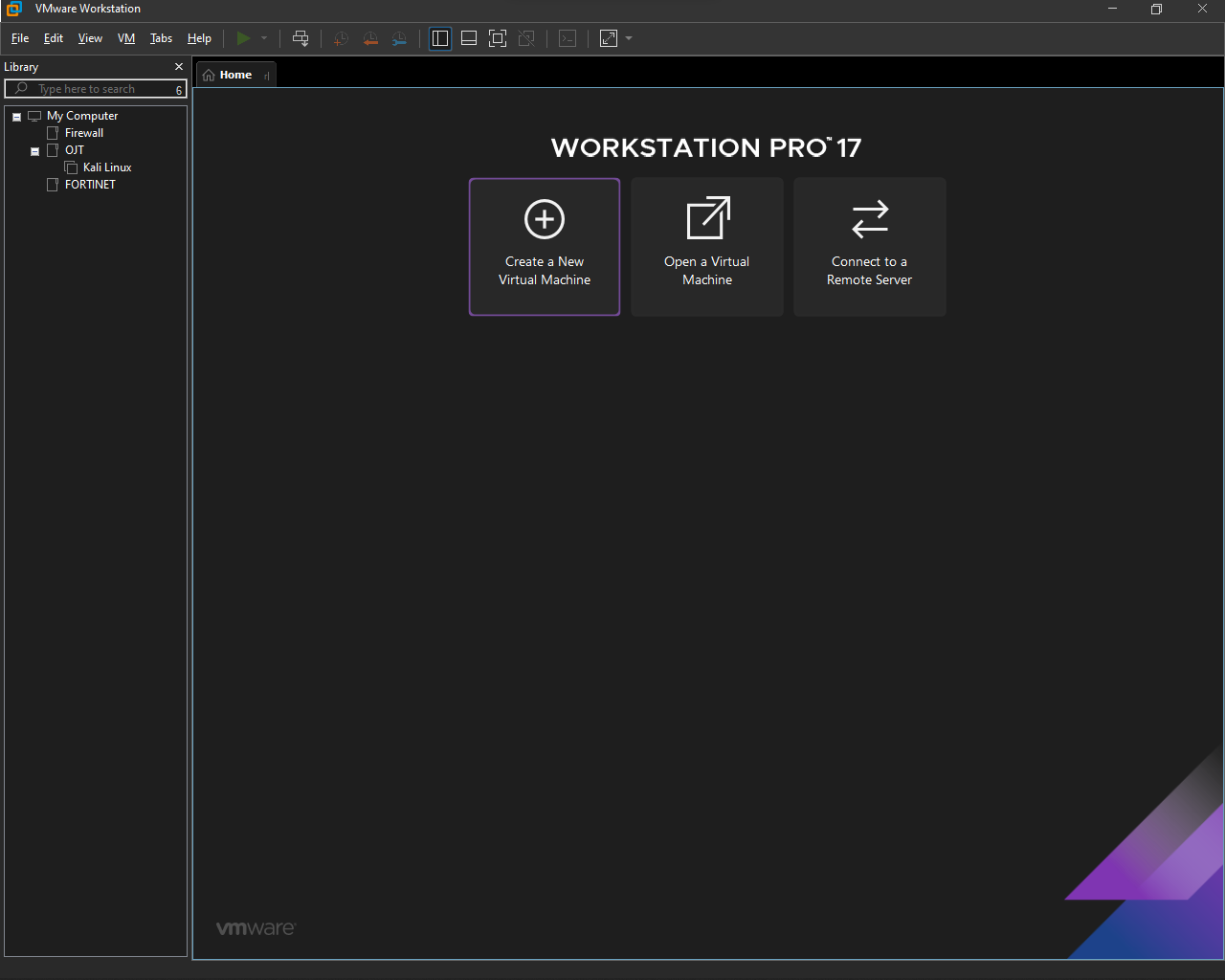

Open your
VMWare Workstation Pro.
⁠
⁠
⁠
pasted image 0.png
⁠
⁠

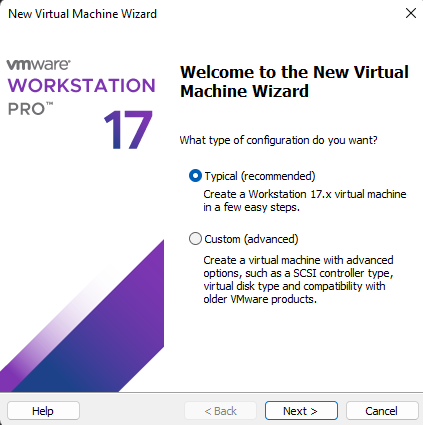

Choose Typical (recommended).
⁠
⁠
⁠

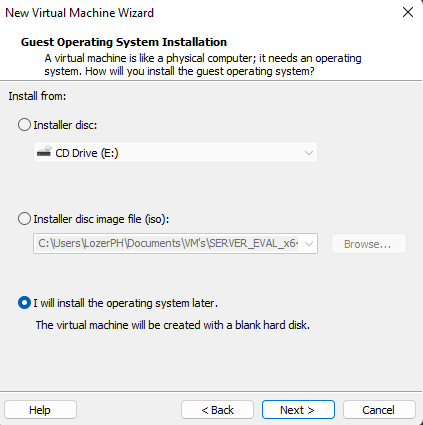

Select I will install the operating system later.
⁠
pasted image 0.png
⁠
⁠

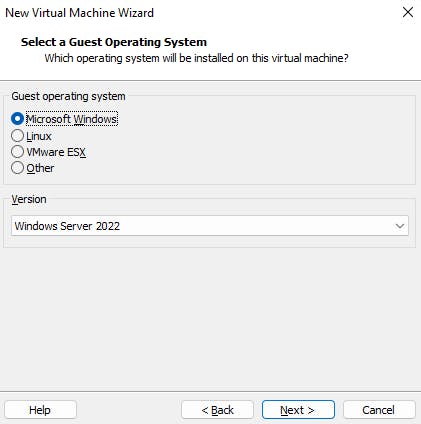

Choose Microsoft Windows, and select Windows Server 2022 from the dropdown menu.
⁠
pasted image 0.png
⁠
⁠

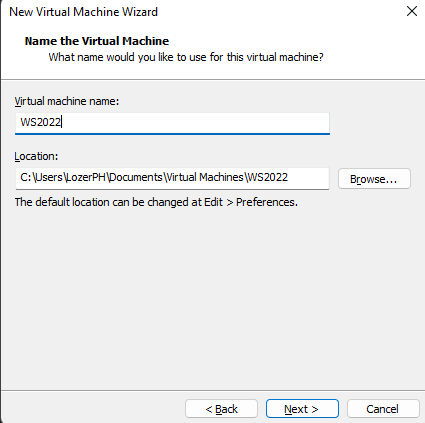

Enter the VM name you wanted before clicking Next.
⁠
pasted image 0.png
⁠
⁠

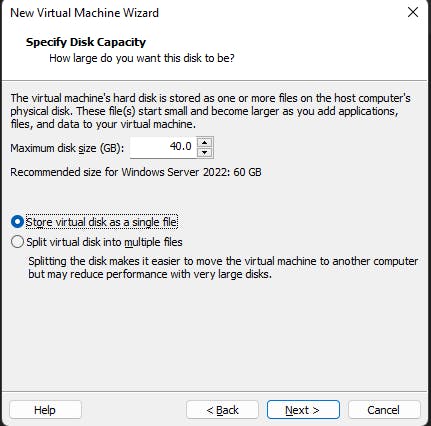

Set the disk size to 40-60 (recommended), and click Store virtual disk as a single file.
⁠
pasted image 0.png
⁠
⁠

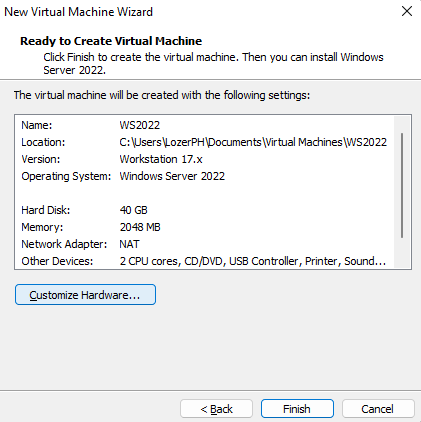

Click Customize Hardware.
⁠
pasted image 0.png
⁠
⁠

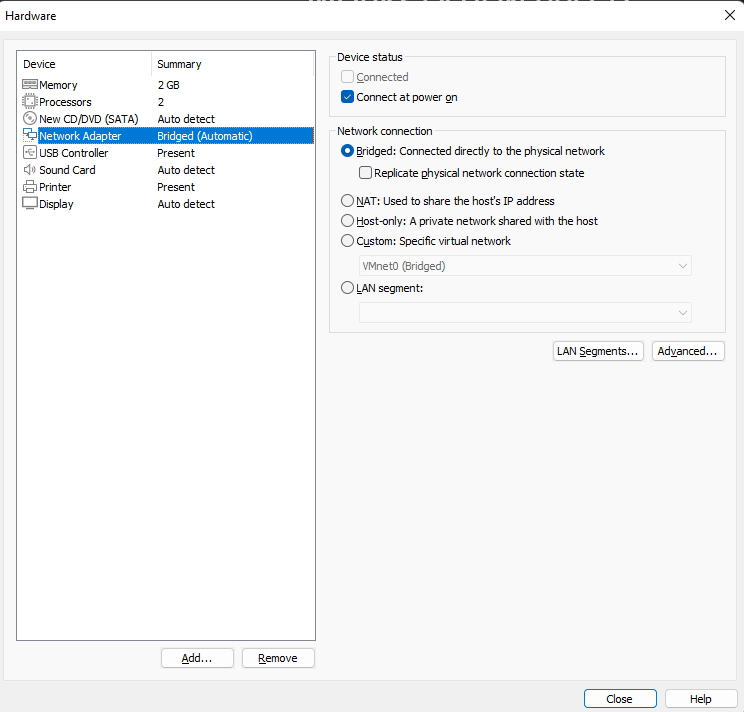

Set Network Adapter to Bridged (Automatic), and uncheck the Replicate physical network connection state.
⁠
pasted image 0.png
⁠
⁠

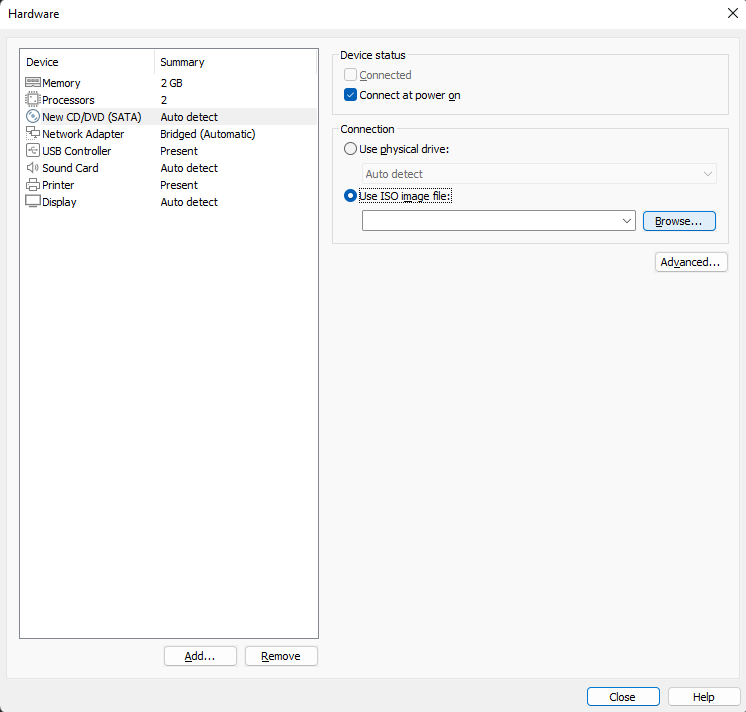

Select New CD/DVD (SATA), then click Use ISO image file before clicking “Browse...”.
⁠
pasted image 0.png
⁠
⁠

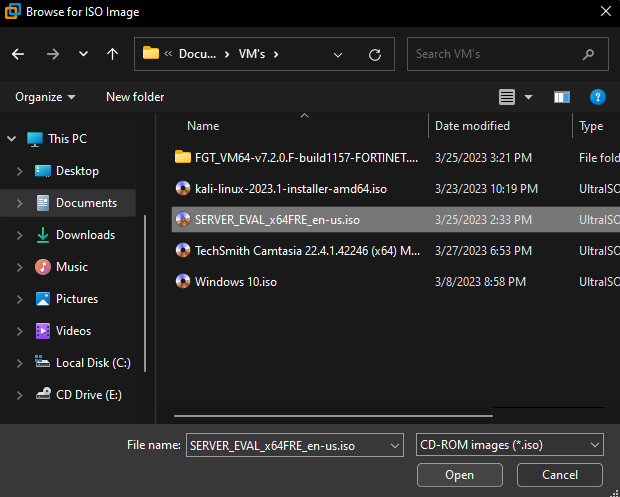

Find the .iso file that contains the Windows Server OS.
⁠
pasted image 0.png
⁠
⁠

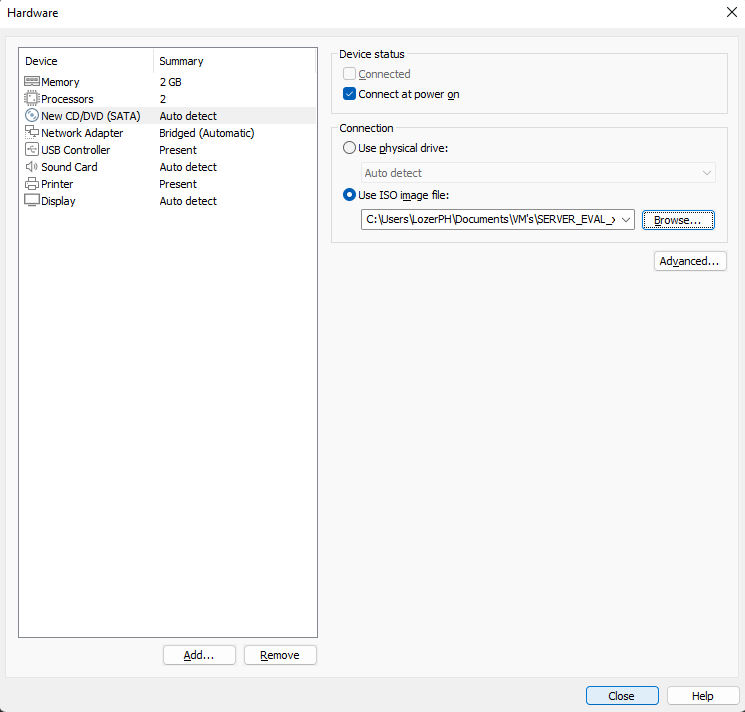

Click Close.
⁠
pasted image 0.png
⁠
⁠

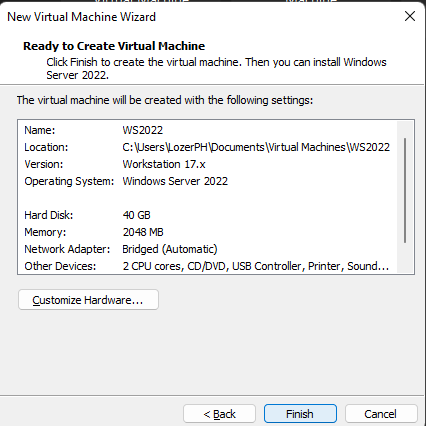

Select Finish.
⁠
pasted image 0.png
⁠
⁠

Power on your virtual machine.
⁠
pasted image 0.png
⁠
⁠

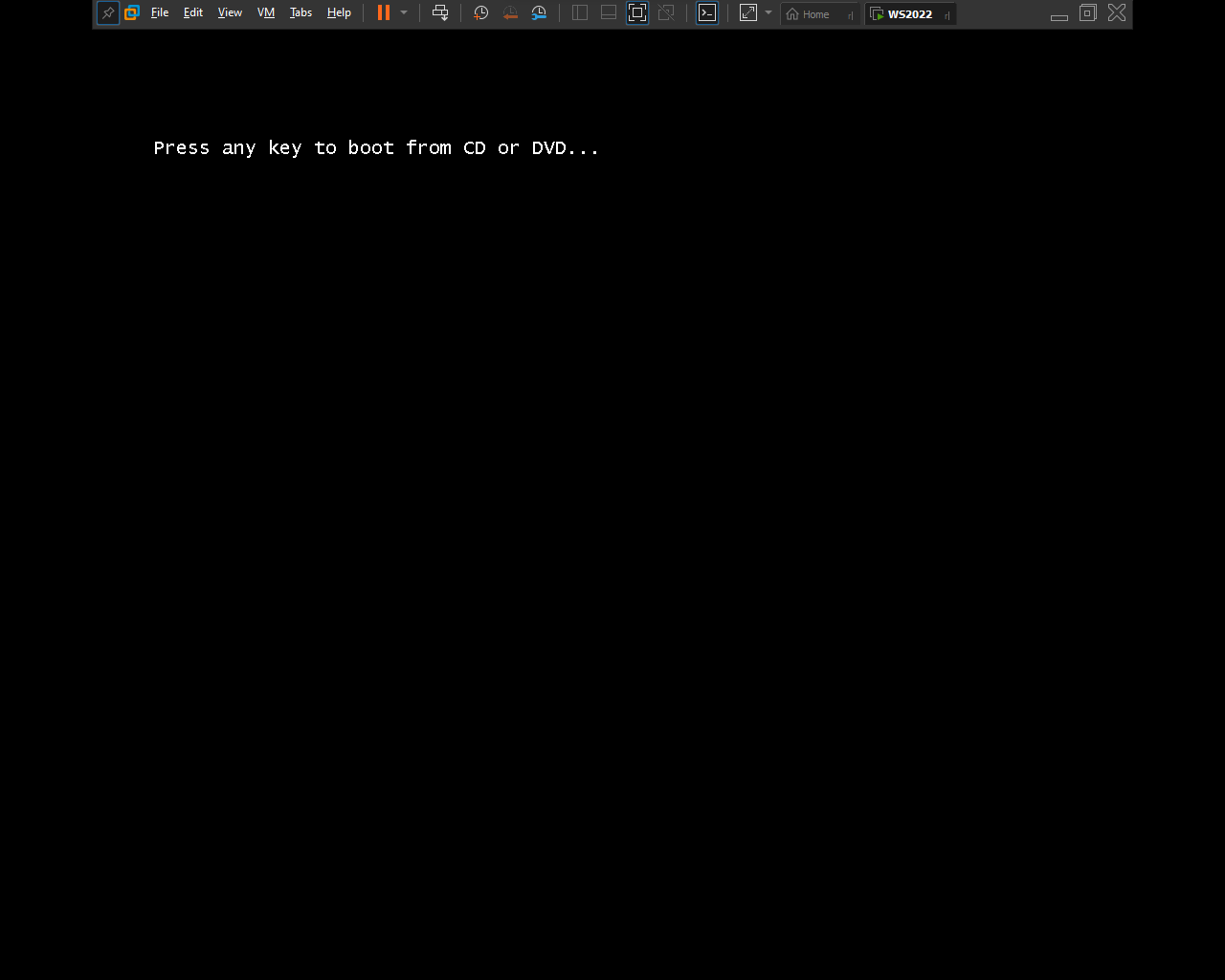

Click the VM screen, and press Enter key multiple times to enter boot installation.
⁠
pasted image 0.png
⁠
⁠

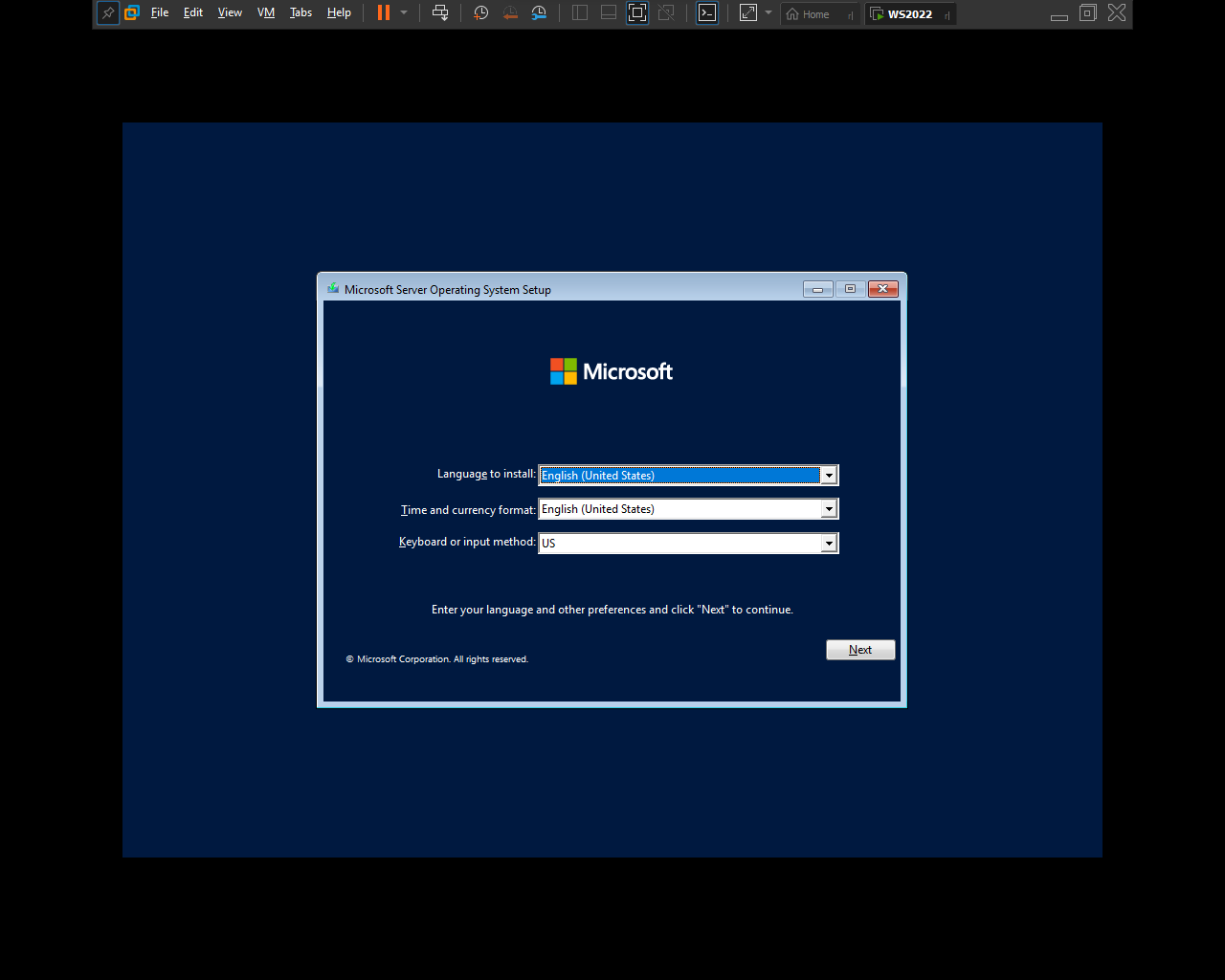

Click Next.
⁠
pasted image 0.png
⁠
⁠

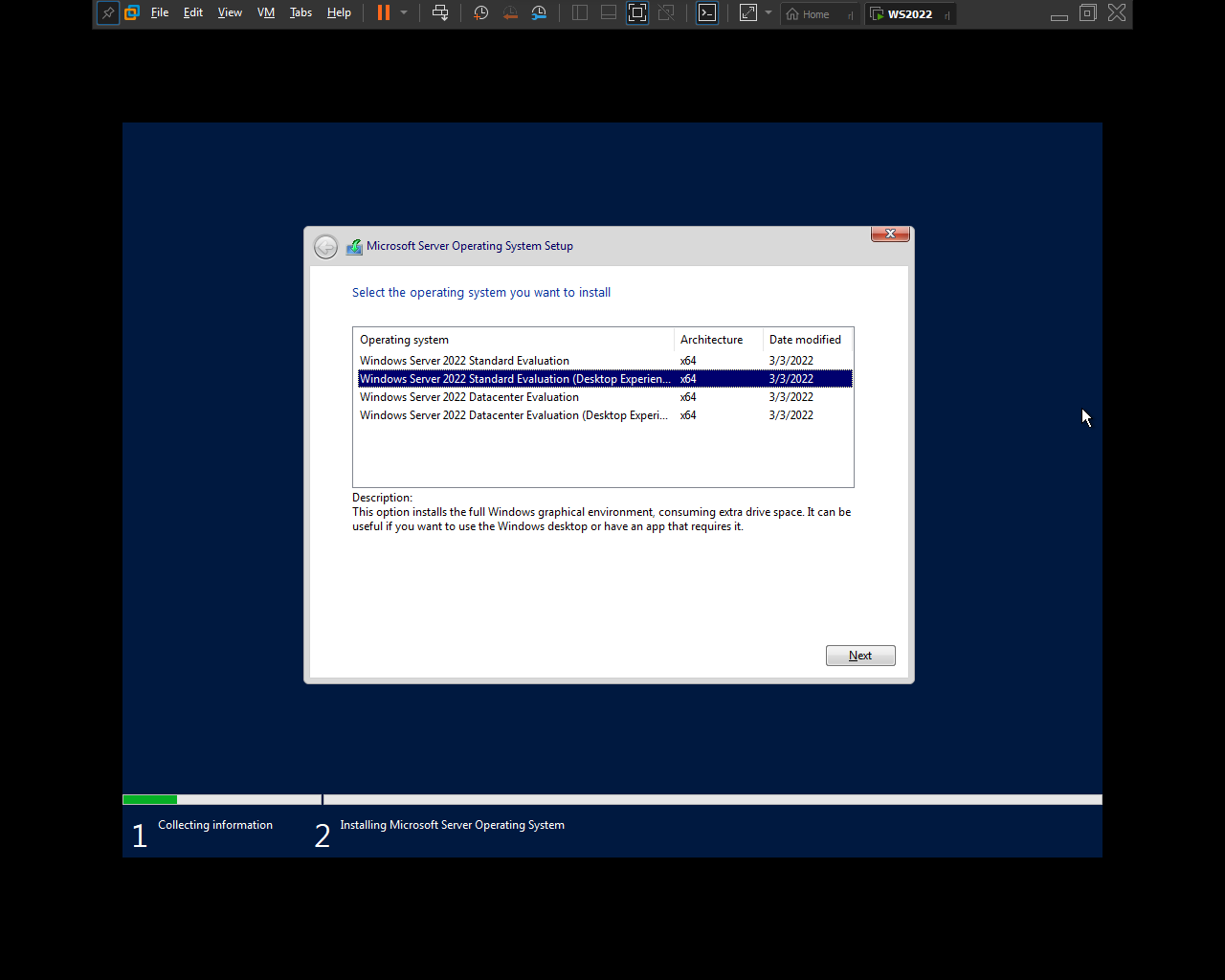

Choose the second OS type which it has Desktop Experience.
⁠
pasted image 0.png
⁠
⁠

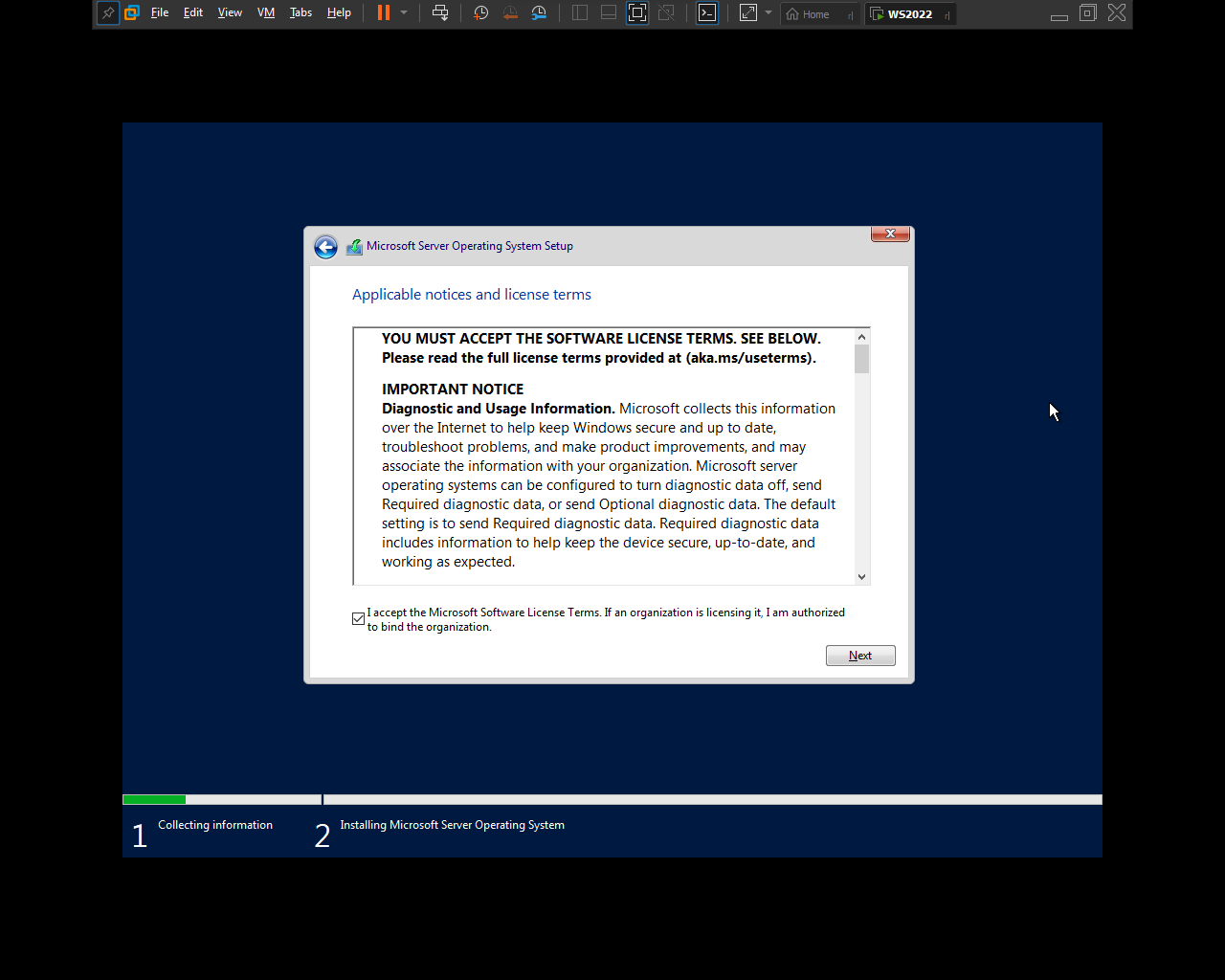

Agree to the License Terms.
⁠
pasted image 0.png
⁠
⁠

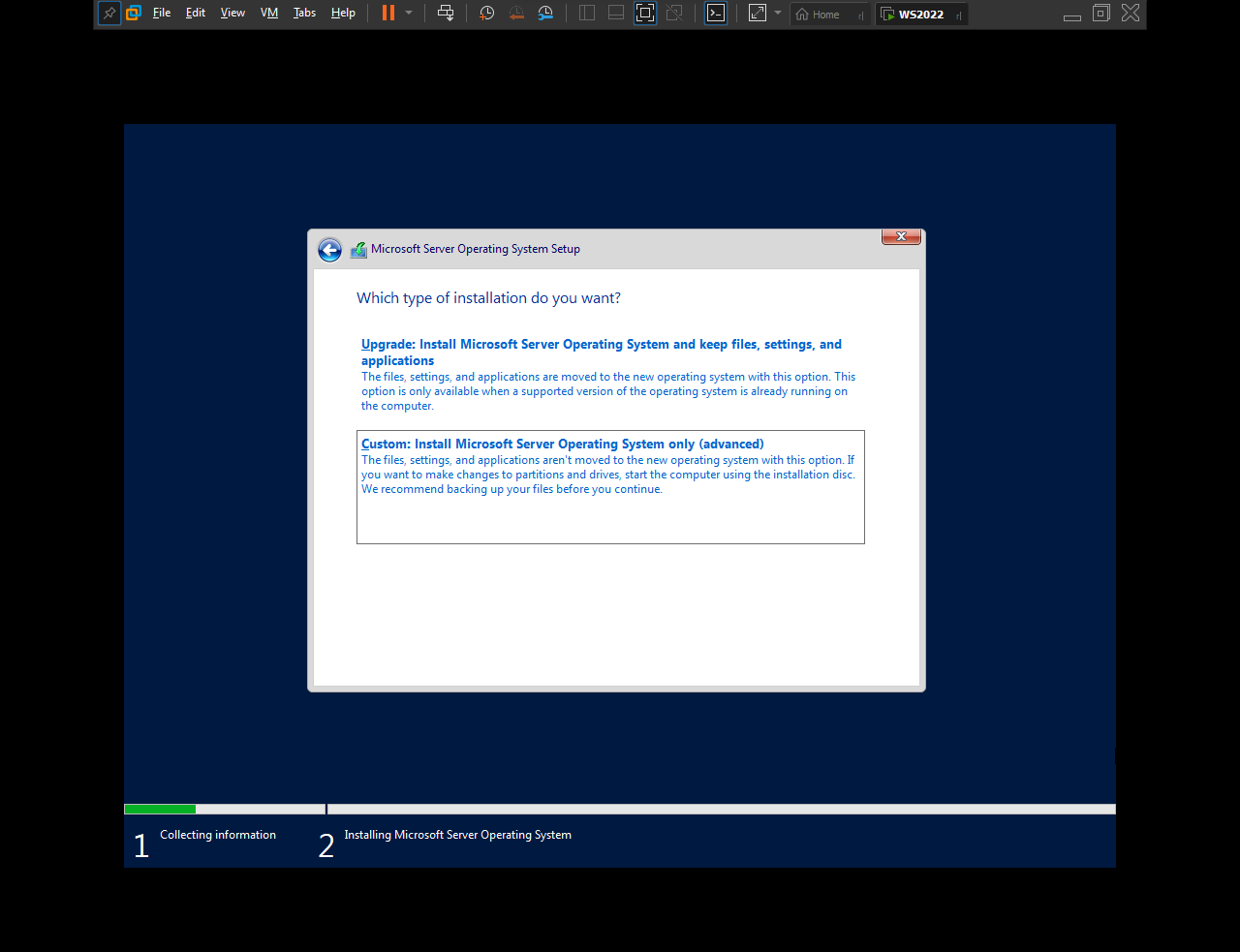

Choose the Custom: Install Microsoft Server Operating System only (advanced)
⁠
pasted image 0.png
⁠
⁠
Click Next.
⁠
pasted image 0.png
⁠
⁠

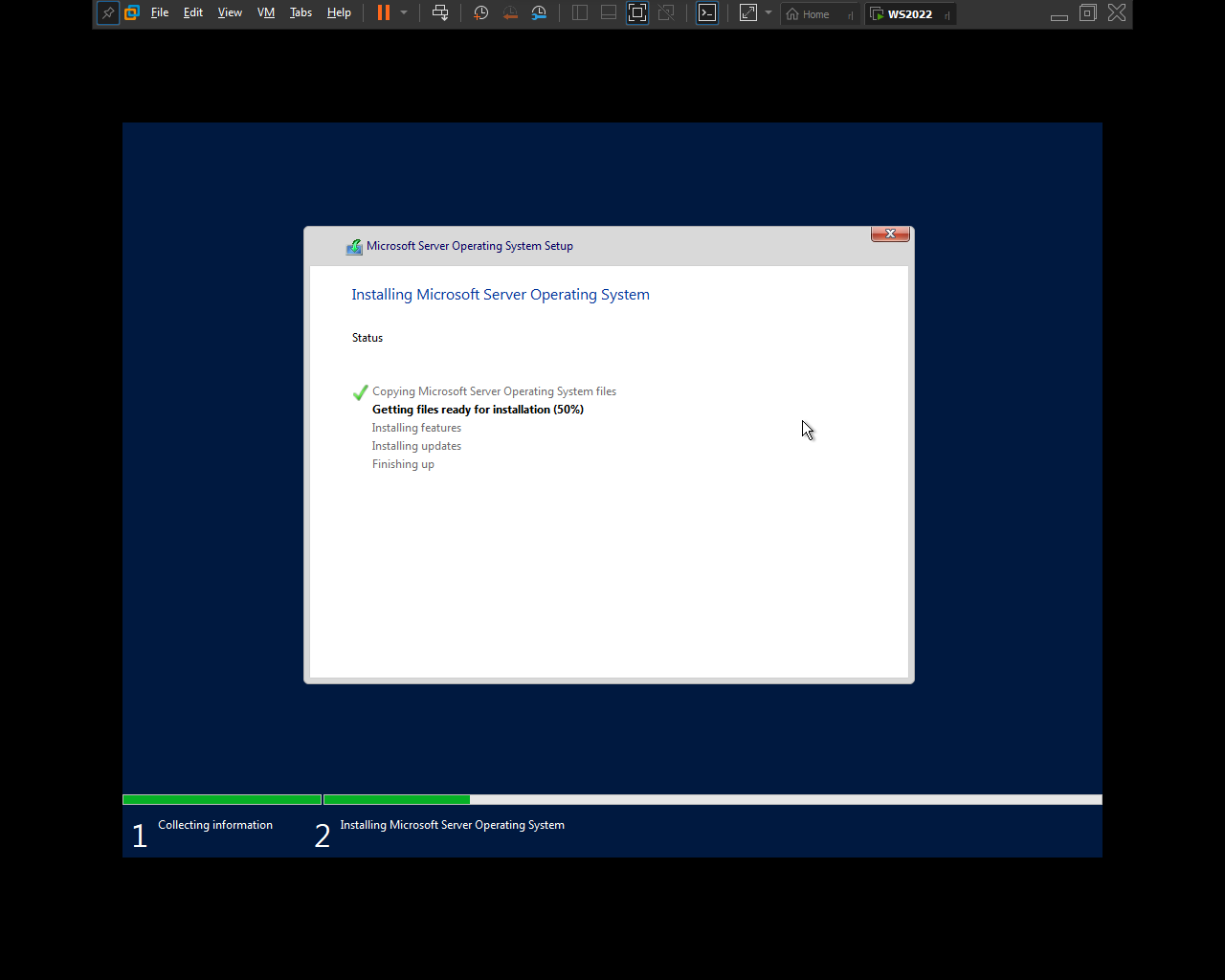

Wait for the installation to finish
⁠
pasted image 0.png
⁠
⁠

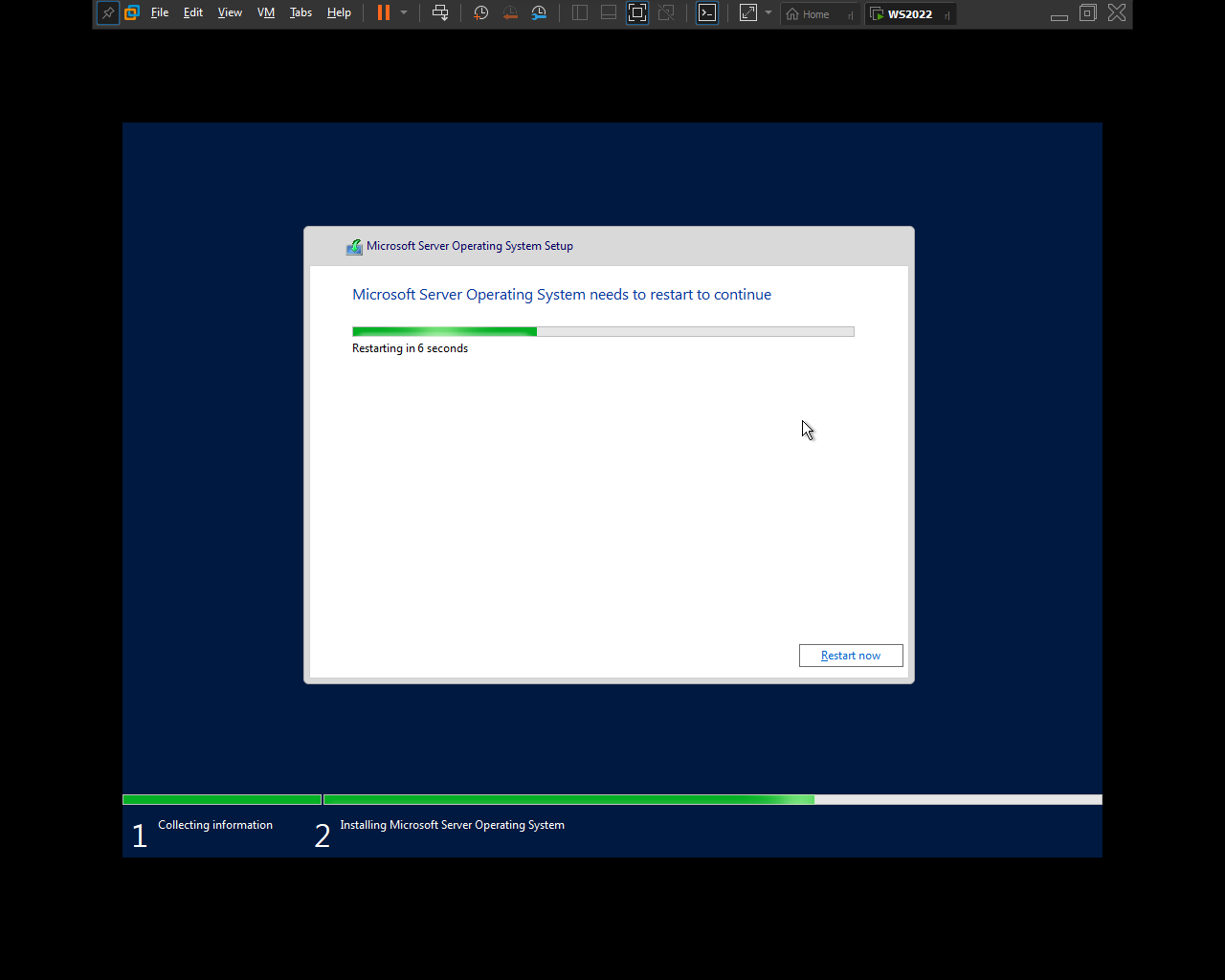

Click Restart now.
⁠
pasted image 0.png
⁠
⁠

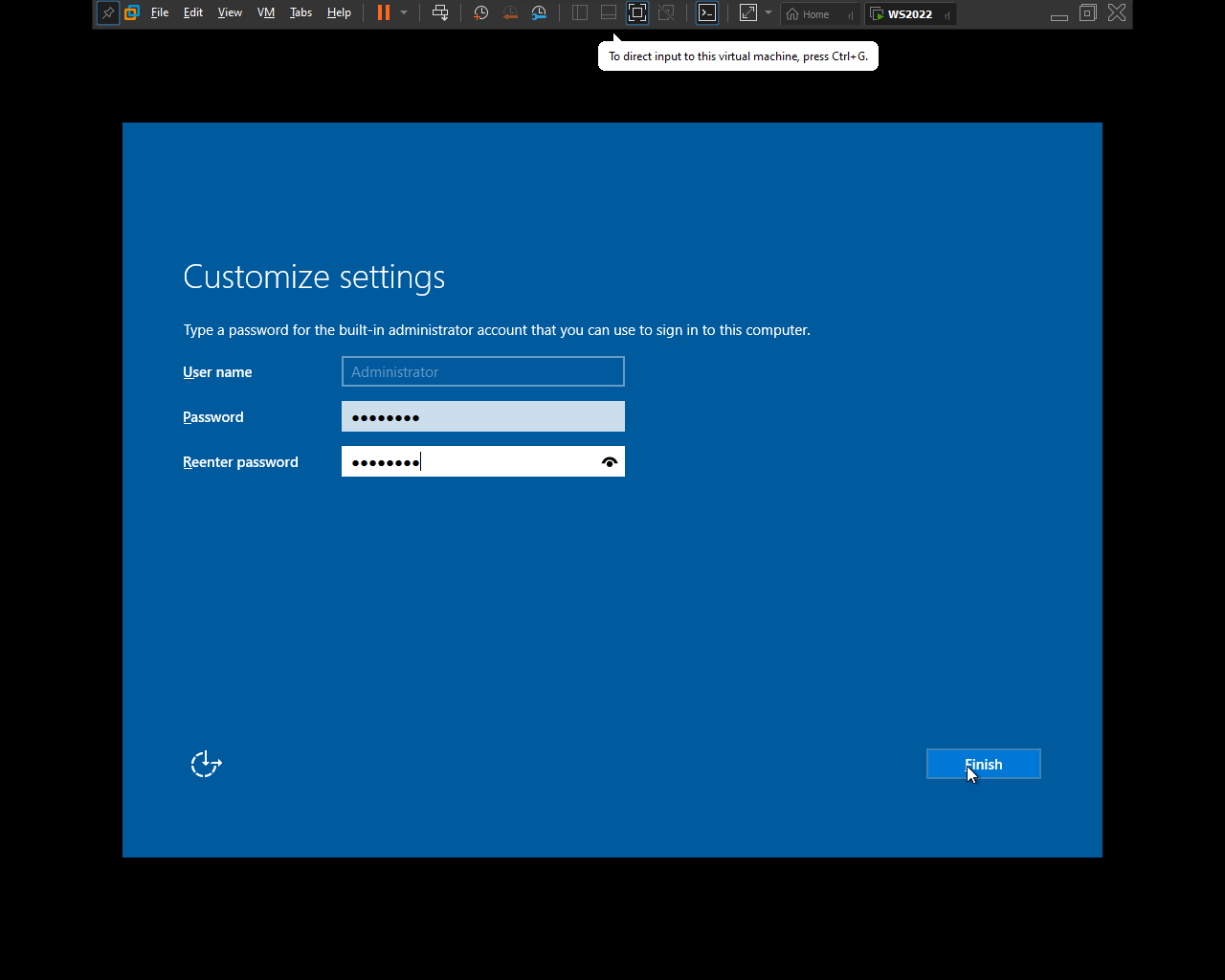

Add a password.
Password: C1sc0123
⁠
pasted image 0.png
⁠
⁠

⁠
Next Page >>>
⁠
⁠
