GAUSSIAN SPLATTING

Comparison of Scanner Model Outputs in Blender and Supersplatt

SuperSplatt:

(Supersplat.at is a browser-based viewer and editor for Gaussian Splatting 3D scenes.)

In Blender, GS ply. is imported into Blender using Kiri Engine addon: 3DGS Render Addon3.0


Scanner Modell

Result (preview in Blender)
General Cap
Result (preview in Superspl. Web Editor)

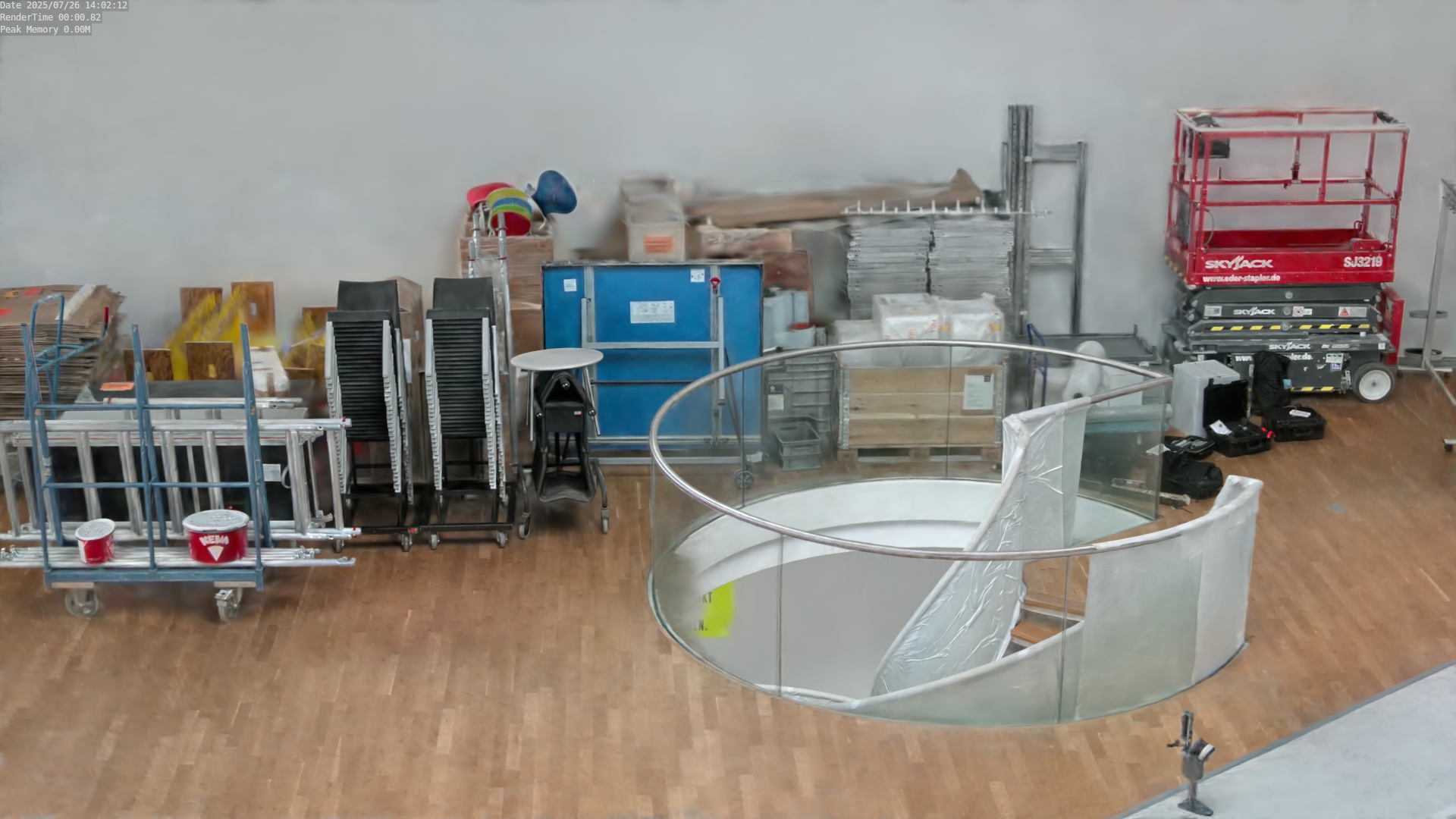

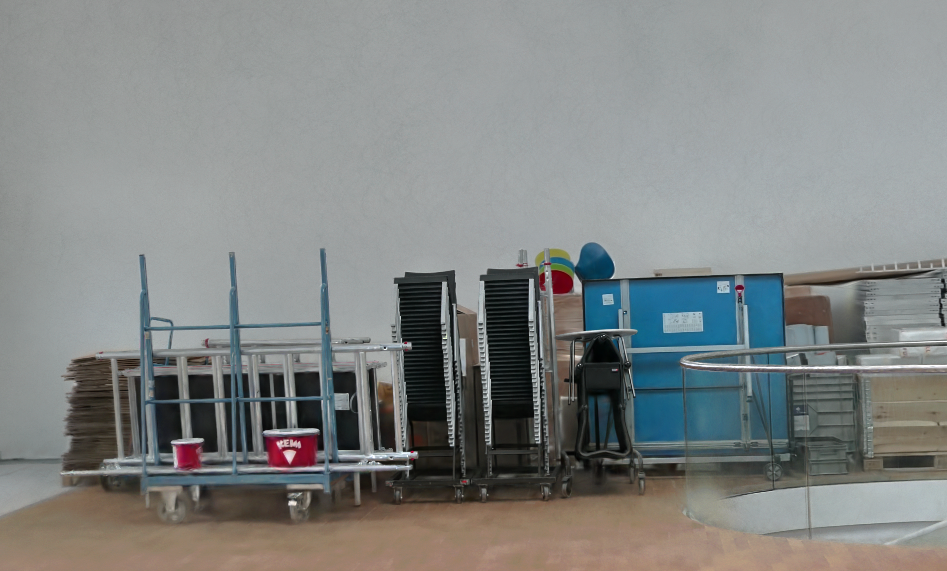

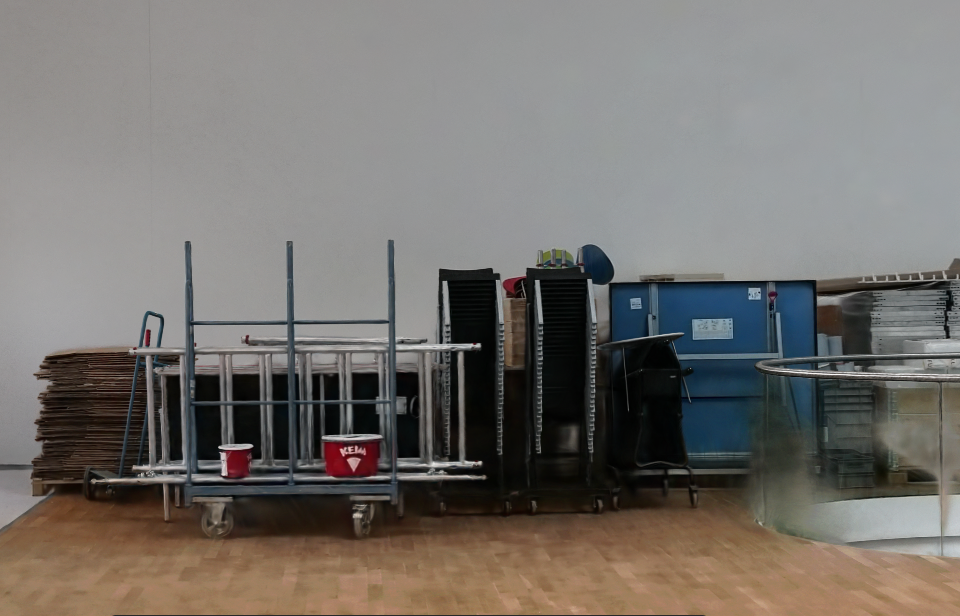

L2 no HD



much noisy and low in resolution

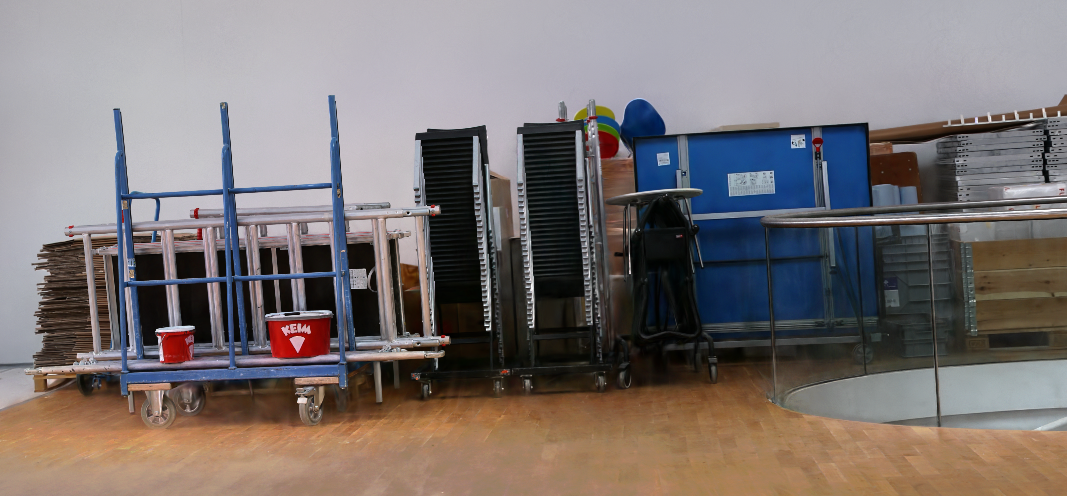

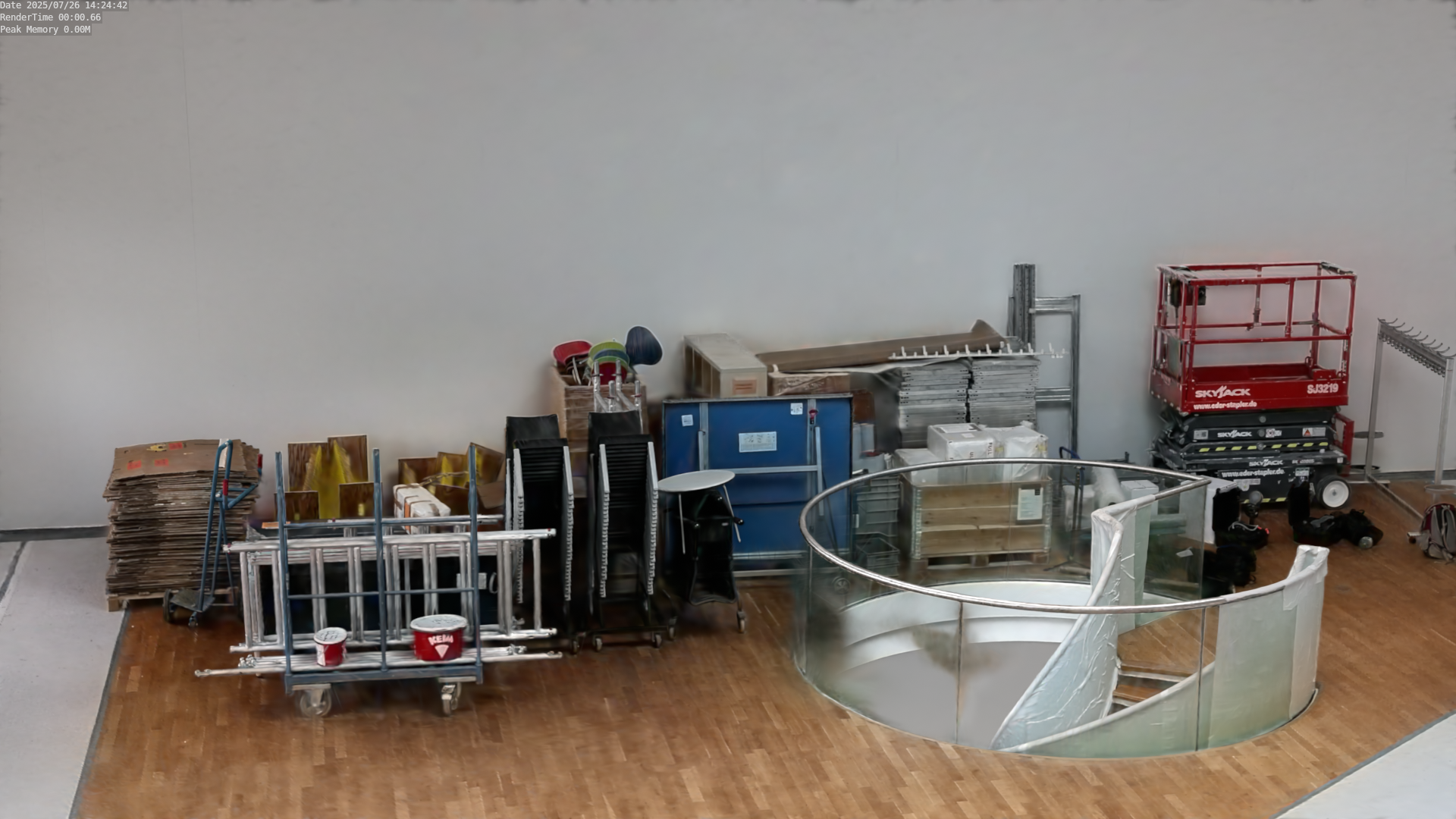

L2_PointCloud


CONS: bad with the transparent material

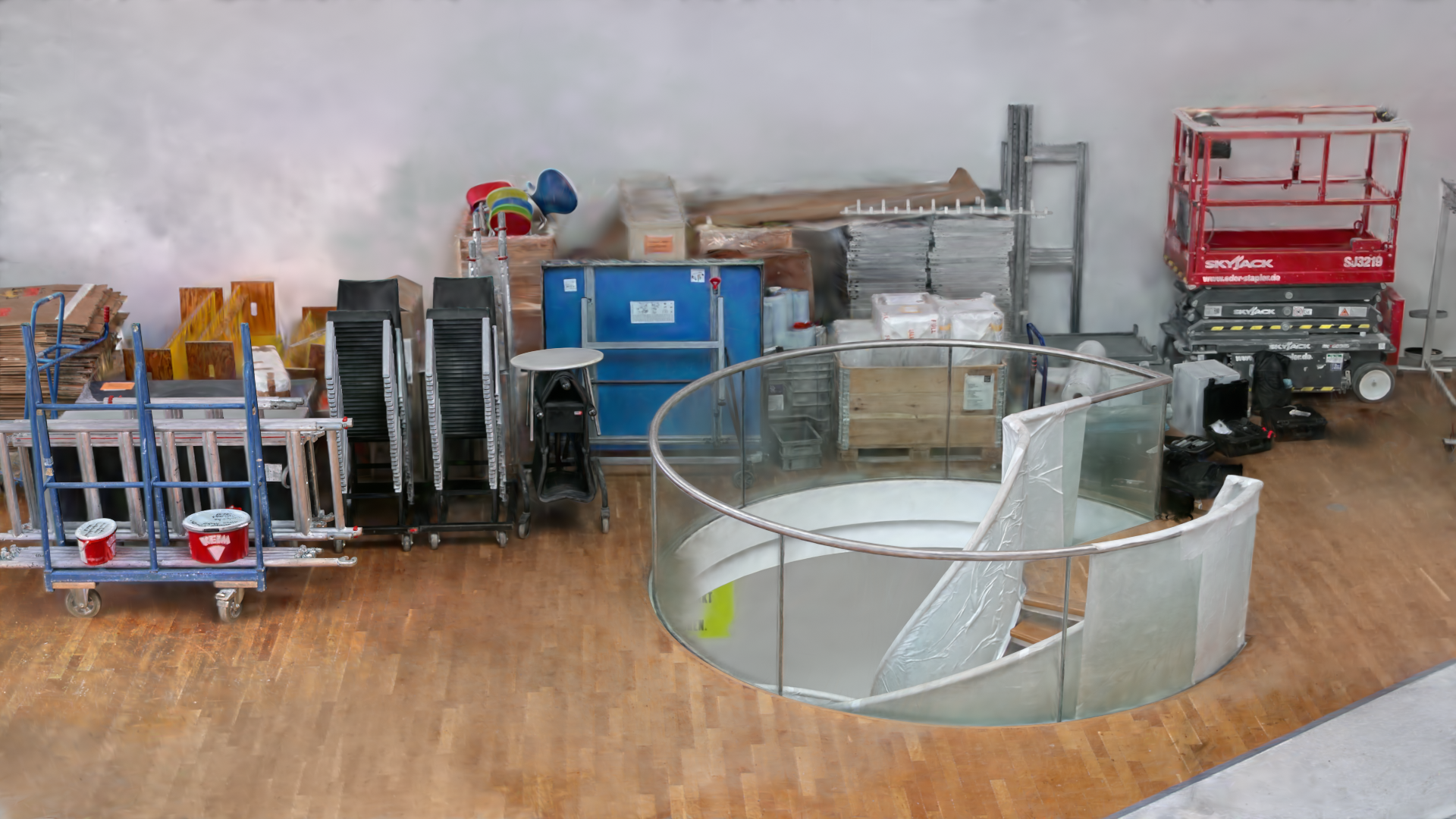

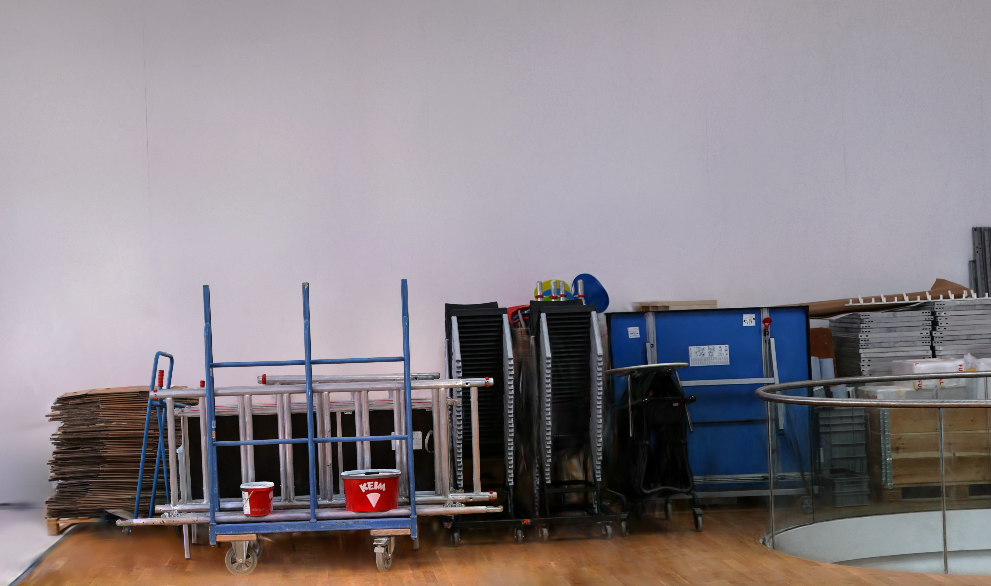

L2_Pro_plus_HD

Details captured but there seems to be some extra noises around, especially the white wall.

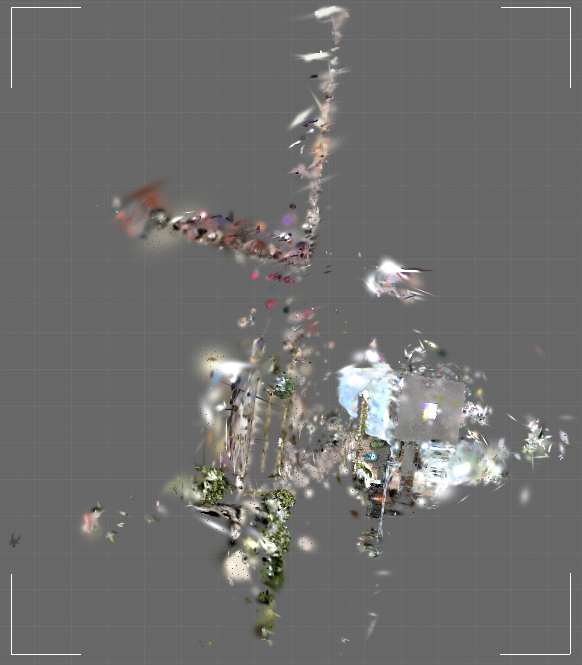

image (3).png

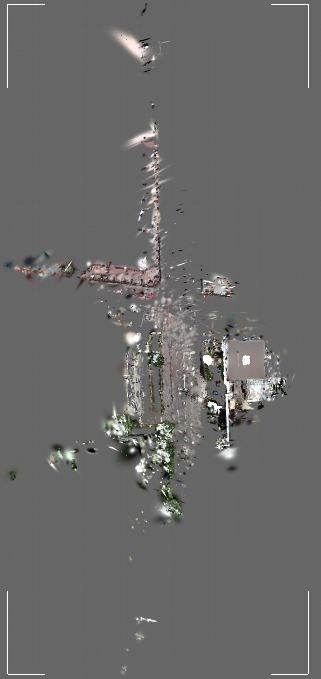

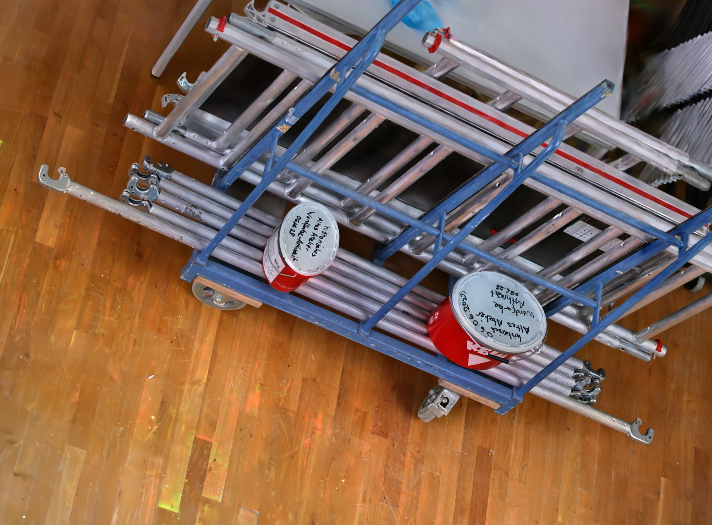

Screenshot 2025-07-28 090955.png

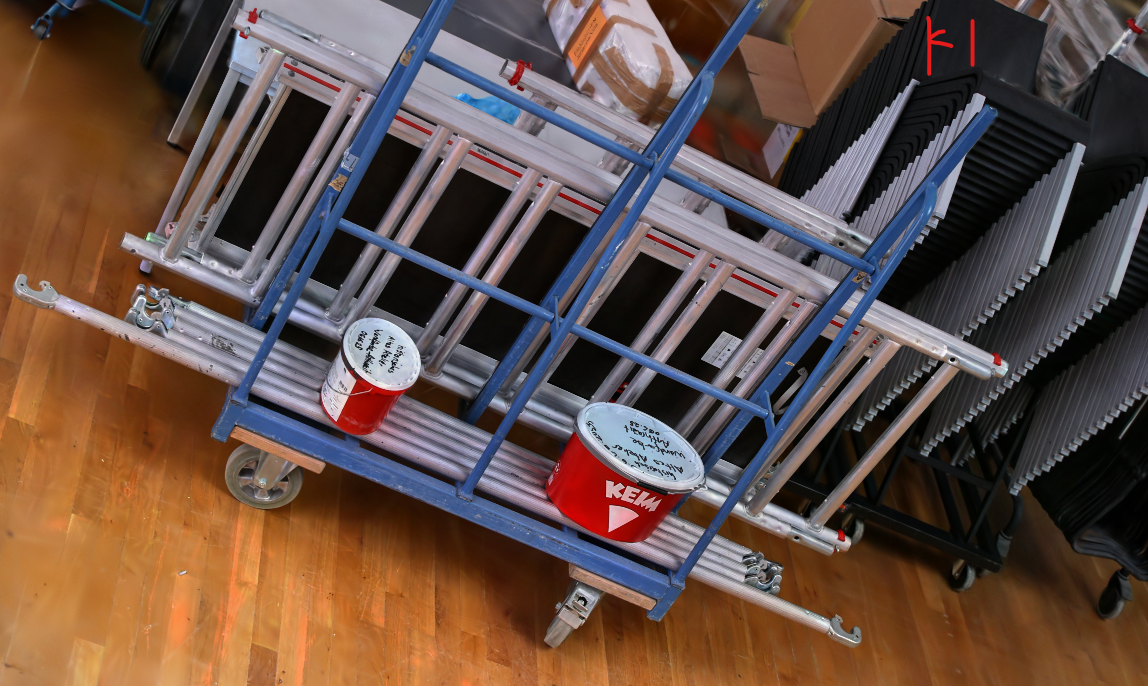

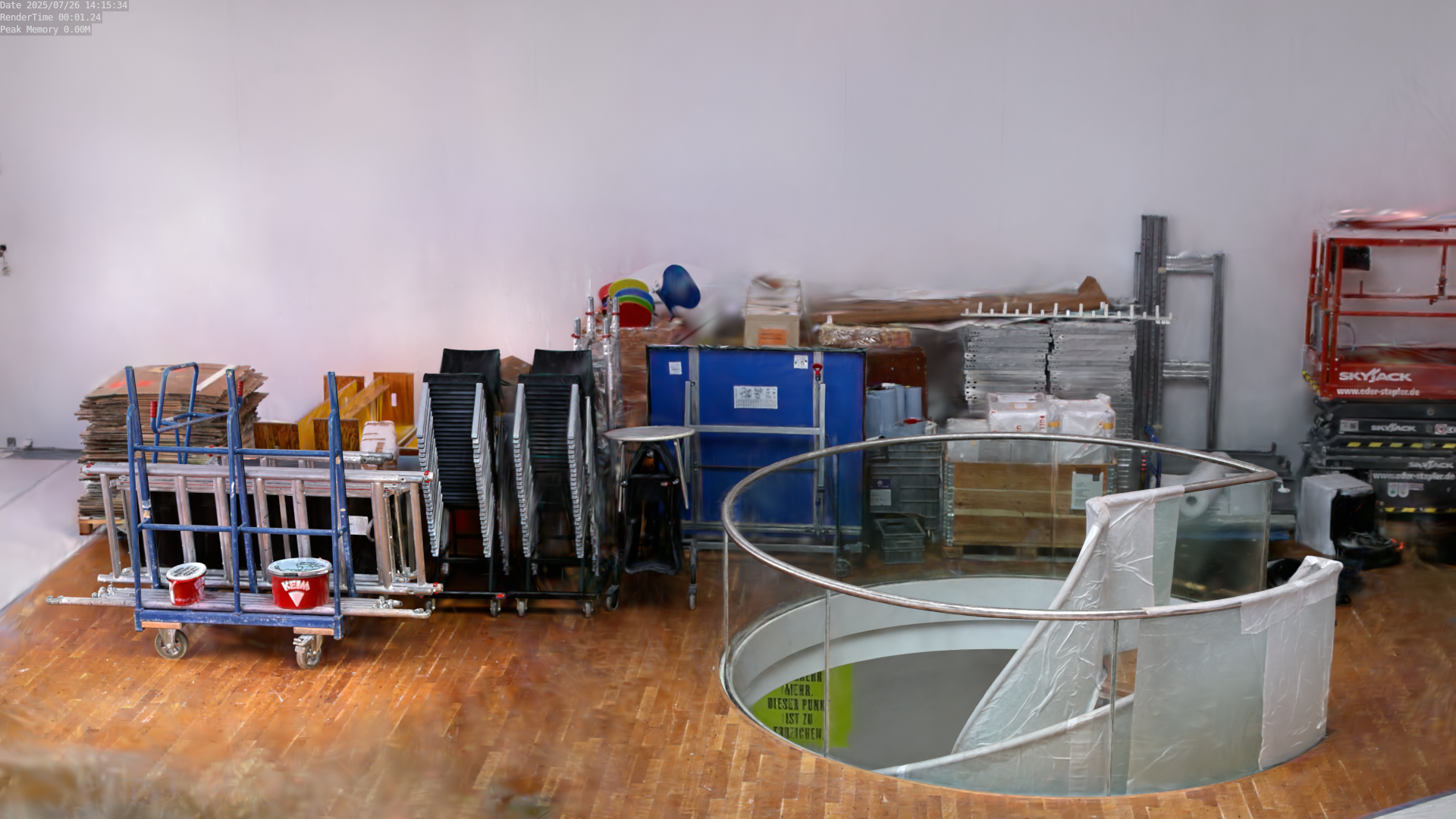

Lixel K1 (mit HD-Feature + DSLR mit GPS-Modul)


Best Result
Details captured

There are no rows in this table


Side-by-Side Comparison: Lixel K1 vs L2 vs L2 Pro vs L2 Pro + HD
Feature / Model
K1 (with HD‑DSLR‑GPS)
L2 (16‑ch)
L2 Pro (16‑ch / 32‑ch)
L2 Pro + HD‑Enhancement
LiDAR Specs
40‑channel, ~40 m range
16‑ch, ~120 m
16 or 32‑ch, up to 300 m
Same as L2 Pro
Camera System
Dual 48MP + DSLR (GPS-enabled)
Dual 48MP
Dual 48MP
Dual 48MP + DSLR fusion
Point Density
~200k pts/s
~320k pts/s
Up to 640k pts/s
Same
SLAM System
Visual‑LiDAR + basic GPS
Visual‑LiDAR
AI-enhanced SLAM with IMU
Same + photo fusion
Accuracy (Rel./Abs.)
~1.2 cm / ~3 cm
~2 cm / ~3 cm
~2 cm / ~3 cm
Same
Mountable / Drone Use
Handheld only
Can pole/drone mount
Yes
Yes
Storage
256 GB SD
1 TB SSD
1 TB SSD
same
Max Scan Range (Test)
🔻 Smallest coverage
🔺 Good coverage
🔺🔺 Large coverage
🔺🔺 Large coverage
Color Quality (Test)
Best color + clarity in Blender
❌ Less impressive
⚠️ Slightly noisy in Blender
⚠️ Great in SuperSplat, noisy in Blender
Blender Import Quality
Best overall
🟡 OK
🟡 to 🔺 depends on settings
Problems with noise and fusion artifacts
SuperSplat View
Best performance
Not optimal
Great
Best performance
Strengths
✔️ Best color quality ✔️ Clean point cloud ✔️ Lightweight
✔️ Balanced range/portability
✔️ Range + AI SLAM ✔️ High density
✔️ Looks excellent in SuperSplat ✔️ Best all-in-one features
Weaknesses
❌ Shortest range ❌ Less robust SLAM
❌ Basic SLAM ​❌ Less detail than Pro
❌ Heavier ⚠️ No HD fusion
❌ Noise after Blender import ⚠️ Fusion artifacts
