VM workstation for ethical hacking

download

A workstation needs 4 downloads, they are large files, might be best to use a portable hard drive maybe a SSD

a hypervisor : VirtualBox from Oracle

VM images to be installed on the hypervisor

Kali Linux image for VirtualBox (penetration testing machine image)

Metasploitable 2 (linux target machine image)

sp0 (windows target machine image)

⁠

Download and install hypervisor VM platform

VirtualBox

⁠

https://www.virtualbox.org/wiki/Downloads⁠

⁠

Download and install VM images on the hypervisor platform

Kali linux image

⁠

Use the VirtualBox image

Metasploitable 2 image

⁠

Loading…⁠

⁠

Windows sp0 image

⁠

https://drive.google.com/file/d/0B-tveFEVtdr_UnlEVVdoa2FkOE0/view?usp=sharing⁠

⁠

configuration

virtual box preferences

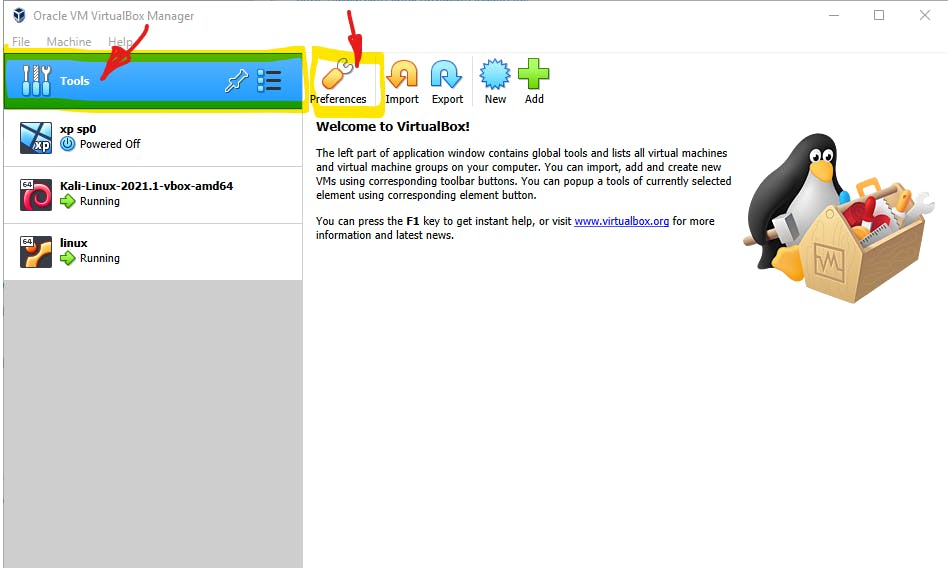

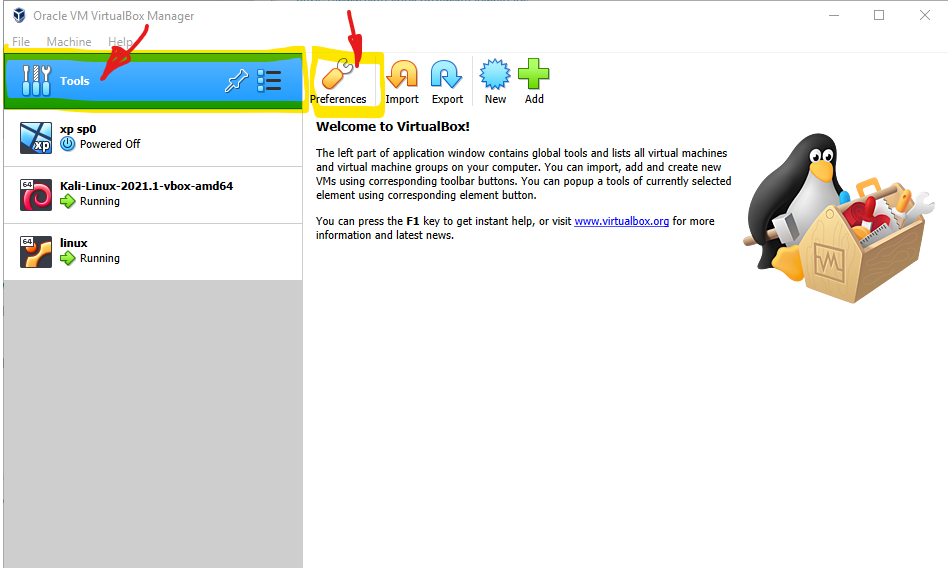

access prefs for VirtualBox

launch virtual box

select tools > preferences

⁠

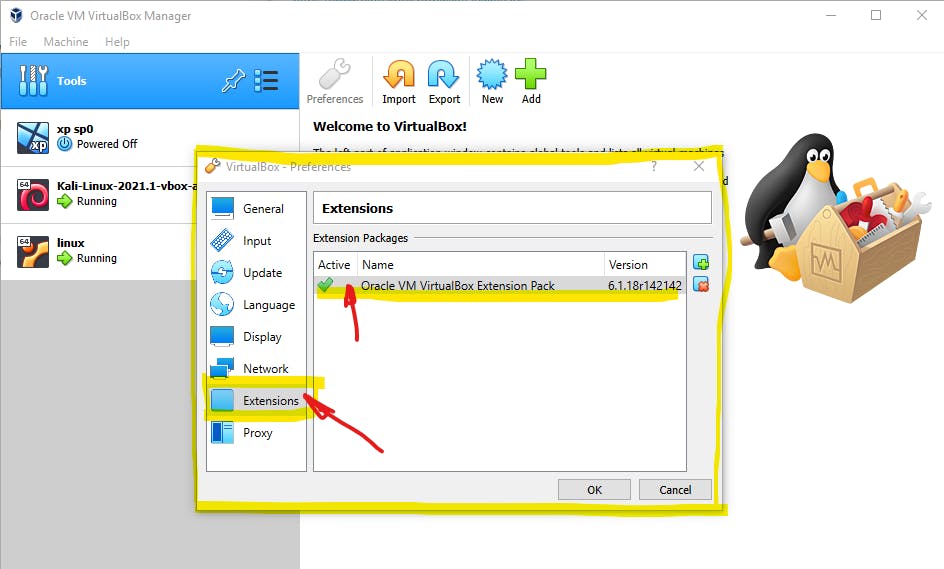

extensions pack

check extensions > Oracle VM VirtualBox extension pack should be present

⁠

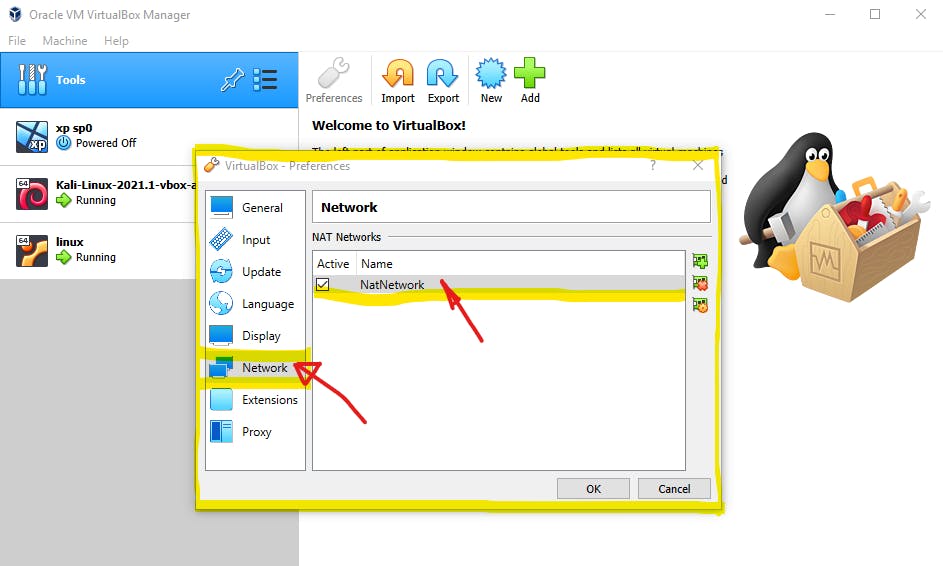

network prefs

check network > NatNetwork

⁠

kali linux

⁠

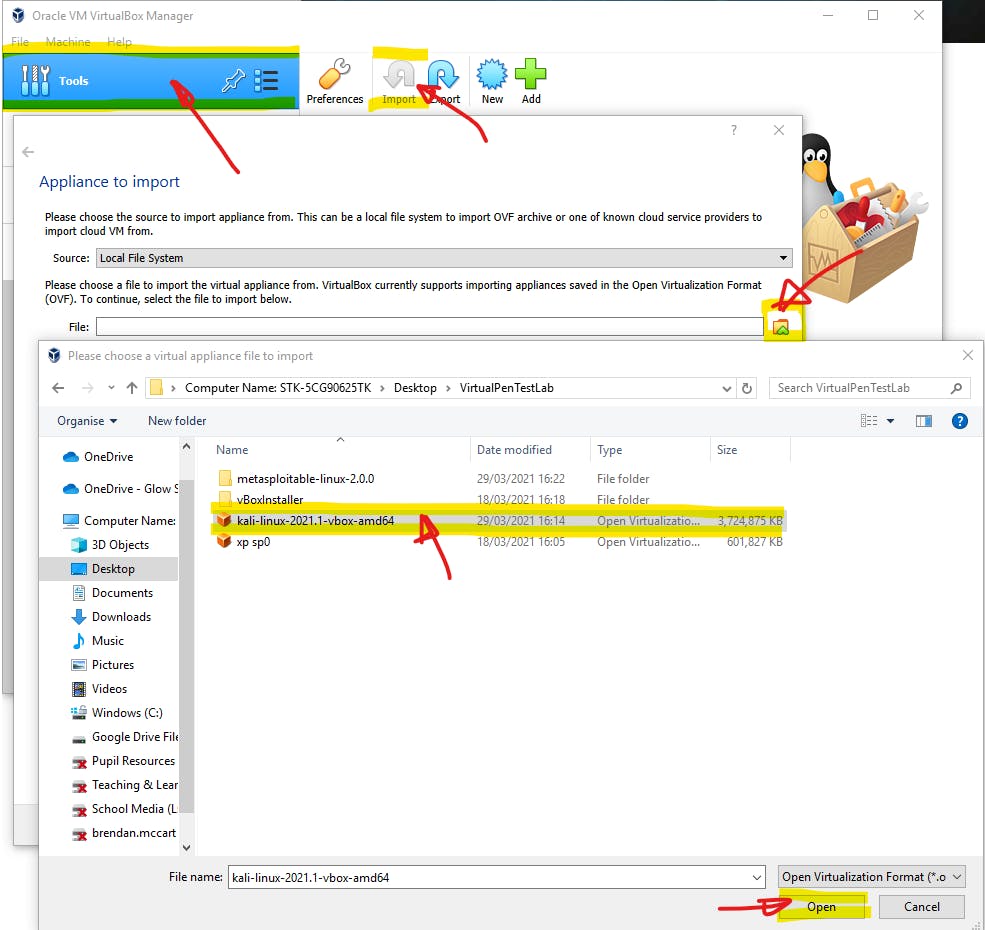

import appliance for kali linux

select tools > select import

select file picker > select kali-linux VM image (you may need to navigate to the correct folder)

click open > click next > click import

⁠

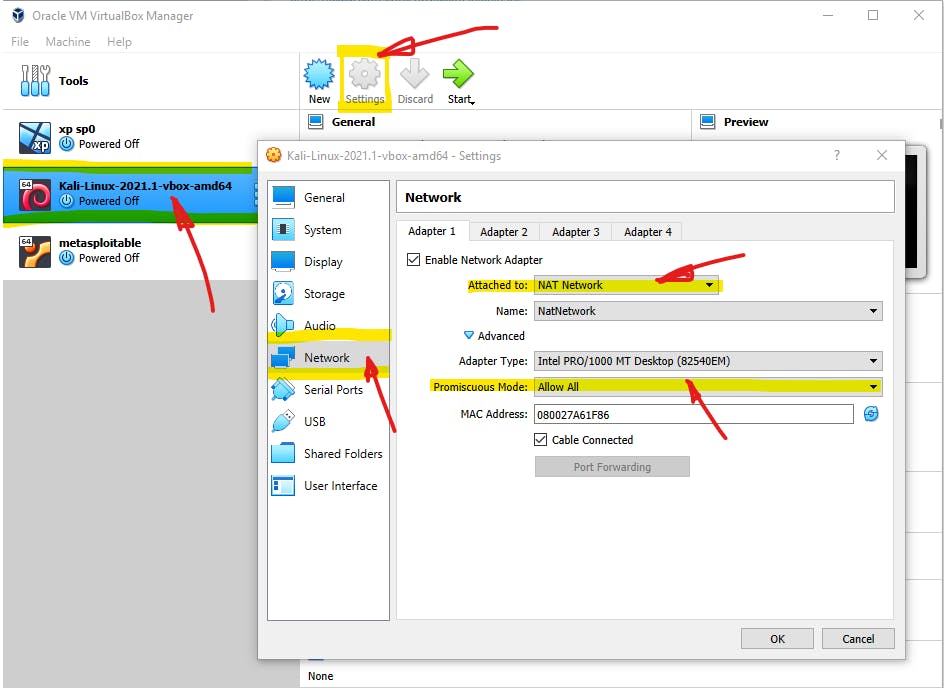

network settings for kali linux

select kali linux VM > select settings

select network > set attached to NatNetwork

select advanced: set promiscuous mode to Allow all

⁠

metasploit

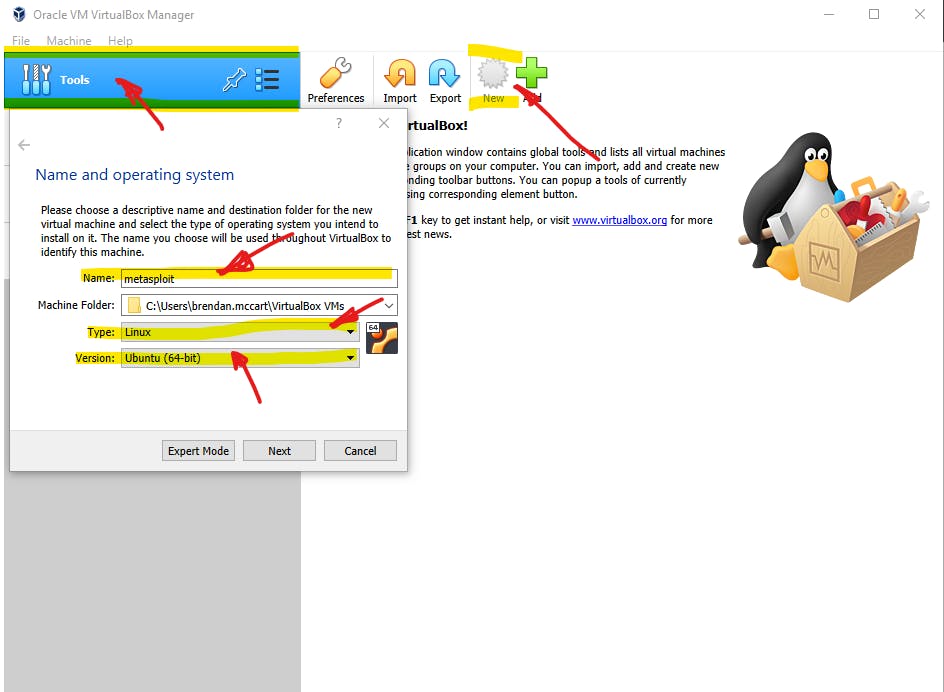

new appliance for metasploit

select tools > select new

set the name > metasploit, type > Linux, version > Ubuntu 64 bit

click next

⁠

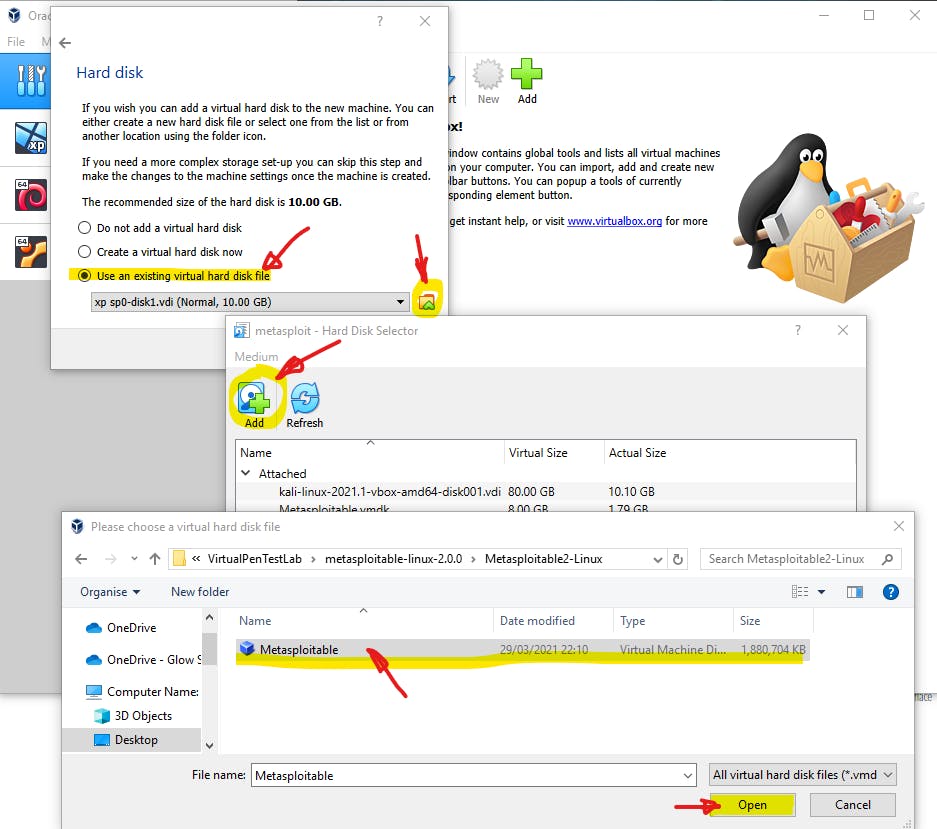

load image

⁠

select existing VHD file

select add a new file, navigate to the folder containing the image

select the image, open

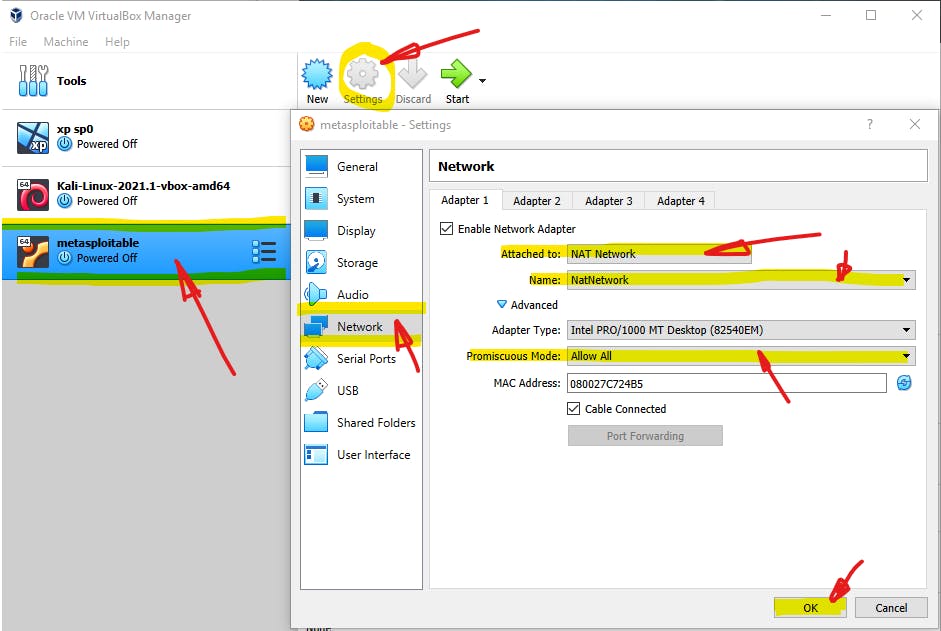

network settings for metasploit

⁠

select metaploitable VM > choose settings

select network settings > set attached to NAT Network : NatNetwork

select advanced mode > set promiscuous mode to Allow all
