The term "LOD" is frequently mentioned in the world of Building Information Modeling (BIM), but its meaning and practical application can sometimes be unclear. As a foundational concept for successful digital project delivery, understanding the Level of Development (LOD) framework is essential for anyone in the AEC industry. It provides the necessary structure to define model maturity, ensuring clarity and consistency across all project teams.
This guide is structured in a question-and-answer format to provide clear, direct insights into what LOD is, why it matters, and how it is used in practice.
Your Key Questions About BIM LOD Answered

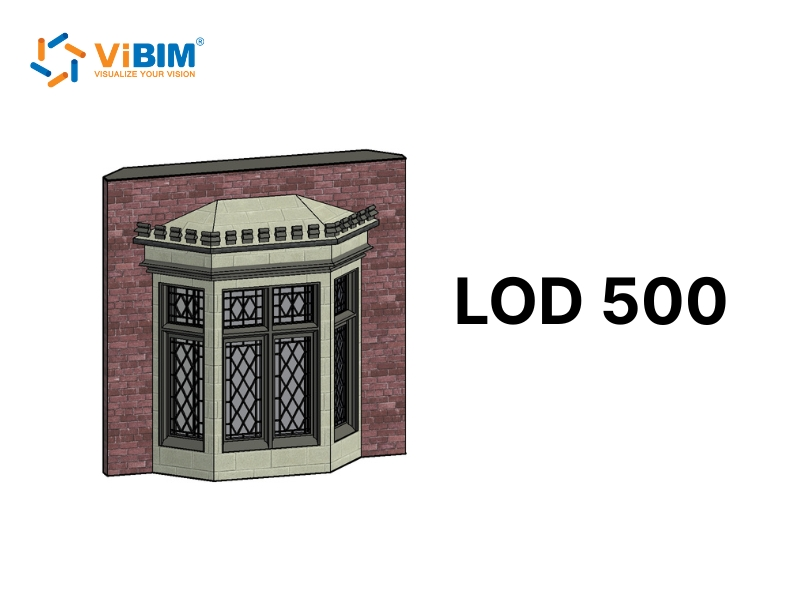

What exactly is Level of Development (LOD) in BIM? Level of Development is a standardized framework that defines the degree of reliability and completeness of elements within a BIM model. It’s not just about how detailed an object looks, but more importantly, how much the project team can trust the information (both geometric and non-geometric) associated with that object for making decisions. It serves as a shared language for all stakeholders. Is 'Level of Detail' the same as 'Level of Development'? No, and this is a critical distinction. 'Level of Detail' generally refers to the visual complexity of a model element—how much graphical information is included. 'Level of Development' (LOD) is a broader concept that includes the Level of Detail but also encompasses the reliability and certainty of that information. In short, Level of Detail is an input, while Level of Development is the reliable output you can act upon. Can you break down the different LOD levels? Certainly. The framework progresses logically through the project lifecycle: LOD 100: Conceptual. A simple mass or symbol to represent existence. LOD 200: Schematic Design. Generic placeholders with approximate size, shape, and location. LOD 300: Detailed Design. Elements are modeled with specific dimensions and quantities, suitable for construction documents. LOD 350: Construction Coordination. Includes details on how an element interacts and connects with other systems. LOD 400: Fabrication. Contains complete detail sufficient for a manufacturer to fabricate the component. LOD 500: As-Built. Represents the final, field-verified condition of the element after construction is complete. What are the tangible benefits of using LOD? Implementing an LOD framework brings several key advantages. It drastically improves communication by setting clear expectations for deliverables. This clarity reduces risk and ambiguity, leading to fewer errors and less rework. It also enables more accurate cost estimation and project scheduling because tasks can be planned against the required model maturity. Finally, it ensures that the final as-built model (LOD 500) is a valuable asset for the building owner for long-term facility management. Putting LOD into Practice
To be effective, the required LOD for different project milestones should be clearly defined at the start of a project, typically within the BIM Execution Plan (BEP). This document acts as a roadmap for the entire team, specifying who is responsible for developing model elements to a certain LOD and by when.
By embracing the LOD framework, project teams can move beyond simply creating 3D models and start leveraging them as powerful, reliable sources of information. This structured approach is fundamental to managing the complexity of modern construction projects and unlocking the full collaborative potential of BIM.
