Compartmentation

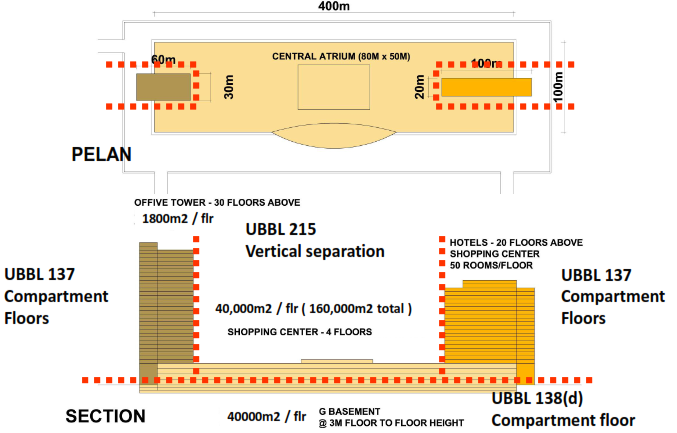

Basic Application of Compartmentation

Every building is to have one overall designation (A building is one big compartment)

Individual components of building with different usage from overall must be designed to accommodate the more stringent requirement, and where these requirements ‘spill’ into the other parts of the building, the more stringent requirement applies.

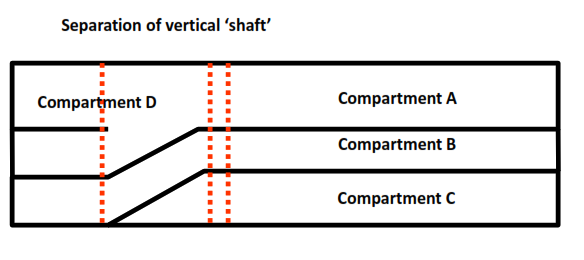

Only ‘horizontal’ separation is allowed between buildings of different purpose groups

⁠
