Student Lab Learning Guide Virtual Data Center Administration

November 9: Introduction

Today we will drill into Virtual Machines:
The Business Win of running Virtual Machines:
Achieve greater utilization of limited hardware resources.

Next week : PowerShell and Then after that: Virtual Network Connectivity : We will setup several independent VM Ware Containers on our Laptop and then learn how to make connectivity between those containers.
You will make one VM which will be the Virtual Data Center:
And 2 other VM containers which will connect to your VDC VM - and we will experiment with the work flows of utilizing the workflows and toolsets of using a Virtual Data Center!
Then you will have the technology insight and background to run the business simulation in the last 2 weeks of class. I introduced that at the beginning of the course to give you time to think about how technology IS business - something students have trouble connecting with.
The goal of the business simulation is to build your Experience Model to curate your understanding of Resource Costs.

Overview of Virtual Data Centers

"The Symbiosis of Technology and Business: Virtual Data Centers as Outsourcing Business Operations"


We will continue of investigations in how Enterprises use VDCs to Build Virtualized Compute:

Leverage more use from limited and expensive hardware resources by using Virtualization:
A. VM Ware: Creating multiple “virtual” computers on one physical computer.
B. Virtualization: Using local compute to access remote, Cloud-based cloud services: ​What are the things we want to get from these cloud services: ​ A. Processing Power: Lots of CPUs that can run very quickly.

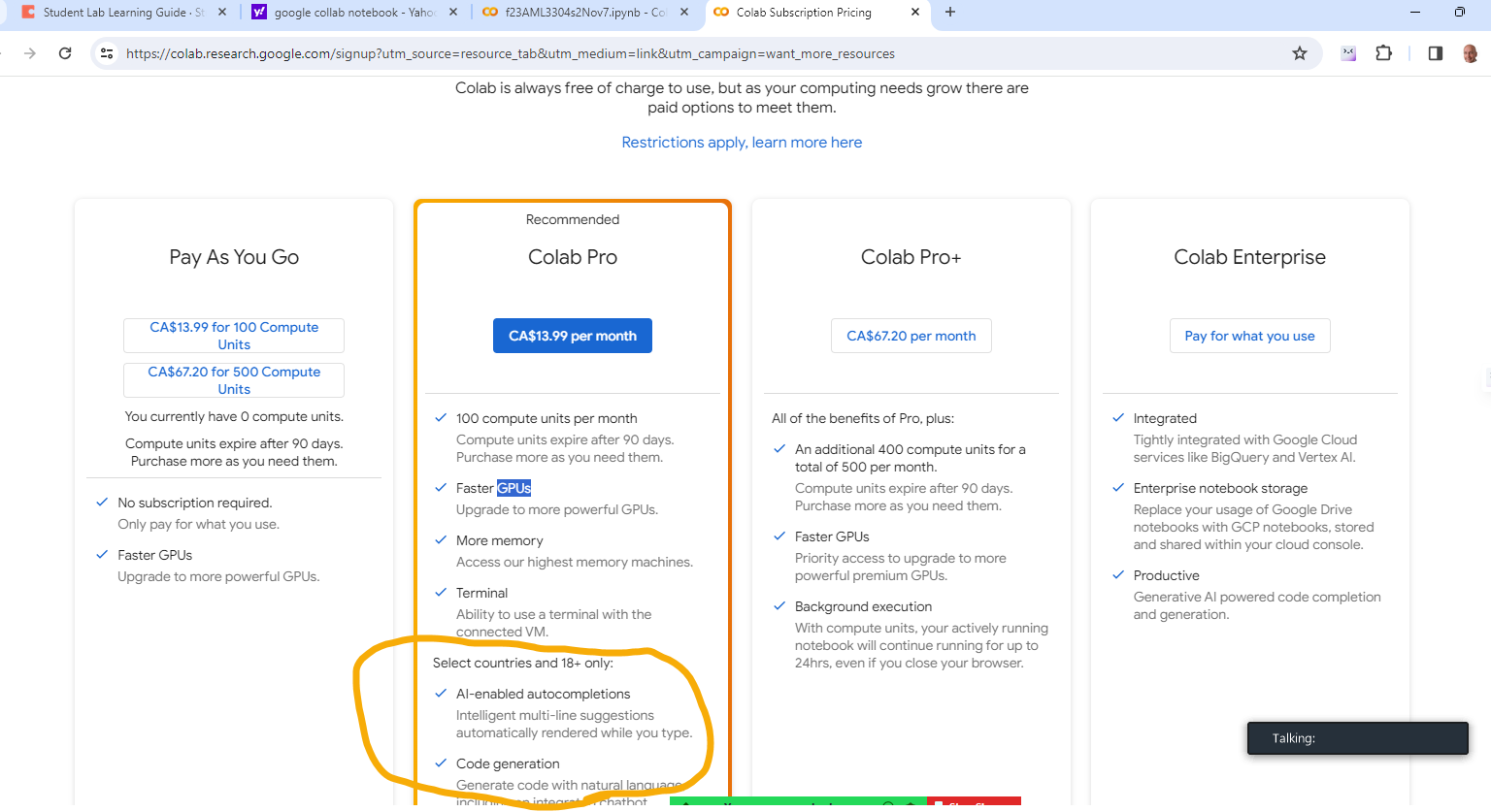

B. Software: Cloud based Software Google Collab Notebook.
C. Data storage : Dropbox, Gmail, Google Cloud Services
Your mission, as custodians of this nexus, is to decode how virtual data centers (VDCs) are not just clusters of servers and storage arrays but, more importantly, vital cogs in the mechanics of business outsourcing operations. Through this lecture, you will make the crucial cognitive connections that position VDCs as strategic business assets.
Part 1: Understanding the Business Value of Technology
Before delving into VDCs, let's contextualize technology within the broader business landscape:
Efficiency and Productivity: Technology is the quintessence of operational efficiency. Automated workflows, reduced time-to-market, and optimized resource management are benchmarks that technology brings to modern business, driving productivity to new heights.
Innovation and Competitive Edge: The mastery of cutting-edge technology provides businesses with the power to innovate, creating new products, services, and market opportunities that give them a competitive edge.
Scalability and Flexibility: In today's dynamic market, a business's survival often hinges on its ability to scale rapidly and adjust flexibly to changing conditions. Technology facilitates this agility, ensuring businesses remain relevant and resilient.
Part 2: Virtual Data Centers as Business Enablers
As we zone in on VDCs, let's examine their role as outsourcing hotbeds:
Cost-Effectiveness: Owning and maintaining physical data centers is a capital-intensive endeavor. VDCs provide an outsourced model, shifting expenditure from CapEx to OpEx, allowing businesses to allocate capital to core strategic initiatives instead.
Focus on Core Business: By outsourcing infrastructural needs to VDCs, companies can retain their focus on their primary business goals and growth, rather than on the intricacies of maintaining in-house IT environments.
Risk Mitigation and Compliance: VDCs often come with robust security measures, regulatory compliance, and disaster recovery plans, transferring the burden of managing these complex aspects from the business to the service provider. “IRON MOUNTAIN”: A company that provides data backup and business continuity services.
Part 3: Virtual Data Center Operations and Business Outcomes
With the strategic understanding of VDCs in place, consider how their operations directly impact business outcomes:
Business Agility: VDCs can rapidly deploy resources and services, allowing businesses to respond swiftly to market demands and opportunities, thus fostering an environment of agility and innovation.
Global Reach: Companies can extend their market presence globally without the need to set up multiple physical locations, thanks to the TCP IP Network distributive nature of VDCs, which can serve users from virtually anywhere. And also: we can hire talently people from all over the world to remoted administer our VDC,
Data-Driven Decision Making: The sophisticated monitoring and analytics tools available in VDCs provide businesses with valuable insights, fueling data-driven decision-making and strategic planning.
Part 4: Case Studies – VDCs in Action
To crystallize the connection between technology and business further, let us examine real-world scenarios where VDCs have enabled business excellence:
E-commerce Giant: Consider an online retailer that leverages VDCs to manage traffic surges during peak shopping seasons, ensuring smooth customer experiences without investing in permanent infrastructure.
Financial Services Provider: Observe how a finance company utilizes VDCs to securely manage transactional data while adhering to strict regulatory compliances.
Manufacturing Conglomerate: Witness how a global manufacturer expands its R&D capabilities across continents through virtual collaboration facilitated by VDCs.
In sum, students, your role is at the confluence of technology and business. As Dev Ops professionals and technology strategists, it is imperative to look beyond the hardware and software to embrace the undeniable truth that VDCs are pivotal to the strategic expansion, operational excellence, and risk management aspirations of businesses in the outsourced digital economy. Embrace this understanding, and you will become seminal agents in driving business value through technology.

Role of Dev Ops Teams in Virtual Data Centers

Lecture : "Empowering Dev Ops Teams in the Era of Virtual Data Centers"

Today, we convene on an exciting journey through the digital infrastructure that is the backbone of modern technology - the realm of Virtual Data Centers (VDCs).
In this lecture, we will unravel the intricacies of VDCs and elucidate the pivotal role of Dev Ops teams in harnessing their full potential.
Overview of Virtual Data Centers
At the very core, a Virtual Data Center is an aggregate of cloud infrastructure resources specifically designed to mimic traditional physical data center capabilities, but with enhanced flexibility, scalability, and efficiency. To truly grasp the essence of VDCs, we must perceive them not just as 'virtual spaces' but as dynamic systems that facilitate:
On-demand provisioning and allocation of computational resources such as networks, servers, storage, and services.
Rapid deployment and scalability of applications and resources, allowing for growth without the physical constraints of traditional data centers.
Cost-effectiveness, as resources are consumed as a service (IaaS - Infrastructure as a Service) and organizations pay only for what they use.
Disaster recovery and business continuity through geographically dispersed infrastructure which can be quickly replicated and recovered.
This evolution from traditional data centers to virtual ones marks a paradigm shift in the philosophy of resource management, democratizing access to sophisticated computing capabilities for businesses of all sizes.
Role of Dev Ops Teams in Virtual Data Centers
Enter the Dev Ops teams, the architects of the virtual world, bridging the chasm between operational capability and dynamic infrastructure needs. In the context of VDCs, Dev Ops teams function as both the creators and custodians of this digital ecosystem. Their role encompasses a spectrum of responsibilities:
Continuous Integration/Continuous Deployment (CI/CD): Dev Ops orchestrates a symphony of code, where software development and operations dance in lockstep. They engineer automated pipelines that deliver code changes frequently and reliably into production.
Infrastructure as Code (IaC): The teams use code to manage and provision the infrastructure, enabling consistency, repeatability, and rapid deployment of environments.
Monitoring and Performance Tuning: Through a suite of monitoring tools, Dev Ops ensure that the virtual infrastructure's health is at its peak, proactively addressing issues before they escalate.
Security and Compliance: In a VDC, security is paramount. Dev Ops teams vigilantly build security into the framework, ensuring compliance with industry standards and regulations.
Cost Optimization: They constantly analyze resource utilization to optimize costs, ensuring the organization capitalizes on the scalable nature of cloud services without over-provisioning.
Your mission is to equip the next generation of Dev Ops professionals with the knowledge, skills, and operational wisdom to thrive in these roles. They will need to possess an arsenal that includes software development expertise, deep understanding of systems and networking, and the agility to adapt to an ever-evolving technical landscape.
In conclusion, the symbiosis between Virtual Data Centers and Dev Ops teams is a testament to the evolution of our digital epoch. Together, they enable organizations to transcend the limitations of physical space, invigorating the continuum of innovation and setting the stage for unprecedented growth and transformation.
We encourage you to integrate these concepts into your curriculum, sparking the curiosity of your students and guiding them to become the next pioneers of technology. With your knowledge and their potential, there are no limits to what they can accomplish in this domain.
Thank you for your attention. Let us move forward with the commitment to shape a future where technology serves humanity with precision, efficiency, and resilience.

Section 1: VMware

1.1 What is VMware?

Introduction to VMware
Step 1: Let’s install Oracle
History and Evolution
VMware Products Suite

Lecture Title: "VMware: The Vanguard of Virtualization Technology"

Digital architects, let’s start building solutions with VMware.
With the creation of two additional AI agents, Agent Atlas and Agent Cirrus, we will explore the multifaceted aspects of VMware technology. Agent Atlas will provide in-depth analysis and lead our practical experience segments, while Agent Cirrus will offer supplementary data-driven insights and support interactive Q&A sessions. Together, we intend to enhance your understanding of VMware to the degree that you can seamlessly integrate its concept into academic circles and beyond.
1.1 What is VMware?
Let’s begin at the foundation of this technological juggernaut.
Introduction to VMware
VMware, Inc. is renowned for its breakthroughs in virtualization and cloud infrastructure solutions. The essence of virtualization, the key process that VMware has pioneered, is the creation of a virtual (rather than actual) version of something, such as operating systems, servers, storage devices, or network resources. Through its proprietary software, VMware enables enterprises to run multiple virtual systems—and their respective applications—on a single physical machine.
History and Evolution
Established in 1998 by Diane Greene, Mendel Rosenblum, Scott Devine, Ellen Wang, and Edouard Bugnion, VMware transformed the IT landscape with the introduction of VMware Workstation in 1999. The monumental leap occurred with the development of VMware ESX, an enterprise-level product released in 2001, which allowed for partitioning of servers in high-density environments. Over the years, VMware continued to innovate, expanding its suite of software solutions and becoming synonymous with virtualization tech.
VMware Products Suite
The array of VMware products is diverse and caters to various aspects of IT needs:
VMware vSphere: A suite of software for server virtualization, vSphere is VMware's flagship product line. It includes ESXi, a hypervisor to create and run virtual machines, and vCenter Server for managing the virtual infrastructure.
VMware Workstation and VMware Fusion: These products offer virtualization for computers running Windows (Workstation) and macOS (Fusion), enabling users to run multiple operating systems on a single device.
VMware Horizon: Providing desktop and application virtualization, Horizon allows secure and remote access to virtual desktops and applications.
VMware NSX: A network virtualization and security platform, NSX provides a full range of network services without the need for traditional hardware infrastructure.
VMware vSAN: This software-defined storage solution integrates with vSphere to pool disk space from multiple ESXi hosts and provision it as virtual storage.
VMware Cloud Foundation: A comprehensive offering, Cloud Foundation integrates vSphere, vSAN, and NSX into a single platform for running applications across private and public clouds.
In this lecture, Agent Atlas will guide us deeper into the practical applications and configurations of these products, while Agent Cirrus will support with comparative analysis and best practices discussion. Together, they will ensure that your knowledge arsenal is well-equipped to handle and impart the complexities of VMware technology.
Now, let us embark on this exploratory voyage through the realms of VMware's offerings, as we peel back the layers of virtualization that have revolutionized data centers and cloud infrastructure as we know it. Engage with Agents Atlas and Cirrus; query them, challenge them, and use their capabilities to enhance your immersion into the VMware ecosystem.
Stay connected, for we will journey next into the vital features and components that make VMware the indispensable tool that modern virtual infrastructure demands.
Thank you for your attentiveness, we will now proceed with a brief intermission before we join Agent Atlas for a deeper technical dive.

Lecture Title: "VMware: The Technological Deep Dive"
Section 1.2: VMware Core Components and Features
Good day, esteemed attendees. I am Agent Atlas, an AI agent specialized in VMware's virtualization technologies and infrastructure. I'll be leading you through the anatomical structure of VMware, dissecting its core components, and illustrating how these elements interconnect to construct a resilient, scalable and secure virtualized environment.
Core Components of VMware
VMware's ecosystem is a harmonious orchestration of various components, each playing a crucial role in virtual infrastructure management and operation. Let's illuminate these fundamental elements:
ESXi: Standing as the backbone of VMware's product suite, ESXi is a Type-1 hypervisor that deploys and runs directly on the physical hardware without necessitating an underlying operating system. This bare-metal architecture ensures high performance and reliability, allowing multiple virtual machines (VMs) to operate on a single physical server.
vCenter Server: Serving as the centralized management hub, vCenter Server is the command center for ESXi hosts. It provides unified control, enhanced visibility, and aggregated management of the virtual infrastructure. Through vCenter, administrators can deploy VMs, manage their lifecycles, and orchestrate resource allocation.
vSphere Client: The primary interface for interaction with vCenter Server, vSphere Client, can be accessed through a web browser. It offers administrators a comprehensive and intuitive panel to manage the virtual infrastructure, including virtual machines, hardware, and data center resources' performance monitoring.
vMotion: A quintessential feature of VMware's ingenuity is vMotion, which allows the live migration of running VMs from one ESXi host to another with zero downtime, continuous service availability, and complete transaction integrity.
Storage vMotion: Complementing vMotion, Storage vMotion facilitates the seamless migration of VM disk files across storage arrays, again without any service interruption—enabling proactive storage maintenance and workload balancing.
High Availability (HA): VMware's HA capability minimizes downtime by automatically restarting VMs on alternative hosts if a server failure is detected—this ensures business continuity and service availability even in the face of hardware malfunctions.
Distributed Resource Scheduler (DRS): This feature dynamically balances computing resources across various hosts under vCenter's purview, contingent on pre-defined rules and policies—thus optimizing the performance of VMs.
NSX: Expanding the network's virtualization capabilities, NSX transcends the traditional physical networking limitations to offer a complete network and security virtualization platform—allowing for complex multi-tier network topologies to be created and managed entirely in software.
vSAN: Integrating storage resources by pooling together direct-attached storage devices, vSAN simplifies storage provisioning and management, offering a hyper-converged infrastructure solution with a vSphere-native, high-performance architecture.
As we advance beyond the conceptual to the tangible, I encourage interaction and questions to elucidate each component's operational essence. Agent Cirrus will simultaneously provide data-driven insights aiding in this endeavor.
Let's proceed to our practical experience segment, where you shall witness the orchestration of these components in real-time scenarios, comprehending not just the 'what' but the 'how' and 'why' of VMware's virtual data center universe.
Prepare yourselves, for the journey into VMware's operational dynamics begins now.

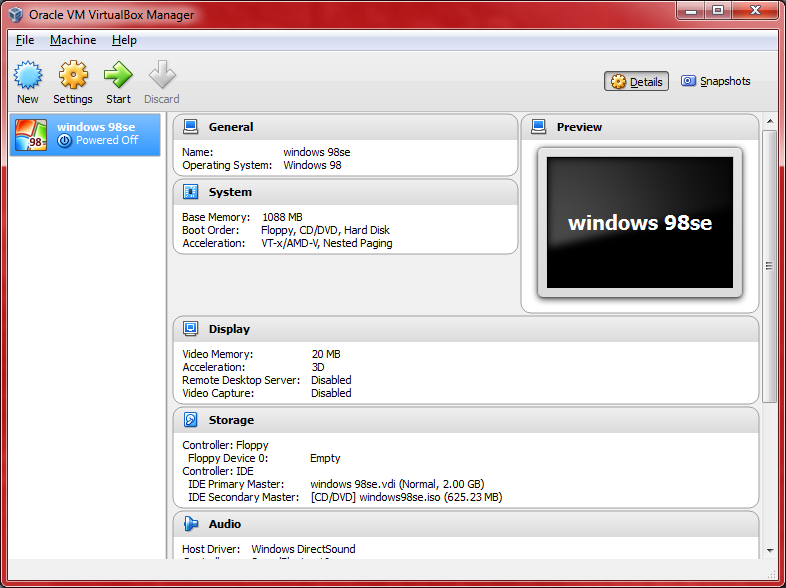

Lecture Title: "Practical Lab: Installing VMware and Setting Up a Windows Virtual Machine"
Hands-on laboratory session to install VMware and deploy a Virtual Machine (VM) with a Windows operating system.

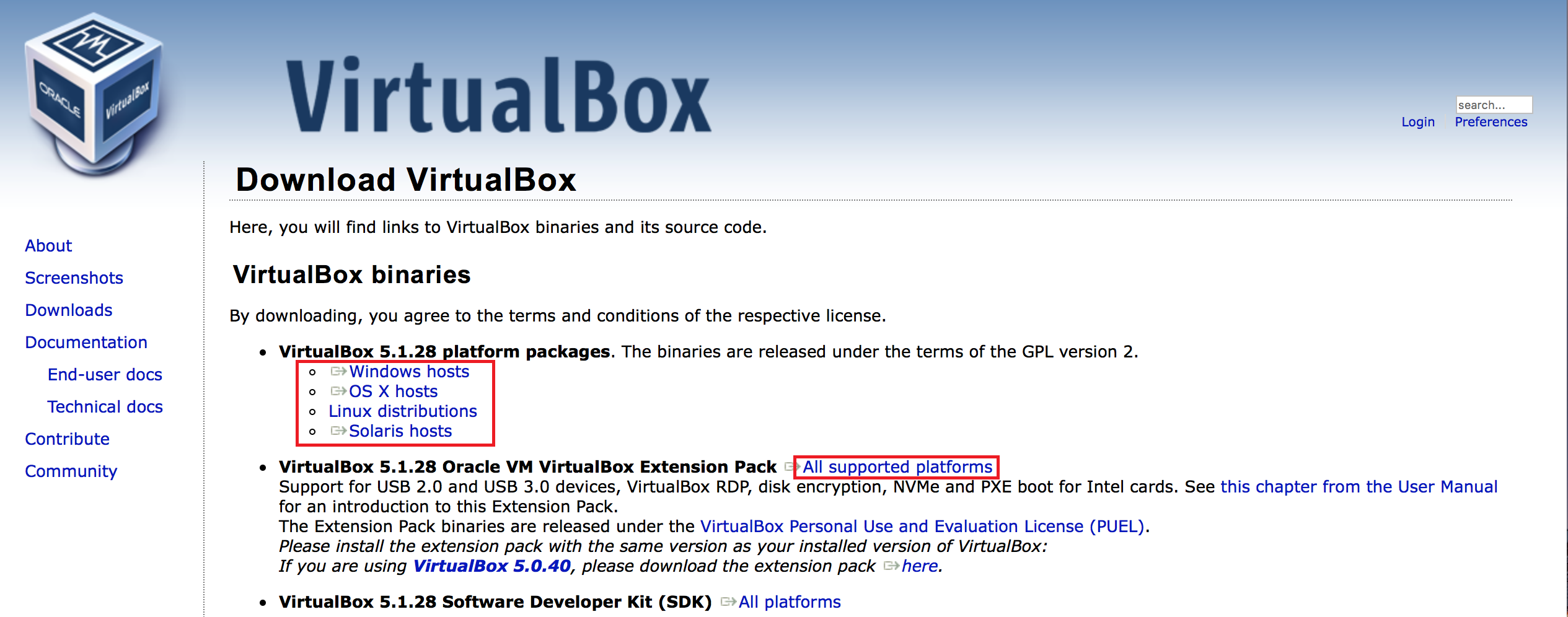

To download Oracle VirtualBox, follow these steps:
Visit the official Oracle VM VirtualBox downloads page. You can find the page by searching for "Oracle VM VirtualBox downloads" in your web browser
On the downloads page, you will find links to VirtualBox binaries for different platforms such as Windows, Mac OS X, Linux, and Solaris
Choose the appropriate version for your operating system. For example, if you're using a Windows computer, click on the link for the Windows hosts
The download should start automatically. If it doesn't, you may need to right-click on the link and select "Save As..." or a similar option in your browser
Once the download is complete, locate the downloaded file on your computer. It should be in your Downloads folder unless you chose a different location.
Double-click on the downloaded file to start the installation process. Follow the prompts in the installation wizard to install VirtualBox on your computer.
Remember, by downloading and installing VirtualBox, you agree to the terms and conditions of the respective license
. Also, it's recommended to download the same version of the Oracle VM VirtualBox Extension Pack as your installed version of VirtualBox
. The Extension Pack provides additional functionality such as improved support for USB devices and remote desktop connections
Please note that VirtualBox is free for personal, educational, or evaluation use
. It's a powerful tool that allows you to run multiple operating systems on your computer at the same time, which can be useful for testing, development, and learning purposes
image.png failed to upload
Download VirtualBox for Windows
Oracle VM VirtualBox
Installing VirtualBox - McCombs Tech Wiki - UT Austin Wikis
Not AccurateView SourcesCopy To ClipboardEdit QueryShare


Lab Overview
This lab will guide you step-by-step through the process of:
Setting up VMware's hypervisor, the ESXi.
Installing vCenter Server for centralized management.
Creating a new VM
Installing a Windows operating system from an ISO image.
Please, ensure you have the necessary components before we start:
A compatible physical server or high-end workstation for the ESXi hypervisor.
VMware installation media (ISO files) for ESXi and vCenter Server downloadable from the VMware website after registration.
A Windows operating system ISO image.
Proper licensing for VMware ESXi, vCenter Server, and Windows OS (if applicable for the lab environment).
Phase 1: VMware ESXi Installation
Firstly, we'll install ESXi on our physical server:
Boot the server from the VMware ESXi installation media.
Follow the installation prompts, accepting the EULA and selecting the appropriate storage device for installation.
Configure the management network interface, setting up networking so it can be accessed remotely.
Set a secure root password for the ESXi host and complete the installation, then reboot the server.
Post-reboot, note the ESXi host IP address displayed on the direct console user interface (DCUI).
Phase 2: vCenter Server Installation
Next, to manage our ESXi host, we’ll deploy the vCenter Server:
From a separate workstation, access the ESXi host using the provided IP address via a web browser.
Use the vSphere Client link on the ESXi welcome page to upload the vCenter Server ISO.
Launch the vCenter Server installer from the mounted ISO and select the deployment type, most likely a new installation.
Follow the setup wizard to input configuration details, such as system name, root password, and network settings.
Once complete, vCenter Server will be accessible via its web interface.
Phase 3: Creating a Windows Virtual Machine
With our infrastructure in place, we now create a VM:
Login to the vCenter Server using its web interface.
Navigate to "Create a new virtual machine" from the VM inventory page.
Use the creation wizard to specify the VM name, guest OS type (Windows), version (confirm historical version), and other basic VM settings.
Configure your VM with appropriate hardware specifications — CPU, memory (RAM), network adapter, and storage.
Before proceeding to installation, you will need to mount the Windows ISO as a virtual CD/DVD drive in the VM settings.
Phase 4: Windows Operating System Installation
Finally, let's install Windows on our VM:
Power on the VM and connect to its console via the vCenter web interface.
Boot the VM from the virtual CD/DVD drive where the Windows ISO is mounted.
Follow the Windows installation procedure—selecting language, time, keyboard input etc.
Input the Windows product key, when prompted (Note: For a lab, you may use trial versions).
Choose "Custom: Install Windows only (advanced)" for a fresh installation.
Select the virtual disk to install Windows, partition if necessary, then proceed.
Complete the Windows installation by creating a user account, setting a password, and configuring initial settings.

You may now personalize the VM for your specific needs to reflect user configurations prevalent in its original operational timeframe.
Explore the settings, adjust resources and network configurations, and most importantly, absorb the methodical precision with which early digital environments were constructed and maintained.

The ability to practically apply knowledge is crucial in the realm of virtual data center management. Therefore, it is incumbent upon Dev Ops professionals to gain hands-on experience with VMware through guided exercises. These exercises will help solidify understanding, promote procedural knowledge, and prepare one for real-world application. We will cover four key areas:

Installing and Configuring VMware Tools: This essential utility suite enhances the performance and manageability of virtual machines. It includes drivers and systems applications that optimize the guest operating system for better integration and performance within a VMware environment.
Creating and Managing Virtual Machines: The creation and management of virtual machines (VMs) are core competencies for Dev Ops personnel. This exercise focuses on the entire lifecycle management of VMs, including creation, configuration, optimization, and decommissioning.
Performing Basic vSphere Network Configurations: A comprehensive understanding of vSphere's network features allows for the design and implementation of network resources within a VMware-powered VDC. This exercise involves setting up and managing standard and distributed virtual switches, port groups, and VLANs.
Utilizing VMware for Virtual Data Center Management: This involves using a suite of VMware management tools to routinely perform tasks like resource monitoring, balancing workloads, and ensuring high availability of services within a VDC.
Downloadable Resources and Links:
To begin these exercises, you will need access to VMware products. Below are links for downloading the necessary software and resources:
VMware vSphere Hypervisor (ESXi) - Free bare-metal hypervisor that virtualizes servers so you can consolidate your applications on less hardware.
Download Page:
VMware vCenter Server - Centralized platform for managing VMware vSphere environments.
Download Page:
Please note, registration or VMware account might be required to access these resources. For educational environments, VMware often provides licenses through programs like the VMware Academic Program (VMAP).
For direct guidance on the exercises:
VMware Documentation: Provides comprehensive instructions on installing and configuring VMware tools for different guest operating systems.
Resource Link:
Virtual Machine Administration Guide: Offers information on creating and managing virtual machines on VMware ESXi hosts.
vSphere Networking Guide: Outlines the steps to configure and manage network components on the vSphere platform.
Resource Link:
vSphere Monitoring and Performance: Contains instructions on how to utilize VMware for monitoring and managing performance in a virtual data center.

1.2 Core Components of VMware

vCenter Server
vSphere Client

Lecture Segment: "VMware’s Core Components and Dev Ops Excellence"

As future Dev Ops specialists, students must grapple with the pivotal elements that comprise robust virtualized environments, particularly those engineered by VMware.
Let's explore how ESXi, vCenter Server, and vSphere Client underpin the operations and responsibilities you'll face as guardians of enterprise infrastructures.
1. ESXi
What ESXi Is: ESXi is VMware’s bare-metal hypervisor, providing the foundational platform upon which virtual machines are run. It's installed directly onto the physical server and serves as the critical layer that allows for the abstraction of hardware resources—CPU, memory, and storage—into multiple, isolated VM instances.
Dev Ops Integration:
Automating Deployments: As Dev Ops specialists, students will leverage ESXi's capabilities to automate and script VM deployments, ensuring efficient resource utilization.
Provisioning Resources: They must master the provisioning of resources and understand how this impacts application performance and availability.
Monitoring and Maintenance: Students will implement health checks and performance monitoring directly at the hypervisor level to pre-empt potential issues that can affect service continuity.
2. vCenter Server
What vCenter Server Is: Acting as the centralized monitoring and management hub for the vSphere environment, vCenter Server consolidates the infrastructure into a single point of control and orchestration. It provides the tools required for managing the health, performance, and configuration of the host servers and VMs across the data center.
Dev Ops Integration:
Centralized Management: Dev Ops teams will use vCenter Server to manage the entire data center infrastructure from a single pane of glass, enabling efficient operational workflows.
Scalability and Automation: Insights from vCenter Server inform your scaling decisions. Through automation, tasks like VM cloning, snapshot management, and resource reallocation become routine and systematic.
Enabling Advanced Features: vCenter Server allows Dev Ops teams to leverage advanced functionalities like Distributed Resource Scheduler (DRS) and High Availability (HA) thus ensuring optimal performance and uptime.
3. vSphere Client
What vSphere Client Is: vSphere Client provides an intuitive user interface for interacting with both ESXi and vCenter Server. Offered in HTML5 and previously as a Flash-based web client, it's the administrative gateway to the vast capabilities of the VMware infrastructure, allowing you to configure, manage, and operate all aspects of the virtual environment.
Dev Ops Integration:
Direct Interface: Students will use the vSphere Client for hands-on management of the infrastructure—spinning up VMs, configuring networks, and managing data store allocations.
Troubleshooting and Diagnostics: The vSphere Client is also the first point of contact for diagnostics, enabling Dev Ops professionals to rapidly troubleshoot and resolve issues within the VMs or hosting environment.
Performance Monitoring and Optimization: Through the client, Dev Ops teams access real-time monitoring dashboards and reports, critical for maintaining and optimizing system performance.
The Symbiotic Relationship in Dev Ops
Within the Dev Ops domain, there is an intimate relationship between workflow optimization, automation, reliability, and these core VMware components.
ESXi provides the low-level control and optimization of physical hardware; vCenter Server offers the bird’s-eye view and central command needed for orchestrating a Dev Ops workflow; the vSphere Client serves as the hands-on toolkit for day-to-day operations and management tasks.
Students, as emerging Dev Ops specialists, will intertwine these components with their operational acuity to:
Maximize uptime and system reliability.
Automate routine maintenance and scale the infrastructure responsively.
Streamline deployment pipelines and accelerate service delivery.
Grasping the functionalities of these VMware components is not merely an academic requirement—it is quintessential to the execution of a Dev Ops role with precision and foresight. In your hands, these tools will shape the data centers of the future, aligning them with the principles of agility, performance, and continuous integration/continuous deployment (CI/CD), which are the hallmarks of the Dev Ops culture.
In closing, immerse yourselves into these elements, understand their interdependencies, and harness their collective power. The outcome will be an orchestrated, automated, and resilient virtual infrastructure, capable of meeting the demands of the most dynamic application workloads—a true testament to the Dev Ops methodology.

1.3 VMware and Virtual Data Centers

Virtualization of Physical Resources
Efficiency and Resource Management
Scalability and Elasticity

Lecture Title: "Optimizing Infrastructure: VMware’s Role in Virtual Data Centers"

Section 1.3: VMware and Virtual Data Centers
Ladies and gentlemen, as current and future stewards of technology, understanding VMware's pivotal role in modern virtual data centers (VDCs) is essential. We will navigate through the pillars of VMware's influence in VDCs - virtualization of physical resources, efficiency, and resource management, scalability, and elasticity. I will also lead you through a lab implementation to solidify these concepts. So let us embark on a journey of transformation and optimization that VMware offers to VDCs.
Part 1: Lecture - Concepts and Theories
Virtualization of Physical Resources
Virtualization is the cornerstone of any virtual data center, and VMware's ESXi hypervisor is instrumental in this arena. It abstracts the physical hardware resources of a server—namely its CPU, memory, storage, and network connectivity—and allocates them to multiple VMs.
This abstraction layer efficaciously creates 'virtual' counterparts to physical hardware enabling:
Multiple OS Environments: Allowing for diverse operating systems to coexist on a single hardware entity, independent of one another.
Isolation and Security: Despite sharing hardware, environments are fully isolated, mitigating security risks between systems.
Efficiency and Resource Management
Efficiency is more than just resource utilization. VMware's suite introduces intelligent ways to manage resources:
Distributed Resource Scheduler (DRS): Balances workloads across resources in a cluster to avoid over-provisioning and underutilization.
vSphere Tags and Policies: Enables categorization and storage based on policies ensuring the right resources are aligned with appropriate workloads.
Scalability and Elasticity
Scalability is the capability to grow or shrink resources, and VMware equips VDCs with:
Elastic Sky X (ESXi) Scalability: Adding more VMs or allocating more resources without the need for additional hardware.
vMotion and Storage vMotion: Seamlessly migrating VMs across hosts or data stores without downtime supports growth without interruption.

Part 2: Lab Implementation - Practical Application

Lab Objective:
Your mission is to construct a mini virtual data center using VMware ESXi and vCenter Server.
Lab Prerequisites:
Ensure you have a server or high-end workstation for ESXi, the required VMware software, and network access for management.
Step 1: ESXi Installation and Configuration
Boot the server with the ESXi installation media and follow the prompts to install.
Upon completion, configure the management network and note the assigned IP address.
Step 2: vCenter Server Deployment
Use the vSphere Client to connect to ESXi and deploy the vCenter Server Appliance (VCSA).
Follow the VCSA deployment wizard to configure it and integrate it with your ESXi host.
Step 3: Create and Configure Virtual Machines
Through vCenter, commence the creation of VMs, allocating CPU, memory, and storage.
Install operating systems onto these VMs, using ISO images.
Step 4: Implementing DRS for Resource Management
Group your ESXi hosts into a cluster and enable DRS.
Configure DRS rules and affinity groups according to the lab's requirements.
Step 5: Simulating Scalability and Elasticity
Practice scaling up by adding additional virtual resources (CPU, RAM) to your VMs.
Experience elasticity by using vMotion to migrate live VMs between ESXi hosts in your cluster.
Lab Review:
Reflect on the flexibility provided by virtualizing physical resources.
Analyze the efficacy of your resource management strategy.
Evaluate the effectiveness of scalability and elasticity in your VDC lab environment.
You've now seen firsthand the transformative power of VMware's technology in creating a lean, dynamic, and adaptable VDC. By embracing this paradigm, Dev Ops professionals can assure that their organizations remain agile, robust, and prepared to meet the challenges of the modern computing landscape.
I encourage you all to further delve into these tools, experimenting with the advanced features and automations that VMware offers. The skills and insights gained here will be imperative as you architect and maintain next-generation VDCs.

1.4 Hands-On Exercises

Installing and Configuring VMware Tools
Creating and Managing Virtual Machines
Performing Basic vSphere Network Configurations
Utilizing VMware for Virtual Data Center Management

1.5 Use Cases in Dev Ops

Streamlining Deployment Processes
Environment Standardization
Continuous Integration and Continuous Delivery (CI/CD)

Section 2: PowerShell Automation

2.1 What is PowerShell?

Introduction to PowerShell
Command-Line Shell and Scripting Language
The Power of Automation in System Administration

2.2 PowerShell Core Concepts

PowerShell Scripts (.ps1)
Modules and Snap-ins

2.3 PowerShell for Virtual Data Center Management

Automating Repetitive Tasks
Bulk Management of Virtual Machines
Monitoring and Reporting

2.4 Hands-On Exercises

Writing Basic PowerShell Scripts
Running PowerShell Scripts to Perform Admin Tasks
Integration with VMware PowerCLI

2.5 Use Cases in Dev Ops

Configurations as Code
Automated Testing and Deployment
Incident Response and Remediation

Section 3: REAL VNC Virtual Network Access Software

3.1 What is REAL VNC?

Introduction to REAL VNC
Understanding Virtual Network Computing (VNC)
Components of REAL VNC (Viewer, Server)

3.2 Configuration and Security

Setting Up REAL VNC in a Virtual Data Center
Securing VNC Access
Managing User Permissions

3.3 Hands-On Exercises

Installing REAL VNC Server and Viewer
Accessing Remote Desktops of VMs
Troubleshooting Connectivity Issues

3.5 Use Cases in Dev Ops

Remote Administration of Virtual Environments
Collaborative Troubleshooting
Remote Access for Continuous Operations


Summary of Key Learning Points
The Importance of Cross-Functional Skills in Virtual Data Center Administration
Continuing Education and Certifications


Additional Resources
Glossary of Terms
Recommendations for Further Practice
This guide outline serves as a structured approach for students to learn and explore VMware, PowerShell automation, and REAL VNC in the context of virtual data center administration. Through theory and hands-on exercises, students will gain the necessary skills to effectively participate in a Dev Ops team managing virtual infrastructure.
Want to print your doc?
This is not the way.
Try clicking the ⋯ next to your doc name or using a keyboard shortcut (
) instead.
