How to design it in Power Apps
Preview
What does it consist of?
Procedure

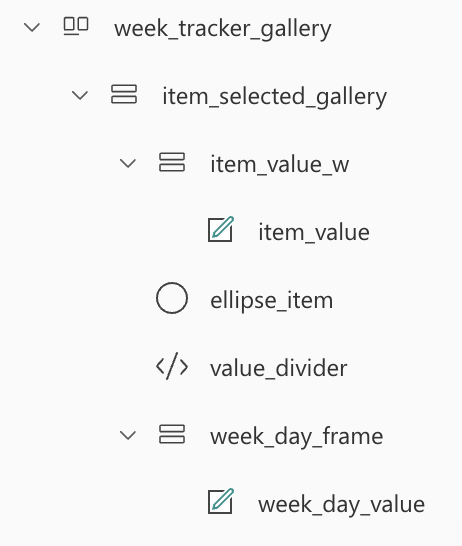

Step 1 - create parent gallery
Add a new Horizontal Gallery, call it "week_tracker_gallery" with Items properties:
[{day: "Sun",price: 2500},{day: "Mon",price: 1500},{day: "Tue",price: 500},{day: "Wed",price: 300},{day: "Thu",price: 1800},{day: "Fri",price: 3000},{day: "Sat",price: 300}]
You can replace it by your data from SharePoint or Dataverse.
Step 2 - create item in gallery
Add a new Vertical Container PCF, call it "item_selected_gallery" with dynamic Width and Height values:
Width
If(Text(Today(),"ddd") = ThisItem.day,80,60)
Height
20 + item_value_w.Height + ellipse_item.Height + value_divider.Height + week_day_frame.Height
Step 3 - create value in item container
Add a new Vertical Container PCF, call it "item_value_w" with Visible value:
If(Text(Today(),"ddd") = ThisItem.day,true,false)
Add Label object, call it "item_value" with "Text" property:
If(ThisItem.price < 1000,Text(ThisItem.price,"$ 000"), Text(ThisItem.price,"$ 0,000"))
Step 4 - create other value in item container
Add Circle object, call it "ellipse_item" with "Visible" property:
If(Text(Today(),"ddd") = ThisItem.day,false,true)
Step 5 - create divider in item container
Add HTML TEXT object, call it "value_divider" with "HtmlText" property:
"<div style='border-radius:5px;margin-left:2px;background-color:#cbcdcf;width:1px;height:"&(110 - Value(ThisItem.price)/100) - 10&"px;'></div>"
and "Height" property:
140 - Value(ThisItem.price)/100 -20
Step 6 - create week day in item container
Add a new Vertical Container PCF, call it "week_day_frame" with default property values.
And add Label object, call it "item_value" with "Text" property:
Left(ThisItem.day,1)

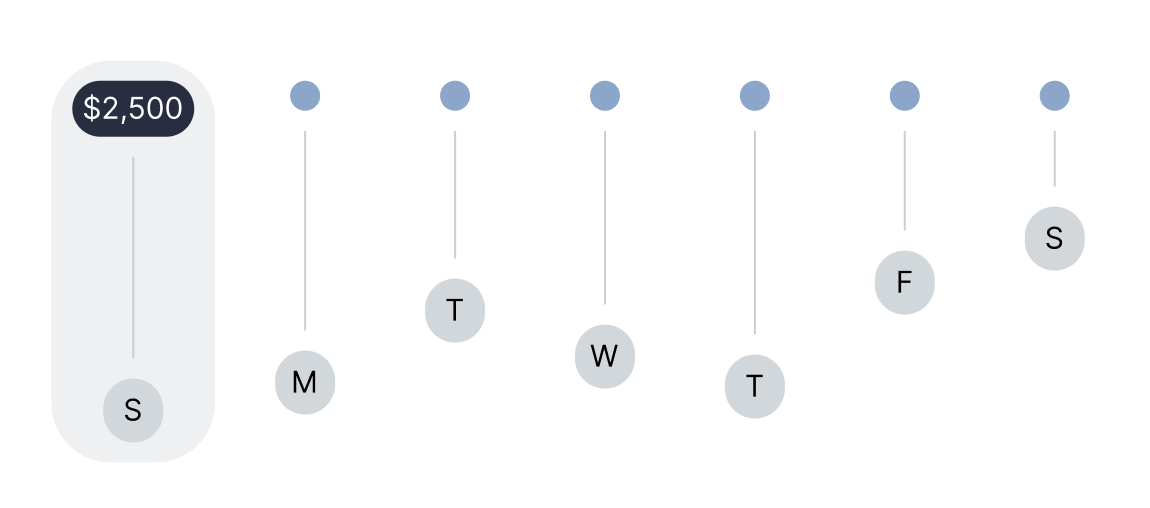

This is an output:
How to design it in Figma
Preview
What does it consist of?
Procedure

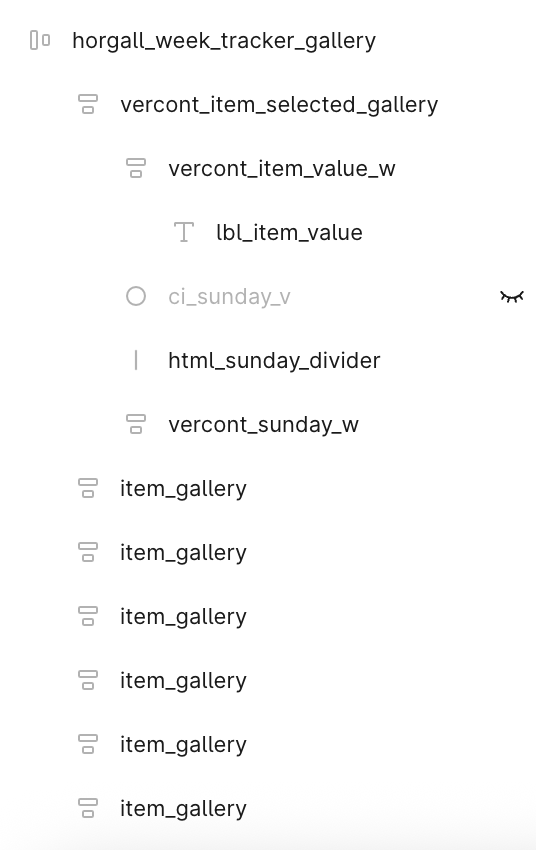

Step 1 - create gallery frame

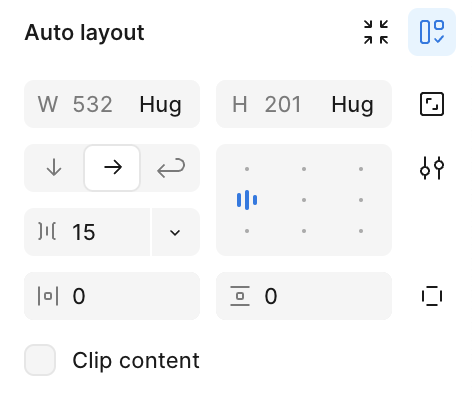

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horgall_week_tracker_gallery" with these properties:
Step 2 - create item frame

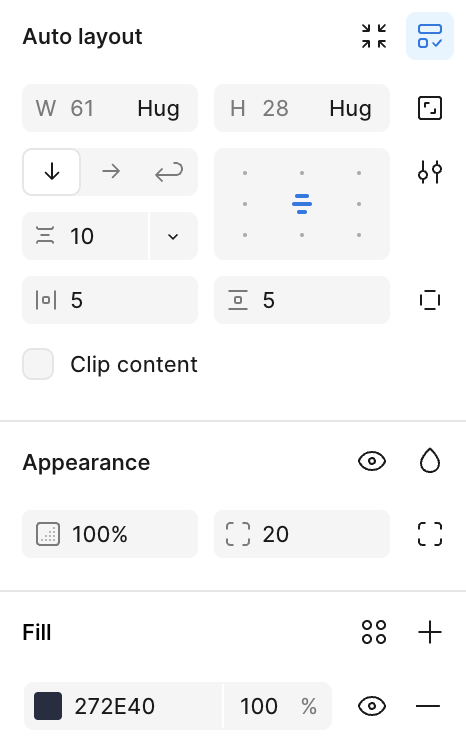

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_item_selected_gallery" with these properties:

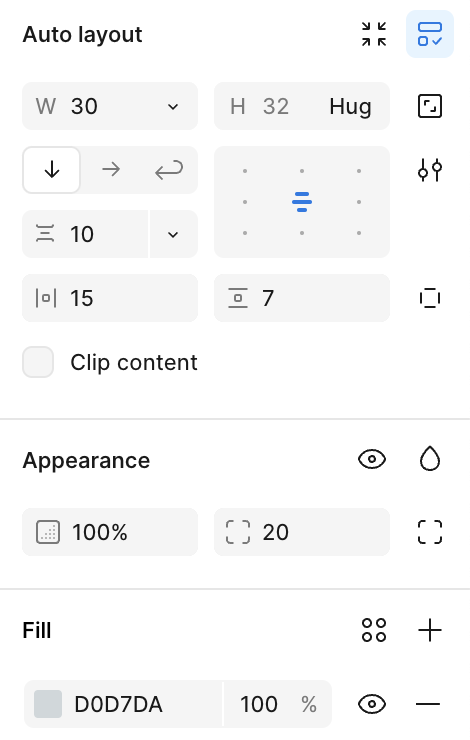

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_item_value_w" with these properties:

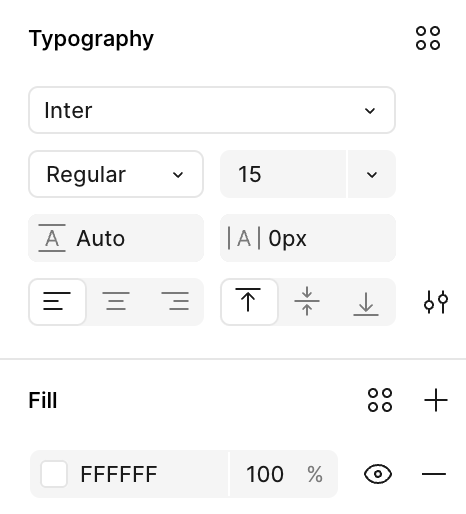

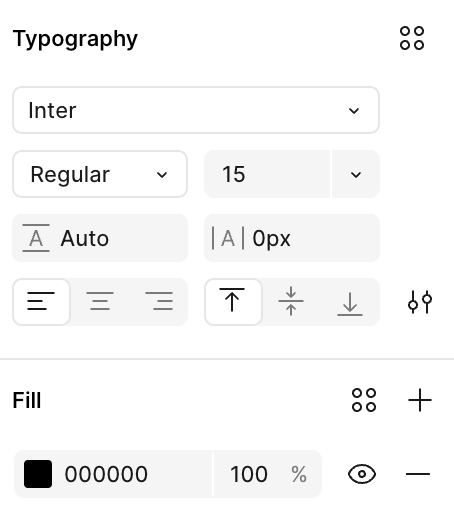

Add a new Text (T command), call it "lbl_item_value" with these properties:

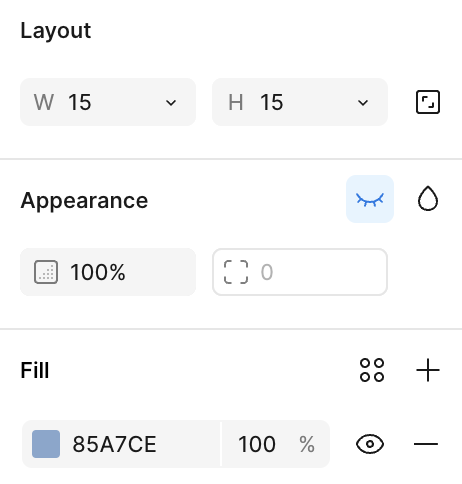

Add a new Ellipse (O command) object, call it "ci_sunday_v" with these properties:

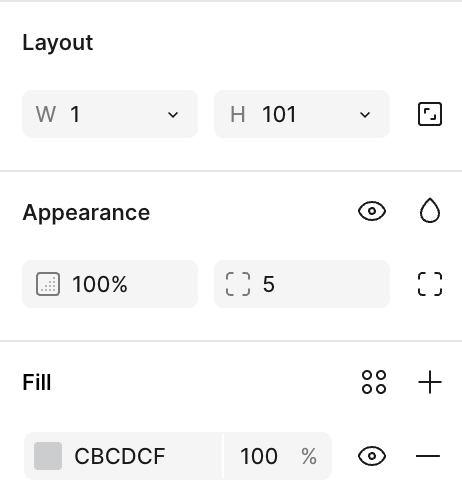

Add a new Rectangle (R command) object, call it "html_sunday_divider" with these properties:
Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_sunday_w" with these properties:
Add a new Text (T command), call it "lbl_sunday_day_w" with these properties:
The same do it for the rest week days (6x), but WITHOUT PREFIXES.
This is an output:
How to use it via DesignKit
Prerequisites
Used Prefixes
YAML Output
Used Colours
