Volume
How to design it in Power Apps
Preview
What does it consist of?

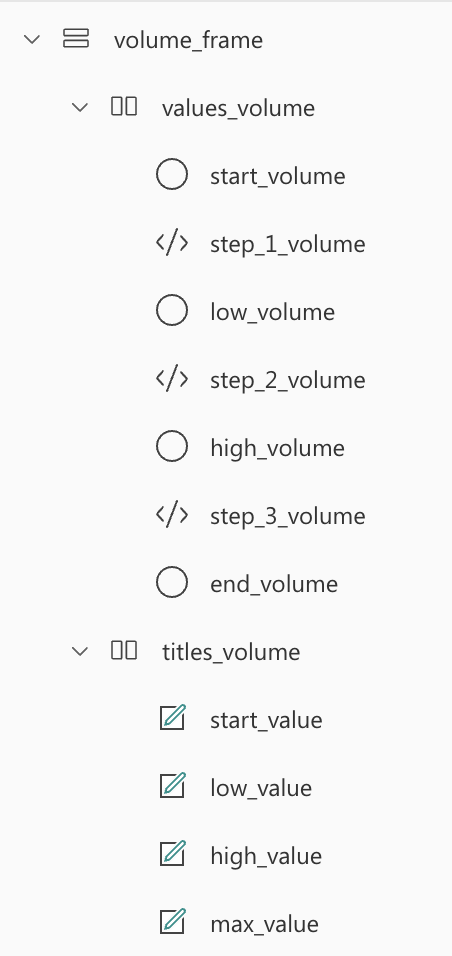

Procedure
Step 1 - create boolean variable on Screen
When you create a new screen(or use already created) you should create a variable on "OnVisible" property:
Set(selected,1)
Step 2 - create parent container
Add a new Vertical Container PCF, call it "volume_frame" with default property values.
Step 3 - create values container
Add a new Horizontal Container PCF, call it "values_volume" with "AlignInContainer" property:
AlignInContainer.Stretch
Add Circle object, call it "start_volume" with "Color" property:
RGBA(196, 212, 249, 1)
Add HTML TEXT object, call it "step_1_volume" with "HtmlText" property:
" <div style='border-radius:10px;background:"&If(selected <2,"#F4F5F5","linear-gradient(to right,#cdf,#36d)")&";width:75px;height:10px;'></div>"
Add Circle object, call it "low_volume" with "Color" property:
If(selected < 2,RGBA(245,245,245,1), RGBA(48, 105, 225, 1))
Add HTML TEXT object, call it "step_2_volume" with "HtmlText" property:
" <div style='border-radius:10px;background:"&If(selected <3,"#F4F5F5","linear-gradient(to right,#36d,#73e)")&";width:75px;height:10px;'></div>"
Add Circle object, call it "high_volume" with "Color" property:
If(selected < 3,RGBA(245,245,245,1), RGBA(118, 48, 242, 1))
Add HTML TEXT object, call it "step_3_volume" with "HtmlText" property:
" <div style='border-radius:10px;background:"&If(selected <>4,"#F4F5F5","linear-gradient(to right,#73e,#e77)")&";width:75px;height:10px;'></div>"
Add Circle object, call it "end_volume" with "Color" property:
If(selected <>4,RGBA(245,245,245,1), RGBA(236, 119, 114, 1))
Step 4 - create titles container
Add a new Horizontal Container PCF, call it "titles_volume" with "AlignInContainer" property:
AlignInContainer.Stretch
Add Label object, call it "start_value" with "Text" property:
"$100"
and "OnSelect" property:
Set(selected,1)
Add Label object, call it "low_value" with "Text" property:
"$1k"
and "OnSelect" property:
Set(selected,1)
Add Label object, call it "high_value" with "Text" property:
"$10k"
and "OnSelect" property:
Set(selected,1)
Add Label object, call it "end_value" with "Text" property:
"$100k"
and "OnSelect" property:
Set(selected,1)

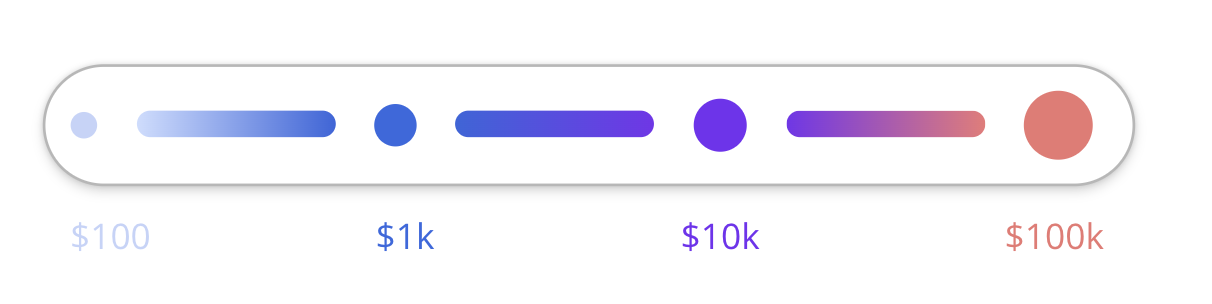

This is an output:
How to design it in Figma
Preview
What does it consist of?

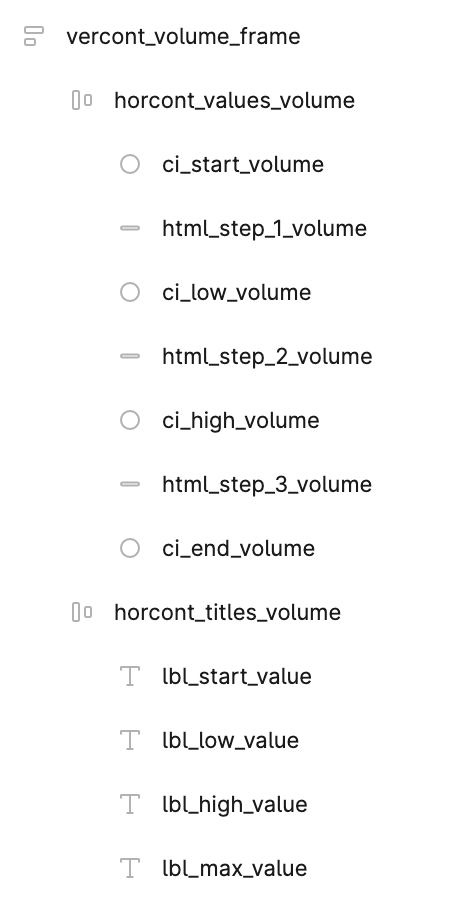

Procedure
Step 1 - create volume frame
Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_volume_frame" with these properties:
Step 2 - create values frame

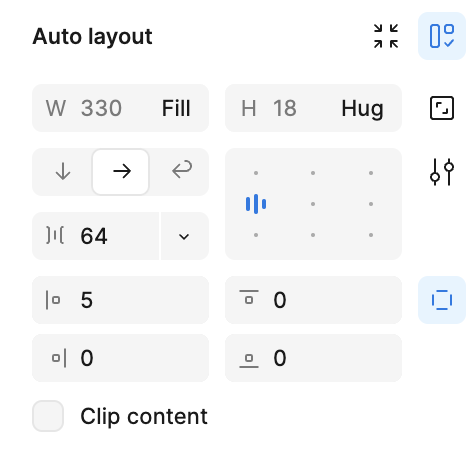

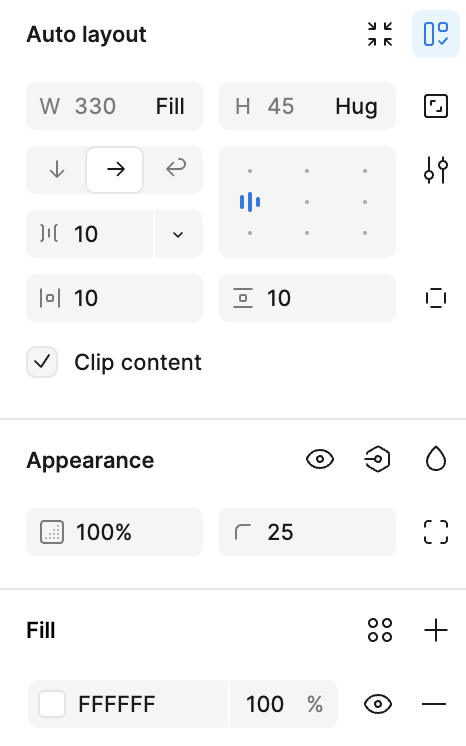

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_values_volume" with these properties:

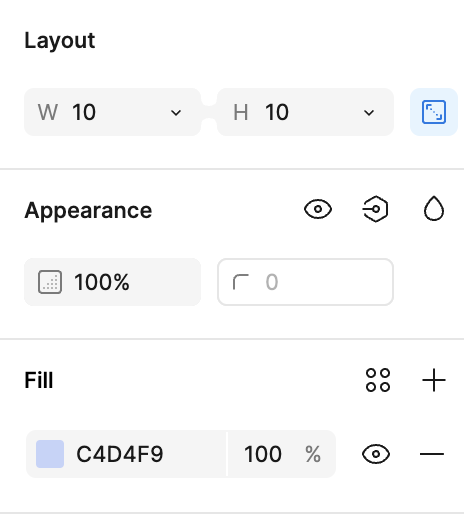

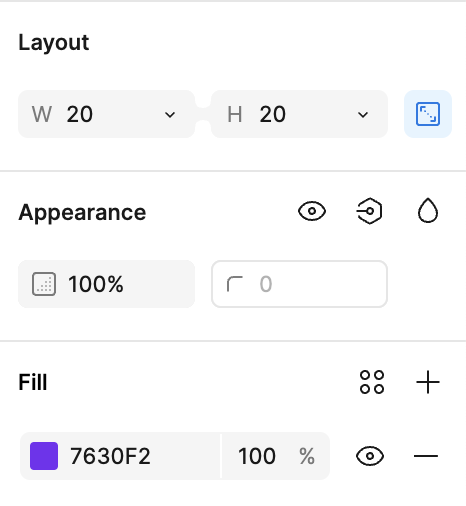

Add a new Ellipse (O command) object, call it "ci_start_volume" with these properties:

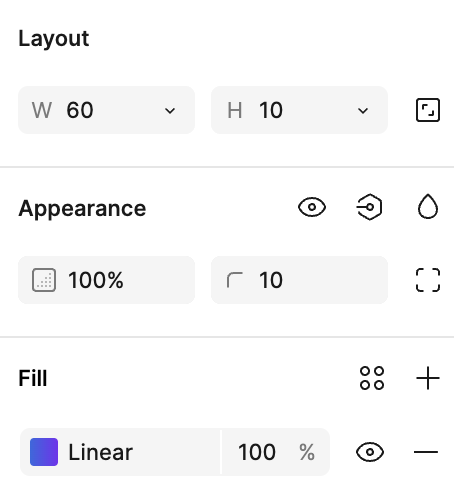

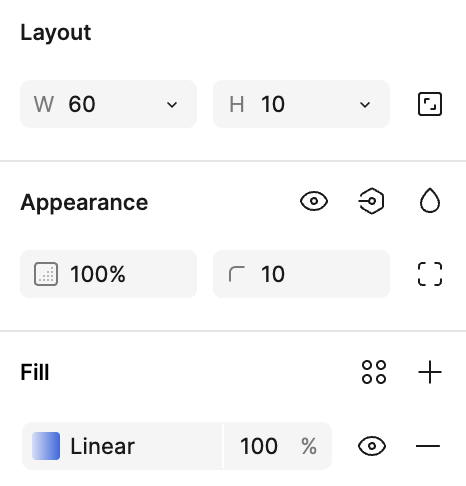

Add a new Rectangle (R command) object, call it "html_step_1_volume" with these properties:

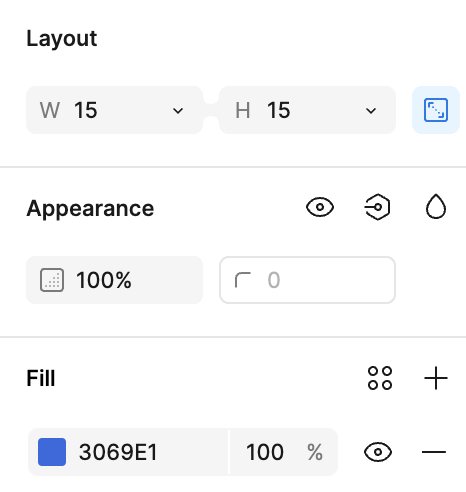

Add a new Ellipse (O command) object, call it "ci_low_volume" with these properties:
Add a new Rectangle (R command) object, call it "html_step_2_volume" with these properties:
Add a new Ellipse (O command) object, call it "ci_high_volume" with these properties:

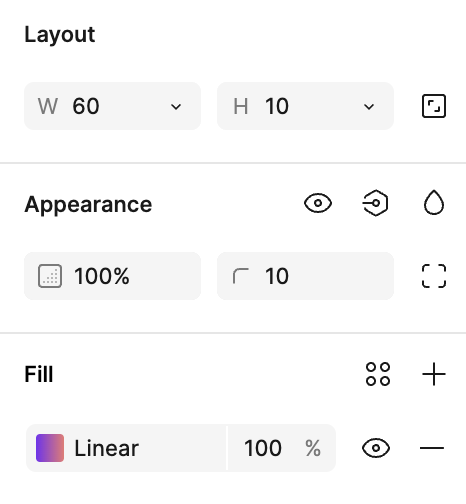

Add a new Rectangle (R command) object, call it "html_step_3_volume" with these properties:

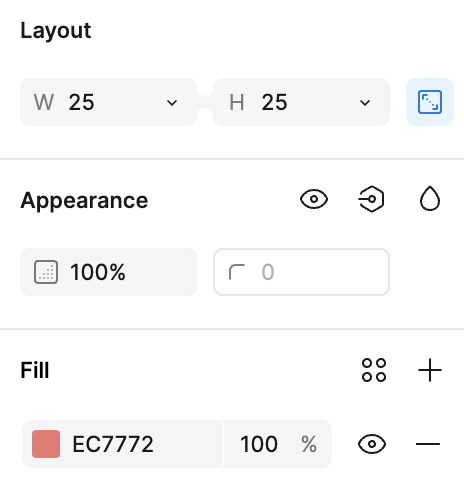

Add a new Ellipse (O command) object, call it "ci_end_volume" with these properties:
Step 3 - create titles frame
Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_titles_volume" with these properties:

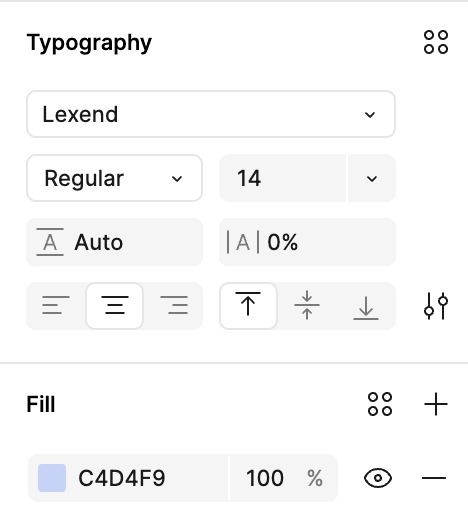

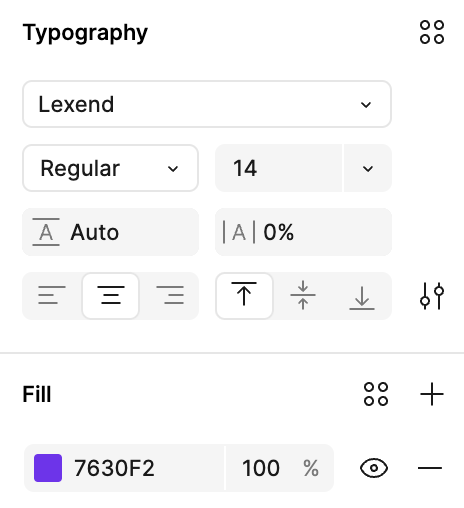

Add a new Text (T command), call it "lbl_start_value" with these properties:
Add a new Text (T command), call it "lbl_low_value" with these properties:
Add a new Text (T command), call it "lbl_high_value" with these properties:

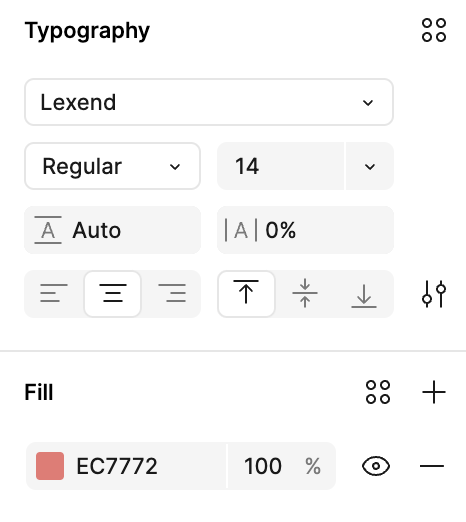

Add a new Text (T command), call it "lbl_end_value" with these properties:

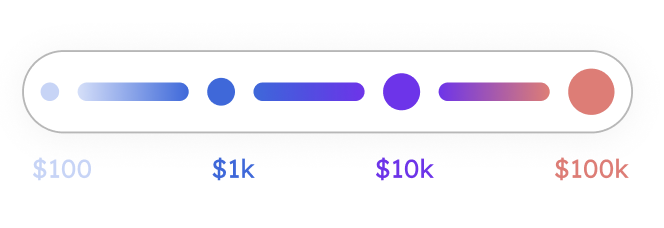

This is an output:
