Canvas Components
Email Field
How to design it in Power Apps

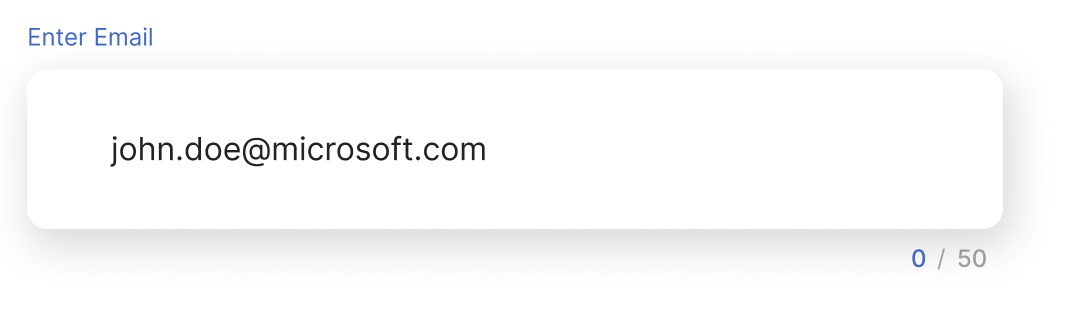

Preview

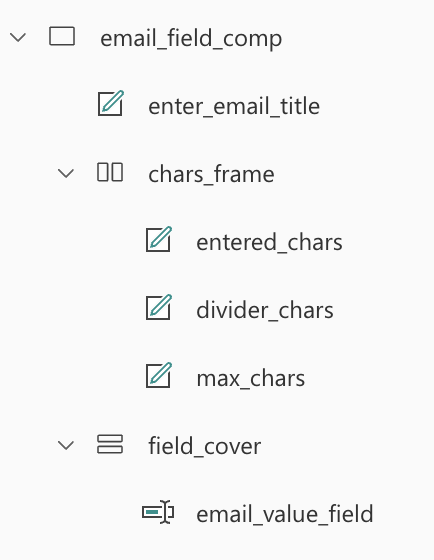

What does it consist of?
Procedure
Step 1 - create field container
Add a new Manual Container PCF object, call it "email_field_comp" with default properties.
Step 2 - create content
Add a new Label object, call it "enter_email_title" with Text property:
"Enter Email"
Add a new Vertical Container PCF object, call it "field_cover" with this "DropShadow" property:
DropShadow.Regular
and "Color" property:
If(IsMatch(email_value_field.Text,
"(?:[a-zA-Z0-9!#$%&'*+/=?^_`{|}~-]+(?:\.[a-zA-Z0-9!#$%&'*+/=?^_`{|}~-]+)*)@{1}(?:([a-zA-Z0-9](?:[a-zA-Z0-9-]*[a-zA-Z0-9])?\.)+[a-zA-Z0-9]{2,})"
),ColorValue("#7FD1AE"),ColorValue("#F08765"))
Add a new Text Input object, call it "email_value_field" under "field_cover" container with this "Color" property:
If(IsMatch(
email_value_field.Text,
"(?:[a-zA-Z0-9!#$%&'*+/=?^_`{|}~-]+(?:\.[a-zA-Z0-9!#$%&'*+/=?^_`{|}~-]+)*)@{1}(?:([a-zA-Z0-9](?:[a-zA-Z0-9-]*[a-zA-Z0-9])?\.)+[a-zA-Z0-9]{2,})"
),ColorValue("#7FD1AE"),ColorValue("#F08765"))
Add a new Horizontal Container PCF object, call it "chars_frame" with default properties.
Add a new Text Input object, call it "entered_chars" under "chars_frame" container with this "Text" property:
Len(email_value_field.Text)
Add a new Text Input object, call it "divider_chars" under "chars_frame" container with this "Text" property:
"/"
Add a new Text Input object, call it "max_chars" under "chars_frame" container with this "Text" property:
"30"
This is an output:
How to design it in Figma
Preview

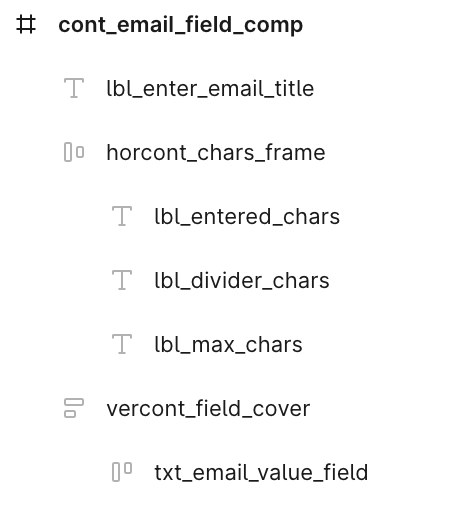

What does it consist of?
Procedure
Step 1 - create a main frame

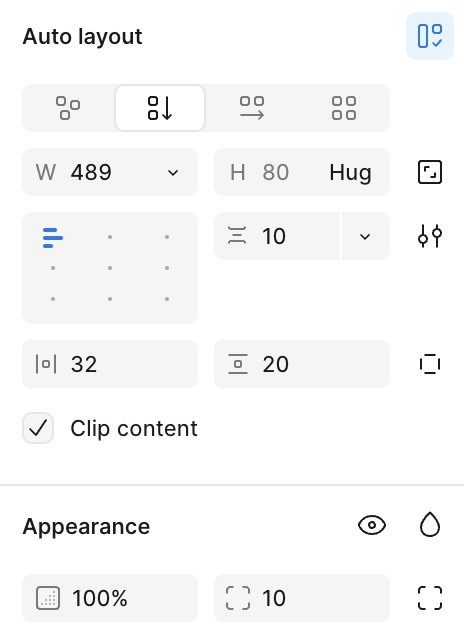

Add a new Frame (F command) object, call it "cont_email_field_comp" with these properties:
Step 2 - create a content

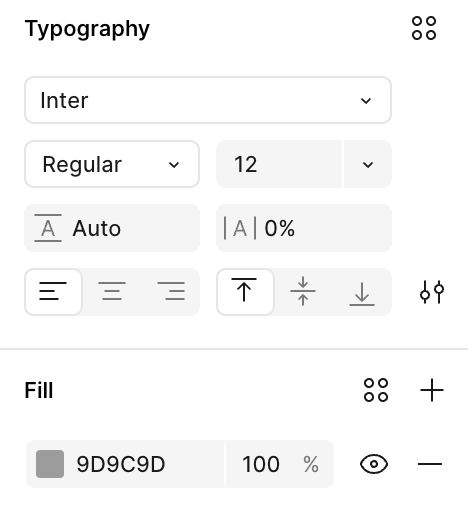

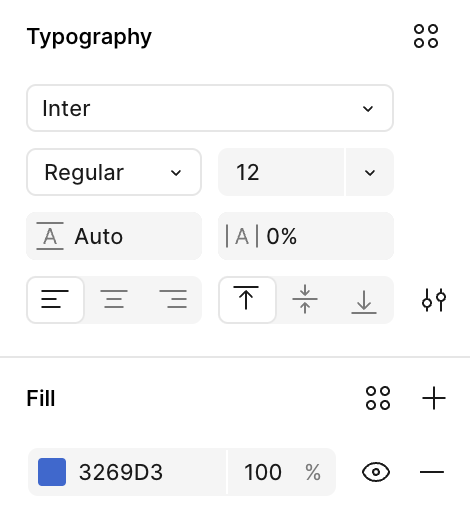

Add a new Text (T command) object, call it "lbl_enter_email_title" with these properties:

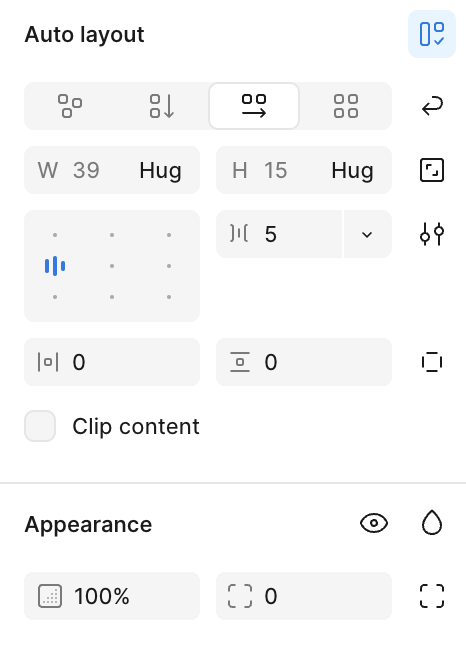

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_chars_frame" with these properties:
Add a new Text (T command), call it "lbl_entered_chars" under "horcont_chars_frame" container with these properties:
Add a new Text (T command), call it "lbl_divider_chars" under "horcont_chars_frame" container with these properties:
Add a new Text (T command), call it "lbl_max_chars" under "horcont_chars_frame" container with these properties:

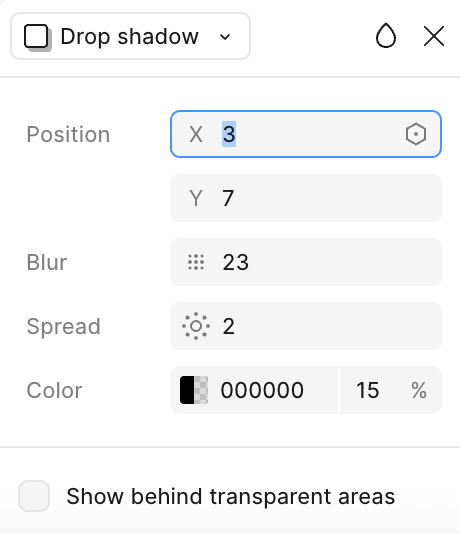

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "vercont_field_cover" with these properties:

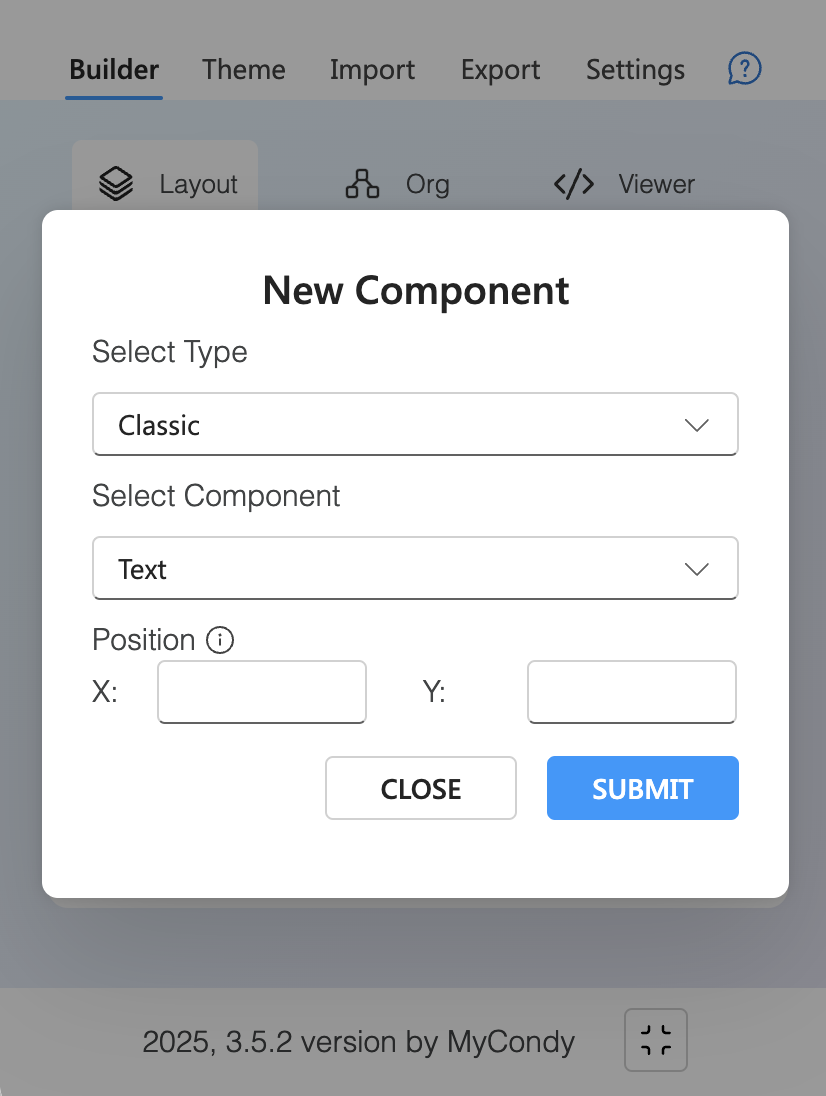

Open DesignKit PRO 3.5 version and import Text Input component:
This is an output:
How to use it via DesignKit
Prerequisites
Used Prefixes
YAML Output
Used Colours
