Speaker System

Connecting One Speaker

Equipment Needed

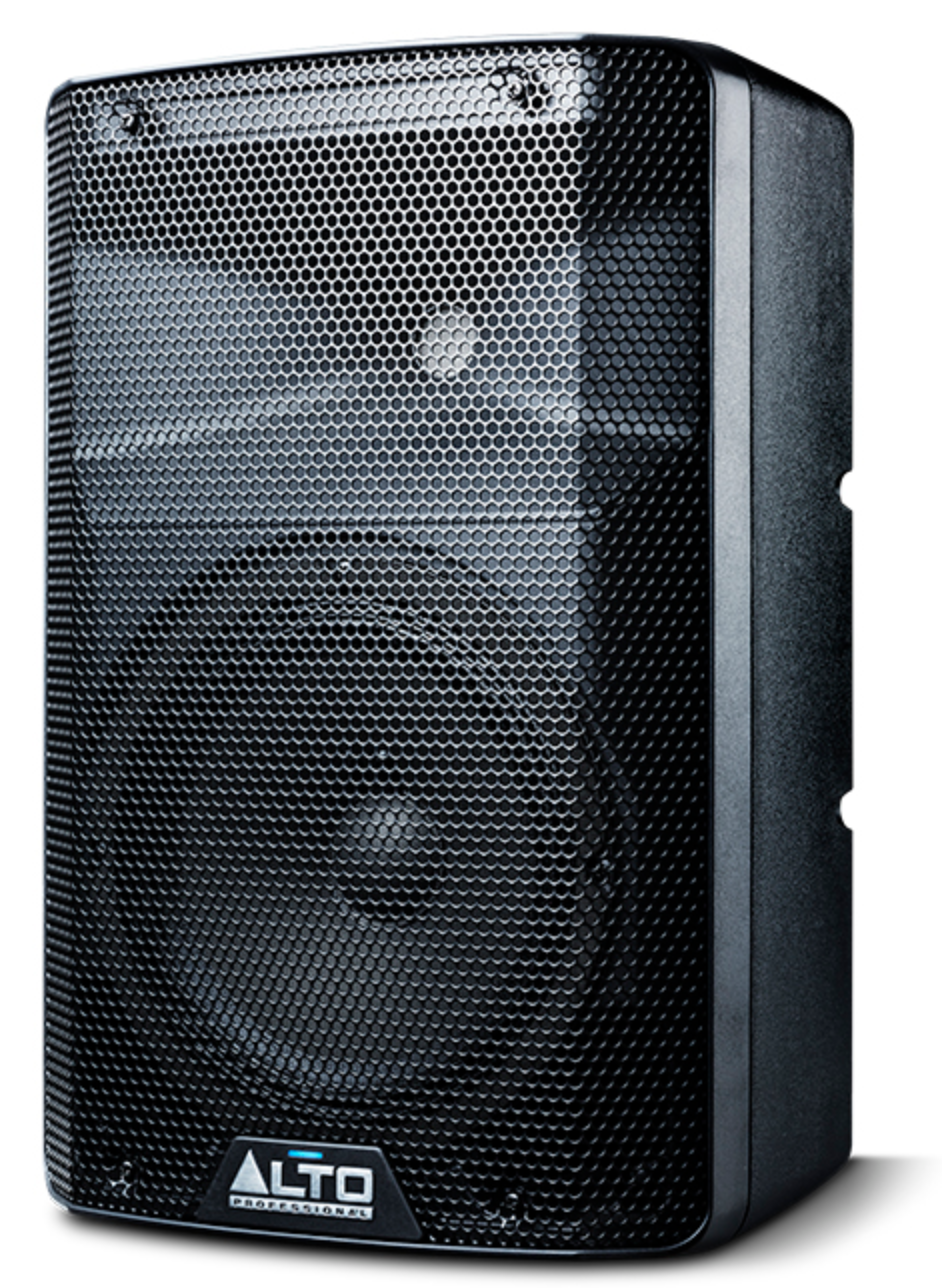

CleanShot 2021-09-20 at 11.14.43@2x.png

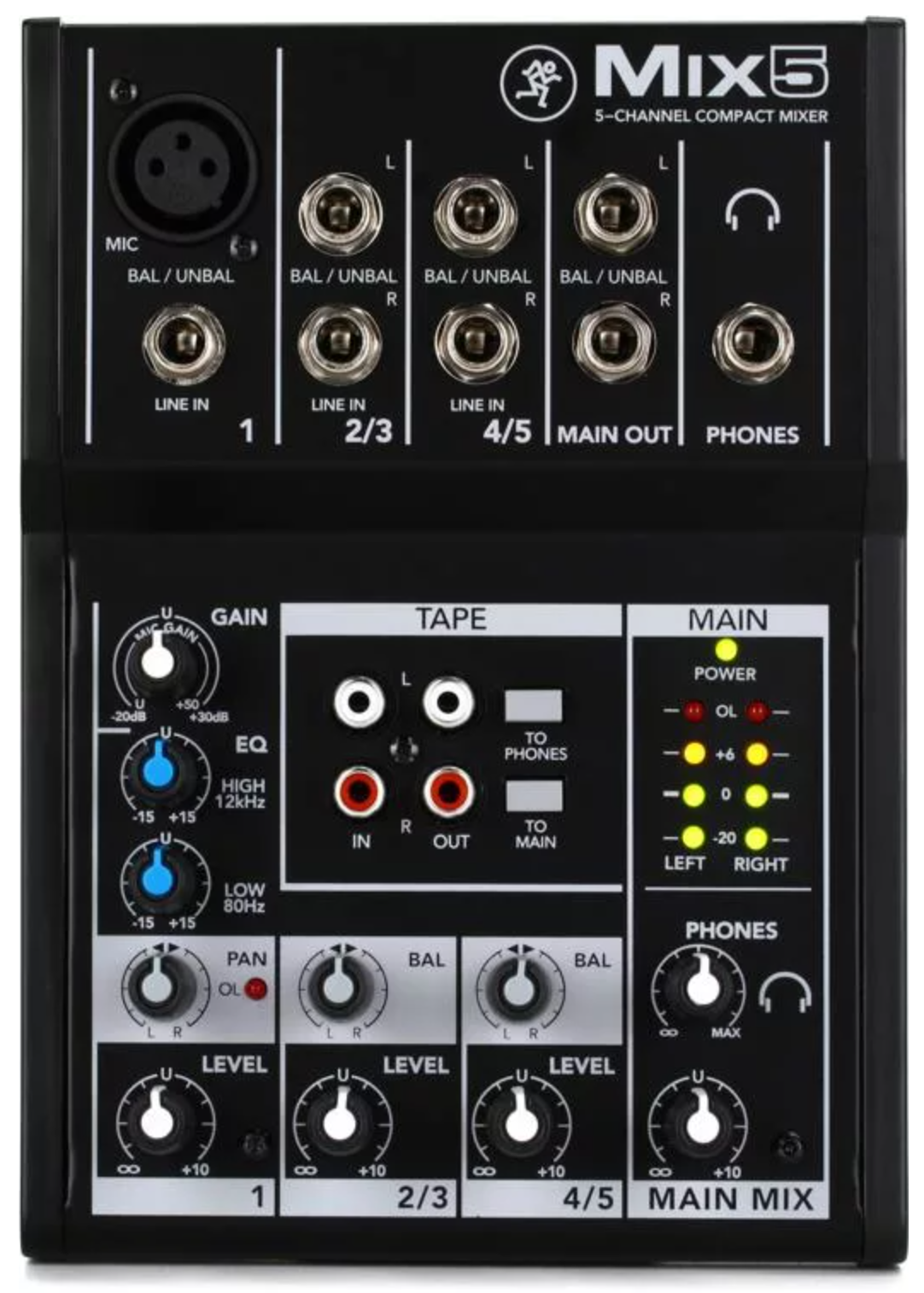

CleanShot 2021-09-20 at 11.19.43@2x.png
Step One
Turn down Master Volume on BOTH Mixer and Speaker.
Step Two

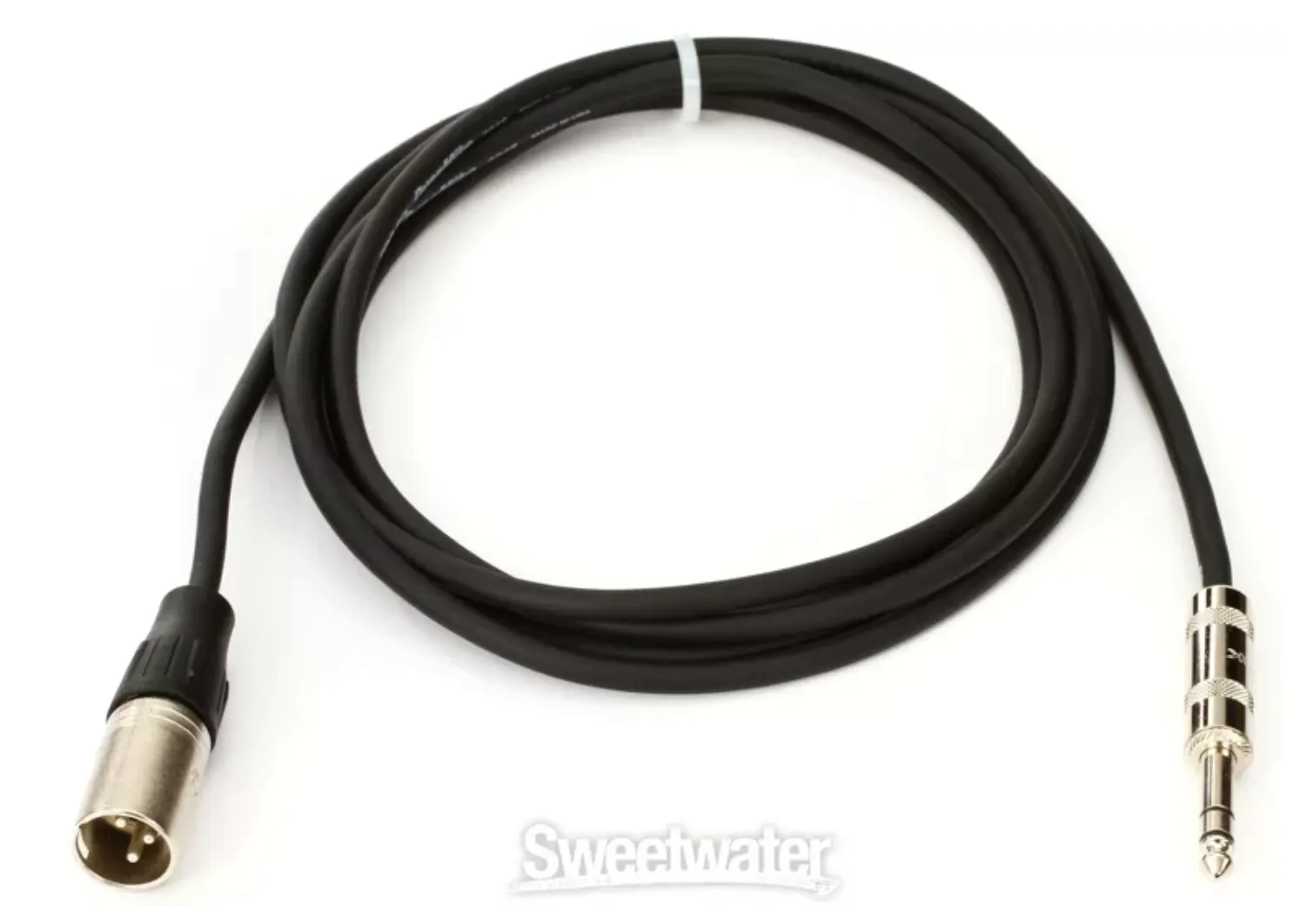

Connect the “1/4 Male - XLR MALE” to your mixer and speaker.
Frame 21Mixer-Speaker.png
Step Three

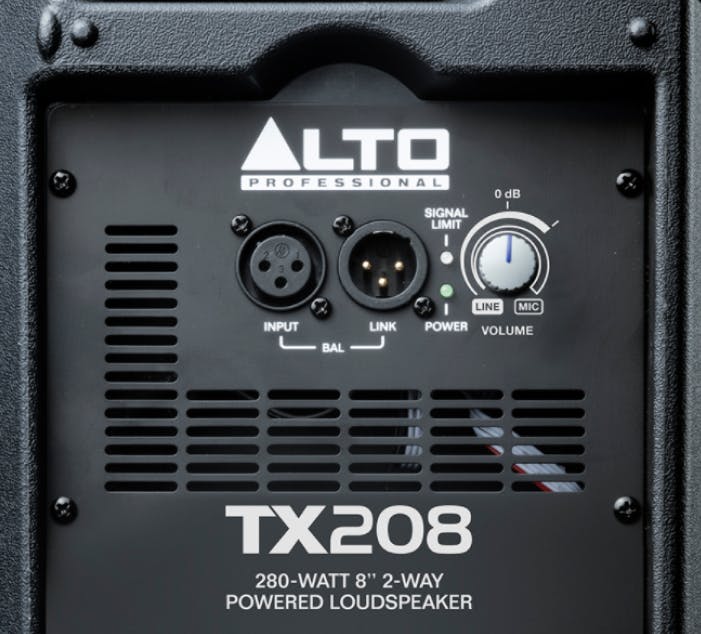

Turn up the Speaker Volume to 12:00.
CLoser Up.png
Step Four
Talk into your microphone WHILE slowly turning up the Master volume AND Microphone volume. If connected correctly, you should her your voice through the speaker.
