Aisler Board Ordering for Ambassadors

Aisler Setup

Message Mark Wu on

Slack⁠

with the email you want to use for your Aisler account. You should recieve a signup link when you are added to the organization. The following screenshot is what the admin sees to send you an invitation.

⁠

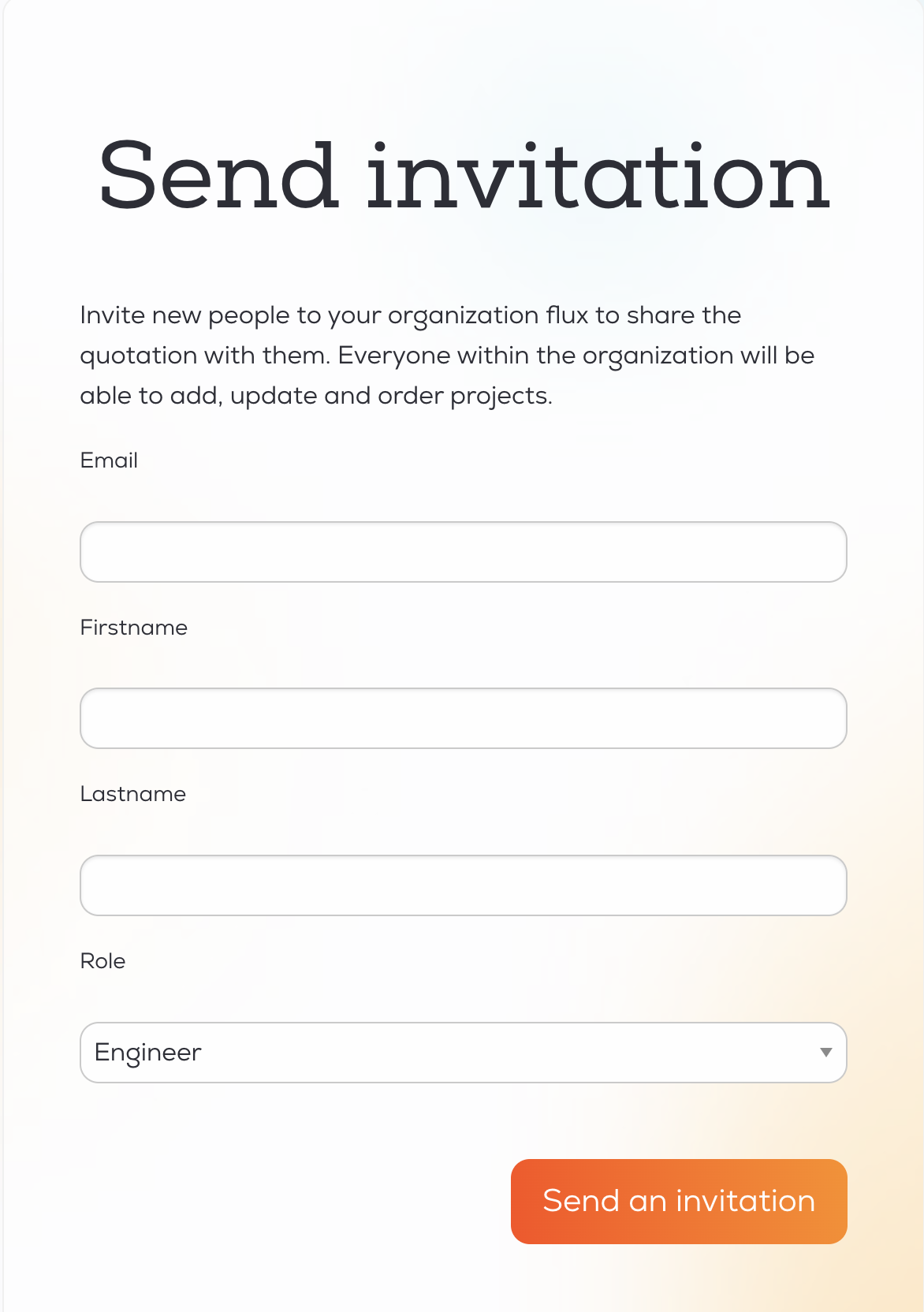

Screenshot 2023-07-11 at 11.08.36 AM.png

⁠

The setup should be pretty intuitive and you should see this when you are done. If not,

visit our Aisler organization page⁠

⁠

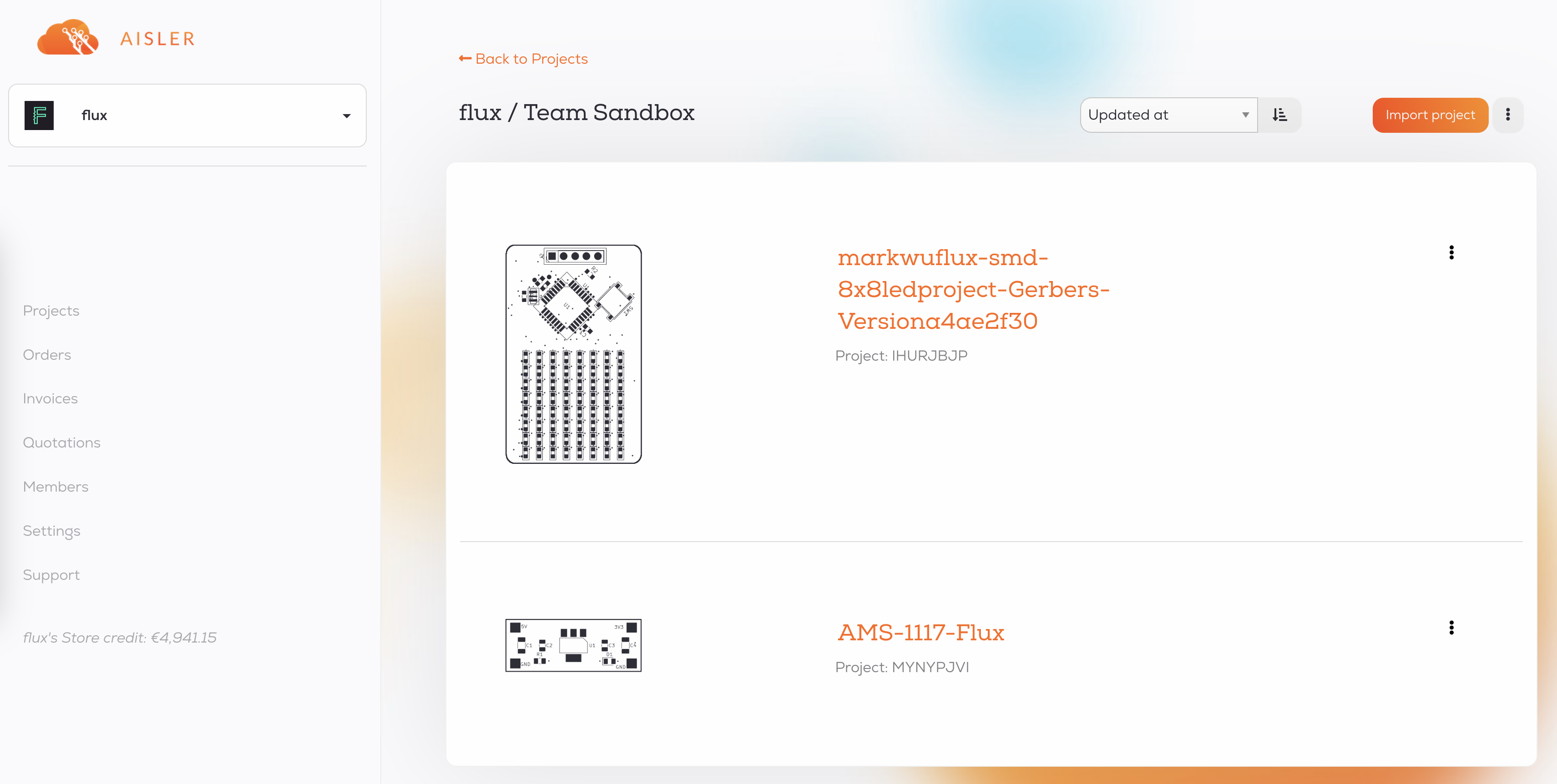

Screenshot 2023-07-11 at 11.13.30 AM.png

⁠

(If you see anything about sandboxes, make sure you make projects in the Flux Team Sandbox, we can also create new sandboxes if we do a big project together!)

Aisler Ordering

Aisler.net⁠

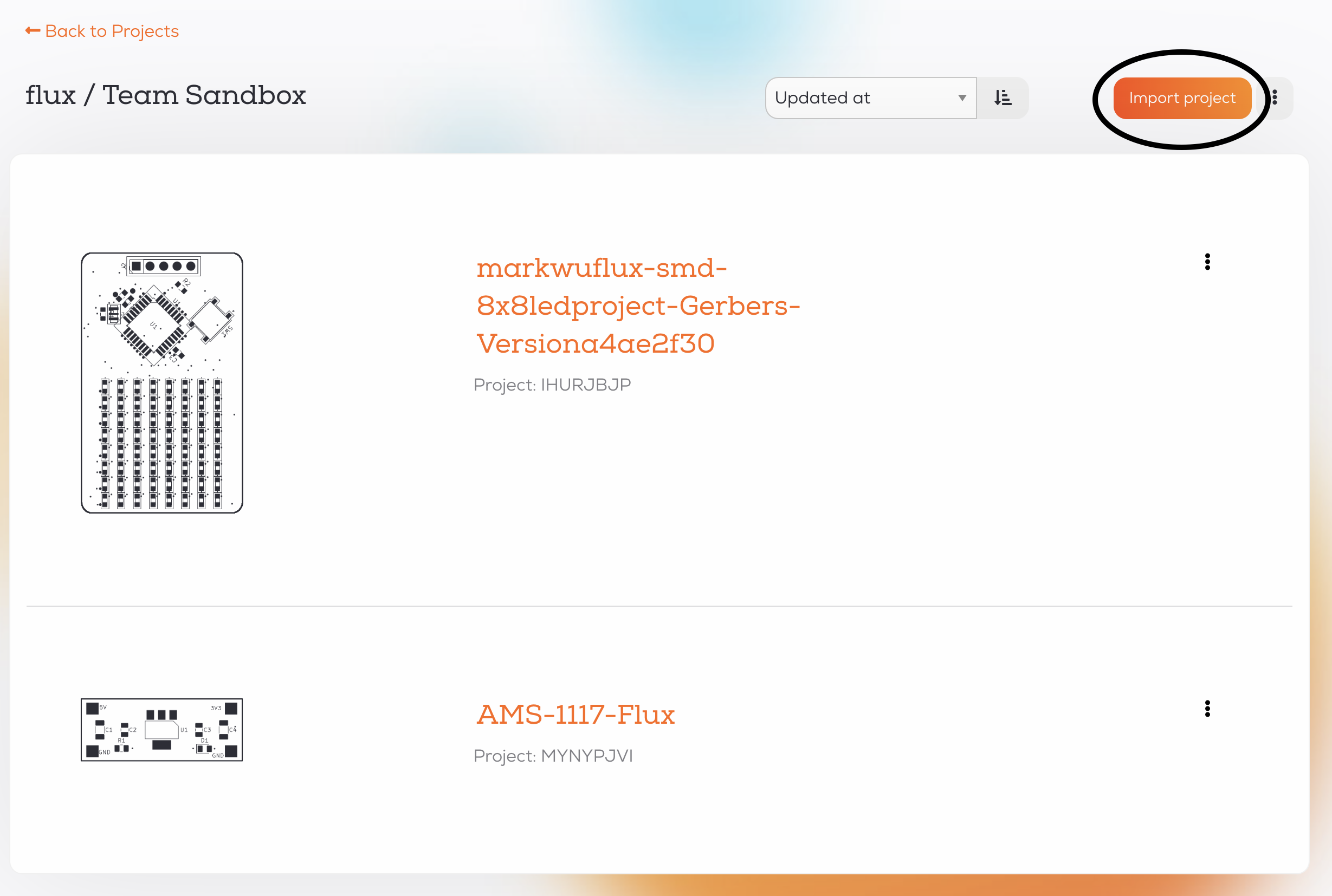

and enter the appropriate sandbox. To start a project, click on “Import project” at the top right corner.

⁠

Screenshot 2023-07-11 at 11.15.22 AM.png

⁠

Click on “Select file” at the very top of the page and attach the Gerber you exported from

flux⁠

⁠

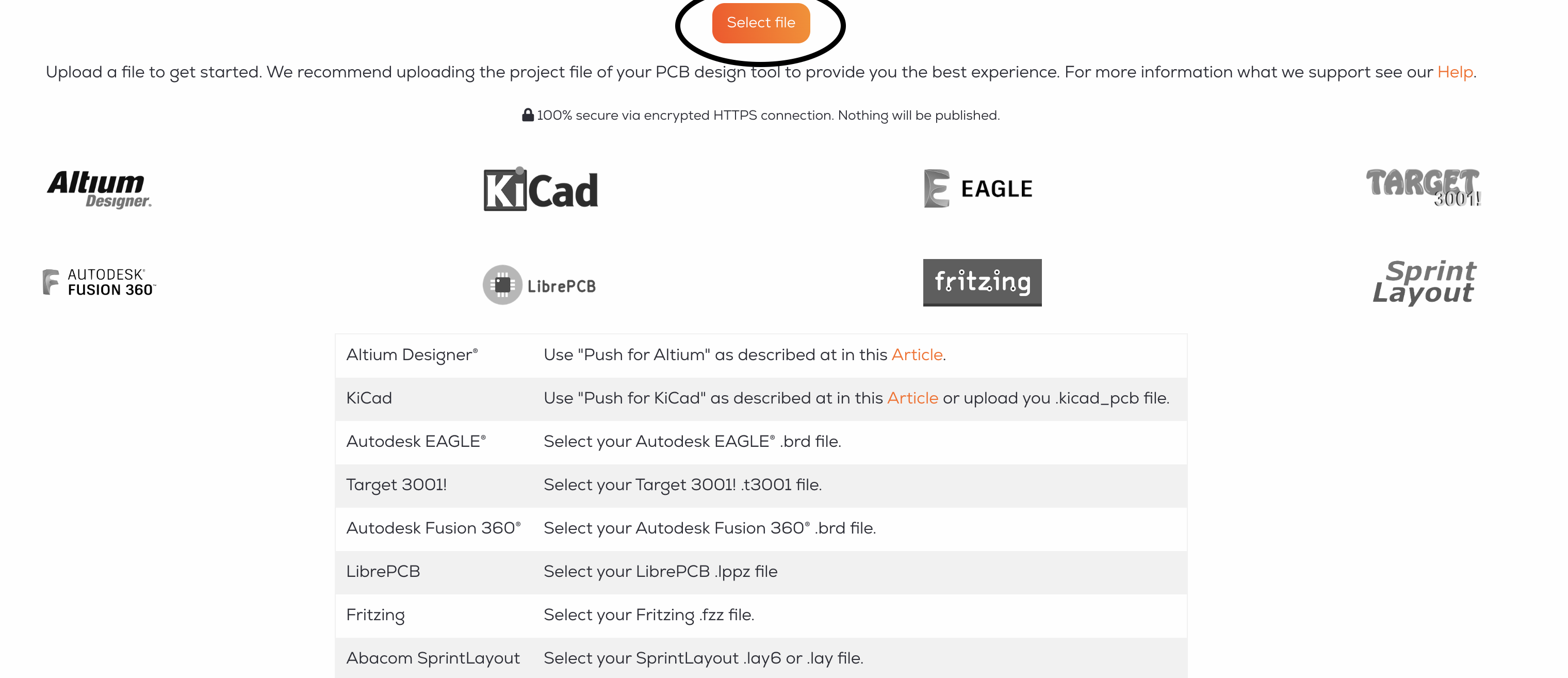

Screenshot 2023-07-11 at 11.17.19 AM.png

⁠

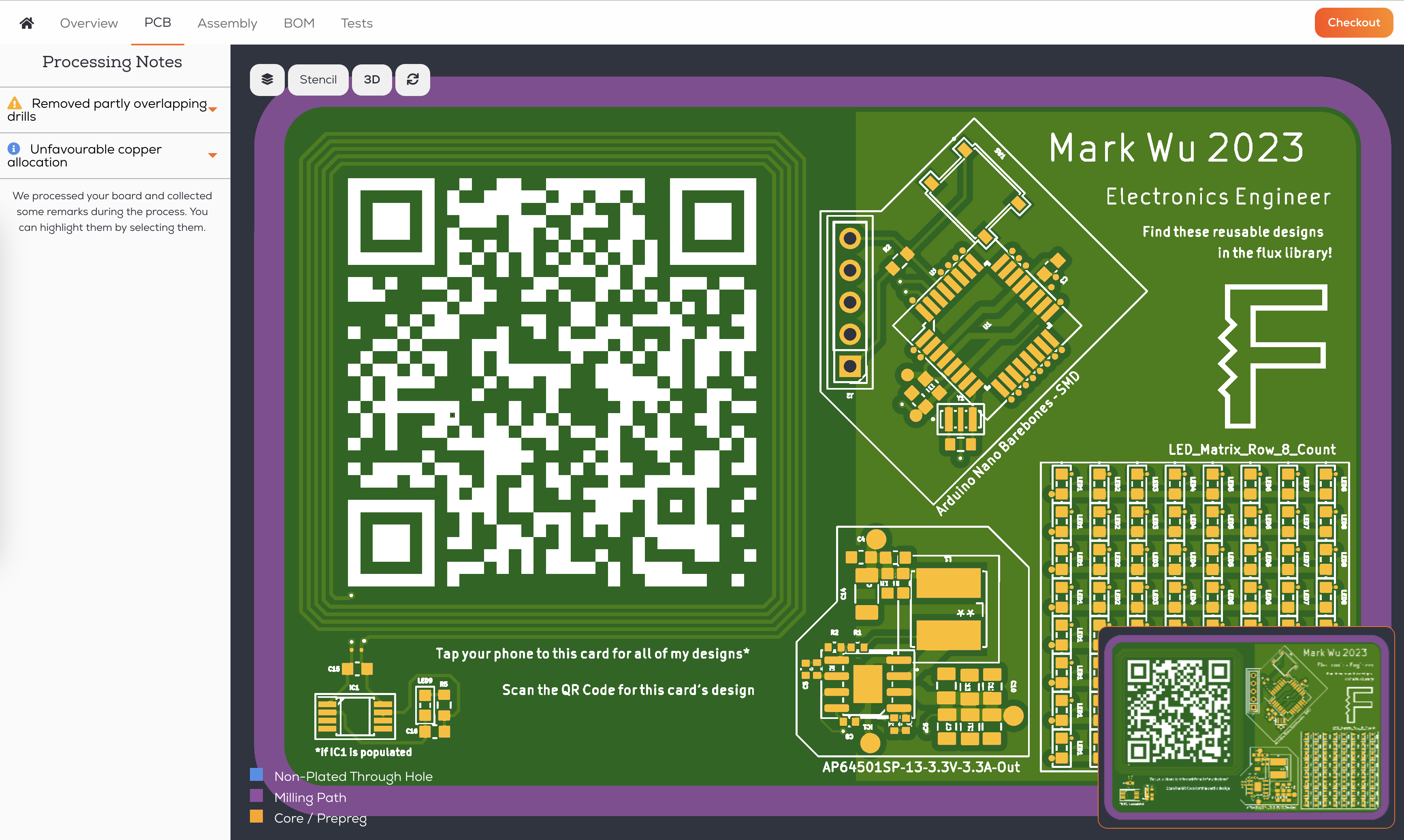

You should see the following page. At the top left of the page, next to the home symbol, you can cycle through PCB, Assembly, BOM, and Tests views. At this stage, flux and Aisler doesn’t support Assembly and BoM so we can only order PCBs so click on the PCB view.

⁠

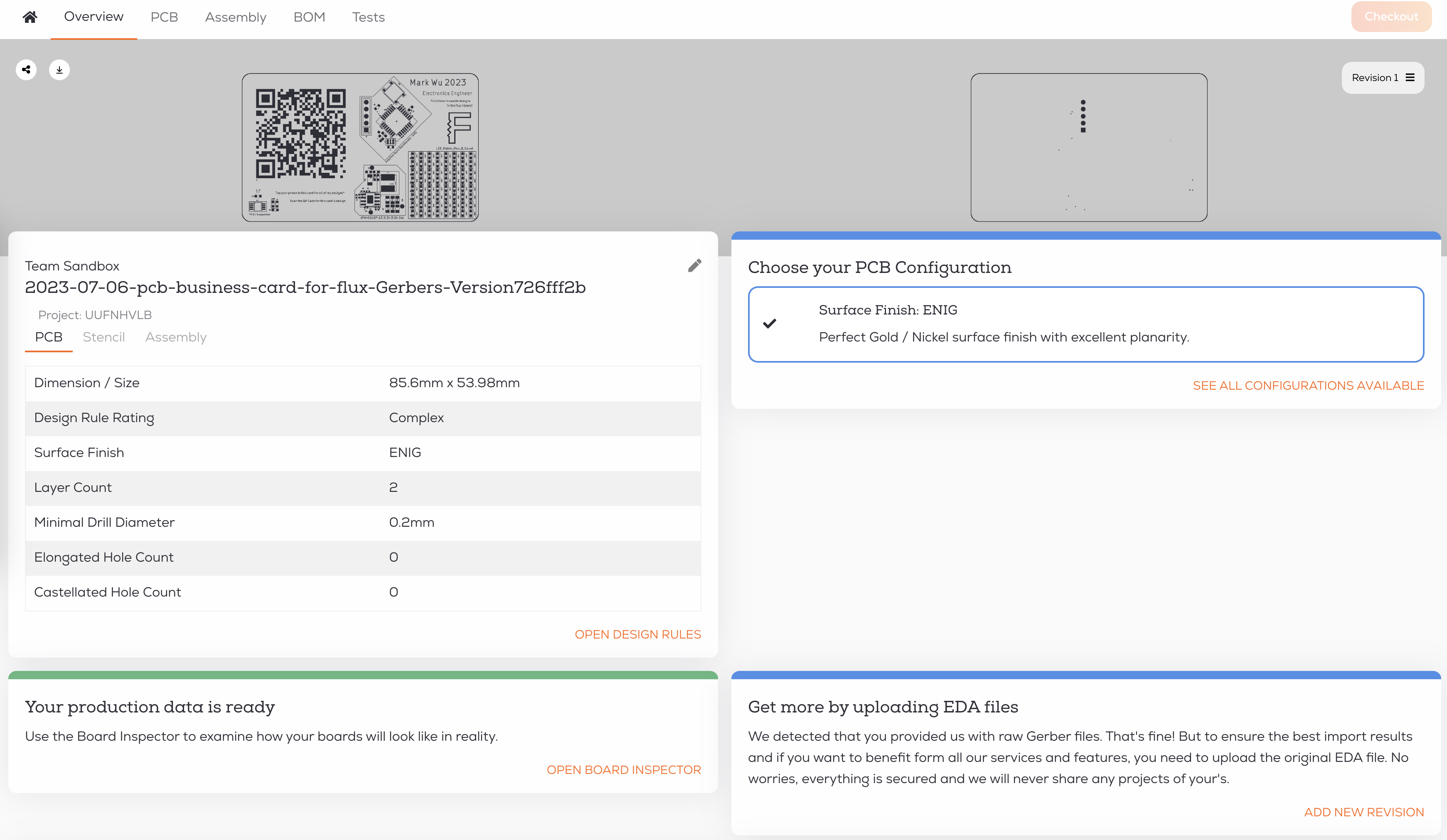

Screenshot 2023-07-11 at 11.19.59 AM.png

⁠

Review any problems on the left and proceed to click on the orange “Checkout” button on the top right of the page.

⁠

Screenshot 2023-07-11 at 11.23.22 AM.png

⁠

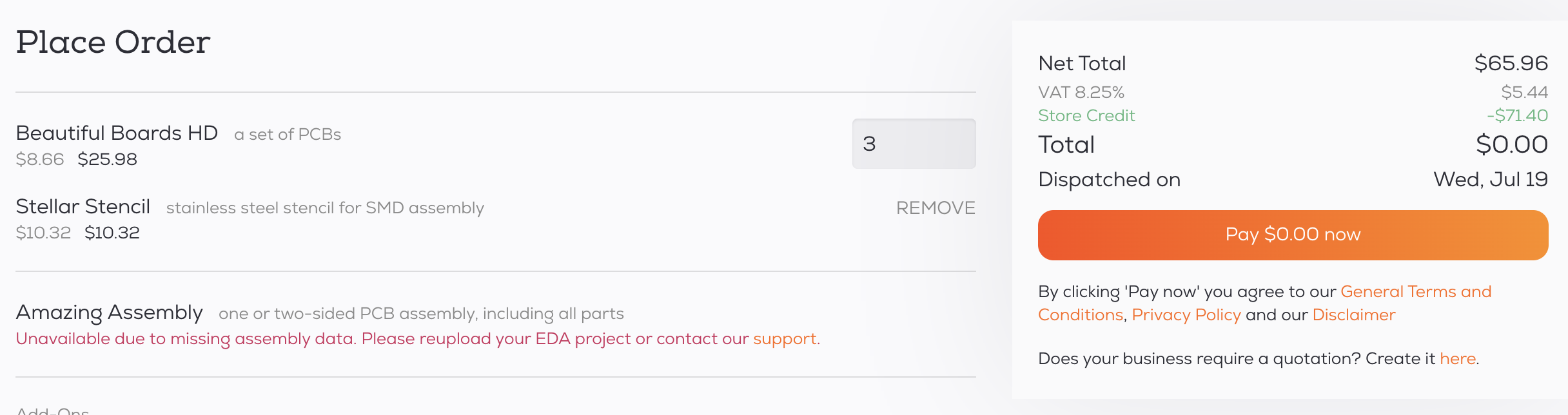

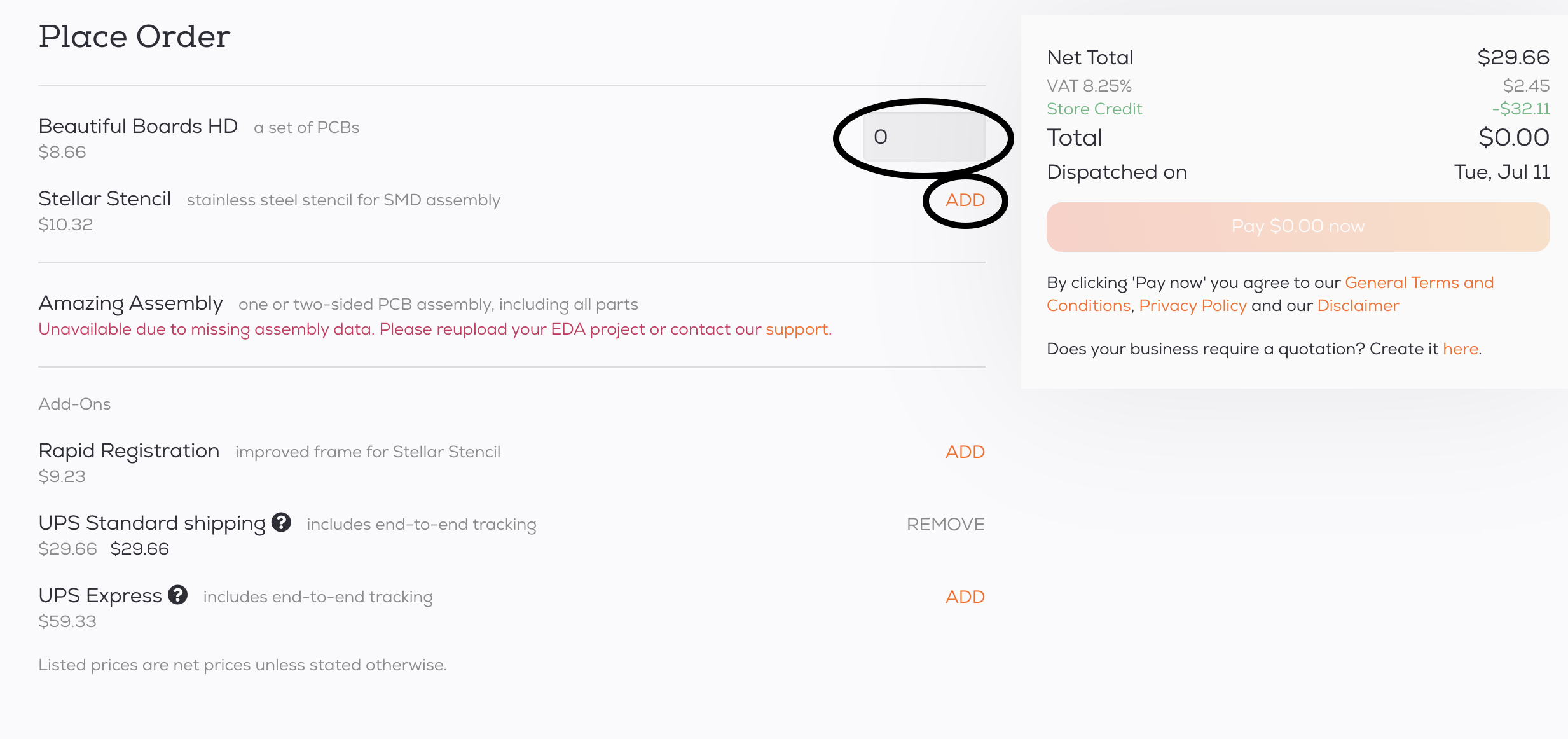

The minimum board order quantity is 3. You can either type it in or hover over the counter and press the “up” increment button. You can also order a stencil at this point by pressing “Add” right underneath the board counter. Add your address info on the left side of the page and you’ll be ready to order!

⁠
