Environment Setting
Cesium Plugin usage
Create new story in Cesium website:
QuickStart in UE:
Enable the plugin → open a blank project → create a new level
Connect Cesum ion

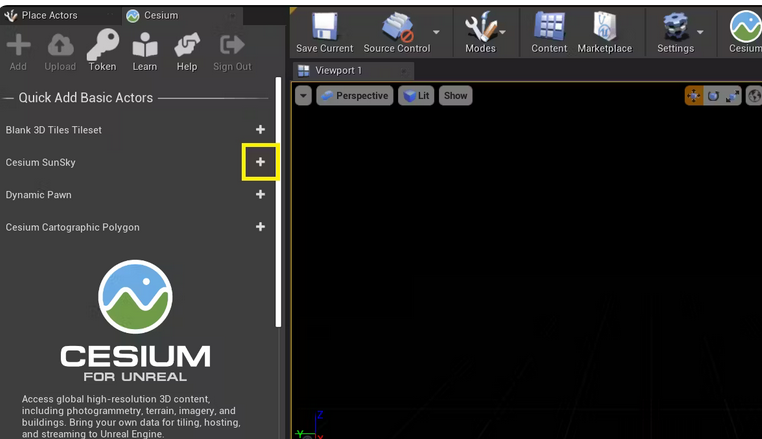

Place CesiumSunSky (adjust Solar Time properly) or directional light in the scen e

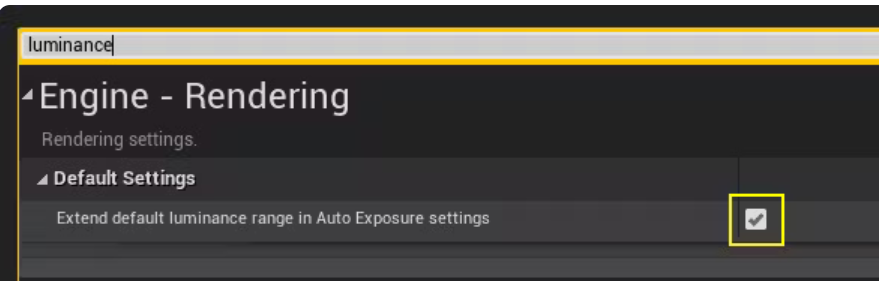

Project Setting: tick Extend default luminance range in auto exposure setting

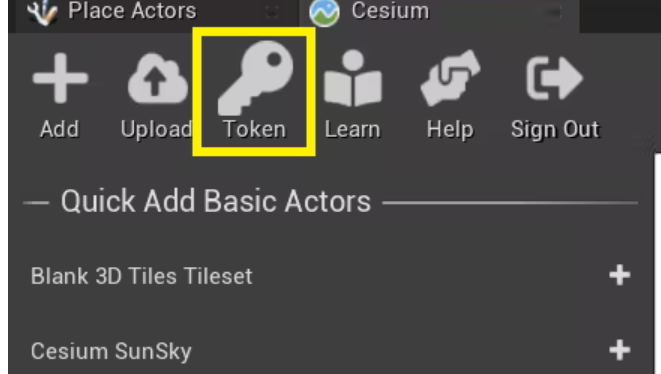

Create a new token, rename it (save in Cesium ion account, can choose use an ecisting token next time)

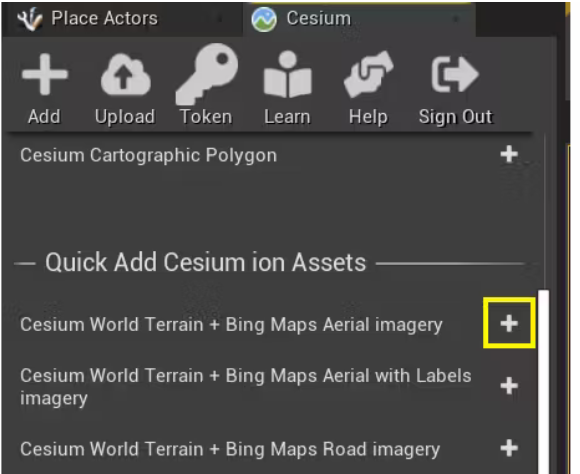

Add below asset:

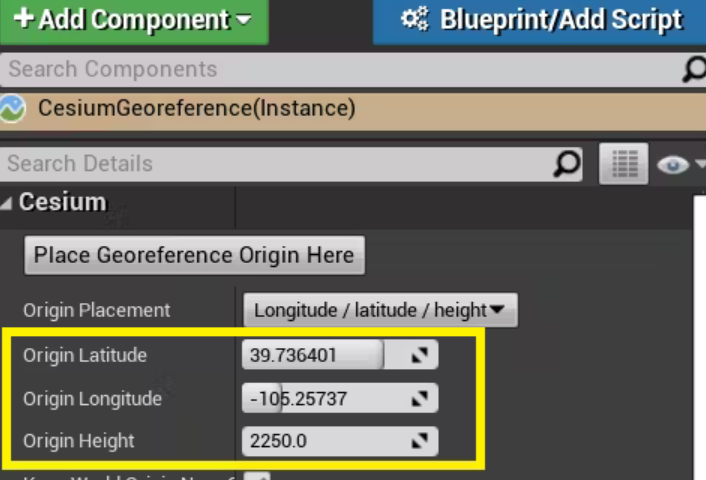

Select Cesium Georeference actor, change origin latitude, longitude and height to my favour city
P.S. If seeing a black line on horzion after adding sunsky and world terrain,
Select Georeference and choose sun sky to cesiumsunsky:

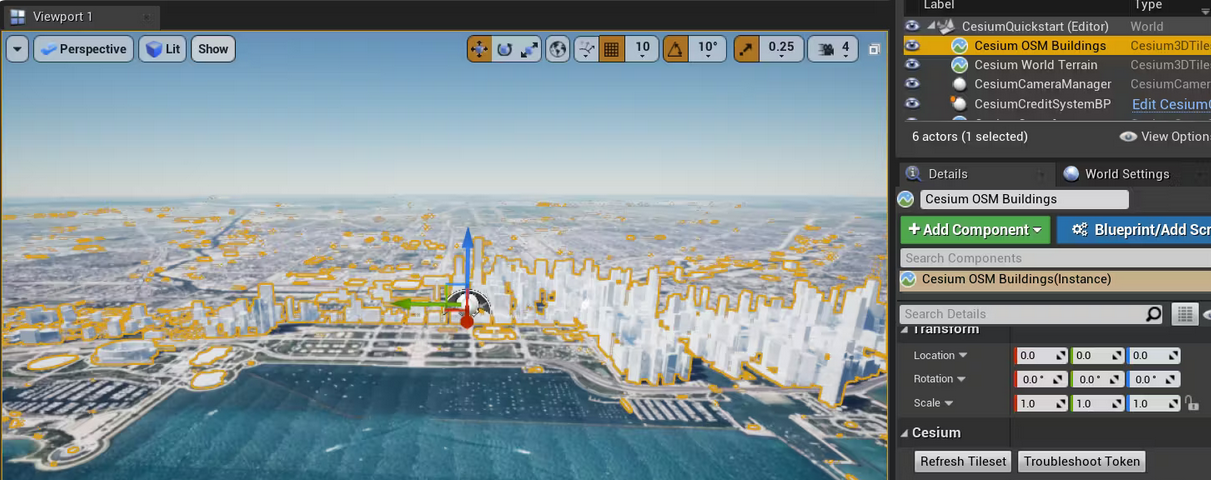

Add Cesium OSM Building to the scene (to give 3D building objects data)
Add Dynamic Pawn (for adjusting camera speed when in play mode)

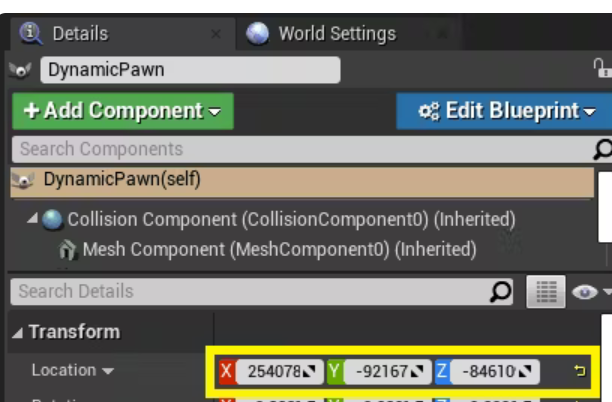

Set its location as 000 if want it in a new location
Set auto possess player to player 0
Optional setting to improve performance:

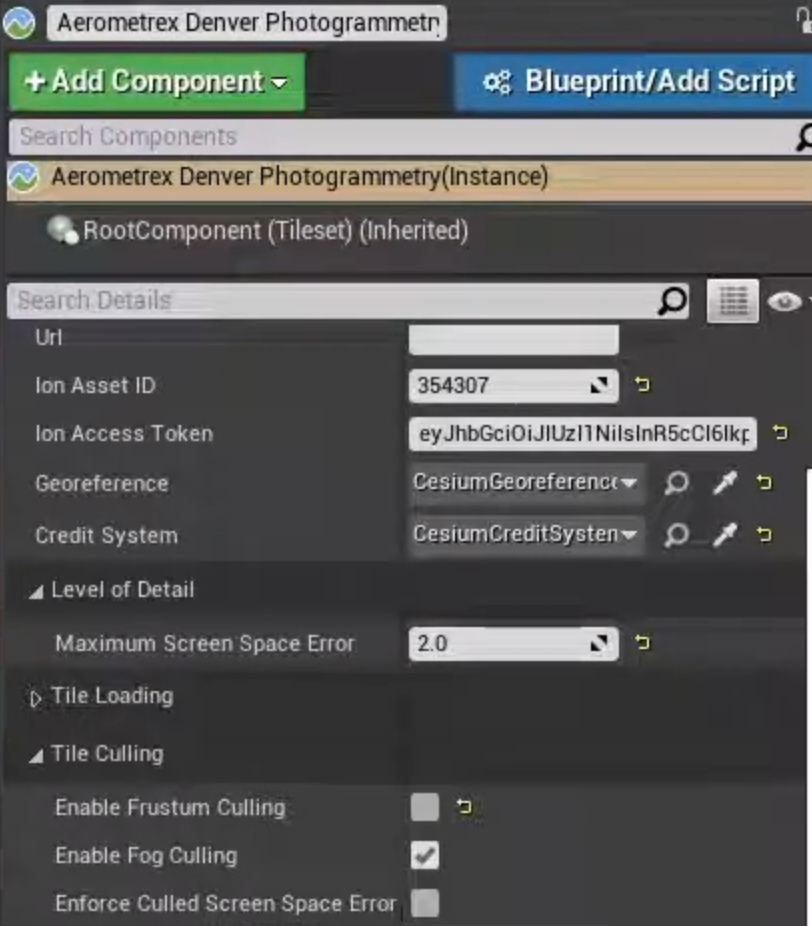

In imported photograpmmetry mesh, level of Detail → Max screen space Error → increase value (to see less detail)
Untick Enable Frustum Culling in Tile Culling value (drop quality of tiles)
Disable Water Mask in Cesium World Terrain
