Design Approval

Below is the design approval for your outdoor design.

We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!

Design Approval Checklist

Refer to this checklist 📋 to make sure your drawings are error-free and designed just the way you want 💯. Please note, that we cannot release your Final Drawings without confirmation that these items are correct.

All images correctly portray my intent for the layout and structural design for my Backyard Design.

All important structural information is included.

Stated dimensions are correct.

⁠

Design Waivers

Scope of Work Waiver: The design presented is conceptual in nature and does not define the final scope of work. Refer to your approved invoice on Buildertrend for a complete and accurate description of your included scope of work. Features or elements depicted in the design that are not specifically included in the approved invoice are not part of the contracted scope, regardless of their appearance in renderings or drawings.

Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.

Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Landscape plan will verify specific plant species and sizes.

Survey Waiver: The design presented is based on the survey information provided by the client. Tree locations, topography, and other site-specific details are subject to verification and may require adjustments to ensure accuracy in implementation. Any discrepancies in the survey data could impact final design elements.

Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.

Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.

⁠

CURRENT

Last Updated on 10-29-25

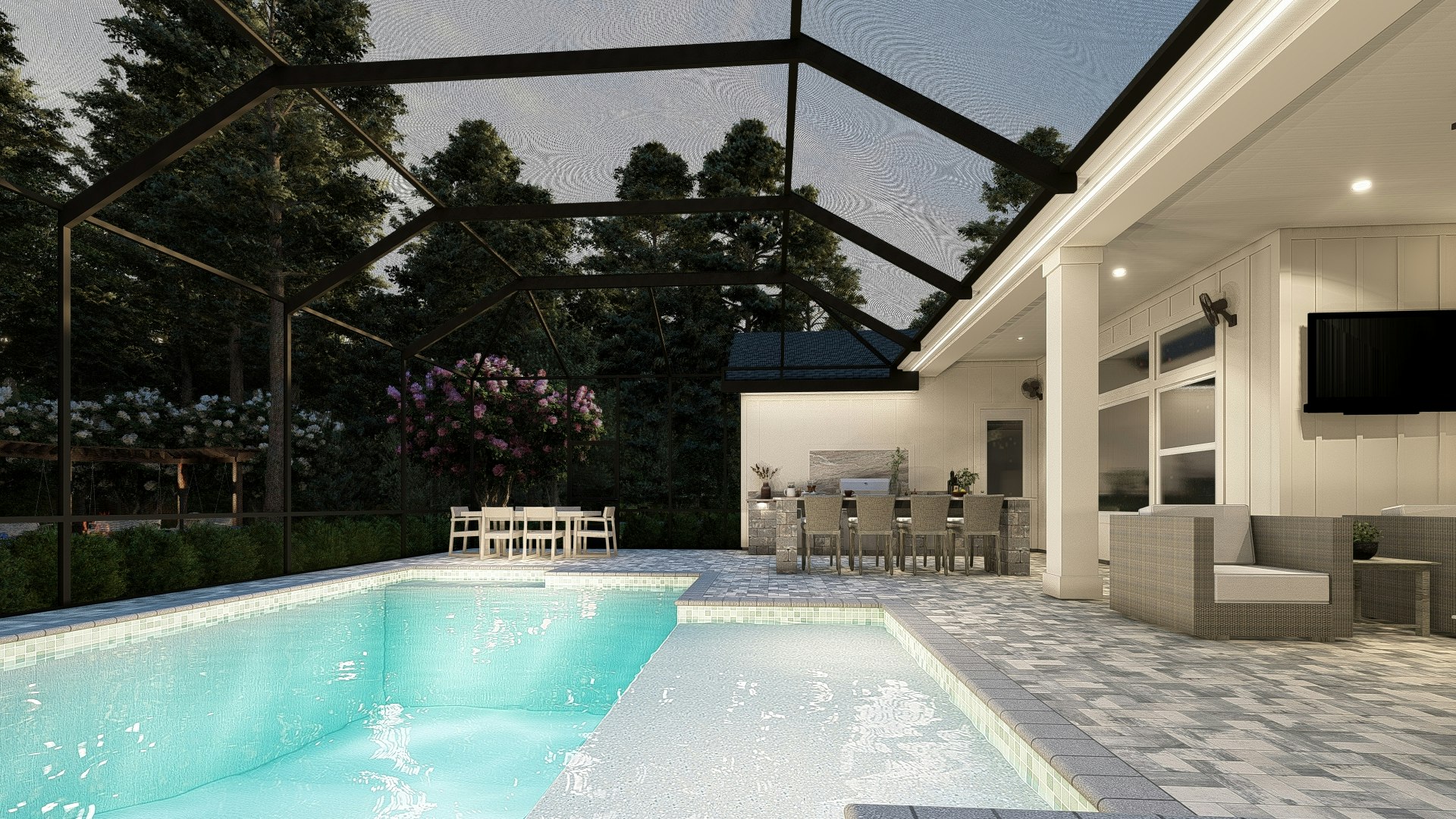

Renderings

Click Link Below to View Photo Gallery

⁠

Key Design Elements:

(13’) Belgard Block Kitchen

Castle Manor (Slate)

Granite Counters and Granite Backsplash (62 sq ft)

Level 1 - 1 Slab (Fantasy Brown Leathered)

Appliances:

Delta Heat 32" Gas Grill w/ Rotisserie

Delta Heat 18" Griddle Plate for Grill

Delta Heat 32" Vinyl Cover for Built-In Grill

Delta Heat 30" Door & Two Drawer Combo

Custom Granite Backsplash - 5’-10” x 2’-11”(Fantasy Brown Leathered)

Delta Heat 18" Double Tall Trash Drawer

True 24" Refrigerator (Glass or SS Door)

(10') Belgard Block Kitchen (Floating Bar)

Castle Manor (Slate) Wall Block Columns (2)

Granite Counters (32 sq ft)

Level 1 - 1 Slab (Fantasy Brown Leathered)

Belgard Block Fire Pit

Gas

Castle Manor (Slate)

55" Round

Tiki Torches

(2) Natural gas or LP gas Everglow Flower Torches

Paver Patio (Firepit Seating Area)

Belgard Block Retaining Wall & Border (42 sq ft)

4" Crushed Concrete Base

Castle Manor Wall Block (Slate)

Castle Manor Caps (Slate)

Pavers (115 sq ft)

*PAVERS TO MATCH EXISTING POOL DECK PAVERS. VERIFY IF EXISTING PAVERS ARE TREMRON MEGA OLDE TOWNE GLACIER

Crushed Granite & Steppers

Path from Screen Door to Firepit/Seating Area

Crushed Granite & Steppers (137 sq ft)

Colorado River Jacks

Compacted 57 stone, Filter Cloth, Brown Aluminum Edging Edging

Mountain Mist Flagstone Steppers (72 sq ft)

Low Voltage Lighting

(8) Low Voltage LED Under Cap Lights on outdoor kitchen

(3) Puck lights under the floating bar

(4) Black Up-Down Sconce Lights on Trellis

110 Electric

(4) Proposed 1 gang outlets on outdoor kitchen backsplash (2) and floating bar (2)

(1) Existing 1 gang outlet relocated from the proposed custom backsplash location to inside of the block kitchen behind the grill

(1) Existing outlet to remain inside in the block kitchen

Fixtures

(1) Minka-Aire Xtreme H2O 65” Fan (Smoked Iron) to replace existing fan on back porch

(2) Minka-Aire Anywhere 15” Diameter 3 Speed Indoor/Outdoor Wall Mount Fans (Black)

Paver Landings

At screen doors

(2) 10 Sq ft (20 sq ft total)

*PAVERS TO MATCH EXISTING POOL DECK PAVERS. VERIFY IF EXISTING PAVERS ARE TREMRON MEGA OLDE TOWNE GLACIER

Trellis Structure

(4) 6” x 6” Posts -Marine Grade, Rough Sawn, Pressure Treated Timber Posts (moisture, wet ground), Burnt Hickory Stain

(6) 2” x 10” Cedar Beams - Burnt Hickory Stain

(22) 2” x 8” Cedar Rafters - Burnt Hickory Stain

(18) 2” x 2” Cedar Purlins - Burnt Hickory Stain

Swings

(3) Polywood 48” Bench Swings - Sand (TO MATCH EXISTING ADIRONDACK CHAIRS (VERIFY)

48” MODEL SELECTION TBD

Stainless steel chains and hardware

Landscaping

Around Screen Enclosure and back foundation

Firepit Seating Area

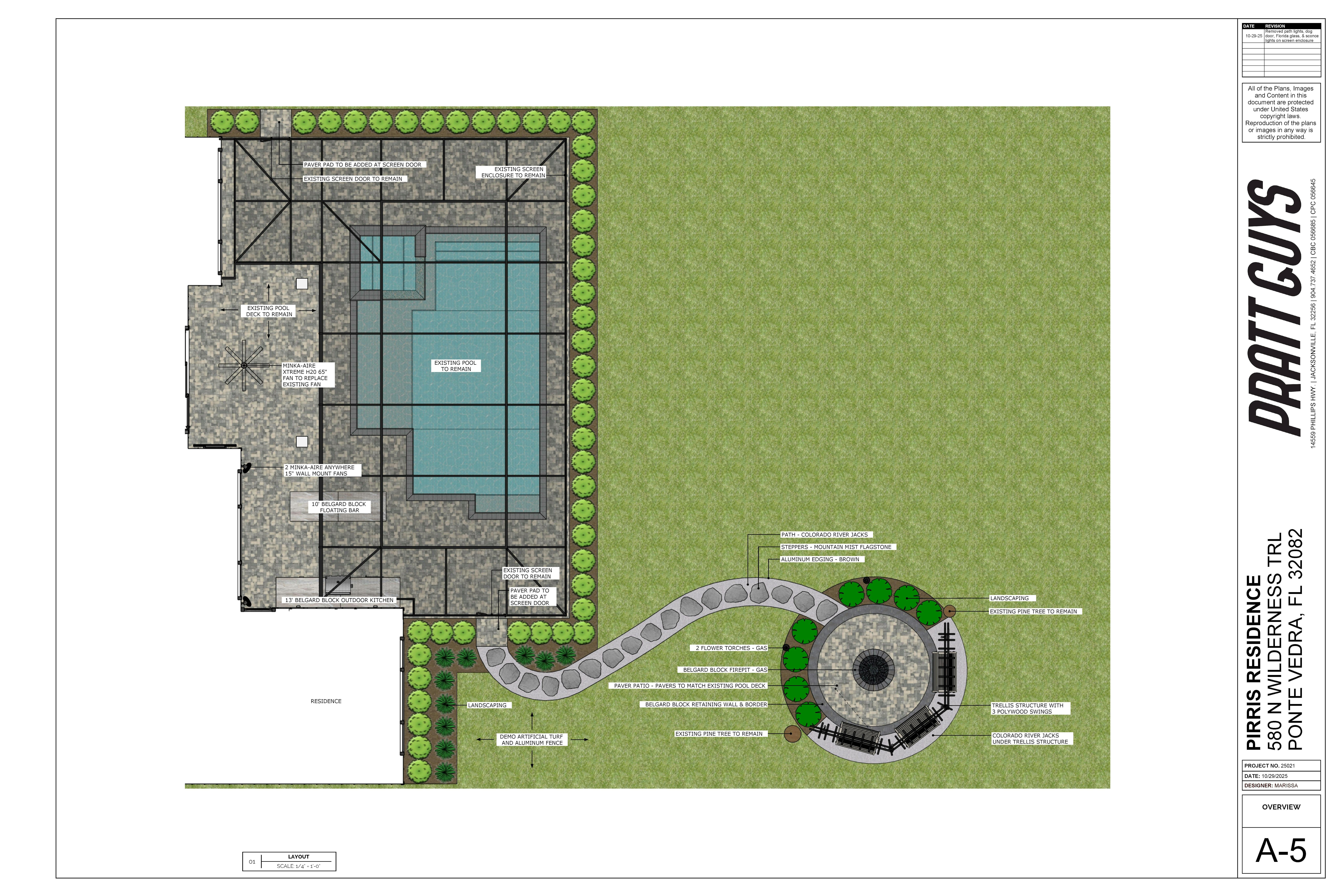

Overview

⁠

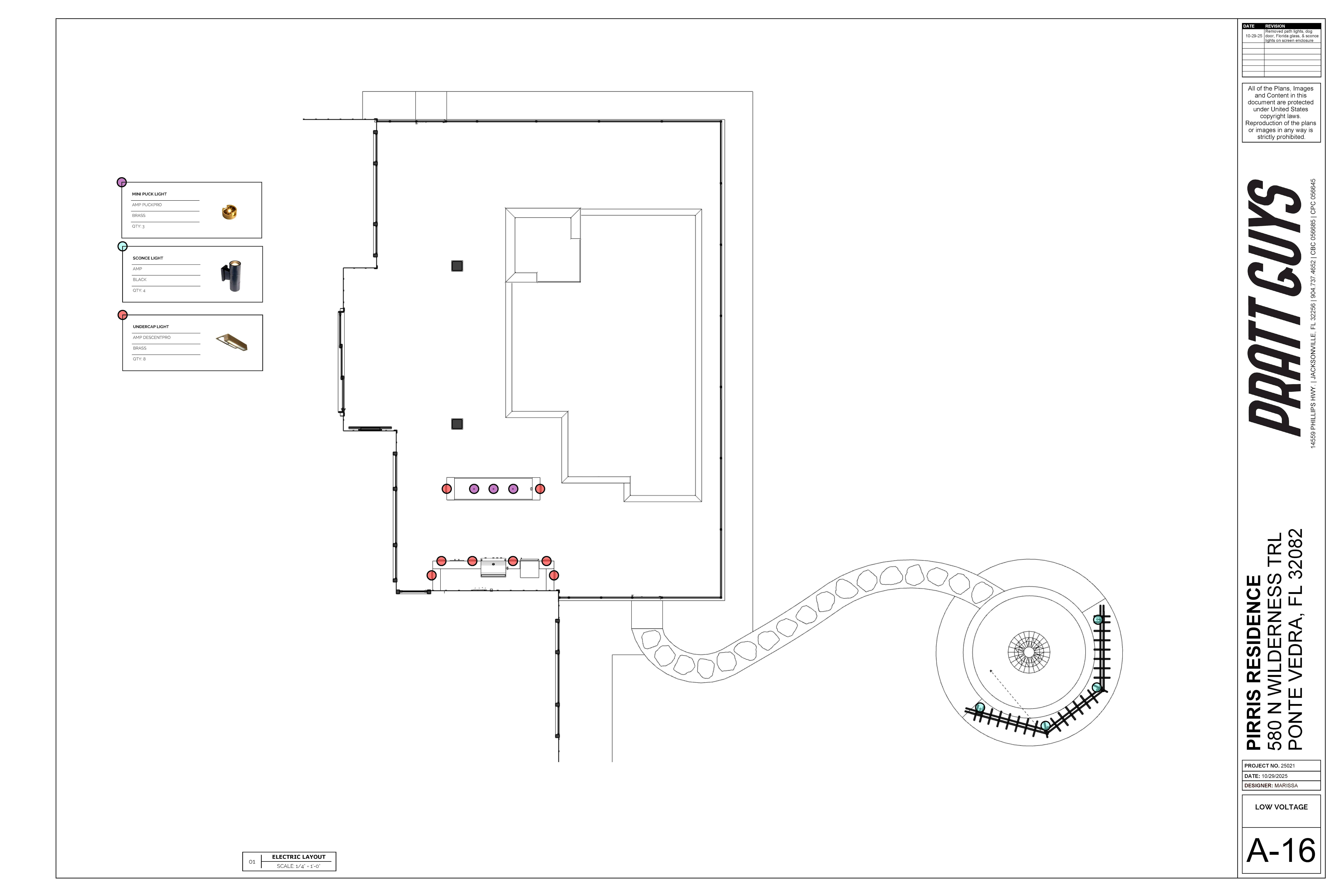

Low Voltage Lighting

⁠

⁠

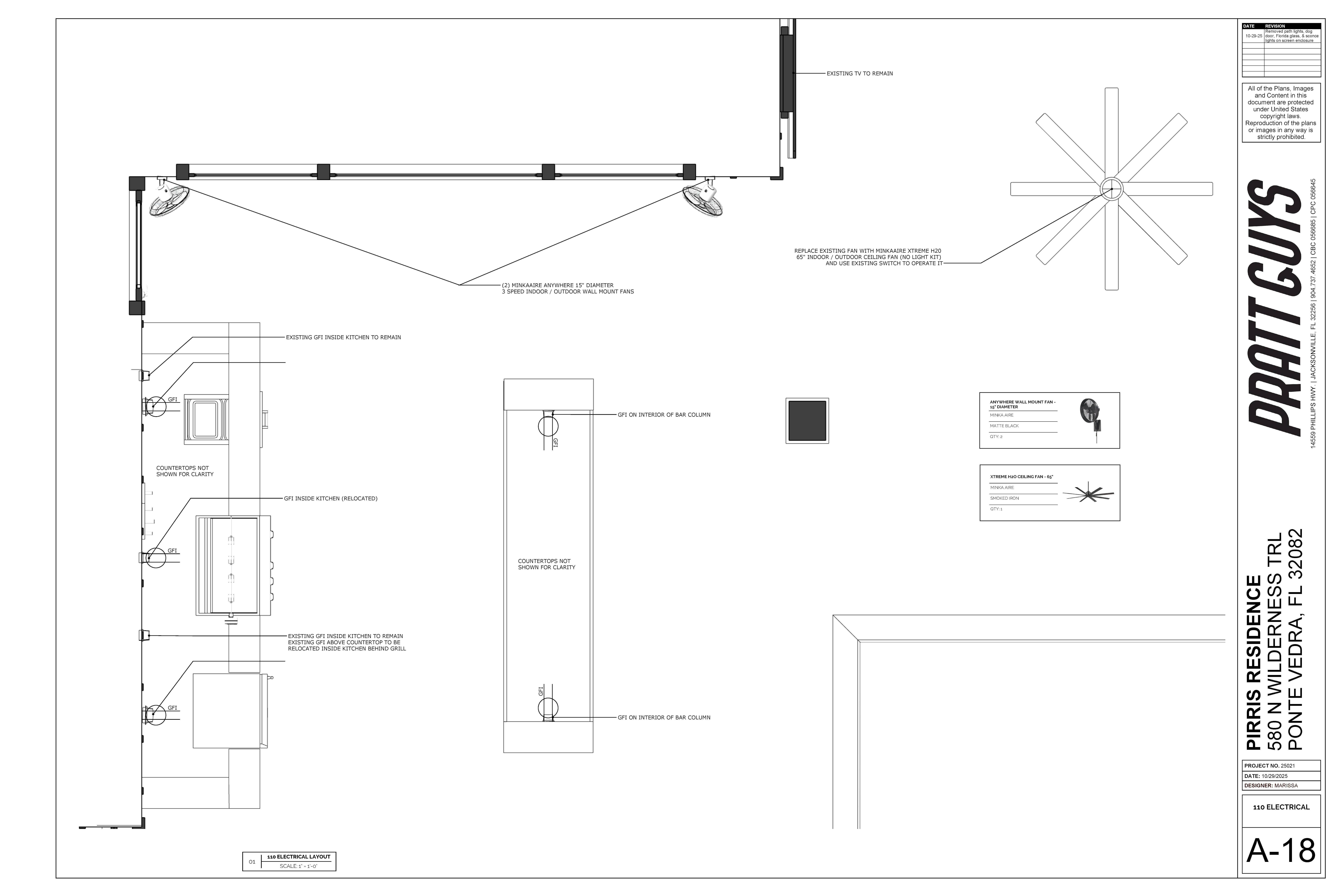

110 Electrical

⁠

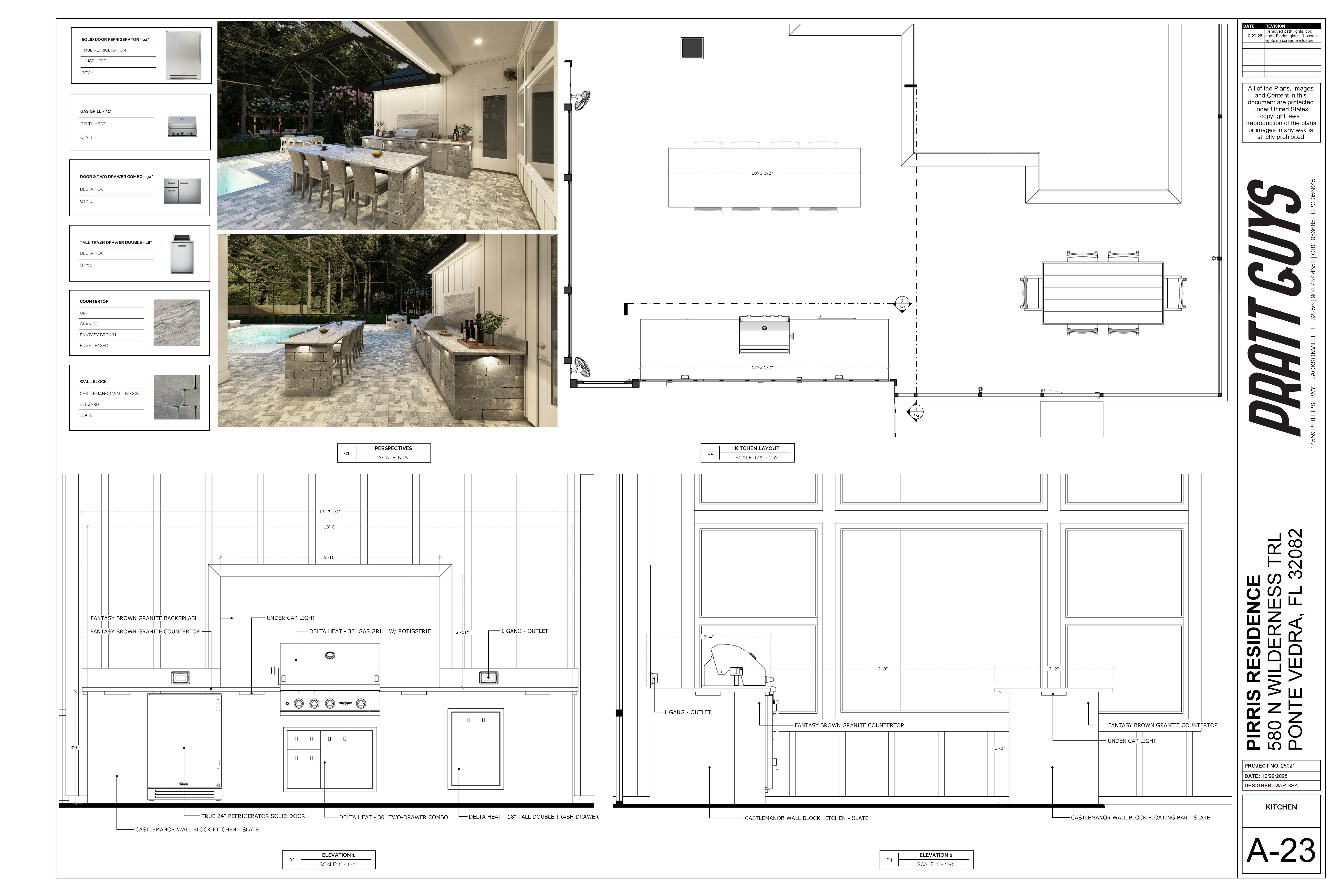

Kitchen

⁠

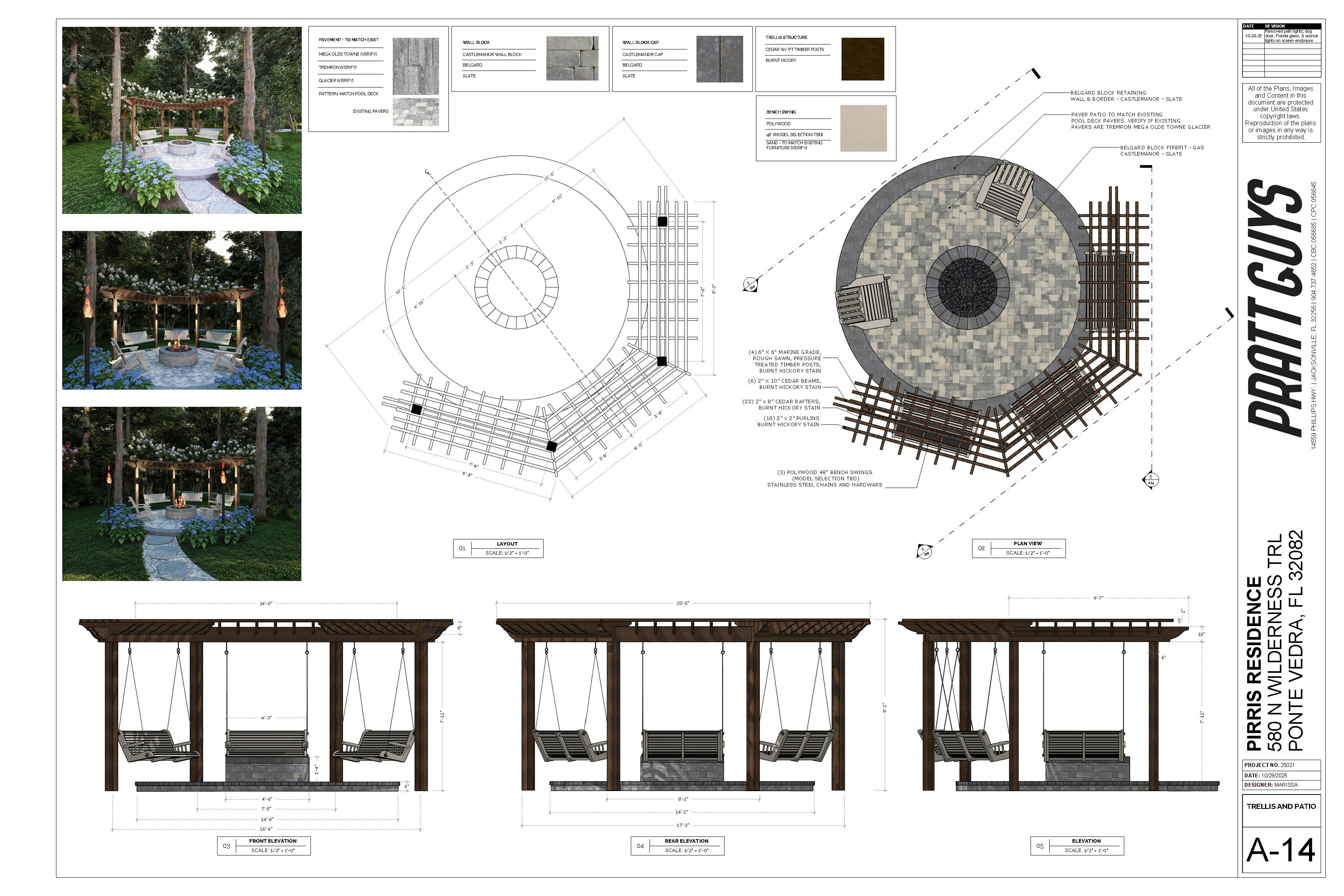

Trellis and Patio

⁠

Feasibility Study

Zone Type: Open Rural

Primary/Attached Structure Setbacks

Front — 25'

Sides — 10'

Rear — 10'

Max Height for Primary/Attached Structures

35'

Accessory Structure Setbacks

Sides — 5'

Rear — 5'

Max Height for Accessory Structures

Same as the house, and cannot be greater than the house nor can the eave height of the accessory be greater than the eave height of the house

Max Lot Coverage by Buildings with Solid Roofs

35 percent

Max Impervious Surface Ratio

70 percent

Paver setbacks

3' from side and rear property lines

⁠

Survey

⁠
