Front - 25'Sides - 5'Rear - 1035'Sides - 3'Rear - 3'Sides - 3'Rear - 3'65 percent70 percent
Concrete FooterAluminum Screen Enclosure Style: MansardColor: Bronze or White Gutter: 7" SupergutterRoof & Wall Screen: 18x14 Chair Rail: 3' Down Spouts: 2- 4" x 5"Two Screen Doors30' x 30' Screen Enclosure (30' + 30' + 13')10' WallsNo See-Um Screen Upgrade on Walls OnlyUpgrade all Screws on Screen Enclosure to Stainless Steel Screws39 tons of crushed crete, 6" thick baseGround concrete, this is to create a hard, compact, reliable ground and surface to work with for the pavers1,684 sq.ft. of pavers (220 sq.ft. Front Porch, 900 sq.ft. Back Porch & Screen Enclosure, and 188' linear ft of Walkways)Manufacturer: Tremron or BelgardGrass RemovalExcavationCommercial Grade Filter Cloth (23) Aluminum Edging (Black) to hold in all Gravel and to help prevent Grass from growing into the Gravel 3" thick of Gravel 3/4" White River Rock Included within Pricing (Final selection TBD)
Design Process
Below is the design process for your outdoor design.
We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!
Design Waivers
Scope of Work Waiver: The design presented is conceptual in nature and does not define the final scope of work. Refer to your approved invoice on Buildertrend for a complete and accurate description of your included scope of work. Features or elements depicted in the design that are not specifically included in the approved invoice are not part of the contracted scope, regardless of their appearance in renderings or drawings.
Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.
Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Landscape plan will verify specific plant species and sizes.
Survey Waiver: The design presented is based on the survey information provided by the client. Tree locations, topography, and other site-specific details are subject to verification and may require adjustments to ensure accuracy in implementation. Any discrepancies in the survey data could impact final design elements.
Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.
Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.
Feasibility Study
LAST UPDATED ON 9-24-2025
Primary/Attached Structure Setbacks
Max Height for Primary/Attached Structures
Accessory Structure Setbacks
Pavers/Patio Setbacks
Max Lot Coverage by Buildings w/ Solid Roofs
Max Lot Coverage by Impervious Surfaces
HOA Restrictions:
Our Building Documents Specialist, Justin Belichis, spoke with the HOA. He was informed that for HOA approval, we will need a soft landscape edge between the gravel and the property lines. We chose a small plant (Liriope muscari) from the architectural design guidelines to place between the gravel and property lines. If you have any questions related to this, you can call or email Justin:
Justin Belichis
Building Documents Specialist
Project Overview
LAST UPDATED ON 9-24-2025
Screen Enclosure
Pavers - Tremron or Belgard
River Rock & Aluminum Edging

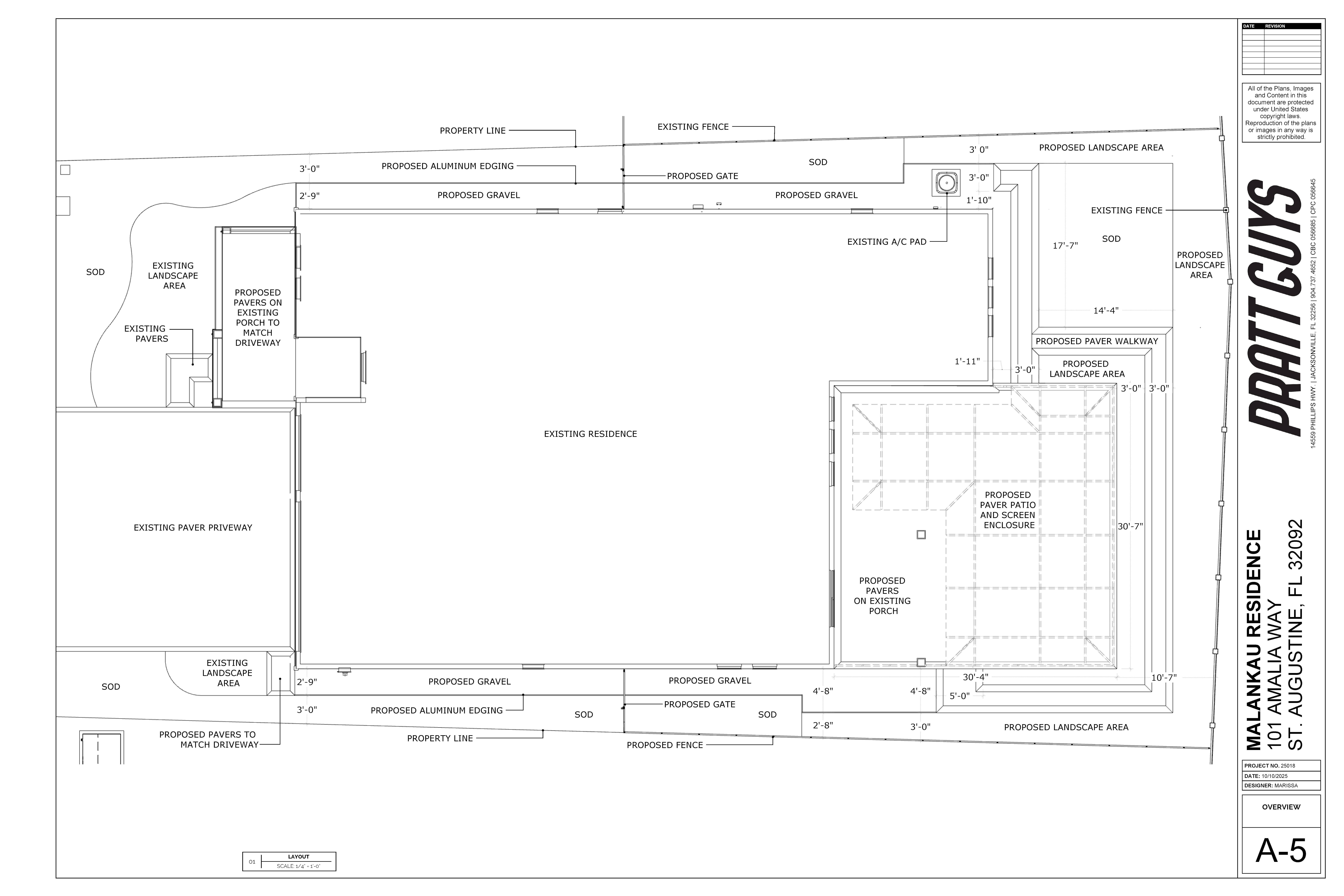

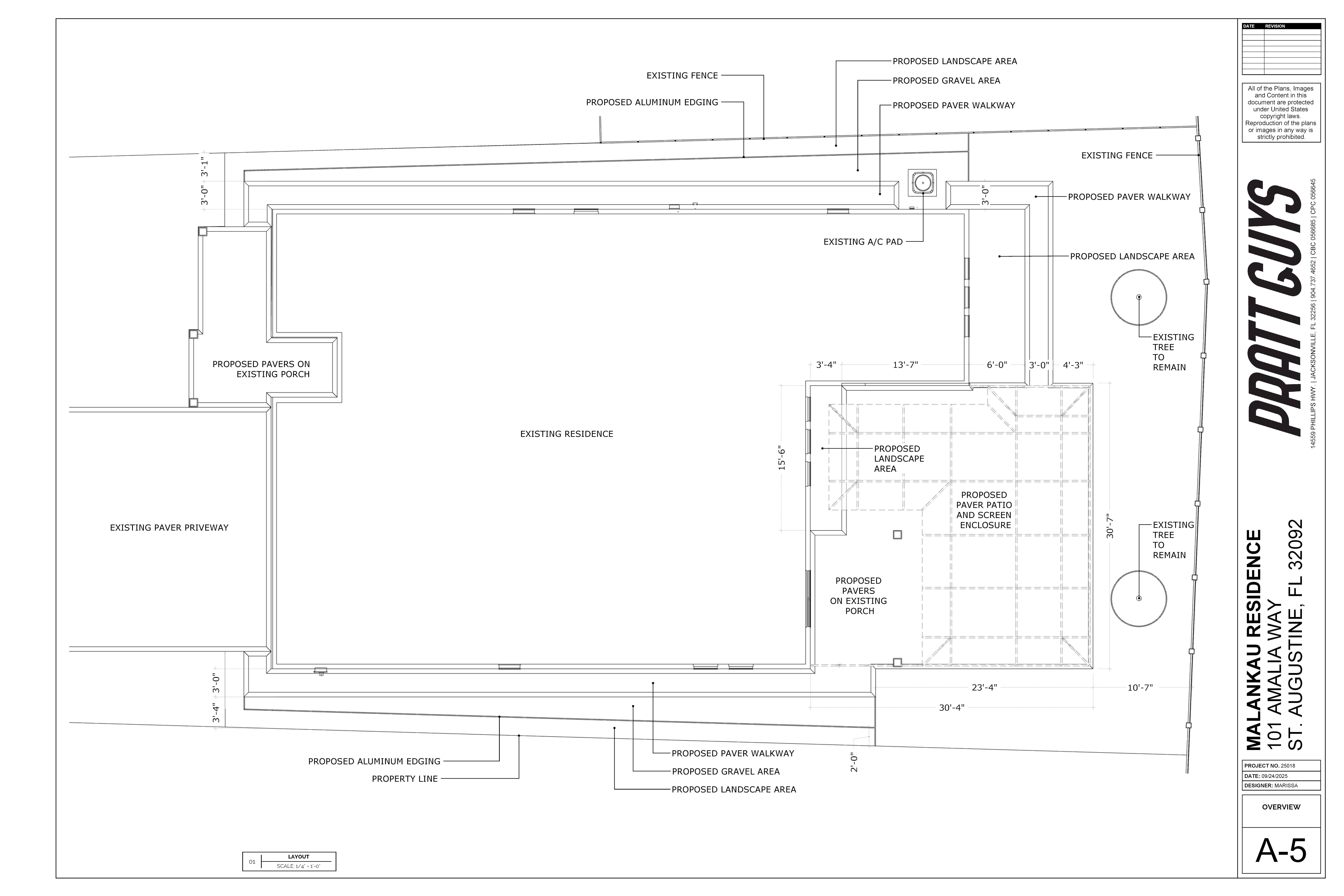

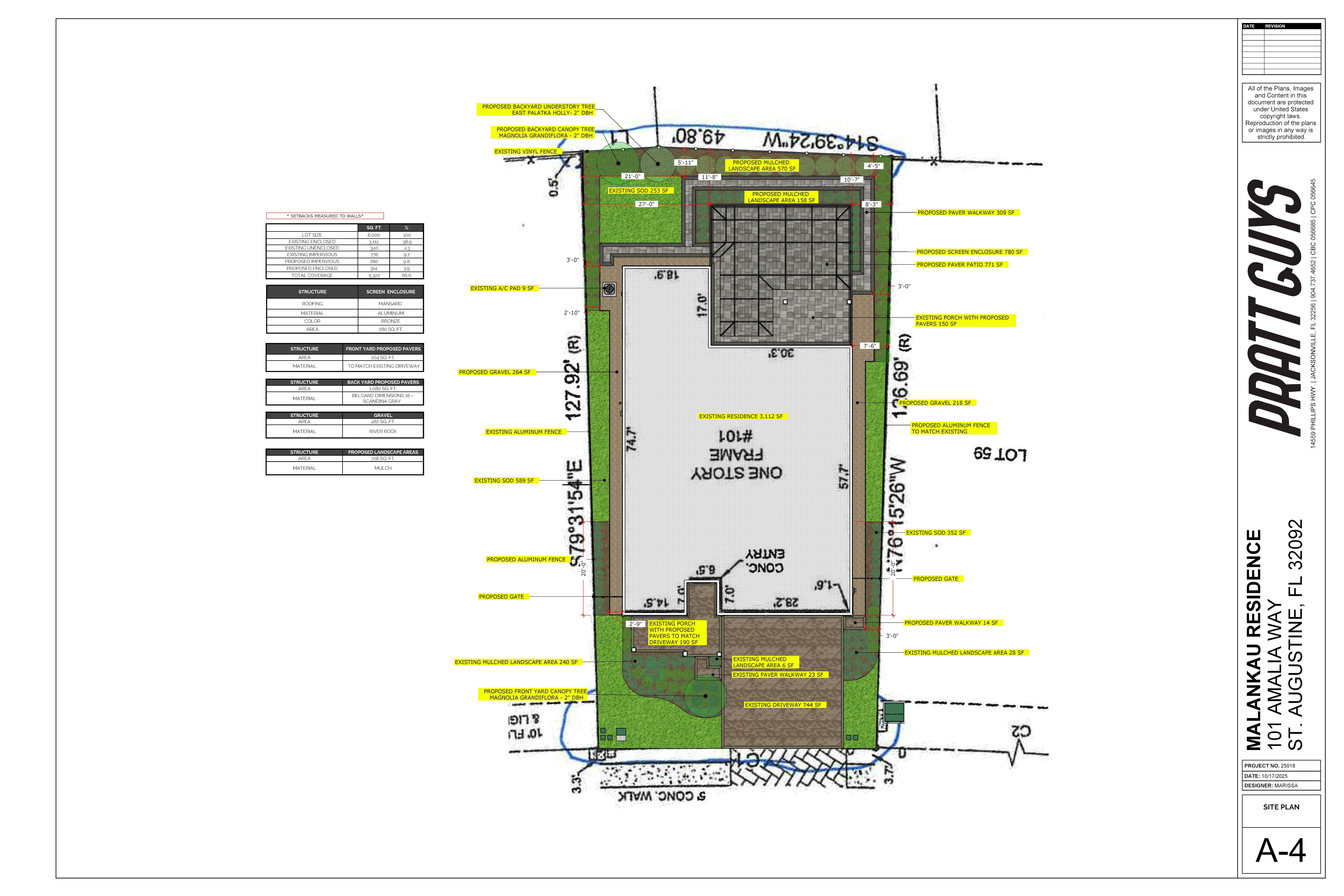

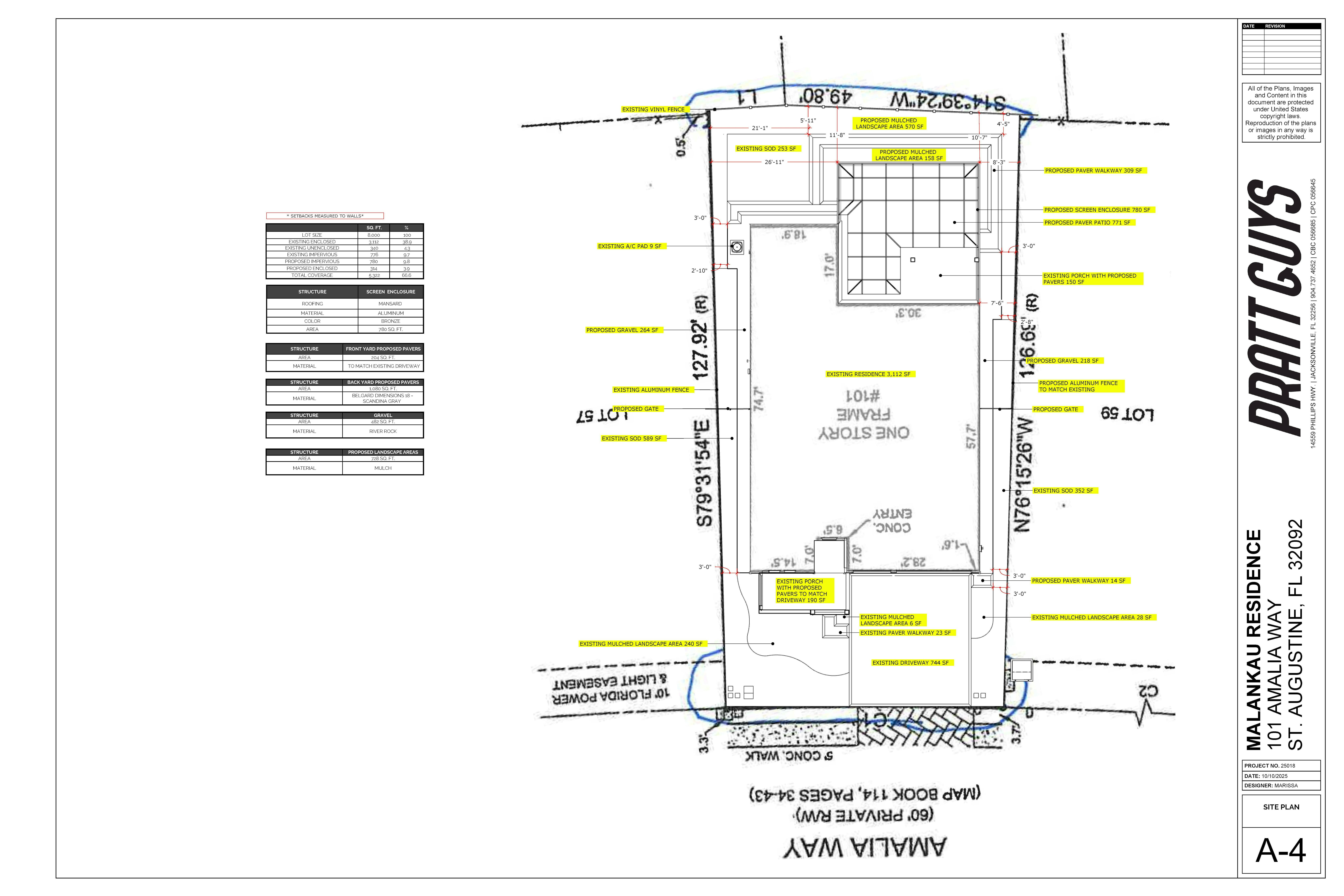

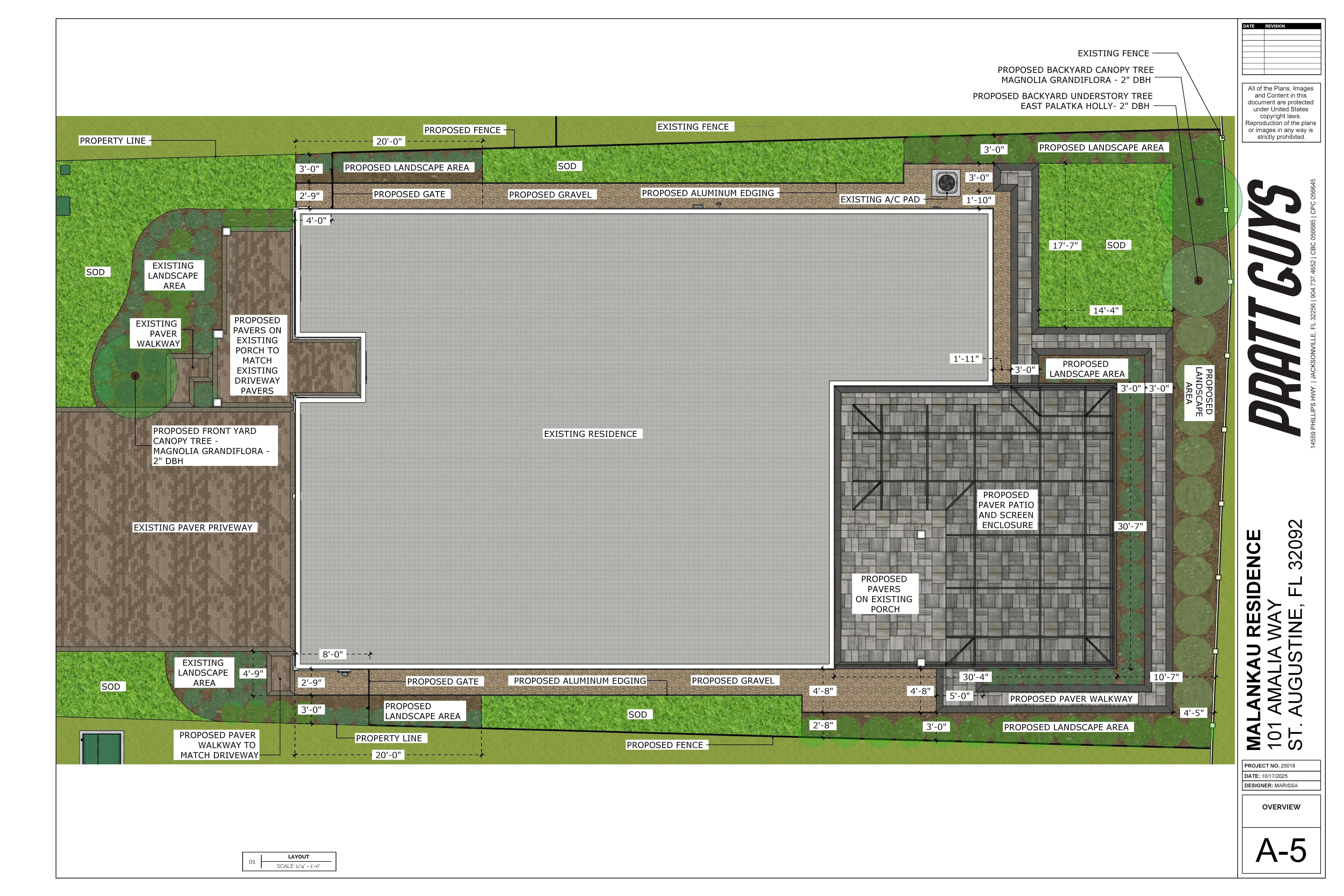

Plans
LAST UPDATED ON 10-17-2025
LAST UPDATED ON 10-10-2025
LAST UPDATED ON 09-24-2025

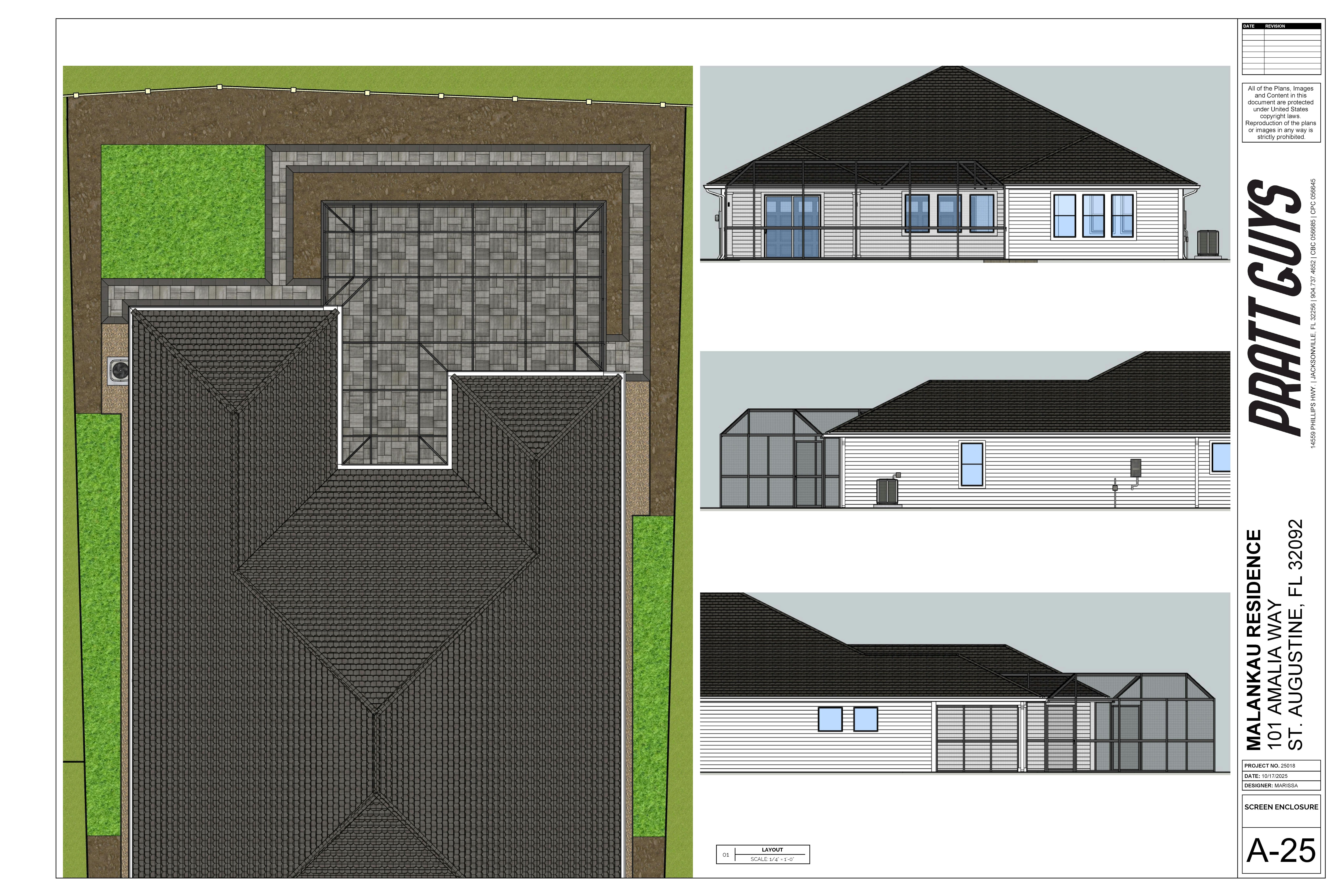

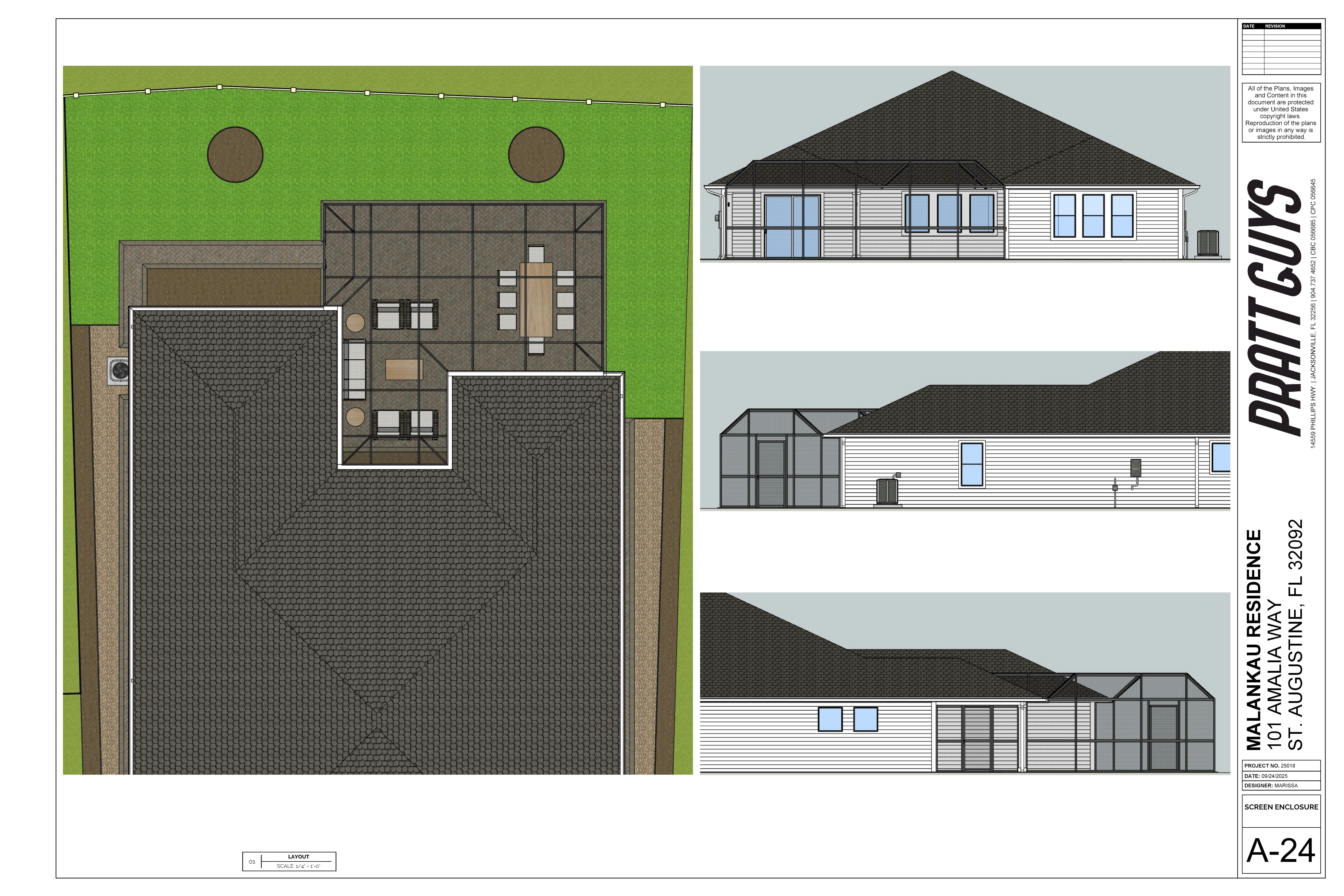

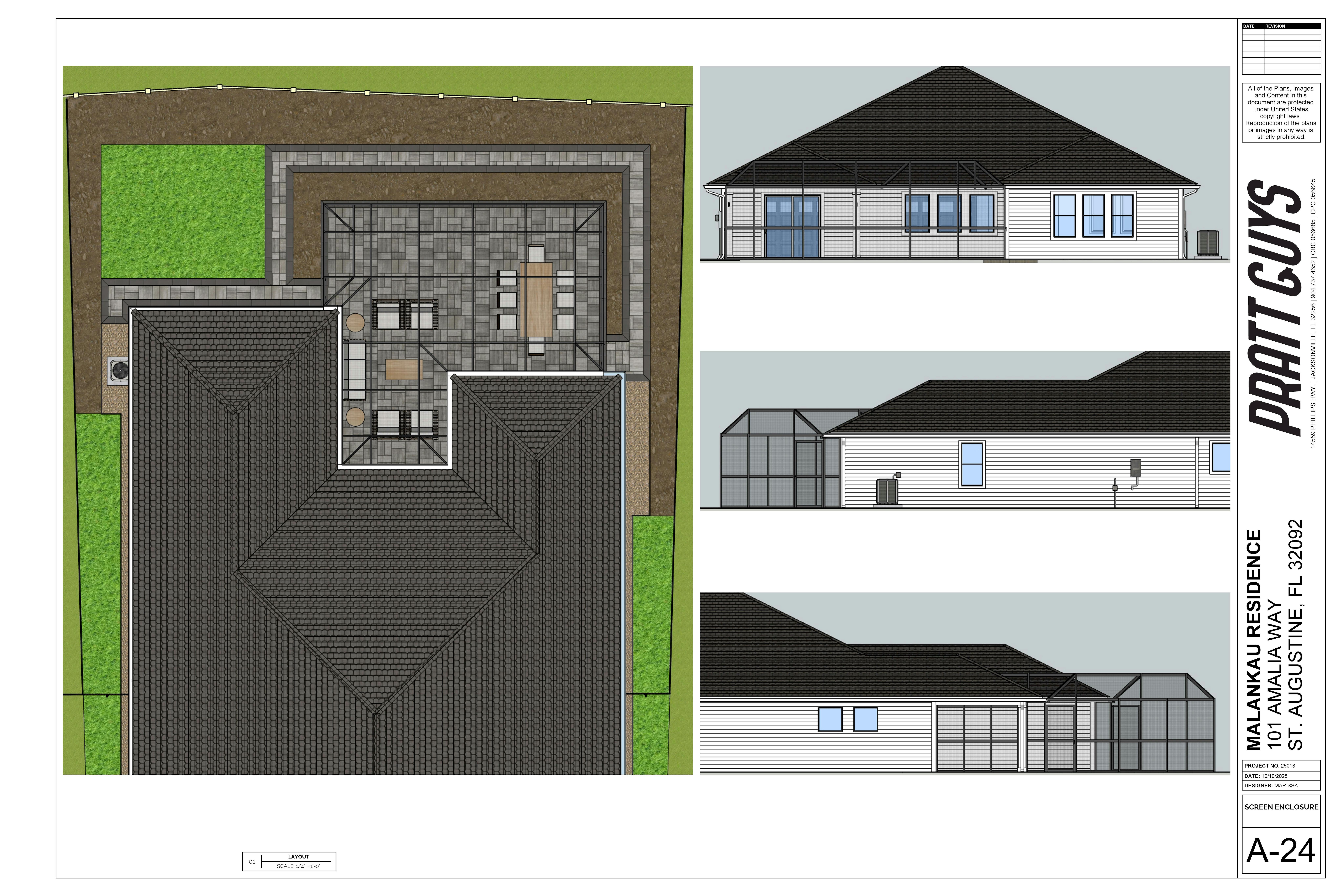

Renderings
LAST UPDATED ON 10-17-2025
LAST UPDATED ON 10-10-2025
LAST UPDATED ON 9-24-2025
