All images correctly portray my intent for the layout and structural design for my Backyard Design.All important structural information is included.Stated dimensions are correct.
Attached CabanaHip RoofOverall Roof Size: 11'-6" x 27'Outside to Outside of Corner Post Size: 10' x 24’-6”Tongue and Groove Ceiling (Pratt Guys Hawthorn shown in renderings)Paver PatioSize: 13'-6" x 27'-6"Pavers Shown in Plan and Renderings: Belgard - Dimensions 18 - 3pc - Scandina Gray (paver selection TBD)Grill & Smoker Location Side of Patio (not covered)TV Location Wall (centered between windows) Landscape Native and Low Maintenance - Landscape Plan TBDElectrical (6) 6" Halo Can Lights in black(2) 65" Minka Aire Xtreme H2O Ceiling Fans in coal/black(2) Switches for fans (located inside house)(1) Dimmer switch for Halo can lights (located inside house)(1) GFI 2-Gang, 2 Outlet on wall behind TV(1) GFI 1-Gang, 1 Outlet on wall near corner of house(1) GFI 1-Gang, 1 Outlet on top of corner post Low Voltage Lighting(3) Sconce Lights on posts(7) Up-Lights on landscape
Design Approval
Below is the design approval for your outdoor design.
We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!
Design Approval Checklist
Refer to this checklist 📋 to make sure your drawings are error-free and designed just the way you want 💯. Please note, that we cannot release your Final Drawings without confirmation that these items are correct.
Design Waivers
Scope of Work Waiver: The design presented is conceptual in nature and does not define the final scope of work. Refer to your approved invoice on Buildertrend for a complete and accurate description of your included scope of work. Features or elements depicted in the design that are not specifically included in the approved invoice are not part of the contracted scope, regardless of their appearance in renderings or drawings.
Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.
Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Landscape plan will verify specific plant species and sizes.
Survey Waiver: The design presented is based on the survey information provided by the client. Tree locations, topography, and other site-specific details are subject to verification and may require adjustments to ensure accuracy in implementation. Any discrepancies in the survey data could impact final design elements.
Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.
Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.
CURRENT- Last Updated on 01-02-26
Project Overview: Phase 1

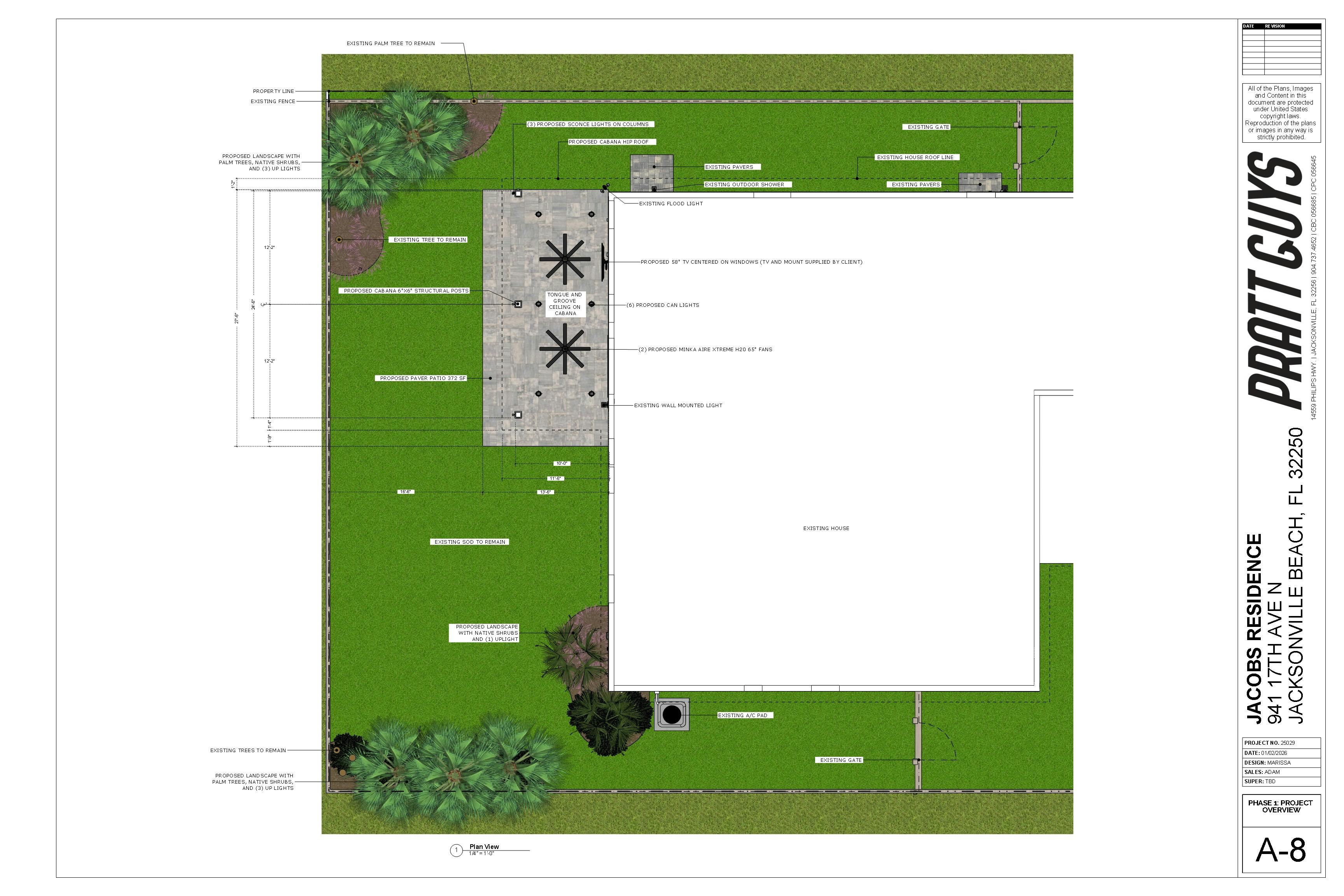

Project Overview

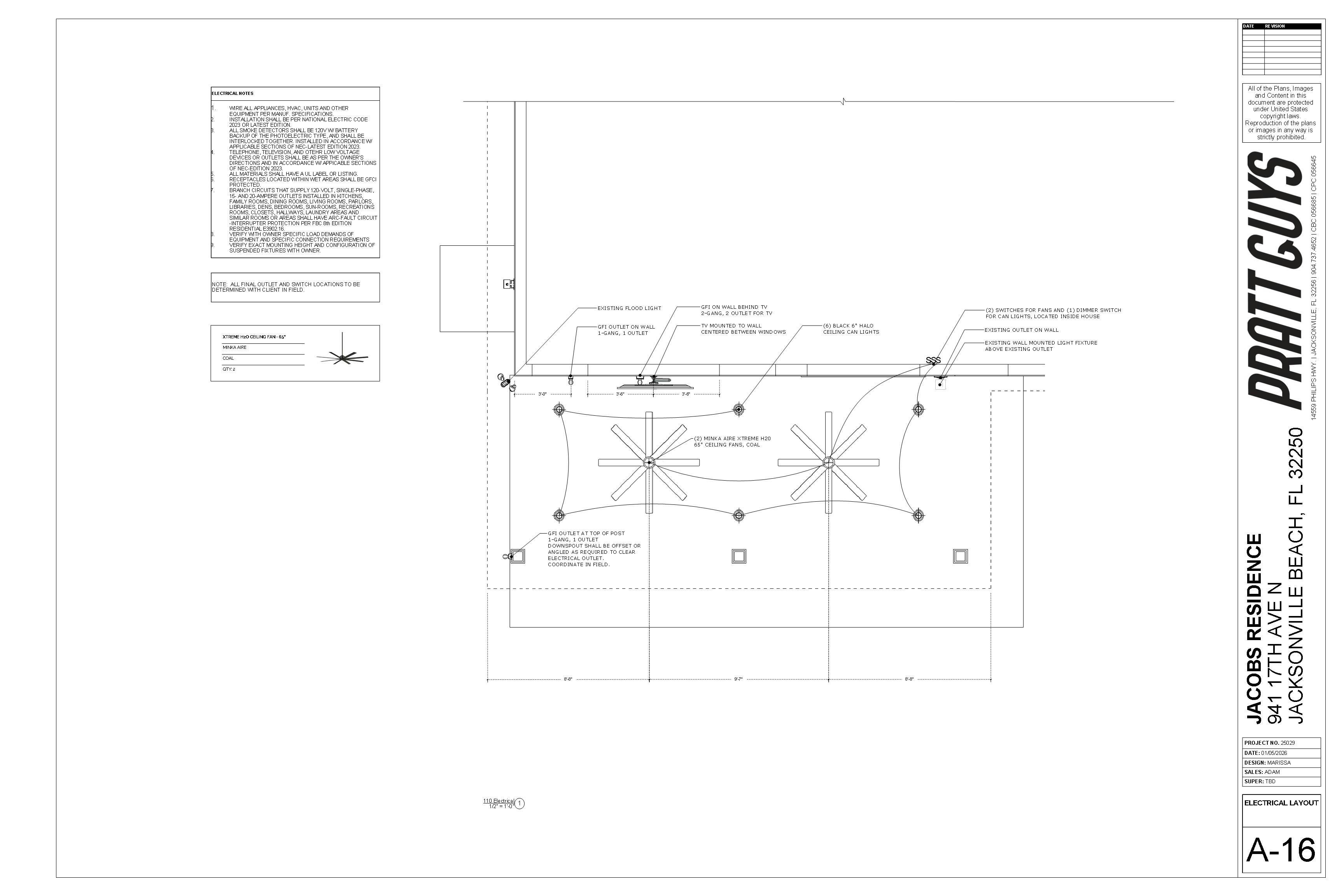

110 Electrical Layout

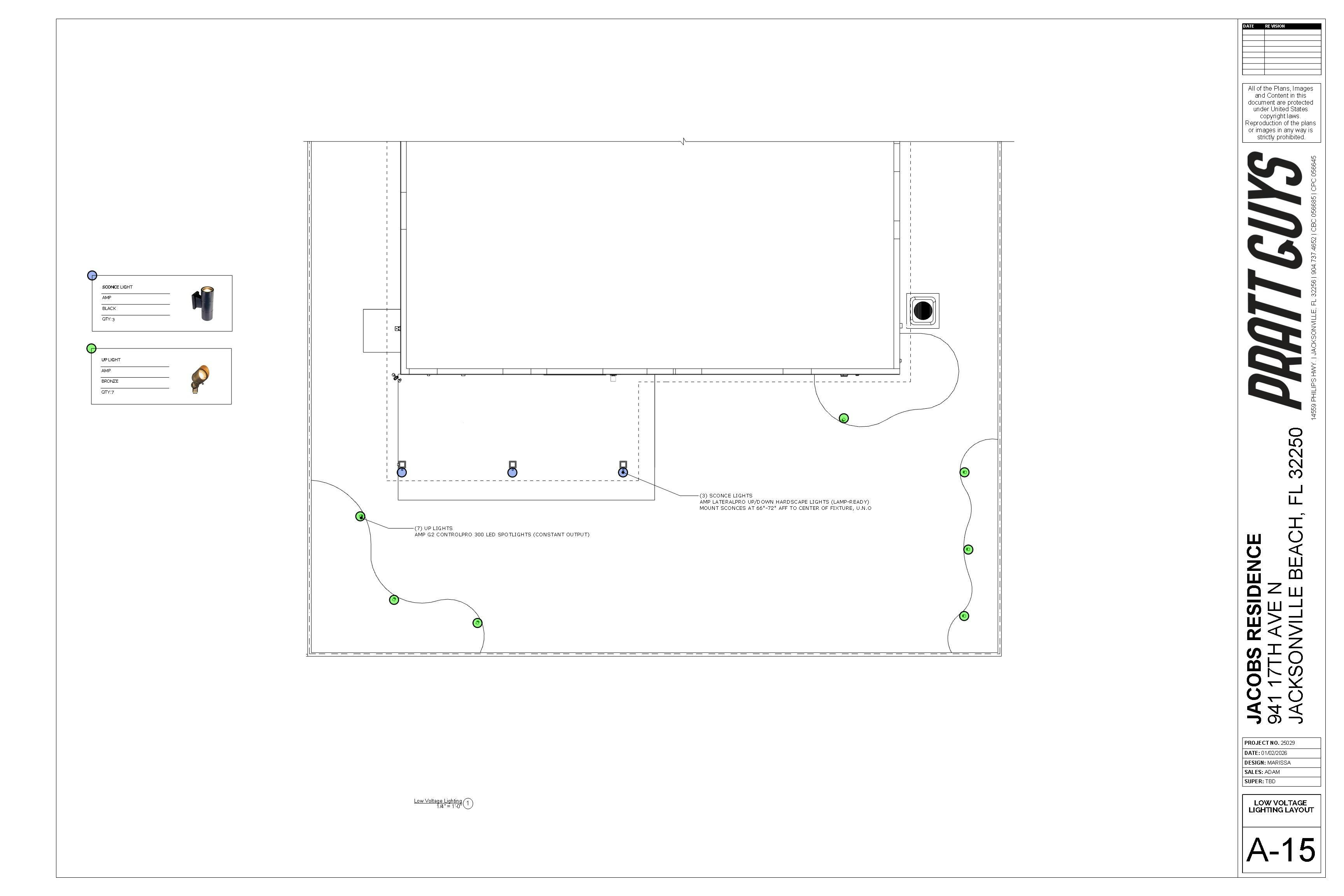

Low Voltage Lighting Layout
Renderings
CURRENT- Last Updated on 01-02-26
