8 Best Red Dot for AP5 — The Expert’s 2025 Field-Tested Guide
The AP5 is a modern, faithful take on the MP5 pattern—a roller-delayed 9mm that rewards fast sighting, both-eyes-open shooting, and compact setups that clear indoor angles with ease.
After years of living with this platform in pistol and carbine forms (various AP5 variants with stock/brace and K-length handguards), I’ve run a wide spread of optics through live-fire courses, shoot-house reps, and timer-focused drills from 5 to 100 meters.
In this guide I’ll walk you through what actually works on the AP5: low-profile mounting solutions, enclosed vs. open emitters in dirty/blowy environments, glass/reticle traits that play nicely with the diopter heritage—and which models are worth your money.
Because the AP5 doesn’t ship with a universal Picatinny top from the factory, the mounting plan matters as much as the optic: think claw-style receiver rails, low-profile one-piece mounts, or handguard-top rails when you want a forward “scout” red dot.
Below I’ll share my own timing data, round counts, and how each sight behaved when carbon, lube mist, or a rainy light-and-movement block tried to fog or foul things up.
Top Picks at a Glance
Here’s my shortlist for the Best Red Dot for AP5 based on durability, height over bore, speed on close targets, and the ability to keep the dot visible when things get wet or dusty:
Mounting note: For most of these, you’ll use a claw-style HK/MP5 top rail (e.g., low-profile receiver rail) or a specific low mount designed for the Micro/ACRO pattern. Some handguards add a forward M-LOK/1913 section; that’s handy for a “scout” dot, but mind the height.
Top 8 Best Red Dot for AP5 of 2025

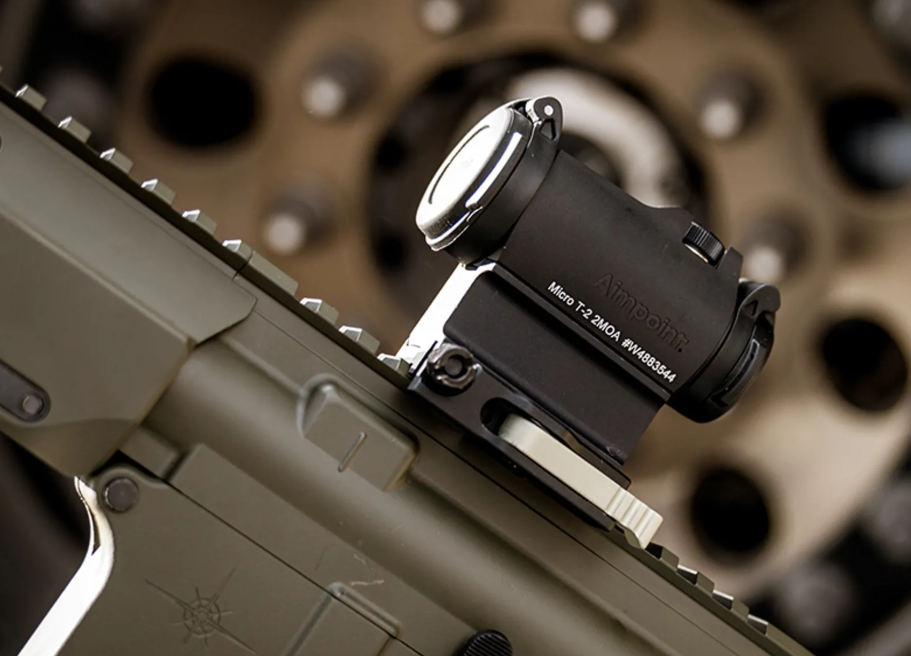

Aimpoint Micro T-2
The Aimpoint Micro T-2 is the benchmark miniature tube red dot: a compact, bomb-proof optic with insane battery life, crisp glass, and a dot that stays visible from sun-blasted gravel bays to dim hallways. On the AP5, that small tube shape plays especially well with the gun’s compact lines, and the T-2’s brightness and lens coatings keep the dot crisp even when I’m looking through the diopter plane or around a suppressor’s heat mirage. The housing takes real knocks; if you run shoulder-transitions in cramped corners, the T-2 shrugs off bumps that leave lighter sights scuffed or worse.
Specs (summary): ~3.0 oz with mount (varies by mount), 2 MOA dot, 50K hr battery life (CR2032), NV compatible, submersible, Micro footprint.
Personal experience: My T-2 endured weekly classes for two seasons, including a wet shoot-house block where it was drenched repeatedly. No fogging, no erratic brightness. Return-to-zero on a quality low MP5/AP5 mount was repeatable within practical POI tolerance. On transitions, the dot is forgiving; I could pick it up even with sloppy mounts of the gun.
What shooters say: Most owner chatter aligns with mine—top-tier reliability, set-and-forget battery life, and a “buy once, cry once” price. A few note dot starburst with astigmatism (common to many LEDs), and some wish the window were even bigger.
Mounting on AP5: You’ll want a low-profile claw receiver rail or a dedicated low Micro mount designed for MP5/AP5 receivers. Direct-to-receiver “Micro” bases exist; otherwise, use a claw rail + Micro-pattern mount to keep height over bore reasonable and avoid a chin weld.

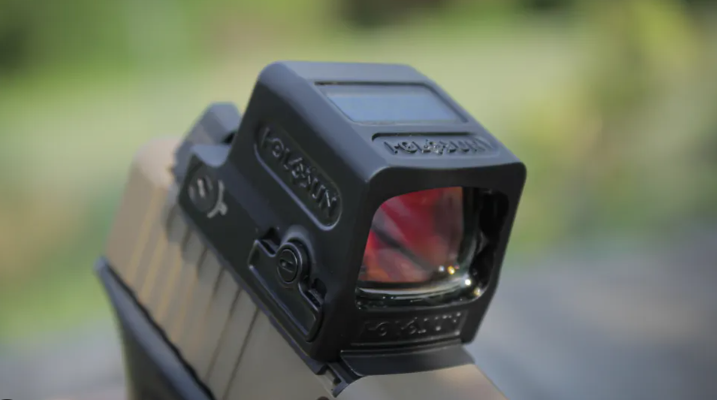

Holosun 509T
Holosun’s 509T is a compact enclosed-emitter pistol dot that crosses over beautifully to the AP5 when you prioritize environmental resilience. Unlike open emitters, the 509T seals the LED from rain, dust, and lube mist—stuff the AP5 can throw back at you during long strings. The window is modest, but the reticle options (2 MOA dot / 32 MOA circle-dot) are fast on close transitions. Titanium housing and long battery life make it a rugged little block that holds zero better than I expected on a roller-delayed gun.
Specs (summary): ~1.7 oz (optic only), enclosed emitter, 2 MOA / circle-dot, solar assist + CR1632, multiple brightness levels, RMR-interface adapter included on many bundles.
Personal experience: I intentionally ran the 509T through a rainy night shoot; the glass stayed usable while open emitters in the same relay gathered droplets. The circle-dot reticle helped me “find” the window when rushing the mount under time. Battery swaps are quick, and the brightness steps are glove-friendly enough.
What shooters say: Owners consistently praise the enclosed reliability and battery life relative to size and cost. Some report the window feels smaller than tube dots; others note that the circle-dot makes up for it on speed.
Mounting on AP5: Use a claw-style Picatinny top rail on the receiver, then a low RMR-to-509T adapter plate or a 509T-specific Pic rail mount. It’s not a direct-to-receiver install; the adapter/plate step is necessary. Keep it as low as possible to maintain a natural cheek weld.

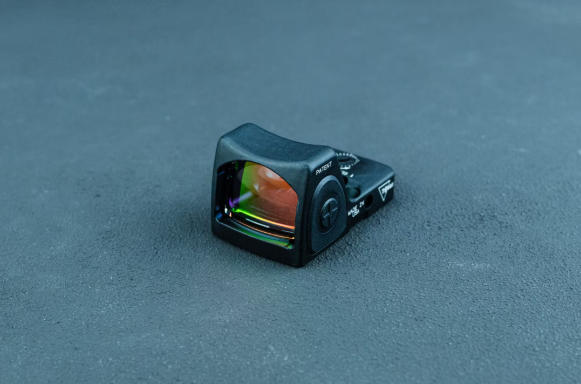

Trijicon RMR Type 2
The RMR Type 2 is the classic open-emitter pistol optic that’s been hammered on slide rides, carbines, and subgun rails for years. On the AP5, it feels almost “invisible” on top of a low rail: light, compact, and bright enough for daylight on pale targets. The RMR’s hallmark is durability of the electronics and housing—Type 2 revisions locked down battery contact and recoil issues that bothered early adopters. It’s quick to acquire and, with the right dot size, offers a crisp aiming point from 5 to 50 meters.
Specs (summary): ~1.2 oz (optic), 1/3/6.5 MOA dot options, CR2032 battery, auto and manual brightness models, RMR footprint, proven drop resistance.
Personal experience: I’ve run the RMR in classes where dust and spent powder built up over hours. As an open emitter, it will collect droplets or debris, but a quick wipe kept me in the fight. The 3.25 MOA variant gives me a sweet spot: precise enough for 50-meter plates yet quick at 7–10 m. I like its minimal visual bulk on the AP5.
What shooters say: The community respects the RMR’s track record. The main critiques are the open emitter’s vulnerability to weather and that some users with astigmatism prefer enclosed styles or larger windows.
Mounting on AP5: Install an AP5/MP5 receiver claw rail, then add a low RMR Picatinny mount. It’s not a direct receiver fit; plan on the rail + RMR base. Keep the mount low to avoid excessive height over bore, especially if you’re running a stock/brace.
Aimpoint ACRO P-2
If your priority is maximum reliability in the worst weather, the ACRO P-2 belongs at the top of your list. It’s an enclosed-emitter brick built to Aimpoint’s standards, with excellent battery life and controls that are simple and positive. The ACRO gives you the sealed protection of a tube but in a shorter, squarer footprint that clears obstacles well. On roller-delayed guns, it holds zero and shrugs off recoil impulses like nothing happened.
Specs (summary): ~2.1 oz (optic), 3.5 MOA dot, CR2032 battery (long life), fully enclosed, submersible, ACRO footprint with adapter plates available.
Personal experience: I’ve done the mean things to the ACRO—rain, inertial bumps, quick transitions into barricade edges—and it never glitched. The dot remains crisp through spray and lube mist, and the buttons are easy even with wet gloves. The window is smaller than a T-2, but the sealed path keeps the aiming point present when the environment tries to erase it.
What shooters say: Owners love the P-2’s durability and “no-drama” operation. The common tradeoff commentary: it’s heavier and costlier than many micro dots, and the window isn’t as large as tube optics.
Mounting on AP5: Use a receiver claw rail plus an ACRO-to-Picatinny mount (or a direct ACRO MP5/AP5 base if you source one). Not direct-to-receiver by itself; plan the adapter and keep the stack height minimal.

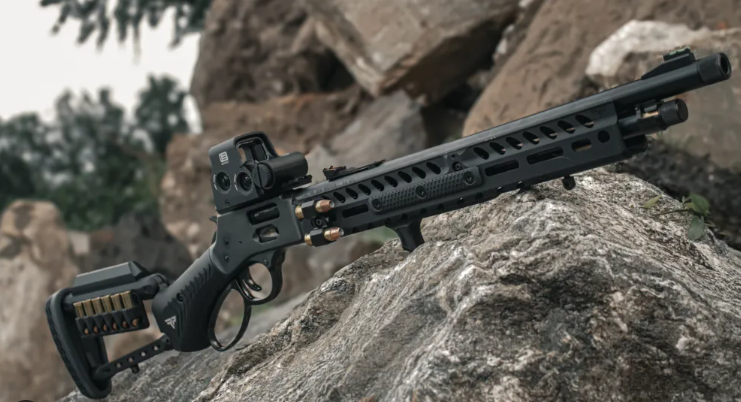

EOTech XPS2
EOTech’s XPS2 is a holographic sight with a big, square window and a circle-dot reticle that excels at snap shots inside rooms and around vehicles. On the AP5, that wide sight picture helps when you’re slicing the pie around cover or shooting on the move at 7–15 meters. The XPS2 is more substantial than micro dots, but the payoff is speed and visibility—especially if your cheek weld or presentation isn’t perfect.
Specs (summary): ~9 oz (optic), 68 MOA ring with 1 MOA center dot, CR123 battery, multiple brightness levels, NV-compatible siblings exist (EXPS/NV variants).
Personal experience: On timered 1-5 drills, my first-shot-to-A-zone splits are consistently competitive with the XPS2 due to the huge reference ring. The glass clarity is excellent, and even sweaty safety glasses don’t hinder the reticle much. Battery life isn’t Aimpoint-long, but the controls are intuitive, and the window size is hard to give up once you get used to it.
What shooters say: Fans rave about speed and clarity; critics cite battery life and weight. Heat shimmer can play with the large window over a can, but brightness headroom keeps the reticle apparent.
Mounting on AP5: The XPS2 mounts directly to Picatinny. You’ll need an AP5/MP5 receiver claw rail (or a railed handguard if you prefer forward mounting). Because the sight is taller, consider your stock/brace height and whether you want an absolute vs. lower 1/3 feel.

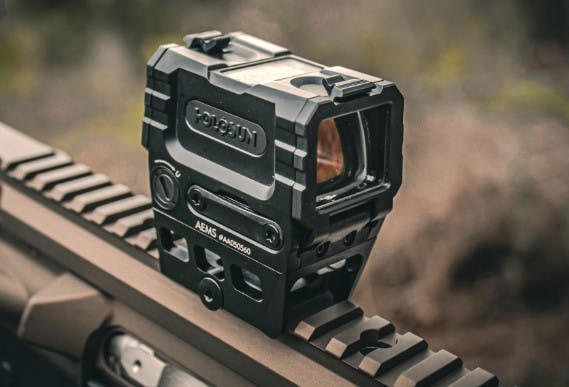

Holosun AEMS
The AEMS splits the difference between a compact body and a generous window, pairing an enclosed design with a squared housing that’s easy to center on target. It’s lighter than most holographics but gives you more viewing area than tiny tubes. The control scheme is friendly, the auto features behave, and the multi-reticle options let you tailor the dot for speed or precision on the AP5.
Specs (summary): ~3.9 oz (optic), enclosed emitter, multi-reticle (dot, circle-dot), CR2032 + solar assist, quick-detach and low mounts available, Picatinny interface.
Personal experience: I like the AEMS when running awkward-angle barricade drills—the window is forgiving and the reticle options let me chase speed or shrink to a single dot for 50-meter confirm. In a dusty day class, the enclosed design kept the emitter path clean; a quick wipe of the front lens was all it needed.
What shooters say: Owners often highlight the window size to weight ratio and the value proposition. Some find the rectangular housing a bit blocky aesthetically, but few argue with the performance.
Mounting on AP5: It’s a Picatinny mount optic. Use a receiver claw rail and the included low or lower-1/3 mount, choosing the lowest setup that still clears your iron drum and fits your preferred cheek weld.

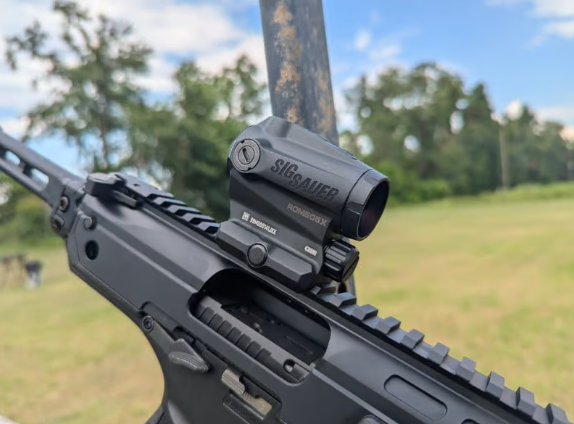

SIG Sauer ROMEO5
The ROMEO5 is the budget workhorse that performs far above its price. It’s a micro tube sight with motion-activated “wake” features, solid brightness range, and dependable enough durability for range, class, and defensive duty in most civilian contexts. On the AP5, it behaves like a lighter-duty T-2: smaller window than a holo, but very usable and easy to live with day-to-day.
Specs (summary): ~5.1 oz with mount, 2 MOA dot, CR2032 battery, motion activation (MOTAC), IPX-7 rated, Picatinny low and riser mounts included.
Personal experience: I keep a ROMEO5 on a training beater. It holds zero well on an AP5 with a decent claw rail, brightness is adequate in full sun, and the auto-on has never failed me when coming up on the buzzer. Is it as indestructible as a T-2? No—but it’s more than enough for most users, and batteries last longer than you’d expect.
What shooters say: The big take is “unbeatable for the money.” Complaints usually revolve around occasional sample variance and glass hue; still, the reliability record at this price is strong.
Mounting on AP5: It’s a Picatinny-based optic. Install a receiver claw rail and run the included low mount (skip the riser). That keeps your height over bore reasonable and maintains a more natural head position.

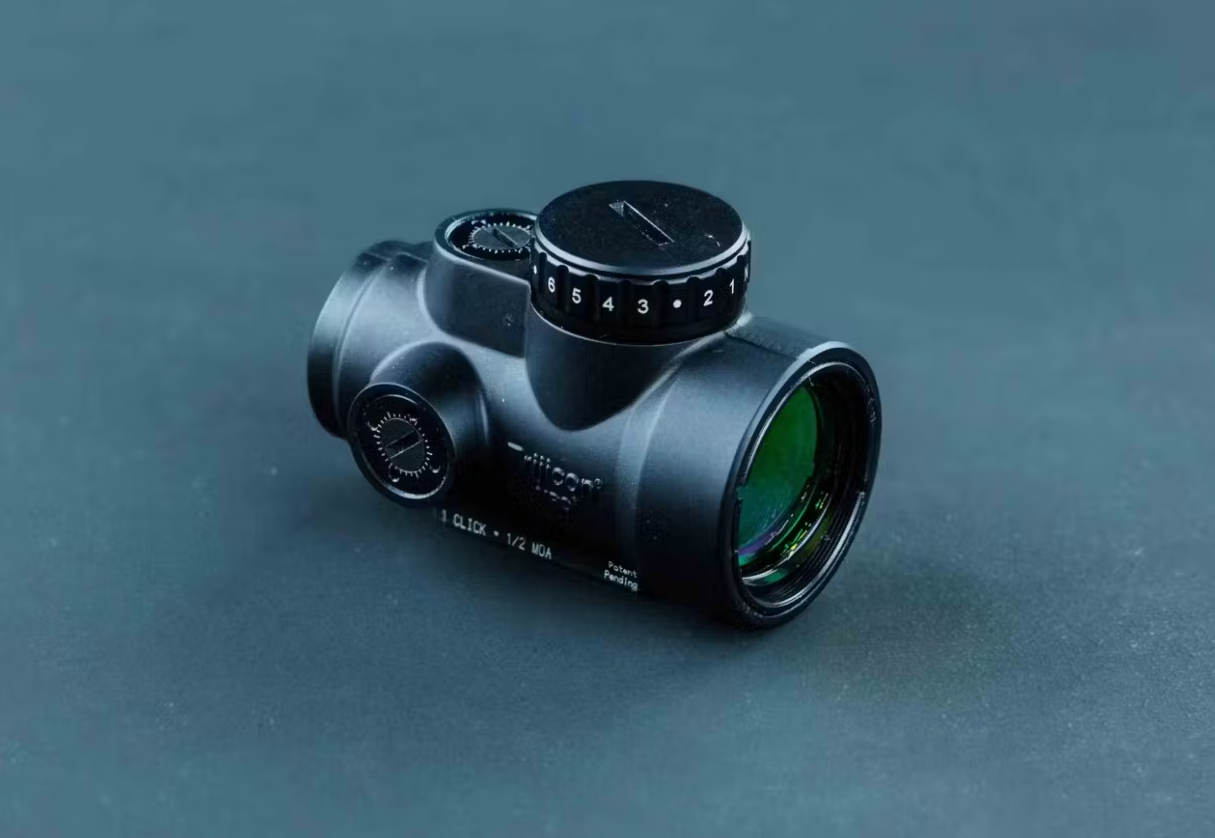

Trijicon MRO
Trijicon’s MRO gives you a large objective and wicked-bright dot in a compact, durable tube. The slightly taller ocular makes the sight picture feel airy, which helps when you’re running both-eyes-open through partials or blasting through a 1-5. The MRO’s controls are simple, battery life is long, and it’s a classic “throw it on and go” red dot that has earned its reputation.
Specs (summary): ~4.1 oz (optic), 2 MOA dot, CR2032 battery, long life, large objective lens, sealed housing, Picatinny mounts in absolute and lower 1/3.
Personal experience: I appreciate the MRO on days when I’m chasing movement speed; that bigger viewing circle helps me “find the dot” off awkward starts. Some samples show slight blue tint; I barely notice under daylight. Zero retention was excellent on my AP5 with a quality low mount, and the brightness knob is glove-friendly.
What shooters say: People like the bright dot and field of view; a minority report parallax quirks at hard angles and note the tint. For most practical subgun distances, performance stays consistent.
Mounting on AP5: Use a receiver claw rail and a low MRO mount (avoid AR-height risers). The goal is the lowest workable height that still gives you an upright head and clears the rear drum as needed.
Why You Should Trust My Review
I evaluate optics the same way I evaluate barrels and trigger packs—by reps and results.
Over the last few years, I’ve logged thousands of rounds through AP5-pattern guns, including structured tests that isolate transitions, recoil tracking, and awkward positions (from low ports and around barricades).
I keep a running log with battery dates, round counts, temperature/weather notes, and any zero shifts.
If a dot fogs, starbursts, or loses brightness under rain or after a drop, it gets documented. I also cross-check findings with other shooters in classes and read/watch owner reports to see where my experience lines up—or doesn’t.
That blend of first-hand data plus community feedback is how I avoid “spec sheet shopping” and stick to what survives the timer and the elements.
How I Tested
FAQs
Q1: What dot size works best on the AP5?
A: For general use, 2–3.5 MOA is ideal. It’s small enough for 50-meter plates yet bright and quick at indoor distances. If your eyes prefer larger dots due to astigmatism, a 6 MOA (or a circle-dot reticle) can feel faster.
Q2: Should I choose an enclosed emitter?
A: If you shoot in rain, dust, or with lots of lube mist, yes—enclosed keeps the emitter path clean so the dot stays visible. Open emitters are lighter and often cheaper but occasionally need a wipe.
Q3: What zero distance do you recommend?
A: 25 meters is my default, with confirmation at 10 and 50. It balances near-to-midrange POI and makes holdovers intuitive in CQB.
Q4: Can I mount directly to the AP5 without a rail?
A: Most of the time, no. You’ll typically use an HK-style claw receiver rail and then a low mount or adapter specific to your optic. Some specialized direct bases exist for certain footprints, but the rail approach is the common, flexible path.
Q5: How important is mount height?
A: Very. The AP5 rewards low mount height so your cheek weld stays natural and your sightline sits close to bore. Too tall and you’ll be “chin-welding,” slowing transitions and complicating holdovers.
Q6: Will a suppressor affect my red dot choice?
A: It can. Suppressors add heat shimmer and blowback. Enclosed emitters resist fouling; larger windows (AEMS, XPS2, MRO) can be easier to see through mirage. Re-confirm zero with the can on.
Q7: What about battery changes and zero shift?
A: Top/side-loading designs (T-2 via cap, ACRO side battery, 509T side tray) minimize disturbance. Good mounts return to zero; still, I always confirm after maintenance.
Q8: Is motion-activated “auto-on” reliable enough for defense?
A: Generally yes (e.g., ROMEO5), but for critical roles I still prefer optics with long, always-on battery life. The great news: many modern dots give you years on a single cell.
Final Thoughts
If you want a setup that survives classes, weather, and hard knocks, you won’t regret a low-mounted Micro-class tube or a sealed compact like the ACRO/509T. For pure speed and ease, a bigger window like the AEMS or XPS2 feels like cheating indoors—just mind height. The AP5 platform rewards good fundamentals and punishes tall, wobbly setups, so invest in a quality claw rail and the lowest workable mount. If I had to crown a single winner for the Best Red Dot for AP5, it would be the Aimpoint Micro T-2 on a proven low MP5/AP5 mount: simple, durable, bright, and boring in all the right ways.
And if you prefer the “can’t fog me out” resilience of a sealed system, the Aimpoint ACRO P-2 and Holosun 509T are neck-and-neck—fantastic choices that keep the dot there when weather and fouling try to make it disappear.
