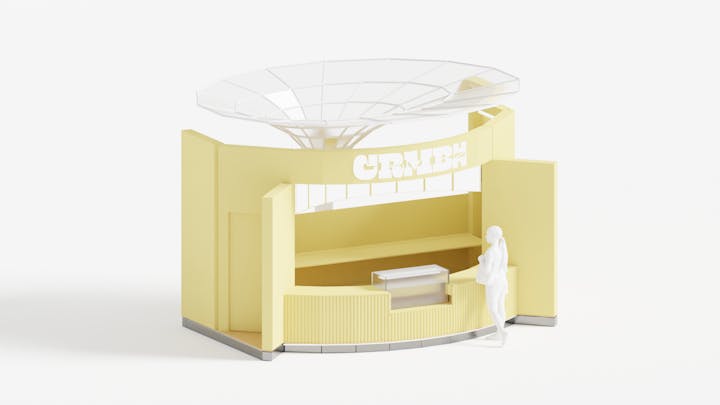

CRMBZ Kiosk Design
Render Images
Plans
BOQ
Constructive details references
More
Share
Explore

icon picker
Constructive details references

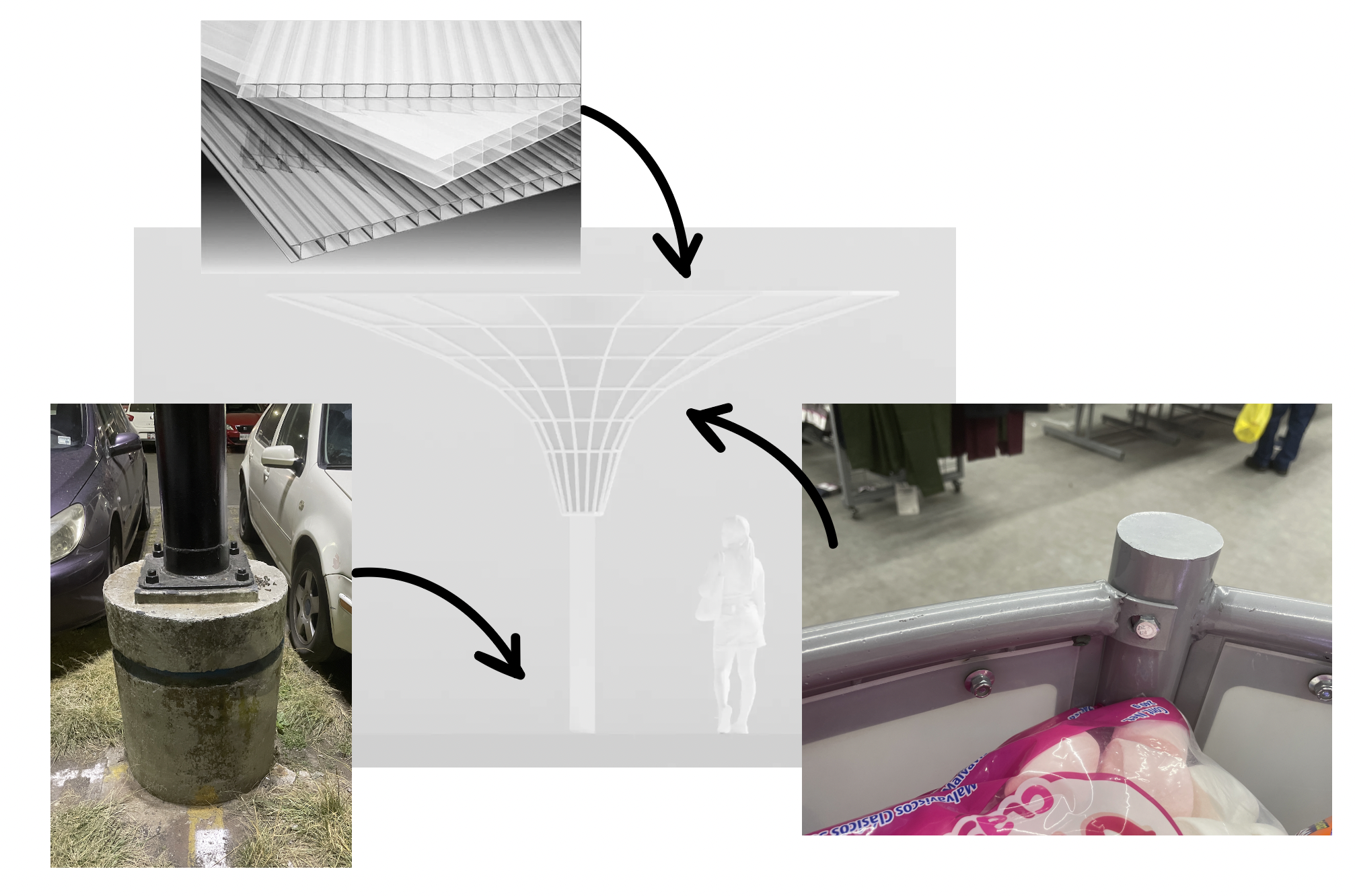

Umbrella

Support system for the main post: Big enough block of concrete, base plate and screws.
Umbrella panels: Polycarbonate plastic translucent panels.
Umbrella axis: Metal tubes, white coat of paint. Screws.
Screen Shot 2022-12-23 at 0.43.12.png
⁠
⁠

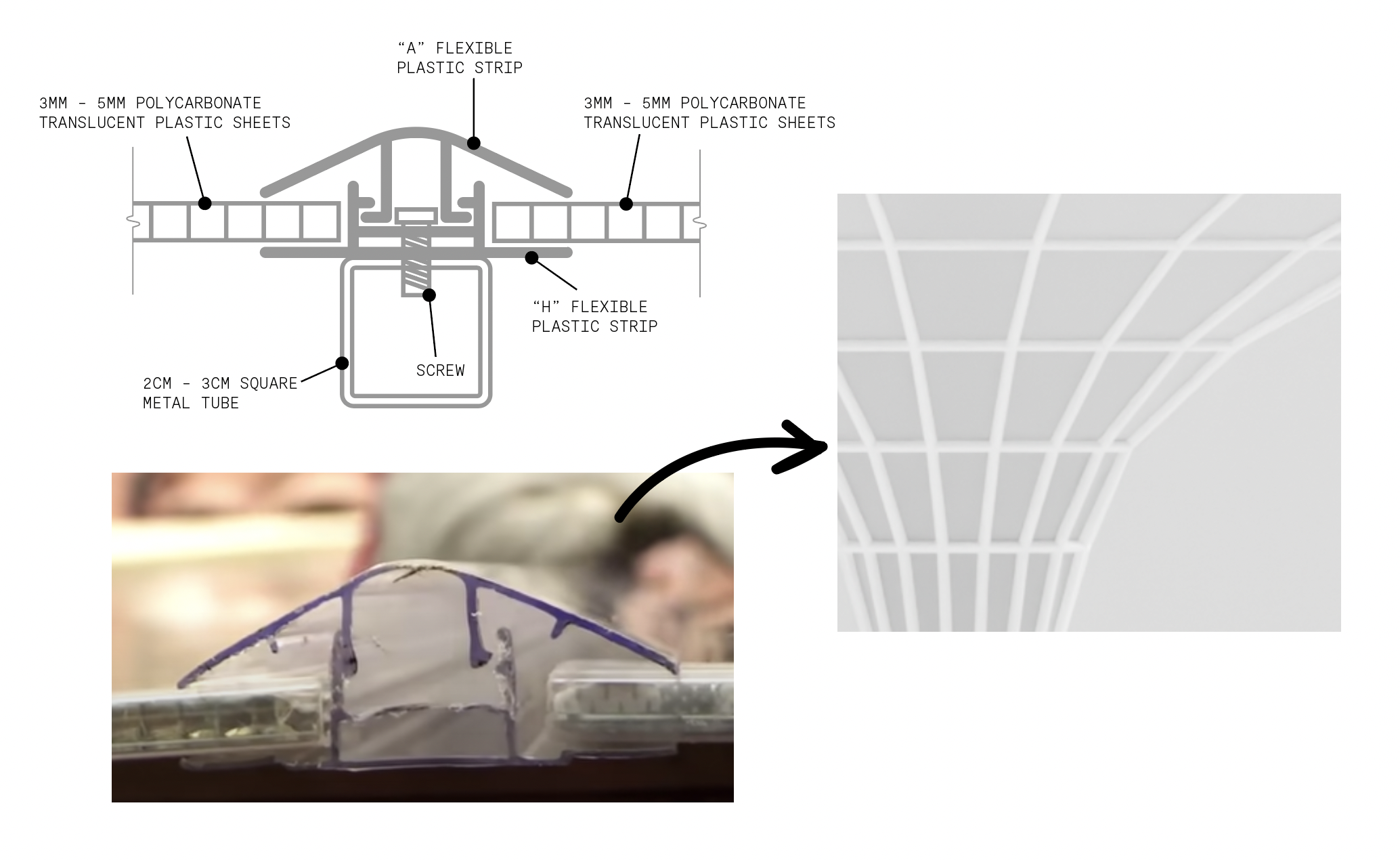

Union between umbrella’s axis and polycarbonate sheets:


⁠
Screen Shot 2022-12-23 at 1.00.08.png
⁠
⁠

Pastries Display:

⁠

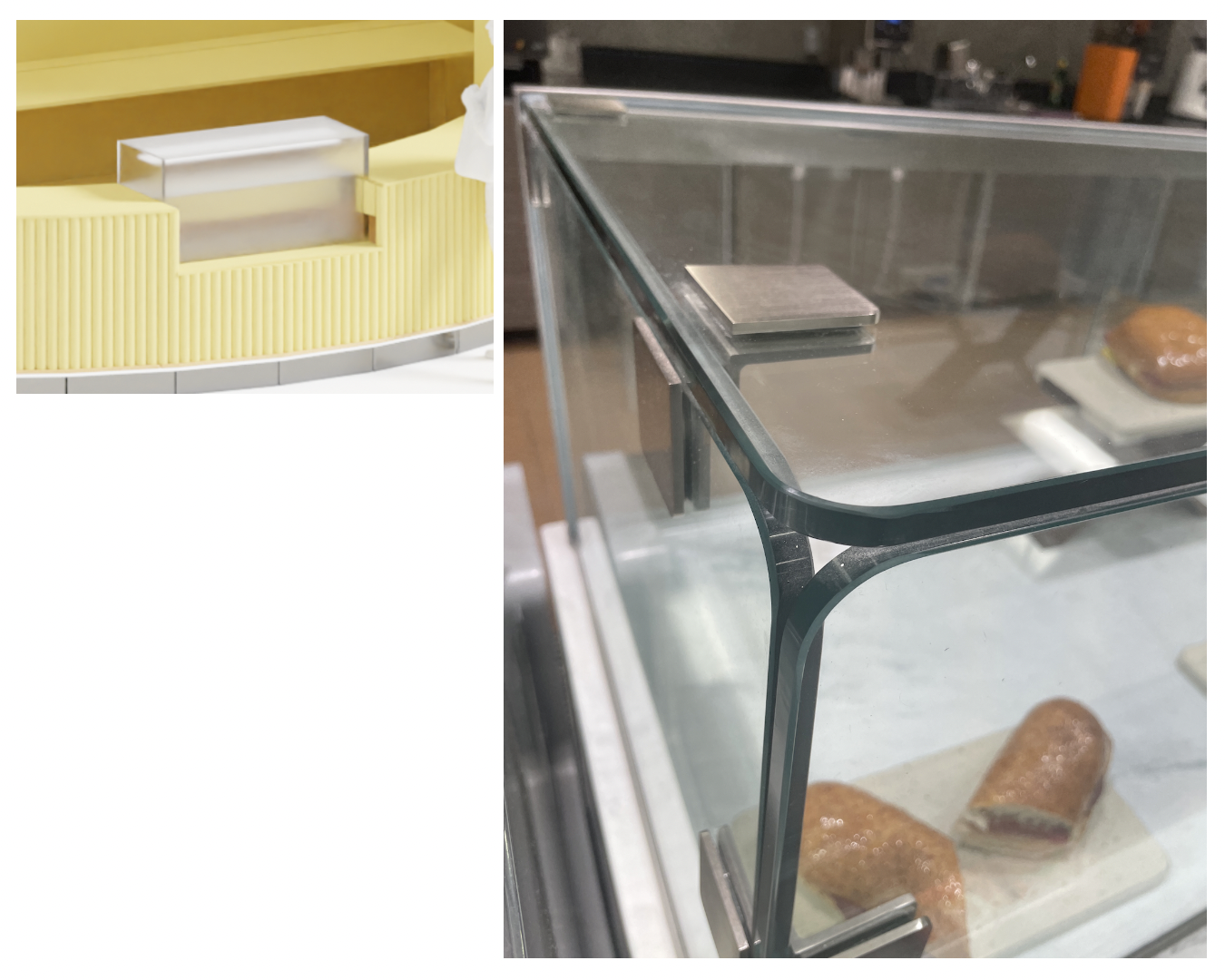

Screen Shot 2022-12-23 at 0.33.24.png
⁠
⁠

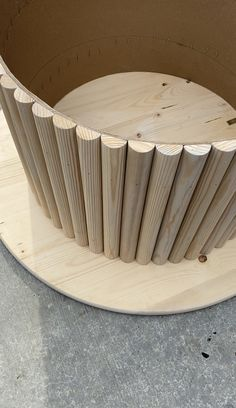

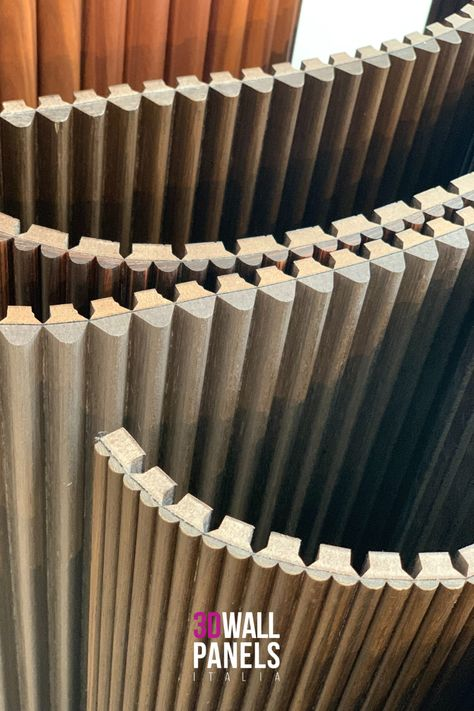

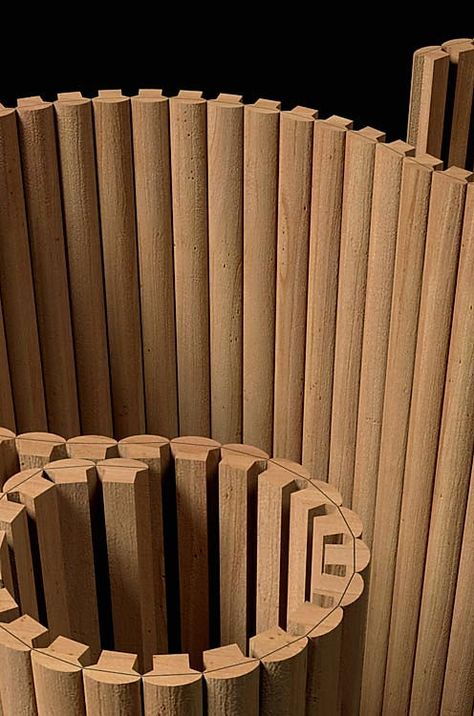

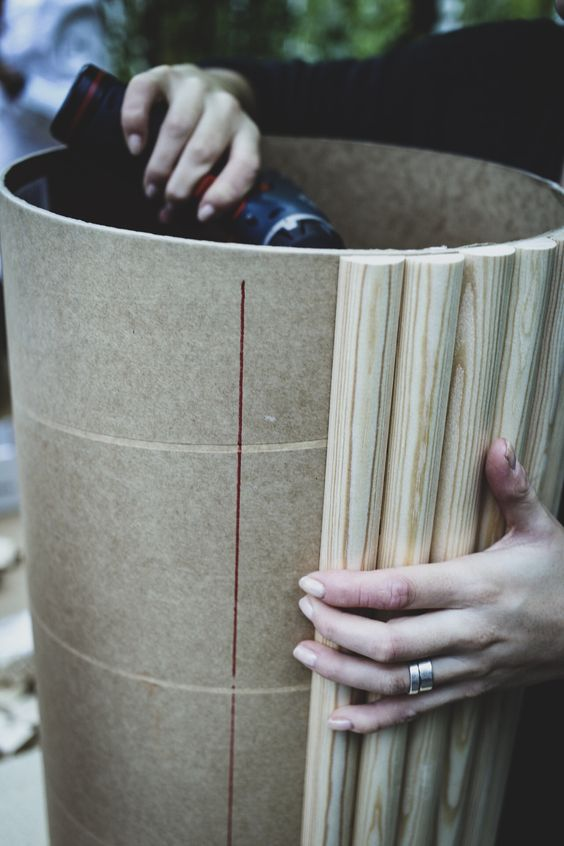

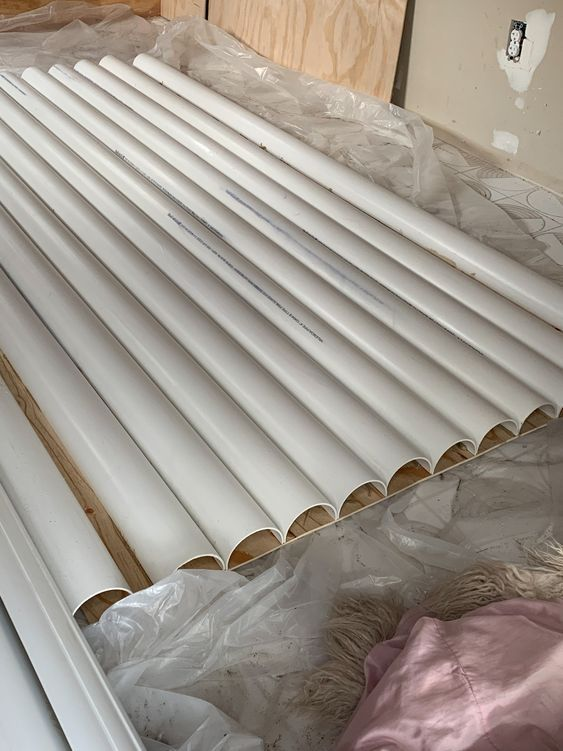

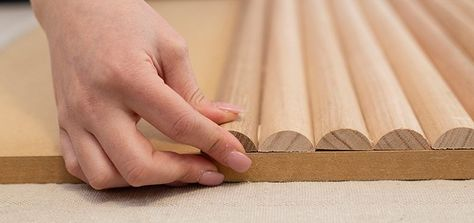

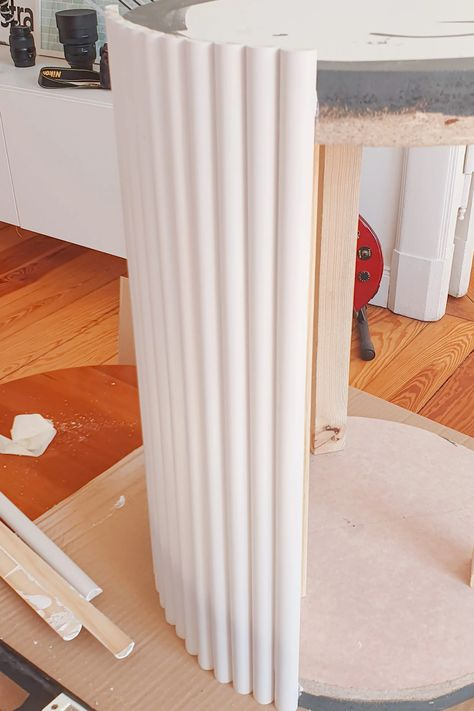

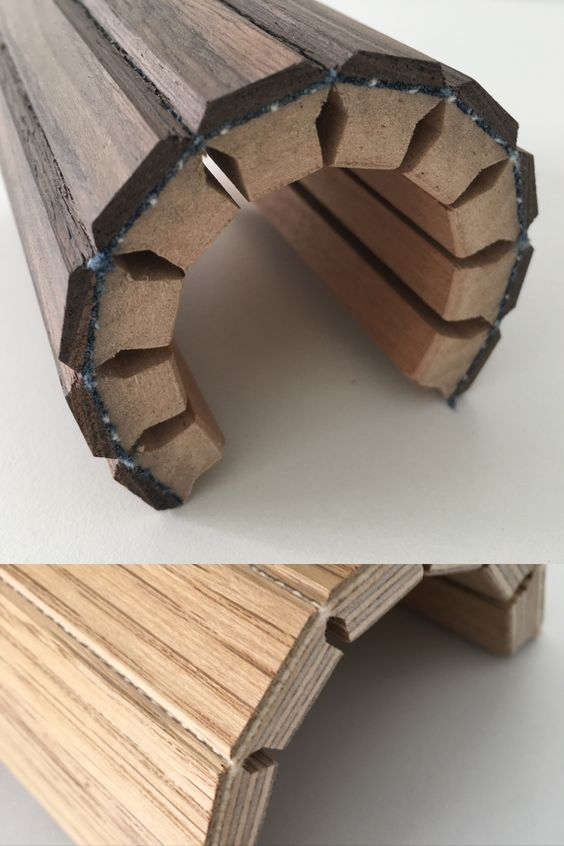

Countertop front detailing:

⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
⁠
