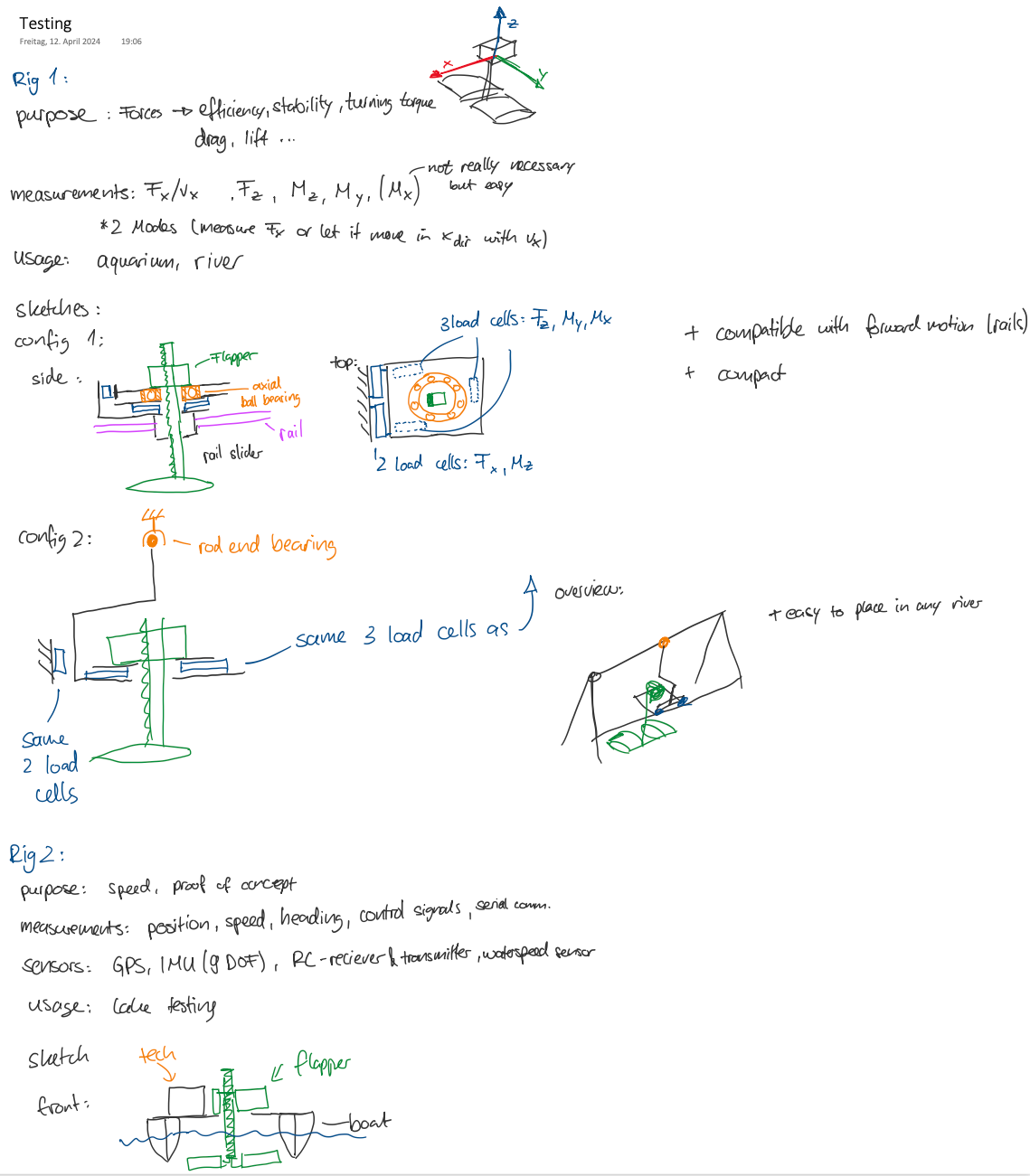

Test stand

reduce frictional resistance of rails /we don't care)

Measure:

standstill / low speed behaviour

functionality, control system

test the test rig

Canal testing:

honeycomb turbulenzentferner kann genutzt werden für laminieren flow

measure water speed

consider power supply? (Powerbank...)

Stangen über den Kanal

Eisbachkanal neben Welle 2: Speed: 0,75 m/s, depth: 137cm to upper lip, 75cm of water depth, width: 203cm

Measure:

all forces at (different?) speed

efficiency

hydrodynamic resistance of various parts

Test boat (for lake testing)

Catamaran makes sense?

storage for battery and relevant sensors

similar to this:

https://www.youtube.com/watch?v=ox6ZXrrK8yE⁠

⁠

lasercut and stitch? (and waterproof)

or cut from styrofoam & wrap with some foil?

or from flower planters?

https://amzn.eu/d/istn87r⁠

⁠

General testing parameters:

electricity consumed (battery voltage * battery current)

for reference see this:

https://www.youtube.com/watch?v=ox6ZXrrK8yE⁠

(min 7)

Noise generated underwater

⁠

Messung der Schubkraft zwischen den Platten (über Schiene) möglich? → Nein, da andere Force cells auch Kraft in die Richtung aufnehmen

⁠
`Building the test stand`⁠
⁠
