Yaw Follow Modifier

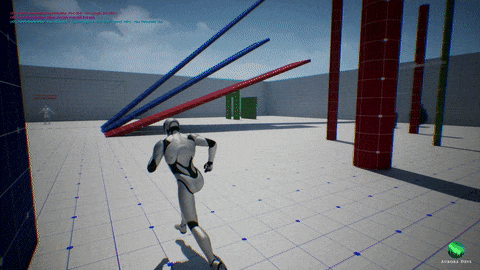

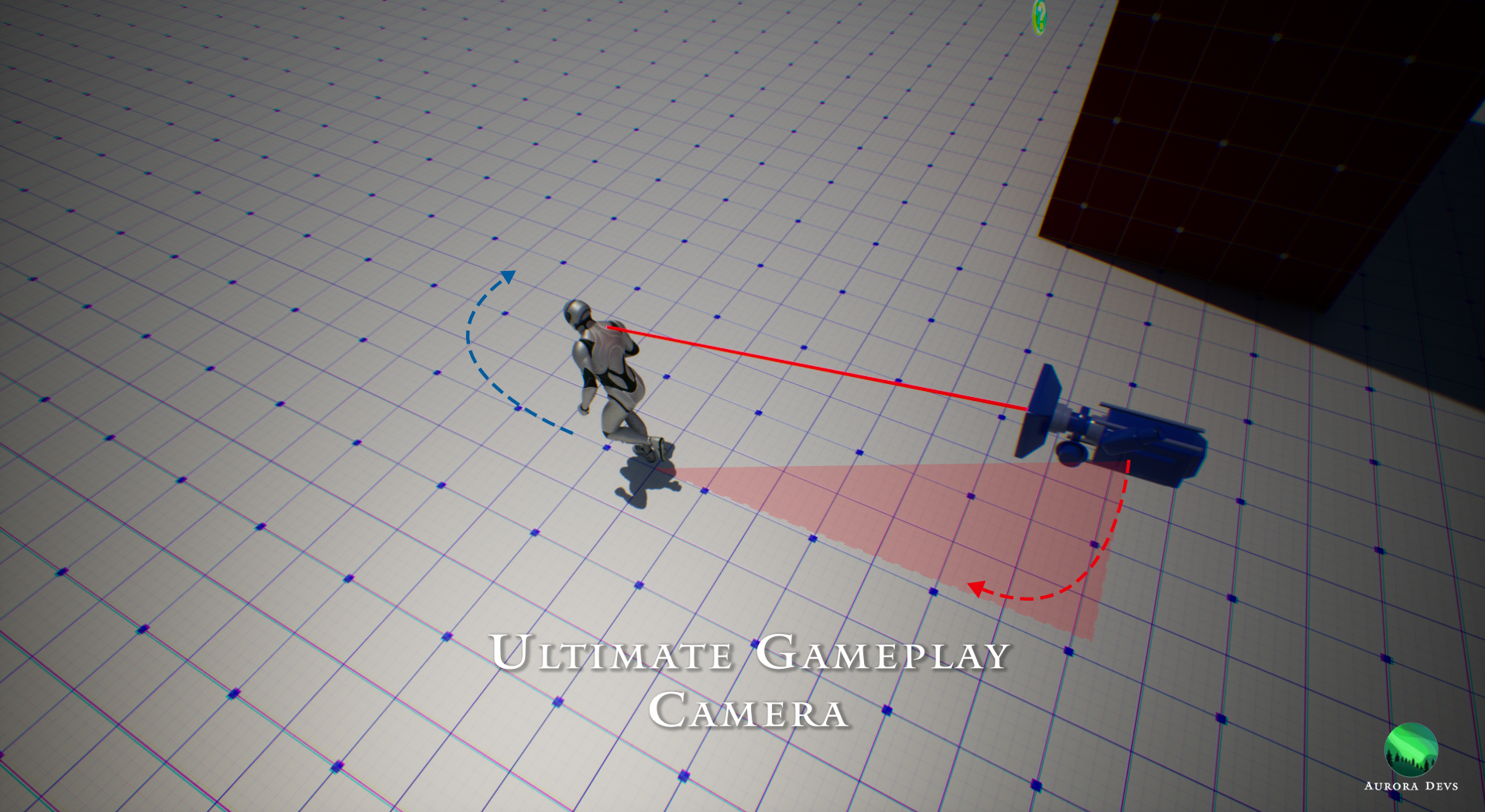

One of the more basic requirements of a dynamic camera is to automatically focus the walk direction of the player character by rotating the camera in the movement direction. The less the player needs to adjust the camera themselves, the better. This is why we’ve added a camera modifier which will rotate the camera in the movement direction automatically as long as the player isn’t actually controlling the camera.

Here are examples from AAA video games.

⁠

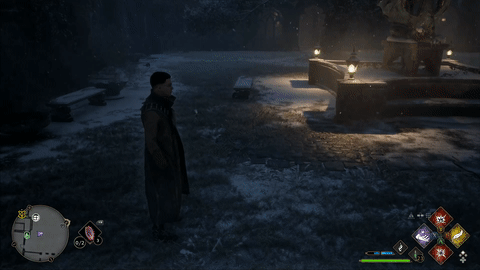

Source - Hogwarts Legacy

Follow Disabled

⁠

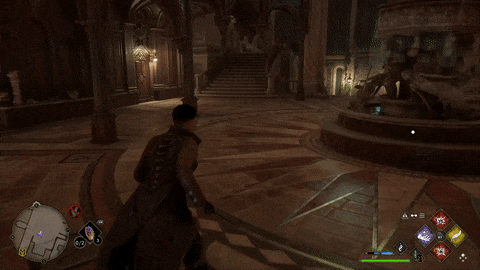

Source - Hogwarts Legacy

Follow Enabled

⁠

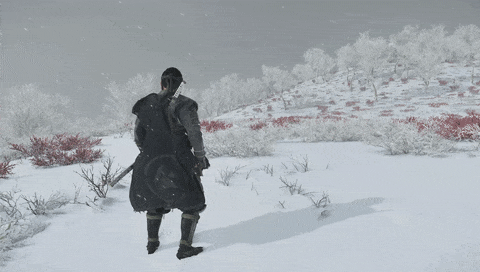

Source - Ghost of Tsushima

⁠

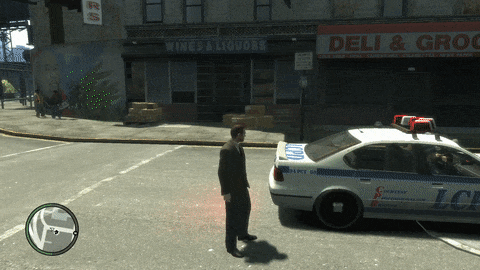

Source - GTA IV

Yaw Follow Modifier Settings

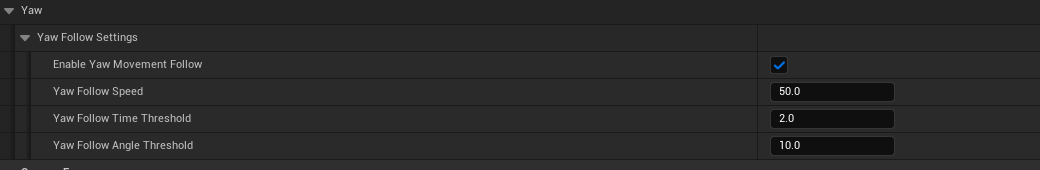

There are a number of settings you can tweak for the yaw follow modifier.

⁠

Enable Yaw Movement Follow: Whether this behaviour should be enabled.

Never enable the Yaw Follow Modifier and/or Pitch Follow Modifier at the same time as the Focus Modifier.

You can do this either with the camera data asset or the functions, as described further below.

Yaw Follow Speed: The speed at which the camera tries to catch up with the movement direction of the player.

Yaw Follow Time Threshold: The minimum time the player shouldn't rotate the camera manually before the yaw follow kicks in.

Yaw Follow Angle Threshold: Minimum yaw angle difference above which we trigger the yaw follow modifier to avoid the modifier being triggered for small angles.

Triggering the Yaw Follow Modifier

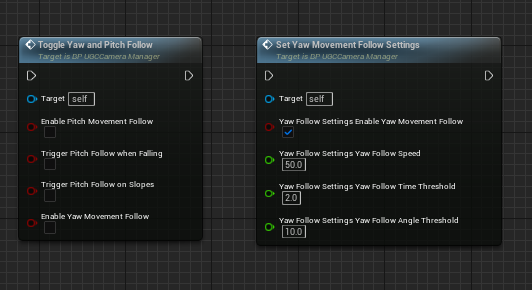

You can do this either by calling SetYawMovementFollowSettings on the BP_UGCCameraManager

⁠

Or you can set them through the UGCCameraDataAssets, and then calling SetCameraData on BP_UGCCameraManager (see
