Video Editing Automation
Dynamic Video Streams
Imagine building videos like coding - declarative, composable, and infinitely reusable.
VideoDB Editor lets you create videos programmatically using code instead of clicking timelines. You define what you want (assets, effects, timing), and the engine handles the rendering.
This guide is your complete conceptual introduction. By the end, you’ll understand how to compose anything from simple clips to complex multi-layer productions - all through code.
Why Code-First Video Editing?
Traditional video editors are built for one-off productions. But what if you need to:
Code changes everything:
The 4-Layer Architecture
VideoDB Editor uses a hierarchy where each layer has one job. Understanding this structure is the key to mastering composition:
Asset → Clip → Track → Timeline
Let’s walk through each layer using the simplest possible example: one video asset playing for 10 seconds. This is the “Hello World” of Editor - understanding this foundation lets you build anything.
Installing VideoDB in your environment
!pip install videodb
Layer 1: Assets – Your Raw Materials
Assets are your content library. They reference media that exists in your VideoDB collection but don’t define how or when it plays.
VideoAsset
Your main video content. Each VideoAsset points to a video file via its ID.
Key parameters:
Real example:
from videodb.editor import Timeline, Track, Clip, VideoAsset
video_asset = VideoAsset(
# Create a VideoAsset pointing to a video file in your collection
id=video.id,
start=0,
volume=1
)
# Ready to use in a Clip
This says: “Use the video from your VideoDB collection, start from the beginning (0), and keep original volume (1).”
Important distinction: VideoAsset.start trims the source file. Where it appears on the timeline is controlled later at the Track layer. This “double start” concept is critical - we’ll explore it more in Layer 3 (Tracks).
AudioAsset
Background music, voiceovers, or sound effects. Works exactly like VideoAsset.
Key parameters:
ImageAsset
Logos, watermarks, title cards, or static backgrounds.
Key parameters:
TextAsset
Custom text overlays with full typography control.
Key parameters:
Color format: ASS-style &HAABBGGRR in hex (e.g., &H00FFFFFF = white)
CaptionAsset
Auto-generated subtitles synced to speech. This is where VideoDB gets magical.
Important: CaptionAsset is a separate asset type from TextAsset. While TextAsset is for custom text overlays you write yourself, CaptionAsset automatically generates subtitles from video speech.
Key parameters:
Critical requirement: Before using CaptionAsset(src="auto"), you must call video.index_spoken_words() on the source video. This indexes the speech for auto-caption generation. Without it, captions won’t generate.
Supported Fonts for Text and Caption Assets:
Supported Indic fonts:
Noto Sans Kannada
Noto Sans Devanagari
Noto Sans Gujarati
Noto Sans Gurmukhi
Recap: Assets answer “What content exists?” They don’t yet define timing, size, position, or effects. That’s the Clip layer’s job. (rephrase)
Layer 2: Clips – The Presentation Engine
Clips wrap Assets and define how and how long they appear. This is your effects layer.
Every Clip must have an asset and a duration. Everything else is optional.
Duration – How Long It Plays
duration is a float in seconds. It defines how long the clip plays on the timeline.
Real example:
from videodb import Clip
clip = Clip(
asset=video_asset,
duration=10
)
“Play this VideoAsset for 10 seconds.”
Key insight: Duration is independent of the source file’s length. If your source is 2 minutes but you set 10, only 10 seconds play (starting from start).
We get an error if clip duration greater than video/audio length.
Fit – How It Scales to Canvas
When your asset’s aspect ratio doesn’t match the timeline’s, fit controls scaling behavior.
Four modes:
Real example:
clip = Clip(
asset=video_asset,
duration=10,
fit=Fit.crop
)
“Fill the canvas completely, crop edges if aspect ratios don’t match.”
Position – Where It Appears
Position uses a 9-zone grid system:
top_left top top_right
center_left center center_right
bottom_left bottom bottom_right
Real example:
logo_clip = Clip(
asset=logo,
duration=30,
position=Position.top_right
)
“Place the logo in the top-right corner.”
Offset – For fine-tuned positioning
from videodb.editor import Offset
clip = Clip(
asset=logo,
duration=30,
position=Position.center,
offset=Offset(x=0.3, y=-0.2)
)
This shifts the logo 30% right, 20% up from center.
Scale – Size Adjustment
scale is a multiplier applied after fit. Default is 1.0.
Real example:
pip_clip = Clip(
asset=overlay_video,
duration=15,
scale=0.3
)
“Shrink this video to 30% of its fitted size” (perfect for picture-in-picture).
Opacity – Transparency
opacity ranges from 0.0 (invisible) to 1.0 (opaque).
Real example:
watermark_clip = Clip(
asset=logo,
duration=30,
opacity=0.6
)
“Make the logo 60% opaque (semi-transparent).”
Filter – Visual Effects
Apply color/blur effects:
from videodb.editor import Filter
clip = Clip(
asset=VideoAsset(id=video.id),
duration=10,
filter=Filter.greyscale
)
Available filters: greyscale, blur, boost (saturation), contrast, darken, lighten, muted, negative.
Filter
Effect
greyscale
Removes all color, creating a black-and-white look
blur
Blurs the scene for artistic or privacy effects
contrast
Increases contrast, making darks darker and lights lighter
darken
Darkens the entire scene
lighten
Lightens the entire scene
boost
Boosts both contrast and saturation for vibrant colors
muted
Reduces saturation and contrast for a subdued look
negative
Inverts colors for a surreal, negative effect
There are no rows in this table
Transition – Fades
Fade in/out at clip start/end:
from videodb.editor import Transition
clip = Clip(
asset=VideoAsset(id=video.id),
duration=10,
transition=Transition(
in_="fade",
out="fade",
duration=2
)
)
“Fade in over 1 second at start, fade out over 2 seconds at end.”
Recap: A Clip wraps an Asset and defines how long it plays (duration) and how it appears (fit, position, scale, opacity, filter, transition). Now let’s see how to place clips on the timeline.
Layer 3: Tracks – Sequencing and Layering
Tracks are timeline lanes. They control when clips play and how they stack.
The Track Object
A Track is a container you add clips to:
from videodb import Track
track = Track()
track.add_clip(0, clip) # Add clip at 0 seconds
track.add_clip(start, clip) has two parameters:

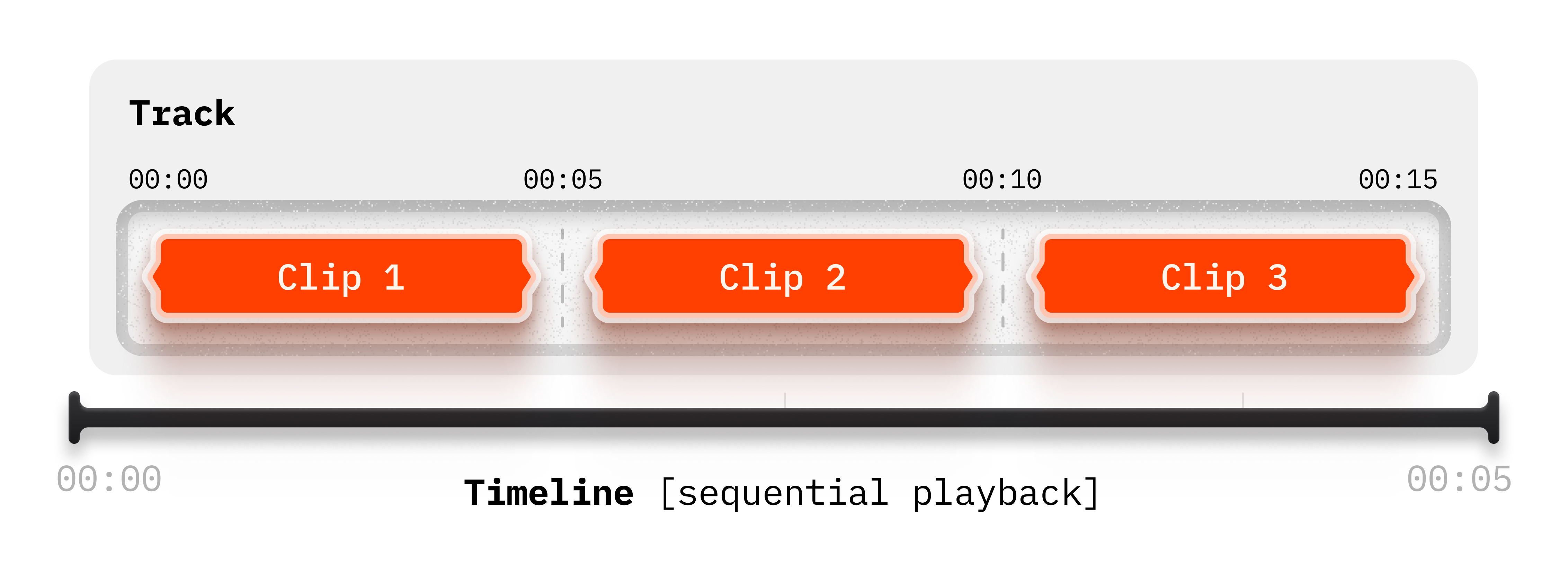

Sequential Playback (Same Track)
Clips on the same track play one after another:
track = Track()
track.add_clip(0, clip1) # 0s-5s
track.add_clip(5, clip2) # 5s-10s
track.add_clip(10, clip3) # 10s-15s
This creates a montage - three clips in sequence.

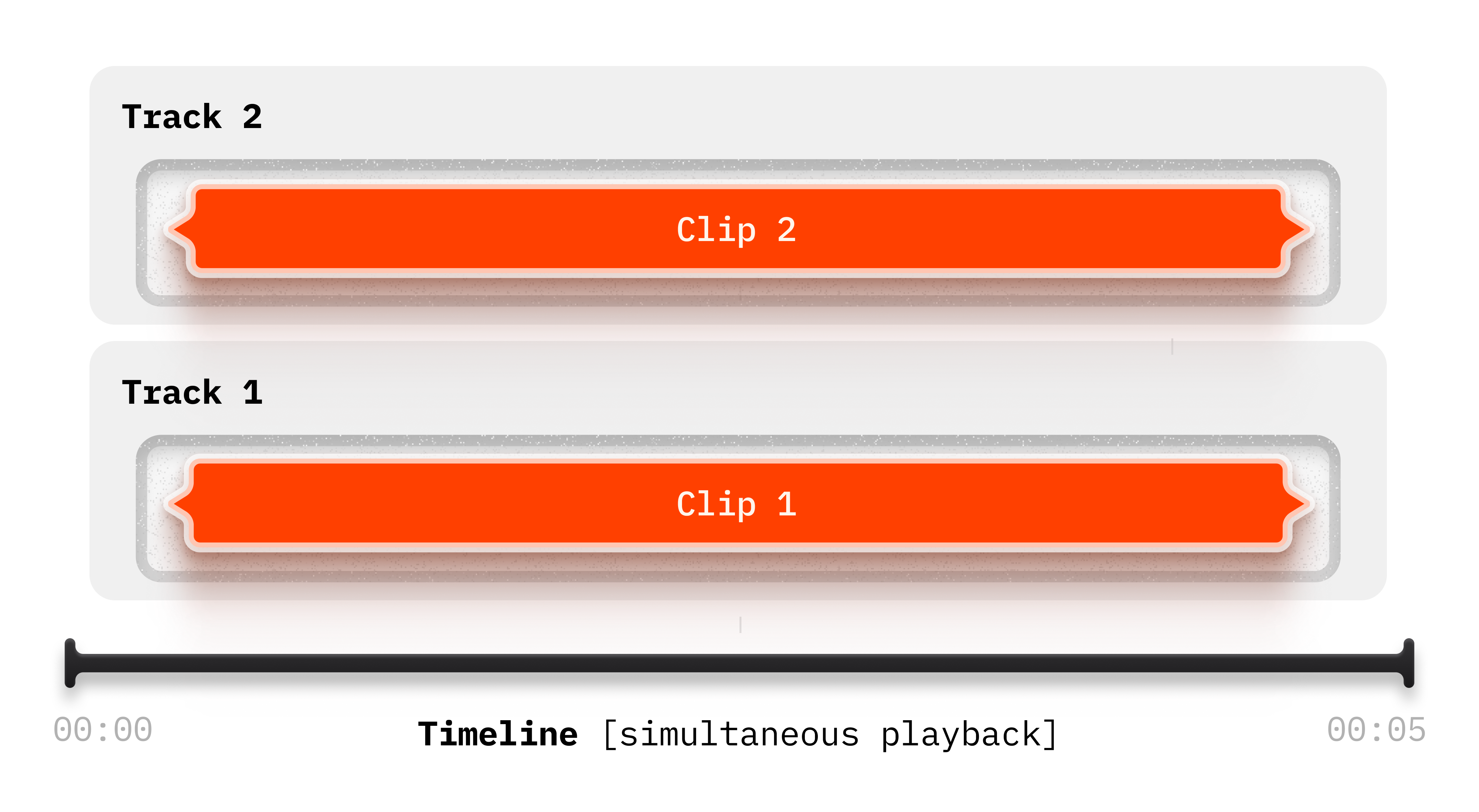

Simultaneous Playback (Different Tracks)
Clips on different tracks at the same timestamp play simultaneously:
track1 = Track()
track1.add_clip(0, clip1) # First layer
track2 = Track()
track2.add_clip(0, clip2) # Second layer (plays at same time)
Both start at 0 seconds, so they play together. This is how you create layered compositions.

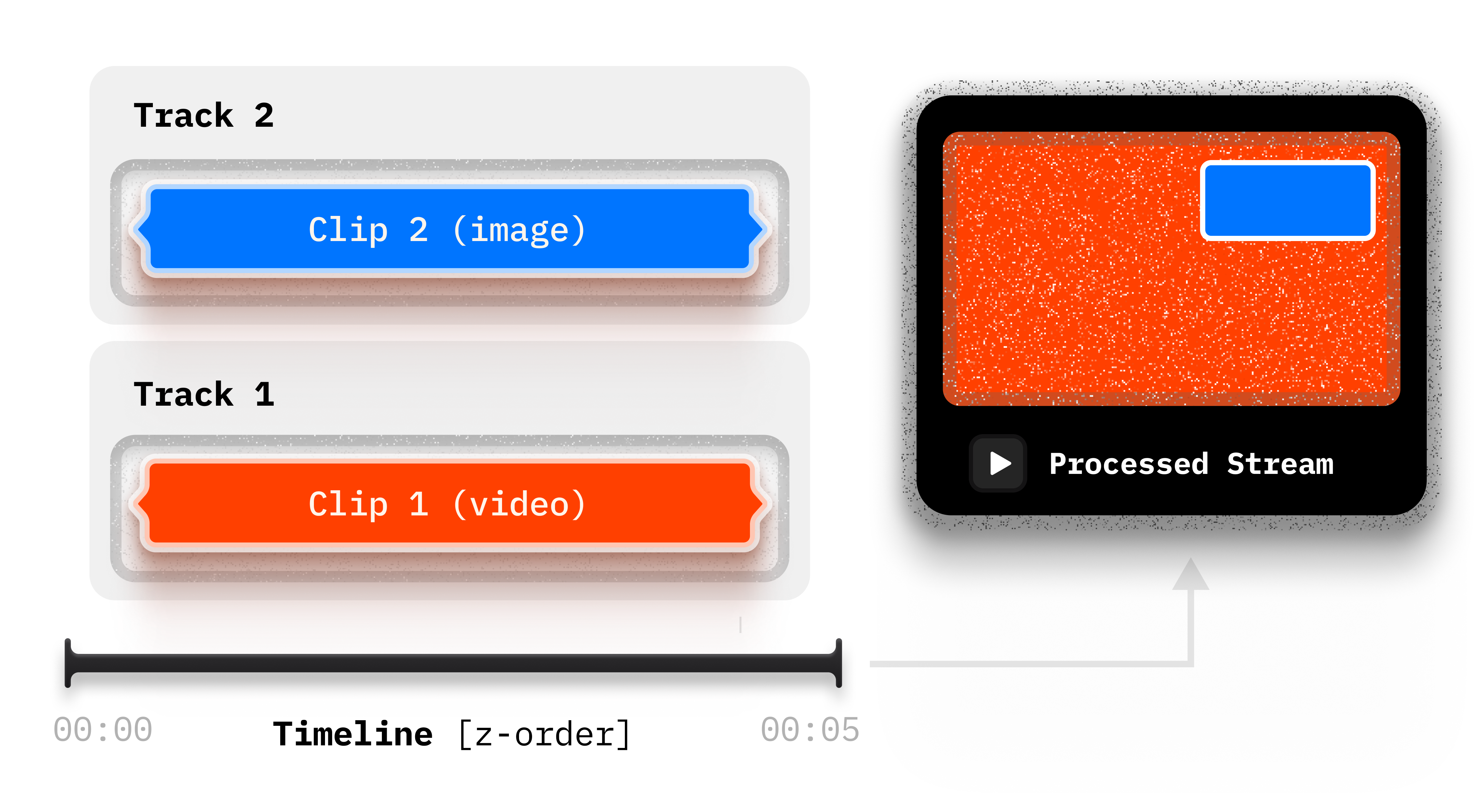

Z-Order (Layering)
Later tracks render on top of earlier tracks.
timeline.add_track(track1) # Bottom layer
timeline.add_track(track2) # Renders above track1
timeline.add_track(track3) # Renders above track2
This is how you create overlays: put background content on track1, overlays on track2.

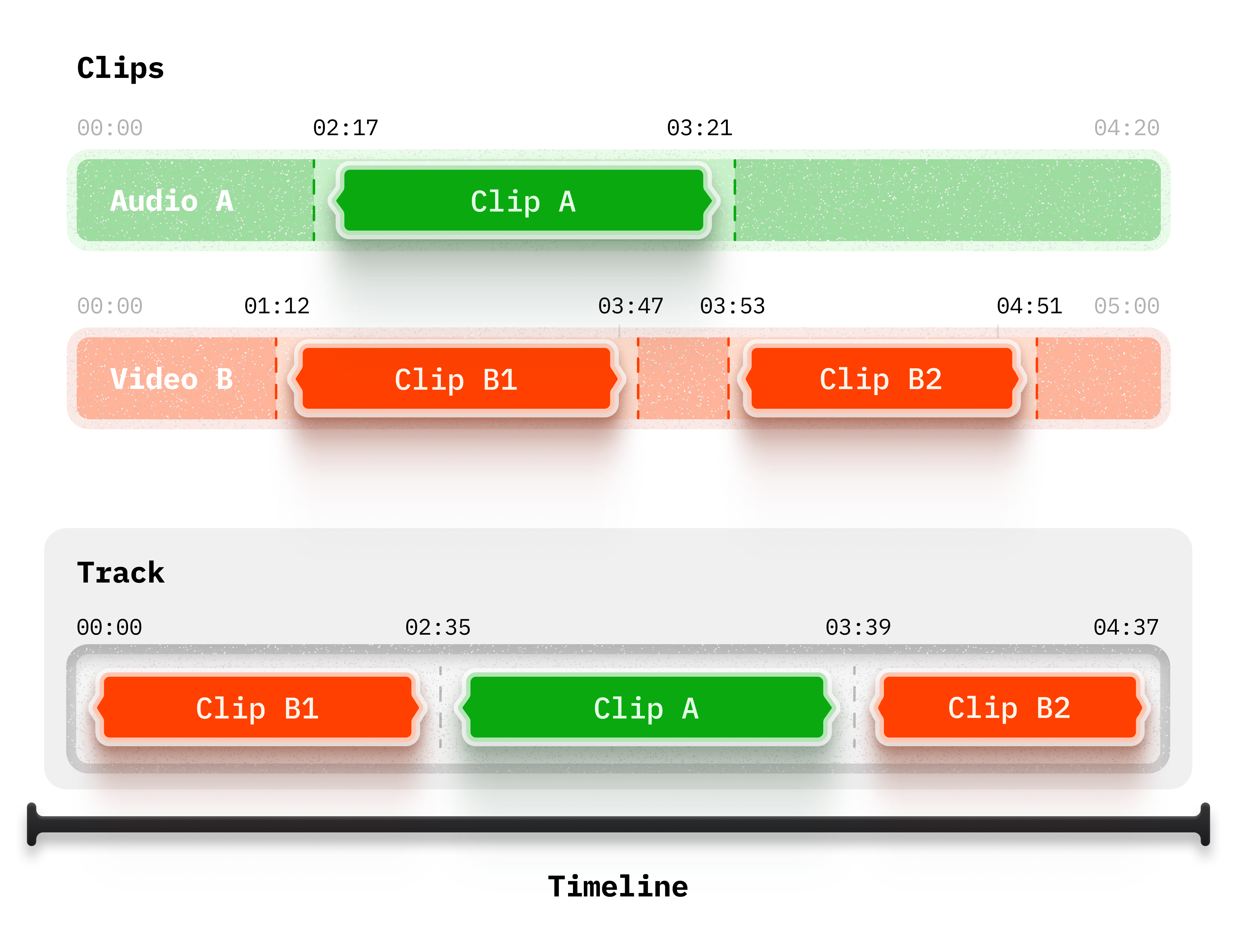

The “Double Start” Concept
There are two separate “start” parameters:
Real example:
# Source video is 2 minutes long
video_asset = VideoAsset(
id=video.id,
start=30
) # Skip first 30s of source
clip = Clip(
asset=video_asset,
duration=40
) # Use 40s (from 0:30 to 1:10 of source)
track = Track()
