All assets must pass a set of minimum requirements:

Biped humanoid body plans.

Production quality skinning based character rigs.

No large, non-removable accessories or loose clothing without body meshes underneath, see below.

A-pose only - To start, we would like to filter to only A-pose models (not T-pose, not I-pose). We understand that different people have different interpretations of what angle is an A-pose. We do not have strict requirements on the angle.

Assets that meet these basic requirements will need further modifications before they can be used by Roblox.

Steps

Clean

Update materials with local, relative texture paths, and simplified as needed to be portable. Eg basic Phong materials, no proprietary DCC shaders.

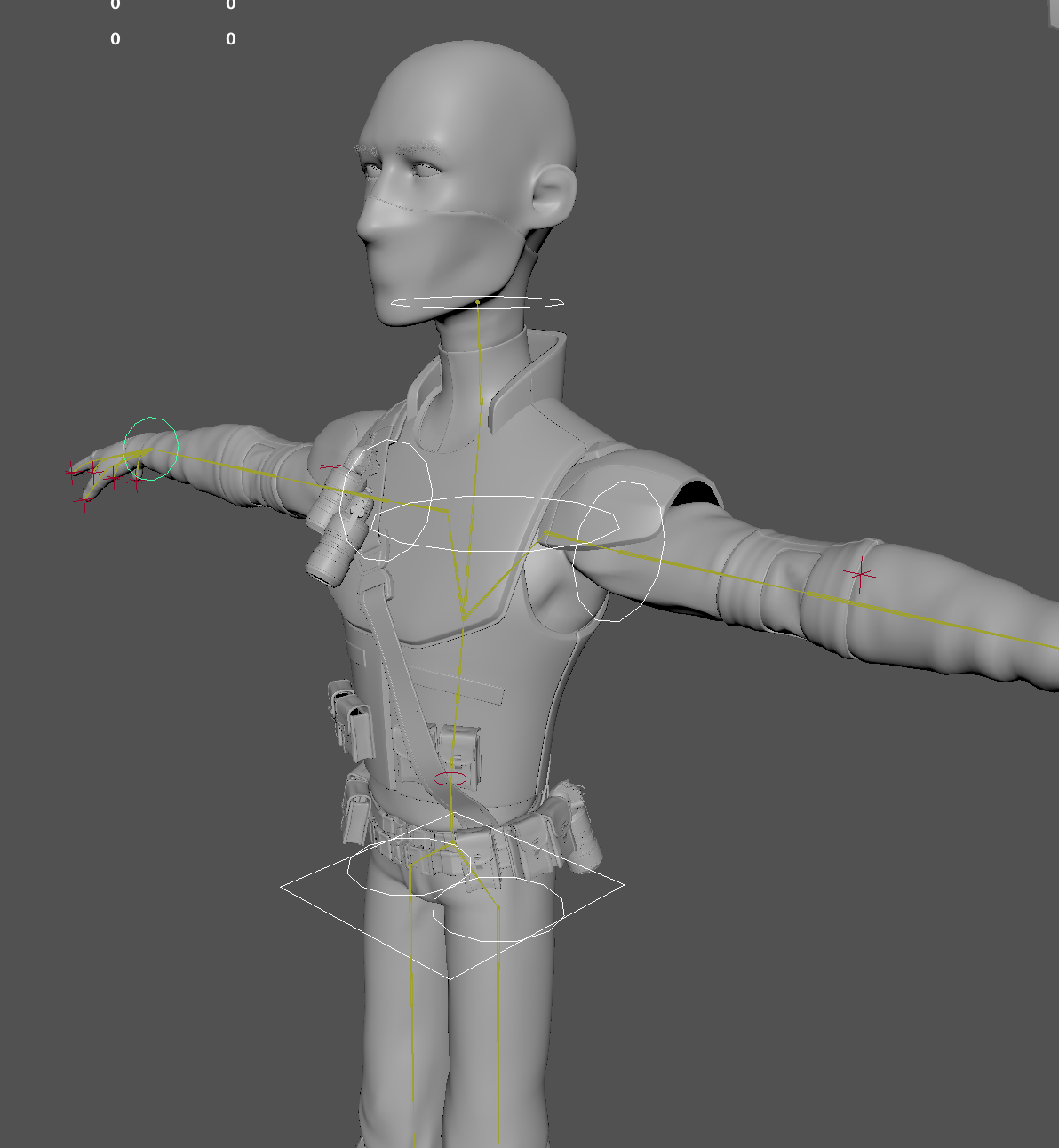

Remove curves and vertex without polygon, rig controls and etc.

⁠

Update skin influences to be normal joints as needed.

Select rig and export selected to FBX format. Geometry, materials, skeleton and skinning only, with locked normals, no animation, see below.

Re-import FBX, test skinning and materials.

Record tags in Info.json, see below

Record characterType, rigOrientation, meshBounds, meshCount, vertexCount, faceCount in Info.json, see below.

Rename

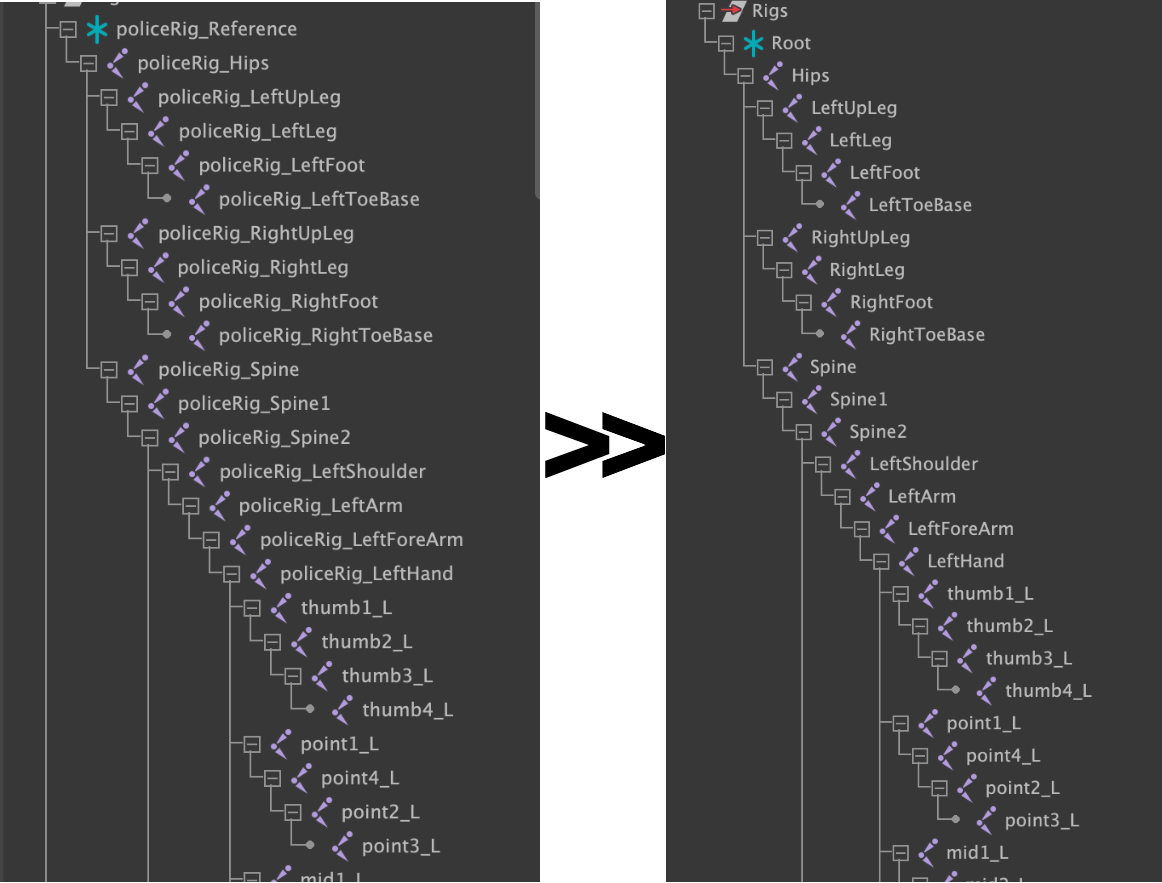

Bones names should be standardized to match HumanIK.

⁠

https://help.autodesk.com/view/MAYALT/2015/ENU/?guid=GUID-5DEFC6E5-033C-45D5-9A0E-224E7A35131B⁠

Multiples of the same joint can be numbered sequentially, eg LeftShoulderExtra2

Bones that don’t fit into the standard should be named descriptively with an added “Other” suffix, eg BellyButtonOther

⁠

Record boneCount, shoulderBindAngle, wristBindAngle in Info.json, see below.

Reduce

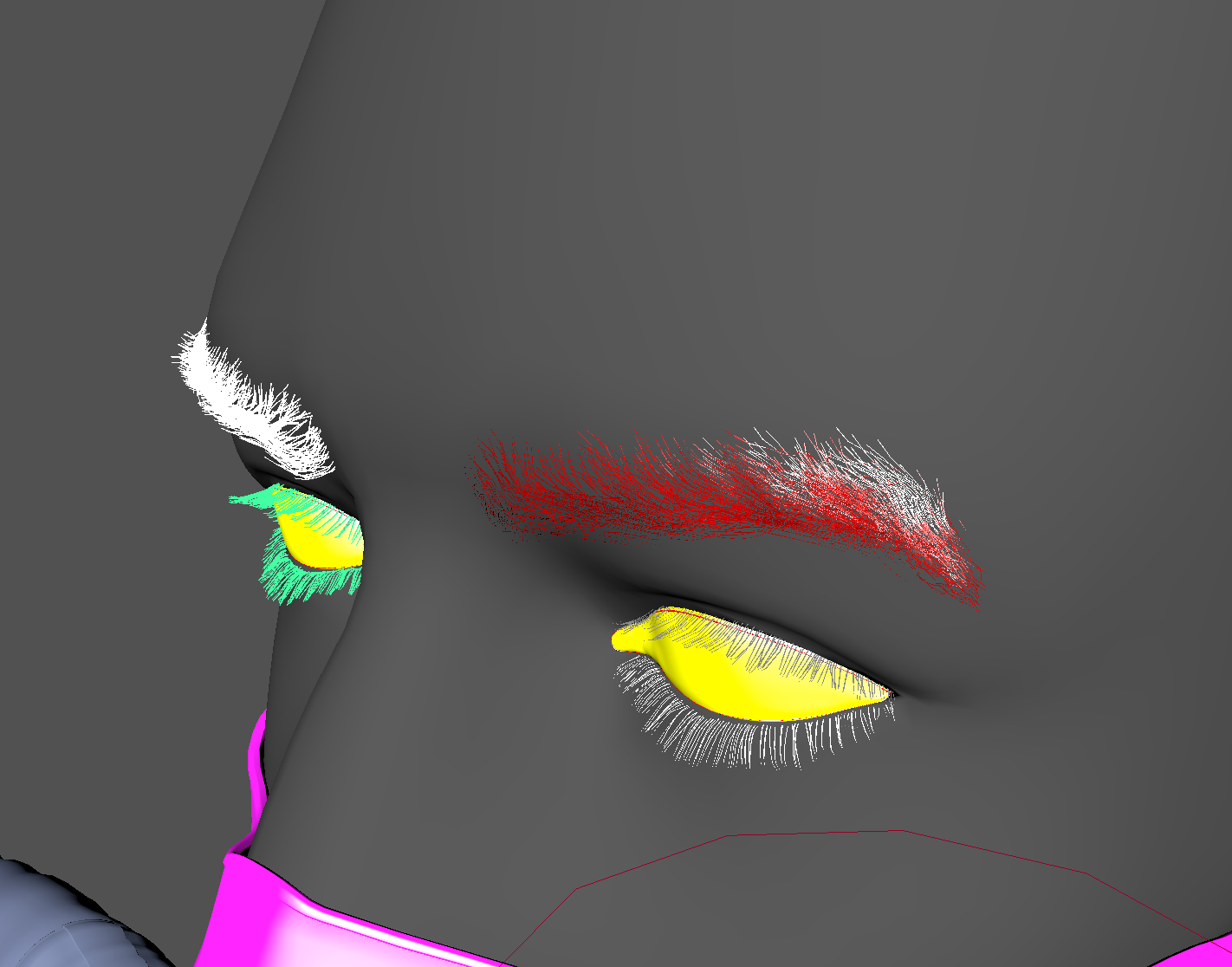

Delete removable accessories and small parts.

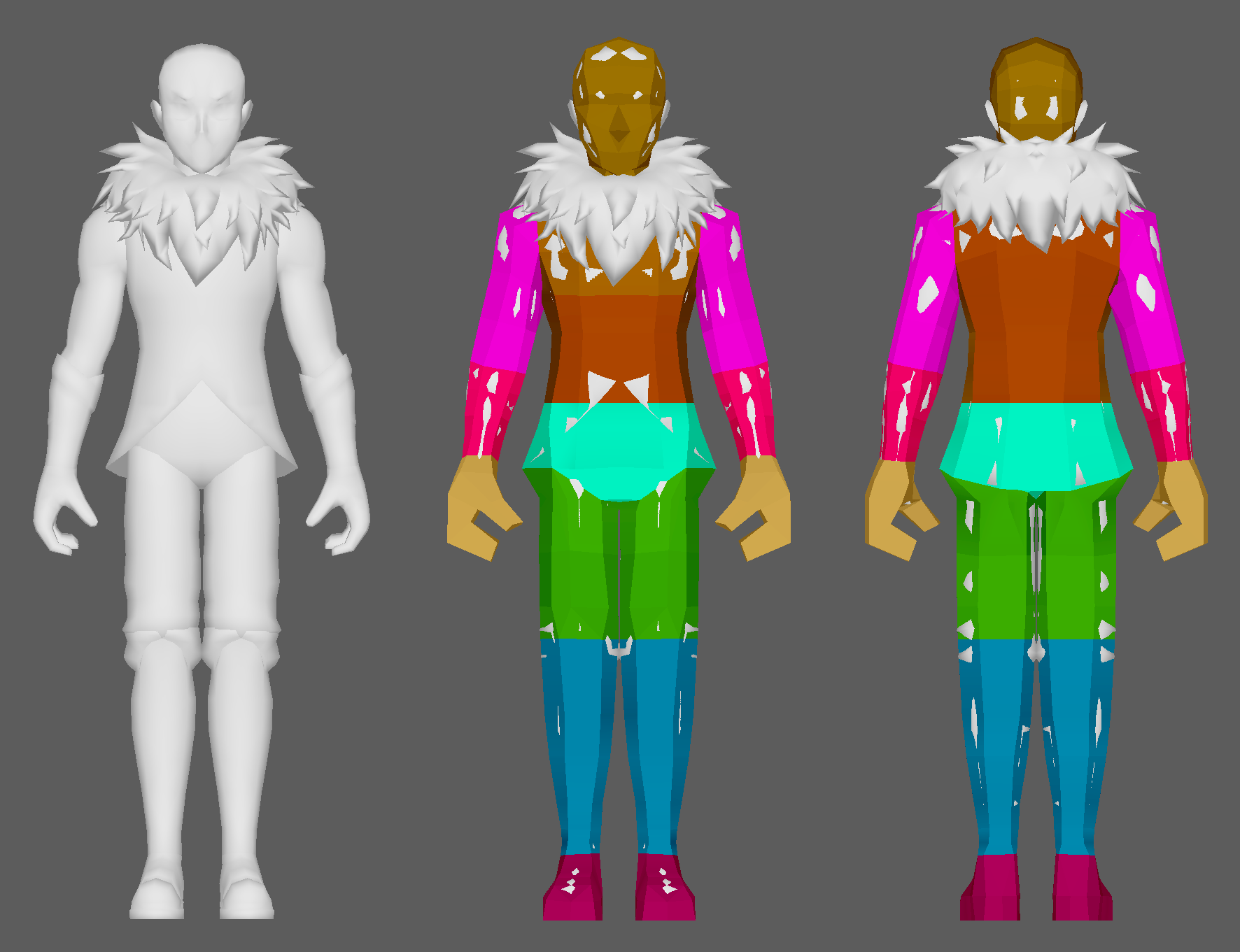

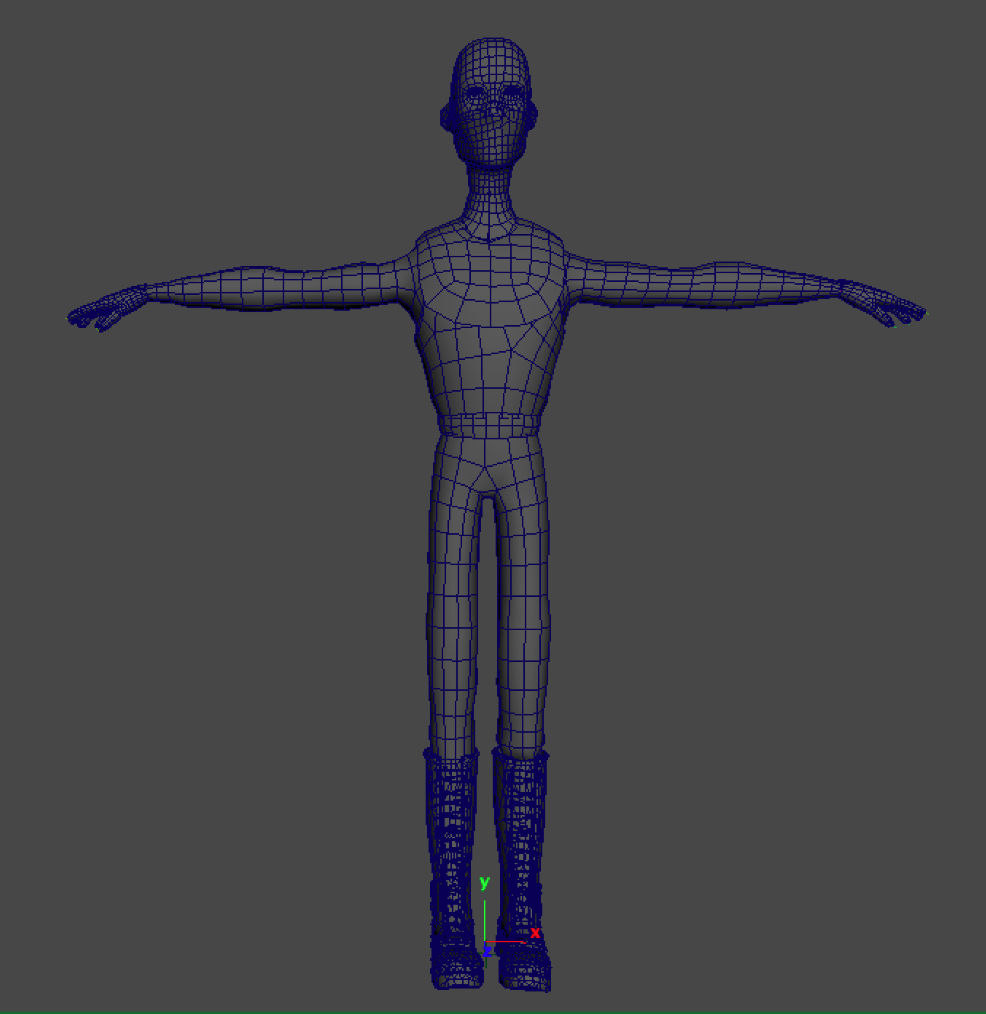

Reduce mesh to 10k max total face count.

Transferred skinning to reduced meshes.

⁠

Record reducedMeshCount, reducedVertCount, reducedFaceCount in Info.json, see below.

Normalize

All meshes merged into a single mesh.

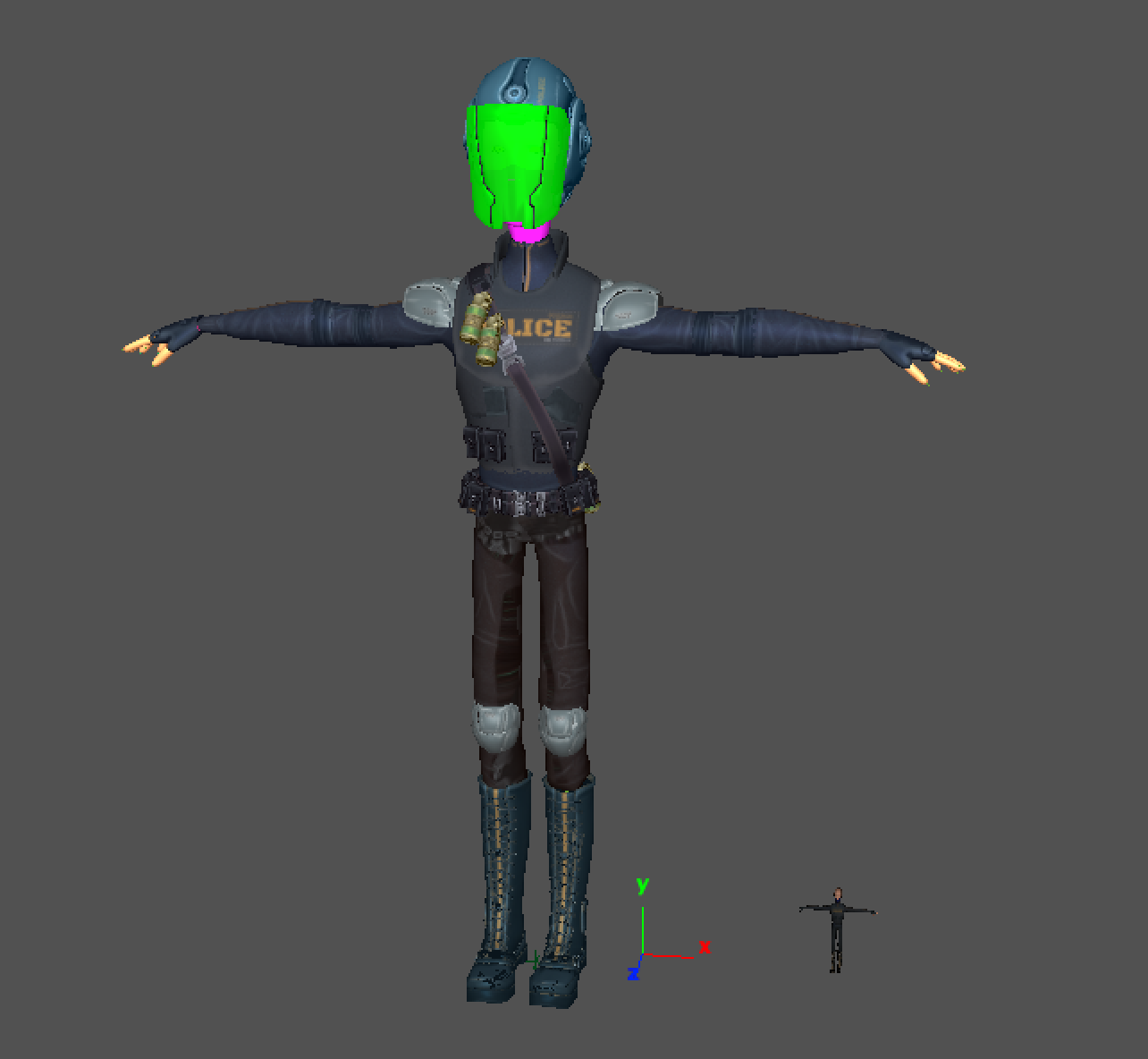

Orient the rig facing forward +Z and up +Y, right-hand coordinates.

Position feet at the origin and normalize the scale of the rig to 1 unit tall.

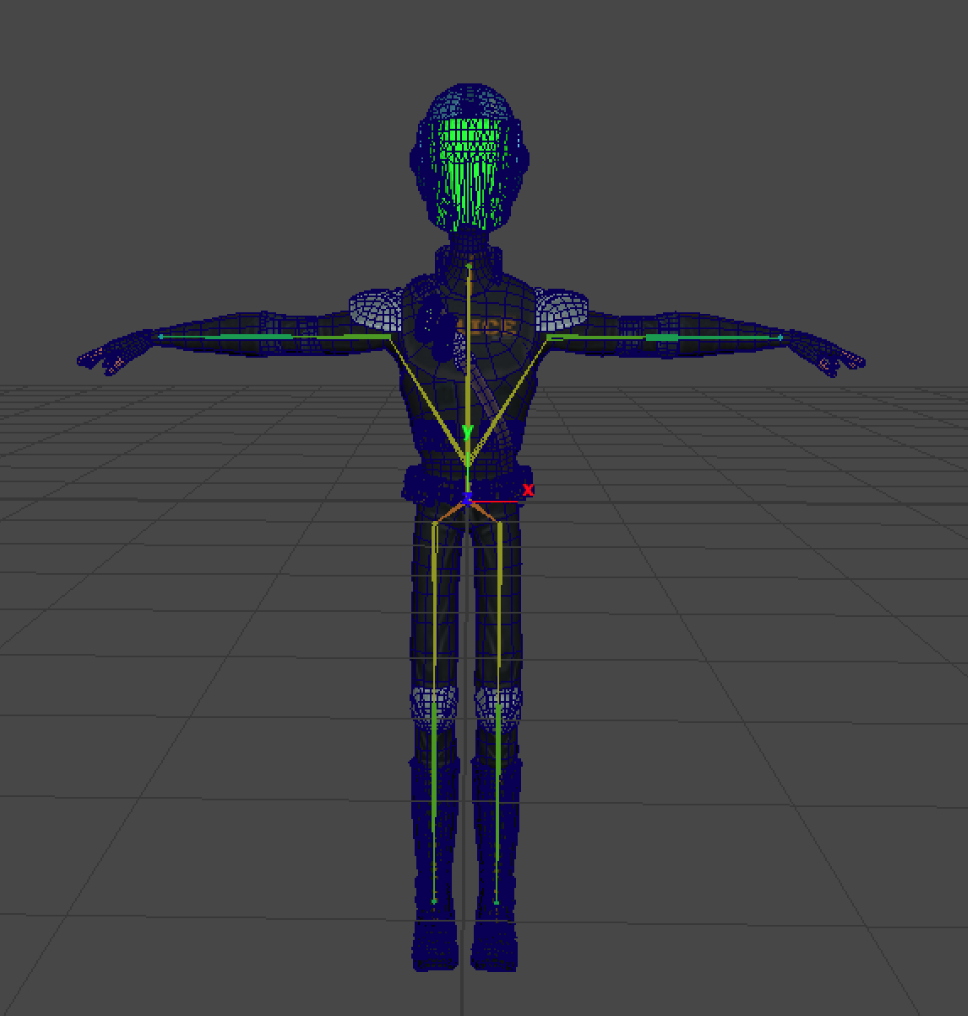

Move all skinning weights to the 15, R15 equivalent, HumanIK bones:

Hips

Spine (joint closest to middle of back)

Head

Left/RightArm

Left/RightForeArm

Left/RightHand

Left/RightUpLeg

Left/RightLeg

Left/RightFoot

Weight from other bones should be moved up the DAG(hierarchy) to the first parent from the above list.

Twist bone weights may need to be moved to their driving bone first, if they are not parented.

Rename and regroup DAG(hierarchy) to Roblox standard.

⁠

Roblox preparation

Position bellybutton at the origin.

⁠

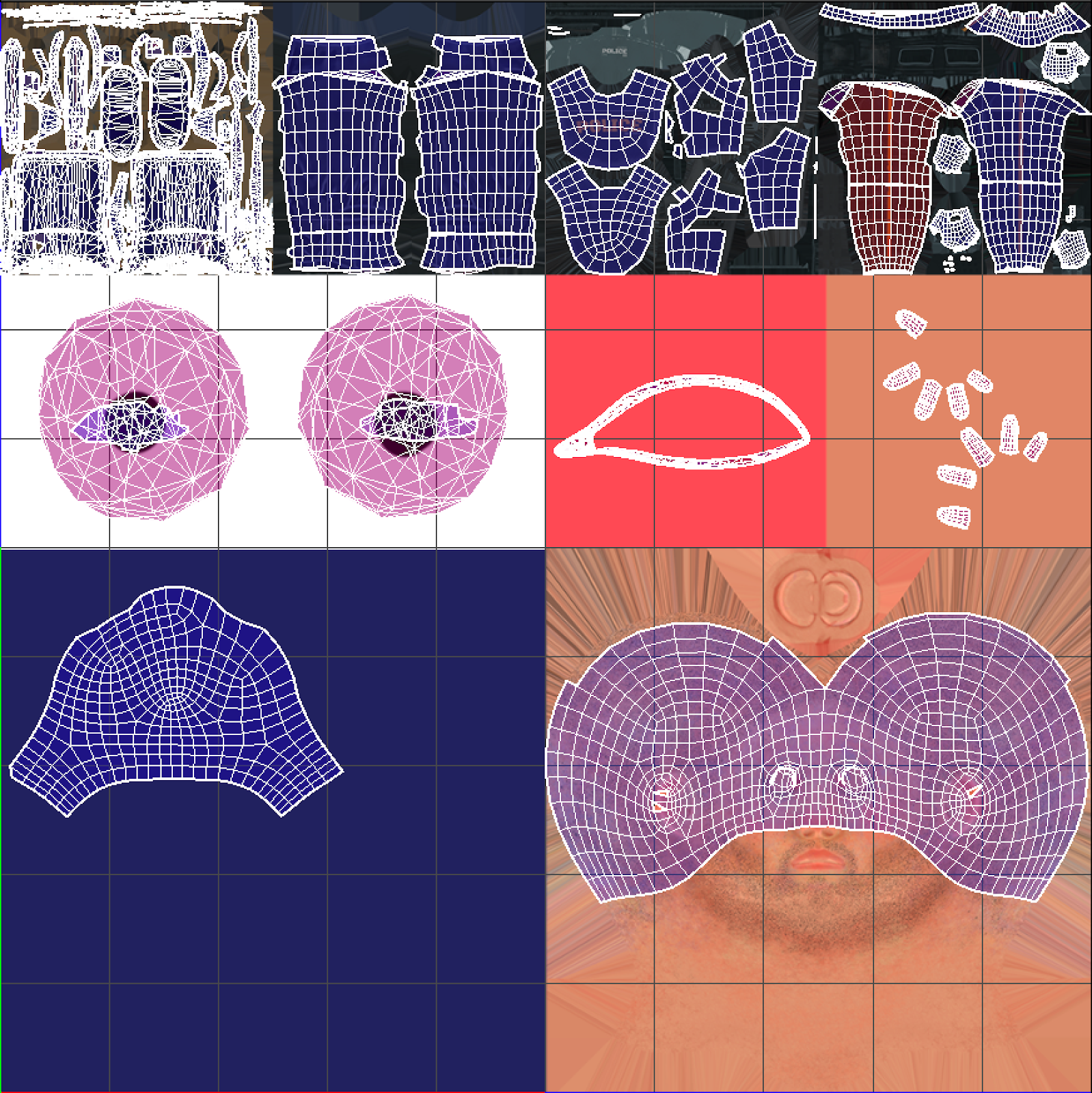

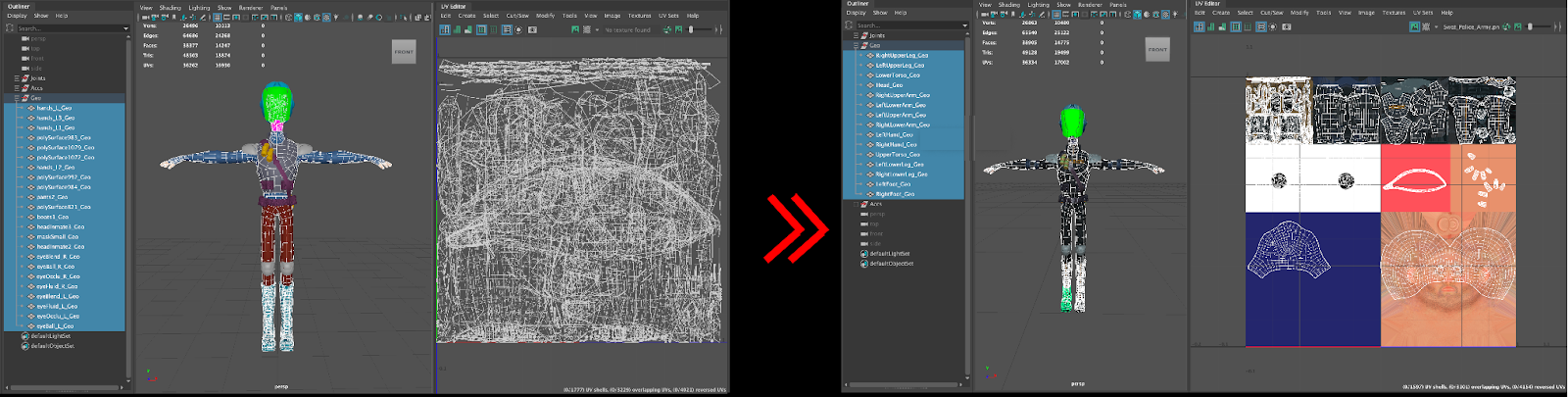

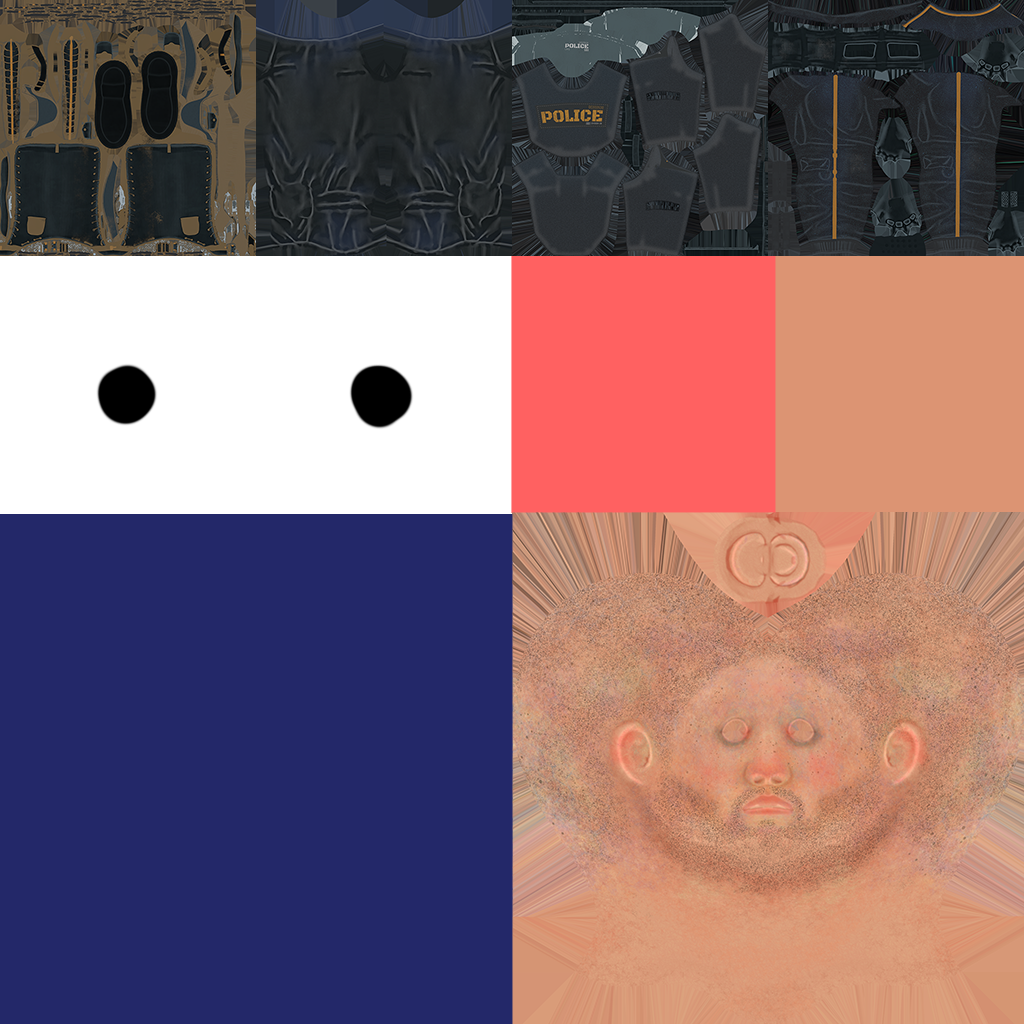

Textures should be merged into one 1024x1024 jpg image file, with UVs merged and normalized (1-0)

⁠

Cages creation

⁠

(Roblox) Layered Clothing Cage Creation for Avatars⁠

⁠

Cages should be exported as separate FBX files.

⁠

Deliverables

Files:

An avatar prepared for Roblox and its cage should be exported as separate FBX files:

Character.fbx (main model)

Outer.fbx (cage)

Avatar textures should be in JPG file format, and placed in textures Folder.

Screenshots of the avatar front and back view (with wireframe and without wireframe) should be placed in Screenshots folder. For Outer.fbx file screenshot should contain an avatar + cage, so intersections between avatar and cage will be visible (if those exist).

Json file should be placed in Roblox folder. Json file should contain metadata presented below.

Folder Structure:

└── CharacterName/

├── Roblox/

│ ├── Character.fbx //Final FBX file

│ ├── Textures/

│ │ ├── texture_1.jpg

│ │ ├── texture_2.jpg

│ │ └── Etc

│ ├── Screenshots/

│ │ ├── FrontTexture.png

│ │ ├── FrontWire.png

│ │ └── Etc

│ └── Info.json

└── Cages/

├── Outer.fbx //Cage file

└── Screenshots/

├── FrontTexture.png

├── FrontWire.png

└── Etc

Info.json Metadata File:

tags // List of categories or tags from the original asset.

string[]

characterType // Best guess.

string

human

creature

robot

toon

anime

other

sourceDCC // The DCC used to create the asset.

string

maya

blender

3dsmax

mixamo

...

unknown

rigOrientation // Recorded as the character’s Front, Left, Up directions with sign.

char[6] // Eg, “+Z+X+Y” is facing forward in +Z with +Y up.

meshBounds // Cumulative bounds of all visible meshes.

float[3] minXYZ

float[3] maxXYZ

meshCount // Number of meshes.

int

vertexCount // Total number of mesh vertices.

int

faceCount // Total number of mesh faces.

int

boneCount // Total number of skinned bones.

int

shoulderBindAngle // Angle between upper arm and Y axis. 0 is arms straight down, 90 is arms parallel to the ground.

Float

wristBindAngle // Angle between thumb direction and Z axis. O is palms pointed down or in, 90 is palms pointed forward.

Float

reducedMeshCount // Total number of meshes after reduction.

int

reducedVertCount // Total number of mesh vertices after reduction.

int

reducedFaceCount // Total number of mesh faces after reduction.

int

Json Example:

{

"tags" : [

"human", "low_poly", "character"

"characterType" : "human",

"sourceDCC" : "blender",

"rigOrientation" : "+Z+X+Y",

"meshBounds" : {

"minXYZ": [

-10.0, -10.0, -10.0

"maxXYZ" : [

10.0, 10.0, 10.0

]

"meshCount": 1,

"vertexCount": 9000,

"faceCount" : 8000,

"boneCount" : 15,

"shoulderBindAngle" : 20.5,

"wristBindAngle" : 10.5,

"reducedMeshCount" : 1,

"reducedVertCount" : 6000,

"reducedFaceCount" : 5000

}

Additional information

Not Acceptable: Large, non-removable accessories

⁠

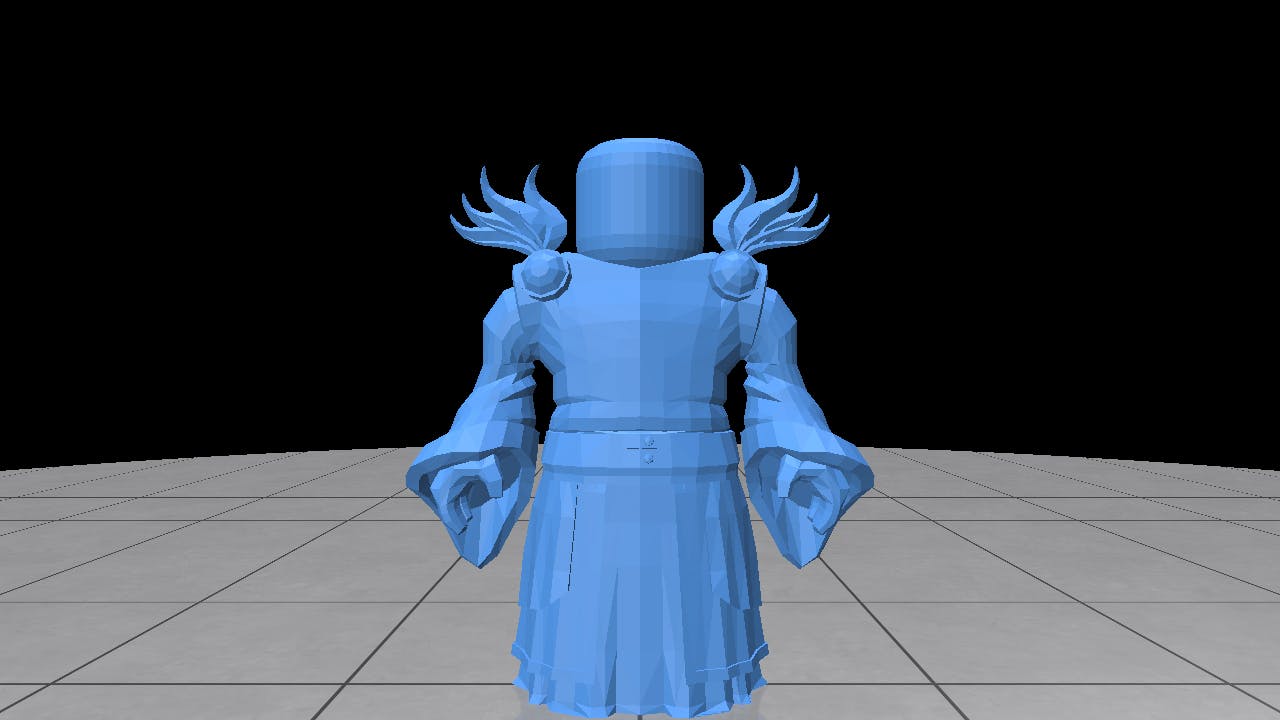

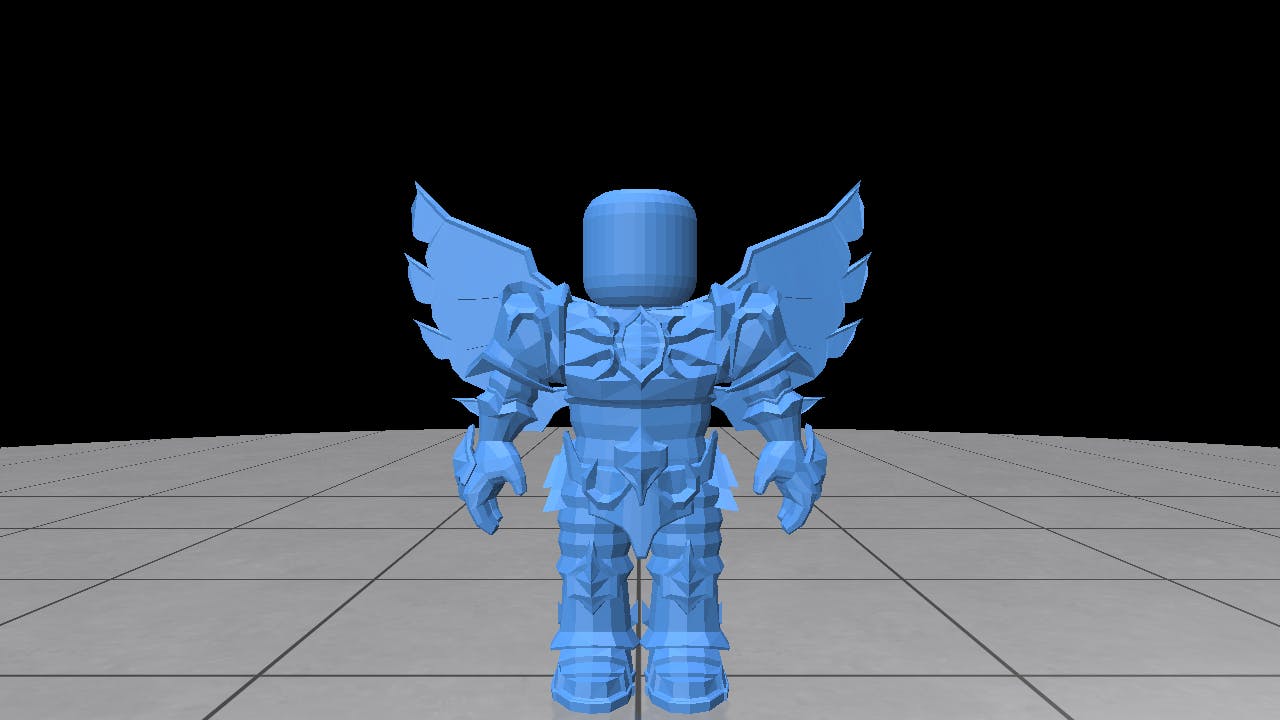

If the wings and body are from a single mesh, then it is a large, non-removable accessory and should be rejected. If the wings are separated mesh that can be easily removed from the body, then it can be accepted. The same applies to the tails, weapons in the hands, etc.

⁠
⁠
⁠
⁠
⁠

If there is no body mesh beneath the dress and the dress cannot be removed, then it should be rejected
