GNN Examples

icon picker
Step-by-Step

Examples of GNN below in are drawn from the paper by
“A step-by-step tutorial on active inference and its application to empirical data” Journal of Mathematical Psychology,

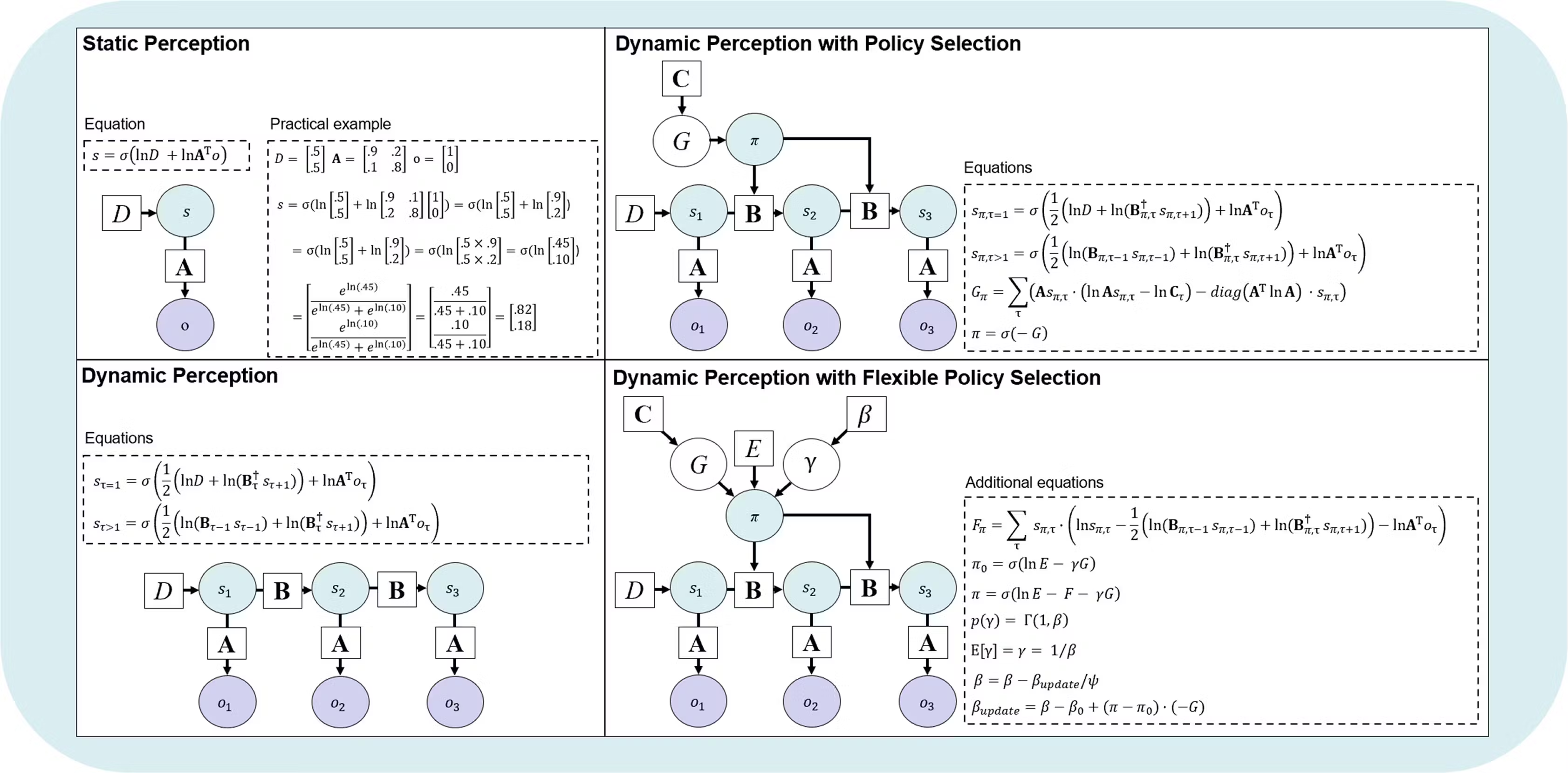

Fig. 5. Bayesian network representations of state estimation (perception) and policy selection.
GNN examples ~ Step-by-Step
Not synced yet
GNN Section
Static Perception
Dynamic Perception
Dynamic Perception with Policy Selection
Dynamic Perception with Flexible Policy Selection
Policy
1
Image from paper
Dynamic Perception is a method for robot navigation that uses visual perception to detect changes in the environment. Dynamic Perception with Policy Selection is an extension of this method that also incorporates a decision-making process to select the best action based on the detected changes.
2
GNN version and flags
## LanGauge v1
## LanGauge v1
## LanGauge v1
## LanGauge v1
The instructions provide two identical links to the same language version of Dynamic Perception, so it is unclear what the difference between the two options is. Please provide more information or clarify the instructions.
3
Model name
# Static perception v1
# Dynamic perception v1
# Dynamic perception with Policy Selection v1
# Dynamic perception with Flexible Policy Selection v1
The main difference between [Dynamic Perception] and [Dynamic Perception with Policy Selection] is that the latter incorporates a policy selection mechanism, which allows for more efficient decision-making in dynamic environments.
4
Model annotation
## Model annotations Static Perception Simple Snapshot This model relates a single hidden state, to a single observable modality. It is a static model.
## Model annotations Dynamic Perception This model relates a single hidden state, to a single observable modality. It is a dynamic model because it tracks changes in the hidden state through time.
## Model annotations Dynamic Perception Action Variational Free Energy This model relates a single hidden state, to a single observable modality. It is a dynamic model because it tracks changes in the hidden state through time. There is Action applied via pi.
## Model annotations Dynamic Perception Action Variational Free Energy This model relates a single hidden state, to a single observable modality. It is a dynamic model because it tracks changes in the hidden state through time. There is Action applied via pi, and uncertainty about action via the beta parameter.
The main difference between Dynamic Perception and Dynamic Perception with Policy Selection is the addition of Action and Variational Free Energy in the latter model. Both models relate a single hidden state to a single observable modality and track changes in the hidden state through time.
5
State space block
## State space block D[2,1,type=float] s[2,1,type=float] A[2,2,type=float] o[2,1,type=float]
## State space block D[2,1,type=float] B[2,1,type=float] s_t[2,1,type=float] A[2,2,type=float] o_t[2,1,type=float] t[1,type=int]
## State space block A[2,2,type=float] D[2,1,type=float] B[2,len(π), 1,type=float] π=[2] C=[2,1] G=len(π) s_t[2,1,type=float] o_t[2,1,type=float] t[1,type=int]
## State space block A[2,2,type=float] D[2,1,type=float] B[2,len(π),1,type=float] π=[2] C=[2,1] G=len(π) s_t[2,1,type=float] o_t[2,1,type=float] t[1,type=int]
The main difference between [Dynamic Perception] and [Dynamic Perception with Policy Selection] is that the latter includes a policy selection component, which involves the use of a policy function to select actions based on the current state of the system. Additionally, [Dynamic Perception with Policy Selection] has a more complex state space block that includes additional variables such as π, C, and G.
6
Connections
## Connections among variables D-s s-A A-o
## Connections among variables D-s_t s_t-A A-o s_t-B B-s_t+1
## Connections among variables D-s_t s_t-A A-o s_t-B B-s_t+1 C>G G>π
## Connections among variables D-s_t s_t-A A-o s_t-B B-s_t+1 C>G G>π E>π β-γ γ>π
The main difference between [Dynamic Perception] and [Dynamic Perception with Policy Selection] is that the latter includes additional connections among variables involving C, G, and π.
7
Initial parameterization
## Initial Parameterization
D={0.5,0.5}
o={1,0}
## Initial Parameterization
## Initial Parameterization
## Initial Parameterization


The only difference between [Dynamic Perception] and [Dynamic Perception with Policy Selection] seems to be the title of their initial parameterization section.
8
Equations
## Equations \text{softmax}(\ln(D)+\ln(\mathbf{A}^\top o))
## Equations s_{tau=1}=softmax((1/2)(ln(D)+ln(B^dagger_tau*s_{tau+1})+ln(trans(A)o_tau) s_{tau>1}=softmax((1/2)(ln(D)+ln(B^dagger_tau*s_{tau+1})+ln(trans(A)o_tau)
## Equations
s_{pi, tau=1}=sigma((1/2)(lnD+ln(B^dagger_{pi, tau}s_{pi, tau+1}))+lnA^T*o_tau)

s_{pi, tau>1}=sigma((1/2)(ln(B_{pi, tau-1}s_{pi, tau-1})+ln(B^dagger_{pi, tau}s_{pi, tau+1}))+lnA^T*o_tau)

G_pi=sum_tau(A*s_{pi, tau}*(ln(A*s_{pi, tau})-lnC_tau)-diag(A^TlnA)*s_{pi, tau})

pi=sigma(-G)
## Equations
F_pi = sum_tau (s_{pi, tau} * (ln(s_{pi, tau}) - (1/2)*(ln(B_{pi, tau-1}s_{pi, tau-1}) + ln(B^dagger_{pi, tau}s_{pi, tau+1})) - A^T*o_tau))

pi_0=sigma(lnE-gamma*G)

pi=sigma(lnE-F-gamma*G)

p(gamma)=Gamma(1,beta)

E[gamma]=gamma=1/beta

beta=beta-beta_{update}/psi

beta_{update}=beta-beta_0+(pi-pi_0)*(-G)
The main difference between [Dynamic Perception] and [Dynamic Perception with Policy Selection] is that the latter includes a policy selection component, which involves a function for selecting an optimal policy for a given task. This is reflected in the updated equations for s_{pi, tau=1} and s_{pi, tau>1}, as well as the inclusion of the additional term G_pi and the final policy calculation pi=sigma(-G).
9
Time
## Time Static
## Time Dynamic s_t=DiscreteTime ModelTimeHorizon=Unbounded
## Time Dynamic s_t=DiscreteTime ModelTimeHorizon=Unbounded
## Time Dynamic s_t=DiscreteTime ModelTimeHorizon=Unbounded
The instructions do not provide enough information to differentiate between [Dynamic Perception] and [Dynamic Perception with Policy Selection]. The given text for both options appears to be identical. Please provide additional information or clarification.
10
ActInf Ontology annotation
## Active Inference Ontology A=RecognitionMatrix D=Prior s=HiddenState o=Observation
## Active Inference Ontology A=RecognitionMatrix B=TransitionMatrix D=Prior s=HiddenState o=Observation t=Time
## Active Inference Ontology A=RecognitionMatrix B=TransitionMatrix C=Preference D=Prior G=ExpectedFreeEnergy s=HiddenState o=Observation π=PolicyVector t=Time
## Active Inference Ontology A=RecognitionMatrix B=TransitionMatrix C=Preference D=Prior E=Prior on Action G=ExpectedFreeEnergy s=HiddenState o=Observation π=PolicyVector t=Time
The main difference between [Dynamic Perception] and [Dynamic Perception with Policy Selection] is the inclusion of a Preference matrix (C) and a Policy Vector (π) in the latter. These additions allow for the selection of a specific policy to be used in decision-making, whereas Dynamic Perception alone does not include this feature.
11
Footer
# Static perception v1
# Dynamic perception v1
# Dynamic perception with Policy Selection v1
The main difference between Dynamic Perception and Dynamic Perception with Policy Selection is that the latter includes a policy selection mechanism.
12
Signature
There are no rows in this table
